Parts for G0520 - 16" Drill Press w/ Cross Sliding Table & Power Feed

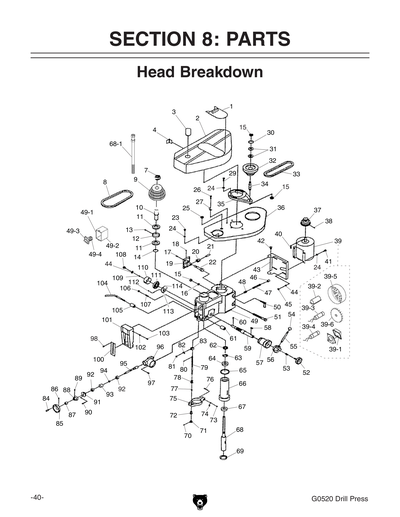

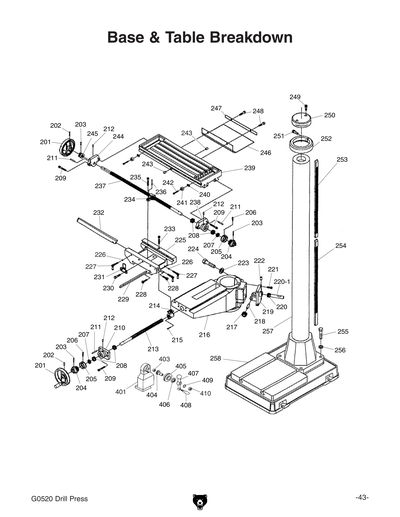

Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520
Part Diagram for G0520

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

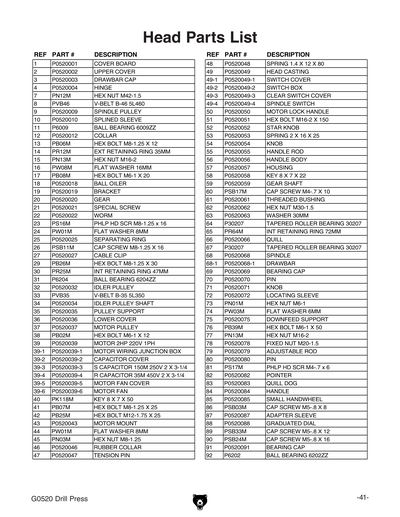

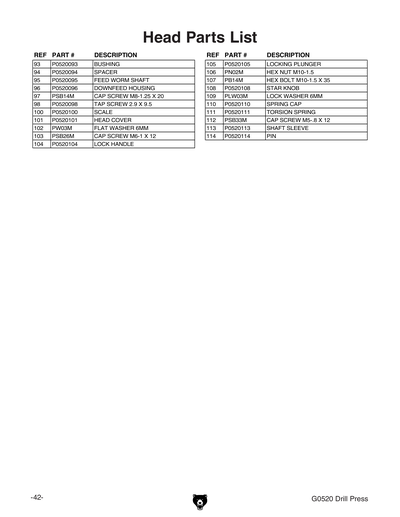

Ref #
Part #
Description
1
*DISCD*COVER BOARD
Price
$8.05
2
*DISCD*UPPER COVER
Price
$325.45
3
*DISCD*DRAWBAR CAP
Item is no longer available
Price
N/A
4
*DISCD*HINGE
Item is no longer available
Price
N/A
5
*DISCD*TRADEMARK
Item is no longer available
Price
N/A
6
*DISCD*RIVET
Item is no longer available
Price
N/A
7
HEX NUT M42-1.5
Price
N/A
8
V-BELT B46
Price
N/A
9
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
10
*DISCD*SPLINED SLEEVE
Item is no longer available
Price
N/A
11
BALL BEARING 6009ZZ
Price
N/A
12
*DISCD*COLLAR
Item is no longer available
Price
N/A
13
HEX BOLT M8-1.25 X 12
Price
N/A
14
EXT RETAINING RING 35MM
Price
N/A
15
HEX NUT M16-2
Price
N/A
16
FLAT WASHER 16MM
Price
N/A
17
HEX BOLT M6-1 X 20
Price
N/A
18
*DISCD*BALL OILER
Price
$1.49
19
*DISCD*BRACKET
Price
$31.65
20
*DISCD*GEAR
Price
$13.55
21
*DISCD*SPECIAL SCREW
Item is no longer available
Price
N/A
22
*DISCD*WORM
Price
$23.90
23
PHLP HD SCR M8-1.25 X 16
Price
N/A
24
FLAT WASHER 8MM
Price
N/A
25
*DISCD*SEPARATING RING
Item is no longer available
Price
N/A
26
CAP SCREW M8-1.25 X 16
Price
N/A
27
*DISCD*CABLE CLIP
Item is no longer available
Price
N/A
28
*DISCD*WARNING BOARD
Item is no longer available
Price
N/A
29
HEX BOLT M8-1.25 X 30
Price
N/A
30
INT RETAINING RING 47MM
Price
N/A
31
BALL BEARING 6204ZZ
Price
N/A
32
*DISCD*IDLER PULLEY
Item is no longer available
Price
N/A
33
V-BELT B35
Price
N/A
34
*DISCD*IDLER PULLEY SHAFT
Item is no longer available
Price
N/A
35
*DISCD*PULLEY SUPPORT
Item is no longer available
Price
N/A
36
*DISCD*COVER LOWER
Item is no longer available
Price
N/A
37
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
38
HEX BOLT M6-1 X 12
Price
N/A
39
*DISCD*MOTOR 2HP 1PH 220V
Item is no longer available
Price
N/A
39-1
*DISCD*MOTOR WIRING JUNCTION BOX
Price
$16.10
39-2
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
39-3
*DISCD*S CAPACITOR 150M 250V 2 X 3-1/4
Item is no longer available
Price
N/A
39-4
*DISCD*R CAPACITOR 35M 450V 2 X 3-1/4
Item is no longer available
Price
N/A
39-5
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
39-6
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
40
KEY 8 X 7 X 50
Price
N/A
41
HEX BOLT M8-1.25 X 25
Price
N/A
42
HEX BOLT M12-1.75 X 25
Price
N/A
43
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
44
FLAT WASHER 8MM
Price
N/A
45
HEX NUT M8-1.25
Price
N/A
46
*DISCD*RUBBER COLLAR
Item is no longer available
Price
N/A
47
*DISCD*TENSION PIN
Item is no longer available
Price
N/A
48
*DISCD*SPRING 1.4 X 12 X 80
Item is no longer available
Price
N/A
49
*DISCD*HEAD CASTING
Item is no longer available
Price
N/A
49-1
*DISCD*SWITCH COVER
Price
$8.05
49-2
*DISCD*SWITCH BOX
Price
$23.90
49-3
*DISCD*CLEAR SWITCH COVER
Price
$3.20
49-4
*DISCD*SPINDLE SWITCH
Item is no longer available
Price
N/A
50
*DISCD*MOTOR LOCK HANDLE
Item is no longer available
Price
N/A
51
*DISCD*HEX BOLT M16-2 X 150
Item is no longer available
Price
N/A
52
*DISCD*STAR KNOB
Item is no longer available
Price
N/A
53
*DISCD*SPRING 2 X 16 X 25
Price
$1.49
54
*DISCD*KNOB
Item is no longer available
Price
N/A
55
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
56
*DISCD*HANDLE BODY
Item is no longer available
Price
N/A
57
*DISCD*HOUSING
Item is no longer available
Price
N/A
58
*DISCD*KEY 8 X 7 X 22
Price
$1.49
59
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
60
CAP SCREW M4-.7 X 10
Price
N/A
61
*DISCD*THREADED BUSHING
Item is no longer available
Price
N/A
62
SPANNER NUT M30-1.5
Price
N/A
63
*DISCD*WASHER 30MM
Item is no longer available
Price
N/A
64
TAPERED ROLLER BEARING 30207
Price
N/A
65
INT RETAINING RING 72MM
Price
N/A
66
*DISCD*QUILL
Item is no longer available
Price
N/A
67
TAPERED ROLLER BEARING 30207
Price
N/A
68
*DISCD*SPINDLE
Price
$165.60
68-1
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
69
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
70
*DISCD*PIN
Item is no longer available
Price
N/A
71
*DISCD*KNOB
Item is no longer available
Price
N/A
72
*DISCD*LOCATING SLEEVE
Item is no longer available
Price
N/A
73
HEX NUT M6-1
Price
N/A
74
FLAT WASHER 6MM
Price
N/A
75
*DISCD*DOWNFEED SUPPORT
Item is no longer available
Price
N/A
76
HEX BOLT M6-1 X 50
Price
N/A
77
HEX NUT M16-2
Price
N/A
78
*DISCD*FIXED NUT M20-1.5
Item is no longer available
Price
N/A
79
*DISCD*ADJUSTABLE ROD
Item is no longer available
Price
N/A
80
*DISCD*PIN
Item is no longer available
Price
N/A
81
PHLP HD SCR M4-.7 X 6
Price
N/A
82
*DISCD*POINTER
Item is no longer available
Price
N/A
83
*DISCD*QUILL DOG
Item is no longer available
Price
N/A
84
*DISCD*HANDLE
Item is no longer available
Price
N/A
85
*DISCD*HANDWHEEL SMALL
Price
$16.70
86
CAP SCREW M5-.8 X 8
Price
N/A
87
*DISCD*ADAPTER SLEEVE
Item is no longer available
Price
N/A
88
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
89
CAP SCREW M5-.8 X 12
Price
N/A
90
CAP SCREW M5-.8 X 16
Price
N/A
91
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
92
BALL BEARING 6202ZZ
Price
N/A
93
*DISCD*BUSHING
Item is no longer available
Price
N/A
94
*DISCD*SPACER
Item is no longer available
Price
N/A
95
*DISCD*FEED WORM SHAFT
Item is no longer available
Price
N/A
96
*DISCD*DOWNFEED HOUSING
Item is no longer available
Price
N/A
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
*DISCD*TAP SCREW 2.9 X 9.5
Item is no longer available
Price
N/A
99
*DISCD*NAME PLATE
Price
$4.90
100
*DISCD*SCALE
Price
$16.10
101
*DISCD*HEAD COVER
Price
$16.10
102
FLAT WASHER 6MM
Price
N/A
103
CAP SCREW M6-1 X 12
Price
N/A
104
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
105
*DISCD*LOCK PLUNGER
Item is no longer available
Price
N/A
106
HEX NUT M10-1.5
Price
N/A
107
HEX BOLT M10-1.5 X 35
Price
N/A
108
*DISCD*STAR KNOB
Item is no longer available
Price
N/A
109
LOCK WASHER 6MM
Price
N/A
110
*DISCD*SPRING CAP
Item is no longer available
Price
N/A
111
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
112
CAP SCREW M5-.8 X 12
Price
N/A
113
*DISCD*SHAFT SLEEVE
Price
$19.00
114
*DISCD*PIN
Item is no longer available
Price
N/A

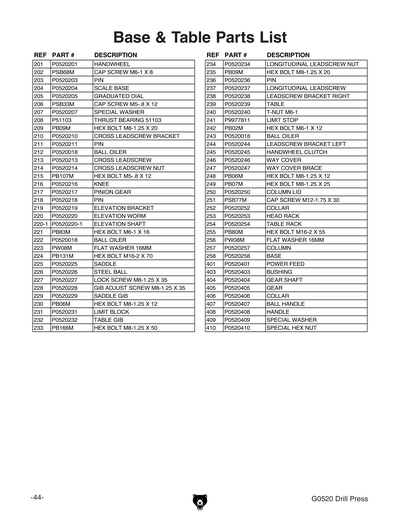

201
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
202
CAP SCREW M6-1 X 8
Price
N/A
203
*DISCD*PIN
Item is no longer available
Price
N/A
204
*DISCD*SCALE BASE
Item is no longer available
Price
N/A
205
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
206
CAP SCREW M5-.8 X 12
Price
N/A
207
*DISCD*SPECIAL WASHER
Item is no longer available
Price
N/A
208
THRUST BEARING 51103
Price
N/A
209
HEX BOLT M8-1.25 X 20
Price
N/A
210
*DISCD*CROSS FEED LEADSCREW BRACKET
Item is no longer available
Price
N/A
211
*DISCD*PIN
Item is no longer available
Price
N/A
212
*DISCD*BALL OILER
Price
N/A
213
*DISCD*CROSS FEED LEADSCREW
Item is no longer available
Price
N/A
214
*DISCD*CROSS FEED LEADSCREW NUT
Item is no longer available
Price
N/A
215
HEX BOLT M5-.8 X 12
Price
N/A
216
*DISCD*KNEE
Price
$661.55
217
*DISCD*PINION GEAR
Item is no longer available
Price
N/A
218
*DISCD*PIN
Item is no longer available
Price
N/A
219
*DISCD*ELEVATION BRACKET
Item is no longer available
Price
N/A
220
*DISCD*ELEVATION WORM
Item is no longer available
Price
N/A
220-1
*DISCD*ELEVATION SHAFT
Price
$23.90
221
HEX BOLT M6-1 X 16
Price
N/A
222
*DISCD*BALL OILER
Price
N/A
223
FLAT WASHER 16MM
Price
N/A
224
HEX BOLT M16-2 X 70
Price
N/A
225
*DISCD*SADDLE
Item is no longer available
Price
N/A
226
*DISCD*STEEL BALL
Item is no longer available
Price
N/A
227
*DISCD*LOCK SCREW M8-1.25 X 35
Item is no longer available
Price
N/A
228
*DISCD*GIB ADJUSTING SCR M8-1.25 X 35
Item is no longer available
Price
N/A
229
*DISCD*SADDLE GIB
Item is no longer available
Price
N/A
230
HEX BOLT M8-1.25 X 12
Price
N/A
231
*DISCD*LIMIT BLOCK
Item is no longer available
Price
N/A
232
*DISCD*TABLE GIB
Item is no longer available
Price
N/A
233
HEX BOLT M8-1.25 X 50
Price
N/A
234
*DISCD*LONGITUDINAL LEADSCREW NUT
Item is no longer available
Price
N/A
235
HEX BOLT M8-1.25 X 20
Price
N/A
236
*DISCD*PIN
Item is no longer available
Price
N/A
237
*DISCD*LONGITUDINAL LEADSCREW
Price
$211.60
238
*DISCD*LEADSCREW BRACKET RIGHT
Item is no longer available
Price
N/A
239
*DISCD*TABLE
Item is no longer available
Price
N/A
240
*DISCD*T-NUT M6-1
Item is no longer available
Price
N/A
241
*DISCD*STOP W/PLUNGER
Price
N/A
242
HEX BOLT M6-1 X 12
Price
N/A
243
*DISCD*BALL OILER
Price
N/A
244
*DISCD*LEADSCREW BRACKET LEFT
Item is no longer available
Price
N/A
245
*DISCD*HANDWHEEL CLUTCH
Item is no longer available
Price
N/A
246
*DISCD*WAY COVER
Item is no longer available
Price
N/A
247
*DISCD*WAY COVER BRACE
Item is no longer available
Price
N/A
248
HEX BOLT M8-1.25 X 12
Price
N/A
249
HEX BOLT M8-1.25 X 25
Price
N/A
250
*DISCD*COLUMN LID
Item is no longer available
Price
N/A
251
CAP SCREW M12-1.75 X 30
Price
N/A
252
*DISCD*COLLAR
Price
$76.50
253
*DISCD*HEAD RACK
Price
$123.65
254
*DISCD*TABLE RACK
Item is no longer available
Price
N/A
255
HEX BOLT M16-2 X 55
Price
N/A
256
FLAT WASHER 16MM
Price
N/A
257
*DISCD*COLUMN
Item is no longer available
Price
N/A
258
*DISCD*BASE
Item is no longer available
Price
N/A

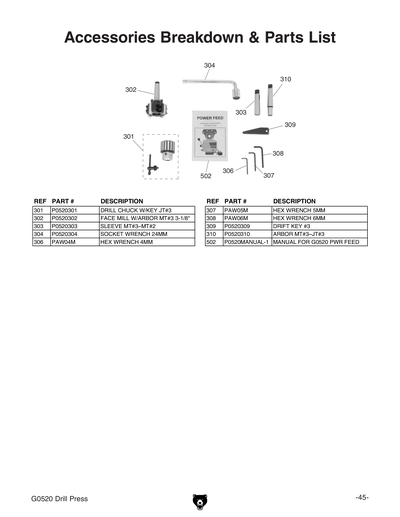

300
*DISCD*COMPLETE TOOLBOX
Item is no longer available
Price
N/A
301
*DISCD*DRILL CHUCK W/KEY JT#3
Item is no longer available
Price
N/A
302
*DISCD*FACE MILL W/ARBOR MT#3 3-1/8"
Price
$209.60
303
*DISCD*SLEEVE MT.3-MT.2 ADAPTER
Item is no longer available
Price
N/A
304
*DISCD*WRENCH SOCKET 24MM
Price
$29.05
305
*DISCD*T/B 24MM DOUBLE OPEN & SPANNER
Item is no longer available
Price
N/A
306
HEX WRENCH 4MM
Price
N/A
307
HEX WRENCH 5MM
Price
N/A
308
HEX WRENCH 6MM
Price
N/A
309
*DISCD*DRIFT KEY #3
Price
$8.05
310
*DISCD*DRILL CHUCK ARBOR MT3 X JT33, 128
Price
$59.80
311
*DISCD*T/B HANDLE OF SPINDLE HEAD
Item is no longer available
Price
N/A
400
*DISCD*ACCESSORY KIT
Item is no longer available
Price
N/A
401
*DISCD*POWER FEED
Price
$813.95
401-1
*DISCD*POWER FEED BUTTON COVER
Price
$31.95
402
*DISCD*POWER FEED SWITCH FWD/REV
Item is no longer available
Price
N/A
403
*DISCD*BUSHING
Item is no longer available
Price
N/A
404
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
405
*DISCD*GEAR
Price
$176.55
406
*DISCD*COLLAR
Item is no longer available
Price
N/A
407
*DISCD*BALL HANDLE
Item is no longer available
Price
N/A
408
*DISCD*HANDLE
Item is no longer available
Price
N/A
409
*DISCD*SPECIAL WASHER
Price
$1.49
410
*DISCD*SPECIAL HEX NUT
Price
$1.49

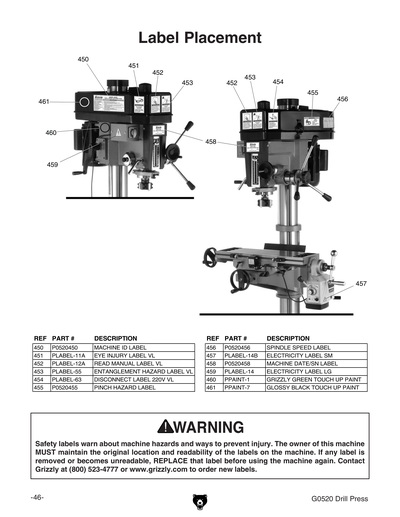

450
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
451
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
452
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
453
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
454
DISCONNECT 220V 2W X 3.3H
Price
N/A
455
*DISCD*PINCH HAZARD LABEL
Item is no longer available
Price
N/A
456
*DISCD*SPINDLE SPEED LABEL
Price
$1.00
457
ELECTRICITY 0.5W X 0.4H
Price
N/A
458
*DISCD*MACHINE DATE/SN LABEL
Price
$1.00
459
ELECTRICITY 1.4W X 1.2H
Price
N/A
460
N/S GRIZZLY GREEN G1023S
Price
N/A
461
GLOSSY BLACK
Price
N/A
MANUAL
*DISCD*MANUAL FOR G0520 09/08
Price
$13.25
MANUAL-1
*DISCD*MANUAL FOR G0520 PWR FEED
Item is no longer available
Price
N/A
