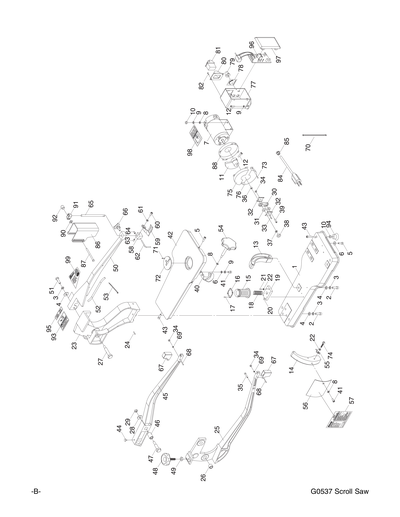

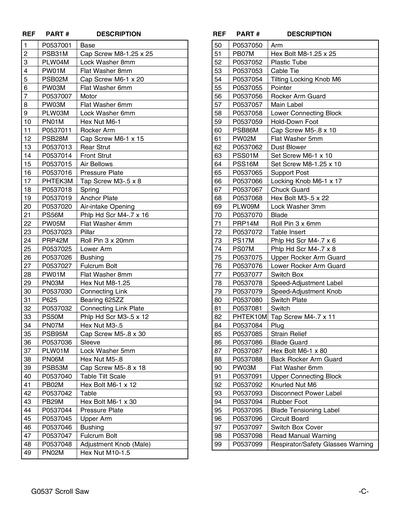

Parts for G0537 22" Variable-Speed Scroll Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BASE
Item is no longer available
Price
N/A
2
CAP SCREW M8-1.25 X 25
Price
N/A
3
LOCK WASHER 8MM
Price
N/A
4
Now: PW01M
FLAT WASHER 8MM
Price
N/A
5
CAP SCREW M6-1 X 20
Price
N/A
6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
7
*DISCD*MOTOR
Item is no longer available
Price
N/A
7-1
*DISCD*MOTOR BRUSHES
Item is no longer available
Price
N/A
7-2
*DISCD*MOTOR BRUSH CAP
Item is no longer available
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
LOCK WASHER 6MM
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
*DISCD*ROCKER ARM
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 15
Price
N/A
13
*DISCD*STRUT REAR
14
*DISCD*STRUT FRONT
15
*DISCD*AIR BELLOWS
Item is no longer available
Price
N/A
16
*DISCD*PRESSURE PLATE
Item is no longer available
Price
N/A
17
TAP SCREW M3.5 X 8
Price
N/A
18
*DISCD*SPRING 1.4 X 55
Item is no longer available
Price
N/A
19
*DISCD*ANCHOR PLATE
20
*DISCD*AIR-INTAKE OPENING
21
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
22
Now: PW05M
FLAT WASHER 4MM
Price
N/A
23
*DISCD*PILLAR
24
ROLL PIN 3 X 20
Price
N/A
25
*DISCD*ARM LOWER
Item is no longer available
Price
N/A
26
*DISCD*BUSHING
Item is no longer available
Price
N/A
27
*DISCD*FULCRUM BOLT M8-.75
Item is no longer available
Price
N/A
28
Now: PW01M
FLAT WASHER 8MM
Price
N/A
29
Now: PN03M
HEX NUT M8-1.25
Price
N/A
30
*DISCD*CONNECTING LINK
Item is no longer available
Price
N/A
30A
*DISCD*CONNECTING LINK ASSY
Price
N/A
31
Now: G3848
Bearing - 16mm x 5mm
Price
N/A
32
*DISCD*CONNECTING LINK PLATE
Item is no longer available
Price
N/A
33
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
34
Now: PN07M
HEX NUT M3-.5
Price
N/A
35
CAP SCREW M5-.8 X 30
Price
N/A
36
*DISCD*SLEEVE
Item is no longer available
Price
N/A
37
LOCK WASHER 5MM
Price
N/A
38
Now: PN06M
HEX NUT M5-.8
Price
N/A
39
CAP SCREW M5-.8 X 18
Price
N/A
40
*DISCD*TABLE TILT SCALE
Item is no longer available
Price
N/A
41
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
42
*DISCD*TABLE
43
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
44
*DISCD*PRESSURE PLATE
Item is no longer available
Price
N/A
45
*DISCD*UPPER ARM
46
*DISCD*BUSHING
Item is no longer available
Price
N/A
47
*DISCD*FULCRUM BOLT M8-.75
Item is no longer available
Price
N/A
48
*DISCD*ADJUSTMENT KNOB MALE
Item is no longer available
Price
N/A
49
Now: PN02M
HEX NUT M10-1.5
Price
N/A
50
*DISCD*ARM
51
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
52
*DISCD*TUBE 6 X 1300 PLASTIC
53
*DISCD*CABLE TIE
Item is no longer available
Price
N/A
54
*DISCD*TILTING LOCKING KNOB M6
55
*DISCD*POINTER
Item is no longer available
Price
N/A
56
*DISCD*ROCKER ARM GUARD
57
*DISCD*MAIN LABEL
58
*DISCD*CONNECTING BLOCK LOWER
Item is no longer available
Price
N/A
59
*DISCD*HOLD DOWN FOOT
Item is no longer available
Price
N/A
60
CAP SCREW M5-.8 X 10
Price
N/A
61
Now: PW02M
FLAT WASHER 5MM
Price
N/A
62
*DISCD*DUST BLOWER
63
SET SCREW M6-1 X 10
Price
N/A
64
SET SCREW M8-1.25 X 10
Price
N/A
65
*DISCD*SUPPORT POST
Item is no longer available
Price
N/A
66
*DISCD*LOCK KNOB M6-1 X 17
Item is no longer available
Price
N/A
67
*DISCD*CHUCK GUARD
Item is no longer available
Price
N/A
68
*DISCD*HEX BOLT M3-.5 X 22
69
LOCK WASHER 3MM
Price
N/A
70
*DISCD*BLADE
Item is no longer available
Price
N/A
71
ROLL PIN 3 X 6
Price
N/A
72
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
73
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
74
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
75
*DISCD*ROCKER ARM GUARD UPPER
Item is no longer available
Price
N/A
76
*DISCD*ROCKER ARM GUARD LOWER
Item is no longer available
Price
N/A
77
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
78
*DISCD*SPEED ADJUSTMENT LABEL
Item is no longer available
Price
N/A
79
*DISCD*SPEED ADJUSTMENT KNOB
Item is no longer available
Price
N/A
80
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
81
Now: D4163
Toggle Safety Switch
Price
N/A
82
TAP SCREW M4 X 11
Price
N/A
83
*DISCD*PLUG
Price
N/A
84
*DISCD*PLUG
Item is no longer available
Price
N/A
85
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
86
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
87
*DISCD*HEX BOLT M6-1 X 80
Item is no longer available
Price
N/A
87-1
*DISCD*HEX BOLT SLEEVE
Item is no longer available
Price
N/A
88
*DISCD*BACK ROCKER ARM GUARD
Item is no longer available
Price
N/A
89
*DISCD*UPPER CONNECTING BLOCK
Price
N/A
90
Now: PW03M
FLAT WASHER 6MM
Price
N/A
91
*DISCD*UPPER CONNECTING BLOCK
Item is no longer available
Price
N/A
92
*DISCD*KNURLED NUT M6
Item is no longer available
Price
N/A
93
*DISCD*DISCONNECT POWER LABEL
Item is no longer available
Price
N/A
94
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
95
*DISCD*BLADE TENSIONING LABEL
Item is no longer available
Price
N/A
96
*DISCD*CIRCUIT BOARD
Item is no longer available
Price
N/A
97
*DISCD*SWITCH BOX COVER
Item is no longer available
Price
N/A
98
*DISCD*READ MANUAL WARNING LABEL
Item is no longer available
Price
N/A
99
*DISCD*RESPIRATOR/SAFETY GLASSES WARNING
Item is no longer available
Price
N/A
MANUAL

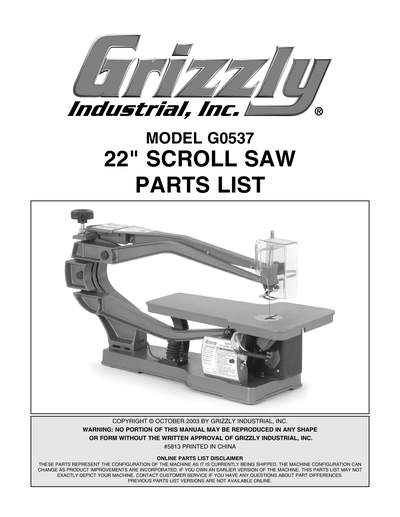

*DISCD*MANUAL FOR G0537 10/03
