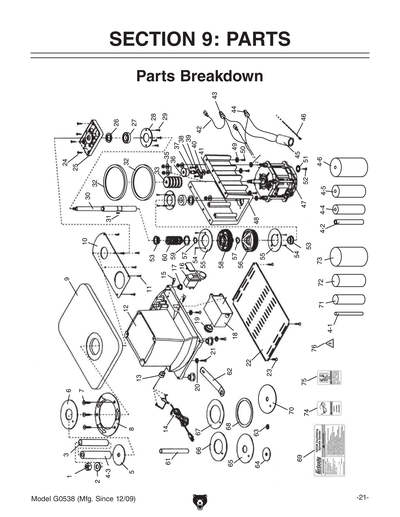

Parts for G0538 1/3 HP Oscillating Spindle Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

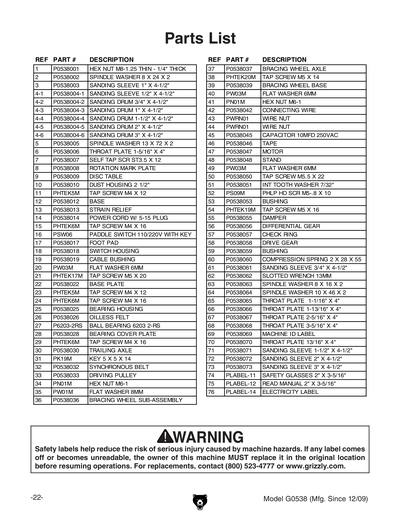

1
HEX NUT M8-1.25 THIN - 1/4" THICK
2
SPINDLE WASHER 8 X 24 X 2
3
SANDING SLEEVE 1 X 4-1/2"
4
SANDING DRUM 1 X 4-1/2"
Price
N/A
4-1
SANDING SLEEVE 1/2 X 4-1/2"
4-2
SANDING DRUM 3/4 X 4-1/2"
4-3
SANDING DRUM 1 X 4-1/2"
4-4
SANDING DRUM 1-1/2 X 4-1/2"
4-5
SANDING DRUM 2 X 4-1/2"
4-6
SANDING DRUM 3 X 4-1/2"
4-7
SANDING SLEEVE 1/2 X 4-1/2"
Price
N/A
5
SPINDLE WASHER 13 X 72 X 2
6
THROAT PLATE 1-5/16 X 4"
7
SELF TAP SCR ST3.5 X 12
8
ROTATION MARK PLATE
9
DISC TABLE
10
DUST HOUSING 2-1/2"
11
TAP SCREW M4 X 12
Price
N/A
12
BASE
13
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
N/A
14
POWER CORD W/5-15 PLUG
15
TAP SCREW M4 X 16
Price
N/A
16
Now: G8988
Safety Paddle Switch
Price
N/A
17
FOOT PAD
18
SWITCH HOUSING
19
CABLE BUSHING
20
Now: PW03M
FLAT WASHER 6MM
Price
N/A
21
TAP SCREW M5 X 20
Price
N/A
22
BASE PLATE
23
TAP SCREW M4 X 12
Price
N/A
24
TAP SCREW M4 X 16
Price
N/A
25
BEARING HOUSING
26
OILLESS FELT
27
BALL BEARING 6203-2RS
Price
N/A
28
BEARING COVER PLATE
29
TAP SCREW M4 X 16
Price
N/A
30
TRAILING AXLE
31
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
32
SYNCHRONOUS BELT
33
DRIVING PULLEY
34
Now: PN01M
HEX NUT M6-1
Price
N/A
35
Now: PW01M
FLAT WASHER 8MM
Price
N/A
36
BRACING WHEEL SUB ASSY
37
BRACING WHEEL AXLE
38
TAP SCREW M5 X 14
Price
N/A
39
BRACING WHEEL BASE
40
Now: PW03M
FLAT WASHER 6MM
Price
N/A
41
Now: PN01M
HEX NUT M6-1
Price
N/A
42
CONNECTING WIRE
43
WIRE NUT 14-22 AWG
Price
N/A
44
WIRE NUT 14-22 AWG
Price
N/A
45
Now: PC010
*DISCD*R CAPACITOR 10M 250V 1-1/4 X 1-3/
Price
N/A
46
TAPE
47
MOTOR 1/3HP 110V 1-PH
47-1
MOTOR BOLT M6 X 1.0 X 130MM
47-2
MOTOR NUT M6 X 1.0 X 16MM
48
STAND
49
Now: PW03M
FLAT WASHER 6MM
Price
N/A
50
TAP SCREW M5.5 X 22
51
INT TOOTH WASHER 7/32"
52
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
53
BUSHING
54
TAP SCREW M5 X 16
Price
N/A
55
DAMPER
56
DIFFERENTIAL GEAR UNKEYED
57
CHECK RING
58
DRIVE GEAR KEYED
59
BUSHING
60
COMPRESSION SPRING 2 X 28 X 55
61
SANDING SLEEVE 3/4 X 4-1/2"
62
SLOTTED WRENCH 13MM
63
SPINDLE WASHER 8 X 16 X 2
64
SPINDLE WASHER 10 X 46 X 2
65
THROAT PLATE 1-1/16 X 4"
66
THROAT PLATE 1-13/16 X 4"
67
THROAT PLATE 2-5/16 X 4"
68
THROAT PLATE 3-5/16 X 4"
69
MACHINE ID LABEL
70
THROAT PLATE 13/16 X 4"
71
SANDING SLEEVE 1-1/2 X 4-1/2"
72
SANDING SLEEVE 2 X 4-1/2"
73
SANDING SLEEVE 3 X 4-1/2"
74
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
75
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
76
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
MANUAL FOR G0538 11/05
