Parts for G0538 - 1/3 HP Oscillating Spindle Sander

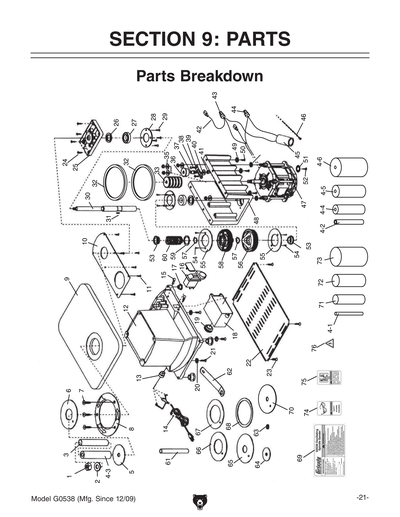

Part Diagram for G0538
Part Diagram for G0538
Part Diagram for G0538
Part Diagram for G0538

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

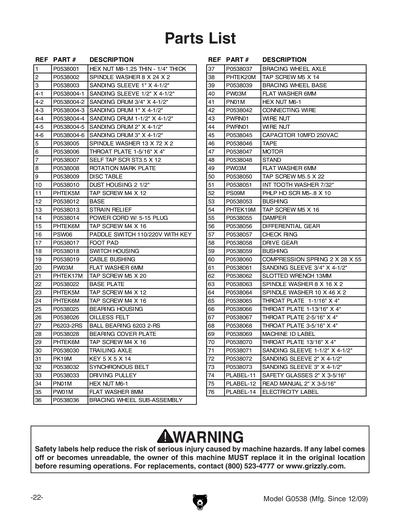

Ref #
Part #
Description
1
HEX NUT M8-1.25 THIN - 1/4" THICK
Price
$1.90
2
SPINDLE WASHER 8 X 24 X 2
Price
$1.90
3
SANDING SLEEVE 1 X 4-1/2"
Price
$4.10
4
SANDING DRUM 1 X 4-1/2"
Price
N/A
4-1
SANDING SLEEVE 1/2 X 4-1/2"
Price
$3.15
4-2
SANDING DRUM 3/4 X 4-1/2"
Price
$5.85
4-3
SANDING DRUM 1 X 4-1/2"
Price
$8.10
4-4
SANDING DRUM 1-1/2 X 4-1/2"
Price
$11.90
4-5
SANDING DRUM 2 X 4-1/2"
Price
$17.65
4-6
SANDING DRUM 3 X 4-1/2"
Price
$30.35
4-7
SANDING SLEEVE 1/2 X 4-1/2"
Price
N/A
5
SPINDLE WASHER 13 X 72 X 2
Price
$4.00
6
THROAT PLATE 1-5/16 X 4"
Price
$3.65
7
SELF TAP SCR ST3.5 X 12
Price
$1.90
8
ROTATION MARK PLATE
Price
$6.35
9
DISC TABLE
Price
$53.60
10
DUST HOUSING 2-1/2"
Price
$8.10
11
TAP SCREW M4 X 12
Price
N/A
12
BASE
Price
$66.90
13
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
N/A
14
POWER CORD W/5-15 PLUG
Price
$14.75
15
TAP SCREW M4 X 16
Price
N/A
16
Safety Paddle Switch
Price
N/A
17
FOOT PAD
Price
$1.90
18
SWITCH HOUSING
Price
$5.90
19
CABLE BUSHING
Price
$1.90
20
FLAT WASHER 6MM
Price
N/A
21
TAP SCREW M5 X 20
Price
N/A
22
BASE PLATE
Price
$23.75
23
TAP SCREW M4 X 12
Price
N/A
24
TAP SCREW M4 X 16
Price
N/A
25
BEARING HOUSING
Price
$6.70
26
OILLESS FELT
Price
$1.90
27
BALL BEARING 6203-2RS
Price
N/A
28
BEARING COVER PLATE
Price
$1.90
29
TAP SCREW M4 X 16
Price
N/A
30
TRAILING AXLE
Price
$8.95
31
KEY 5 X 5 X 14
Price
N/A
32
SYNCHRONOUS BELT
Price
$9.40
33
DRIVING PULLEY
Price
$13.70
34
HEX NUT M6-1
Price
N/A
35
FLAT WASHER 8MM
Price
N/A
36
BRACING WHEEL SUB ASSY
Price
$3.25
37
BRACING WHEEL AXLE
Price
$1.90
38
TAP SCREW M5 X 14
Price
N/A
39
BRACING WHEEL BASE
Price
$1.90
40
FLAT WASHER 6MM
Price
N/A
41
HEX NUT M6-1
Price
N/A
42
CONNECTING WIRE
Price
$1.90
43
WIRE NUT 14-22 AWG
Price
N/A
44
WIRE NUT 14-22 AWG
Price
N/A
45
*DISCD*R CAPACITOR 10M 250V 1-1/4 X 1-3/
Price
N/A
46
TAPE
Price
$1.90
47
MOTOR 1/3HP 110V 1-PH
Price
$87.70
47-1
MOTOR BOLT M6 X 1.0 X 130MM
Price
$1.90
47-2
MOTOR NUT M6 X 1.0 X 16MM
Price
$1.90
48
STAND
Price
$12.65
49
FLAT WASHER 6MM
Price
N/A
50
TAP SCREW M5.5 X 22
Price
$1.90
51
INT TOOTH WASHER 7/32"
Price
$1.90
52
PHLP HD SCR M5-.8 X 10
Price
N/A
53
BUSHING
Price
$5.00
54
TAP SCREW M5 X 16
Price
N/A
55
DAMPER
Price
$2.25
56
DIFFERENTIAL GEAR UNKEYED
Price
$7.85
57
CHECK RING
Price
$1.90
58
DRIVE GEAR KEYED
Price
$8.65
59
BUSHING
Price
$1.90
60
COMPRESSION SPRING 2 X 28 X 55
Price
$1.90
61
SANDING SLEEVE 3/4 X 4-1/2"
Price
$3.25
62
SLOTTED WRENCH 13MM
Price
$3.65
63
SPINDLE WASHER 8 X 16 X 2
Price
$1.90
64
SPINDLE WASHER 10 X 46 X 2
Price
$2.90
65
THROAT PLATE 1-1/16 X 4"
Price
$2.25
66
THROAT PLATE 1-13/16 X 4"
Price
$2.25
67
THROAT PLATE 2-5/16 X 4"
Price
$2.60
68
THROAT PLATE 3-5/16 X 4"
Price
$4.35
69
MACHINE ID LABEL
Price
$16.40
70
THROAT PLATE 13/16 X 4"
Price
$2.25
71
SANDING SLEEVE 1-1/2 X 4-1/2"
Price
$4.25
72
SANDING SLEEVE 2 X 4-1/2"
Price
$5.45
73
SANDING SLEEVE 3 X 4-1/2"
Price
$7.20
74
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
75
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
76
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
MANUAL FOR G0538 11/05
Price
$14.65
