Parts for G0549 24" Jump Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

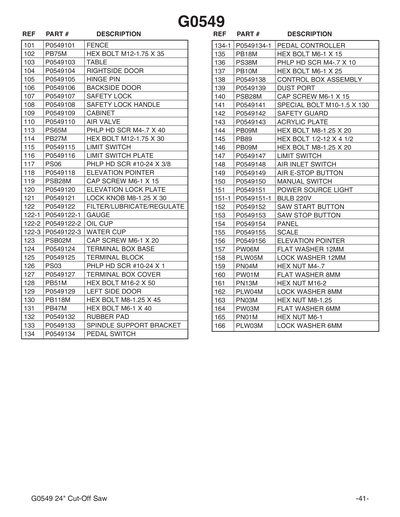

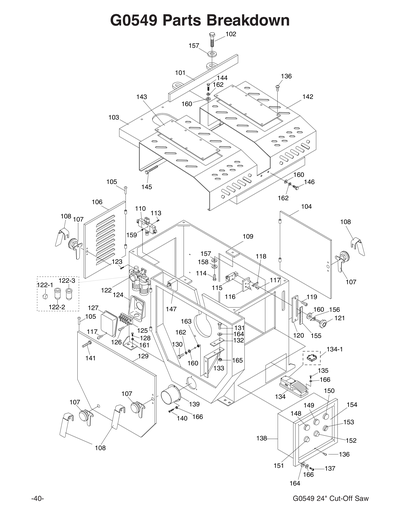

101
FENCE
102
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
103
TABLE
Item is no longer available
Price
N/A
104
DOOR RIGHT
Item is no longer available
Price
N/A
105
HINGE PIN
Item is no longer available
Price
N/A
106
DOOR REAR
Item is no longer available
Price
N/A
107
SAFETY LOCK
108
SAFETY LOCK HANDLE
Item is no longer available
Price
N/A
109
CABINET
Item is no longer available
Price
N/A
110
*DISCD*AIR VALVE
113
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
114
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
115
LIMIT SWITCH
116
LIMIT SWITCH PLATE
Item is no longer available
Price
N/A
117
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
118
ELEVATION POINTER
Item is no longer available
Price
N/A
119
CAP SCREW M6-1 X 15
Price
N/A
120
ELEVATION LOCK PLATE
Item is no longer available
Price
N/A
121
LOCK KNOB M8-1.25 X 30
122
*DISCD*FILTER/LUBRICATOR/REGULATOR
Item is no longer available
Price
N/A
122-1
GAUGE
Item is no longer available
Price
N/A
122-2
REGULATOR OIL CUP 110MM ST
122-3
WATER CUP
123
CAP SCREW M6-1 X 20
Price
N/A
124
TERMINAL BOX BASE
Item is no longer available
Price
N/A
125
TERMINAL BLOCK
Price
N/A
126
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
127
ELECTRICAL BOX
Price
N/A
128
Now: PB51M
HEX BOLT M16-2 X 50
Price
N/A
129
DOOR SIDE LEFT
Item is no longer available
Price
N/A
130
HEX BOLT M8-1.25 X 45
Price
N/A
131
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
132
RUBBER PAD
Item is no longer available
Price
N/A
133
SPINDLE SUPPORT BRACKET
134
PEDAL
Price
N/A
134-1
*DISCD*PEDAL CONTROLLER
134-2
PEDAL GUARD
Item is no longer available
Price
N/A
134V2
PEDAL SWITCH V2.01.10
Item is no longer available
Price
N/A
135
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
136
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
137
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
138
CONTROL BOX ASSY
Item is no longer available
Price
N/A
139
DUST PORT
140
CAP SCREW M6-1 X 15
Price
N/A
141
LEFT SIDE DOOR BOLT M10-1.5 X 130
Item is no longer available
Price
N/A
142
BLADE GUARD HOOD V1
142V2
BLADE GUARD HOOD V2.03.08
Item is no longer available
Price
N/A
143
ACRYLIC PLATE 8-1/4" W V1
143V2
ACRYLIC PLATE 5-7/8" W V2.03.08
144
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
145
Now: PB89
HEX BOLT 1/2-12 X 4-1/2
Price
N/A
146
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
147
*DISCD*LIMIT SWITCH
Item is no longer available
Price
N/A
147-1
DOOR LIMIT SWITCH CORD
Item is no longer available
Price
N/A
147-2
GUARD LIMIT SWITCH CORD
148
AIR INLET SWITCH
149
AIR E-STOP BUTTON
150
MANUAL SWITCH
151
*DISCD*POWER LIGHT AV58 EVO 22MM WHT
151-1
BULB 220V
152
*DISCD*SAW START BUTTON
153
SAW STOP BUTTON
154
PANEL
Item is no longer available
Price
N/A
155
SCALE
156
ELEVATION POINTER
Item is no longer available
Price
N/A
157
Now: PW06M
FLAT WASHER 12MM
Price
N/A
158
LOCK WASHER 12MM
Price
N/A
159
Now: PN04M
HEX NUT M4-.7
Price
N/A
160
Now: PW01M
FLAT WASHER 8MM
Price
N/A
161
Now: PN13M
HEX NUT M16-2
Price
N/A
162
LOCK WASHER 8MM
Price
N/A
163
Now: PN03M
HEX NUT M8-1.25
Price
N/A
164
Now: PW03M
FLAT WASHER 6MM
Price
N/A
165
Now: PN01M
HEX NUT M6-1
Price
N/A
166
LOCK WASHER 6MM
Price
N/A

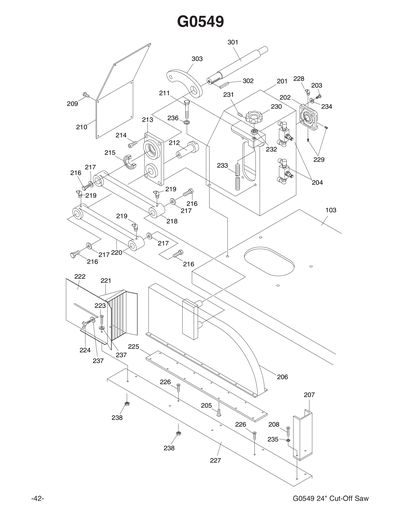

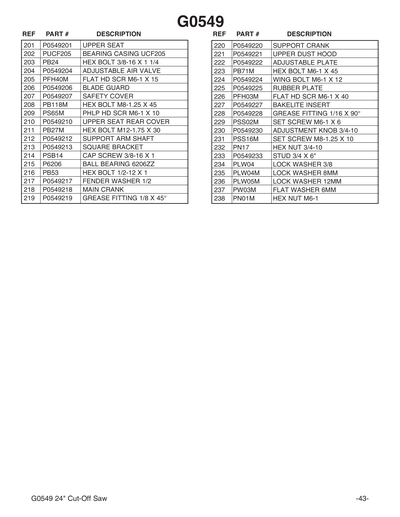

201
HEAD COVER
Item is no longer available
Price
N/A
202
MOUNTED BEARING UCF205
Price
N/A
203
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
204
*DISCD*ADJUSTABLE AIR VALVE
Item is no longer available
Price
N/A
205
FLAT HD SCR M6-1 X 16
Price
N/A
206
CLAMPING BLADE GUARD
Item is no longer available
Price
N/A
207
SAFETY COVER REAR
Item is no longer available
Price
N/A
208
HEX BOLT M8-1.25 X 45
Price
N/A
209
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
210
HEAD REAR COVER
211
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
212
SUPPORT ARM SHAFT
Item is no longer available
Price
N/A
213
SQUARE BRACKET
Item is no longer available
Price
N/A
214
CAP SCREW 3/8-16 X 1
Price
N/A
215
BALL BEARING 6206ZZ
Price
N/A
216
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
217
Now: PW13
FLAT WASHER 3/4
Price
N/A
218
MAIN CRANK
219
GREASE FITTING 1/8 X 45DEG
220
SUPPORT CRANK
Item is no longer available
Price
N/A
221
DUST HOOD UPPER
Item is no longer available
Price
N/A
222
ADJUSTABLE PLATE
Item is no longer available
Price
N/A
223
Now: PB71M
HEX BOLT M6-1 X 45
Price
N/A
224
WING BOLT M6-1 X 12
Item is no longer available
Price
N/A
225
RUBBER PLATE
226
FLAT HD SCR M6-1 X 40
Price
N/A
227
BAKELITE INSERT
228
GREASE FITTING 1/16 X 90DEG
Item is no longer available
Price
N/A
229
SET SCREW M6-1 X 6
Price
N/A
230
ADJUSTMENT KNOB 3/4-10
Item is no longer available
Price
N/A
231
SET SCREW M8-1.25 X 10
Price
N/A
232
Now: PN17
HEX NUT 3/4-10
Price
N/A
233
STUD 3/4-10 X 6"
Item is no longer available
Price
N/A
234
Now: PLW04
LOCK WASHER 3/8
Price
N/A
235
LOCK WASHER 8MM
Price
N/A
236
LOCK WASHER 12MM
Price
N/A
237
Now: PW03M
FLAT WASHER 6MM
Price
N/A
238
Now: PN01M
HEX NUT M6-1
Price
N/A

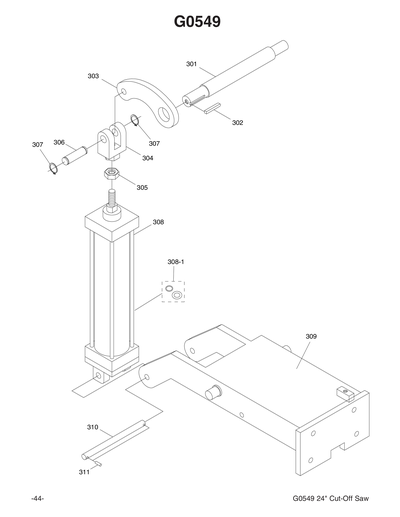

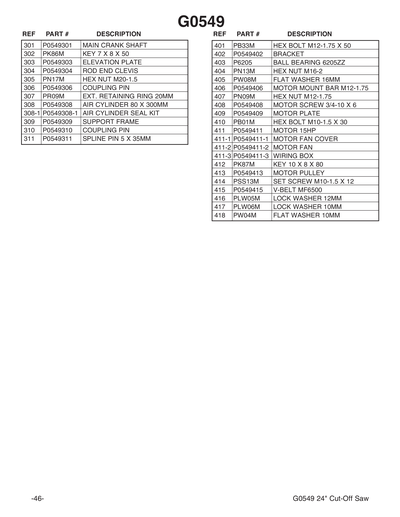

301
MAIN CRANK SHAFT
302
Now: PK86M
KEY 7 X 8 X 50
Price
N/A
303
ROCKER ARM
304
ROD END CLEVIS
Item is no longer available
Price
N/A
305
Now: PN17M
HEX NUT M20-1.5
Price
N/A
306
COUPLING PIN
307
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
308
AIR CYLINDER 80 X 300MM
308-1
AIR CYLINDER SEAL KIT
Item is no longer available
Price
N/A
309
SUPPORT FRAME
Item is no longer available
Price
N/A
310
COUPLING PIN
311
SPLINE PIN 5 X 35MM
Item is no longer available
Price
N/A

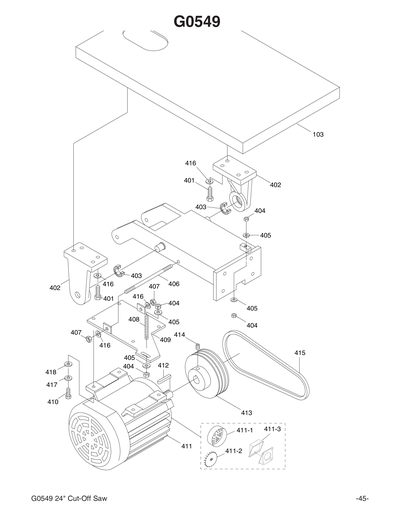

401
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
402
TABLE BRACKET
Item is no longer available
Price
N/A
403
BALL BEARING 6205ZZ
Price
N/A
404
Now: PN13M
HEX NUT M16-2
Price
N/A
405
Now: PW08M
FLAT WASHER 16MM
Price
N/A
406
MOTOR MOUNT BAR M12-1.75
Item is no longer available
Price
N/A
407
Now: PN09M
HEX NUT M12-1.75
Price
N/A
408
MOTOR SCREW M16-2 X 150
409
MOTOR PLATE
410
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
411
MOTOR 15HP 220V/440V 3-PH
411-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
411-2
MOTOR FAN
Item is no longer available
Price
N/A
411-3
MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
412
KEY 10 X 8 X 65
413
MOTOR PULLEY
Item is no longer available
Price
N/A
414
SET SCREW M10-1.5 X 12
Price
N/A
415
V-BELT MF6500
416
LOCK WASHER 12MM
Price
N/A
417
LOCK WASHER 10MM
Price
N/A
418
Now: PW04M
FLAT WASHER 10MM
Price
N/A

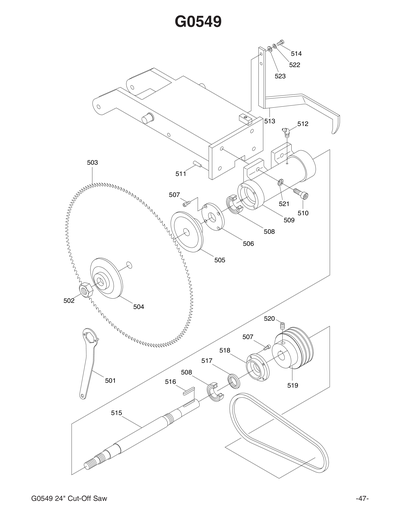

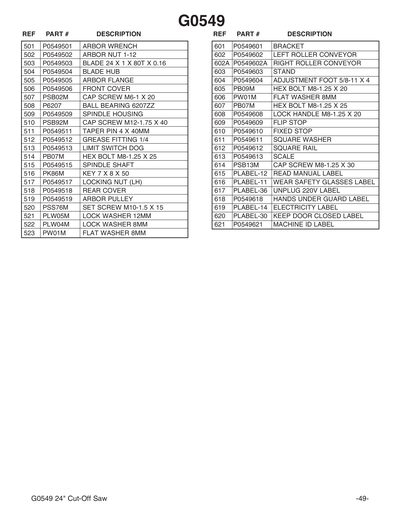

501
*DISCD*ARBOR WRENCH
Item is no longer available
Price
N/A
502
ARBOR NUT 1"-12
503
24" x 1" 80t Carbide Tipped Cut-Off Saw Blade
Price
N/A
504
OUTSIDE ARBOR FLANGE
Item is no longer available
Price
N/A
505
INSIDE ARBOR FLANGE
Item is no longer available
Price
N/A
506
END CAP FRONT
Item is no longer available
Price
N/A
507
CAP SCREW M6-1 X 20
Price
N/A
508
BALL BEARING 6207ZZ
Price
N/A
509
SPINDLE HOUSING
Item is no longer available
Price
N/A
510
CAP SCREW M12-1.75 X 40
Price
N/A
511
TAPER PIN 4 X 40
Item is no longer available
Price
N/A
512
GREASE FITTING 1/4
Item is no longer available
Price
N/A
513
LIMIT SWITCH DOG
514
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
515
SPINDLE SHAFT
Item is no longer available
Price
N/A
516
Now: PK86M
KEY 7 X 8 X 50
Price
N/A
517
SPANNER NUT M35-16 LH
Item is no longer available
Price
N/A
518
END CAP REAR
Item is no longer available
Price
N/A
519
ARBOR PULLEY
Item is no longer available
Price
N/A
520
SET SCREW M10-1.5 X 16
Price
N/A
521
LOCK WASHER 12MM
Price
N/A
522
LOCK WASHER 8MM
Price
N/A
523
Now: PW01M
FLAT WASHER 8MM
Price
N/A
600A
ROLLER TABLE ASSY L&R BOX 2
Item is no longer available
Price
N/A
601
BRACKET
Item is no longer available
Price
N/A
602
ROLLER TABLE ASSY LEFT
Item is no longer available
Price
N/A
602-1
INDIVIDUAL ROLLER
602A
ROLLER TABLE ASSY RIGHT
Item is no longer available
Price
N/A
603
STAND
Item is no longer available
Price
N/A
604
ADJUSTMENT FOOT 5/8-11 X 4
Item is no longer available
Price
N/A
605
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
606
Now: PW01M
FLAT WASHER 8MM
Price
N/A
607
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
608
LOCK HANDLE M8-1.25 X 20 V1
608V2
LOCK HANDLE M10-1.5 X 40 V2.03.13
Price
N/A
608V2-1
T-NUT PLATE M10 X 1.5
Price
N/A
609
QUICK STOP V1
Price
N/A
609V2
QUICK STOP ASSEMBLY V2.03.13
Price
N/A
609V2-1
FLIP STOP BASE
Price
N/A
609V2-2
FLIP STOP
Price
N/A
609V2-3
ROLL PIN 4 X 30
Price
N/A
610
FIXED STOP V1
610V2
FIXED STOP ASSEMBLY V2.03.13
Price
N/A
610V2-1
FIXED STOP BASE
Price
N/A
610V2-2
FIXED STOP PLATE
Price
N/A
610V2-3
FLAT HD CAP SCR M8-1.25 X 35
Price
N/A
611
LEFT ROLLER CONVEYOR FLAT WASHER 8MM
Item is no longer available
Price
N/A
612
SQUARE RAIL V1
Item is no longer available
Price
N/A
612-1V2
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
612V2
SQUARE RAIL V2.03.13
Price
N/A
613
SCALE
614
CAP SCREW M8-1.25 X 30
Price
N/A
615
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
616
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
617
DISCONNECT POWER-DOOR 2W X 3.3H
Price
N/A
618
HANDS UNDER GUARD LABEL
619
ELECTRICITY 1.4W X 1.2H
Price
N/A
620
DONT OPEN 2W X 3.3H
Price
N/A
620A
CONVERSION KIT NHD 440V 11/14A
Price
N/A
620A-1
CONVERSION KIT NHD 440V 11/14A
Price
N/A
621
MACHINE ID LABEL
Item is no longer available
Price
N/A
622
CUTTING HAZARD LABEL
623
SAFETY GUARD LABEL
624
N/S GRIZZLY GREEN G1023S
Price
N/A
625
GREY PUTTY REF G0504
Price
N/A

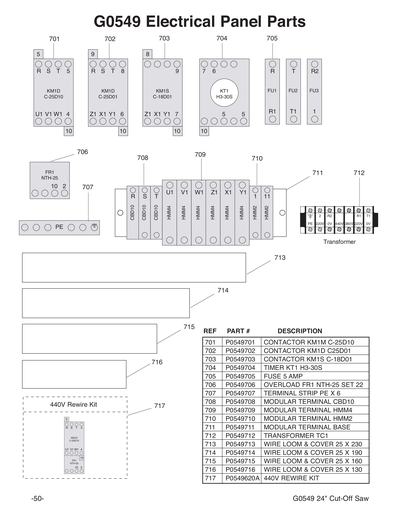

701
*DISCD*CONTACTOR KM1M C-25D 220V NHD
Item is no longer available
Price
N/A
702
CONTACTOR KM1D C-25D 220V NHD
703
CONTACTOR KM1S C-18D01 220V
704
TIMER KT1 H3-30S
705
FUSE 5A
706
OL RELAY NHD NTH-25 220V 21-25
Item is no longer available
Price
N/A
707
TERMINAL STRIP PE X 6
Item is no longer available
Price
N/A
708
MODULAR TERMINAL CBD10
709
MODULAR TERMINAL HMM4
710
MODULAR TERMINAL HMM2
Item is no longer available
Price
N/A
711
MODULAR TERMINAL BASE
Item is no longer available
Price
N/A
712
TRANSFORMER 110VA 220/440V-220V
Item is no longer available
Price
N/A
713
WIRE LOOM & COVER 25 X 230
Item is no longer available
Price
N/A
714
WIRE LOOM & COVER 25 X 190
Item is no longer available
Price
N/A
715
WIRE LOOM & COVER 25 X 160
Item is no longer available
Price
N/A
716
WIRE LOOM & COVER 25 X 130
Item is no longer available
Price
N/A
717
CONVERSION KIT NHD 440V 11/14A
718
SAFETY LIMIT SWITCH
Item is no longer available
Price
N/A
719
DOOR SAFETY LIMIT SWITCH
Item is no longer available
Price
N/A

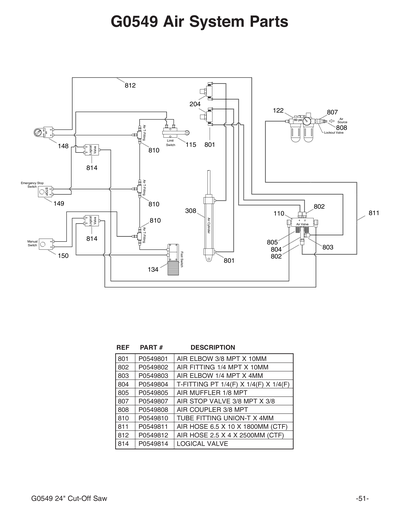

801
AIR ELBOW M 3/8 PT X 10MM
802
AIR FITTING M 1/4 PT X 10MM
803
AIR ELBOW M 1/4 PT X 4MM
Item is no longer available
Price
N/A
804
T-FITTING PT 1/4F X 1/4F X 1/4F
805
AIR MUFFLER 1/4 MPT
807
AIR STOP VALVE M 3/8 PT X 3/8
Item is no longer available
Price
N/A
808
AIR COUPLER 3/8 MPT
Item is no longer available
Price
N/A
810
TUBE FITTING UNION-T X 4MM
811
AIR HOSE 6.5 X 10 X 1800MM CTF
812
AIR HOSE 2.5 X 4 X 2500MM CTF
813
CONTROL VALVE
Item is no longer available
Price
N/A
814
LOGICAL VALVE
815
GAUGE
817
WATER CUP
Item is no longer available
Price
N/A
818
REGULATOR OIL CUP 110MM ST
Price
N/A
819
SIDE CLAMPING CYLINDER
Item is no longer available
Price
N/A
901
CLAMP GATE
Item is no longer available
Price
N/A
902
MOUNTING BRACKET
Item is no longer available
Price
N/A
903
ADJUSTABLE PLATE
Item is no longer available
Price
N/A
904
HINGE
Item is no longer available
Price
N/A
904-1
CAP SCREW M6-1 X 20
Price
N/A
905
CAP SCREW M6-1 X 16
Price
N/A
906
LOCK HANDLE M10-1.5 X 25
Item is no longer available
Price
N/A
907
Now: PW04M
FLAT WASHER 10MM
Price
N/A
908
ACTUATOR CYLINDER
Item is no longer available
Price
N/A
909
ACTUATOR YOKE
Item is no longer available
Price
N/A
910
REGULATOR VALVE
Item is no longer available
Price
N/A
911
ACTUATOR BRACKET
Item is no longer available
Price
N/A
912
FLAT HD SCR M6-1 X 20
Price
N/A
913
Now: PW03M
FLAT WASHER 6MM
Price
N/A
913-1
LOCK WASHER 6MM
Price
N/A
914
Now: PN01M
HEX NUT M6-1
Price
N/A
915
CAP SCREW M8-1.25 X 40
Price
N/A
917
Now: PN03M
HEX NUT M8-1.25
Price
N/A
918
YOKE PIN 8 X 22
Price
N/A
919
E-CLIP 8MM
Price
N/A
921
CAP SCREW M6-1 X 16
Price
N/A
922
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
923
Now: PW04M
FLAT WASHER 10MM
Price
N/A
924
BRASS FITTING KIT
Item is no longer available
Price
N/A
925
LARGE T-FITTING 10MM
925-1
SMALL T-FITTING 4MM
926
AIR HOSE 4 X 6MM
Price
N/A
926-1
AIR HOSE 2.5 X 4MM
Price
N/A
927
START BUTTON ASSEMBLY
Price
N/A
927V2
START BUTTON ASSY V2.04.10
928
CONTROL VALVE UNIT
Price
N/A
929
PHLP HD SCR M4-.7 X 55
Price
N/A
930
Now: PN04M
HEX NUT M4-.7
Price
N/A
931
STAKE GUARD
Item is no longer available
Price
N/A
931-1
CAP SCREW M4-.7 X 10
Price
N/A
932
INNER GUARD PLATE
Item is no longer available
Price
N/A
933
OUTER GUARD PLATE
Item is no longer available
Price
N/A
933-1
WING SCREW M6-1 X 12
Item is no longer available
Price
N/A
933-2
CAP SCREW M6-1 X 12
Price
N/A
934
GUARD MOUNT BRACKET
Item is no longer available
Price
N/A
934-1
CAP SCREW M6-1 X 16
Price
N/A
934-2
LOCK WASHER 6MM
Price
N/A
934-3
Now: PN01M
HEX NUT M6-1
Price
N/A
934-4
CAP SCREW M6-1 X 25
Price
N/A
935
NOTCHED GUARD FLAP
Item is no longer available
Price
N/A
936
HINGE
Price
N/A
936-1
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
936-2
Now: PN04M
HEX NUT M4-.7
Price
N/A
941
ANGLED GUARD FLAP
942
SQUARE GUARD FLAP
943
HINGE
Price
N/A
943-1
Now: PN04M
HEX NUT M4-.7
Price
N/A
943-2
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
MAN
MANUAL FOR G0549 08/04
