Parts for G0550 15" Planer w/ Open Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PULLEY COVER
2
Now: PVM27
V-BELT M27 3L270
Price
N/A
3
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
4
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
5
MOTOR WASHER 8.2 X 30 X 4
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
CUTTERHEAD PULLEY
8
BELT HOUSING
9
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
10
MOTOR 2HP 220V 1-PH
10-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
10-2
MOTOR FAN COVER
Price
N/A
10-3
WIRING BOX
10-4
CAPACITOR COVER
Item is no longer available
Price
N/A
10-5
S CAPACITOR 500M 125V 1-3/4 X 3-1/2
10-6
END COVER FOR STATOR HOUSING
11
CLAMP
Price
N/A
12
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
13
FLANGE BOLT M6-1 X 12
Price
N/A
14
SPACER
15
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
16
DUST CHUTE
17
Now: PN03M
HEX NUT M8-1.25
Price
N/A
18
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
19
MOTOR PLATE
20
Now: PW01M
FLAT WASHER 8MM
Price
N/A
21
HEX BOLT M8-1.25 X 45
Price
N/A
22
Now: PW01M
FLAT WASHER 8MM
Price
N/A
23
CHAIN TENSIONER
24
SHAFT
25
TENSION WHEEL
26
SHAFT
27
HELICAL SPRING 1 X 33
28
HANGER
29
CAP SCREW M6-1 X 10
Price
N/A
30
Now: PN08M
HEX NUT M10-1.25
Price
N/A
31
Now: PW04M
FLAT WASHER 10MM
Price
N/A
32
Now: PW04M
FLAT WASHER 10MM
Price
N/A
33
HEIGHT HANDWHEEL
34
REVOLVING HANDLE 24 X 92, M10-1.5 X 12
Price
N/A
35
UPPER COVER
36
DEFLECTOR PLATE
Price
N/A
37
CAP
Price
N/A
38
CAP SCREW M8-1.25 X 50
Price
N/A
39
LOCK KNOB
40
GIB
41
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
42
HEAD CASTING
Item is no longer available
Price
N/A
43
CHIP BREAKER SPRING PLATE
44
TENSIONING SETSCREW M22-1.5 X 20
Item is no longer available
Price
N/A
45
SET SCREW M6-1 X 16
Price
N/A
46
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
47
CUTTERHEAD
48
LOCK ROD
49
THREADED GIB
Price
N/A
50
PIN
Item is no longer available
Price
N/A
51
CHAIN COVER
52
MAG SWITCH 2HP 220V
Item is no longer available
Price
N/A
52-1
CONTACTOR MA-09 SHERN DIAN
52-2
RELAY SHERN DIAN RA-20 220/240V
Item is no longer available
Price
N/A
52-3
MAG SWITCH COVER
52-4
WHITE SWITCH SCREW M9-1 X 11
53
DIRECTION SCALE
54
CAP SCREW M6-1 X 16
Price
N/A
55
SET SCREW M8-1.25 X 12
Price
N/A
56
HELICAL SPRING 3.5 X 70
57
COMPRESSION SPRING BUSHING BLOCK
Price
N/A
58
PLATE
59
Now: PN01M
HEX NUT M6-1
Price
N/A
60
OUTFEED ROLLER
61
DEPTH LIMITER
Price
N/A
62
FLAT HD SCR M5-.8 X 8
Price
N/A
63
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
64
T-SCREW
Price
N/A
64-1
POINTER
65
SPROCKET V1
Price
N/A
66
Now: PW03M
FLAT WASHER 6MM
Price
N/A
67
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
68
CHAIN
69
BALL BEARING 6205ZZ
Price
N/A
70
*DISCD*CHIP BREAKER
Item is no longer available
Price
N/A
71
CHIP BREAKER ADJUST ROD
Item is no longer available
Price
N/A
72
LOCK KNOB
73
E-CLIP 15MM
Price
N/A
74
SPACER
75
*DISCD*ANTI KICKBACK FINGER
Item is no longer available
Price
N/A
76
SHAFT
Item is no longer available
Price
N/A
77
INFEED ROLLER
Price
N/A
78
SPROCKET
Price
N/A
79
CAP SCREW M6-1 X 12
Price
N/A
80
BALL BEARING 6204ZZ
Price
N/A
81
GEAR
82
CAP SCREW M6-1 X 25
Price
N/A
83
BALL BEARING 6201ZZ
Price
N/A
84
GEAR 47T
Price
N/A
85
SHAFT
Price
N/A
86
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
87
GEAR CASE
87-1
GEAR CASE W/BEARINGS
Item is no longer available
Price
N/A
88
PIN
89
BALL BEARING 6201ZZ
Price
N/A
90
GEAR 18T/22T 2-SPEED V1
Price
N/A
91
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
92
GEAR
93
ROUND FEMALE KNOB
94
CHAIN
95
SPROCKET 12T
Price
N/A
96
OIL PLUG
Item is no longer available
Price
N/A
97
OIL SEAL 28 X 40 X 8
98
GEAR BOX
99
GASKET
Price
N/A
100
COMBO GEAR 96T/92T V1
Price
N/A
101
SHAFT 20 X 106
Price
N/A
102
HELICAL SPRING .6 X 16
103
BALL 6MM
Price
N/A
104
OIL SEAL 25 X 47 X 6
105
BALL BEARING 6204ZZ
Price
N/A
106
ROLLER FRAME
107
SHIFTER
108
HANDLE
Price
N/A
109
O-RING 12 X 1.5 S12.5
Price
N/A
110
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
111
SPINDLE NUT 16-4
112
LEADSCREW
Price
N/A
113
SET SCREW M6-1 X 12
Price
N/A
114
COLUMN
115
COLUMN RING
Item is no longer available
Price
N/A
116
TABLE ROLLER SHAFT
117
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
118
TABLE ROLLER
119
SET SCREW M10-1.5 X 12
Price
N/A
120
CHAIN
121
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
122
SPROCKET
Price
N/A
123
SHAFT
124
BRACKET
Price
N/A
125
BASE
126
BALL BEARING 6202ZZ
Price
N/A
127
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
128
SPROCKET
129
SCALE
130
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
131
COLUMN
132
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
133
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
134
BUSHING
135
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
136
ELEVATION SPINDLE LONG
137
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
140
Now: PN08
HEX NUT 3/8-16
Price
N/A
144
SAFETY HATCH
145
CAP SCREW M8-1.25 X 45
Price
N/A
146
E-CLIP 9MM
Price
N/A
147
KNIFE GAUGE 1 OF 2
148
KNIFE GAUGE ROD
149
HEX WRENCH 6MM
Price
N/A
150
HEX WRENCH 5MM
Price
N/A
151
HEX WRENCH 4MM
Price
N/A
152
HEX WRENCH 3MM
Price
N/A
153
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
154
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
155
COMPLETE KNIFE GAUGE ASSY
157
MOTOR PULLEY
160
LOCK WASHER 8MM
Price
N/A
162
HELICAL SPRING .6 X 16
163
JACK SCREW M5-.8 X 12
164
LOCK WASHER 8MM
Price
N/A
165
ROLLER BUSHING PLASTIC
166
Now: PW03M
FLAT WASHER 6MM
Price
N/A
168
ROLLER ROD
169
ROLLER
170
STRAIGHT KNIFE 3PC SET
171
GIB BOLT M8-1.25 X 10
Price
N/A
172
GIB
173
MACHINE ID LABEL
Item is no longer available
Price
N/A
174
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
175
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
176
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
177
UNPLUG LABEL
178
BELT COVER LABEL
179
ELECTRICITY 1.4W X 1.2H
Price
N/A

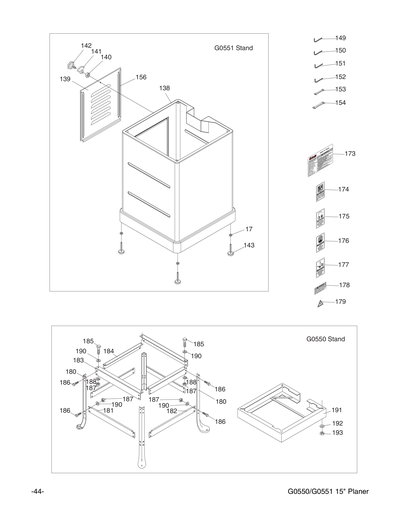

180
LEG
181
*DISCD*BRACE LONG SIDE
Item is no longer available
Price
N/A
182
SHORT SIDE BRACE
183
BRACE LONG TOP
184
SHORT TOP BRACE
185
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
186
Now: PCB02
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
187
Now: PN02
HEX NUT 5/16-18
Price
N/A
188
LOCK WASHER 8MM
Price
N/A
190
Now: PW01M
FLAT WASHER 8MM
Price
N/A
191
STAND TOP
Item is no longer available
Price
N/A
192
Now: PW01M
FLAT WASHER 8MM
Price
N/A
193
Now: PN03M
HEX NUT M8-1.25
Price
N/A
194
HARDWARE ASSY FOR STAND
195
TOOL BAG
Item is no longer available
Price
N/A
196
HANDWHEEL BAG
Item is no longer available
Price
N/A
197
EXTENSION ROLLER HARDWARE BAG
Item is no longer available
Price
N/A
198
DUST PORT HARDWARE BAG
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0550/G0551 11/03
