Parts for G0550 - 15" Planer w/ Open Stand

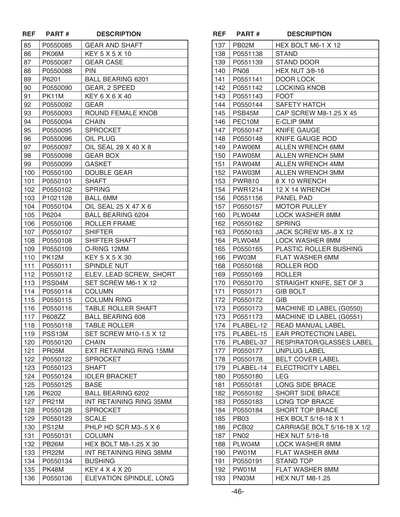

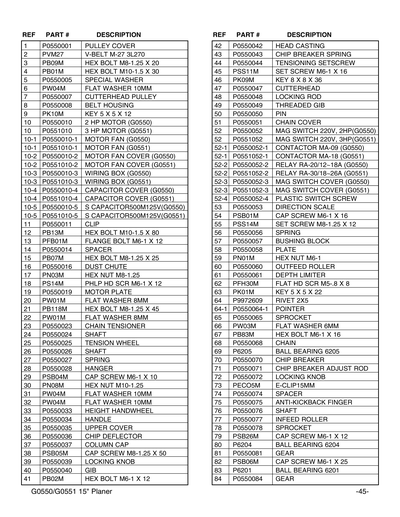

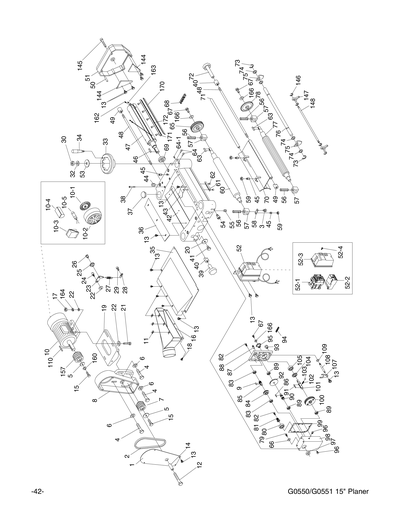

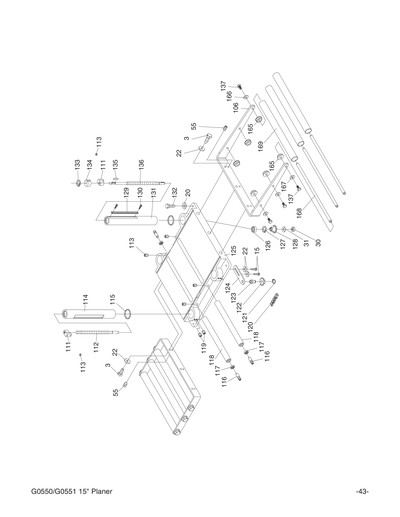

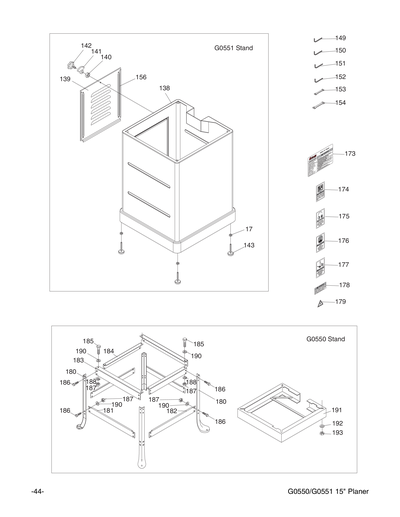

Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550
Part Diagram for G0550

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PULLEY COVER
Price
$20.15
2
V-BELT M27 3L270
Price
N/A
3
HEX BOLT M8-1.25 X 20
Price
N/A
4
HEX BOLT M10-1.5 X 30
Price
N/A
5
MOTOR WASHER 8.2 X 30 X 4
Price
$2.75
6
FLAT WASHER 10MM
Price
N/A
7
CUTTERHEAD PULLEY
Price
$11.25
8
BELT HOUSING
Price
$60.40
9
KEY 5 X 5 X 12
Price
N/A
10
MOTOR 2HP 220V 1-PH
Price
$392.45
10-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
10-2
MOTOR FAN COVER
Price
N/A
10-3
WIRING BOX
Price
$5.80
10-4
CAPACITOR COVER
Item is no longer available
Price
N/A
10-5
S CAPACITOR 500M 125V 1-3/4 X 3-1/2
Price
$34.45
10-6
END COVER FOR STATOR HOUSING
Price
$30.20
11
CLIP
Price
$1.75
12
HEX BOLT M10-1.5 X 80
Price
N/A
13
FLANGE BOLT M6-1 X 12
Price
N/A
14
SPACER
Price
$2.20
15
HEX BOLT M8-1.25 X 25
Price
N/A
16
DUST CHUTE
Price
$34.45
17
HEX NUT M8-1.25
Price
N/A
18
PHLP HD SCR M6-1 X 12
Price
N/A
19
MOTOR PLATE
Price
$26.35
20
FLAT WASHER 8MM
Price
N/A
21
HEX BOLT M8-1.25 X 45
Price
N/A
22
FLAT WASHER 8MM
Price
N/A
23
CHAIN TENSIONER
Price
$2.20
24
SHAFT
Price
$2.20
25
TENSION WHEEL
Price
$2.20
26
SHAFT
Price
$2.05
27
HELICAL SPRING 1 X 33
Price
$1.85
28
HANGER
Price
$1.85
29
CAP SCREW M6-1 X 10
Price
N/A
30
HEX NUT M10-1.25
Price
N/A
31
FLAT WASHER 10MM
Price
N/A
32
FLAT WASHER 10MM
Price
N/A
33
HEIGHT HANDWHEEL
Price
$47.10
34
REVOLVING HANDLE 24 X 92, M10-1.5 X 12
Price
N/A
35
UPPER COVER
Price
$49.85
36
DEFLECTOR PLATE
Price
N/A
37
CAP
Price
N/A
38
CAP SCREW M8-1.25 X 50
Price
N/A
39
LOCK KNOB
Price
$4.60
40
GIB
Price
$2.60
41
HEX BOLT M6-1 X 12
Price
N/A
42
HEAD CASTING
Item is no longer available
Price
N/A
43
CHIP BREAKER SPRING PLATE
Price
$1.75
44
TENSIONING SETSCREW M22-1.5 X 20
Item is no longer available
Price
N/A
45
SET SCREW M6-1 X 16
Price
N/A
46
KEY 8 X 8 X 35
Price
N/A
47
CUTTERHEAD
Price
$236.05
48
LOCK ROD
Price
$18.75
49
THREADED GIB
Price
N/A
50
PIN
Item is no longer available
Price
N/A
51
CHAIN COVER
Price
$49.85
52
MAG SWITCH 2HP 220V
Item is no longer available
Price
N/A
52-1
CONTACTOR MA-09 SHERN DIAN
Price
$51.05
52-2
RELAY SHERN DIAN RA-20 220/240V
Item is no longer available
Price
N/A
52-3
MAG SWITCH COVER
Price
$62.55
52-4
WHITE SWITCH SCREW M9-1 X 11
Price
$1.85
53
DIRECTION SCALE
Price
$1.85
54
CAP SCREW M6-1 X 16
Price
N/A
55
SET SCREW M8-1.25 X 12
Price
N/A
56
HELICAL SPRING 3.5 X 70
Price
$1.85
57
BUSHING BLOCK
Price
$5.50
58
PLATE
Price
$1.85
59
HEX NUT M6-1
Price
N/A
60
OUTFEED ROLLER
Price
$83.40
61
DEPTH LIMITER
Price
N/A
62
FLAT HD SCR M5-.8 X 8
Price
N/A
63
KEY 5 X 5 X 22
Price
N/A
64
T-SCREW
Price
N/A
64-1
POINTER
Price
$1.85
65
SPROCKET V1
Price
N/A
66
FLAT WASHER 6MM
Price
N/A
67
HEX BOLT M6-1 X 16
Price
N/A
68
CHAIN
Price
$25.10
69
BALL BEARING 6205ZZ
Price
N/A
70
*DISCD*CHIP BREAKER
Item is no longer available
Price
N/A
71
CHIP BREAKER ADJUST ROD
Item is no longer available
Price
N/A
72
LOCK KNOB
Price
$4.60
73
E-CLIP 15MM
Price
N/A
74
SPACER
Price
$1.75
75
*DISCD*ANTI KICKBACK FINGER
Item is no longer available
Price
N/A
76
SHAFT
Item is no longer available
Price
N/A
77
INFEED ROLLER
Price
N/A
78
SPROCKET
Price
N/A
79
CAP SCREW M6-1 X 12
Price
N/A
80
BALL BEARING 6204ZZ
Price
N/A
81
GEAR
Price
$18.75
82
CAP SCREW M6-1 X 25
Price
N/A
83
BALL BEARING 6201ZZ
Price
N/A
84
GEAR 47T
Price
N/A
85
SHAFT
Price
N/A
86
KEY 5 X 5 X 10
Price
N/A
87
GEAR CASE
Price
$51.20
87-1
GEAR CASE W/BEARINGS
Item is no longer available
Price
N/A
88
PIN
Price
$1.75
89
BALL BEARING 6201ZZ
Price
N/A
90
GEAR 18T/22T 2-SPEED V1
Price
N/A
91
KEY 6 X 6 X 40
Price
N/A
92
GEAR
Price
$27.80
93
ROUND FEMALE KNOB
Price
$3.05
94
CHAIN
Price
$17.25
95
SPROCKET 12T
Price
N/A
96
OIL PLUG
Price
$1.75
97
OIL SEAL 28 X 40 X 8
Price
$1.75
98
GEAR BOX
Price
$87.60
99
GASKET
Price
N/A
100
COMBO GEAR 96T/92T V1
Price
N/A
101
SHAFT 20 X 106
Price
N/A
102
HELICAL SPRING .6 X 16
Price
$1.85
103
BALL 6MM
Price
N/A
104
OIL SEAL 25 X 47 X 6
Price
$1.85
105
BALL BEARING 6204ZZ
Price
N/A
106
ROLLER FRAME
Price
$42.00
107
SHIFTER
Price
$4.90
108
HANDLE
Price
N/A
109
O-RING 12 X 1.5 S12.5
Price
N/A
110
KEY 5 X 5 X 30
Price
N/A
111
SPINDLE NUT 16-4
Price
$5.15
112
LEADSCREW
Price
N/A
113
SET SCREW M6-1 X 12
Price
N/A
114
COLUMN
Price
$45.90
115
COLUMN RING
Item is no longer available
Price
N/A
116
TABLE ROLLER SHAFT
Price
$2.60
117
Bearing - 22mm x 8mm
Price
N/A
118
TABLE ROLLER
Price
$40.50
119
SET SCREW M10-1.5 X 12
Price
N/A
120
CHAIN
Price
$15.45
121
EXT RETAINING RING 15MM
Price
N/A
122
SPROCKET
Price
N/A
123
SHAFT
Price
$5.50
124
BRACKET
Price
N/A
125
BASE
Price
$342.45
126
BALL BEARING 6202ZZ
Price
N/A
127
INT RETAINING RING 35MM
Price
N/A
128
SPROCKET
Price
$3.20
129
SCALE
Price
$1.85
130
PHLP HD SCR M3-.5 X 6
Price
N/A
131
COLUMN
Price
$53.80
132
HEX BOLT M8-1.25 X 30
Price
N/A
133
INT RETAINING RING 38MM
Price
N/A
134
BUSHING
Price
$7.80
135
KEY 4 X 4 X 20
Price
N/A
136
ELEVATION SPINDLE LONG
Price
$18.70
137
HEX BOLT M6-1 X 12
Price
N/A
140
P0550140
Now: PN08
HEX NUT 3/8-16
Price
N/A
144
SAFETY HATCH
Price
$2.45
145
CAP SCREW M8-1.25 X 45
Price
N/A
146
E-CLIP 9MM
Price
N/A
147
KNIFE GAUGE 1 OF 2
Price
$3.40
148
KNIFE GAUGE ROD
Price
$5.50
149
HEX WRENCH 6MM
Price
N/A
150
HEX WRENCH 5MM
Price
N/A
151
HEX WRENCH 4MM
Price
N/A
152
HEX WRENCH 3MM
Price
N/A
153
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
154
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
155
COMPLETE KNIFE GAUGE ASSY
Price
$14.25
157
MOTOR PULLEY
Price
$20.45
160
LOCK WASHER 8MM
Price
N/A
162
HELICAL SPRING .6 X 16
Price
$1.75
163
JACK SCREW M5-.8 X 12
Price
$1.75
164
LOCK WASHER 8MM
Price
N/A
165
ROLLER BUSHING PLASTIC
Price
$1.85
166
FLAT WASHER 6MM
Price
N/A
168
ROLLER ROD
Price
$3.40
169
ROLLER
Price
$5.80
170
STRAIGHT KNIFE 3PC SET
Price
$68.85
171
GIB BOLT M8-1.25 X 10
Price
N/A
172
GIB
Price
$23.90
173
MACHINE ID LABEL
Item is no longer available
Price
N/A
174
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
175
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
176
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
177
UNPLUG LABEL
Price
$4.25
178
BELT COVER LABEL
Price
$4.25
179
ELECTRICITY 1.4W X 1.2H
Price
N/A
180
LEG
Price
$21.20
181
*DISCD*BRACE LONG SIDE
Item is no longer available
Price
N/A
182
SHORT SIDE BRACE
Price
$10.90
183
BRACE LONG TOP
Price
$16.40
184
SHORT TOP BRACE
Price
$10.35
185
P0550185
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
186
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
187
P0550187
Now: PN02
HEX NUT 5/16-18
Price
N/A
188
LOCK WASHER 8MM
Price
N/A
190
FLAT WASHER 8MM
Price
N/A
191
STAND TOP
Item is no longer available
Price
N/A
192
FLAT WASHER 8MM
Price
N/A
193
HEX NUT M8-1.25
Price
N/A
194
HARDWARE ASSY FOR STAND
Price
$19.85
195
TOOL BAG
Item is no longer available
Price
N/A
196
HANDWHEEL BAG
Item is no longer available
Price
N/A
197
EXTENSION ROLLER HARDWARE BAG
Item is no longer available
Price
N/A
198
DUST PORT HARDWARE BAG
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0550/G0551 11/03
Price
$14.65
