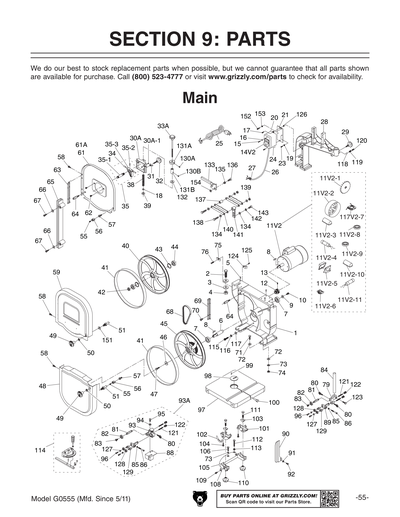

Parts for G0555 - The Classic 14" Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0555001 BASE $194.00
1A P0555001A
*DISCD*BASE/FRAME ARM ASSEMBLY
Item is no longer available
N/A
2 P0555002
Replaced By PB80M
HEX BOLT M16-2 X 55
N/A View Replacement
3 P0555003
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
4 P0555004
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
5 P0555005 ALIGNMENT PIN $1.25
6 P0555006 LOWER WHEEL SHAFT $11.25
7 P0555007
Replaced By P6204-2RS
BALL BEARING 6204-2RS
N/A View Replacement
8 P0555008
Replaced By PK23M
KEY 5 X 5 X 25
N/A View Replacement
9 P0555009 SHAFT WASHER 30 X 8 X 3MM $1.25
10 P0555010
Replaced By PS16M
PHLP HD SCR M8-1.25 X 16
N/A View Replacement
11 P0555011
*DISCD*MOTOR 1HP 110/220V 60HZ 1-PH V1
Item is no longer available
N/A
11-1 P0555011-1
Replaced By P0555011V2-1
MOTOR FAN V2.05.11
N/A View Replacement
11-2 P0555011-2
Replaced By P0555011V2-2
MOTOR FAN COVER V2.05.11
N/A View Replacement
11-3 P0555011-3 CAPACITOR COVER V1 $24.25
11-4 P0555011-4 S CAPACITOR 300M 250V 2-3/4 X 4 V1 $20.00
11-5 P0555011-5 JUNCTION BOX V1 $10.50
11-6 P0555011-6
Replaced By PCS001
CENT SWITCH 5/8-1725
N/A View Replacement
11-7 P0555011-7
Replaced By PCP003
CONTACT PLT SM INT PT
N/A View Replacement
11-8 P0555011-8
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
11-9 P0555011-9
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
11V2 P0555011V2 MOTOR 1HP 110V/220V 1-PH V2.05.11 $260.75
11V2-1 P0555011V2-1 MOTOR FAN V2.05.11 $12.25
11V2-10 P0555011V2-10
Replaced By P0555011V2-3
S CAPACITOR COVER V2.05.11
N/A View Replacement
11V2-11 P0555011V2-11 R CAPACITOR 20M 250V 1-1/2 X 1-1/4 V2.05 $9.75
11V2-2 P0555011V2-2 MOTOR FAN COVER V2.05.11 $29.75
11V2-3 P0555011V2-3 S CAPACITOR COVER V2.05.11 $15.50
11V2-4 P0555011V2-4 S CAPACITOR 200M 250V 1-1/2 X 2-3/4 V2.0 $14.50
11V2-5 P0555011V2-5
JUNCTION BOX V2.05.11
N/A
11V2-6 P0555011V2-6
CENTRIFUGAL SWITCH V2.05.11
N/A
11V2-7 P0555011V2-7 CONTACT PLATE V2.05.11 $8.75
11V2-8 P0555011V2-8
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
11V2-9 P0555011V2-9
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
12 P0555012 MOTOR PULLEY 5/8" BORE $23.25
13 P0555013
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
14 P0555014 PUSH BUTTON SWITCH 110/220V V1 $13.25
14V2 P0555014V2 ON/OFF SWITCH 110/220V V2.05.11 $17.50
14V2-1 P0555014V2-1
*DISCD*SWITCH PADLOCK W/KEY
Item is no longer available
N/A
15 P0555015
Replaced By PHTEK1M
TAP SCREW M3.5 X 12
N/A View Replacement
16 P0555016
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
17 P0555017
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
18 P0555018 TENSION INDICATOR $1.25
19 P0555019
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
20 P0555020 SWITCH BOX $2.50
21 P0555021 SWITCH BOX MOUNT $3.00
23 P0555023
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
24 P0555024 STRAIN RELIEF M15 TYPE-2 $1.75
25 P0555025 POWER CORD 16G 3C 6FT 5-15 $19.75
25V2 P0555025V2
Replaced By P0555025
POWER CORD 16G 3C 6FT 5-15
N/A View Replacement
26 P0555026 MOTOR CORD $12.50
27 P0555027 STRAIN RELIEF M13.5 TYPE-1 SNAP-IN $1.25
28 P0555028 UPPER FRAME ARM $114.25
28A P0555028A UPPER FRAME ARM ASSY $436.75
29 P0555029
Replaced By P0555X029
KNOB BOLT M10-1.5 X 30
N/A View Replacement
30 P0555030
Replaced By P0555030A
UPPER WHEEL SLIDING BRACKET V2.07.07
N/A View Replacement
30A P0555030A UPPER WHEEL SLIDING BRACKET V2.07.07 $11.25
30A-1 P0555030A-1
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
31 P0555031
Replaced By PWN02M
WING NUT M8-1.25
N/A View Replacement
32 P0555032
Replaced By P0555X032
KNOB BOLT M8-1.25 X 45
N/A View Replacement
33 P0555033
Replaced By P0555033A
ADJUSTMENT SCR ASSY 7" THREAD
N/A View Replacement
33-1 P0555033-1
Replaced By P0555033A
ADJUSTMENT SCR ASSY 7" THREAD
N/A View Replacement
33-2 P0555033-2
Replaced By P0555033A
ADJUSTMENT SCR ASSY 7" THREAD
N/A View Replacement
33-3 P0555033-3
Replaced By PRP15M
ROLL PIN 3 X 8
N/A View Replacement
33A P0555033A ADJUSTMENT SCR ASSY 7" THREAD $5.75
33B P0555033B *DISCD*BLADE ADJ SCR ASSY 4" THREAD $5.25
34 P0555034 STEEL PIN 8 X 23MM $1.25
35 P0555035 UPPER WHEEL SHAFT HINGE ASSY $17.00
35-1 P0555035-1 UPPER WHEEL SHAFT $2.75
35-2 P0555035-2
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
35-3 P0555035-3 UPPER WHEEL SHAFT HINGE $12.00
35A P0555035A UPPER WHEEL HINGE AND BRACKET ASSY $28.00
38 P0555038 COMPRESSION SPRING 3.8 X 13.5 X 81 $3.00
39 P0555039
Replaced By PSN04M
SQUARE NUT M10-1.5
N/A View Replacement
40 P0555040 UPPER WHEEL $86.75
41 P0555041
Replaced By T23070
Urethane Tire for 14" Bandsaws (Pair)
N/A View Replacement
42 P0555042
Replaced By PN24M
HEX NUT M12-1.25
N/A View Replacement
43 P0555043
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
44 P0555044
Replaced By P6202-2RS
BALL BEARING 6202-2RS
N/A View Replacement
45 P0555045 LOWER WHEEL ASSY W/TIRE $69.50
45-1 P0555045-1
Replaced By P0555045
LOWER WHEEL ASSY W/TIRE
N/A View Replacement
45-2 P0555045-2 LOWER WHEEL PULLEY $34.25
45-3 P0555045-3
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
46 P0555046
Replaced By P0555009
SHAFT WASHER 30 X 8 X 3MM
N/A View Replacement
47 P0555047
Replaced By PB81M
HEX BOLT M8-1.25 X 20 LH
N/A View Replacement
48 P0555048 LOWER WHEEL COVER $60.25
48A P0555048A
LOWER WHEEL COVER W/LABELS
N/A
49 P0555049
Replaced By P0580049
KNOB M8-1.25
N/A View Replacement
50 P0555050
Replaced By PTLW03M
INT TOOTH WASHER 8MM
N/A View Replacement
51 P0555051 DOOR LATCH STUD M8-1.25 X 14 $3.00
55 P0555055
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
56 P0555056 CATCH $1.75
57 P0555057 ALIGNMENT BOLT M5-.8 X 27 $5.00
58 P0555058
Replaced By PHTEK4M
TAP SCREW M4 X 8
N/A View Replacement
59 P0555059
Replaced By P0555059A
UPPER WHEEL FRONT COVER W/LABELS
N/A View Replacement
59A P0555059A UPPER WHEEL FRONT COVER W/LABELS $40.00
60 P0555060
*DISCD*SAW BLADE 92-1/2" X 3/8" X .5MM
Item is no longer available
N/A
61 P0555061 REAR UPPER WHEEL COVER (G50555P) $34.25
61A P0555061A REAR UPPER WHEEL COVER V2.07.07 $32.25
62 P0555062
Replaced By PFS01M
FLANGE SCREW M5-.8 X 8
N/A View Replacement
63 P0555063 UPPER WHEEL COVER HINGE $4.00
64 P0555064 WHEEL COVER STANDOFF-SE HEX $2.25
65 P0555065 LEFT BLADE GUARD $5.25
66 P0555066 TABBED FLANGE WASHER 4MM $1.25
67 P0555067
Replaced By PHTEK2M
TAP SCREW M3.5 X 16
N/A View Replacement
68 P0555068 RIBBED V-BELT 2000J05 $21.50
69 P0555069 LOWER WHEEL COVER HINGE $5.25
70 P0555070
Replaced By PFH07M
FLAT HD SCR M5-.8 X 10
N/A View Replacement
71 P0555071
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
72 P0555072
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
73 P0555073
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
74 P0555074
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
75 P0555075 CORD CLAMP $1.25
76 P0555076
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
79 P0555079 GUIDE POST BRACKET $8.50
80 P0555080
Replaced By PTS001M
THUMB SCREW M6-1 X 16
N/A View Replacement
81 P0555081 GUIDE SPACING SLEEVE $5.00
82 P0555082
Replaced By P6000ZZ
BALL BEARING 6000ZZ
N/A View Replacement
83 P0555083 FLANGE SCREW M6- 1 X 8 $1.25
84 P0555084 GUIDE POST $8.75
85 P0555085
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
86 P0555086
Replaced By PCAP78M
CAP SCREW M5-.8 X 40
N/A View Replacement
88 P0555088 LOWER RIGHT BLADE GUARD $3.00
89 P0555089 UPPER GUIDE BRACKET $6.25
89A P0555089A UPPER BLADE GUIDE ASSEMBLY $71.75
90 P0555090 UPPER RIGHT BLADE GUARD $6.50
91 P0555091
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
92 P0555092
Replaced By PB05M
HEX BOLT M6-1 X 8
N/A View Replacement
93 P0555093 LOWER GUIDE BRACKET $7.00
93A P0555093A LOWER BLADE GUIDE ASSY $68.25
94 P0555094
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
95 P0555095
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
96 P0555096
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
97 P0555097 TABLE $129.75
98 P0555098
Replaced By T24385
Table Insert for G0580, G0555 and G0555P
N/A View Replacement
99 P0555099
Replaced By PRP15M
ROLL PIN 3 X 8
N/A View Replacement
100 P0555100 TABLE PIN $2.75
101 P0555101 TRUNNION $9.50
102 P0555102 SCALE $1.25
103 P0555103 TRUNNION CLAMP SHOE $2.50
104 P0555104
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
105 P0555105 TRUNNION SUPPORT BRACKET $29.25
106 P0555106
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
108 P0555108 POINTER $1.25
109 P0555109
Replaced By PFS03M
FLANGE SCREW M5-.8 X 6
N/A View Replacement
110 P0555110 KNOB M10-1.5 $3.75
111 P0555111
Replaced By PB73M
HEX BOLT M10-1.5 X 50
N/A View Replacement
112 P0555112 TRUNNION HEX BOLT M8-1.25 X 80 $2.00
113 P0555113
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
114 P0555114 MITER GAUGE ASSEMBLY $23.50
114-1 P0555114-1 MITER GAUGE $18.25
114-2 P0555114-2 MITER BAR $2.50
114-3 P0555114-3 POINTER $2.75
114-4 P0555114-4
BRACKET
N/A
114-5 P0555114-5
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
114-6 P0555114-6
Replaced By PRP59M
ROLL PIN 5 X 12
N/A View Replacement
114-7 P0555114-7 KNOB 1/4-20 X 1 $2.50
114-8 P0555114-8
Replaced By P0555300

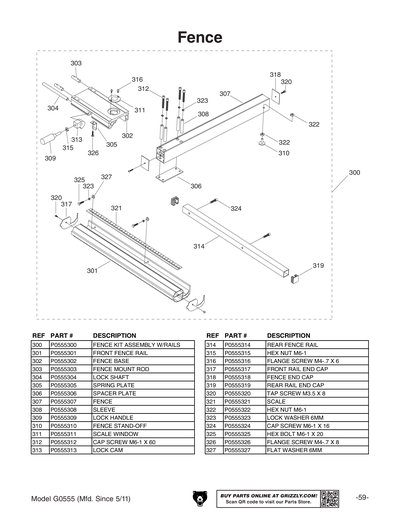

FENCE KIT ASSEMBLY W/RAILS
N/A View Replacement
115 P0555115
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
116 P0555116
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
117 P0555117
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
118 P0555118
Replaced By PSTB002M
STEEL BALL 8MM
N/A View Replacement
119 P0555119 COMPRESSION SPRING 1.5 X 5 X 9 $1.25
120 P0555120
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
121 P0555121
Replaced By PSS98M
SET SCREW M8-1 X 35
N/A View Replacement
122 P0555122 MICRO ADJUSTING NUT 1.65 $2.25
123 P0555123
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
124 P0555124 CORD CLAMP $1.25
125 P0555125
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
126 P0555126
Replaced By PLN01M
LOCK NUT M4-.7
N/A View Replacement
127 P0555127
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
128 P0555128
Replaced By G3845
Bearing - 22mm x 8mm
N/A View Replacement
129 P0555129 ECCENTRIC SHAFT $3.25
130 P0555130
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
130A P0555130A
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
130B P0555130B
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement
131 P0555131
FIXED LUMP
Item is no longer available
N/A
131A P0555131A UPPER LOCK COLLAR $8.75
131B P0555131B LOWER LOCK COLLAR $4.50
132 P0555132
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
133 P0555133 QUICK RELEASE LEVER $8.00
133A P0555133A QUICK RELEASE LEVER ASSY $42.75
134 P0555134
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
135 P0555135 BUSHING $1.25
136 P0555136
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
137 P0555137 SPACER $2.00
138 P0555138
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
139 P0555139
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
140 P0555140 SUPPORT PLATE $2.00
141 P0555141 PIVOT ARM $6.75
142 P0555142
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
143 P0555143
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement

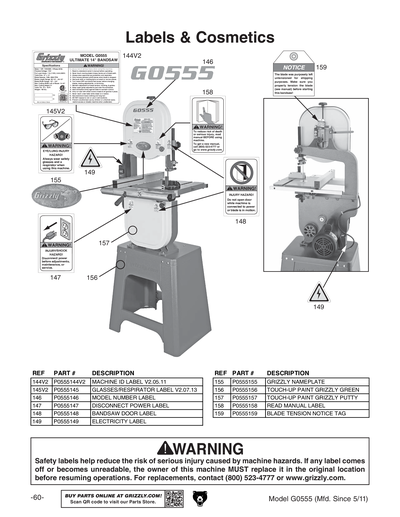

144 P0555144
MACHINE ID/WARNING LABEL V1
N/A
144V2 P0555144V2 MACHINE ID LABEL V2.05.11 $9.50
145 P0555145
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
146 P0555146 MODEL NUMBER LABEL $5.75
147 P0555147
Replaced By PLABEL-18
UNPLUG BANDSAW 2W X 3.3H
N/A View Replacement
148 P0555148
Replaced By PLABEL-23
BANDSAW DOOR 2W X 3.3H
N/A View Replacement
149 P0555149
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
150 P0555150 HARDWARE BAG $40.00
151 P0555151
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
152 P0555152
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
153 P0555153
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
154 P0555154 SPACER 8MM $1.25
155 P0555155
Replaced By G9987
Name Plates - Mini
N/A View Replacement
156 P0555156
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
157 P0555157
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement

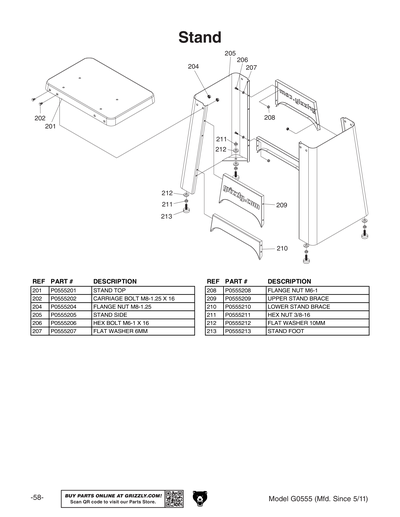

201 P0555201 STAND TOP $97.50
202 P0555202
Replaced By PCB06M
CARRIAGE BOLT M8-1.25 X 16
N/A View Replacement
203 P0555203
Replaced By P0555201
STAND TOP
N/A View Replacement
204 P0555204
Replaced By PFN01M
FLANGE NUT M8-1.25
N/A View Replacement
205 P0555205 STAND SIDE $112.75
206 P0555206
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
207 P0555207
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
208 P0555208
Replaced By PFN02M
FLANGE NUT M6-1
N/A View Replacement
209 P0555209
UPPER STAND BRACE
N/A
210 P0555210 LOWER STAND BRACE $18.25
211 P0555211
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
212 P0555212
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
213 P0555213 STAND FOOT $2.50
300 P0555300 FENCE KIT ASSEMBLY W/RAILS $258.00
301 P0555301 FRONT FENCE RAIL $50.00
302 P0555302 FENCE BASE $49.25
303 P0555303 FENCE MOUNT ROD $6.25
304 P0555304 LOCK SHAFT $4.00
305 P0555305 SPRING PLATE $1.25
306 P0555306 SPACER PLATE $2.25
307 P0555307 FENCE $21.00
308 P0555308 SLEEVE $1.75
309 P0555309 LOCK HANDLE $3.25
310 P0555310 FENCE STAND-OFF $1.25
311 P0555311 SCALE WINDOW $2.25
312 P0555312
Replaced By PCAP198M
CAP SCREW M6-1 X 60
N/A View Replacement
313 P0555313 LOCK CAM $6.75
314 P0555314 REAR FENCE RAIL $11.75
315 P0555315
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
316 P0555316
Replaced By PFS04M
FLANGE SCREW M4-.7 X 6
N/A View Replacement
317 P0555317 FRONT RAIL END CAP $1.25
318 P0555318 FENCE END CAP $1.75
319 P0555319 REAR RAIL END CAP $1.25
320 P0555320
Replaced By PHTEK3M
TAP SCREW M3.5 X 8
N/A View Replacement
321 P0555321 SCALE $2.75
322 P0555322
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
323 P0555323
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
324 P0555324
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
325 P0555325
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
326 P0555326
Replaced By PFS17M
FLANGE SCREW M4-.7 X 8
N/A View Replacement
327 P0555327
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
400 P0555400
Replaced By P0555033A
ADJUSTMENT SCR ASSY 7" THREAD
N/A View Replacement
800 P0555800
CARTON FOR G0555
N/A
801 P0555801
STYROFOAM 2PC
N/A
8089A P05558089A
*DISCD*UPPER BLADE GUIDE ASSEMBLY
Item is no longer available
N/A
MANUAL P0555MANUAL
Replaced By P0555MANV2
MANUAL FOR G0555 MFG 08.02 V2.07.07
N/A View Replacement
MANV2 P0555MANV2 MANUAL FOR G0555 MFG 08.02 V2.07.07 $12.00
MANV3 P0555MANV3 MANUAL FOR G0555 MFG 05.11 V3.06.11 $17.25
P001A P0555P001A
*DISCD*BASE/FRAME ARM ASSEMBLY
Item is no longer available
N/A
P035A P0555P035A
Replaced By P0555035A
UPPER WHEEL HINGE AND BRACKET ASSY
N/A View Replacement
PART P0555PART
MISC PART FOR G0555
N/A
X035A P0555X035A
Replaced By P0555035A
UPPER WHEEL HINGE AND BRACKET ASSY
N/A View Replacement
