Parts for G0555LX - 14" 1 HP Deluxe Bandsaw

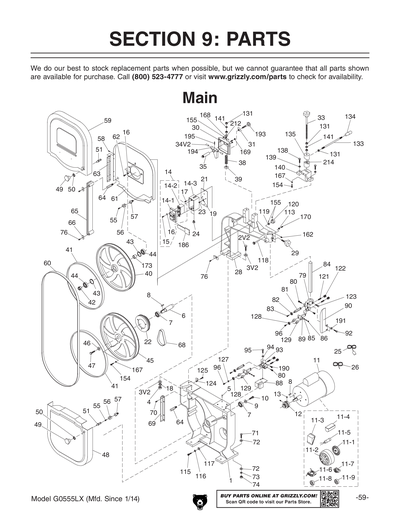

Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX
Part Diagram for G0555LX

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

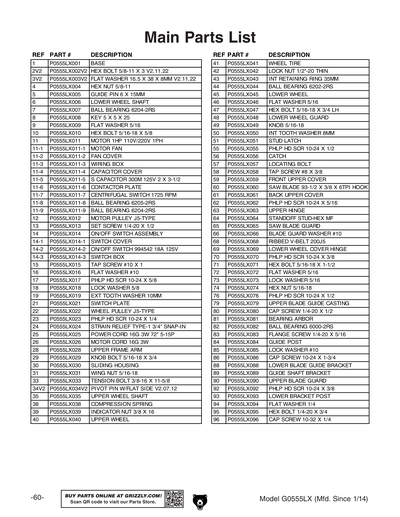

Ref #
Part #
Description
1
BASE
Price
$358.65
2
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
2V2
HEX BOLT 5/8-11 X 3 V2.11.22
Price
$2.75
3
FLAT WASHER 5/8
Price
N/A
3V2
FLAT WASHER 16.5 X 38 X 8MM V2.11.22
Price
$4.30
4
HEX NUT 5/8-11
Price
N/A
5
GUIDE PIN 6 X 15MM
Price
$1.60
6
LOWER WHEEL SHAFT
Price
$15.60
7
BALL BEARING 6204-2RS
Price
N/A
8
KEY 5 X 5 X 25
Price
N/A
9
FLAT WASHER 5/16
Price
N/A
10
HEX BOLT 5/16-18 X 5/8
Price
N/A
11
MOTOR 1HP 110V/220V 1-PH
Price
$340.70
11-1
MOTOR FAN
Price
$5.55
11-2
FAN COVER
Price
$6.70
11-3
WIRING BOX
Price
$3.95
11-4
CAPACITOR COVER
Price
$2.45
11-5
S CAPACITOR 300M 125V 2 X 3-1/2
Price
$15.45
11-6
CONTACTOR PLATE
Price
$5.45
11-7
CENTRIFUGAL SWITCH 1725 RPM
Price
$4.50
11-8
BALL BEARING 6205-2RS
Price
N/A
11-9
BALL BEARING 6204-2RS
Price
N/A
12
MOTOR PULLEY J5-TYPE
Price
$14.85
13
SET SCREW 1/4-20 X 1/2
Price
N/A
14
SWITCH 994542 18A 125V
Price
$44.30
14-1
SWITCH 994542 18A 125V
Price
N/A
14-2
SWITCH 994542 18A 125V
Price
N/A
14-3
SWITCH BOX
Price
$15.25
15
TAP SCREW #10 X 1
Price
N/A
16
FLAT WASHER #10
Price
N/A
17
PHLP HD SCR 10-24 X 5/8
Price
N/A
18
LOCK WASHER 5/8
Price
N/A
19
EXT TOOTH WASHER 10MM
Price
N/A
21
SWITCH PLATE
Price
$5.65
22
WHEEL PULLEY J5-TYPE
Price
$31.40
23
PHLP HD SCR 10-24 X 1/4
Price
N/A
24
STRAIN RELIEF TYPE-1 3/4" SNAP-IN
Price
$1.60
25
POWER CORD 16G 3W 72" 5-15P
Price
$29.15
26
MOTOR CORD 16G 3W
Price
$5.50
27
CAP SCREW 1/4-20 X 2-1/2
Price
N/A
28
UPPER FRAME ARM
Price
$188.40
29
STAR KNOB BOLT 5/16-18 X 3/4
Price
$2.75
30
SLIDING HOUSING
Price
$16.35
30A
SLIDING HOUSING ASSY
Price
$44.70
31
WING NUT 5/16-18
Price
N/A
32
PHLP HD SCR 8-32 X 1/4
Price
N/A
33
TENSION BOLT 3/8-16 X 11-5/8
Price
$16.35
34
PIVOT PIN ROUND V1
Price
$1.60
34V2
PIVOT PIN W/FLAT SIDE V2.07.12
Price
$3.10
35
UPPER WHEEL SHAFT
Price
$10.90
36
LOCK CAM
Price
$8.20
37
FRONT FENCE RAIL
Price
$70.85
38
COMPRESSION SPRING
Price
$5.50
39
INDICATOR NUT 3/8 X 16
Price
$4.20
40
UPPER WHEEL
Price
$152.15
40A
UPPER WHEEL ASSEMBLY
Price
$181.15
41
WHEEL TIRE
Price
$10.30
42
LOCK NUT 1/2"-20 THIN
Price
N/A
42V2
LOCK NUT 1/2"-20 THIN
Price
N/A
43
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL
Price
$163.05
45A
LOWER WHEEL ASSEMBLY
Price
$160.35
46
FLAT WASHER 5/16
Price
N/A
47
HEX BOLT 5/16-18 X 3/4 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
$38.10
49
KNOB 5/16-18
Price
$3.35
50
INT TOOTH WASHER 8MM
Price
N/A
51
STUD LATCH
Price
$4.50
52
REAR FENCE RAIL
Price
$14.25
53
FRONT RAIL END CAP
Price
$5.15
54
MAGNIFYING LENS
Price
$2.85
55
PHLP HD SCR 10-24 X 1/2
Price
N/A
56
CATCH
Price
$4.85
57
LOCATING BOLT
Price
$4.30
58
TAP SCREW #8 X 3/8
Price
N/A
59
FRONT UPPER COVER
Price
$43.50
60
93-1/2" x 3/8" x .025" x 6 TPI Hook Bandsaw Blade
Price
N/A
61
BACK UPPER COVER
Price
$26.35
62
PHLP HD SCR 10-24 X 5/16
Price
N/A
63
UPPER HINGE
Price
$7.25
64
STANDOFF STUD-HEX MF
Price
$2.45
65
SAW BLADE GUARD
Price
$6.40
66
FLAT WASHER 6MM
Price
N/A
68
RIBBED V-BELT 200J5
Price
$16.35
69
LOWER WHEEL COVER HINGE
Price
$5.15
70
PHLP HD SCR 10-24 X 3/8
Price
N/A
71
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
72
FLAT WASHER 5/16
Price
N/A
73
LOCK WASHER 5/16
Price
N/A
74
HEX NUT 5/16-18
Price
N/A
75
*DISCD*CORD CLAMP
Item is no longer available
Price
N/A
76
PHLP HD SCR 10-24 X 1/2
Price
N/A
77
FENCE
Price
$35.65
77A
COMPLETE FENCE ASSEMBLY
Price
$117.45
78
SPACER
Price
$2.75
79
UPPER BLADE GUIDE CASTING
Price
$27.10
80
CAP SCREW 1/4-20 X 1/2
Price
N/A
81
BEARING ARBOR
Price
$5.15
82
BALL BEARING 6000-2RS
Price
N/A
83
FLANGE SCREW 1/4"-20 X 5/16
Price
N/A
84
GUIDE POST
Price
$50.75
85
LOCK WASHER #10
Price
N/A
86
CAP SCREW 10-24 X 1-3/4
Price
N/A
87
FENCE END CAP
Price
$2.75
88
LOWER BLADE GUIDE BRACKET
Price
$6.10
89
GUIDE SHAFT BRACKET
Price
$10.65
90
UPPER BLADE GUARD
Price
$5.15
92
PHLP HD SCR 10-24 X 3/8
Price
N/A
93
LOWER BRACKET POST
Price
$11.50
94
FLAT WASHER 1/4
Price
N/A
95
HEX BOLT 1/4-20 X 3/4
Price
N/A
96
CAP SCREW 10-32 X 1/4
Price
N/A
97

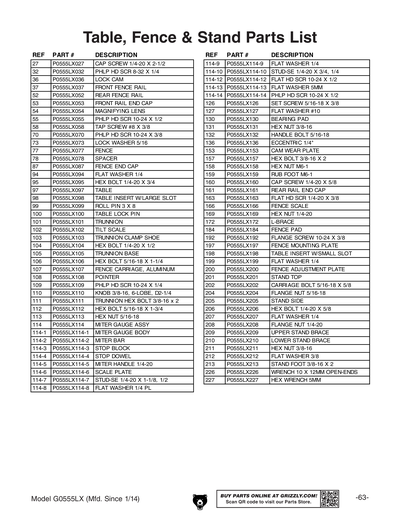

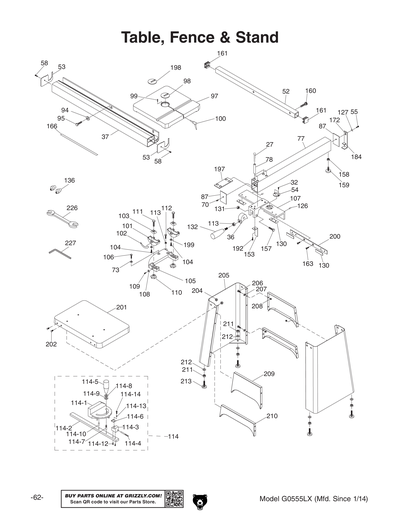

TABLE
Price
$297.05
98
TABLE INSERT W/LARGE SLOT
Price
$9.45
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE LOCK PIN
Price
$5.65
101
TRUNNION
Price
$13.10
102
TILT SCALE
Price
$2.75
103
TRUNNION CLAMP SHOE
Price
$4.85
104
HEX BOLT 1/4-20 X 5/8
Price
N/A
105
TRUNNION BASE
Price
$36.25
106
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
107
FENCE CARRIAGE ALUMINUM
Price
$33.85
108
POINTER
Price
$1.60
109
PHLP HD SCR 10-24 X 1/4
Price
N/A
110
KNOB 3/8-16, 6-LOBE, D2-1/4
Price
$4.75
111
TRUNNION HEX BOLT 3/8-16 X 2
Price
$2.85
112
HEX BOLT 5/16-18 X 1-3/4
Price
N/A

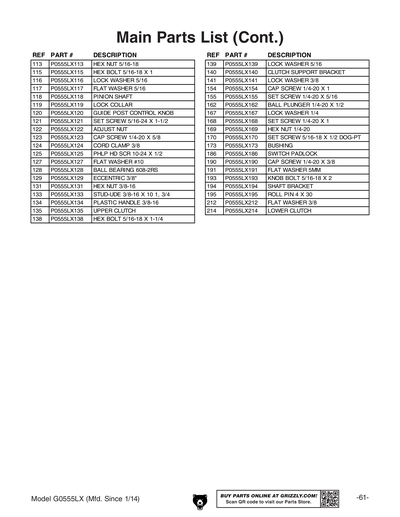

113
HEX NUT 5/16-18
Price
N/A
114
*DISCD*MITER GAUGE ASSY
Item is no longer available
Price
N/A
114-1
MITER GAUGE BODY
Price
$21.75
114-10
STUD-SE 1/4-20 X 3/4 1/4
Price
$1.85
114-12
FLAT HD SCR 10-24 X 1/2
Price
N/A
114-13
FLAT WASHER 5MM
Price
N/A
114-14
PHLP HD SCR 10-24 X 1/2
Price
N/A
114-2
MITER BAR
Price
$5.50
114-3
STOP BLOCK
Price
$5.50
114-4
STOP DOWEL
Price
$5.50
114-5
MITER HANDLE 1/4-20
Price
$5.15
114-6
SCALE PLATE
Price
$3.40
114-7
STUD-SE 1/4-20 X 1-1/8 1/2
Price
$1.85
114-8
PLASTIC WASHER 1/4-16
Price
N/A
114-9
FLAT WASHER 1/4
Price
N/A
115
HEX BOLT 5/16-18 X 1
Price
N/A
116
LOCK WASHER 5/16
Price
N/A
117
FLAT WASHER 5/16
Price
N/A
118
PINION SHAFT
Price
$6.05
119
LOCK COLLAR
Price
$1.85
120
GUIDE POST CONTROL KNOB
Price
$19.35
121
SET SCREW 5/16-24 X 1-1/2
Price
N/A
122
ADJUST NUT
Price
$3.65
123
CAP SCREW 1/4-20 X 5/8
Price
N/A
124
CORD CLAMP 3/8
Price
$1.60
125
PHLP HD SCR 10-24 X 1/2
Price
N/A
126
SET SCREW 5/16-18 X 3/8
Price
N/A
127
FLAT WASHER #10
Price
N/A
128
BALL BEARING 608-2RS
Price
N/A
129
ECCENTRIC 3/8"
Price
$5.50
130
BEARING PAD
Price
N/A
131
HEX NUT 3/8-16
Price
N/A
132
HANDLE BOLT 5/16-18
Price
$4.75
133
STUD-UDE 3/8-16 X 10 1, 3/4
Price
$4.30
134
PLASTIC HANDLE 3/8-16
Price
$2.85
135
UPPER CLUTCH
Price
$7.25
136
ECCENTRIC 1/4"
Price
$6.10
138
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
139
LOCK WASHER 5/16
Price
N/A
140
CLUTCH SUPPORT BRACKET
Price
$24.50
141
LOCK WASHER 3/8
Price
N/A
153
CAM WEAR PLATE
Price
$3.05
154
CAP SCREW 1/4-20 X 1
Price
N/A
155
SET SCREW 1/4-20 X 5/16
Price
N/A
157
HEX BOLT 3/8-16 X 2
Price
N/A
158
HEX NUT M6-1
Price
N/A
159
RUB FOOT M6-1.0
Price
$2.20
160
CAP SCREW 1/4-20 X 5/8
Price
N/A
161
REAR RAIL END CAP
Price
$1.90
162
BALL PLUNGER 1/4-20 X 1/2
Price
$2.45
163
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
166
FENCE SCALE
Price
$5.80
167
LOCK WASHER 1/4
Price
N/A
168
SET SCREW 1/4-20 X 1
Price
N/A
169
HEX NUT 1/4-20
Price
N/A
170
SET SCREW 5/16-18 X 1/2 DOG-PT
Price
$1.85
172
L-BRACE
Price
$5.50
173
BUSHING
Price
$4.30
184
FENCE PAD
Price
$1.85
186
SWITCH PADLOCK
Price
$17.25
190
CAP SCREW 1/4-20 X 3/8
Price
N/A
191
FLAT WASHER 5MM
Price
N/A
192
FLANGE SCREW 10-24 X 3/8
Price
N/A
193
KNOB BOLT 5/16-18 X 2
Price
$2.45
194
SHAFT BRACKET
Price
$14.50
195
ROLL PIN 4 X 30
Price
N/A
197
FENCE MOUNTING PLATE
Price
$4.85
198
TABLE INSERT W/SMALL SLOT
Price
$8.40
199
FLAT WASHER 1/4
Price
N/A
200
FENCE ADJUSTMENT PLATE
Price
$9.10
201
*DISCD*STAND TOP
Item is no longer available
Price
N/A
202
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
204
FLANGE NUT 5/16-18
Price
N/A
205
STAND SIDE
Price
$54.35
206
HEX BOLT 1/4-20 X 5/8
Price
N/A
207
FLAT WASHER 1/4
Price
N/A
208
FLANGE NUT 1/4-20
Price
N/A
209
UPPER STAND BRACE
Price
$11.20
210
*DISCD*LOWER STAND BRACE
Price
$9.10
211
HEX NUT 3/8-16
Price
N/A
212
FLAT WASHER 3/8
Price
N/A
213
STAND FOOT 3/8-16 X 2
Price
$5.50
214
LOWER CLUTCH
Price
$9.85
215

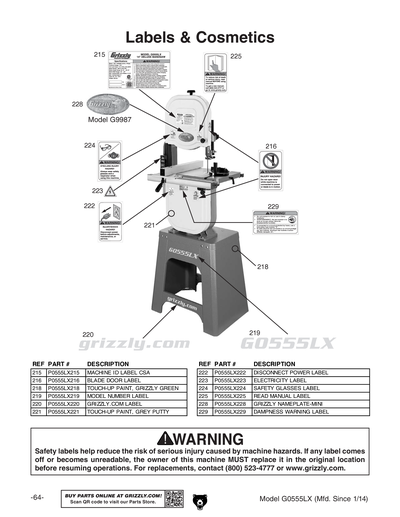

MACHINE ID LABEL CSA
Price
$16.40
216
BANDSAW DOOR 2W X 3.3H
Price
N/A
217
BANDSAW BLADE 1.5W X 2H
Price
N/A
218
N/S GRIZZLY GREEN G1023S
Price
N/A
219
MODEL NUMBER LABEL
Price
$23.10
220
GRIZZLY.COM LABEL 9.875",GRAY
Price
N/A
221
GREY PUTTY REF G0504
Price
N/A
222
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
223
ELECTRICITY 0.7W X 0.6H
Price
N/A
224
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
225
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
226
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
227
HEX WRENCH 5MM
Price
N/A
228
Nameplate - Mini
Price
N/A
229
DAMPNESS HAZARD LABEL
Price
N/A
BAG1
HARDWARE BAG
Price
$25.40
BOX2
COMPLETE STAND ASSY BOX 2
Price
$260.85
MAN
MANUAL G0555LX MFD 01.12-02.13 V1.02.12
Price
$19.50
MANV2
MANUAL G0555LX MFD 03.13-12.13 V2.04.13
Price
$14.65
MANV3
MANUAL G0555LX MFD 01.14+ V3.05.23
Price
$13.80
P0555LANV136
ECCENTRIC 1/4"
Price
N/A
P
FLANGE SCREW 1/4"-20 X 5/16
Price
$1.60
