Parts for G0555X - 14" 1-1/2 HP Extreme Series Bandsaw

1/7

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
$258.40
2
HEX BOLT M16-2 X 55
Price
N/A
3
FLAT WASHER 16MM
Price
N/A
4
HEX NUT M16-2
Price
N/A
5
ALIGNMENT PIN
Price
$1.49
6
LOWER WHEEL SHAFT
Price
$14.70
7
BALL BEARING 6204-2RS
Price
N/A
8
KEY 5 X 5 X 25
Price
N/A
9
FENDER WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 16
Price
N/A
11
MOTOR 1.5HP 110V/220V 1-PH V2.05.11
Price
N/A
11-1
MOTOR FAN COVER V1
Price
$17.55
11-10
REAR MOTOR BEARING V1
Item is no longer available
Price
N/A
11-2
MOTOR FAN V1
Price
$10.95
11-3
CAPACITOR COVER V1
Price
$15.25
11-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
$13.55
11-5
MOTOR JUNCTION BOX V1
Item is no longer available
Price
N/A
11-6
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
11-7
CENTRIFUGAL SWITCH W/CONTACT PLATE V1
Item is no longer available
Price
N/A
11-8
CENTRIFUGAL SWITCH W/CONTACT PLATE V1
Price
N/A
11-9
FRONT MOTOR BEARING V1
Item is no longer available
Price
N/A
11V2
MOTOR 1.5HP 110V/220V 1-PH V2.05.11
Price
$374.35
11V2-1
MOTOR FAN COVER V2.05.11
Price
$19.30
11V2-10
BALL BEARING 6203ZZ
Price
N/A
11V2-11
S CAPACITOR COVER V2.05.11
Price
N/A
11V2-2
MOTOR FAN V2.05.11
Price
$21.00
11V2-3
S CAPACITOR COVER V2.05.11
Price
$9.20
11V2-4
S CAPACITOR 200M 125V 1-1/2 X 2-3/4
Price
N/A
11V2-5
MOTOR JUNCTION BOX V2.05.11
Price
$17.00
11V2-6
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
11V2-7
CENT SWITCH W/CONTACT PLATE V2.05.11
Price
$22.75
11V2-8
CENT SWITCH W/CONTACT PLATE V2.05.11
Price
N/A
11V2-9
BALL BEARING 6205ZZ
Price
N/A
12
MOTOR PULLEY 5/8" BORE
Price
$26.75
13
SET SCREW M6-1 X 12
Price
N/A
14
PUSH BUTTON SWITCH V1
Price
$21.30
14V2
ON/OFF SWITCH 110/220V V2.05.11
Price
N/A
15
TAP SCREW M3.5 X 12
Price
N/A
16
FLAT WASHER 4MM
Price
N/A
17
PHLP HD SCR M5-.8 X 16
Price
N/A
18
TENSION INDICATOR
Price
$1.49
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH BOX
Price
$2.90
21
SWITCH BOX MOUNT PLATE
Item is no longer available
Price
N/A
22
GROMMET M15 TYPE-1 PUSH-IN
Item is no longer available
Price
N/A
23
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF TYPE-2 M16-1.5
Price
$2.05
25
POWER CORD V1
Price
$25.60
25V2
POWER CORD 14G 3C 6FT 5-15 V2.05.11
Price
$23.90
26
MOTOR CORD
Price
$15.25
27
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
28
UPPER FRAME ARM
Price
$197.55
29
KNOB BOLT M10-1.5 X 30
Price
$2.30
30
HINGE BRACKET V1.12.06
Price
$12.65
30A
UPPER WHEEL BRACKET V2.08.07
Price
$12.95
31
WING NUT 8MM
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
$2.60
33
TENSION KNOB BOLT ASSEMBLY
Price
$6.90
33-1
TENSION KNOB BOLT ASSEMBLY
Price
N/A
33-2
ADJUSTING BOLT
Price
$6.35
33-3
ROLL PIN 3 X 18
Price
N/A
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
Price
$19.55
35-1
WHEEL SHAFT UPPER
Price
$3.20
35-2
ROLL PIN 4 X 24
Price
N/A
35-3
WHEEL SHAFT HINGE UPPER
Price
$12.95
36
*DISCD*LAMP ASSEMBLY W/O PLUG V1
Item is no longer available
Price
N/A
36V2
LAMP ASSY W/POWER CORD & PLUG V2.04.12
Price
$89.15
37
FLANGE SCREW M5-.8 X 8
Price
N/A
38
COMPRESSION SPRING
Price
$3.45
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL
Price
$99.80
41
WHEEL TIRE
Price
$7.80
42
HEX NUT M12-1.75
Price
N/A
43
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL V1
Price
$126.25
46
FENDER WASHER 8MM
Price
N/A
47
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
$71.90
48A
LOWER WHEEL COVER W/LABELS
Item is no longer available
Price
N/A
49
GRIZZLY ROUND KNOB M8-1.25
Price
$2.30
50
INT TOOTH WASHER 8MM
Price
N/A
51
LATCH STUD M8-1.25 X 14
Price
$3.45
55
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
ALIGNMENT BOLT
Price
$5.75
58
TAP SCREW M4 X 8
Price
N/A
59
UPPER WHEEL FRONT COVER
Price
$57.80
59A
UPPER WHEEL FRONT COVER W/LABELS
Item is no longer available
Price
N/A
60
93-1/2" x 3/8" x .025" x 6 TPI Hook Bandsaw Blade
Price
N/A
61
*DISCD*UPPER BACK COVER V1.12.06
Item is no longer available
Price
N/A
61A
UPPER WHEEL BACK COVER V2.08.07
Price
$35.10
62
FLANGE SCREW M5-.8 X 8
Price
N/A
63
UPPER WHEEL COVER HINGE
Price
$5.20
64
STANDOFF STUD
Price
$2.60
65
LEFT BLADE GUARD
Price
$6.05
66
TAP SCREW FLAT WASHER
Price
$1.49
67
TAP SCREW M3.5 X 16
Price
N/A
68
RIBBED V-BELT 2000J05
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
$6.65
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
HEX BOLT M8-1.25 X 35
Price
N/A
72
FLAT WASHER M8-1.25 X 18
Price
$1.49
73
LOCK WASHER 8MM
Price
N/A
74
HEX NUT M8-1.25
Price
N/A
75
CORD CLAMP
Item is no longer available
Price
N/A
76
PHLP HD SCR M5-.8 X 8
Price
N/A
77
WHEEL BRUSH
Price
$2.90
78
*DISCD*CORD CLAMP 3/16"
Item is no longer available
Price
N/A
79
GUIDE POST BRACKET
Price
N/A
80
THUMB SCREW M6-1 X 16
Price
N/A
81
GUIDE SUPPORT SHAFT
Price
$6.35
82
BALL BEARING 6000ZZ
Price
N/A
83
FLANGE SCREW M6- 1 X 8
Price
N/A
84
GUIDE POST
Price
$10.35
85
LOCK WASHER 5MM
Price
N/A
86
CAP SCREW M5-.8 X 40
Price
N/A
87
TABLE EXTENSION
Price
$141.75
88
LOWER RIGHT BLADE GUARD
Price
N/A
89
UPPER GUIDE BRACKET
Price
N/A
90
UPPER RIGHT BLADE GUARD
Price
N/A
91
FLAT WASHER 6MM
Price
N/A
92
HEX BOLT M6-1 X 10
Price
N/A
93
LOWER BLADE GUIDE BRACKET
Price
$8.05
94
FLAT WASHER 6MM
Price
N/A
95
HEX BOLT M6-1 X 20
Price
N/A
96
CAP SCREW M5-.8 X 12
Price
N/A
97
TABLE
Price
$165.60
98
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
99
PULLEY FLAT WASHER
Price
$1.75
100
TABLE PIN
Price
$6.05
101
TRUNNION
Price
$12.10
102
SCALE
Price
N/A
103
TRUNNION CLAMP SHOE
Price
$2.90
104
HEX BOLT M6-1 X 12
Price
N/A
105
TRUNNION SUPPORT BRACKET
Price
$33.65
106
HEX BOLT M8-1.25 X 30
Price
N/A
108
POINTER
Price
$1.49
109
FLANGE SCREW M5-.8 X 6
Price
N/A
110
KNOB 10MM
Price
$4.90
111
TRUNNION HEX BOLT M10-1.5 X 50
Price
$1.75
112
HEX BOLT M8-1.25 X 80
Price
N/A
113
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE BODY ASSEMBLY
Price
$61.85
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
117
FENDER WASHER 8MM
Price
N/A
118
STEEL BALL 8MM
Price
N/A
119
COMPRESSION SPRING
Price
$1.49
120
SET SCREW M10-1.5 X 10
Price
N/A
121
SET SCREW M8-1 X 35
Price
N/A
122
MICRO ADJUSTING NUT
Price
$2.30
123
HEX BOLT M6-1 X 20
Price
N/A
124
CORD CLAMP
Item is no longer available
Price
N/A
125
PHLP HD SCR M5-.8 X 8
Price
N/A
126
LOCK NUT M4-.7
Price
N/A
127
FLAT WASHER 5MM
Price
N/A
128
Bearing - 22mm x 8mm
Price
N/A
129
ECCENTRIC SHAFT
Price
N/A
130
SET SCREW M5-.8 X 10
Price
N/A
131
UPPER LOCK COLLAR
Price
$11.25
132
FLAT WASHER 10MM
Price
N/A
133
TENSION LEVER
Price
$9.80
134
FLAT WASHER 8MM
Price
N/A
135
BUSHING
Price
$1.49
136
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
137
SPACER
Price
$2.30
138
HEX BOLT M8-1.25 X 40
Price
N/A
139
LOCK NUT M8-1.25
Price
N/A
140
SUPPORT PLATE
Price
$2.30
141
PIVOT ARM
Price
N/A
142
LOCK WASHER 8MM
Price
N/A
143
CAP SCREW M8-1.25 X 20
Price
N/A
144
SPACER 8 X 12MM
Price
$1.49
145
*DISCD*LAMP ASSEMBLY W/O PLUG V1
Price
N/A
146
*DISCD*LAMP ASSEMBLY W/O PLUG V1
Price
N/A
147
LEVER BOARD
Price
$16.10
148
FLAT WASHER 6MM
Price
N/A
149
LOCK WASHER 6MM
Price
N/A
150
LOWER LOCK COLLAR
Price
$5.20
151
SET SCREW M5-.8 X 5
Price
N/A
152
PHLP HD SCR M5-.8 X 12
Price
N/A
153
EXT TOOTH WASHER 5MM
Price
N/A
154
FLAT WASHER 8MM
Price
N/A
155
CAP SCREW M6-1 X 25
Price
N/A
156
CAP SCREW M8-1.25 X 60
Price
N/A
157
HEX NUT M8-1.25
Price
N/A
158
SET SCREW M8-1.25 X 20
Price
N/A
159
SPACER
Price
$2.85
160
LOWER WHEEL V1
Price
N/A
161
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
162
LOCK WASHER 6MM
Price
N/A
163
*DISCD*SWITCH MOUNTING BRACKET
Price
$20.15
164
LAMP CORD
Price
$4.60
165
LAMP SWITCH
Price
$13.80
166
SET SCREW M5-.8 X 8
Price
N/A
167
PHLP HD SCR M5-.8 X 12
Price
N/A
168
EXT TOOTH WASHER 5MM
Price
N/A
169
CORD CLAMP
Item is no longer available
Price
N/A
200
FENCE KIT ASSEMBLY
Price
$269.40
201
FRONT FENCE RAIL
Price
$60.70
202
FENCE BASE
Item is no longer available
Price
N/A
203
FENCE MOUNTING SHAFT
Price
$7.20
204
LOCK ROD
Price
$4.60
205
SPRING PIECE
Price
$1.49
206
LOCK KNOB M8-1.25 X 44
Price
$9.50
207
FENCE BRACKET 505MM
Price
$77.05
208
FLAT WASHER 8MM
Price
N/A
209
LOCK HANDLE
Price
$3.75
210
FENCE STAND-OFF
Price
$1.49
211
CONVEX WINDOW
Price
N/A
212
CAP SCREW M6-1 X 25
Price
N/A
213
LOCK CAM
Item is no longer available
Price
N/A
214
REAR FENCE RAIL 540MM
Price
$14.40
215
HEX NUT M8-1.25
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
FRONT RAIL END CAP
Price
N/A
218
FENCE MOUNTING KEY
Price
$3.20
219
REAR RAIL END CAP
Price
N/A
220
TAP SCREW M3.5 X 8
Price
N/A
221
SCALE
Price
$2.90
222
HEX NUT M6-1
Price
N/A
223
LOCK WASHER 6MM
Price
N/A
224
CAP SCREW M6-1 X 16
Price
N/A
225
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 8
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
228

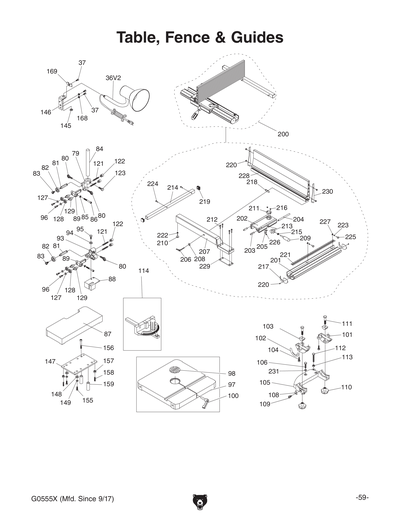

FENCE 505MM
Price
$69.30
229
FENCE BRACKET MOUNTING PLATE
Item is no longer available
Price
N/A
230
FENCE END CAP
Price
$2.15
231
LOCK WASHER 8MM
Price
N/A

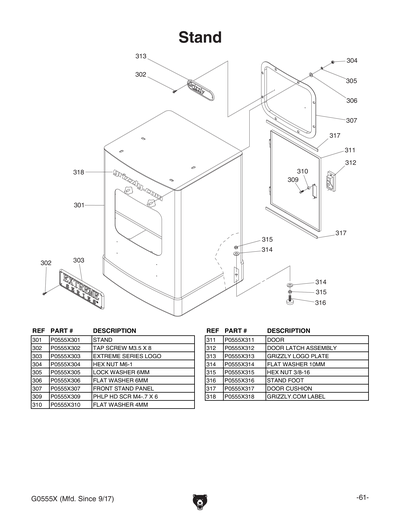

301
STAND
Item is no longer available
Price
N/A
301A
COMPLETE STAND ASSY BOX 2
Price
$794.10
302
TAP SCREW M3.5 X 8
Price
N/A
303
Extreme Series Nameplate
Price
N/A
304
HEX NUT M6-1
Price
N/A
305
LOCK WASHER 6MM
Price
N/A
306
FLAT WASHER 6MM
Price
N/A
307
FRONT STAND PANEL
Price
$38.85
309
PHLP HD SCR M4-.7 X 6
Price
N/A
310
FLAT WASHER 4MM
Price
N/A
311
DOOR
Price
$46.90
312
DOOR LATCH ASSEMBLY
Price
$22.15
313
GRIZZLY LOGO PLATE
Price
$2.90
314
FLAT WASHER 10MM
Price
N/A
315
HEX NUT 3/8-16
Price
N/A
316
STAND FOOT
Price
$2.90
317
DOOR CUSHION
Item is no longer available
Price
N/A
318
GRIZZLY.COM LABEL
Item is no longer available
Price
N/A

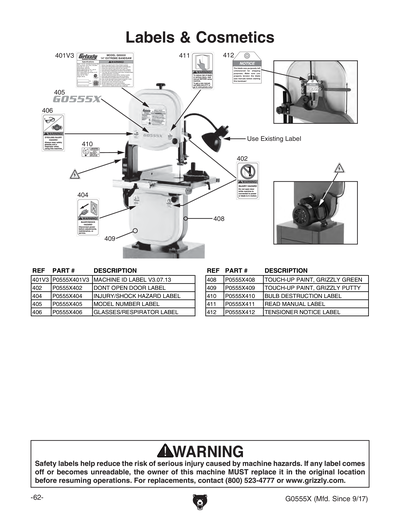

401
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
401V3
MACHINE ID LABEL V3.07.13
Price
$16.40
402
DOOR WARNING LABEL 1.5 X 2.5"
Price
N/A
403
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
404
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
405
MODEL NUMBER LABEL
Price
$18.25
406
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
407
LAMP WARNING LABEL
Item is no longer available
Price
N/A
408
N/S GRIZZLY GREEN G1023S
Price
N/A
409
BEIGE REF G0555
Price
N/A
410
BULB DESTRUCTION LABEL
Item is no longer available
Price
N/A
411
READ MANUAL 1.5W X 2.5H
Price
N/A
412
TENSIONER NOTICE LABEL
Item is no longer available
Price
N/A
BOX2
COMPLETE STAND ASSY BOX 2
Price
N/A
MANUAL
MANUAL FOR G0555X MFD-10.06-04.11 V1
Price
$17.25
MANV2
MAN FOR G0555X MFD-05.11-03.12 V2.06.11
Price
$12.50
MANV3
MANUAL G0555X MFD-04.12-08.17 V3.04.12
Item is no longer available
Price
N/A
MANV4
MANUAL G0555X MFD-09.17+ V4.08.18
Item is no longer available
Price
N/A
