Parts for G0555XH - 14" 1-3/4 HP Extreme Series Resaw Bandsaw

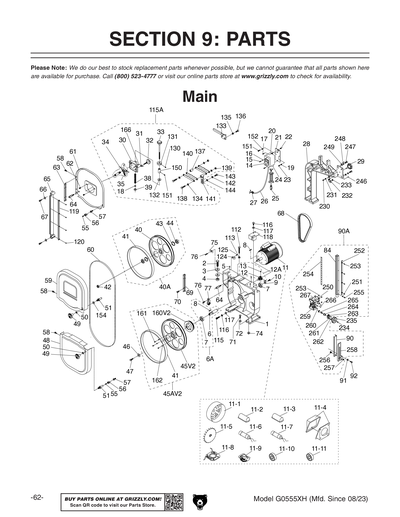

Part Diagram for G0555XH
Part Diagram for G0555XH

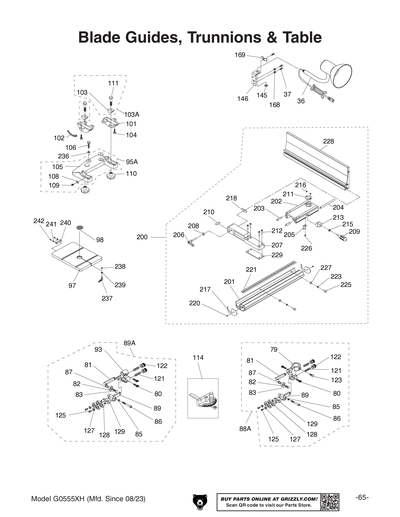

Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH
Part Diagram for G0555XH

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
N/A
1V2
BASE V2.08.24
Price
$288.05
2
HEX BOLT M16-2 X 55
Price
N/A
3
FLAT WASHER 16MM
Price
N/A
4
HEX NUT M16-2
Price
N/A
5
ALIGNMENT PIN
Price
N/A
6
LOWER WHEEL SHAFT
Price
$13.25
6A
LOWER WHEEL SHAFT ASSY
Price
$40.00
7
BALL BEARING 6204-2RS
Price
N/A
8
KEY 5 X 5 X 25
Price
N/A
9
FLAT WASHER 8MM
Price
N/A
10
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
11
MOTOR 1-3/4 HP 110/220V 1-PH
Price
$709.20
11-1
MOTOR FAN COVER
Price
$18.45
11-10
BALL BEARING 6205ZZ
Price
N/A
11-11
BALL BEARING 6203ZZ
Price
N/A
11-2
S CAPACITOR COVER
Price
$7.00
11-3
R CAPACITOR COVER
Price
$8.95
11-4
MOTOR JUNCTION BOX
Price
$8.50
11-5
MOTOR FAN
Price
$6.40
11-6
S CAPACITOR 300M 250V, 1-3/8" X 2-11/16"
Price
$13.35
11-7
R CAPACITOR 50M 250V, 1-19/32" X 2-3/8"
Price
$22.25
11-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
11-9
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
$18.45
12
MOTOR PULLEY
Price
$26.90
12A
MOTOR PULLEY ASSY
Price
$28.10
13
SET SCREW M6-1 X 12
Price
N/A
14
ON/OFF SWITCH (PUSH BUTTON)
Price
$29.90
15
TAP SCREW M3.5 X 12
Price
N/A
16
FLAT WASHER 4MM
Price
N/A
17
PHLP HD SCR M5-.8 X 16
Price
N/A
18
***USE P0555018***
Price
N/A
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH BOX
Price
N/A
21
SWITCH BOX MOUNT PLATE
Price
N/A
22
SPRING NUT M4-.7
Price
$1.60
23
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF TYPE-2 10MM
Price
$2.20
25
POWER CORD 14G 3W 72" 5-15P
Price
$25.10
26
MOTOR CORD
Price
N/A
27
STRAIN RELIEF TYPE-2 10MM
Price
N/A
28
UPPER FRAME ARM
Price
$243.85
28V2
UPPER FRAME ARM V2.08.24
Price
$246.35
29
KNOB BOLT M8-1.25 X 25, 6-LOBE, D40
Price
$12.75
30
HINGE BRACKET V1.12.06
Price
N/A
31
WING NUT M8-1.25
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
N/A
33
TENSION KNOB BOLT ASSEMBLY
Price
N/A
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
Price
$21.50

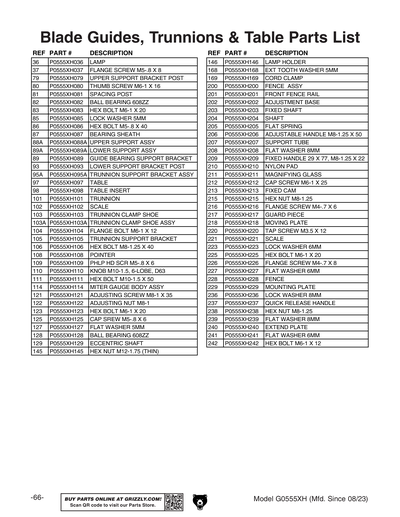

36
LAMP W/ HOLDER AND HEX NUT
Price
$97.75
37
FLANGE SCREW M5-.8 X 8
Price
N/A
38
COMPRESSION SPRING
Price
N/A
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL
Price
N/A
40A
UPPER WHEEL ASSY
Price
$105.55
41
***USE T23070***
Price
N/A
42
HEX NUT M12-1.25
Price
N/A
43
EXT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL V1
Price
N/A
45A
LOWER WHEEL ASSY V1
Price
$125.60
45AV2
LOWER WHEEL ASSY V2.10.21
Price
$150.40
46
FLAT WASHER 8MM
Price
N/A
47
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
N/A
48V2
LOWER WHEEL GUARD V2.08.24
Price
$81.55
49
GRIZZLY ROUND KNOB M8-1.25
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
LATCH STUD M8-1.25 X 14
Price
N/A
55
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
PHLP HD SCR M5-.8 X 10
Price
N/A
58
TAP SCREW M4 X 8
Price
N/A
59
UPPER WHEEL FRONT COVER
Price
N/A
59A
UPPER WHEEL FRONT COVER W/LABELS
Price
$42.00
59V2
UPPER WHEEL FRONT COVER V2.08.24
Price
$58.00
60
SAW BLADE 6TPI 3/8" X 105"
Price
$24.30
61
UPPER WHEEL BACK COVER V2.08.07
Price
N/A
61V2
UPPER BACK COVER V2.08.24
Price
$39.85
62
FLANGE BOLT M8-1.25 X 8
Price
$1.60
63
UPPER WHEEL COVER HINGE
Price
N/A
64
STANDOFF STUD
Price
N/A
65
BLADE GUARD (LEFT)
Price
$33.25
66
FLAT WASHER 3.5MM
Price
$1.60
67
TAP SCREW M3.5 X 16
Price
N/A
68
RIBBED V-BELT 200J5
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
N/A
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
HEX BOLT M8-1.25 X 35
Price
N/A
72
FLAT WASHER 8MM
Price
N/A
74
FLANGE NUT M8-1.25
Price
N/A
75
PLATE PROTECTOR
Price
$1.60
76
PHLP HD SCR M5-.8 X 8
Price
N/A
77
WHEEL BRUSH
Price
N/A
79
UPPER SUPPORT BRACKET POST
Price
$10.10
80
THUMB SCREW M6-1 X 16
Price
N/A
81
SPACING POST
Price
$6.40
82
Bearing - 22mm x 8mm
Price
N/A
83
HEX BOLT M6-1 X 20
Price
N/A
84
GUIDE SHAFT
Price
$104.80
85
LOCK WASHER 5MM
Price
N/A
86
HEX BOLT M5-.8 X 40
Price
N/A
87
BEARING SHEATH
Price
$1.60
88A
UPPER SUPPORT ASSY
Price
$63.35
89
GUIDE BEARING SUPPORT BRACKET
Price
$7.10
89A
LOWER SUPPORT ASSY
Price
$62.15
90
SUPPORT BRACKET
Price
$10.65
90A
UPPER SUPPORT BRACKET POST ASSY
Price
$167.60
91
FLAT WASHER 6MM
Price
N/A
92
HEX BOLT M6-1 X 8
Price
N/A
93
LOWER SUPPORT BRACKET POST
Price
$8.50
95A
TRUNNION SUPPORT BRACKET ASSY
Price
$65.25
97
TABLE
Price
$509.75
98
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
101
TRUNNION
Price
N/A
102
SCALE
Price
$1.49
103
***USE P0555103***
Price
N/A
103A
TRUNNION CLAMP SHOE ASSY
Price
$7.00
104
FLANGE BOLT M6-1 X 12
Price
N/A
105
***USE P0555105***
Price
N/A
106
HEX BOLT M8-1.25 X 40
Price
N/A
108
POINTER
Price
N/A
109
PHLP HD SCR M5-.8 X 6
Price
N/A
110
KNOB 10MM
Price
N/A
111
HEX BOLT M10-1.5 X 50
Price
N/A
112
HEX BOLT M8-1.25 X 80
Price
N/A
113
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE ASSY
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
115A
SLIDING BRACKET ASSY
Price
$102.10
116
LOCK WASHER 8MM
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
LOWER BLADE GUIDE
Price
$3.45
119
BLADE GUARD COVER
Price
$27.20
120
PHLP HD SCR M4-.7 X 5
Price
$1.60
121
ADJUSTING SCREW M8-1 X 35
Price
$1.60
122
ADJUSTING NUT M8-1
Price
$2.30
123
HEX BOLT M6-1 X 20
Price
N/A
124
CORD CLAMP
Price
N/A
125
CAP SCREW M5-.8 X 6
Price
N/A
127
FLAT WASHER 5MM
Price
N/A
128
Bearing - 22mm x 8mm
Price
N/A
129
ECCENTRIC SHAFT
Price
$4.35
130
SET SCREW M5-.8 X 10
Price
N/A
131
UPPER LOCK COLLAR
Price
N/A
132
FLAT WASHER 10MM
Price
N/A
133
TENSION LEVER
Price
N/A

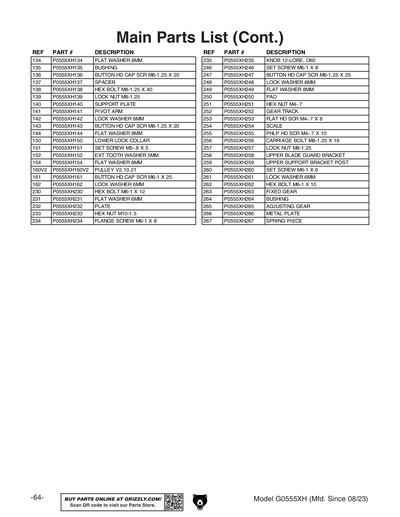

134
FLAT WASHER 8MM
Price
N/A
135
BUSHING
Price
N/A
136
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
137
SPACER
Price
N/A
138
HEX BOLT M8-1.25 X 40
Price
N/A
139
LOCK NUT M8-1.25
Price
N/A
140
SUPPORT PLATE
Price
N/A
141
PIVOT ARM
Price
N/A
142
LOCK WASHER 8MM
Price
N/A
143
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
144
FLAT WASHER 8MM
Price
N/A
145
HEX NUT M12-1.75 THIN
Price
N/A
146
LAMP W/ HOLDER AND HEX NUT
Price
N/A
150
LOWER LOCK COLLAR
Price
N/A
151
SET SCREW M5-.8 X 5
Price
N/A
152
EXT TOOTH WASHER 5MM
Price
N/A
154
FLAT WASHER 8MM
Price
N/A
160
LOWER WHEEL ASSY V1
Price
N/A
160V2
LOWER WHEEL ASSY V2.10.21
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
162
LOCK WASHER 6MM
Price
N/A
166
SET SCREW M5-.8 X 8
Price
N/A
168
EXT TOOTH WASHER 5MM
Price
N/A
169
CORD CLAMP
Price
$1.60
200
FENCE ASSY
Price
$221.95
201
FRONT FENCE RAIL
Price
$62.60
202
ADJUSTMENT BASE
Price
$59.50
203
FIXED SHAFT
Price
$7.60
204
SHAFT
Price
$4.85
205
FLAT SPRING
Price
$1.49
206
ADJUSTABLE HANDLE M8-1.25 X 50, 78L
Price
N/A
207
SUPPORT TUBE
Price
$54.70
208
FLAT WASHER 8MM
Price
N/A
209
FIXED HANDLE 29 X 77, M8-1.25 X 22
Price
$3.75
210
NYLON PAD
Price
$2.05
211
MAGNIFYING GLASS
Price
$2.50
212
CAP SCREW M6-1 X 25
Price
N/A
213
FIXED CAM
Price
$8.35
215
HEX NUT M8-1.25
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
GUARD PIECE
Price
$1.70
218
MOVING PLATE
Price
$3.15
220
TAP SCREW M3.5 X 12
Price
N/A
221
SCALE
Price
$5.50
223
LOCK WASHER 6MM
Price
N/A
225
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 8
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
228
FENCE
Price
$118.10
229
MOUNTING PLATE
Price
$2.75
230
HEX BOLT M6-1 X 12
Price
N/A
231
FLAT WASHER 6MM
Price
N/A
232
PLATE
Price
$14.85
233
HEX NUT M10-1.5
Price
N/A
234
FLANGE SCREW M6-1 X 8
Price
N/A
235
KNOB 12-LOBE, D60
Price
$5.50
236
LOCK WASHER 8MM
Price
N/A
237
QUICK RELEASE HANDLE
Price
$19.75
238
HEX NUT M8-1.25
Price
N/A
239
FLAT WASHER 8MM
Price
N/A
240
EXTEND PLATE
Price
$18.45
241
FLAT WASHER 6MM
Price
N/A
242
HEX BOLT M6-1 X 12
Price
N/A
246
SET SCREW M6-1 X 8
Price
N/A
247
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
248
LOCK WASHER 8MM
Price
N/A
249
FLAT WASHER 8MM
Price
N/A
250
PAD
Price
$3.05
251
HEX NUT M4-.7
Price
N/A
252
GEAR TRACK
Price
$42.00
253
FLAT HD SCR M4-.7 X 8
Price
N/A
254
SCALE
Price
$4.30
255
PHLP HD SCR M4-.7 X 10
Price
N/A
256
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
257
LOCK NUT M8-1.25
Price
N/A
258
UPPER BLADE GUARD BRACKET
Price
$19.95
259
UPPER SUPPORT BRACKET POST
Price
$33.85
260
SET SCREW M6-1 X 6
Price
N/A
261
LOCK WASHER 6MM
Price
N/A
262
HEX BOLT M6-1 X 10
Price
N/A
263
FIXED GEAR
Price
$3.95
264
***USE P0640X130***
Price
$2.05
265
ADJUSTING GEAR
Price
$10.65
266
METAL PLATE
Price
$1.60
267
SPRING PIECE
Price
$4.30

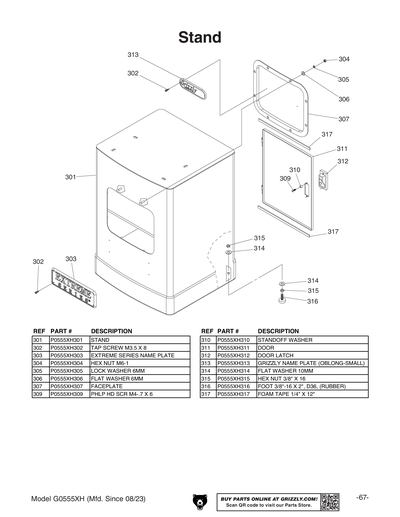

301
STAND
Price
N/A
301V2
STAND V2.08.24
Price
$329.65
302
TAP SCREW M3.5 X 8
Price
N/A
303
Extreme Series Nameplate
Price
N/A
304
HEX NUT M6-1
Price
N/A
305
LOCK WASHER 6MM
Price
N/A
306
FLAT WASHER 6MM
Price
N/A
307
FACEPLATE
Price
$40.80
307V2
FACEPLATE V2.08.24
Price
$18.15
309
PHLP HD SCR M4-.7 X 6
Price
N/A
310
STANDOFF WASHER
Price
$5.80
311
DOOR
Price
$49.25
311V2
DOOR V2.08.24
Price
$52.60
312
DOOR LATCH
Price
$24.35
313
Oblong Nameplate-Small
Price
N/A
313V2
GREEN & BLACK SERIES LABEL V2.08.24
Price
$18.15
314
FLAT WASHER 10MM
Price
N/A
315
HEX NUT 3/8-16
Price
N/A
316
FOOT 3/8"-16 X 2", D36, (RUBBER)
Price
$2.90
317
DOOR CUSHION
Price
N/A

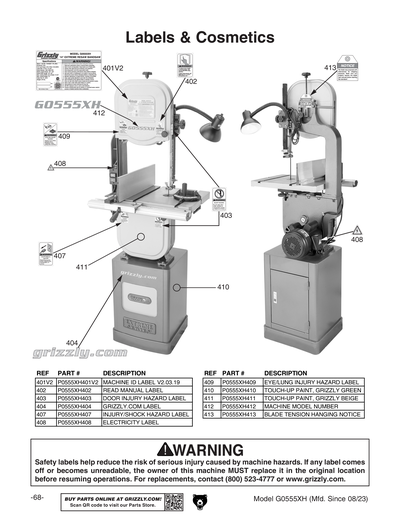

401
MACHINE ID LABEL
Price
$16.40
402
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
403
DOOR INJURY HAZARD LABEL
Price
$3.15
404
GRIZZLY.COM LABEL 9.875",BEIGE
Price
N/A
404V2
GRIZZLY.COM LABEL V2.08.24
Price
$16.40
407
DISCONNECT 110V 2W X 3.3H
Price
N/A
408
ELECTRICITY 1.4W X 1.2H
Price
N/A
409
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
410
N/S GRIZZLY GREEN G1023S
Price
N/A
410V2
GLOSSY BLACK
Price
N/A
411
BEIGE REF G0555
Price
N/A
411V2
N/S GRIZZLY GREEN G1023S
Price
N/A
412
MACHINE MODEL NUMBER
Price
$7.90
412V2
MODEL NUMBER LABEL V2.08.24
Price
$16.40
413
BLADE TENSION HANGING NOTICE
Price
$1.60
MAN
MANUAL FOR G0555XH MFD-01.18 V1.02.18
Price
$18.25
MANV2
MAN FOR G0555XH MFD-02.19-09.21 V2.03.19
Price
$19.75
MANV3
MANUAL G0555XH MFD-10.21-07.23 V3.12.21
Price
$39.00
MANV4
MANUAL G0555XH MFD-08.23+ V4.08.23
Price
$14.65
