Parts for G0560 - Meat Saw w/ Sliding Table

Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560
Part Diagram for G0560

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

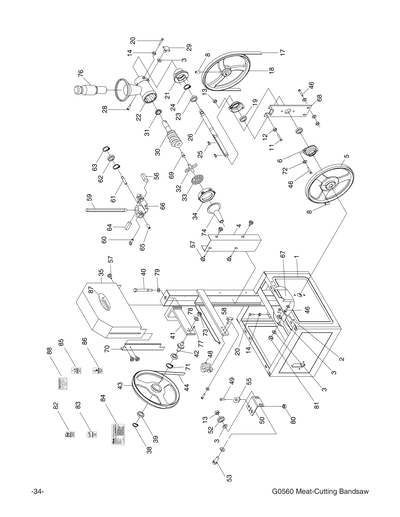

1
*DISCD*BANDSAW BASE
Item is no longer available
Price
N/A
2
HEX NUT M8-1.25
Price
N/A
3
FLAT WASHER 8MM
Price
N/A
4
*DISCD*BLADE COVER
Item is no longer available
Price
N/A
5
*DISCD*BLADE LOWER WHEEL
Price
$55.50
6
*DISCD*SET BEARING
Item is no longer available
Price
N/A
8
SET SCREW M6-1 X 10
Price
N/A
11
HEX BOLT M6-1 X 25
Price
N/A
12
HEX NUT M6-1
Price
N/A
13
HEX NUT M8-1.25
Price
N/A
14
HEX NUT M6-1
Price
N/A
17
V-BELT A53
Price
N/A
18
*DISCD*PULLEY
Item is no longer available
Price
N/A
19
BALL BEARING 6204ZZ
Price
N/A
20
HEX BOLT M6-1 X 20
Price
N/A
21
*DISCD*BRACKET
Price
$21.60
22
*DISCD*GRINDING HOPPER
Price
$61.55
23
BALL BEARING 6203ZZ
Price
N/A
24
EXT RETAINING RING 17MM
Price
N/A
25
KEY 5 X 5 X 25
Price
N/A
26
*DISCD*SHAFT
Price
$21.85
28
CARRIAGE BOLT M8-1.25 X 45
Price
N/A
29
*DISCD*SQUARE KNOB M8-1.25
Price
$1.49
30
*DISCD*SHAFT THRUST
Item is no longer available
Price
N/A
31
*DISCD*BUSHING
Item is no longer available
Price
N/A
32
*DISCD*REAMER
Price
$6.35
33
*DISCD*FILTER COVER #4
Price
$27.60
34
*DISCD*LOCK COVER
Item is no longer available
Price
N/A
35
*DISCD*UPPER COVER
Item is no longer available
Price
N/A
38
EXT RETAINING RING 15MM
Price
N/A
39
BALL BEARING 6202ZZ
Price
N/A
40
*DISCD*HEX BOLT M10-1.5 X 115
Item is no longer available
Price
N/A
41
*DISCD*BRACKET
Item is no longer available
Price
N/A
42
*DISCD*SHAFT BRACKET
Item is no longer available
Price
N/A
43
*DISCD*UPPER BLADE WHEEL
Price
$54.95
44
*DISCD*BLADE 1970 X 16 X .05MM 47TPI
Item is no longer available
Price
N/A
46
HEX BOLT M8-1.25 X 20
Price
N/A
48
*DISCD*H ROD COVER
Item is no longer available
Price
N/A
49
FLANGE BOLT M6-1 X 12
Price
N/A
50
*DISCD*GUIDE SEAT LOWER
Price
$7.50
51
FLAT WASHER 6MM
Price
N/A
52
Bearing - 22mm x 8mm
Price
N/A
53
HEX BOLT M8-1.25 X 25
Price
N/A
55
*DISCD*CLAMPING LUGE
Item is no longer available
Price
N/A
56
*DISCD*BLADE GUIDE BLOCK
Item is no longer available
Price
N/A
57
*DISCD*STAR KNOB M6-1 X 12
Price
$2.30
58
*DISCD*STAR KNOB M8-1.25 X 20
Price
$1.49
59
*DISCD*SCREW BAR
Price
$39.10
60
THUMB SCREW M6-1 X 16
Price
N/A
61
*DISCD*BLADE GUIDE BAR
Price
$6.35
62
BALL BEARING 6200ZZ
Price
N/A
63
EXT RETAINING RING 10MM
Price
N/A
64
*DISCD*BLADE GUIDE BLOCK
Item is no longer available
Price
N/A
65
SET SCREW M6-1 X 10
Price
N/A
66
*DISCD*BLADE GUIDE HOLDER
Item is no longer available
Price
N/A
67
*DISCD*CONNECTOR FIXED PLATE
Item is no longer available
Price
N/A
68
*DISCD*WHEEL FIXED PLATE LOWER
Item is no longer available
Price
N/A
69
*DISCD*SET SCREW
Item is no longer available
Price
N/A
70
*DISCD*BLADE GUARD W/2 KNOBS
Price
$13.55
71
INT RETAINING RING 35MM
Price
N/A
72
LOCK WASHER 8MM
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
*DISCD*SAUSAGE STUFFER
Item is no longer available
Price
N/A
76
*DISCD*PUSHER
Price
$2.30
77
SET SCREW M5-.8 X 10
Price
N/A
78
LOCK WASHER 12MM
Price
N/A
79
FLAT WASHER 10MM
Price
N/A
80
CARRIAGE BOLT M6-1 X 12
Price
N/A
81
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
82
HAND NEAR BLADE LABEL 1-1/2 X 2-5/8
Item is no longer available
Price
N/A
83
SAFETY GLASSES 1.5W X 2.625H
Item is no longer available
Price
N/A
84
MACHINE ID LABEL
Item is no longer available
Price
N/A
85
UNPLUG 110V LABEL 1-1/2 X 2-5/8
Price
$4.25
86
WASH HANDS LABEL 1-1/2 X 2-5/8
Item is no longer available
Price
N/A
87
Nameplate - Mini
Price
N/A
88
MEAT GRINDER LABEL 2-7/8 X 1-3/8
Item is no longer available
Price
N/A
101
*DISCD*FACEPLATE
Item is no longer available
Price
N/A
102
*DISCD*PLATE REAR
Item is no longer available
Price
N/A
103
*DISCD*PLATE FRONT
Item is no longer available
Price
N/A
104
*DISCD*BRACKET LOWER 1.8 X 418 X 75
Price
$15.85
105
*DISCD*MOTOR PLATE 1.8 X 550 X 160
Item is no longer available
Price
N/A
106
*DISCD*UPPER BRACKET 1.8 X 308 X 110
Price
$8.35
107
*DISCD*Motor 3/4hp 110v/220v 1-ph
Item is no longer available
Price
N/A
107-1
GENERIC MOTOR 2.5W X 1.8H
Price
N/A
107-2
*DISCD*MOTOR SPEC LABEL
Item is no longer available
Price
N/A
107-3
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
107-4
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
107-5
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
107-6
*DISCD*S CAPACITOR 200M 125V 1-3/8 X 3-
Item is no longer available
Price
N/A
107-7
*DISCD*MOTOR WIRING BOX
Item is no longer available
Price
N/A
108
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
109
*DISCD*SET BOLT M6-1 X 6
Item is no longer available
Price
N/A
110
*DISCD*CORD BUSHING
Item is no longer available
Price
N/A
111
*DISCD*POWER CORD
Item is no longer available
Price
N/A
112
Safety Paddle Switch
Price
N/A
113
P0560113
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
114
P0560114
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
115
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
116
*DISCD*SWITCH PLATE
Price
$1.49
117
*DISCD*SET PLATE L TYPE
Price
$2.05
118
*DISCD*SIDE COVER
Price
$17.00
119
*DISCD*RUBBER PAD
Price
$4.05
120
HEX NUT M8-1.25
Price
N/A
121
FLAT WASHER 8MM
Price
N/A
122
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
123
*DISCD*SWITCH BOX
Price
$1.49
124
EXT TOOTH WASHER 5MM
Price
N/A
125
P0560125
Now: PN07
HEX NUT 10-24
Price
N/A
126
*DISCD*CLAMP DOOR
Price
$1.49
127
TAP SCREW M3.5 X 10
Price
N/A
128
*DISCD*SET BOLT
Item is no longer available
Price
N/A
129
HEX BOLT M8-1.25 X 20
Price
N/A
130
ELECTRICITY 1.4W X 1.2H
Price
N/A
131
READ MANUAL LABEL
Item is no longer available
Price
N/A

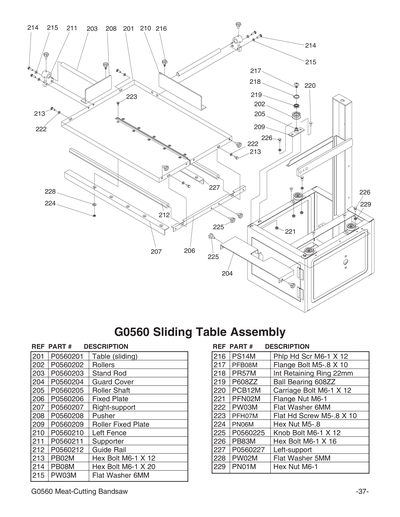

201
*DISCD*TABLE SLIDING 1.2 X 610 X 465
Price
$128.80
202
*DISCD*ROLLERS
Price
$6.65
203
*DISCD*STAND ROD
Item is no longer available
Price
N/A
204
*DISCD*GUARD COVER 1.2 X 380 X 106
Item is no longer available
Price
N/A
205
*DISCD*ROLLER SHAFT
Item is no longer available
Price
N/A
206
*DISCD*FIXED PLATE
Price
$5.20
207
*DISCD*SUPPORT RIGHT
Price
$20.70
208
*DISCD*PUSHER
Item is no longer available
Price
N/A
209
*DISCD*ROLLER FIXED PLATE
Item is no longer available
Price
N/A
210
*DISCD*FENCE LEFT
Item is no longer available
Price
N/A
211
*DISCD*SUPPORTER
Item is no longer available
Price
N/A
212
*DISCD*GUIDE RAIL
Item is no longer available
Price
N/A
213
HEX BOLT M6-1 X 12
Price
N/A
214
HEX BOLT M6-1 X 20
Price
N/A
215
FLAT WASHER 6MM
Price
N/A
216
PHLP HD SCR M6-1 X 12
Price
N/A
217
FLANGE BOLT M5-.8 X 10
Price
N/A
218
INT RETAINING RING 22MM
Price
N/A
219
Bearing - 22mm x 8mm
Price
N/A
220
CARRIAGE BOLT M6-1 X 12
Price
N/A
221
FLANGE NUT M6-1
Price
N/A
222
FLAT WASHER 6MM
Price
N/A
223
FLAT HD SCR M5-.8 X 10
Price
N/A
224
HEX NUT M5-.8
Price
N/A
225
PHLP HD SCR M6-1 X 12
Price
N/A
226
HEX BOLT M6-1 X 16
Price
N/A
227
*DISCD*SUPPORT LEFT
Item is no longer available
Price
N/A
228
FLAT WASHER 5MM
Price
N/A
229
HEX NUT M6-1
Price
N/A
MANUAL
MANUAL FOR G0560 11/03
Price
$14.65
P
TAP SCREW M3.5 X 10
Price
$1.60
