Parts for G0562ZP - 3 HP Double Canister Dust Collector w/ Aluminum Impeller

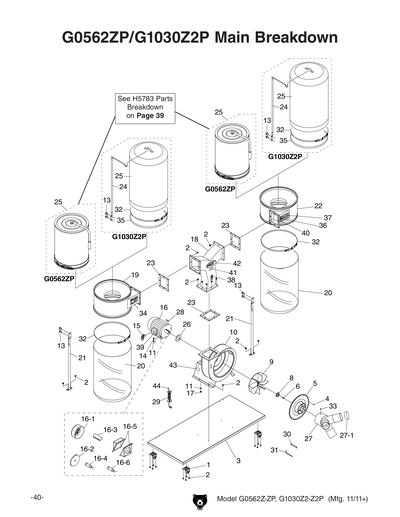

Part Diagram for G0562ZP
Part Diagram for G0562ZP
Part Diagram for G0562ZP
Part Diagram for G0562ZP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

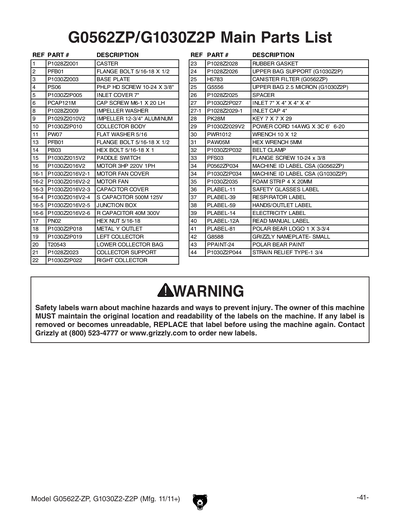

Ref #
Part #
Description
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
3
BASE PLATE
Price
N/A
4
PHLP HD SCR 10-24 X 3/8
Price
N/A
5
INLET COVER 7"
Price
N/A
6
CAP SCREW M6-1 X 20 LH
Price
N/A
8
IMPELLER WASHER
Price
N/A
9
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
10
COLLECTOR BODY
Price
N/A
11
FLAT WASHER 5/16
Price
N/A
13
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
14
HEX BOLT 5/16-18 X 1
Price
N/A
15
PADDLE SWITCH V2.09.11
Price
N/A
16
MOTOR 3HP 220V 1-PH V2.09.11
Price
N/A
16-1
MOTOR FAN COVER
Price
N/A
16-2
MOTOR FAN
Price
N/A
16-3
CAPACITOR COVER V2.09.11
Price
N/A
16-4
S CAPACITOR 500M 125V 2 X 3-1/2 V2.09.11
Price
N/A
16-5
***USE P1029Z2P017-5***
Price
N/A
16-6
R CAPACITOR 40M 300V V2.09.11
Price
N/A
17
HEX NUT 5/16-18
Price
N/A
18
METAL Y OUTLET
Price
N/A
19
LEFT COLLECTOR
Price
N/A
20
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
21
COLLECTOR SUPPORT
Price
N/A
22
RIGHT COLLECTOR
Price
N/A
23
GASKET
Price
N/A
25
Extra Canister For G0548/Z & G0562/Z
Price
N/A
26
SPACER
Price
N/A
27
INLET 7" X 4" X 4" X 4"
Price
N/A
27-1
INLET CAP 4"
Price
N/A
28
KEY 7 X 7 X 29
Price
N/A
29
POWER CORD 14G X 3C 6' 6-20 V2.09.11
Price
N/A
30
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
31
HEX WRENCH 5MM
Price
N/A
32
62" Bag Clamp
Price
N/A
33
PHLP HD SCR 10-24 X 3/8
Price
N/A
35
***USE P0548Z042***
Price
N/A
36
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
37
RESPIRATOR 2W X 3.3H
Price
N/A
38
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
39
ELECTRICITY 1.4W X 1.2H
Price
N/A
40
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
41
POLAR BEAR LOGO-SMALL 3.75W X 1H
Price
N/A
42
Nameplate - Small
Price
N/A
43
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
MAN
MANUAL G0562Z/ZP G1030Z2/ZP MFG-11.11 +
Price
N/A
