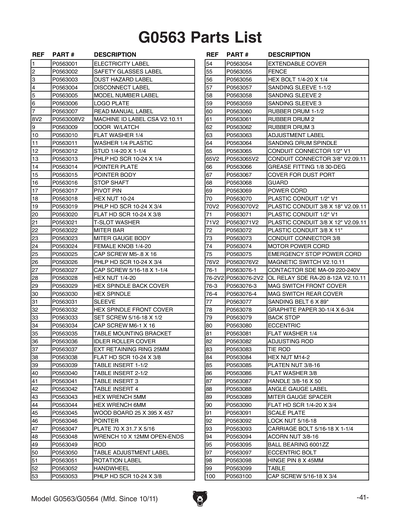

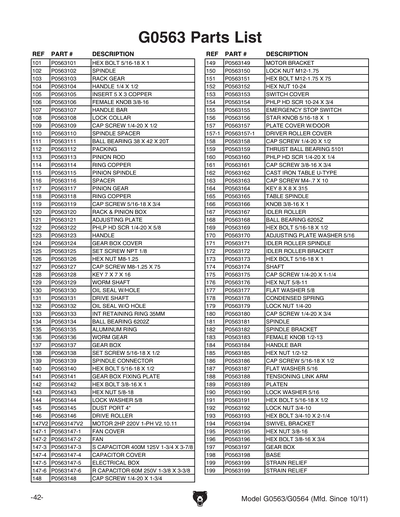

Parts for G0563 - 6" x 89" Oscillating Edge Sander

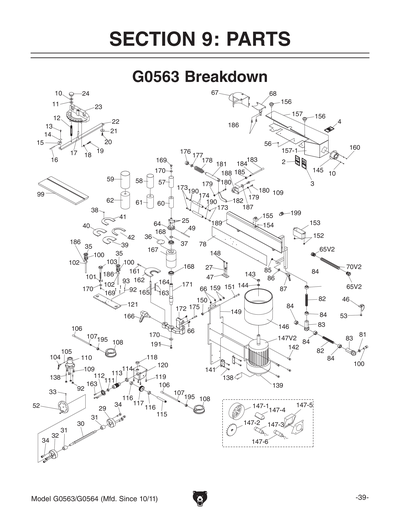

Part Diagram for G0563

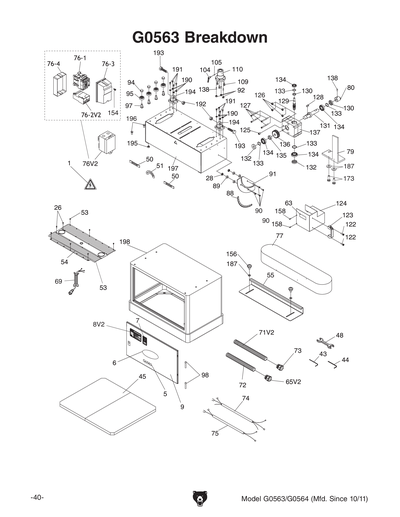

Part Diagram for G0563
Part Diagram for G0563
Part Diagram for G0563
Part Diagram for G0563
Part Diagram for G0563
Part Diagram for G0563
Part Diagram for G0563

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
ELECTRICITY LABEL
Price
$30.75
2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
3
***USE PLABEL-43***
Item is no longer available
Price
N/A
4
DISCONNECT LABEL
Price
N/A
5
MODEL NUMBER LABEL
Price
$1.05
6
Nameplate - Large
Price
N/A
7
READ MANUAL 1.5W X 2.5H
Price
N/A
8
MACHINE ID LABEL V1
Price
$16.40
8V2
MACHINE ID LABEL CSA V2.10.11
Price
$16.40
9
DOOR W/O LATCH
Price
$57.65
10
P0563010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
FLAT WASHER 1/4 PLASTIC
Price
$1.60
12
STUD 1/4-20 X 1-1/4
Price
$1.60
13
P0563013
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
14
POINTER PLATE
Price
$1.60
15
POINTER BODY
Price
$1.60
16
STOP SHAFT
Price
$1.60
17
PIVOT PIN
Price
$1.60
18
P0563018
Now: PN07
HEX NUT 10-24
Price
N/A
19
P0563019
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
20
FLAT HD SCR 10-24 X 3/8
Price
N/A
21
T-SLOT WASHER
Price
$1.60
22
MITER BAR
Price
$7.90
23
MITER GAUGE BODY
Price
$34.45
24
FEMALE KNOB 1/4-20
Price
$1.60
25
CAP SCREW M5-.8 X 16
Price
N/A
26
P0563026
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
27
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
28
P0563028
Now: PN05
HEX NUT 1/4-20
Price
N/A
29
HEX SPINDLE BACK COVER
Price
$12.65
30
HEX SPINDLE
Price
$17.85
31
SLEEVE
Price
N/A
32
HEX SPINDLE FRONT COVER
Price
$9.20
33
SET SCREW 5/16-18 X 1/2
Price
N/A
34
CAP SCREW M6-1 X 16
Price
N/A
35
TABLE MOUNTING BRACKET
Price
$5.15
36
IDLER ROLLER COVER
Price
$1.60
37
EXT RETAINING RING 25MM
Price
N/A
38
FLAT HD SCR 10-24 X 3/8
Price
N/A
39
TABLE INSERT 1-1/2"
Price
N/A
40
TABLE INSERT 2-1/2
Price
$7.80
41
TABLE INSERT 3"
Price
N/A
42
TABLE INSERT 4
Price
$6.35
43
HEX WRENCH 5MM
Price
N/A
44
HEX WRENCH 6MM
Price
N/A
45
WOOD BOARD 25 X 395 X 457
Price
$24.50
46
POINTER
Price
$3.65
47
PLATE 70 X 31.7 X 5/16
Price
$5.15
48
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
49
ROD
Price
$4.60
50
TABLE ADJUSTMENT LABEL
Price
$18.15
51
ROTATION LABEL
Price
$23.10
52
HANDWHEEL TYPE-31 162D X 17B-S X 23
Price
$65.35
53
P0563053
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
EXTENDABLE COVER
Price
$20.30
55
FENCE
Price
$30.80
56
P0563056
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
57
SANDING SLEEVE 1-1/2 X 4-1/2" 100-GRIT
Price
N/A
58
SANDING SLEEVE 2 X 4-1/2" 100-GRIT
Price
N/A
59
SANDING SLEEVE 3 X 4-1/2" 100-GRIT
Price
N/A
60
RUBBER DRUM 1-1/2
Price
$10.10
61
RUBBER DRUM 2
Price
$14.95
62
RUBBER DRUM 3
Price
$27.60
63
OIL LABEL
Price
$1.60
64
SANDING DRUM SPINDLE
Price
$37.40
65
CONDUIT CONNECTOR 1/2" V1
Price
$3.95
65V2
CONDUIT CONNECTOR 3/8" V2.09.11
Price
$207.00
66
GREASE FITTING 1/8 30-DEG
Price
$2.20
67
COVER FOR DUST PORT
Price
$18.15
68
GUARD
Price
$12.95
69
POWER CORD
Price
$28.45
70
CONDUIT 1/2 PLASTIC V1
Price
N/A
70V2
PLASTIC CONDUIT 3/8 X 18" V2.09.11
Price
$6.05
71
CONDUIT 1/2 PLASTIC V1
Price
N/A
71V2
PLASTIC CONDUIT 3/8 X 12" V2.09.11
Price
$7.90
72
PLASTIC CONDUIT 3/8 X 11"
Price
$3.65
73
CONDUIT CONNECTOR 3/8
Price
$207.00
74
MOTOR POWER CORD
Price
$16.05
75
EMERGENCY STOP POWER CORD
Price
$9.70
76
SWITCH 220/240V 15A 1PH V1
Price
$86.95
76-1
CONTACTOR SDE MA-09 220-240V
Price
$76.75
76-2V2
OL RELAY SDE RA-20 8-12A V2.10.11
Price
$66.15
76-3
MAG SWITCH FRONT COVER
Price
$26.00
76-4
MAG SWITCH REAR COVER
Price
$29.65
76V2
MAGNETIC SWITCH V2.10.11
Price
$119.75
77
SANDING BELT 6 X 89"
Price
$15.45
78
GRAPHITE PAPER 30-1/4 X 6-3/4
Price
$49.25
79
BACK STOP
Price
$18.70
80
ECCENTRIC
Price
$14.85
81
P0563081
Now: PW06
FLAT WASHER 1/4
Price
N/A
82
ADJUSTING ROD
Price
$3.35
83
TIE ROD
Price
$27.35
84
HEX NUT M14-2
Price
N/A
85
T-SLOT NUT 3/8-16, 20 X 11.8
Price
$6.70
86
P0563086
Now: PW02
FLAT WASHER 3/8
Price
N/A
87
ADJUSTABLE HANDLE 3/8-16 X 2, 80MM
Price
N/A
88
ANGLE GAUGE LABEL
Price
$23.10
89
MITER GAUGE SPACER
Price
$1.49
90
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
91
SCALE PLATE
Price
$23.60
92
LOCK NUT 5/16-18
Price
N/A
93
CARRIAGE BOLT 5/16-18 X 1-1/4
Price
N/A
94
P0563094
Now: PN47
ACORN NUT 3/8-16
Price
N/A
95
BALL BEARING 6001ZZ
Price
N/A
97
ECCENTRIC BOLT
Price
$5.15
98
HINGE PIN 8 X 45MM
Price
$4.85
99
TABLE
Price
$211.95
100
CAP SCREW 5/16-18 X 3/4
Price
N/A
101
P0563101
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
102
SPINDLE
Price
$30.55
103
RACK GEAR
Price
$60.10
104
HANDLE 1/4 X 1/2
Price
$6.25
105
INSERT 5 X 3 COPPER
Price
$6.40
106
FEMALE KNOB 3/8-16
Price
$1.49
107
HANDLE BAR
Price
$23.60
108
LOCK COLLAR
Price
$12.40
109
CAP SCREW 1/4-20 X 1/2
Price
N/A
110
SPINDLE SPACER
Price
$58.65
111
BALL BEARING 38 X 42 X 20T
Price
$11.50
112
PACKING
Price
$13.80
113
PINION ROD
Price
$35.65
114
RING COPPER
Price
$2.75
115
PINION SPINDLE
Price
$1.49
116
SPACER
Price
$1.49
117
PINION GEAR
Price
$31.05
118
RING COPPER
Price
N/A
119
CAP SCREW 5/16-18 X 3/4
Price
N/A
120
RACK & PINION BOX
Price
$51.20
121
ADJUSTING PLATE
Price
$77.05
122
P0563122
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
123
GEARBOX COVER HANDLE
Price
N/A
124
GEARBOX COVER
Price
N/A
125
SET SCREW 1/8" NPT
Price
$1.60
126
HEX NUT M8-1.25
Price
N/A
127
CAP SCREW M8-1.25 X 75
Price
N/A
128
KEY 7 X 7 X 16
Price
N/A
129
WORM SHAFT
Price
N/A
130
OIL SEAL W/HOLE
Price
$2.75
131
DRIVE SHAFT
Price
N/A
132
OIL SEAL W/O HOLE
Price
N/A
133
INT RETAINING RING 35MM
Price
N/A
134
BALL BEARING 6202Z
Price
N/A
135
ALUMINUM RING
Price
$6.40
136
WORM GEAR
Price
N/A
137
GEAR BOX
Price
N/A
138
SET SCREW 5/16-18 X 1/2
Price
N/A
139
SPINDLE CONNECTOR
Price
N/A
140
P0563140
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
141
GEAR BOX FIXING PLATE
Price
$5.15
142
P0563142
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
143
P0563143
Now: PN09
HEX NUT 5/8-18
Price
N/A
144
LOCK WASHER 5/8
Price
N/A
145
DUST PORT 4"
Price
$4.85
146
DRIVE ROLLER
Price
$144.25
147
MOTOR 2HP V1
Price
$305.25
147-1
FAN COVER
Price
$16.05
147-2
FAN
Price
$13.30
147-3
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
147-4
CAPACITOR COVER
Price
$4.95
147-5
ELECTRICAL BOX
Price
$10.00
147-6
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
$46.85
147-6V2
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
N/A
147V2
MOTOR 2HP 220V 1-PH V2.10.11
Price
$433.50
148
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
149
MOTOR BRACKET
Price
$208.35
150
LOCK NUT M12-1.75
Price
N/A
151
HEX BOLT M12-1.75 X 75
Price
N/A
152
P0563152
Now: PN07
HEX NUT 10-24
Price
N/A
153
SWITCH COVER
Price
$3.45
154
P0563154
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
155
E-STOP BUTTON AUSPICIOUS BLEPB30-10/C
Price
N/A
156
STAR KNOB 5/16-18 X 1
Price
$1.49
157
PLATE COVER W/DOOR
Price
$287.45
157-1
PLATE COVER W/DOOR
Price
N/A
157-2
HINGE PIN
Price
$1.60
157-3
BELT DIRECTION LABEL
Price
$1.05
158
CAP SCREW 1/4-20 X 1/2
Price
N/A
159
THRUST BALL BEARING 5101
Price
N/A
160
P0563160
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
161
CAP SCREW 3/8-16 X 3/4
Price
N/A
162
CAST IRON TABLE U-TYPE
Price
$134.30
163
CAP SCREW M4-.7 X 10
Price
N/A
164
KEY 8 X 8 X 315
Price
N/A
165
TABLE SPINDLE
Price
$19.55
166
KNOB 3/8-16 X 1
Price
$17.25
167
IDLER ROLLER
Price
$299.80
168
BALL BEARING 6205Z
Price
N/A
169
P0563169
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
170
ADJUSTING PLATE WASHER 5/16
Price
$1.60
171
IDLER ROLLER SPINDLE
Price
$53.45
172
IDLER ROLLER BRACKET
Price
$82.80
173
P0563173
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
174
SHAFT
Price
$10.35
175
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
176
P0563176
Now: PN04
HEX NUT 5/8-11
Price
N/A
177
P0563177
Now: PW14
FLAT WASHER 5/8
Price
N/A
178
CONDENSED SPRING
Price
$4.90
179
LOCK NUT 1/4-20
Price
N/A
180
CAP SCREW 1/4-20 X 3/4
Price
N/A
181
SPINDLE
Price
$17.25
182
SPINDLE BRACKET
Price
$6.05
183
KNOB 1/2-13, D1, TAPERED
Price
N/A
184
STUD DE-1/2-13 X 9-7/8, 1/2
Price
N/A
185
P0563185
Now: PN06
HEX NUT 1/2-12
Price
N/A
186
CAP SCREW 5/16-18 X 1/2
Price
N/A
187
P0563187
Now: PW07
FLAT WASHER 5/16
Price
N/A
188
TENSIONING LINK ARM
Price
$10.10
189
PLATEN
Price
$409.10
190
LOCK WASHER 5/16
Price
N/A
191
P0563191
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
192
LOCK NUT 3/4-10
Price
N/A
193
P0563193
Now: PB82
HEX BOLT 3/4-10 X 2-1/4
Price
N/A
194
SWIVEL BRACKET
Price
$25.90
195
P0563195
Now: PN08
HEX NUT 3/8-16
Price
N/A
196
P0563196
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
197
GEAR BOX
Price
$170.30
198
BASE
Price
$357.75
199
STRAIN RELIEF TYPE-3 M16-1.5
Price
$4.85
MAN
MANUAL FOR G0563 07/04
Price
$12.50
P
HEX BOLT 1/4-20 X 1/4
Price
$1.60
