Parts for G0564 - 6" x 108" Oscillating Edge Sander

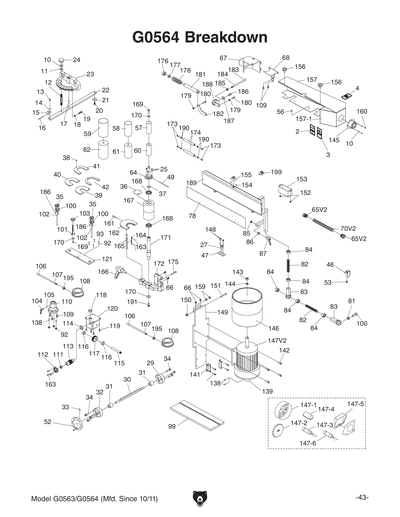

Part Diagram for G0564

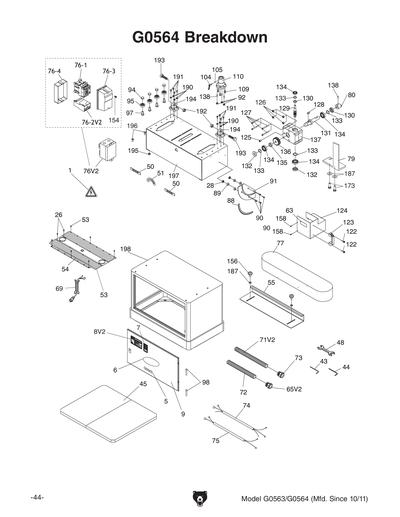

Part Diagram for G0564

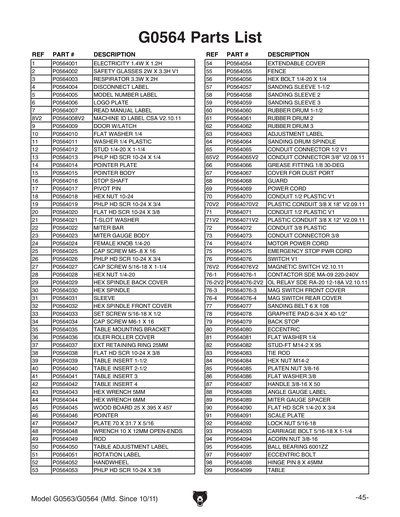

Part Diagram for G0564

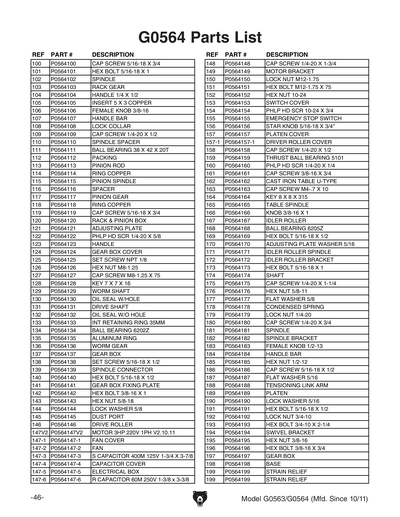

Part Diagram for G0564
Part Diagram for G0564
Part Diagram for G0564
Part Diagram for G0564
Part Diagram for G0564

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
ELECTRICITY 1.4W X 1.2H
Price
N/A
2
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
3
RESPIRATOR 2W X 3.3H
Price
N/A
4
DISCONNECT LABEL
Price
$1.60
5
MODEL NUMBER LABEL
Price
$1.05
6
Nameplate - Large
Price
N/A
7
READ MANUAL LABEL
Price
$1.05
8
MACHINE ID LABEL V1
Price
$16.40
8V2
MACHINE ID LABEL CSA V2.10.11
Price
$16.40
9
DOOR W/LATCH
Price
$67.40
10
P0564010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
FLAT WASHER 1/4 PLASTIC
Price
N/A
12
STUD M6-1 X 28
Price
$2.25
13
P0564013
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
14
POINTER PLATE
Price
$1.60
15
POINTER BODY
Price
$1.60
16
STOP SHAFT
Price
$1.60
17
PIVOT PIN
Price
$1.60
18
P0564018
Now: PN07
HEX NUT 10-24
Price
N/A
19
P0564019
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
20
FLAT HD SCR 10-24 X 3/8
Price
N/A
21
T-SLOT WASHER
Price
$3.65
22
MITER BAR
Price
$7.90
23
MITER GAUGE BODY
Price
$34.45
24
FEMALE KNOB 1/4-20
Price
$1.60
25
CAP SCREW M5-.8 X 16
Price
N/A
26
P0564026
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
27
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
28
P0564028
Now: PN05
HEX NUT 1/4-20
Price
N/A
29
HEX SPINDLE BACK COVER
Price
$13.60
30
HEX SPINDLE
Price
$26.35
31
SLEEVE
Price
$2.20
32
HEX SPINDLE FRONT COVER
Price
$9.70
33
SET SCREW 5/16-18 X 1/2
Price
N/A
34
CAP SCREW M6-1 X 16
Price
N/A
35
TABLE MOUNTING BRACKET
Price
$5.15
36
IDLER ROLLER COVER
Price
$1.60
37
EXT RETAINING RING 25MM
Price
N/A
38
FLAT HD SCR 10-24 X 3/8
Price
N/A
39
TABLE INSERT 1-1/2"
Price
$6.05
40
TABLE INSERT 2"
