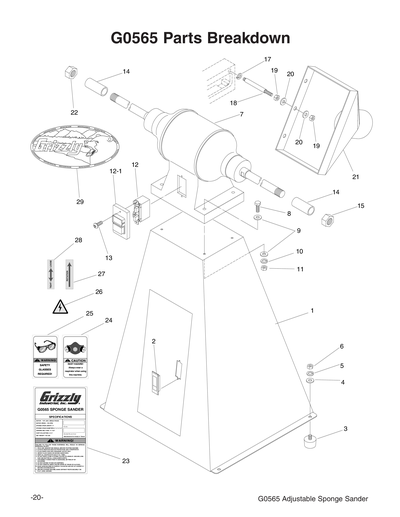

Parts for G0565 Sponge Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

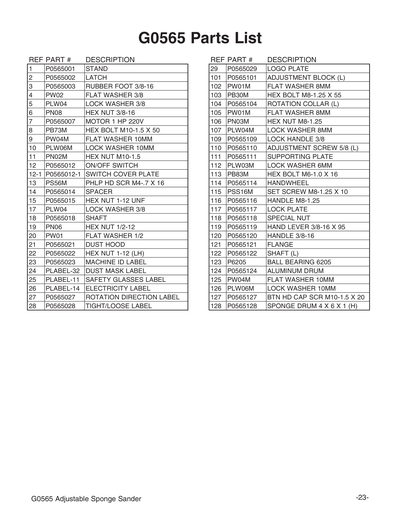

1
*DISCD*STAND
2
*DISCD*LATCH
3
*DISCD*RUBBER FOOT 3/8-16
4
Now: PW02
FLAT WASHER 3/8
Price
N/A
5
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6
Now: PN08
HEX NUT 3/8-16
Price
N/A
7
*DISCD*MOTOR 1HP 220V
Item is no longer available
Price
N/A
7A
*DISCD*COMPLETE SPONGE SANDER W/O MOTOR
Item is no longer available
Price
N/A
8
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
9
Now: PW04M
FLAT WASHER 10MM
Price
N/A
10
LOCK WASHER 10MM
Price
N/A
11
Now: PN02M
HEX NUT M10-1.5
Price
N/A
12
*DISCD*ON/OFF SWITCH
Item is no longer available
Price
N/A
13
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
14
*DISCD*SPACER
Item is no longer available
Price
N/A
15
*DISCD*HEX NUT 1-12 UNF
Item is no longer available
Price
N/A
17
Now: PLW04
LOCK WASHER 3/8
Price
N/A
18
*DISCD*SHAFT
Item is no longer available
Price
N/A
19
Now: PN06
HEX NUT 1/2-12
Price
N/A
20
Now: PW01
FLAT WASHER 1/2
Price
N/A
21
*DISCD*DUST HOOD
22
*DISCD*HEX NUT 1-12 LH
Item is no longer available
Price
N/A
23
MACHINE ID LABEL
Item is no longer available
Price
N/A
24
DUST MASK 2W X 3.3H V1
Price
N/A
25
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
26
ELECTRICITY 1.4W X 1.2H
Price
N/A
27
ROTATION DIRECTION LABEL
Item is no longer available
Price
N/A
28
TIGHT/LOOSE LABEL
Item is no longer available
Price
N/A
29
Now: H4609
Oblong Nameplate-Small
Price
N/A
101
*DISCD*ADJUSTMENT BLOCK L
Item is no longer available
Price
N/A
102
Now: PW01M
FLAT WASHER 8MM
Price
N/A
103
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
104
*DISCD*ROTATION COLLAR L
Item is no longer available
Price
N/A
105
Now: PW01M
FLAT WASHER 8MM
Price
N/A
106
Now: PN03M
HEX NUT M8-1.25
Price
N/A
107
LOCK WASHER 8MM
Price
N/A
109
*DISCD*LOCK HANDLE 3/8
110
*DISCD*ADJUST SCREW 5/8-18 X 125 L
Item is no longer available
Price
N/A
111
*DISCD*SUPPORTING PLATE
Item is no longer available
Price
N/A
112
LOCK WASHER 6MM
Price
N/A
113
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
114
*DISCD*HANDWHEEL
115
SET SCREW M8-1.25 X 10
Price
N/A
116
*DISCD*HANDLE M8-1.25
117
*DISCD*LOCK PLATE
Item is no longer available
Price
N/A
118
*DISCD*LOCK PLATE NUT 3/8-16 & 1/2-12
Item is no longer available
Price
N/A
119
*DISCD*HAND LEVER 3/8-16 X 95
Item is no longer available
Price
N/A
120
*DISCD*HANDLE 3/8-16
121
*DISCD*FLANGE
Item is no longer available
Price
N/A
122
*DISCD*SHAFT L
Item is no longer available
Price
N/A
123
BALL BEARING 6205ZZ
Price
N/A
124
*DISCD*ALUMINUM DRUM
Item is no longer available
Price
N/A
125
Now: PW04M
FLAT WASHER 10MM
Price
N/A
126
LOCK WASHER 10MM
Price
N/A
127
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
128
*DISCD*SPONGE DRUM 4 X 6 X 1H
Item is no longer available
Price
N/A

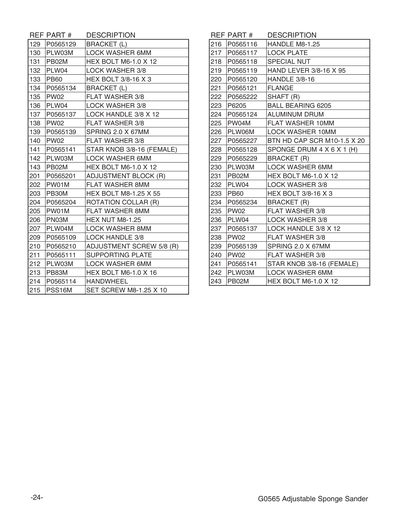

129
*DISCD*BRACKET LEFT
Item is no longer available
Price
N/A
130
LOCK WASHER 6MM
Price
N/A
131
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
132
Now: PLW04
LOCK WASHER 3/8
Price
N/A
133
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
134
*DISCD*BRACKET LEFT
Item is no longer available
Price
N/A
135
Now: PW02
FLAT WASHER 3/8
Price
N/A
136
Now: PLW04
LOCK WASHER 3/8
Price
N/A
137
*DISCD*LOCK HANDLE 3/8 X 12
Item is no longer available
Price
N/A
138
Now: PW02
FLAT WASHER 3/8
Price
N/A
139
*DISCD*SPRING 2.0 X 67MM
140
Now: PW02
FLAT WASHER 3/8
Price
N/A
141
*DISCD*STAR KNOB 3/8-16 FEMALE V1
Item is no longer available
Price
N/A
141V2
*DISCD*KNOB 3/8-16 FEMALE V2.11.11
Item is no longer available
Price
N/A
142
LOCK WASHER 6MM
Price
N/A
143
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
201
*DISCD*ADJUSTMENT BLOCK R
Item is no longer available
Price
N/A
202
Now: PW01M
FLAT WASHER 8MM
Price
N/A
203
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
204
*DISCD*ROTATION COLLAR R
Item is no longer available
Price
N/A
205
Now: PW01M
FLAT WASHER 8MM
Price
N/A
206
Now: PN03M
HEX NUT M8-1.25
Price
N/A
207
LOCK WASHER 8MM
Price
N/A
209
*DISCD*LOCK HANDLE 3/8
Price
N/A
210
*DISCD*ADJUST SCREW 5/8-18 X 125 R
Item is no longer available
Price
N/A
211
*DISCD*SUPPORTING PLATE
Price
N/A
212
LOCK WASHER 6MM
Price
N/A
213
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
214
*DISCD*HANDWHEEL
Price
N/A
215
SET SCREW M8-1.25 X 10
Price
N/A
216
*DISCD*HANDLE M8-1.25
Price
N/A
217
*DISCD*LOCK PLATE
Price
N/A
218
*DISCD*LOCK PLATE NUT 3/8-16 & 1/2-12
Price
N/A
219
*DISCD*HAND LEVER 3/8-16 X 95
Price
N/A
220
*DISCD*HANDLE 3/8-16
Price
N/A
221
*DISCD*FLANGE
Price
N/A
222
*DISCD*SHAFT R
Item is no longer available
Price
N/A
223
BALL BEARING 6205ZZ
Price
N/A
224
*DISCD*ALUMINUM DRUM
Price
N/A
225
Now: PW04M
FLAT WASHER 10MM
Price
N/A
226
LOCK WASHER 10MM
Price
N/A
227
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
228
*DISCD*SPONGE DRUM 4 X 6 X 1H
Price
N/A
229
*DISCD*BRACKET RIGHT
Item is no longer available
Price
N/A
230
LOCK WASHER 6MM
Price
N/A
231
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
232
Now: PLW04
LOCK WASHER 3/8
Price
N/A
233
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
234
*discd*bracket Right
Item is no longer available
Price
N/A
235
Now: PW02
FLAT WASHER 3/8
Price
N/A
236
Now: PLW04
LOCK WASHER 3/8
Price
N/A
237
*DISCD*LOCK HANDLE 3/8 X 12
Price
N/A
238
Now: PW02
FLAT WASHER 3/8
Price
N/A
239
*DISCD*SPRING 2.0 X 67MM
Price
N/A
240
Now: PW02
FLAT WASHER 3/8
Price
N/A
241
*DISCD*STAR KNOB 3/8-16 FEMALE V1
Price
N/A
242
LOCK WASHER 6MM
Price
N/A
243
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
MAN
MANUAL FOR G0565 08/04
Item is no longer available
Price
N/A
