Parts for G0569 - 24" 7-1/2 HP 3-Phase Industrial Bandsaw

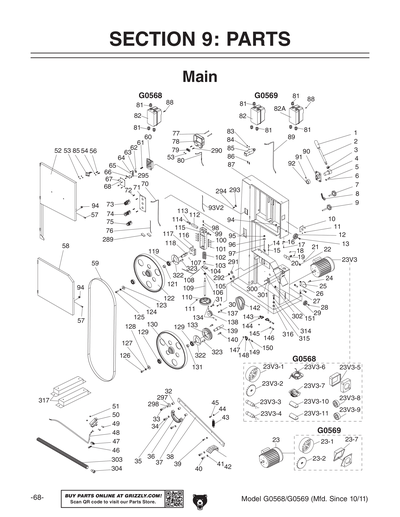

Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569
Part Diagram for G0569

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

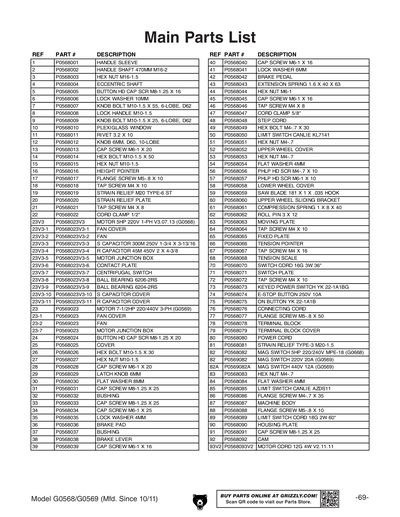

Ref #
Part #
Description
1
HANDLE SLEEVE
Price
N/A
2
HANDLE SHAFT 470MM M16-2
Price
N/A
3
HEX NUT M16-1.5
Price
N/A
4
ECCENTRIC SHAFT
Price
N/A
5
CAP SCREW M5-.8 X 8
Price
N/A
6
LOCK WASHER 10MM
Price
N/A
7
KNOB BOLT M10-1.5 X 55, 6-LOBE, D62
Price
N/A
8
LOCK LEVER M10-1.5
Price
N/A
9
KNOB BOLT M10-1.5 X 55, 6-LOBE, D62
Price
N/A
10
CLEAR WINDOW
Price
N/A
11
RIVET 3.2 X 10
Price
N/A
12
***USE P0513060***
Price
N/A
13
CAP SCREW M6-1 X 20
Price
N/A
14
HEX BOLT M10-1.5 X 50
Price
N/A
15
HEX NUT M10-1.5
Price
N/A
16
HEIGHT POINTER
Price
N/A
17
FLANGE SCREW M5-.8 X 10
Price
N/A
18
TAP SCREW M4 X 10
Price
N/A
19
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
20
STRAIN RELIEF PLATE
Price
N/A
21
TAP SCREW M4 X 8
Price
N/A
22
CORD CLAMP 1/2"
Price
$1.60
23
MOTOR 7-1/2HP 220/440V 3-PH
Price
$910.65
23-1
FAN COVER
Price
$37.70
23-2
FAN
Price
$18.15
23-7
*DISCD*WIRING BOX
Item is no longer available
Price
N/A
24
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
25
COVER
Price
N/A
26
HEX BOLT M10-1.5 X 30
Price
N/A
27
BEARING SHAFT
Price
N/A
28
CAP SCREW M6-1 X 20
Price
N/A
29
LATCH KNOB 6MM
Price
N/A
30
FLAT WASHER 8MM
Price
N/A
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
BUSHING
Price
N/A
33
CAP SCREW M8-1.25 X 25
Price
N/A
34
CAP SCREW M6-1 X 25
Price
N/A
35
LOCK WASHER 4MM
Price
N/A
36
BRAKE SHOE
Price
N/A
37
BUSHING
Price
N/A
38
BRAKE LEVER
Price
N/A
39
CAP SCREW M6-1 X 16
Price
N/A
40
CAP SCREW M6-1 X 16
Price
N/A
41
LOCK WASHER 6MM
Price
N/A
42
BRAKE PEDAL
Price
N/A
43
EXTENSION SPRING 1.6 X 40 X 63
Price
N/A
44
HEX NUT M6-1
Price
N/A
45
CAP SCREW M6-1 X 16
Price
N/A
46
TAP SCREW M4 X 8
Price
N/A
47
CORD CLAMP 5/8"
Price
N/A
48
STEP CORD
Price
N/A
49
HEX BOLT M4-.7 X 30
Price
N/A
50
LIMIT SWITCH CANLIE KL7141
Price
N/A
51
HEX NUT M4-.7
Price
N/A
52
UPPER WHEEL COVER
Price
N/A
52A
UPPER WHEEL COVER W/ LABELS
Price
$163.80
53
HEX NUT M4-.7
Price
N/A
54
FLAT WASHER 4MM
Price
N/A
55
PLASTIC SET SCREW
Price
N/A
56
PHLP HD SCR M4-.7 X 10
Price
N/A
57
PHLP HD SCR M6-1 X 10
Price
N/A
58
LOWER WHEEL COVER
Price
N/A
59
SAW BLADE 181 X 1 X .035" HOOK
Price
N/A
60
UPPER WHEEL SLIDING BRACKET
Price
N/A
61
COMPRESSION SPRING
Price
N/A
62
ROLL PIN 3 X 12
Price
N/A
63
MOVING PLATE
Price
N/A
64
TAP SCREW M4 X 10
Price
N/A
65
FIXED PLATE
Price
N/A
66
TENSION POINTER
Price
N/A
67
TAP SCREW M4 X 16
Price
N/A
68
TENSION SCALE
Price
N/A
69
CONNECTING WIRE 16G
Price
N/A
70
SWITCH CORD 16G 3W 36"
Price
N/A
71
SWITCH PLATE
Price
N/A
72
TAP SCREW M4 X 10
Price
N/A
73
KEYED POWER SWITCH YK 22-1A1BG
Price
N/A
74
E-STOP BUTTON 250V 10A
Price
N/A
75
ON BUTTON YK 22-1A1B
Price
N/A
76
CONNECTING CORD
Price
N/A
77
FLANGE SCREW M5-.8 X 50
Price
N/A
78
TERMINAL BOX
Price
N/A
79
TERMINAL HOUSE
Price
N/A
80
POWER CORD
Price
N/A
81
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
82
MAG SWITCH 220V 20A
Price
$160.10
82A
MAG SWITCH 440V 12A
Price
$178.35
83
HEX NUT M4-.7
Price
N/A
84
FLAT WASHER 4MM
Price
N/A
85
LIMIT SWITCH CANLIE AZDS11
Price
N/A
86
FLANGE SCREW M4-.7 X 35
Price
N/A
87
MACHINE BODY
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
LIMIT SWITCH CORD 18G 2W 60"
Price
N/A
90
HOUSING PLATE
Price
N/A
91
CAP SCREW M8-1.25 X 25
Price
N/A
92
CAM
Price
N/A
93
MOTOR CORD
Price
N/A
94
LOCK NUT M6-1
Price
N/A
95
HEX NUT M10-1.5
Price
N/A
96
FLAT WASHER 10MM
Price
N/A
97
ADJUST BOLT
Price
N/A
98
HEX BOLT M8-1.25 X 30
Price
N/A
99
HEX NUT M8-1.25
Price
N/A
100
LOCATE PLATE
Price
N/A
101
FLAT HD SCR M5-.8 X 16
Price
N/A
102
COMPRESSION SPRING 12 X 4 X 70
Price
N/A
103
BUSHING
Price
N/A
104
PRESS BLOCK
Price
N/A
105
SET SCREW M5-.8 X 5
Price
N/A
106
THRUST BEARING 51201
Price
N/A
107
SET SCREW M5-.8 X 5
Price
N/A
108
TENSION LINE
Price
N/A
109
HANDWHEEL SHAFT
Price
N/A
110
HANDWHEEL TYPE-35 178D X 14B-S
Price
N/A
111
CAP SCREW M6-1 X 25
Price
N/A
112
SQUARE SHAFT
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 25
Price
N/A
115
UPPER WHEEL HINGE ASSY.
Price
N/A
116
SET SCREW M10-1.5 X 16
Price
N/A
117
GUIDE BLOCK
Price
N/A
118
UPPER WHEEL SHAFT
Price
N/A
119
BALL BEARING 6306-2RS
Price
N/A
120
INT RETAINING RING 72MM
Price
N/A
121
BUSHING
Price
N/A
122
UPPER WHEEL 25"
Price
N/A
123
FLAT WASHER 8MM
Price
N/A
124
LOCK WASHER 8MM
Price
N/A
125
CAP SCREW M8-1.25 X 20
Price
N/A
126
CAP SCREW M8-1.25 X 20
Price
N/A
127
LOCK WASHER 8MM
Price
N/A
128
FLAT WASHER 8MM
Price
N/A
129
BALL BEARING 6306-2RS
Price
N/A
130
LOWER WHEEL 25"
Price
N/A
131
BUSHING
Price
N/A
132
INT RETAINING RING 72MM
Price
N/A
133
WHEEL PULLEY
Price
N/A
134
SET SCREW M8-1.25 X 8
Price
N/A
137
CAP SCREW M8-1.25 X 20
Price
N/A
138
PULLEY
Price
N/A
139
LOWER WHEEL SHAFT
Price
N/A
140
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
141
FLAT WASHER 6MM
Price
N/A
142
V-BELT A33
Price
N/A
143
***USE P0566B032***
Price
N/A
144
LOCK NUT M6-1
Price
N/A
145
FLAT WASHER 6MM
Price
N/A
146
CAP SCREW M6-1 X 20
Price
N/A
147
LOCK NUT M6-1
Price
N/A
148
FLAT WASHER 8MM
Price
N/A
149
FLAT WASHER 6MM
Price
N/A
150
CAP SCREW M6-1 X 20
Price
N/A
151
LOCK NUT M6-1
Price
N/A
155
*DISCD*FENCE
Price
N/A
155V2
FENCE V2.08.10
Price
N/A
155V2-10
SET SCREW M7-1 X 10 (PLASTIC)
Price
N/A
155V2-12
SET SCREW M8-1.25 X 12
Price
N/A
155V2-13
HEX BOLT M8-1.25 X 20
Price
N/A
155V2-14
HEX NUT M8-1.25
Price
N/A
155V2-4
SPRING PLATE
Price
N/A
155V2-5
FLANGE SCREW M4-.7 X 8
Price
N/A
155V2-6
PIVOT BLOCK V2.08.10
Price
N/A
155V2-9
SHAFT V2.08.10
Price
N/A
155V2A
FENCE ASSEMBLY V2.08.10
Price
N/A
156
KNOB SCREW M10-1.5 X 25
Price
N/A
156V2
HANDLE V2.08.10
Price
N/A
157
POINTER
Price
N/A
158
FLANGE SCREW M5-.8 X 8
Price
N/A
159
FLAT WASHER 6MM
Price
N/A
160
LOCK WASHER 4MM
Price
N/A
161
CAP SCREW M8-1.25 X 20
Price
N/A
162
CAP SCREW M10-1.5 X 30
Price
N/A
163
LOCK WASHER 10MM
Price
N/A
164
FLAT WASHER 10MM
Price
N/A
165
TRUNNION HOUSING
Price
N/A
166
BLADE GUARD
Price
N/A
166V2
BLADE GUARD V2.06.09
Price
N/A
167
FLANGE SCREW M6-1 X 10
Price
N/A
168
PRESS SHAFT
Price
N/A
169
MICRO ADJUSTING RING
Price
N/A
170
CAP SCREW M8-1.25 X 20
Price
N/A
171
LOCK WASHER 8MM
Price
N/A
172
HANDLE SHAFT M12-2 90MM
Price
N/A
173
SLEEVE
Price
N/A
174
CAP SCREW M10-1.5 X 35
Price
N/A
175
LOCK WASHER 10MM
Price
N/A
176
FLAT WASHER 10MM
Price
N/A
177
TRUNNION BLOCK
Price
N/A
178
PRESS BLOCK
Price
N/A
179
PHLP HD SCR M4-.7 X 10
Price
N/A
180
POINTER
Price
N/A
181
GUARD RAIL V2.08.10
Price
N/A
181V2
GUARD RAIL V2.08.10
Price
N/A
182
TABLE
Price
N/A
183
Bandsaw Table Insert
Price
N/A
184
MITER GAUGE ASSY
Price
N/A
184-1
MITER GAUGE ASSY
Price
N/A
184-10
PHLP HD SCR 10-24 X 3/8
Price
N/A
184-11
PHLP HD SCR M4-.7 X 16
Price
N/A
184-12
HEX NUT M4-.7
Price
N/A
184-13
FLAT WASHER 8MM
Price
N/A
184-2
MITER GAUGE ASSY
Price
N/A
184-3
MITER GAUGE ASSY
Price
N/A
184-4
MITER GAUGE ASSY
Price
N/A
184-5
MITER GAUGE ASSY
Price
N/A
184-6
MITER GAUGE ASSY
Price
N/A
184-7
MITER GAUGE ASSY
Price
N/A
184-8
MITER GAUGE ASSY
Price
N/A
184-9
FLAT HD SCR M6-1 X 6
Price
N/A
185
LOCK WASHER 8MM
Price
N/A
186
FLANGE SCREW M5-.8 X 10
Price
N/A
187
COVER
Price
N/A
189
CAP SCREW M8-1.25 X 16
Price
N/A
190
FLAT HD SCR M4-.7 X 10
Price
N/A
191
RACK EXTENSION
Price
N/A
192
COVER
Price
N/A
193
PINION GEAR BOLT
Price
N/A
194
PINION GEAR
Price
N/A
195
FIXED PLATE
Price
N/A
196
WORM SHAFT
Price
N/A
197
HEX NUT M16-1.5 THIN
Price
N/A
198
***USE P0513164V2***
Price
N/A
199
FLAT WASHER 8MM
Price
N/A
200
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
201
BUSHING
Price
N/A
202
LOCK COLLAR
Price
N/A
203
CAP SCREW M6-1 X 25
Price
N/A
204
HANDWHEEL TYPE-35 178D X 14B-S X M10-1.5
Price
N/A
205
FIXED HANDLE 24 X 90, M10-1.5 X 12
Price
N/A
206
UPPER BLADE GUIDE SUPPORT BLOCK
Price
N/A
207
RACK
Price
N/A
208
CAP SCREW M6-1 X 16
Price
N/A
209
HEX NUT M4-.7
Price
N/A
210
PHLP HD SCR M4-.7 X 10
Price
N/A
211
UPPER GUIDE SUPPORT BLOCK OCTAGON
Price
N/A
212
HEX BOLT M6-1 X 16
Price
N/A
213
***USE P0513164V2***
Price
N/A
214
CAP SCREW M8-1.25 X 20
Price
N/A
215
LOCK WASHER 8MM
Price
N/A
216
SUPPORT PLATE
Price
N/A
217
FLAT WASHER 8MM
Price
N/A
218
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
219
HEX BOLT M6-1 X 10
Price
N/A
220
LOCK NUT M8-1.25
Price
N/A
221
LOCK WASHER 8MM
Price
N/A
222
SLIDING PLATE
Price
N/A
223
HEX BOLT M8-1.25 X 55
Price
N/A
224
LOCK WASHER 6MM
Price
N/A

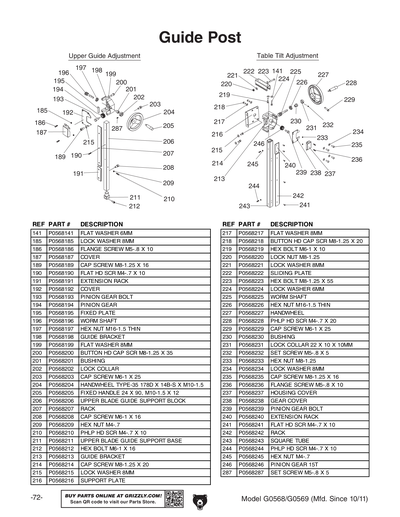

225
WORM SHAFT
Price
N/A
226
HEX NUT M16-1.5 THIN
Price
N/A
227
HANDWHEEL
Price
N/A
228
PHLP HD SCR M4-.7 X 20
Price
N/A
229
CAP SCREW M6-1 X 25
Price
N/A
230
BUSHING
Price
N/A
231
***USE P0640X129***
Price
N/A
232
SET SCREW M5-.8 X 5
Price
N/A
233
HEX NUT M8-1.25
Price
N/A
234
LOCK WASHER 8MM
Price
N/A
235
CAP SCREW M8-1.25 X 16
Price
N/A
236
FLANGE SCREW M5-.8 X 10
Price
N/A
237
HOUSING COVER
Price
N/A
238
GEAR COVER
Price
N/A
239
PINION GEAR BOLT
Price
N/A
240
RACK EXTENSION
Price
N/A
241
FLAT HD SCR M4-.7 X 10
Price
N/A
242
***USE P0566207***
Price
N/A
243
SQUARE TUBE
Price
N/A
244
PHLP HD SCR M4-.7 X 10
Price
N/A
245
HEX NUT M4-.7
Price
N/A
246
PINION GEAR 15T
Price
N/A
247
CAP SCREW M6-1 X 10
Price
N/A
248
LOCK WASHER 6MM
Price
N/A
249
FLAT WASHER 6MM
Price
N/A
250
L-BRACKET
Price
N/A
251
FLAT WASHER 6MM
Price
N/A
252
CAP SCREW M6-1 X 10
Price
N/A
253
BLADE GUARD
Price
N/A
254
FLAT WASHER 6MM
Price
N/A
255
CAP SCREW M6-1 X 10
Price
N/A
256
SLIDING PLATE
Price
N/A
257
FLAT WASHER 6MM (PLASTIC)
Price
N/A

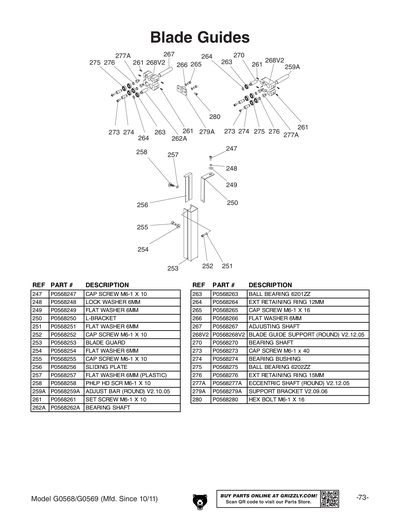

258
PHLP HD SCR M6-1 X 10
Price
N/A
259
*DISCD*ADJUST BAR HEXAGON V1.08.04
Price
N/A
259A
ADJUST BAR (ROUND) V2.10.05
Price
N/A
260
*DISCD*BLADE GUIDE SUPPORT HEX V1.08.04
Price
N/A
261
SET SCREW M6-1 X 10
Price
N/A
262
*DISCD*SPACING SLEEVE UPPER HEX V1.08.04
Price
N/A
262A
BEARING SHAFT
Price
N/A
263
BALL BEARING 6201ZZ
Price
N/A
264
EXT RETAINING RING 15MM
Price
N/A
265
CAP SCREW M6-1 X 16
Price
N/A
266
FLAT WASHER 6MM
Price
N/A
267
ADJUSTING SHAFT
Price
$18.55
268
*DISCD*BLADE GUIDE SUPPORT HEX V1.08.04
Price
N/A
269
SET SCREW M6-1 X 10
Price
N/A
270
BEARING SHAFT
Price
N/A
271
BALL BEARING 6202ZZ
Price
N/A
272
EXT RETAINING RING 15MM
Price
N/A
273
HEX BOLT M6-1 X 40
Price
N/A
274
***USE P0568274***
Price
N/A
275
BALL BEARING 6202ZZ
Price
N/A
276
EXT RETAINING RING 15MM
Price
N/A
277
*DISCD*ECCENTRIC SHAFT HEX V1.08.04
Price
N/A
277A
ECCENTRIC SHAFT (ROUND) V2.12.05
Price
N/A
278
HEX BOLT M6-1 X 16
Price
N/A
279
*DISCD*SUPPORT BRACKET V1.08.04
Price
N/A
279A
SUPPORT BRACKET V2.09.06
Price
N/A
280
HEX BOLT M6-1 X 16
Price
N/A
281
CAP SCREW M6-1 X 40
Price
N/A
283
BALL BEARING 6202ZZ
Price
N/A
284
EXT RETAINING RING 15MM
Price
N/A
286
HEX BOLT M6-1 X 16
Price
N/A
287
SET SCREW M5-.8 X 5
Price
N/A
289
CORD CONNECTOR 224-201
Price
N/A
290
PHLP HD SCR M4-.7 X 20
Price
N/A
291
FLAT WASHER 8MM
Price
N/A
292
HEX NUT M8-1.25
Price
N/A
293
CORD CLAMP 5/16"
Price
N/A
294
TAP SCREW M4 X 10
Price
N/A
295
FLAT WASHER 8MM
Price
N/A
296
NYLON PIECE
Price
N/A
296V2
NYLON PAD 10 X 28 X 1 V2.08.10
Price
N/A
297
FLAT WASHER 8MM
Price
N/A
298
LOCK WASHER 8MM
Price
N/A
299
PIN 6 X 15
Price
N/A
300
FLANGE SCREW M6-1 X 10
Price
N/A
301
FLAT WASHER 6MM
Price
N/A
302
SUPPORT V2.10.04
Price
N/A
303
CONDUIT 1/2" X 43"
Price
N/A
304
CORD BUSHING
Price
N/A

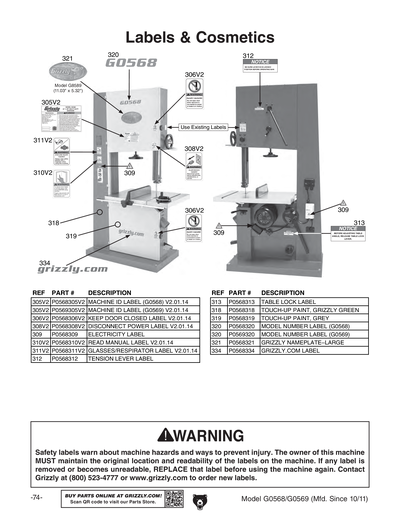

305
MACHINE ID LABEL
Price
$16.40
305V2
MACHINE ID LABEL V2.01.14
Price
$16.40
306
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
306V2
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
307
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
308
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
308V2
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
310V2
READ MANUAL 1.5W X 2.5H
Price
N/A
311
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
311V2
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
312
TENSION LEVER LABEL
Price
N/A
313
TABLE LOCK LABEL
Price
N/A
314
HEX BOLT M12-1.75 X 100
Price
N/A
315
LOCK WASHER 12MM
Price
N/A
316
FLAT WASHER 12MM
Price
N/A
317
RISER BAR
Price
N/A
318
N/S GRIZZLY GREEN G1023S
Price
N/A
319
LIGHT GREY REF G9733
Price
N/A
320
MODEL NUMBER LABEL
Price
$19.20
321
Nameplate - Large
Price
N/A
322
PRESS PLATE
Price
N/A
323
PHLP HD SCR M6-1 X 8
Price
N/A
324
PHLP HD SCR M5-.8 X 8
Price
N/A
325
POINTER
Price
N/A
326
HEX NUT M12-1.75
Price
N/A
327
FENCE RAIL MOUNTING PLATE
Price
N/A
328
FLAT WASHER 6MM
Price
N/A
329
LOCK WASHER 6MM
Price
N/A
330
HEX BOLT M6-1 X 20
Price
N/A
331
FLAT WASHER 8MM
Price
N/A
332
LOCK WASHER 8MM
Price
N/A
333
HEX BOLT M8-1.25 X 20
Price
N/A
334
***USE PGZCOM-45A***
Price
N/A
MAN
MANUAL FOR G0569 06/09
Price
$13.25
