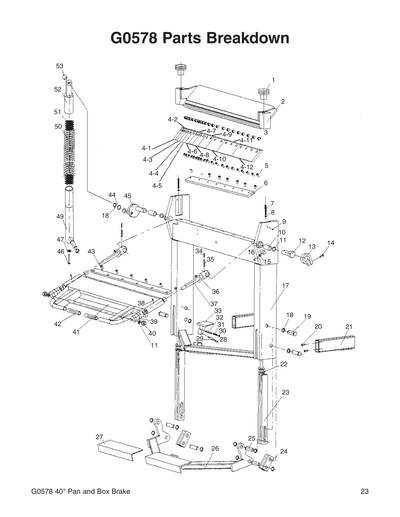

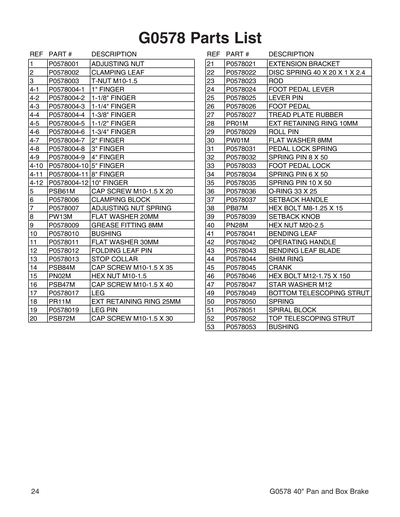

Parts for G0578 40" Pan & Box Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*ADJUSTING NUT
Item is no longer available
Price
N/A
2
*DISCD*CLAMPING LEAF
Item is no longer available
Price
N/A
3
*DISCD*T-NUT M10-1.5
Item is no longer available
Price
N/A
4-1
*DISCD*FINGER 1"
4-10
*DISCD*FINGER 5"
Item is no longer available
Price
N/A
4-11
*DISCD*FINGER 8"
Item is no longer available
Price
N/A
4-12
*DISCD*FINGER 10"
4-2
*DISCD*FINGER 1-1/8"
4-3
*DISCD*FINGER 1-1/4"
4-4
*DISCD*FINGER 1-3/8"
4-5
*DISCD*FINGER 1-1/2"
4-6
*DISCD*FINGER 1-3/4"
4-7
*DISCD*FINGER 2"
Item is no longer available
Price
N/A
4-8
*DISCD*FINGER 3"
4-9
*DISCD*FINGER 4"
Item is no longer available
Price
N/A
5
CAP SCREW M10-1.5 X 20
Price
N/A
6
*DISCD*CLAMPING BLOCK
Item is no longer available
Price
N/A
7
*DISCD*ADJUSTING NUT SPRING
Item is no longer available
Price
N/A
8
Now: PW13M
FLAT WASHER 20MM
Price
N/A
9
*DISCD*GREASE FITTING 8MM
Item is no longer available
Price
N/A
10
*DISCD*BUSHING
Item is no longer available
Price
N/A
11
Now: PW23M
FLAT WASHER 30MM
Price
N/A
12
*DISCD*FOLDING LEAF PIN
Item is no longer available
Price
N/A
13
*DISCD*STOP COLLAR
Item is no longer available
Price
N/A
14
CAP SCREW M10-1.5 X 35
Price
N/A
15
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16
CAP SCREW M10-1.5 X 40
Price
N/A
17
*DISCD*LEG
Item is no longer available
Price
N/A
18
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
19
*DISCD*LEG PIN
Item is no longer available
Price
N/A
20
CAP SCREW M10-1.5 X 30
Price
N/A
21
*DISCD*EXTENSION BRACKET
Item is no longer available
Price
N/A
22
*DISCD*DISC SPRING 40 X 20 X 1 X 2.4
Item is no longer available
Price
N/A
23
*DISCD*ROD
Item is no longer available
Price
N/A
24
*DISCD*FOOT PEDAL LEVER
Item is no longer available
Price
N/A
25
*DISCD*LEVER PIN
Item is no longer available
Price
N/A
26
*DISCD*FOOT PEDAL
Item is no longer available
Price
N/A
27
*DISCD*TREAD PLATE RUBBER
28
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
29
*DISCD*ROLL PIN
Item is no longer available
Price
N/A
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
*DISCD*PEDAL LOCK SPRING
Item is no longer available
Price
N/A
32
ROLL PIN 8 X 50
Price
N/A
33
*DISCD*FOOT PEDAL LOCK
Item is no longer available
Price
N/A
34
ROLL PIN 6 X 50
Price
N/A
35
ROLL PIN 10 X 50
Price
N/A
36
O-RING 33 X 25
Price
N/A
37
*DISCD*SETBACK HANDLE
Item is no longer available
Price
N/A
39
*DISCD*SETBACK KNOB
40
Now: PN28M
HEX NUT M20-2.5
Price
N/A
41
*DISCD*BENDING LEAF
Item is no longer available
Price
N/A
42
*DISCD*OPERATING HANDLE
Item is no longer available
Price
N/A
43
*DISCD*BENDING LEAF BLADE
44
*DISCD*SHIM RING
Item is no longer available
Price
N/A
45
*DISCD*CRANK
Item is no longer available
Price
N/A
46
HEX BOLT M12-1.75 X 150
Price
N/A
47
EXT TOOTH WASHER 12MM
Price
N/A
49
*DISCD*BOTTOM TELESCOPING STRUT
Item is no longer available
Price
N/A
50
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
51
*DISCD*SPIRAL BLOCK
Item is no longer available
Price
N/A
52
*DISCD*STRUT TELESCOPING TOP
Item is no longer available
Price
N/A
53
*DISCD*BUSHING
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0578 02/05
Item is no longer available
Price
N/A
