Parts for G0579 - Pipe Threading Machine

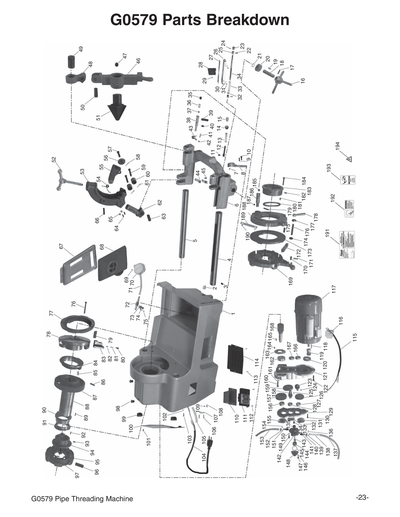

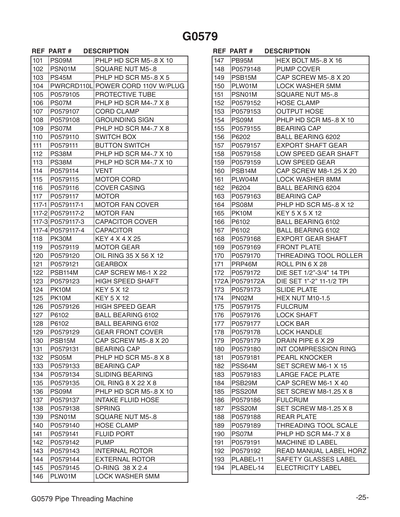

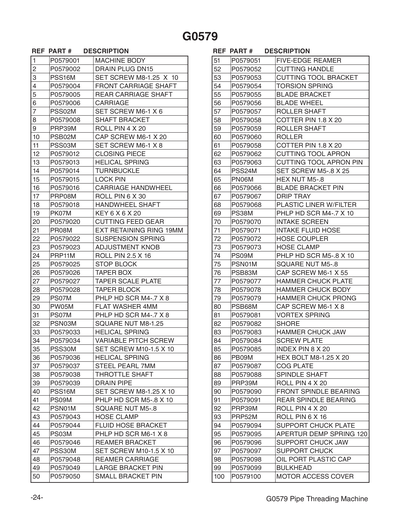

Part Diagram for G0579
Part Diagram for G0579
Part Diagram for G0579
Part Diagram for G0579
Part Diagram for G0579
Part Diagram for G0579

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
1-1
*DISCD*SUPPORTING LEG
Item is no longer available
Price
N/A
1-2
*DISCD*SUPPORTING LEG FOOT
Item is no longer available
Price
N/A
2
*DISCD*DRAIN PLUG DN15
Item is no longer available
Price
N/A
3
SET SCREW M8-1.25 X 10
Price
N/A
4
*DISCD*CARRIAGE SHAFT FRONT
Item is no longer available
Price
N/A
5
*DISCD*CARRIAGE SHAFT REAR
Item is no longer available
Price
N/A
6
*DISCD*CARRIAGE
Item is no longer available
Price
N/A
7
SET SCREW M6-1 X 6
Price
N/A
8
*DISCD*SHAFT BRACKET
Item is no longer available
Price
N/A
9
ROLL PIN 4 X 20
Price
N/A
10
CAP SCREW M6-1 X 20
Price
N/A
11
SET SCREW M6-1 X 8
Price
N/A
12
*DISCD*CLOSING PIECE
Price
$1.49
13
*DISCD*HELICAL SPRING
Price
$1.49
14
*DISCD*TURNBUCKLE
Price
$1.49
15
*DISCD*LOCK PIN
Price
$1.49
16
*DISCD*CARRIAGE HANDWHEEL
Price
$12.95
17
ROLL PIN 6 X 30
Price
N/A
18
*DISCD*HANDWHEEL SHAFT
Price
$4.35
19
KEY 6 X 6 X 20
Price
N/A
20
*DISCD*CUTTING FEED GEAR
Item is no longer available
Price
N/A
21
EXT RETAINING RING 19MM
Price
N/A
22
*DISCD*SUSPENSION SPRING
Price
$1.49
23
*DISCD*ADJUSTMENT KNOB
Item is no longer available
Price
N/A
24
ROLL PIN 2.5 X 16
Price
N/A
25
*DISCD*STOP BLOCK
Item is no longer available
Price
N/A
26
*DISCD*TAPER BOX
Price
$8.65
27
*DISCD*TAPER SCALE PLATE
Item is no longer available
Price
N/A
28
*DISCD*TAPER BLOCK
Item is no longer available
Price
N/A
29
PHLP HD SCR M4-.7 X 8
Price
N/A
30
FLAT WASHER 4MM
Price
N/A
31
PHLP HD SCR M4-.7 X 8
Price
N/A
32
SQUARE NUT M8-1.25
Price
N/A
33
*DISCD*HELICAL SPRING
Item is no longer available
Price
N/A
34
*DISCD*VARIABLE PITCH SCREW
Item is no longer available
Price
N/A
35
SET SCREW M10-1.5 X 10
Price
N/A
36
*DISCD*HELICAL SPRING
Price
$1.49
37
*DISCD*STEEL PEARL 7MM
Price
$1.49
38
*DISCD*THROTTLE SHAFT
Price
$2.60
39
*DISCD*DRAIN PIPE
Price
$1.49
40
SET SCREW M8-1.25 X 10
Price
N/A
41
PHLP HD SCR M5-.8 X 10
Price
N/A
42
*DISCD*SQUARE NUT ASSY
Price
$1.49
43
*DISCD*HOSE CLAMP
Item is no longer available
Price
N/A
44
*DISCD*FLUID HOSE BRACKET
Item is no longer available
Price
N/A
45
PHLP HD SCR M6-1 X 8
Price
N/A
46
*DISCD*REAMER BRACKET
Price
$12.95
47
SET SCREW M10-1.5 X 10
Price
N/A
48
*DISCD*REAMER CARRIAGE
Item is no longer available
Price
N/A
49
*DISCD*BRACKET PIN LARGE
Item is no longer available
Price
N/A
50
*DISCD*BRACKET PIN SMALL
Item is no longer available
Price
N/A
51
*DISCD*FIVE-EDGE REAMER
Item is no longer available
Price
N/A
52
*DISCD*CUTTING HANDLE
Item is no longer available
Price
N/A
53
*DISCD*CUTTING TOOL BRACKET
Price
$21.60
54
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
55
*DISCD*BLADE BRACKET
Price
$8.65
56
*DISCD*BLADE WHEEL
Item is no longer available
Price
N/A
57
*DISCD*ROLLER SHAFT
Price
$1.49
58
*DISCD*COTTER PIN 1.8 X 20
Price
$2.05
59
*DISCD*ROLLER SHAFT
Price
$1.49
60
*DISCD*ROLLER
Price
$1.49
61
*DISCD*COTTER PIN 1.8 X 20
Price
N/A
62
*DISCD*CUTTING TOOL APRON
Price
$12.95
63
*DISCD*CUTTING TOOL APRON PIN
Item is no longer available
Price
N/A
64
SET SCREW M5-.8 X 25
Price
N/A
65
HEX NUT M5-.8
Price
N/A
66
*DISCD*BLADE BRACKET PIN
Price
$1.49
67
*DISCD*DRIP TRAY
Item is no longer available
Price
N/A
68
*DISCD*LINER W/FILTER PLASTIC
Item is no longer available
Price
N/A
69
PHLP HD SCR M4-.7 X 10
Price
N/A
70
*DISCD*INTAKE SCREEN
Item is no longer available
Price
N/A
71
*DISCD*INTAKE FLUID HOSE
Price
$1.49
72
*DISCD*HOSE COUPLER
Price
$2.60
73
*DISCD*HOSE CLAMP
Price
$1.49
74
PHLP HD SCR M5-.8 X 10
Price
N/A
75
SQUARE NUT M5-.8
Price
N/A
76
CAP SCREW M6-1 X 55
Price
N/A
77
*DISCD*HAMMER CHUCK PLATE
Item is no longer available
Price
N/A
78
*DISCD*HAMMER CHUCK BODY
Item is no longer available
Price
N/A
79
*DISCD*HAMMER CHUCK PRONG
Price
$13.55
80
CAP SCREW M6-1 X 8
Price
N/A
81
*DISCD*VORTEX SPRING
Price
$1.49
82
*DISCD*SHORE
Price
$1.49
83
*DISCD*HAMMER CHUCK JAW
Item is no longer available
Price
N/A
84
*DISCD*SCREW PLATE
Item is no longer available
Price
N/A
85
*DISCD*INDEX PIN 8 X 20
Item is no longer available
Price
N/A
86
HEX BOLT M8-1.25 X 20
Price
N/A
87
*DISCD*COG PLATE
Item is no longer available
Price
N/A
88
*DISCD*SPINDLE SHAFT
Item is no longer available
Price
N/A
89
ROLL PIN 4 X 20
Price
N/A
90
*DISCD*SPINDLE BEARING FRONT
Item is no longer available
Price
N/A
91
*DISCD*SPINDLE BEARING REAR
Item is no longer available
Price
N/A
92
ROLL PIN 4 X 20
Price
N/A
93
ROLL PIN 6 X 16
Price
N/A
94
*DISCD*SUPPORT CHUCK PLATE
Item is no longer available
Price
N/A
95
*DISCD*APERTUR DEMP SPRING 120
Price
$2.30
96
*DISCD*SUPPORT CHUCK JAW
Price
$16.70
97
*DISCD*SUPPORT CHUCK
Price
$17.25
98
*DISCD*OIL PORT PLASTIC CAP
Price
$1.49
99
*DISCD*BULKHEAD
Item is no longer available
Price
N/A
100
*DISCD*MOTOR ACCESS COVER
Item is no longer available
Price
N/A
101
PHLP HD SCR M5-.8 X 10
Price
N/A
102
SQUARE NUT M5-.8
Price
N/A
103
PHLP HD SCR M5-.8 X 6
Price
N/A
104
POWER CORD 16G X 3W 73"L
Price
N/A
105
*DISCD*PROTECTIVE TUBE
Price
$1.49
106
PHLP HD SCR M4-.7 X 8
Price
N/A
107
*DISCD*CORD CLAMP
Price
$1.49
108
*DISCD*GROUNDING SIGN
Item is no longer available
Price
N/A
109
PHLP HD SCR M4-.7 X 8
Price
N/A
110
*DISCD*SWITCH BOX
Price
$3.75
111
*DISCD*BUTTON SWITCH
Price
$12.10
112
PHLP HD SCR M4-.7 X 10
Price
N/A
113
PHLP HD SCR M4-.7 X 10
Price
N/A
114
*DISCD*VENT
Item is no longer available
Price
N/A
115
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
116
*DISCD*COVER CASING
Item is no longer available
Price
N/A
117
*DISCD*MOTOR 1HP 110V 1-PH
Price
$175.10
117-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
117-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
117-3
*DISCD*CAPACITOR COVER
Price
$1.49
117-4
*DISCD*CAPACITOR
Item is no longer available
Price
N/A
117-5
*DISCD*MOTOR TERMINAL BOX
Price
$1.49
118
KEY 4 X 4 X 25
Price
N/A
119
*DISCD*MOTOR GEAR
Item is no longer available
Price
N/A
120
*DISCD*O-RING 35 X 56 X 12
Item is no longer available
Price
N/A
121
*DISCD*GEAR BOX
Price
$53.50
122
CAP SCREW M6-1 X 22
Price
N/A
123
*DISCD*HIGH SPEED SHAFT
Item is no longer available
Price
N/A
124
KEY 5 X 5 X 12
Price
N/A
125
KEY 5 X 5 X 12
Price
N/A
126
*DISCD*HIGH SPEED GEAR
Item is no longer available
Price
N/A
127
BALL BEARING 6002ZZ
Price
N/A
128
BALL BEARING 6002ZZ
Price
N/A
129
*DISCD*GEAR FRONT COVER
Item is no longer available
Price
N/A
130
CAP SCREW M5-.8 X 20
Price
N/A
131
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
132
PHLP HD SCR M5-.8 X 8
Price
N/A
133
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
134
*DISCD*SLIDING BEARING
Item is no longer available
Price
N/A
135
*DISCD*O-RING 8 X 22 X 8
Item is no longer available
Price
N/A
136
PHLP HD SCR M5-.8 X 10
Price
N/A
137
*DISCD*INTAKE FLUID HOSE
Price
$1.49
138
*DISCD*SPRING
Item is no longer available
Price
N/A
139
SQUARE NUT M5-.8
Price
N/A
140
*DISCD*HOSE CLAMP
Item is no longer available
Price
N/A
141
*DISCD*FLUID PORT
Item is no longer available
Price
N/A
142
*DISCD*PUMP
Price
$29.50
143
*DISCD*INTERNAL ROTOR
Item is no longer available
Price
N/A
144
*DISCD*EXTERNAL ROTOR
Item is no longer available
Price
N/A
145
O-RING 37.7 X 3.5 P38
Price
N/A
146
LOCK WASHER 5MM
Price
N/A
147
HEX BOLT M5-.8 X 16
Price
N/A
148
*DISCD*PUMP COVER
Item is no longer available
Price
N/A
149
CAP SCREW M5-.8 X 20
Price
N/A
150
LOCK WASHER 5MM
Price
N/A
151
SQUARE NUT M5-.8
Price
N/A
152
*DISCD*HOSE CLAMP
Price
$1.49
153
*DISCD*OUTPUT HOSE
Price
$1.49
154
PHLP HD SCR M5-.8 X 10
Price
N/A
155
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
156
BALL BEARING 6202ZZ
Price
N/A
157
*DISCD*EXPORT SHAFT GEAR
Item is no longer available
Price
N/A
158
*DISCD*LOW SPEED GEAR SHAFT
Item is no longer available
Price
N/A
159
*DISCD*LOW SPEED GEAR
Item is no longer available
Price
N/A
160
CAP SCREW M8-1.25 X 20
Price
N/A
161
LOCK WASHER 8MM
Price
N/A
162
BALL BEARING 6204ZZ
Price
N/A
163
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
164
PHLP HD SCR M5-.8 X 12
Price
N/A
165
KEY 5 X 5 X 12
Price
N/A
166
BALL BEARING 6002ZZ
Price
N/A
167
BALL BEARING 6002ZZ
Price
N/A
168
*DISCD*EXPORT GEAR SHAFT
Item is no longer available
Price
N/A
169
*DISCD*PLATE FRONT
Price
$27.60
169A
*DISCD*COMPLETE FRONT PLATE ASSY
Item is no longer available
Price
N/A
170
*DISCD*THREADING TOOL ROLLER
Price
$1.49
171
ROLL PIN 6 X 28
Price
N/A
172
*DISCD*DIE SET 1/2
Item is no longer available
Price
N/A
172A
*DISCD*DIE SET 1-2 11-1/2 TPI
Price
$16.40
173
*DISCD*SLIDE PLATE
Price
$28.05
174
HEX NUT M10-1.5
Price
N/A
175
*DISCD*FULCRUM
Price
$1.80
176
*DISCD*LOCK SHAFT
Price
$1.49
177
*DISCD*LOCK BAR
Price
$1.80
178
*DISCD*LOCK HANDLE
Price
$3.45
179
*DISCD*DRAIN PIPE 6 X 29
Price
$1.49
180
*DISCD*INT COMPRESSION RING
Price
$1.49
181
*DISCD*PEARL KNOCKER
Price
$1.49
182
SET SCREW M6-1 X 16
Price
N/A
183
*DISCD*FACE PLATE LARGE
Price
$12.95
184
CAP SCREW M6-1 X 40
Price
N/A
185
SET SCREW M8-1.25 X 8
Price
N/A
186
*DISCD*FULCRUM
Price
$6.35
187
SET SCREW M8-1.25 X 8
Price
N/A
188
*DISCD*PLATE REAR
Price
$18.70
189
*DISCD*THREADING TOOL SCALE
Price
$1.49
190
PHLP HD SCR M4-.7 X 8
Price
N/A
191
MACHINE ID LABEL
Item is no longer available
Price
N/A
192
*DISCD*READ MANUAL LABEL HORZ
Item is no longer available
Price
N/A
193
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
194
ELECTRICITY 1.4W X 1.2H
Price
N/A
195
*DISCD*RUBBER FEET
Price
$1.49
196
*DISCD*LEG BOLTS
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0579 11/04
Price
$11.00
