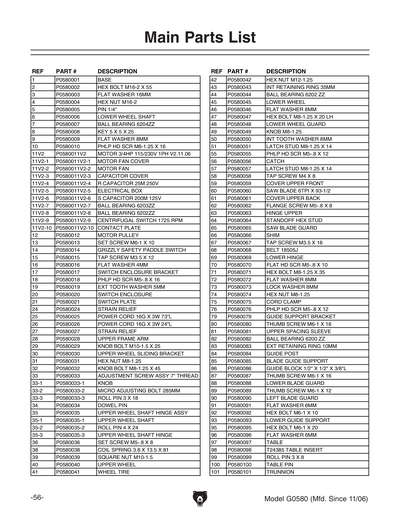

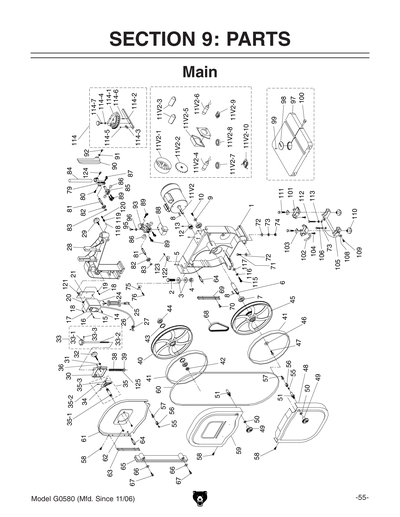

Parts for G0580 14" 3/4 HP Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
3
Now: PW08M
FLAT WASHER 16MM
Price
N/A
4
Now: PN13M
HEX NUT M16-2
Price
N/A
5
PIN 1/4"
6
LOWER WHEEL SHAFT
Price
N/A
7
BALL BEARING 6204ZZ
Price
N/A
8
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
9
Now: PW01M
FLAT WASHER 8MM
Price
N/A
10
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
11
MOTOR 3/4HP 110/220V 1-PH V1
11-1
FAN COVER
11-2
FAN
11-3
CAPACITOR COVER
Item is no longer available
Price
N/A
11-4
Now: PC200
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
11-5
ELECTRICAL BOX
Item is no longer available
Price
N/A
11V2
MOTOR 3/4HP 115/230V 1-PH V2.11.06
11V2-1
MOTOR FAN COVER
11V2-10
CENT SWITCH 1725RPM W/CONTACT PLATE
Price
N/A
11V2-2
MOTOR FAN
11V2-3
CAPACITOR COVER
11V2-4
R CAPACITOR 25M 250V 1-1/2 X 2-1/2
11V2-5
ELECTRICAL BOX
11V2-6
S CAPACITOR 200M 125V 1-1/2 X 2-3/4
Price
N/A
11V2-7
BALL BEARING 6203ZZ
Price
N/A
11V2-8
BALL BEARING 6202ZZ
Price
N/A
11V2-9
CENT SWITCH 1725RPM W/CONTACT PLATE
Price
N/A
11V2-9A
CENT SWITCH 1725RPM W/CONTACT PLATE
12
MOTOR PULLEY
13
SET SCREW M6-1 X 10
Price
N/A
14
Now: G8988
Safety Paddle Switch
Price
N/A
15
TAP SCREW M3.5 X 12
Price
N/A
16
Now: PW05M
FLAT WASHER 4MM
Price
N/A
17
SWITCH ENCLOSURE BRACKET
18
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH ENCLOSURE
21
SWITCH BOX MOUNT
Price
N/A
23
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF M15 TYPE-2
Price
N/A
25
POWER CORD 16G X 3W 73"L
Price
N/A
26
POWER CORD 16G X 3W 24"L
Price
N/A
27
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
28
UPPER FRAME ARM
29
KNOB BOLT M10-1.5 X 25
30
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
31
Now: PN03M
HEX NUT M8-1.25
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
N/A
33
*DISCD*BLADE ADJ SCR ASSY 4" THREAD
Price
N/A
33-1
MICRO ADJUSTING KNOB
Price
N/A
33-2
MICRO ADJUSTING KNOB
Price
N/A
33-3
ROLL PIN 3 X 18
Price
N/A
33A
MICRO ADJUSTING KNOB
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
Price
N/A
35-1
UPPER WHEEL SHAFT
Price
N/A
35-2
ROLL PIN 4 X 24
Price
N/A
35-3
UPPER WHEEL SHAFT HINGE
36
SET SCREW M5-.8 X 8
Price
N/A
38
COIL SPRING 3.8 X 13.5 X 81
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL
41
WHEEL TIRE
42
Now: PN24M
HEX NUT M12-1.25
Price
N/A
43
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202ZZ
Price
N/A
45
LOWER WHEEL
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL GUARD
49
GRIZZLY ROUND KNOB M8-1.25
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
LATCH STUD M8-1.25 X 14
55
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
LATCH STUD M8-1.25 X 14
58
TAP SCREW M4 X 8
Price
N/A
59
COVER UPPER FRONT
60
SAW BLADE 6TPI X 93-1/2
61
COVER UPPER BACK
62
FLANGE SCREW M5-.8 X 8
Price
N/A
63
UPPER WHEEL COVER HINGE
Price
N/A
64
STANDOFF HEX STUD
65
LEFT BLADE GUARD
Price
N/A
66
SHIM
67
TAP SCREW M3.5 X 16
Price
N/A
68
BELT 18505J
69
LOWER WHEEL COVER HINGE
Price
N/A
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
72
Now: PW01M
FLAT WASHER 8MM
Price
N/A
73
LOCK WASHER 8MM
Price
N/A
74
Now: PN03M
HEX NUT M8-1.25
Price
N/A
75
CORD CLAMP
Price
N/A
76
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
79
GUIDE SUPPORT BRACKET
80
THUMB SCREW M6-1 X 16
Price
N/A
81
UPPER SPACING SLEEVE
82
BALL BEARING 6200ZZ
Price
N/A
83
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
84
GUIDE POST
85
BLADE GUIDE SUPPORT
86
GUIDE BLOCK 1/2" X 1/2" X 3/4"L
87
THUMB SCREW M6-1 X 16
Price
N/A
88
LOWER BLADE GUARD
89
THUMB SCREW M6-1 X 12
Price
N/A
90
LEFT BLADE GUARD
91
Now: PW03M
FLAT WASHER 6MM
Price
N/A
92
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
93
LOWER GUIDE SUPPORT
95
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
96
Now: PW03M
FLAT WASHER 6MM
Price
N/A
97
TABLE
Price
N/A
98
Table Insert for G0580, G0555 and G0555P
Price
N/A
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE PIN
101
TRUNNION
Price
N/A
102
SCALE
Price
N/A
103
TRUNNION CLAMP SHOE
104
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
105
TRUNNION SUPPORT BRACKET
Price
N/A
106
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
108
POINTER
109
FLANGE SCREW M5-.8 X 6
Price
N/A
110
KNOB M10-1.5
111
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
112
Now: PB82M
HEX BOLT M8-1.25 X 80
Price
N/A
113
Now: PN03M
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE ASSY
114-1
MITER GAUGE ASSY
Price
N/A
114-2
MITER GAUGE ASSY
Price
N/A
114-3
MITER GAUGE ASSY
Price
N/A
114-4
MITER GAUGE ASSY
Price
N/A
114-5
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
114-6
MITER GAUGE ASSY
Price
N/A
114-7
MITER GAUGE ASSY
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
117
Now: PW01M
FLAT WASHER 8MM
Price
N/A
118
STEEL BALL 5/16
Price
N/A
119
COMPRESSION SPRING 1 X 5.5 X 9
120
SET SCREW M10-1.5 X 10
Price
N/A
121
EXT TOOTH WASHER 5MM
Price
N/A
122
CORD CLAMP
123
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
124
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
125
TENSION POINTER

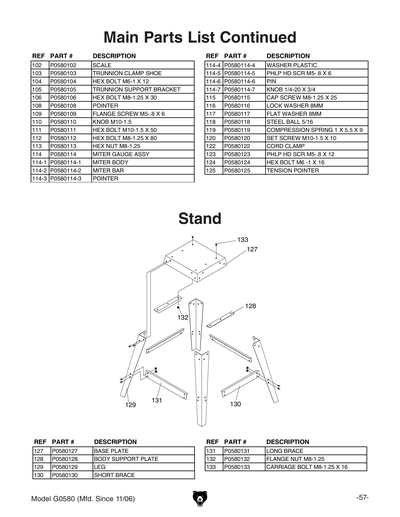

127
BASE PLATE
127V2
BASE PLATE V2.03.25
128
BODY SUPPORT PLATE
129
*DISCD*LEG
129V2
LEG V2.03.25
130
*DISCD*SHORT BRACE
130V2
SHORT BRACE V2.03.25
131
*DISCD*LONG BRACE
131V2
LONG BRACE V2.03.25
132
FLANGE NUT M8-1.25
Price
N/A
133
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
134
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
134V2
MACHINE ID LABEL V2.03.12
135
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
136
DONT OPEN 2W X 3.3H
Price
N/A
137
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
138
BANDSAW BLADE 1.5W X 2H
Price
N/A
139
ELECTRICITY 1.4W X 1.2H
Price
N/A
140
*DISCD*FENCE PARTS BAG
Item is no longer available
Price
N/A
141
GREY PUTTY REF G0504
Price
N/A
142
N/S GRIZZLY GREEN G1023S
Price
N/A
143
Now: G9987
Nameplate - Mini
Price
N/A
144
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
145
*DISCD*DISCONNECT POWER/INJURY LABEL
Item is no longer available
Price
N/A
146
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
148
MODEL NUMBER LABEL
149
TENSION BLADE TAG
150
GRIZZLY.COM LABEL

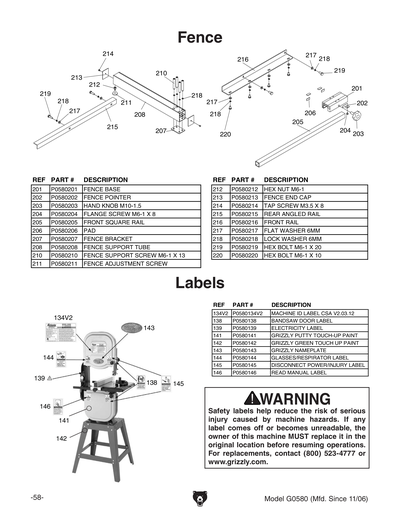

201
FENCE BASE
202
FENCE POINTER
203
HAND KNOB M10-1.5
204
FLANGE SCREW M6-1 X 8
Price
N/A
205
FRONT SQUARE RAIL
206
PAD
207
FENCE BRACKET
208
FENCE SUPPORT TUBE
209
INTERNAL SHEATH
210
FENCE SUPPORT SCREW M6-1 X 13
211
RAIL PAD
Price
N/A
212
Now: PN01M
HEX NUT M6-1
Price
N/A
213
FENCE END CAP
214
TAP SCREW M3.5 X 8
Price
N/A
215
REAR ANGLE RAIL
216
FRONT RAIL
217
Now: PW03M
FLAT WASHER 6MM
Price
N/A
218
LOCK WASHER 6MM
Price
N/A
219
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
220
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
MAN
MANUAL G0580 MFD-08.04-10.06 V1.08.04
MANUAL
MANUAL FOR G0580 08/04
MANV2
MANUAL G0580 MFD-11.06-01.25 V2.12.11
MANV3
MANUAL G0580 MFD-03.25+ V3.03.25
