Parts for G0591 12" Sliding Table Saw-5 HP, Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BODY
Price
N/A
2
*DISCD*TABLE
Price
N/A
3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
CAP SCREW M8-1.25 X 30
Price
N/A
5
*DISCD*SWITCH PLATE
Price
N/A
6
*DISCD*SWITCH BASE
Price
N/A
7
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
8
*DISCD*MAG SWITCH 220V 25A
Price
N/A
9
CAP SCREW M6-1 X 20
Price
N/A
10
*DISCD*COVER PLATE
Price
N/A
11
*DISCD*SCALE PLATE
Price
N/A
12
CAP SCREW M6-1 X 20
Price
N/A
13
*DISCD*ADJUSTMENT BOLT COVER
Price
N/A
14
CAP SCREW M6-1 X 12
Price
N/A
15
*DISCD*MOTOR COVER
Price
N/A
16
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
17
*DISCD*TABLE INSERT
Price
N/A
18
FLAT HD SCR M5-.8 X 10
Price
N/A
19
*DISCD*EXTENSION WING FRONT
Price
N/A
199
MAG SWITCH 440V-14A
199-1
OL RELAY TAI-CYUAN 220V
199-2
MAGNETIC CONTACTOR TAI-CYUAN 220V
Item is no longer available
Price
N/A
20
CAP SCREW M8-1.25 X 30
Price
N/A
21
SET SCREW M8-1.25 X 10
Price
N/A
22
Now: PN03M
HEX NUT M8-1.25
Price
N/A
23
*DISCD*EXTENSION WING RIGHT
Price
N/A
24
HEX BOLT M10-1.5 X 45
Price
N/A
25
Now: PW04M
FLAT WASHER 10MM
Price
N/A
26
*DISCD*EXTENSION WING SUPPORT
Price
N/A
27
HEX BOLT M16-2 X 100
Price
N/A
28
Now: PN13M
HEX NUT M16-2
Price
N/A
29
Now: PN01M
HEX NUT M6-1
Price
N/A
30
Now: PW03M
FLAT WASHER 6MM
Price
N/A
31
*DISCD*SCALE BASE
Price
N/A
32
*DISCD*TUBE PLUG
Price
N/A
33
*DISCD*SCALE
Price
N/A
36
*DISCD*RACK
Price
N/A
37
CAP SCREW M5-.8 X 8
Price
N/A
38
*DISCD*RAIL
Price
N/A
39
*DISCD*STUD-SE M12-1.75 X 120 100
Price
N/A
40
Now: PN09M
HEX NUT M12-1.75
Price
N/A
41
Now: PW06M
FLAT WASHER 12MM
Price
N/A

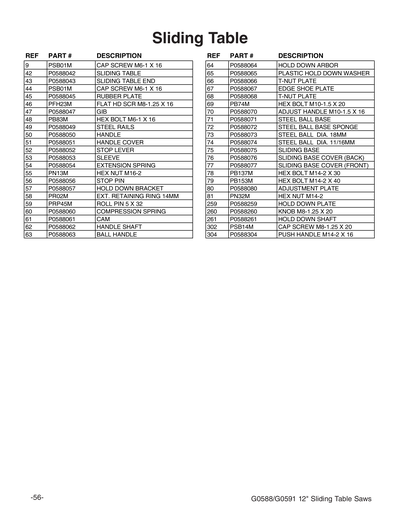

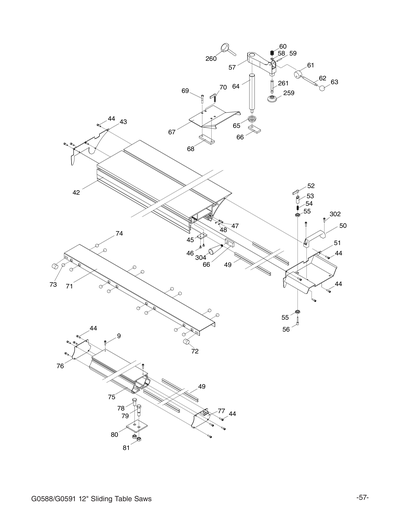

42
*DISCD*SLIDING TABLE
Price
N/A
43
*DISCD*SLIDING TABLE END
Price
N/A
44
CAP SCREW M6-1 X 16
Price
N/A
45
*DISCD*PLATE ASSEMBLY V2.04.10
Price
N/A
46
FLAT HD SCR M8-1.25 X 16
Price
N/A
47
*DISCD*GIB
Price
N/A
48
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
49
*DISCD*STEEL RAILS
Price
N/A
50
*DISCD*HANDLE
Price
N/A
51
*DISCD*HANDLE COVER V1
Price
N/A
51A
HANDLE COVER V2.01.08
Item is no longer available
Price
N/A
52
*DISCD*STOP LEVER
Price
N/A
53
*DISCD*SLEEVE
Price
N/A
54
*DISCD*EXTENSION SPRING
Price
N/A
55
Now: PN13M
HEX NUT M16-2
Price
N/A
56
*DISCD*STOP PIN 2-1/4" LONG
Price
N/A
57
*DISCD*HOLD DOWN BRACKET
Price
N/A
58
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
59
ROLL PIN 5 X 32
Price
N/A
60
*DISCD*COMPRESSION SPRING
Price
N/A
61
*DISCD*CAM
Price
N/A
62
*DISCD*HANDLE SHAFT
Price
N/A
63
*DISCD*BALL HANDLE
Price
N/A
64
*DISCD*HOLD DOWN ARBOR
Price
N/A
65
*DISCD*HOLD DOWN WASHER PLASTIC
Price
N/A
66
*DISCD*T-NUT PLATE
Price
N/A
67
*DISCD*EDGE SHOE PLATE
Price
N/A
68
*DISCD*T-NUT PLATE
Price
N/A
69
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
70
*DISCD*ADJUSTABLE HANDLE M10-1.5 X 16
Price
N/A
71
*DISCD*STEEL BALL BASE
Price
N/A
72
*DISCD*STEEL BALL BASE SPONGE
Price
N/A
73
*DISCD*STEEL BALL 18MM DIA
Price
N/A
74
*DISCD*STEEL BALL 11/16" DIA
Price
N/A
75
*DISCD*SLIDING BASE
Price
N/A
76
*DISCD*SLIDING BASE COVER BACK
Price
N/A
77
*DISCD*SLIDING BASE COVER FRONT
Price
N/A
78
HEX BOLT M14-2 X 30
Price
N/A
79
HEX BOLT M14-2 X 60
Price
N/A
80
*DISCD*ADJUSTMENT PLATE V1
Price
N/A
80V2
*DISCD*ADJUSTMENT PLATE 2MM V2.05.09
Price
N/A
81
Now: PN32M
HEX NUT M14-2
Price
N/A
82

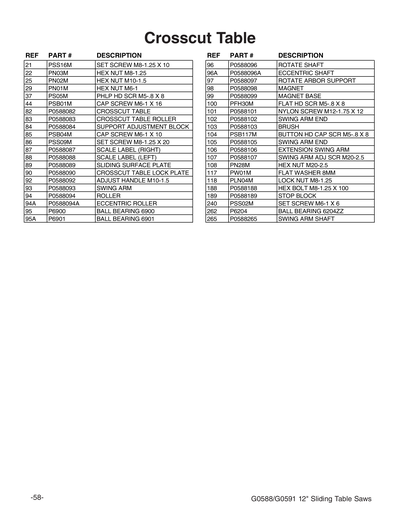

*DISCD*CROSS CUT TABLE
Price
N/A
83
*DISCD*CROSS CUT TABLE ROLLER
Price
N/A
84
*DISCD*SUPPORT ADJUSTMENT BLOCK
Price
N/A
85
CAP SCREW M6-1 X 10
Price
N/A
86
SET SCREW M8-1.25 X 20
Price
N/A
87
*DISCD*SCALE LABEL RIGHT
Price
N/A
88
*DISCD*SCALE LABEL LEFT
Price
N/A
89
*DISCD*SLIDING SURFACE PLATE
Price
N/A
90
*DISCD*CROSS CUT TABLE LOCK PLATE
Price
N/A
91
Now: PW04M
FLAT WASHER 10MM
Price
N/A
92
*DISCD*ADJUST HANDLE M10-1.5
Price
N/A
93
*DISCD*SWING ARM
Price
N/A
94
*DISCD*ECCENTRIC ROLLER
Price
N/A
94A
*DISCD*ECCENTRIC ROLLER
Price
N/A
95
BALL BEARING 6900ZZ
Price
N/A
95A
BALL BEARING 6901ZZ
Price
N/A
96
*DISCD*ECCENTRIC SHAFT
Price
N/A
96A
*DISCD*ECCENTRIC SHAFT
Price
N/A
97
*DISCD*ROTATE ARBOR SUPPORT
Price
N/A
98
*DISCD*MAGNET
Price
N/A
99
*DISCD*MAGNETIC BASE
Price
N/A
100
FLAT HD SCR M5-.8 X 8
Price
N/A
101
*DISCD*NYLON SCREW M12-1.75 X 12
Price
N/A
102
*DISCD*SWING ARM END
Price
N/A
103
*DISCD*BRUSH
Price
N/A
104
*DISCD*BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
105
*DISCD*SWING ARM END
Price
N/A
106
*DISCD*EXTENSION SWING ARM
Price
N/A
107
*DISCD*SWING ARM ADJUST SCREW M20-2.5
Price
N/A
108
Now: PN28M
HEX NUT M20-2.5
Price
N/A
109
*DISCD*STOP PLATE
Price
N/A
110
*DISCD*NYLON PAD
Price
N/A
111
*DISCD*KNOB M6-1 X 35
Price
N/A
114
*DISCD*CLAMPING BASE
Price
N/A
115
*DISCD*T-NUT M6-1
Price
N/A
116
*DISCD*CLAMPING ARBOR
Price
N/A
117
Now: PW01M
FLAT WASHER 8MM
Price
N/A
118
LOCK NUT M8-1.25
Price
N/A
119
*DISCD*SCALE LONG V2
Price
N/A
120
*DISCD*CROSS CUT FENCE
Price
N/A
121
SET SCREW M6-1 X 12
Price
N/A
122
*DISCD*SUPPORT BLOCK FRONT V1
Price
N/A
123
*DISCD*T-BOLT M10-1.5
Price
N/A
124
*DISCD*KNOB M10-1.5
Price
N/A
125
*DISCD*LOCK PLATE M10-1.5 X 25 V1
Price
N/A
126
*DISCD*SCALE SHORT V1
Price
N/A
127
*DISCD*CROSS CUTTING FENCE SHORT BASE
Price
N/A
128
*DISCD*LOCK PLATE
Price
N/A
129
SET SCREW M6-1 X 35
Price
N/A
130
*DISCD*CROSS FENCE SUPPORT PLATE
Price
N/A
131
*DISCD*RIP FENCE BASE V1
Price
N/A
132A
*DISCD*RIP FENCE BASE V1.08.05
Price
N/A
133
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
134
*DISCD*WARNING LABEL PLATE
Price
N/A
135
RIVET 3 X 6
Price
N/A
136
E-CLIP 7MM
Price
N/A
137
*DISCD*HANDLE
Price
N/A
139
*DISCD*COMPRESSION SPRING
Price
N/A
140
*DISCD*KNOB M14-1.75
Price
N/A
142
*DISCD*HANDLE
Price
N/A
143
*DISCD*ECCENTRIC
Price
N/A
144
*DISCD*ROLLER
Price
N/A
145
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
146
CAP SCREW M8-1.25 X 20
Price
N/A
147
Now: PB28M
HEX BOLT M8-1.25 X 60
Price
N/A
148
*DISCD*RIP FENCE PLATE
Price
N/A
149
*DISCD*LOCK BLOCK LONG
Price
N/A
150
*DISCD*LOCK BLOCK SHORT
Price
N/A
151
*DISCD*ECCENTRIC SHAFT
Price
N/A
152
*DISCD*HOLD PLATE
Price
N/A
153
*DISCD*ECCENTRIC V1
Price
N/A
153A
*DISCD*ECCENTRIC V2.08.05
Price
N/A
154
*DISCD*STEEL CABLE WHEEL
Price
N/A
155
*DISCD*TORSION SPRING
Price
N/A
156
CAP SCREW M8-1.25 X 35
Price
N/A
157
CAP SCREW M10-1.5 X 90
Price
N/A
158
*DISCD*SCALE
Price
N/A
159
*DISCD*STEEL CABLE
Price
N/A
160
*DISCD*HAND WHEEL
Price
N/A
161
*DISCD*HAND WHEEL COLLAR
Price
N/A
162
*DISCD*SHAFT NUT
Price
N/A
163
*DISCD*SHAFT NUT BASE
Price
N/A
164
*DISCD*TW-NUT
Price
N/A
165
*DISCD*LEADSCREW NUT
Price
N/A
166
*DISCD*LEADSCREW TW-16 8 TEETH/INCH
Price
N/A
167
*DISCD*STEEL CABLE JACKET
Price
N/A
168
CAP SCREW M10-1.5 X 25
Price
N/A
169
*DISCD*COVER SUPPORT M6-1 X 25
Price
N/A
170
*DISCD*SET SHAFT
Price
N/A
171
*DISCD*PULLEY COLLAR
Price
N/A
172
*DISCD*GATHER PLATE
Price
N/A
173
*DISCD*CRANK ARM
Price
N/A
174
*DISCD*PULLEY COLLAR
Price
N/A
175
CAP SCREW M8-1.25 X 35
Price
N/A
176
*DISCD*GATHER BOLT M8-1.25 X 35
Price
N/A
177
LOCK NUT M16-2
Price
N/A
178
*DISCD*WORM
Price
N/A
179
*DISCD*WORM GEAR
Price
N/A
180
*DISCD*SLEEVE COPPER
Price
N/A
181
HEX BOLT M16-2 X 40
Price
N/A
182
*DISCD*GEAR BOX
Price
N/A
183
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
184
*DISCD*SLEEVE COPPER
Price
N/A
185
SET SCREW M8-1.25 X 14
Price
N/A
186
*DISCD*HAND WHEEL SHAFT
Price
N/A
187
*DISCD*HAND WHEEL
Price
N/A
188
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
189
*DISCD*STOP BLOCK
Price
N/A
190
*DISCD*FOLDABLE HANDLE HL-80
Price
N/A
191
SET SCREW M4-.7 X 8
Price
N/A
192
*DISCD*ARBOR PLATE
Price
N/A
193
*DISCD*DUST COVER
Price
N/A
194
CAP SCREW M8-1.25 X 16
Price
N/A
195
FLAT HD SCR M8-1.25 X 15
Price
N/A
196
Now: PN21M
HEX NUT M16-2 LH
Price
N/A
197
*DISCD*ARBOR FLANGE
Price
N/A
198
ROLL PIN 4 X 8
Price
N/A
200
*DISCD*BLADE ARBOR
Price
N/A
201
BALL BEARING 6004-2RS
Price
N/A
202
*DISCD*DUST SHIELD
Price
N/A
203
CAP SCREW M4-.7 X 40
Price
N/A
204
Now: PN04M
HEX NUT M4-.7
Price
N/A
205
*DISCD*LIMIT SWITCH
Price
N/A
206
V-BELT 3VX-265
Price
N/A
207
*DISCD*MOTOR PULLEY
Price
N/A
208
Now: PR71M
EXT RETAINING RING 60MM
Price
N/A
209
SET SCREW M8-1.25 X 10
Price
N/A
210
CAP SCREW M8-1.25 X 16
Price
N/A
211
*DISCD*RIVING KNIFE HOLDER
Price
N/A
212
*DISCD*RIVING BRACKET
Price
N/A
213
CARRIAGE BOLT M12-1.75 X 35
Price
N/A
214
SET SCREW M6-1 X 10
Price
N/A
215
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
216

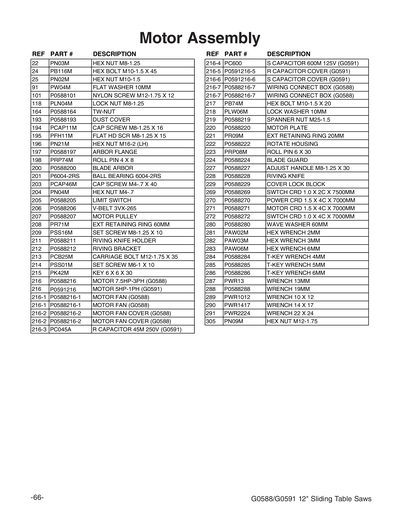

*DISCD*MOTOR 5HP 220V 1-PH
Item is no longer available
Price
N/A
216-1
MOTOR FAN
Item is no longer available
Price
N/A
216-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
216-5
R CAPACITOR COVER
Item is no longer available
Price
N/A
216-6
S CAPACITOR COVER
Item is no longer available
Price
N/A
216-7
WIRING CONNECT BOX
Item is no longer available
Price
N/A
217
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
218
LOCK WASHER 10MM
Price
N/A
219
*DISCD*SPANNER NUT M25-1.5
Price
N/A
220
*DISCD*MOTOR PLATE
Price
N/A
221
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
222
*DISCD*ROTATE HOUSING
Price
N/A
223
ROLL PIN 6 X 30
Price
N/A
224
*DISCD*BLADE GUARD
Price
N/A
227
*DISCD*ADJUST HANDLE M8-1.25 X 30
Price
N/A
228
*DISCD*RIVING KNIFE
Price
N/A
229
*DISCD*COVER LOCK BLOCK
Price
N/A
230
*DISCD*SCORING BLADE WASHER
Price
N/A
232
*DISCD*SCORING ARBOR
Price
N/A
233
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
234
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
235
*DISCD*WAVE WASHER 15MM
Price
N/A
236
*DISCD*BLADE LINK SHAFT
Price
N/A
237
BALL BEARING 6002ZZ
Price
N/A
238
*DISCD*BLADE LINK SHAFT
Price
N/A
239
*DISCD*TORSION SPRING
Price
N/A
240
SET SCREW M6-1 X 6
Price
N/A
241
*DISCD*SLEEVE
Price
N/A
242
CAP SCREW M8-1.25 X 40
Price
N/A
243
*DISCD*LINK SHAFT BASE
Price
N/A
244
*DISCD*ECCENTRIC
Price
N/A
245
*DISCD*LINK SHAFT SET SCREW M8-1.25 X 25
Price
N/A
246
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
247
*DISCD*SCORING PULLEY
Price
N/A
248
Now: PN53M
HEX NUT M8-1.25 LH
Price
N/A
249
CAP SCREW M10-1.5 X 30
Price
N/A
250
*DISCD*IDLE WHEEL
Price
N/A
251
BALL BEARING 6000ZZ
Price
N/A
252
Now: PR40M
INT RETAINING RING 26MM
Price
N/A
253
CAP SCREW M10-1.5 X 16
Price
N/A
254
*DISCD*FLAT BELT PULLEY
Price
N/A
255
Now: PK99M
KEY 6 X 6 X 15
Price
N/A
256
*DISCD*PULLEY SUPPORT
Price
N/A
257
*DISCD*EXTENSION SPRING
Price
N/A
258
*DISCD*FLAT BELT T150-920-T1 V1.05.05
Price
N/A
259
*DISCD*HOLD DOWN PLATE W/SHAFT
Price
N/A
260
*DISCD*KNOB M8-1.25 X 20
Price
N/A
261
*DISCD*HOLD DOWN SHAFT
Price
N/A
262
BALL BEARING 6204ZZ
Price
N/A
263
*DISCD*SCALE TUBE
Price
N/A
264
*DISCD*KNOB M10-1.5
Price
N/A
265
*DISCD*SWING ARM SHAFT
Price
N/A
266
*DISCD*COVER UPPER
Price
N/A
268
SET SCREW M5-.8 X 10
Price
N/A
269
*DISCD*SWITCH CORD 1.0 X 2C X 7.5 METER
Price
N/A
270
*DISCD*POWER CORD 1.5 X 4C X 7 METER
Price
N/A
271
*DISCD*MOTOR CORD 1.5 X 4C X 7 METER
Price
N/A
272
*DISCD*SWITCH CORD 1.0 X 4C X 7 METER
Price
N/A
275
*DISCD*ROTATE PART LOCK
Price
N/A
276
ROLL PIN 3 X 20
Price
N/A
277
CAP SCREW M8-1.25 X 20
Price
N/A
278
*DISCD*SCALE DUST COVER
Price
N/A
279
*DISCD*FENCE RAIL PLUG 45 X 33
Price
N/A
280
*DISCD*WAVE WASHER 60MM
Price
N/A
281
HEX WRENCH 2MM
Price
N/A
282
HEX WRENCH 3MM
Price
N/A
283
HEX WRENCH 6MM
Price
N/A
284
*DISCD*WRENCH T-HANDLE HEX 4MM
Price
N/A
285
*DISCD*WRENCH T-HANDLE HEX 5MM
Price
N/A
286
*DISCD*WRENCH T-HANDLE HEX 6MM
Price
N/A
287
Now: PWR13
*DISCD*WRENCH 13MM COMBO
Price
N/A
288
*DISCD*WRENCH 19MM
Price
N/A
289
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
290
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
291
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
302
CAP SCREW M8-1.25 X 20
Price
N/A
304
*DISCD*PUSH HANDLE M14-2 X 16
Price
N/A
305
Now: PN09M
HEX NUT M12-1.75
Price
N/A
306
EXT TOOTH WASHER 12MM
Price
N/A
307
*DISCD*TERMINAL BOX
Price
N/A
308
*DISCD*EMERGENCY BUTTON
Price
N/A
309
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
310
*DISCD*KICKBACK WARNING LABEL
Price
N/A
311
*DISCD*DISCONNECT POWER LABEL
Price
N/A
312
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
313
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
314
*DISCD*RAISING BLADE LABEL
Price
N/A
315
*DISCD*TILTING BLADE LABEL
Price
N/A
316
*DISCD*QUALIFIED PERSONNEL LABEL
Price
N/A
317
PREWIRED 220V 3.3W X 2.2H
Price
N/A
318
*DISCD*BLADE LOWER GUARD LABEL
Price
N/A
319
ELECTRICITY 1.4W X 1.2H
Price
N/A
320
MACHINE ID LABEL
Item is no longer available
Price
N/A
321
MODEL NUMBER LABEL
401
BRACKET
Item is no longer available
Price
N/A
402
Now: PW03M
FLAT WASHER 6MM
Price
N/A
403
CAP SCREW M6-1 X 22
Price
N/A
404
TORSION SPRING
Item is no longer available
Price
N/A
405
Now: PN06M
HEX NUT M5-.8
Price
N/A
406
SHAFT LONG
Item is no longer available
Price
N/A
407
LONG SHAFT SCREW M6-1 X 30
408
CAP SCREW M6-1 X 16
Price
N/A
409
L-PLATE
Item is no longer available
Price
N/A
410
CAP SCREW M5-.8 X 16
Price
N/A
411
Now: PN01M
HEX NUT M6-1
Price
N/A
412
ECCENTRIC SHAFT
Item is no longer available
Price
N/A
413
SLEEVE
Item is no longer available
Price
N/A
414
BRACKET
Item is no longer available
Price
N/A
415
Now: PW02M
FLAT WASHER 5MM
Price
N/A
416
CAP SCREW M5-.8 X 10
Price
N/A
417
LOCK NUT M8-1.25
Price
N/A
418
LOCK LABEL
Item is no longer available
Price
N/A
BOX2
COMPLETE SLIDING TABLE ASSY BOX 2
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G0591 08/05
Item is no longer available
Price
N/A
