Parts for G0592 10" x 18" 2 HP Metal-Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

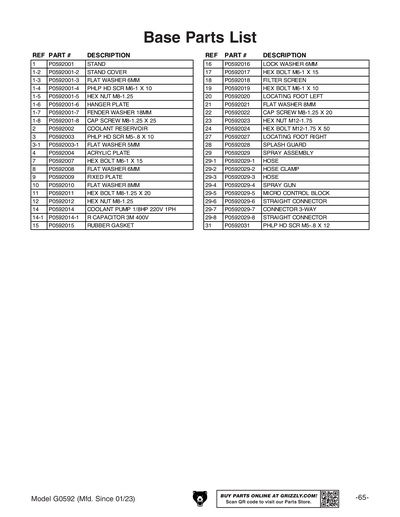

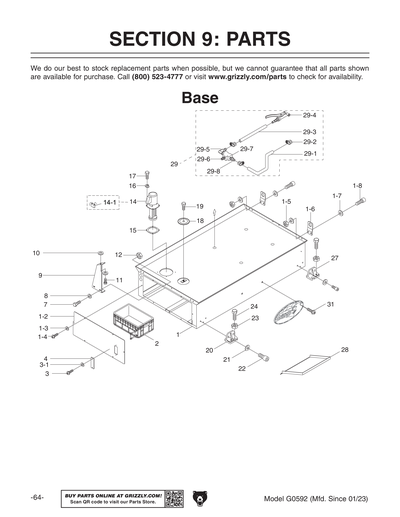

1
STAND
1-2
STAND COVER
1-3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1-4
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
1-5
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1-6
HANGER PLATE
1-7
FENDER WASHER 18MM
Price
N/A
1-8
CAP SCREW M8-1.25 X 25
Price
N/A
2
COOLANT RESERVOIR
3
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
3-1
Now: PW02M
FLAT WASHER 5MM
Price
N/A
4
ACRYLIC PLATE
7
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
FIXED PLATE
10
Now: PW01M
FLAT WASHER 8MM
Price
N/A
11
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
12
Now: PN03M
HEX NUT M8-1.25
Price
N/A
14
*DISCD*COOLANT PUMP 1/8HP 220V 1PH
14-1
R CAPACITOR 3M 400V
14V2
COOLANT PUMP 1/8HP 220V 1PH V2.09.24
15
RUBBER GASKET
16
LOCK WASHER 6MM
Price
N/A
17
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
18
FILTER SCREEN
19
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
20
LOCATING FOOT LEFT
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 20
Price
N/A
23
Now: PN09M
HEX NUT M12-1.75
Price
N/A
24
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
25
*DISCD*SPLASH TRAY
Item is no longer available
Price
N/A
26
CHIP TRAY
27
LOCATING FOOT RIGHT
28
SPLASH GUARD
29
SPRAY ASSEMBLY
29-1
HOSE
29-2
HOSE CLAMP
29-3
HOSE
29-4
SPRAY GUN
29-5
MICRO CONTROL BLOCK
29-6
STRAIGHT CONNECTOR
29-7
CONNECTOR 3-WAY
29-8
STRAIGHT CONNECTOR
30
Now: G8589
Nameplate - Large
Price
N/A

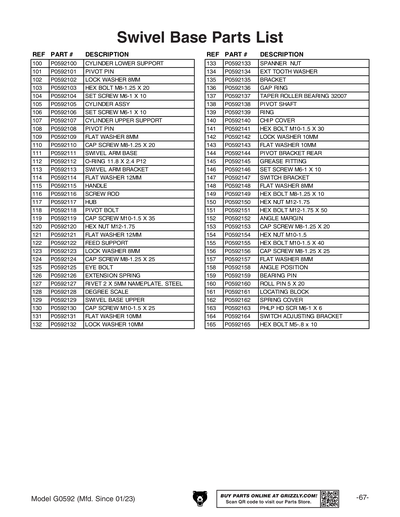

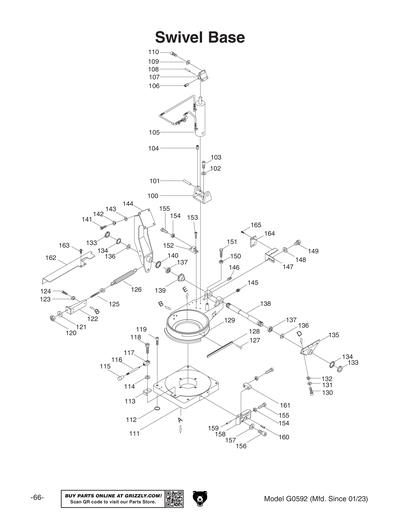

100
CYLINDER LOWER SUPPORT
101
PIVOT PIN
102
LOCK WASHER 8MM
Price
N/A
103
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
104
SET SCREW M6-1 X 10
Price
N/A
105
CYLINDER ASSY
106
SET SCREW M6-1 X 10
Price
N/A
107
CYLINDER UPPER SUPPORT
108
PIVOT PIN
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
110
CAP SCREW M8-1.25 X 20
Price
N/A
111
SWIVEL ARM BASE
112
O-RING 11.8 X 2.4 P12
Price
N/A
113
SWIVEL ARM BRACKET
114
Now: PW06M
FLAT WASHER 12MM
Price
N/A
115
HANDLE
116
SCREW ROD
117
BRACKET
Price
N/A
118
PIVOT BOLT
119
CAP SCREW M10-1.5 X 35
Price
N/A
120
Now: PN09M
HEX NUT M12-1.75
Price
N/A
121
Now: PW06M
FLAT WASHER 12MM
Price
N/A
122
FEED SUPPORT
123
LOCK WASHER 8MM
Price
N/A
124
CAP SCREW M8-1.25 X 25
Price
N/A
125
EYE BOLT
126
EXTENSION SPRING
127
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
128
DEGREE SCALE
129
SWIVEL BASE UPPER
130
CAP SCREW M10-1.5 X 25
Price
N/A
131
Now: PW04M
FLAT WASHER 10MM
Price
N/A
132
LOCK WASHER 10MM
Price
N/A
133
SPANNER NUT
134
EXT TOOTH WASHER
135
BRACKET
136
GAP RING
137
TAPER ROLLER BEARING 32007
Price
N/A
138
PIVOT SHAFT
139
RING
140
CHIP COVER
141
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
142
LOCK WASHER 10MM
Price
N/A
143
Now: PW04M
FLAT WASHER 10MM
Price
N/A
144
PIVOT BRACKET REAR
145
GREASE FITTING
146
SET SCREW M6-1 X 10
Price
N/A
147
SWITCH BRACKET
148
Now: PW01M
FLAT WASHER 8MM
Price
N/A
149
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
150
Now: PN09M
HEX NUT M12-1.75
Price
N/A
151
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
152
ANGLE MARGIN
153
CAP SCREW M8-1.25 X 20
Price
N/A
154
Now: PN02M
HEX NUT M10-1.5
Price
N/A
155
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
156
CAP SCREW M8-1.25 X 25
Price
N/A
157
Now: PW01M
FLAT WASHER 8MM
Price
N/A
158
ANGLE POSITION
159
BEARING PIN
Price
N/A
160
ROLL PIN 5 X 20
Price
N/A
161
LOCATING BLOCK
162
SPRING COVER
163
Now: PS37M
PHLP HD SCR M6-1 X 6
Price
N/A
164
SWITCH ADJUSTING BRACKET
165
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A

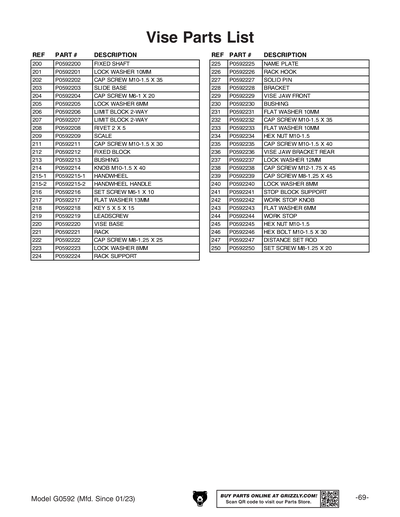

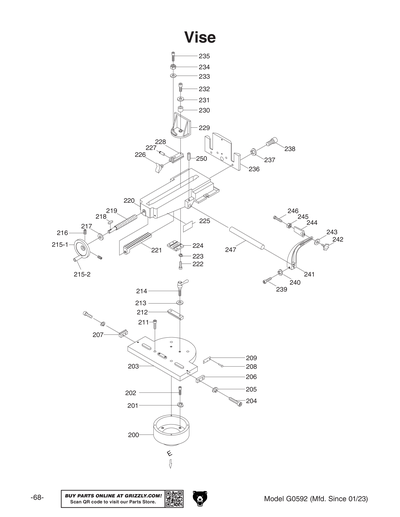

200
FIXED SHAFT
201
LOCK WASHER 10MM
Price
N/A
202
CAP SCREW M10-1.5 X 35
Price
N/A
203
SLIDE BASE
204
CAP SCREW M6-1 X 20
Price
N/A
205
LOCK WASHER 6MM
Price
N/A
206
LIMIT BLOCK 2-WAY
207
LIMIT BLOCK 2-WAY
208
RIVET 2 X 5
209
SCALE
211
CAP SCREW M10-1.5 X 30
Price
N/A
212
FIXED BLOCK
213
BUSHING
214
KNOB M10-1.5 X 40
215
*DISCD*HANDWHEEL W/HANDLE
Item is no longer available
Price
N/A
215-1
HANDWHEEL TYPE-9 126D X 15B-K
Price
N/A
215-2
HANDWHEEL HANDLE
216
SET SCREW M6-1 X 10
Price
N/A
217
Now: PW28M
FLAT WASHER 13MM
Price
N/A
218
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
219
LEADSCREW
220
VISE BASE
221
RACK
222
CAP SCREW M8-1.25 X 25
Price
N/A
223
LOCK WASHER 8MM
Price
N/A
224
RACK SUPPORT
225
NAME PLATE
226
RACK HOOK
227
SOLID PIN
228
BRACKET
229
VISE JAW FRONT
230
BUSHING
Price
N/A
231
Now: PW04M
FLAT WASHER 10MM
Price
N/A
232
CAP SCREW M10-1.5 X 35
Price
N/A
233
Now: PW04M
FLAT WASHER 10MM
Price
N/A
234
Now: PN02M
HEX NUT M10-1.5
Price
N/A
235
CAP SCREW M10-1.5 X 40
Price
N/A
236
VISE JAW BRACKET REAR
237
LOCK WASHER 12MM
Price
N/A
238
CAP SCREW M12-1.75 X 45
Price
N/A
239
CAP SCREW M8-1.25 X 45
Price
N/A
240
LOCK WASHER 8MM
Price
N/A
241
STOP BLOCK SUPPORT
242
WORK STOP KNOB
243
Now: PW03M
FLAT WASHER 6MM
Price
N/A
244
WORK STOP
245
Now: PN02M
HEX NUT M10-1.5
Price
N/A
246
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
247
DISTANCE SET ROD
250
SET SCREW M8-1.25 X 20
Price
N/A

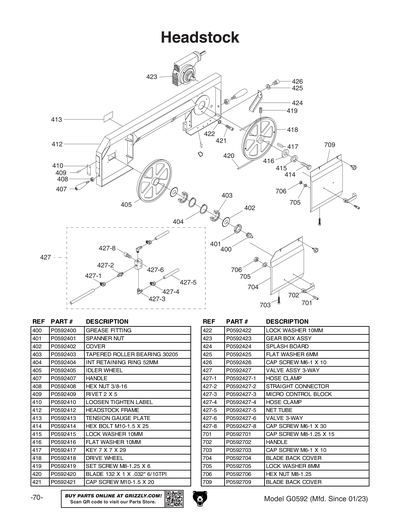

400
GREASE FITTING
401
SPANNER NUT
402
COVER
403
TAPERED ROLLER BEARING 30205
Price
N/A
404
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
405
IDLER WHEEL
406

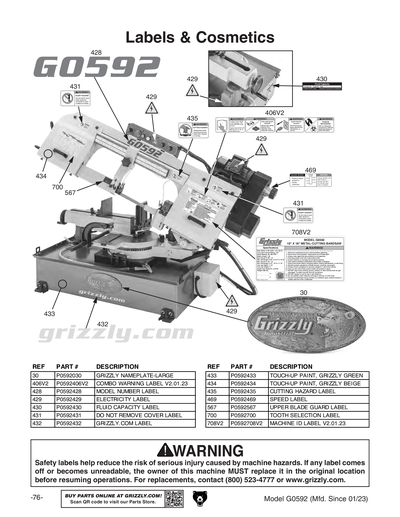

READ MANUAL LABEL V1
406-1
SAFETY GLASSES LABEL
406V2
COMBO WARNING LABEL V2.01.23
407
HANDLE
408
Now: PN08
HEX NUT 3/8-16
Price
N/A
409
RIVET 2 X 5
410
LOOSEN TIGHTEN LABEL
411
BLADE GUARD LABEL
412
HEADSTOCK FRAME
413
TENSION GAUGE PLATE
414
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
415
LOCK WASHER 10MM
Price
N/A
416
FLAT WASHER 10MM
Price
N/A
417
Now: PK28M
KEY 7 X 7 X 29
Price
N/A
418
DRIVE WHEEL
419
SET SCREW M8-1.25 X 6
Price
N/A
420
BLADE 132 X 1 X .032" 6/10TPI
421
CAP SCREW M10-1.5 X 20
Price
N/A
422
LOCK WASHER 10MM
Price
N/A
423
GEAR BOX ASSY
424
SPLASH BOARD
425
Now: PW03M
FLAT WASHER 6MM
Price
N/A
426
CAP SCREW M6-1 X 10
Price
N/A
427
VALVE ASSY 3-WAY
427-1
HOSE CLAMP
427-2
STRAIGHT CONNECTOR
427-3
MICRO CONTROL BLOCK
427-4
HOSE CLAMP
427-5
NET TUBE
427-6
VALVE 3-WAY
427-8
CAP SCREW M6-1 X 30
Price
N/A
428
MODEL NUMBER LABEL
429
ELECTRICITY 1.4W X 1.2H
Price
N/A
430
FLUID CAPACITY LABEL
431
DO NOT REMOVE COVER LABEL
432
GRIZZLY.COM LABEL 14.5",BEIGE
Price
N/A
433
N/S GRIZZLY GREEN G1023S
Price
N/A
434
BEIGE REF G0555
Price
N/A
435
CUTTING HAZARD LABEL

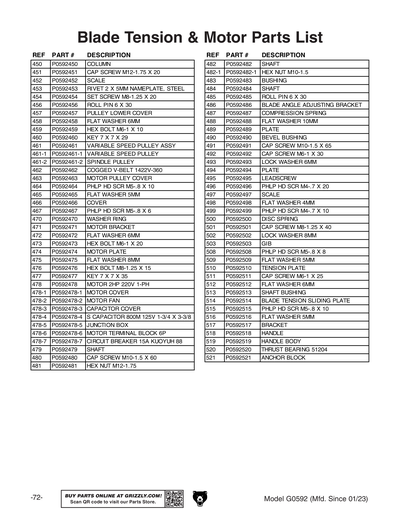

450
COLUMN
451
CAP SCREW M12-1.75 X 20
Price
N/A
452
SCALE
453
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
454
SET SCREW M8-1.25 X 20
Price
N/A
456
ROLL PIN 6 X 30
Price
N/A
457
PULLEY LOWER COVER
458
Now: PW03M
FLAT WASHER 6MM
Price
N/A
459
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
460
Now: PK28M
KEY 7 X 7 X 29
Price
N/A
461

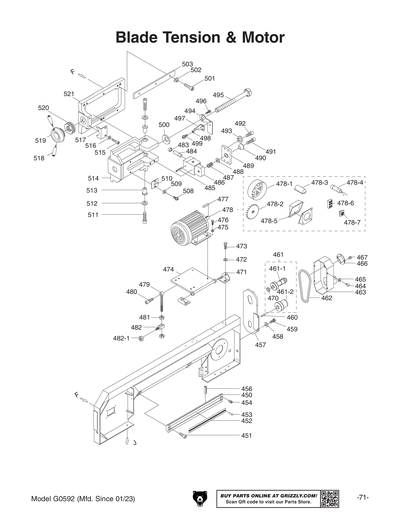

VARIABLE SPEED PULLEY ASSY
461-1
VARIABLE SPEED PULLEY ASSY
Price
N/A
461-2
VARIABLE SPEED PULLEY ASSY
Price
N/A
462
COGGED V-BELT 1422V-360
463
MOTOR PULLEY COVER
464
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
465
Now: PW02M
FLAT WASHER 5MM
Price
N/A
466
COVER
467
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
469
SPEED LABEL
470
VARIABLE SPEED PULLEY ASSY
Price
N/A
471
MOTOR BRACKET
472
Now: PW03M
FLAT WASHER 6MM
Price
N/A
473
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
474
MOTOR PLATE
475
Now: PW01M
FLAT WASHER 8MM
Price
N/A
476
Now: PB87M
HEX BOLT M8-1.25 X 15
Price
N/A
477
KEY 7 X 7 X 35
Price
N/A
478
MOTOR 2HP 220V 1-PH
478-1
MOTOR COVER
478-2
MOTOR FAN
478-3
CAPACITOR COVER
478-4
Now: PC800
S CAPACITOR 800M 125V 1-3/4 X 3-3/8
Price
N/A
478-5
JUNCTION BOX
478-6
MOTOR TERMINAL BLOCK 6P
478-7
CIRCUIT BREAKER 15A KUOYUH 88
479
SHAFT
480
CAP SCREW M10-1.5 X 60
Price
N/A
481
Now: PN09M
HEX NUT M12-1.75
Price
N/A
482
SHAFT
482-1
Now: PN02M
HEX NUT M10-1.5
Price
N/A
483
BUSHING
484
SHAFT
485
ROLL PIN 6 X 30
Price
N/A
486
BLADE ANGLE ADJUSTING BRACKET
487
COMPRESSION SPRING
488
Now: PW04M
FLAT WASHER 10MM
Price
N/A
489
PLATE
490
BEVEL BUSHING
491
CAP SCREW M10-1.5 X 65
Price
N/A
492
CAP SCREW M6-1 X 30
Price
N/A
493
LOCK WASHER 6MM
Price
N/A
494
PLATE
495
LEADSCREW
496
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
497
SCALE
498
Now: PW05M
FLAT WASHER 4MM
Price
N/A
499
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
500
DISC SPRING
501
CAP SCREW M8-1.25 X 40
Price
N/A
502
LOCK WASHER 8MM
Price
N/A
503
GIB
508
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
509
Now: PW02M
FLAT WASHER 5MM
Price
N/A
510
SCALE
Price
N/A
511
CAP SCREW M6-1 X 25
Price
N/A
512
Now: PW03M
FLAT WASHER 6MM
Price
N/A
513
SHAFT BUSHING
514
BLADE TENSION SLIDING PLATE
515
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
516
Now: PW02M
FLAT WASHER 5MM
Price
N/A
517
BRACKET
518
HANDLE
519
HANDLE BODY
520
THRUST BEARING 51204
Price
N/A
521
ANCHOR BLOCK

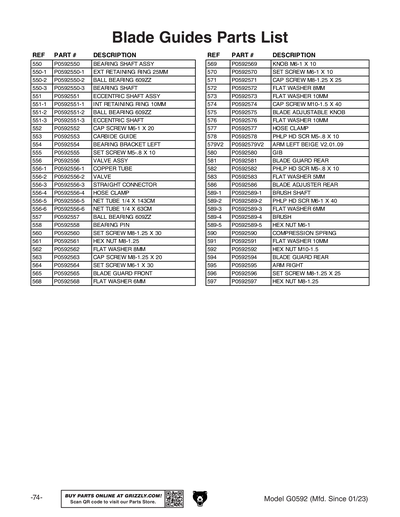

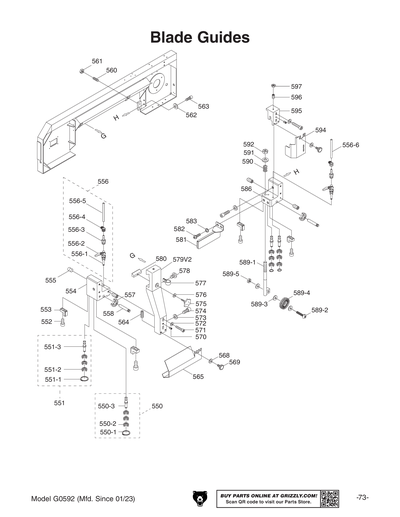

550
BEARING SHAFT ASSY
550-1
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
550-2
BALL BEARING 609ZZ
Price
N/A
550-3
BEARING SHAFT
551
ECCENTRIC SHAFT ASSY
551-1
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
551-2
BALL BEARING 609ZZ
Price
N/A
551-3
ECCENTRIC SHAFT
552
CAP SCREW M6-1 X 20
Price
N/A
553
CARBIDE GUIDE
554
BEARING BRACKET LEFT
555
SET SCREW M5-.8 X 10
Price
N/A
556
VALVE ASSY
556-1
VALVE ASSY
Price
N/A
556-2
VALVE ASSY
Price
N/A
556-3
VALVE ASSY
Price
N/A
556-4
VALVE ASSY
Price
N/A
556-5
VALVE ASSY
Price
N/A
556-6
VALVE ASSY
Price
N/A
557
BALL BEARING 609ZZ
Price
N/A
558
BEARING PIN
560
SET SCREW M8-1.25 X 30
Price
N/A
561
Now: PN03M
HEX NUT M8-1.25
Price
N/A
562
Now: PW01M
FLAT WASHER 8MM
Price
N/A
563
CAP SCREW M8-1.25 X 20
Price
N/A
564
SET SCREW M6-1 X 30
Price
N/A
565
BLADE GUARD FRONT
567
UPPER BLADE GUARD LABEL
568
Now: PW03M
FLAT WASHER 6MM
Price
N/A
569
KNOB M6-1 X 10
570
SET SCREW M6-1 X 10
Price
N/A
571
CAP SCREW M8-1.25 X 25
Price
N/A
572
Now: PW01M
FLAT WASHER 8MM
Price
N/A
573
Now: PW04M
FLAT WASHER 10MM
Price
N/A
574
CAP SCREW M10-1.5 X 40
Price
N/A
575
BLADE ADJUSTABLE KNOB
576
Now: PW04M
FLAT WASHER 10MM
Price
N/A
577
HOSE CLAMP
578
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
579
ARM LEFT GREEN V1.04.06
579V2
ARM LEFT BEIGE V2.01.09
580
GIB
581
BLADE GUARD REAR
582
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
583
Now: PW02M
FLAT WASHER 5MM
Price
N/A
586
BLADE ADJUSTER REAR
587
SET SCREW M5-.8 X 5
Price
N/A
588
COLLAR
589
BRUSH SHAFT
Price
N/A
589-1
BRUSH SHAFT
589-2
Now: PS81M
PHLP HD SCR M6-1 X 40
Price
N/A
589-3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
589-4
BRUSH
589-5
Now: PN01M
HEX NUT M6-1
Price
N/A
589A
BRUSH ASSEMBLY
590
COMPRESSION SPRING
591
Now: PW04M
FLAT WASHER 10MM
Price
N/A
592
Now: PN02M
HEX NUT M10-1.5
Price
N/A
593
BRUSH
Price
N/A
594
BLADE GUARD REAR
595
ARM RIGHT
596
SET SCREW M8-1.25 X 25
Price
N/A
597
Now: PN03M
HEX NUT M8-1.25
Price
N/A
700
TOOTH SELECTION LABEL
701
CAP SCREW M8-1.25 X 15
Price
N/A
702
HANDLE
703
CAP SCREW M6-1 X 10
Price
N/A
704
BLADE BACK COVER
705
LOCK WASHER 8MM
Price
N/A
706
Now: PN03M
HEX NUT M8-1.25
Price
N/A
707
NAME PLATE
708
MACHINE ID LABEL V1
708V2
MACHINE ID LABEL V2.01.23
709
BLADE BACK COVER
710
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
711
CONTROL PLATE
712
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
713

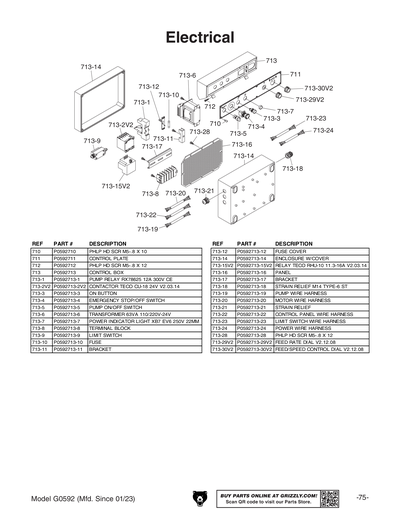

CONTROL BOX
713-1
PUMP RELAY RX78625 12A 300V CE
713-10
FUSE
713-11
BRACKET
713-12
FUSE COVER
713-14
ENCLOSURE W/COVER
713-15
RELAY TECO RHU-10 11.3-16A V2.03.14
Price
N/A
713-15V2
RELAY TECO RHU-10 11.3-16A V2.03.14
713-16
PANEL
713-17
BRACKET
713-18
STRAIN RELIEF M14 TYPE-6 ST
713-19
PUMP WIRE HARNESS
713-2
CONTACTOR TECO CU-18 24V V2.03.14
Price
N/A
713-20
MOTOR WIRE HARNESS
713-21
STRAIN RELIEF
713-22
CONTROL PANEL WIRE HARNESS
713-23
LIMIT SWITCH WIRE HARNESS
713-24
POWER WIRE HARNESS
713-28
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
713-29V2
FEED RATE DIAL V2.12.08
713-2V2
CONTACTOR TECO CU-18 24V V2.03.14
713-3
ON BUTTON
713-30V2
FEED/SPEED CONTROL DIAL V2.12.08
713-4
EMERGENCY STOP/OFF SWITCH
713-5
PUMP ON/OFF SWITCH
713-6
TRANSFORMER 63VA 110/220V-24V
Price
N/A
713-7
POWER INDICATOR LIGHT XB7 EV6 250V 22MM
713-8
TERMINAL BLOCK
713-9
LIMIT SWITCH
MAN
MANUAL G0592 MFD-01.05-12.22 V1.07.08
MANV2
MANUAL G0592 MFD-01.23+ V2.12.22
