Parts for G0592 - 10" x 18" 2 HP Metal-Cutting Bandsaw

Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592
Part Diagram for G0592

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

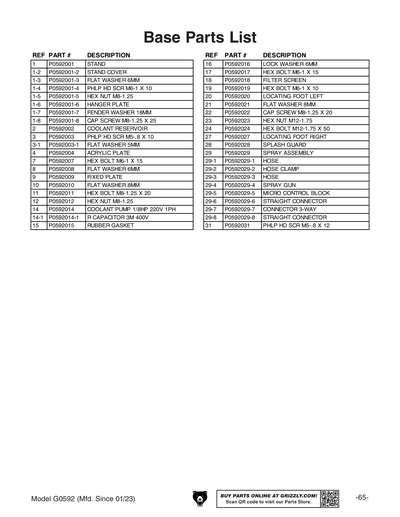

Ref #
Part #
Description
1
STAND
Price
$1,414.50
1-2
STAND COVER
Price
$159.40
1-3
FLAT WASHER 6MM
Price
N/A
1-4
PHLP HD SCR M6-1 X 10
Price
N/A
1-5
HEX NUT M8-1.25
Price
N/A
1-6
HANGER PLATE
Price
$19.65
1-7
FENDER WASHER 18MM
Price
N/A
1-8
CAP SCREW M8-1.25 X 25
Price
N/A
2
COOLANT RESERVOIR
Price
$235.50
3
PHLP HD SCR M5-.8 X 10
Price
N/A
3-1
FLAT WASHER 5MM
Price
N/A
4
ACRYLIC PLATE
Price
$19.35
7
HEX BOLT M6-1 X 15
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
FIXED PLATE
Price
$34.80
10
FLAT WASHER 8MM
Price
N/A
11
HEX BOLT M8-1.25 X 20
Price
N/A
12
HEX NUT M8-1.25
Price
N/A
14
COOLANT PUMP 1/8HP 220V 1PH
Price
$380.40
14-1
R CAPACITOR 3M 400V
Price
$10.90
14V2
COOLANT PUMP 1/8HP 220V 1PH V2.09.24
Price
$199.25
14V2-1
R CAPACITOR 3M 400V
Price
N/A
15
RUBBER GASKET
Price
$10.90
16
LOCK WASHER 6MM
Price
N/A
17
HEX BOLT M6-1 X 15
Price
N/A
18
FILTER SCREEN
Price
$12.75
19
HEX BOLT M6-1 X 10
Price
N/A
20
LOCATING FOOT LEFT
Price
$26.35
21
FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 20
Price
N/A
23
HEX NUT M12-1.75
Price
N/A
24
HEX BOLT M12-1.75 X 50
Price
N/A
25
*DISCD*SPLASH TRAY
Item is no longer available
Price
N/A
26
CHIP TRAY
Price
$114.45
27
LOCATING FOOT RIGHT
Price
$22.95
28
SPLASH GUARD
Price
$144.90
29
SPRAY ASSEMBLY
Price
$126.80
29-1
HOSE
Price
$7.90
29-2
HOSE CLAMP
Price
$3.40
29-3
HOSE
Price
$48.05
29-4
SPRAY GUN
Price
$53.15
29-5
MICRO CONTROL BLOCK
Price
$20.55
29-6
STRAIGHT CONNECTOR
Price
$11.20
29-7
CONNECTOR 3-WAY
Price
$15.15
29-8
STRAIGHT CONNECTOR
Price
$17.55
30
Nameplate - Large
Price
N/A

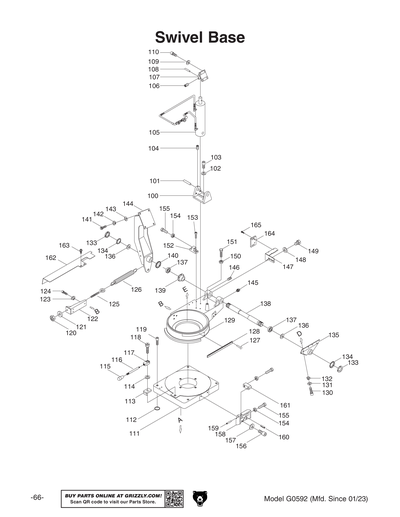

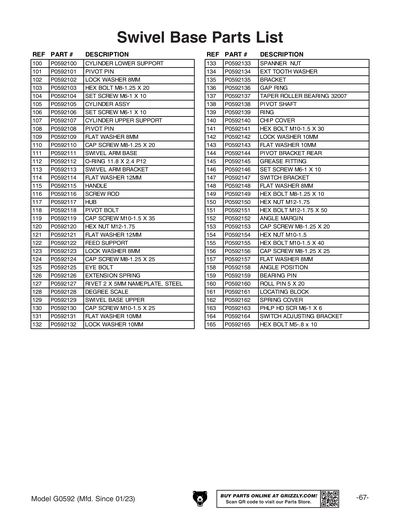

100
CYLINDER LOWER SUPPORT
Price
$56.20
101
PIVOT PIN
Price
$23.60
102
LOCK WASHER 8MM
Price
N/A
103
HEX BOLT M8-1.25 X 20
Price
N/A
104
SET SCREW M6-1 X 10
Price
N/A
105
CYLINDER ASSY
Price
$923.75
106
SET SCREW M6-1 X 10
Price
N/A
107
CYLINDER UPPER SUPPORT
Price
$74.30
108
PIVOT PIN
Price
$10.90
109
FLAT WASHER 8MM
Price
N/A
110
CAP SCREW M8-1.25 X 20
Price
N/A
111
SWIVEL ARM BASE
Price
$284.10
112
O-RING 11.8 X 2.4 P12
Price
N/A
113
SWIVEL ARM BRACKET
Price
$30.85
114
FLAT WASHER 12MM
Price
N/A
115
HANDLE
Price
$13.15
116
SCREW ROD
Price
$39.85
117
HUB
Price
$72.45
118
PIVOT BOLT
Price
$27.60
119
CAP SCREW M10-1.5 X 35
Price
N/A
120
HEX NUT M12-1.75
Price
N/A
121
FLAT WASHER 12MM
Price
N/A
122
FEED SUPPORT
Price
$44.10
123
LOCK WASHER 8MM
Price
N/A
124
CAP SCREW M8-1.25 X 25
Price
N/A
125
EYE BOLT
Price
$15.15
126
EXTENSION SPRING
Price
$96.95
127
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
128
DEGREE SCALE
Price
$14.50
129
SWIVEL BASE UPPER
Price
$738.45
130
CAP SCREW M10-1.5 X 25
Price
N/A
131
FLAT WASHER 10MM
Price
N/A
132
LOCK WASHER 10MM
Price
N/A
133
SPANNER NUT
Price
$23.90
134
EXT TOOTH WASHER
Price
$4.60
135
BRACKET
Price
$76.75
136
GAP RING
Price
$13.05
137
TAPER ROLLER BEARING 32007
Price
N/A
138
PIVOT SHAFT
Price
$111.10
139
RING
Price
$51.05
140
CHIP COVER
Price
$9.10
141
HEX BOLT M10-1.5 X 30
Price
N/A
142
LOCK WASHER 10MM
Price
N/A
143
FLAT WASHER 10MM
Price
N/A
144
PIVOT BRACKET REAR
Price
$217.70
145
GREASE FITTING
Price
$1.60
146
SET SCREW M6-1 X 10
Price
N/A
147
SWITCH BRACKET
Price
$32.35
148
FLAT WASHER 8MM
Price
N/A
149
HEX BOLT M8-1.25 X 10
Price
N/A
150
HEX NUT M12-1.75
Price
N/A
151
HEX BOLT M12-1.75 X 50
Price
N/A
152
ANGLE MARGIN
Price
$17.55
153
CAP SCREW M8-1.25 X 20
Price
N/A
154
HEX NUT M10-1.5
Price
N/A
155
HEX BOLT M10-1.5 X 40
Price
N/A
156
CAP SCREW M8-1.25 X 25
Price
N/A
157
FLAT WASHER 8MM
Price
N/A
158
ANGLE POSITION
Price
$67.40
159
BEARING PIN
Price
N/A
160
ROLL PIN 5 X 20
Price
N/A
161
LOCATING BLOCK
Price
$21.75
162
SPRING COVER
Price
$42.90
163
PHLP HD SCR M6-1 X 6
Price
N/A
164
SWITCH ADJUSTING BRACKET
Price
$16.95
165
HEX BOLT M5-.8 X 10
Price
N/A

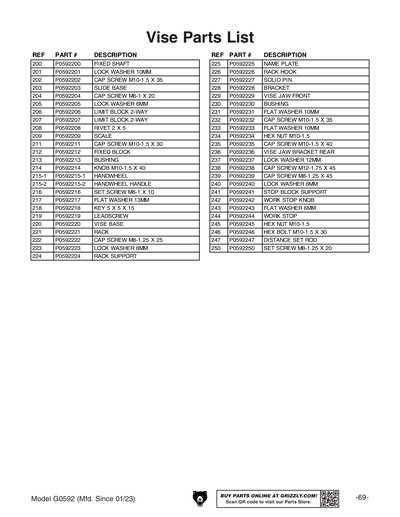

200
FIXED SHAFT
Price
$156.40
201
LOCK WASHER 10MM
Price
N/A
202
CAP SCREW M10-1.5 X 35
Price
N/A
203
SLIDE BASE
Price
$561.40
204
CAP SCREW M6-1 X 20
Price
N/A
205
LOCK WASHER 6MM
Price
N/A
206
LIMIT BLOCK 2-WAY
Price
$13.05
207
LIMIT BLOCK 2-WAY
Price
$19.35
208
RIVET 2 X 5
Price
$1.60
209
SCALE
Price
$2.45
211
CAP SCREW M10-1.5 X 30
Price
N/A
212
FIXED BLOCK
Price
$43.50
213
BUSHING
Price
$1.85
214
KNOB M10-1.5 X 40
Price
$48.95
215
*DISCD*HANDWHEEL W/HANDLE
Item is no longer available
Price
N/A
215-1
HANDWHEEL TYPE-9 126D X 15B-K
Price
N/A
215-2
HANDWHEEL HANDLE
Price
$27.20
216
SET SCREW M6-1 X 10
Price
N/A
217
FLAT WASHER 13MM
Price
N/A
218
KEY 5 X 5 X 15
Price
N/A
219
LEADSCREW
Price
$36.25
220
VISE BASE
Price
$615.85
221
RACK
Price
$150.40
222
CAP SCREW M8-1.25 X 25
Price
N/A
223
LOCK WASHER 8MM
Price
N/A
224
RACK SUPPORT
Price
$60.70
225
NAME PLATE
Price
$6.05
226
RACK HOOK
Price
$25.40
227
SOLID PIN
Price
$17.25
228
BRACKET
Price
$72.45
229
VISE JAW FRONT
Price
$153.55
230
BUSHING
Price
N/A
231
FLAT WASHER 10MM
Price
N/A
232
CAP SCREW M10-1.5 X 35
Price
N/A
233
FLAT WASHER 10MM
Price
N/A
234
HEX NUT M10-1.5
Price
N/A
235
CAP SCREW M10-1.5 X 40
Price
N/A
236
VISE JAW BRACKET REAR
Price
$199.25
237
LOCK WASHER 12MM
Price
N/A
238
CAP SCREW M12-1.75 X 45
Price
N/A
239
CAP SCREW M8-1.25 X 45
Price
N/A
240
LOCK WASHER 8MM
Price
N/A
241
STOP BLOCK SUPPORT
Price
$79.70
242
WORK STOP KNOB
Price
$3.65
243
FLAT WASHER 6MM
Price
N/A
244
WORK STOP
Price
$18.15
245
HEX NUT M10-1.5
Price
N/A
246
HEX BOLT M10-1.5 X 30
Price
N/A
247
DISTANCE SET ROD
Price
$82.75
250
SET SCREW M8-1.25 X 20
Price
N/A

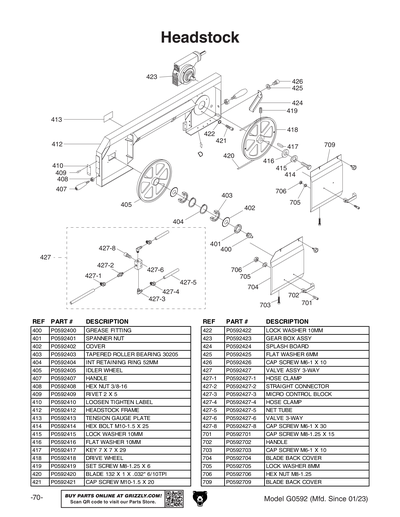

400
GREASE FITTING
Price
$5.85
401
SPANNER NUT
Price
$32.65
402
COVER
Price
$23.60
403
TAPERED ROLLER BEARING 30205
Price
N/A
404
INT RETAINING RING 52MM
Price
N/A
405
IDLER WHEEL
Price
$317.40
406
READ MANUAL LABEL V1
Price
$5.25
406-1
SAFETY GLASSES LABEL
Price
$5.25
406V2
COMBO WARNING LABEL V2.01.23
Price
$16.40
407
HANDLE
Price
$9.85
408
P0592408
Now: PN08
HEX NUT 3/8-16
Price
N/A
409
RIVET 2 X 5
Price
$1.60
410
LOOSEN TIGHTEN LABEL
Price
$1.60
411
BLADE GUARD LABEL
Price
$1.05
412
HEADSTOCK FRAME
Price
$1,380.20
413
TENSION GAUGE PLATE
Price
$23.30
414
HEX BOLT M10-1.5 X 25
Price
N/A
415
LOCK WASHER 10MM
Price
N/A
416
FLAT WASHER 10MM
Price
N/A
417
KEY 7 X 7 X 29
Price
N/A
418
DRIVE WHEEL
Price
$233.70
419
SET SCREW M8-1.25 X 6
Price
N/A
420
BLADE 132 X 1 X .032" 6/10TPI
Price
$358.65
421
CAP SCREW M10-1.5 X 20
Price
N/A
422
LOCK WASHER 10MM
Price
N/A
423
GEAR BOX ASSY
Price
$1,072.30
424
SPLASH BOARD
Price
$49.55
425
FLAT WASHER 6MM
Price
N/A
426
CAP SCREW M6-1 X 10
Price
N/A
427
VALVE ASSY 3-WAY
Price
$100.90
427-1
HOSE CLAMP
Price
$7.00
427-2
STRAIGHT CONNECTOR
Price
$6.05
427-3
MICRO CONTROL BLOCK
Price
$13.60
427-4
HOSE CLAMP
Price
$3.65
427-5
NET TUBE
Price
$15.70
427-6
VALVE 3-WAY
Price
$37.75
427-8
CAP SCREW M6-1 X 30
Price
N/A
428

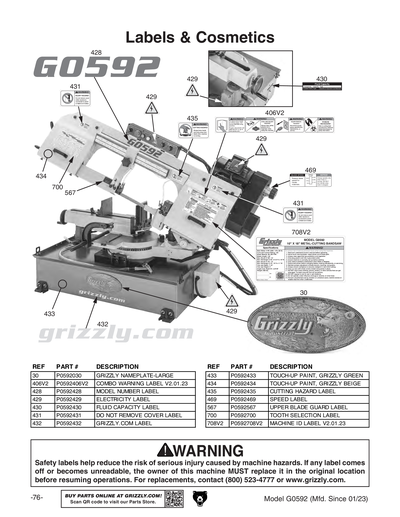

MODEL NUMBER LABEL
Price
$16.40
429
ELECTRICITY 1.4W X 1.2H
Price
N/A
430
FLUID CAPACITY LABEL
Price
$6.30
431
DO NOT REMOVE COVER LABEL
Price
$9.45
432
GRIZZLY.COM LABEL 14.5",BEIGE
Price
N/A
433
N/S GRIZZLY GREEN G1023S
Price
N/A
434
BEIGE REF G0555
Price
N/A
435
CUTTING HAZARD LABEL
Price
$9.45

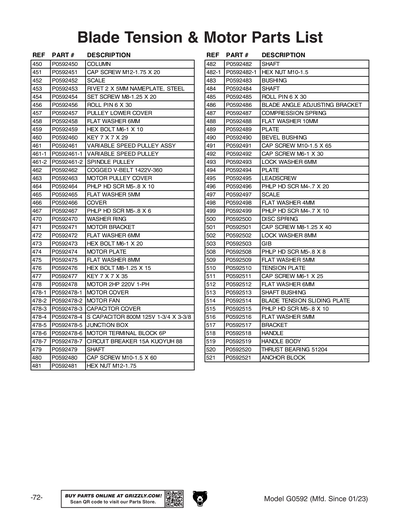

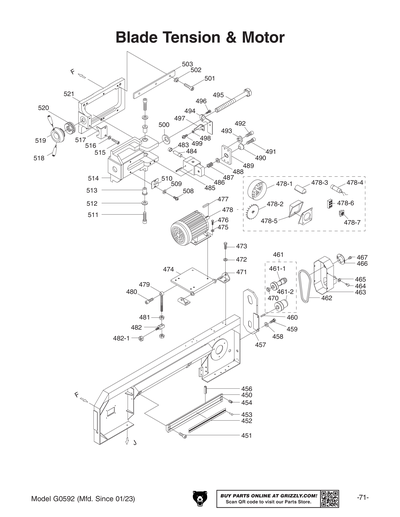

450
COLUMN
Price
$173.00
451
CAP SCREW M12-1.75 X 20
Price
N/A
452
SCALE
Price
$35.65
453
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
454
SET SCREW M8-1.25 X 20
Price
N/A
456
ROLL PIN 6 X 30
Price
N/A
457
PULLEY LOWER COVER
Price
$132.25
458
FLAT WASHER 6MM
Price
N/A
459
HEX BOLT M6-1 X 10
Price
N/A
460
KEY 7 X 7 X 29
Price
N/A
461
VARIABLE SPEED PULLEY ASSY
Price
$898.40
461-1
VARIABLE SPEED PULLEY ASSY
Price
N/A
461-2
VARIABLE SPEED PULLEY ASSY
Price
N/A
462
COGGED V-BELT 1422V-360
Price
$108.70
463
MOTOR PULLEY COVER
Price
$145.25
464
PHLP HD SCR M5-.8 X 10
Price
N/A
465
FLAT WASHER 5MM
Price
N/A
466
COVER
Price
$23.90
467
PHLP HD SCR M5-.8 X 6
Price
N/A
469
SPEED LABEL
Price
$5.80
470
VARIABLE SPEED PULLEY ASSY
Price
N/A
471
MOTOR BRACKET
Price
$21.50
472
FLAT WASHER 6MM
Price
N/A
473
HEX BOLT M6-1 X 20
Price
N/A
474
MOTOR PLATE
Price
$203.20
475
FLAT WASHER 8MM
Price
N/A
476
HEX BOLT M8-1.25 X 15
Price
N/A
477
KEY 7 X 7 X 35
Price
N/A
478
MOTOR 2HP 220V 1-PH
Price
$809.75
478-1
MOTOR COVER
Price
$36.25
478-2
MOTOR FAN
Price
$29.30
478-3
CAPACITOR COVER
Price
$27.80
478-4
S CAPACITOR 800M 125V 1-3/4 X 3-3/8
Price
N/A
478-5
JUNCTION BOX
Price
$22.05
478-6
MOTOR TERMINAL BLOCK 6P
Price
$6.70
478-7
CIRCUIT BREAKER 15A KUOYUH 88
Price
$25.40
479
SHAFT
Price
$35.05
480
CAP SCREW M10-1.5 X 60
Price
N/A
481
HEX NUT M12-1.75
Price
N/A
482
SHAFT
Price
$21.75
482-1
HEX NUT M10-1.5
Price
N/A
483
BUSHING
Price
$6.05
484
SHAFT
Price
$58.00
485
ROLL PIN 6 X 30
Price
N/A
486
BLADE ANGLE ADJUSTING BRACKET
Price
$77.05
487
COMPRESSION SPRING
Price
$1.60
488
FLAT WASHER 10MM
Price
N/A
489
PLATE
Price
$30.55
490
BEVEL BUSHING
Price
$5.15
491
CAP SCREW M10-1.5 X 65
Price
N/A
492
CAP SCREW M6-1 X 30
Price
N/A
493
LOCK WASHER 6MM
Price
N/A
494
PLATE
Price
$15.45
495
LEADSCREW
Price
$65.25
496
PHLP HD SCR M4-.7 X 20
Price
N/A
497
SCALE
Price
$13.60
498
FLAT WASHER 4MM
Price
N/A
499
PHLP HD SCR M4-.7 X 10
Price
N/A
500
DISC SPRING
Price
$14.50
501
CAP SCREW M8-1.25 X 40
Price
N/A
502
LOCK WASHER 8MM
Price
N/A
503
GIB
Price
$29.00
508
PHLP HD SCR M5-.8 X 8
Price
N/A
509
FLAT WASHER 5MM
Price
N/A
510
SCALE
Price
N/A
511
CAP SCREW M6-1 X 25
Price
N/A
512
FLAT WASHER 6MM
Price
N/A
513
SHAFT BUSHING
Price
$22.70
514
BLADE TENSION SLIDING PLATE
Price
$188.40
515
PHLP HD SCR M5-.8 X 10
Price
N/A
516
FLAT WASHER 5MM
Price
N/A
517
BRACKET
Price
$15.45
518
HANDLE
Price
$9.85
519
HANDLE BODY
Price
$97.85
520
THRUST BEARING 51204
Price
N/A
521
ANCHOR BLOCK
Price
$129.85

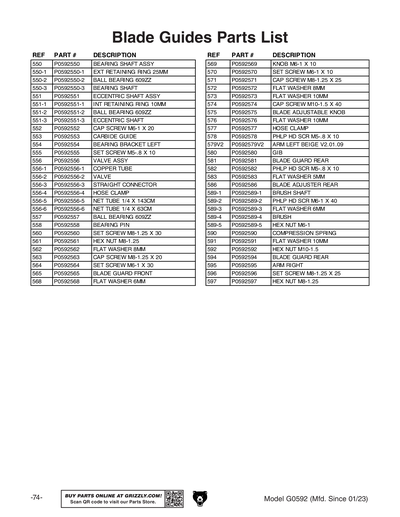

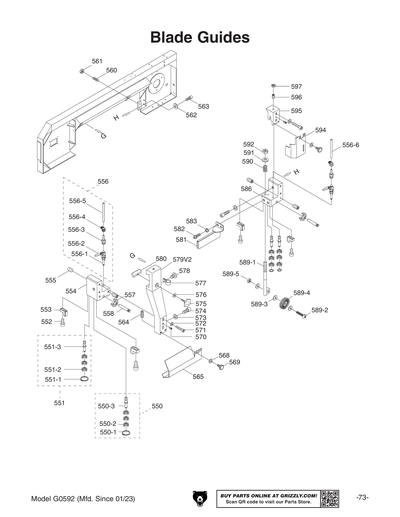

550
BEARING SHAFT ASSY
Price
$163.05
550-1
EXT RETAINING RING 8MM
Price
N/A
550-2
BALL BEARING 609ZZ
Price
N/A
550-3
BEARING SHAFT
Price
$25.40
551
ECCENTRIC SHAFT ASSY
Price
$74.30
551-1
EXT RETAINING RING 8MM
Price
N/A
551-2
BALL BEARING 609ZZ
Price
N/A
551-3
ECCENTRIC SHAFT
Price
$32.65
552
CAP SCREW M6-1 X 20
Price
N/A
553
CARBIDE GUIDE
Price
$47.10
554
BEARING BRACKET LEFT
Price
$122.95
555
SET SCREW M5-.8 X 10
Price
N/A
556
VALVE ASSY
Price
$46.55
556-1
VALVE ASSY
Price
N/A
556-2
VALVE ASSY
Price
N/A
556-3
VALVE ASSY
Price
N/A
556-4
VALVE ASSY
Price
N/A
556-5
VALVE ASSY
Price
N/A
556-6
VALVE ASSY
Price
N/A
557
BALL BEARING 609ZZ
Price
N/A
558
BEARING PIN
Price
$10.65
560
SET SCREW M8-1.25 X 30
Price
N/A
561
HEX NUT M8-1.25
Price
N/A
562
FLAT WASHER 8MM
Price
N/A
563
CAP SCREW M8-1.25 X 20
Price
N/A
564
SET SCREW M6-1 X 30
Price
N/A
565
BLADE GUARD FRONT
Price
$76.10
567
UPPER BLADE GUARD LABEL
Price
$10.90
568
FLAT WASHER 6MM
Price
N/A
569
KNOB M6-1 X 10
Price
$10.35
570
SET SCREW M6-1 X 10
Price
N/A
571
CAP SCREW M8-1.25 X 25
Price
N/A
572
FLAT WASHER 8MM
Price
N/A
573
FLAT WASHER 10MM
Price
N/A
574
CAP SCREW M10-1.5 X 40
Price
N/A
575
BLADE ADJUSTABLE KNOB
Price
$16.35
576
FLAT WASHER 10MM
Price
N/A
577
HOSE CLAMP
Price
$13.30
578
PHLP HD SCR M5-.8 X 10
Price
N/A
579
ARM LEFT GREEN V1.04.06
Price
$192.35
579V2
ARM LEFT BEIGE V2.01.09
Price
$204.70
580
GIB
Price
$45.35
581
BLADE GUARD REAR
Price
$49.85
582
PHLP HD SCR M5-.8 X 10
Price
N/A
583
FLAT WASHER 5MM
Price
N/A
586
BLADE ADJUSTER REAR
Price
$144.90
587
SET SCREW M5-.8 X 5
Price
N/A
588
COLLAR
Price
$5.50
589
BRUSH SHAFT
Price
N/A
589-1
BRUSH SHAFT
Price
$43.50
589-2
PHLP HD SCR M6-1 X 40
Price
N/A
589-3
FLAT WASHER 6MM
Price
N/A
589-4
BRUSH
Price
$30.85
589-5
HEX NUT M6-1
Price
N/A
589A
BRUSH ASSEMBLY
Price
$83.35
590
COMPRESSION SPRING
Price
$2.45
591
FLAT WASHER 10MM
Price
N/A
592
HEX NUT M10-1.5
Price
N/A
593
BRUSH
Price
N/A
594
BLADE GUARD REAR
Price
$48.95
595
ARM RIGHT
Price
$85.20
596
SET SCREW M8-1.25 X 25
Price
N/A
597
HEX NUT M8-1.25
Price
N/A
700
TOOTH SELECTION LABEL
Price
$9.20
701
CAP SCREW M8-1.25 X 15
Price
N/A
702
HANDLE
Price
$6.05
703
CAP SCREW M6-1 X 10
Price
N/A
704
BLADE BACK COVER
Price
$159.40
705
LOCK WASHER 8MM
Price
N/A
706
HEX NUT M8-1.25
Price
N/A
707
NAME PLATE
Price
$6.05
708
MACHINE ID LABEL V1
Price
$16.40
708V2
MACHINE ID LABEL V2.01.23
Price
$16.40
709
BLADE BACK COVER
Price
$159.75
710
PHLP HD SCR M5-.8 X 10
Price
N/A
711
CONTROL PLATE
Price
$79.70
712
PHLP HD SCR M5-.8 X 12
Price
N/A

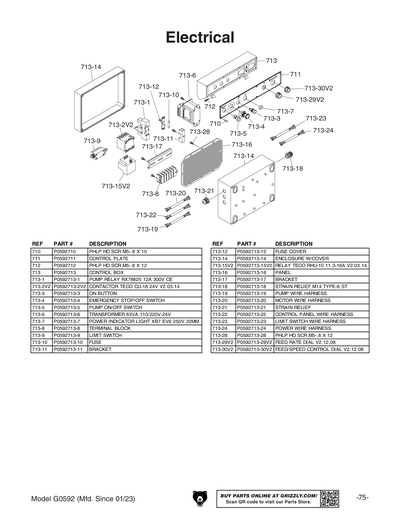

713
CONTROL BOX
Price
$156.10
713-1
PUMP RELAY RX78625 12A 300V CE
Price
$119.55
713-10
FUSE
Price
$1.60
713-11
BRACKET
Price
$7.90
713-12
FUSE COVER
Price
$9.70
713-13
ENCLOSURE W/COVER
Price
N/A
713-14
ENCLOSURE W/COVER
Price
$90.60
713-15
RELAY TECO RHU-10 11.3-16A V2.03.14
Price
N/A
713-15V2
RELAY TECO RHU-10 11.3-16A V2.03.14
Price
$96.05
713-16
PANEL
Price
$8.80
713-17
BRACKET
Price
$19.35
713-18
STRAIN RELIEF M14 TYPE-6 ST
Price
$10.65
713-19
PUMP WIRE HARNESS
Price
$35.65
713-2
CONTACTOR TECO CU-18 24V V2.03.14
Price
N/A
713-20
MOTOR WIRE HARNESS
Price
$64.00
713-21
STRAIN RELIEF
Price
$10.00
713-22
CONTROL PANEL WIRE HARNESS
Price
$62.55
713-23
LIMIT SWITCH WIRE HARNESS
Price
$17.85
713-24
POWER WIRE HARNESS
Price
$61.60
713-28
PHLP HD SCR M5-.8 X 12
Price
N/A
713-29V2
FEED RATE DIAL V2.12.08
Price
$39.85
713-2V2
CONTACTOR TECO CU-18 24V V2.03.14
Price
$192.00
713-3
ON BUTTON
Price
$35.65
713-30V2
FEED/SPEED CONTROL DIAL V2.12.08
Price
$45.90
713-4
EMERGENCY STOP/OFF SWITCH
Price
$56.50
713-5
PUMP ON/OFF SWITCH
Price
$39.85
713-6
TRANSFORMER 63VA 110/220V-24V
Price
N/A
713-7
POWER INDICATOR LIGHT XB7 EV6 250V 22MM
Price
$33.55
713-8
TERMINAL BLOCK
Price
$3.65
713-9
LIMIT SWITCH
Price
$88.80
MAN
MANUAL G0592 MFD-01.05-12.22 V1.07.08
Price
$11.25
MANV2
MANUAL G0592 MFD-01.23+ V2.12.22
Price
$21.95
