Parts for G0593 - 8" Jointer w/ Spiral Cutterhead

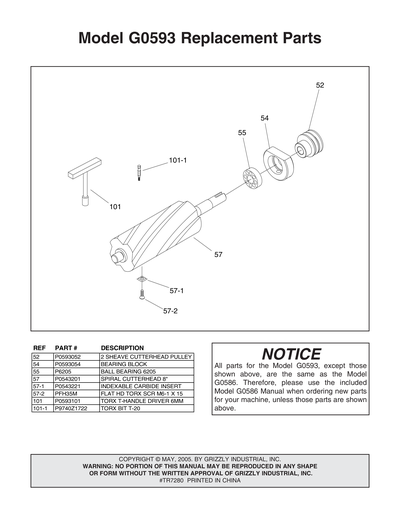

Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593
Part Diagram for G0593

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

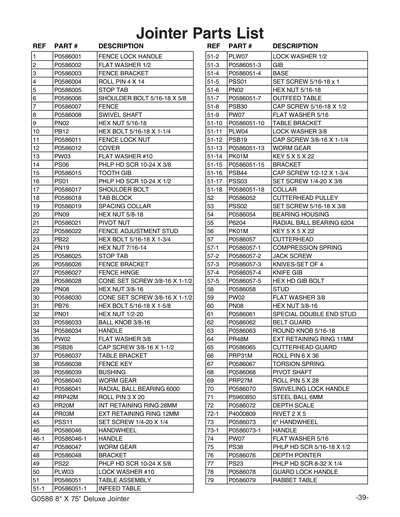

Ref #
Part #
Description
1
FENCE LOCK HANDLE
Price
N/A
2
WASHER 7 X 29 X 3MM
Price
N/A
3
FENCE BRACKET
Price
N/A
4
ROLL PIN 4 X 14
Price
N/A
5
STOP TAB
Price
N/A
6
FENCE SHOULDER BOLT 5/16-18 X 5/8
Price
N/A
7
FENCE
Price
N/A
8
SWIVEL SHAFT
Price
N/A
9
P0593009
Now: PN02
HEX NUT 5/16-18
Price
N/A
10
P0593010
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
11
FENCE LOCK NUT
Price
N/A
12
COVER
Price
N/A
13
P0593013
Now: PW03
FLAT WASHER #10
Price
N/A
14
P0593014
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
15
*DISCD*TOOTH GIB
Price
N/A
16
P0593016
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
17
SHOULDER BOLT 9.5 X 5/16 -18NC, 39.2
Price
N/A
18
TAB BLOCK
Price
N/A
19
SPACING COLLAR
Price
N/A
20
P0593020
Now: PN09
HEX NUT 5/8-18
Price
N/A
21
PIVOT NUT
Price
N/A
22
SHOULDER STUD
Price
N/A
23
P0593023
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
24
P0593024
Now: PN19
HEX NUT 7/16-14
Price
N/A
25
STOP TAB
Price
N/A
26
FENCE BLOCK
Price
N/A
27
FENCE HINGE
Price
N/A
28
CONE POINT SET SCREW 3/8-16 X 1-1/2
Price
N/A
29
P0593029
Now: PN08
HEX NUT 3/8-16
Price
N/A
30
*DISCD*DOG PT SET SCR 3/8-16 X 1-1/2
Price
N/A
31
P0593031
Now: PB76
HEX BOLT 5/16-18 X 1-5/8
Price
N/A
32
HEX NUT M6-1
Price
N/A
33
ROUND FEMALE KNOB
Price
N/A
34
STUD-DE 3/8-16 X 3-1/8, 3/8
Price
N/A
35
P0593035
Now: PW02
FLAT WASHER 3/8
Price
N/A
36
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
37
TABLE BRACKET
Price
N/A
38
FENCE KEY
Price
N/A
39
BUSHING
Price
N/A
40
WORM GEAR
Price
N/A
41
BALL BEARING 6001ZZ
Price
N/A
42
ROLL PIN 3 X 20
Price
N/A
43
INT RETAINING RING 28MM
Price
N/A
44
EXT RETAINING RING 12MM
Price
N/A
45
SET SCREW 1/4-20 X 1/4
Price
N/A
46
HANDWHEEL
Price
N/A
46-1
HANDLE
Price
N/A
47
*DISCD*WORM GEAR
Price
N/A
48
*DISCD*BRACKET
Price
N/A
49
P0593049
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
50
LOCK WASHER #10
Price
N/A
51
TABLE ASSEMBLY
Price
N/A
51-1
INFEED TABLE
Price
N/A
51-10
TABLE BRACKET
Price
N/A
51-11
LOCK WASHER 3/8
Price
N/A
51-12
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
51-13
WORM GEAR
Price
N/A
51-14
KEY 5 X 5 X 22
Price
N/A
51-15
BRACKET
Price
N/A
51-16
CAP SCREW 1/2-12 X 1-3/4
Price
N/A
51-17
SET SCREW 1/4-20 X 3/8
Price
N/A
51-18
COLLAR
Price
N/A
51-2
LOCK WASHER 1/2
Price
N/A
51-3
GIB
Price
N/A
51-4
*DISCD*BASE
Price
N/A
51-5
SET SCREW 5/16-18 X 1
Price
N/A
51-6
HEX NUT 5/16-18
Price
N/A
51-7
OUTFEED TABLE
Price
N/A
51-8
CAP SCREW 5/16-18 X 1/2
Price
N/A
51-9
FLAT WASHER 5/16
Price
N/A
52
CUTTERHEAD PULLEY 2 SHEAVE
Item is no longer available
Price
N/A
53
SET SCREW 5/16-18 X 3/8
Price
N/A
54
BEARING BLOCK
Price
$17.25
55
BALL BEARING 6205ZZ
Price
N/A
56
KEY 5 X 5 X 22
Price
N/A
57
SPIRAL CUTTERHEAD
Price
N/A
57-1
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
57-2
FLAT HD TORX T20 M6-1 X 15
Price
N/A
57-3
KNIFE 4PC
Price
N/A
57A
SPIRAL CUTTERHEAD 8" V2.03.08
Item is no longer available
Price
N/A
57A-1
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
57A-2
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
58
STUD-DE 5/16-24 X 4-3/4 5/8RH
Price
N/A
59
P0593059
Now: PW02
FLAT WASHER 3/8
Price
N/A
60
P0593060
Now: PN08
HEX NUT 3/8-16
Price
N/A
61
BASE DOUBLE END STUD
Price
N/A
62
BELT COVER
Price
N/A
63
ROUND KNOB 5/16-18
Price
N/A
64
EXT RETAINING RING 11MM
Price
N/A
65
CUTTERHEAD GUARD
Price
N/A
66
EXT RETAINING RING 38MM
Price
N/A
67
CUTTERHEAD GUARD
Price
N/A
68
*DISCD*PIVOT SHAFT
Price
N/A
69
ROLL PIN 5 X 28
Price
N/A
70
*DISCD*SWIVELING LOCK HANDLE 1/4-18 X 1"
Price
N/A
71
STEEL BALL 5MM
Price
N/A
72
DEPTH SCALE
Price
N/A
72-1
RIVET 2 X 4MM NAMEPLATE, COPPER
Price
N/A
73
HANDWHEEL 6"
Price
N/A
73-1
HANDLE
Price
N/A
74
P0593074
Now: PW07
FLAT WASHER 5/16
Price
N/A
75
P0593075
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
76
DEPTH POINTER
Price
N/A
77
P0593077
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
78
GUARD LOCK HANDLE
Price
N/A
79
*DISCD*RABBET TABLE
Price
N/A
80
STAND ASSY W/MOTOR 2HP 220V 1-PH
Price
$513.50
80-1
COVER
Price
N/A
80-2
SEAL
Price
N/A
80-3
CABLE CONNECTOR O
Item is no longer available
Price
N/A
81
STAR KNOB 3/8-16 X 7/8
Price
N/A
82
LATCH
Price
N/A
83
P0593083
Now: PN08
HEX NUT 3/8-16
Price
N/A
84
DUST PORT
Price
N/A
85
LOCK WASHER 3/8
Price
N/A
86
CABINET STAND MOUNTING BOLT
Price
N/A
87
HEX NUT M5-.8
Price
N/A
88
FLAT WASHER 5MM
Price
N/A
89
PHLP HD SCR M5-.8 X 20
Price
N/A
90
PEDESTAL SWITCH ASSY
Price
N/A
90-1
SWITCH BOX
Price
N/A
90-10
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
90-11
MAGNETIC SWITCH 220V
Price
N/A
90-12
POWER CORD 12G X 3W 86"L
Price
N/A
90-13
POWER CORD 12G X 3W 36"L
Price
N/A
90-14
SWITCH COVER SCREW PLASTIC
Price
N/A
90-2
*DISCD*SWITCH PANEL
Price
N/A
90-3
E-STOP BUTTON RENY R9C01VN
Price
N/A
90-4
POWER INDICATOR LIGHT 220V 22MM RED
Price
N/A
90-5
START SWITCH TE XB4-BA31
Price
N/A
90-6
PHLP HD SCR M5-.8 X 10
Price
N/A
90-7
CONTROL CORD 18AWG X 5C
Price
N/A
90-8
PEDESTAL ARM
Price
N/A
90-9
RELIEF SB8R-3
Price
N/A
91
FLAT WASHER 8MM
Price
N/A
92
HEX BOLT M8-1.25 X 20
Price
N/A
93
MOTOR 2HP 110V/220V 1-PH
Price
N/A
93-1
FAN COVER
Price
N/A
93-2
*DISCD*FAN
Price
N/A
93-3
CAPACITOR COVER
Price
N/A
93-4
S CAPACITOR 500M 125V 1-3/4 X 3-3/8
Price
N/A
93-5
JUNCTION BOX
Price
N/A
93-6
MOTOR PULLEY
Price
N/A
93-7
SET SCREW 3/8-16 X 3/8
Price
N/A
93-8
KEY 5 X 5 X 30
Price
N/A
94
CAP SCREW 5/16-18 X 1
Price
N/A
95
P0593095
Now: PW07
FLAT WASHER 5/16
Price
N/A
96
LOCK WASHER 5/16
Price
N/A
97
P0593097
Now: PN02
HEX NUT 5/16-18
Price
N/A
101
WRENCH T-HANDLE TORX 6MM
Price
$12.75
101-1
TORX BIT T-20
Item is no longer available
Price
N/A
101-1A
TORX BIT T-25
Price
$13.80
102
HEX WRENCH 3MM
Price
N/A
103
HEX WRENCH 4MM
Price
N/A
104
HEX WRENCH 5MM
Price
N/A
105
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
106
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
107
V-BELT M40 3L400
Price
N/A
108
P0593108
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
109
P0593109
Now: PW06
FLAT WASHER 1/4
Price
N/A
110
GRIZZLY LOGO-FLAT METALLIC
Price
N/A
111
*DISCD*CUTTERHEAD GUARD WARNING
Price
N/A
112
ELECTRICITY 1.4W X 1.2H
Price
N/A
113
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
114
*DISCD*PUSH BLOCKS WARNING
Price
N/A
115
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
116
MODEL NUMBER LABEL
Price
$16.40
117
MACHINE ID LABEL
Item is no longer available
Price
N/A
118
Nameplate - Small
Price
N/A
119
GREEN TAPE 48 X 2000MM
Price
N/A
MAN
MANUAL FOR G0593 05/05
Price
$12.00
