Parts for G0596 - 8" 1 HP Heavy-Duty Bench Grinder

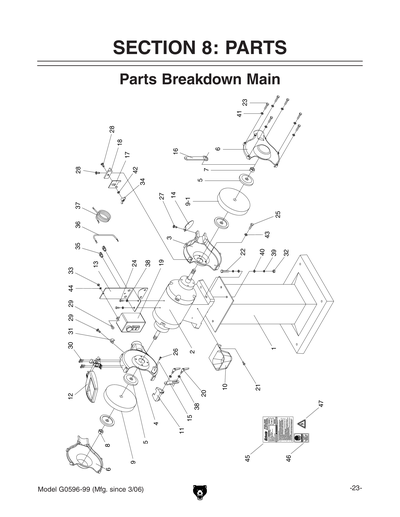

Part Diagram for G0596
Part Diagram for G0596
Part Diagram for G0596
Part Diagram for G0596
Part Diagram for G0596
Part Diagram for G0596

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

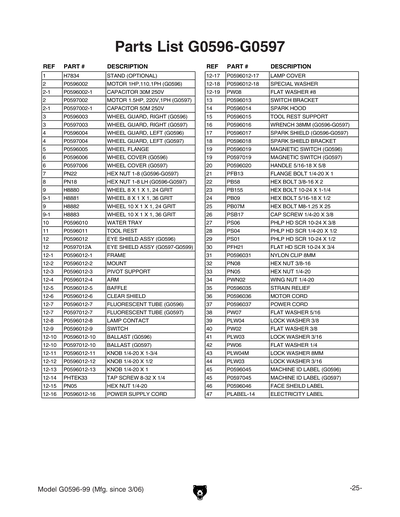

Ref #
Part #
Description
1
Stand For HD Bench Grinder
Price
N/A
2
MOTOR 1HP 110V 1-PH
Price
$389.80
2-1
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
3
RIGHT WHEEL GUARD
Price
$49.55
4
LEFT WHEEL GUARD
Price
$45.90
5
WHEEL FLANGE
Price
$11.20
6
WHEEL COVER
Price
$31.75
7
P0596007
Now: PN22
HEX NUT 1-8
Price
N/A
8
P0596008
Now: PN18
HEX NUT 1-8 LH
Price
N/A
9
8" x 1" Grinding Wheel, A24 3/4" Bore
Price
N/A
9-1
8" x 1" Grinding Wheel, A36 3/4" Bore
Price
N/A
10
WATER TRAY
Price
$19.35
11
TOOL REST
Price
$10.90

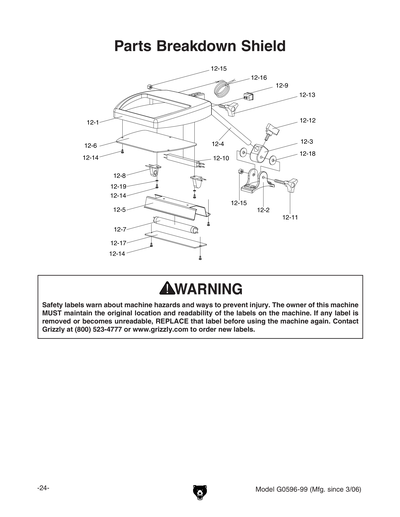

12
EYE SHIELD W/LIGHT ASSY
Price
$145.65
12-1
FRAME
Price
$22.00
12-10
BALLAST
Price
$10.90
12-11
KNOB 1/4-20 X 1-3/4
Price
$1.60
12-12
KNOB 1/4-20 X 1/2
Price
$1.60
12-13
KNOB 1/4-20 X 1
Price
$3.05
12-14
TAP SCREW #8 X 1/4
Price
N/A
12-15
HEX NUT 1/4-20
Price
N/A
12-16
POWER SUPPLY CORD
Item is no longer available
Price
N/A
12-17
LAMP COVER
Price
$1.85
12-18
PIVOT SUPPORT WASHER
Price
$1.60
12-19
FLAT WASHER #8
Price
N/A
12-2
MOUNT
Price
$5.15
12-3
PIVOT SUPPORT
Price
$4.30
12-4
ARM
Price
$6.70
12-5
BAFFLE
Item is no longer available
Price
N/A
12-6
CLEAR SHIELD
Price
$3.40
12-7
FLUORESCENT TUBE
Price
$4.85
12-8
LAMP CONTACT
Price
$1.60
12-9
SWITCH
Price
$1.49
13
SWITCH BRACKET
Price
$22.70
14
SPARK HOOD
Price
$1.60
15
TOOL REST SUPPORT
Price
$2.45
16
WRENCH 38MM
Item is no longer available
Price
N/A
17
EYE SHIELD
Price
$1.60
18
SPARK SHIELD BRACKET
Price
$2.45
19
MAGNETIC SWITCH 1HP 110V 60HZ
Price
$90.90
20
HANDLE 5/16-18 X 5/8
Price
$4.60
21
FLANGE BOLT 1/4-20 X 1
Price
N/A
22
P0596022
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
23
HEX BOLT 10-24 X 1-1/4
Price
N/A
24
P0596024
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
25
HEX BOLT M8-1.25 X 25
Price
N/A
26
CAP SCREW 1/4-20 X 3/8
Price
N/A
27
P0596027
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
P0596028
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
29
P0596029
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
30
FLAT HD SCR 10-24 X 3/4
Price
N/A
31
NYLON CLIP 8MM
Item is no longer available
Price
N/A
32
P0596032
Now: PN08
HEX NUT 3/8-16
Price
N/A
33
P0596033
Now: PN05
HEX NUT 1/4-20
Price
N/A
34
WING NUT 1/4-20
Price
N/A
35
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
36
MOTOR CORD
Price
$4.05
37
POWER CORD
Item is no longer available
Price
N/A
38
P0596038
Now: PW07
FLAT WASHER 5/16
Price
N/A
39
LOCK WASHER 3/8
Price
N/A
40
P0596040
Now: PW02
FLAT WASHER 3/8
Price
N/A
41
LOCK WASHER #10
Price
N/A
42
P0596042
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
LOCK WASHER 8MM
Price
N/A
44
LOCK WASHER #10
Price
N/A
45
MACHINE ID LABEL
Item is no longer available
Price
N/A
46
FACE SHIELD LABEL
Item is no longer available
Price
N/A
47
ELECTRICITY 1.4W X 1.2H
Price
N/A
48
BASE RUBBER PAD 6 X 10" W/4HOLES
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0596-99 MFG 03.06 V1.01.06
Price
$11.75
MANV2
MANUAL FOR G0596-99 MFG 03.06 V2.10.09
Price
$14.65
