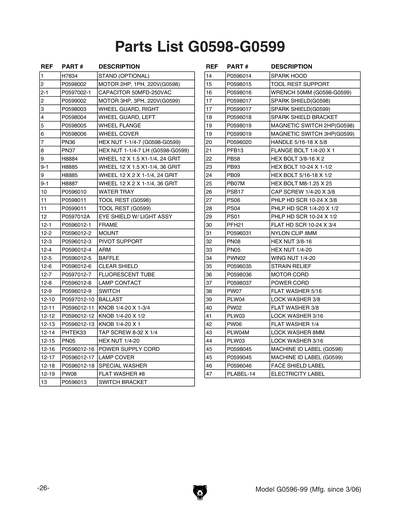

Parts for G0598 12" 2 HP Heavy-Duty Bench Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: H7834
Stand For HD Bench Grinder
Price
N/A
2
MOTOR 2HP 220V 1-PH
Item is no longer available
Price
N/A
2-1
R CAPACITOR 40M 250V 1-1/2 X 2-1/2
Price
N/A
3
RIGHT WHEEL GUARD
Item is no longer available
Price
N/A
4
LEFT WHEEL GUARD
5
WHEEL FLANGE
6
WHEEL COVER
7
Now: PN36
HEX NUT 1-1/4"-7
Price
N/A
8
Now: PN37
HEX NUT 1-1/4"-7 LH
Price
N/A
9
Now: H8884
A/O 12" x 1-1/2" x 1-1/4" Grinding Wheel, Type 1, 24 Grit
Price
N/A
9-1
Now: H8885
A/O 12" x 1-1/2" x 1-1/4" Grinding Wheel, Type 1, 36 Grit
Price
N/A
10
WATER TRAY
Price
N/A
11
*DISCD*TOOL REST
Item is no longer available
Price
N/A

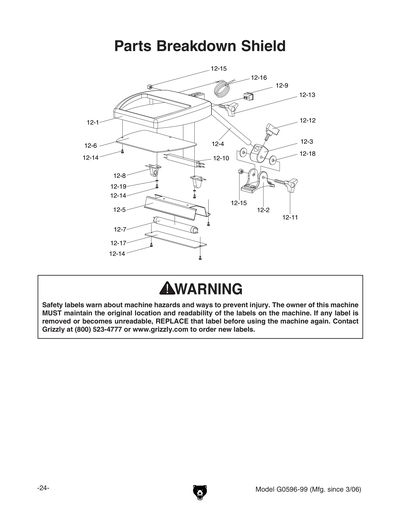

12
EYE SHIELD W/LIGHT ASSY
Price
N/A
12-1
FRAME
Price
N/A
12-10
BALLAST
Price
N/A
12-11
KNOB 1/4-20 X 1-3/4
Price
N/A
12-12
KNOB 1/4-20 X 1/2
Price
N/A
12-13
KNOB 1/4-20 X 1
Price
N/A
12-14
TAP SCREW #8 X 1/4
Price
N/A
12-15
Now: PN05
HEX NUT 1/4-20
Price
N/A
12-16
POWER SUPPLY CORD
Price
N/A
12-17
LAMP COVER
Price
N/A
12-18
PIVOT SUPPORT WASHER
Price
N/A
12-19
Now: PW08
FLAT WASHER #8
Price
N/A
12-2
MOUNT
Price
N/A
12-3
PIVOT SUPPORT
Price
N/A
12-4
ARM
Price
N/A
12-5
BAFFLE
Price
N/A
12-6
CLEAR SHIELD
Price
N/A
12-7
FLUORESCENT TUBE
Price
N/A
12-8
LAMP CONTACT
Price
N/A
12-9
SWITCH
Price
N/A
13
SWITCH BRACKET
Price
N/A
14
SPARK HOOD
Price
N/A
15
TOOL REST SUPPORT
16
WRENCH 50MM
Item is no longer available
Price
N/A
17
*DISCD*EYE SHIELD
Item is no longer available
Price
N/A
18
SPARK SHIELD BRACKET
Price
N/A
19
MAGNETIC SWITCH 2HP
20
HANDLE 5/16-18 X 5/8
Price
N/A
21
Now: PFB13
FLANGE BOLT 1/4-20 X 1
Price
N/A
22
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
23
Now: PB93
HEX BOLT 10-24 X 1/2
Price
N/A
24
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
25
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
26
CAP SCREW 1/4-20 X 3/8
Price
N/A
27
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
29
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
30
Now: PFH21
FLAT HD SCR 10-24 X 3/4
Price
N/A
31
NYLON CLIP 8MM
Price
N/A
32
Now: PN08
HEX NUT 3/8-16
Price
N/A
33
Now: PN05
HEX NUT 1/4-20
Price
N/A
34
Now: PWN02
WING NUT 1/4-20
Price
N/A
35
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
36
MOTOR CORD
Item is no longer available
Price
N/A
37
POWER CORD
Item is no longer available
Price
N/A
38
Now: PW07
FLAT WASHER 5/16
Price
N/A
39
Now: PLW04
LOCK WASHER 3/8
Price
N/A
40
Now: PW02
FLAT WASHER 3/8
Price
N/A
41
Now: PLW03
LOCK WASHER #10
Price
N/A
42
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
LOCK WASHER 8MM
Price
N/A
44
Now: PLW03
LOCK WASHER #10
Price
N/A
45
MACHINE ID LABEL
Item is no longer available
Price
N/A
46
FACE SHIELD LABEL
Price
N/A
47
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
MANUAL FOR G0596-99 MFG 03.06 V1.01.06
Price
N/A
MANV2
MANUAL FOR G0596-99 MFG 03.06 V2.10.09
Price
N/A
