Parts for G0600 20" x 60" 3-Phase Big Bore Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

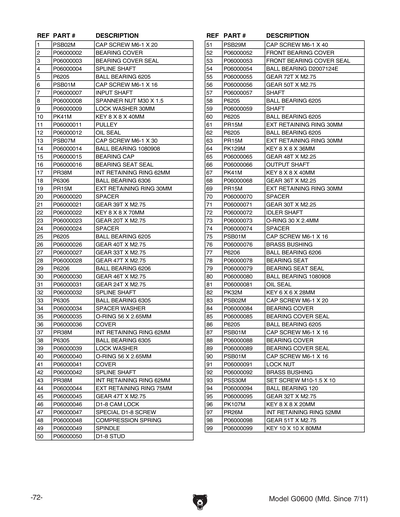

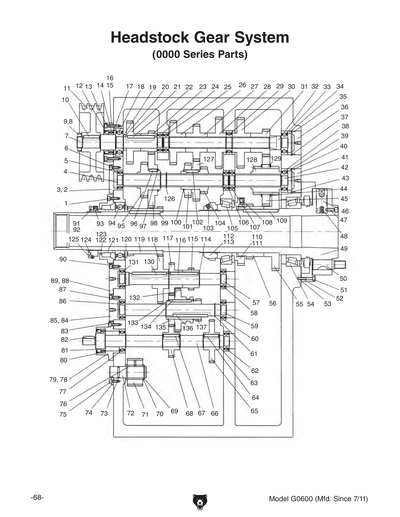

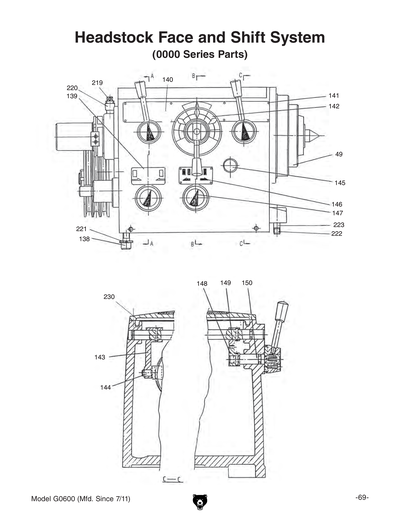

1
CAP SCREW M6-1 X 20
Price
N/A
2
BEARING COVER
3
BEARING COVER SEAL
4
SPLINE SHAFT
5
BALL BEARING 6205-OPEN
Price
N/A
6
CAP SCREW M6-1 X 16
Price
N/A
7
INPUT SHAFT
8
SPANNER NUT 37MM
Price
N/A
9
LOCK WASHER 30MM
Price
N/A
10
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
11
PULLEY
12
OIL SEAL
13
CAP SCREW M6-1 X 30
Price
N/A
14
BALL BEARING 1080908
15
BEARING CAP
16
BEARING SEAT SEAL
17
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
18
BALL BEARING 6206-OPEN
Price
N/A
19
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
20
SPACER
21
GEAR 39T X M2.75
22
KEY 8 X 8 X 70
23
GEAR 20T X M2.75
24
SPACER
25
BALL BEARING 6205-OPEN
Price
N/A
26
GEAR 40T X M2.75
27
GEAR 33T X M2.75
28
GEAR 47T X M2.75
29
BALL BEARING 6206-OPEN
Price
N/A
30
GEAR 46T X M2.75
31
GEAR 24T X M2.75
32
SPLINE SHAFT
33
BALL BEARING 6205-OPEN
Price
N/A
34
FLAT WASHER 50MM
35
*DISCD*O-RING 56 X 2.65
Price
N/A
36
COVER
37
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
38
BALL BEARING 6205-OPEN
Price
N/A
39
LOCK WASHER 6MM
Price
N/A
40
*DISCD*END COVER
Price
N/A
41
COVER
42
SPLINE SHAFT
43
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
44
Now: PR97M
EXT RETAINING RING 75MM
Price
N/A
45
GEAR 47T X M2.75
46
CAM LOCK D1-8
47
CAM LOCK CAP SCREW
48
COMPRESSION SPRING
49
SPINDLE
50
SHOULDER STUD D1-8
51
CAP SCREW M6-1 X 40
Price
N/A
52
BEARING COVER FRONT
53
BEARING COVER SEAL FRONT
54
BALL BEARING D2007124E
55
GEAR 72T X M2.75
56
GEAR 50T X M2.75
57
SHAFT
58
BALL BEARING 6205-OPEN
Price
N/A
59
SHAFT
60
BALL BEARING 6205-OPEN
Price
N/A
61
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
62
BALL BEARING 6205-OPEN
Price
N/A
63
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
64
KEY 8 X 8 X 36
Price
N/A
65
GEAR 48T X M2.25
66
OUTPUT SHAFT
67
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
68
GEAR 36T X M2.25
69
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
70
SPACER
71
GEAR 30T X M2.25
72
IDLER SHAFT
73
O-RING 30 X 2.4MM
74
SPACER
75
CAP SCREW M6-1 X 16
Price
N/A
76
BUSHING BRASS
77
BALL BEARING 6206-OPEN
Price
N/A
78
BEARING SEAT
79
BEARING SEAT SEAL
80
BALL BEARING 1080908
Price
N/A
81
OIL SEAL
82
Now: PK32M
KEY 6 X 6 X 28
Price
N/A
83
CAP SCREW M6-1 X 20
Price
N/A
84
BEARING COVER
85
BEARING COVER SEAL
86
BALL BEARING 6205-OPEN
Price
N/A
87
CAP SCREW M6-1 X 16
Price
N/A
88
BEARING COVER
89
BEARING COVER SEAL
90
CAP SCREW M6-1 X 16
Price
N/A
91
LOCK NUT
92
BUSHING BRASS
93
SET SCREW M10-1.5 X 10
Price
N/A
94
BALL BEARING 120
95
GEAR 32T X M2.75
96
KEY 8 X 8 X 20
Price
N/A
97
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
98
GEAR 51T X M2.75
99
KEY 10 X 10 X 80MM

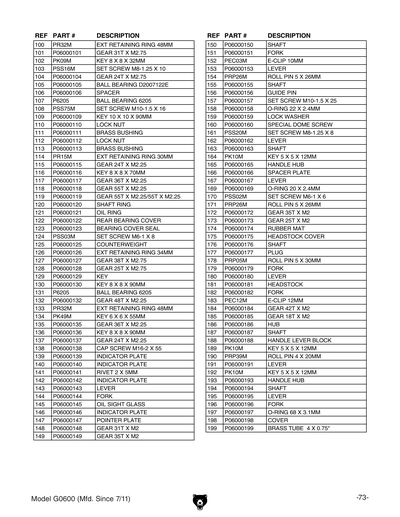

100
Now: PR32M
EXT RETAINING RING 48MM
Price
N/A
101
GEAR 31T X M2.75
102
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
103
SET SCREW M8-1.25 X 10
Price
N/A
104
GEAR 24T X M2.75
105
BALL BEARING D2007122E
106
SPACER
107
BALL BEARING 6205-OPEN
Price
N/A
108
SET SCREW M10-1.5 X 16
Price
N/A
109
KEY 10 X 10 X 90MM
110
LOCK NUT
111
BUSHING BRASS
112
LOCK NUT
113
BUSHING BRASS
114
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
115
GEAR 24T X M2.25
116
KEY 8 X 8 X 70
Price
N/A
117
GEAR 36T X M2.25
118
GEAR 55T X M2.25
119
GEAR 55T X M2.25/55T X M2.25
120
SHAFT RING
121
O-RING
122
BEARING COVER REAR
123
BEARING COVER SEAL
124
SET SCREW M6-1 X 8
Price
N/A
125
COUNTERWEIGHT
126
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
127
GEAR 38T X M2.75
128
GEAR 25T X M2.75
129
KEY 10 X 7 X 20
130
KEY 8 X 8 X 90
131
BALL BEARING 6205-OPEN
Price
N/A
132
GEAR 48T X M2.25
133
Now: PR32M
EXT RETAINING RING 48MM
Price
N/A
134
Now: PK49M
KEY 6 X 6 X 55
Price
N/A
135
GEAR 36T X M2.25
136
KEY 8 X 8 X 90
Price
N/A
137
GEAR 24T X M2.25
138
CAP SCREW M16-2 X 55
Price
N/A
139
INDICATOR PLATE
140
INDICATOR PLATE
141
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
142
INDICATOR PLATE
143
LEVER
144
FORK
145
OIL SIGHT GLASS PLASTIC PUSH-IN
Price
N/A
145V2
OIL SIGHT GLASS METAL M27-1.5 V2.04.13
146
INDICATOR PLATE
147
POINTER PLATE
148
GEAR 31T X M2
149
GEAR 35T X M2

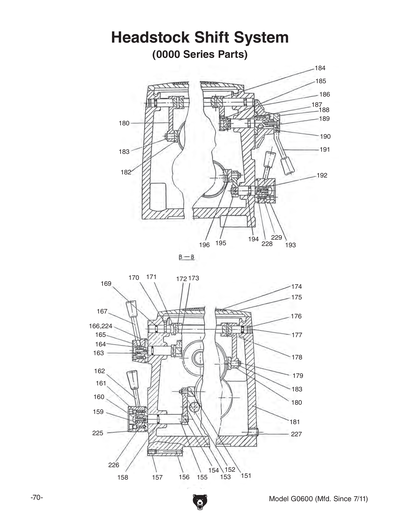

150
SHAFT V1
150V2
SHAFT V2.06.23
151
FORK
152
E-CLIP 10MM
Price
N/A
153
LEVER
154
ROLL PIN 5 X 26
Price
N/A
155
SHAFT V1
155V2
SHAFT V2.06.23
156
GUIDE PIN
157
SET SCREW M10-1.5 X 25
Price
N/A
158
O-RING 20 X 2.4MM
Price
N/A
159
LOCK WASHER 8MM
Price
N/A
160
HANDLE HUB DOME SCREW
161
SET SCREW M8-1.25 X 8
Price
N/A
162
LEVER
163
SHAFT V1
163V2
SHAFT V2.06.23
164
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
165
HANDLE HUB
166
SPACER PLATE
167
LEVER
169
O-RING 20 X 2.4MM
170
SET SCREW M6-1 X 6
Price
N/A
171
ROLL PIN 5 X 26
Price
N/A
172
GEAR 35T X M2
173
GEAR 25T X M2
174
RUBBER MAT
175
HEADSTOCK COVER V1
175V2
HEADSTOCK COVER V2.06.23
176
SHAFT
177
PLUG
178
ROLL PIN 5 X 30
Price
N/A
179
FORK
180
LEVER
181
HEADSTOCK V1
181V2
HEADSTOCK V2.06.23
182
FORK
183
E-CLIP 12MM
Price
N/A
184
GEAR 42T X M2
185
GEAR 18T X M2
186
HUB
187
SHAFT V1
187V2
SHAFT V2.06.23
188
HANDLE LEVER BLOCK
189
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
190
ROLL PIN 4 X 20
Price
N/A
191
LEVER
192
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
193
HANDLE HUB
194
SHAFT V1
194V2
SHAFT V2.06.23
195
LEVER
196
FORK
197
O-RING 68 X 3.1MM
198
COVER

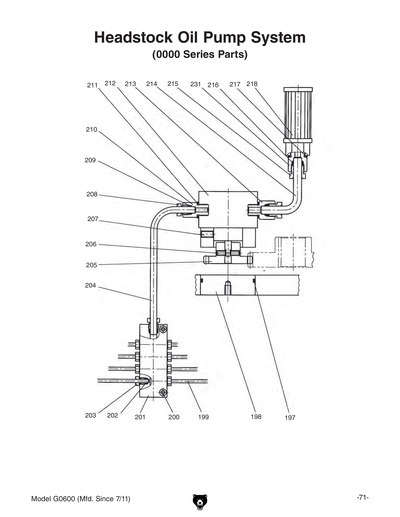

199
TUBE BRASS 4 X 0.75"

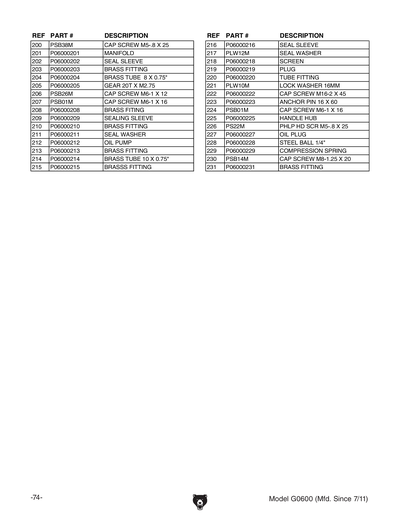

200
CAP SCREW M5-.8 X 25
Price
N/A
201
MANIFOLD
202
SEAL SLEEVE
203
FITTING BRASS
204
TUBE BRASS 8 X 0.75"
205
GEAR 20T X M2.75
206
CAP SCREW M6-1 X 12
Price
N/A
207
CAP SCREW M6-1 X 16
Price
N/A
208
FITTING BRASS
209
SEALING SLEEVE
210
FITTING BRASS
211
Now: PW10M
FLAT WASHER 14MM
Price
N/A
212
OIL PUMP
213
FITTING BRASS
214
TUBE BRASS 10 X 0.75"
215
FITTING BRASS
216
SEAL SLEEVE
217
LOCK WASHER 18MM
Price
N/A
218
SCREEN
219
PLUG
220
TUBE FITTING
221
LOCK WASHER 16MM
Price
N/A
222
CAP SCREW M16-2 X 45
223
ANCHOR PIN 16 X 60
224
CAP SCREW M6-1 X 16
Price
N/A
225
HANDLE HUB
226
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
227
OIL PLUG
228
STEEL BALL 1/4
Price
N/A
229
COMPRESSION SPRING
230
CAP SCREW M8-1.25 X 20
Price
N/A
231
FITTING BRASS

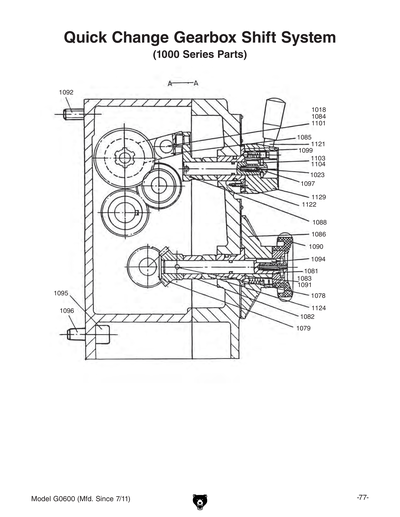

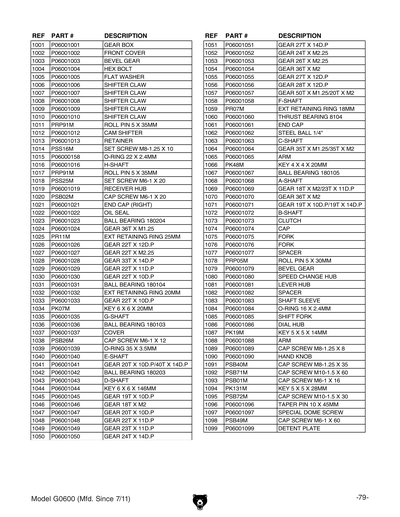

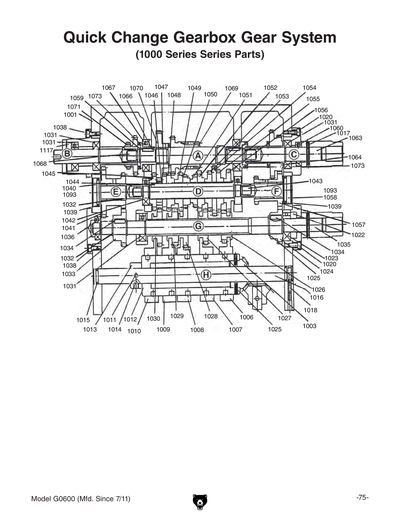

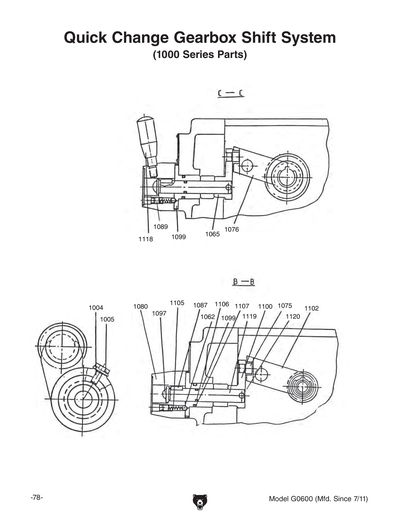

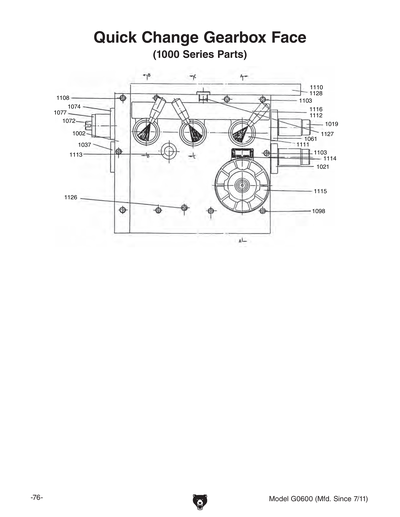

1001
GEAR BOX
1002
COVER FRONT V1
1002V2
COVER FRONT V2.06.23
1003
BEVEL GEAR
1004
HEX BOLT
1005
FLAT WASHER
1006
SHIFTER CLAW
1007
SHIFTER CLAW
1008
SHIFTER CLAW
1009
SHIFTER CLAW
1010
SHIFTER CLAW
1011
ROLL PIN 5 X 35
Price
N/A
1012
CAM SHIFTER
1013
RETAINER
1014
SET SCREW M8-1.25 X 10
Price
N/A
1015
O-RING 20 X 2.4MM
Price
N/A
1016
H SHAFT
1017
ROLL PIN 5 X 35
Price
N/A
1018
SET SCREW M6-1 X 20
Price
N/A
1019
RECEIVER HUB
1020
CAP SCREW M6-1 X 20
Price
N/A
1021
END CAP RIGHT
1022
OIL SEAL
1022-1
GASKET
1023
BALL BEARING 180204
1024
GEAR 36T X M1.25
1025
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
1026
GEAR 22T X 12D.P
1027
GEAR 22T X M2.25
1028
GEAR 33T X 14DP
1029
GEAR 22T X 11D.P
1030
GEAR 22T X 10D.P
1031
BALL BEARING 180104
1032
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
1033
GEAR 22T X 10D.P
1034
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
1035
G SHAFT
1036
BALL BEARING 180103
1037
COVER
1038
CAP SCREW M6-1 X 12
Price
N/A
1039
O-RING 36 X 3.5
Price
N/A
1040
E-SHAFT
1041
GEAR 20T X 10D.P/40T X 14D.P
1042
BALL BEARING 180203
1043
D-SHAFT
1044
KEY 6 X 6 X 146
1045
GEAR 19T X 10D.P
1046
GEAR 18T X M2
1047
GEAR 20T X 10D.P
1048
GEAR 22T X 11D.P
1049
GEAR 23T X 11DP
1050
GEAR 24T X 14DP
1051
GEAR 27T X 14DP
1052
GEAR 24T X M2.25
1053
GEAR 26T X M2.25
1054
GEAR 36T X M2
1055
GEAR 27T X 12DP
1056
GEAR 28T X 12DP
1057
GEAR 50T X M1.25/20T X M2
1058
F-SHAFT
1059
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
1060
Now: P8104
THRUST BEARING 8104
Price
N/A
1061
END CAP
1062
STEEL BALL 1/4
Price
N/A
1063
C-SHAFT
1064
GEAR 35T X M1.25/35T X M2
1065
ARM
1066
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
1067
BALL BEARING 180105
1068
A-SHAFT
1069
GEAR 18T X M2/23T X 11D.P
1070
GEAR 36T X M2
1071
GEAR 19T X 10D.P/19T X 14D.P
1072
B-SHAFT
1072-1
BUSHINGS 2PC SET
1073
CLUTCH
1074
CAP
1075
FORK
1076
FORK
1077
SPACER
1078
ROLL PIN 5 X 30
Price
N/A
1079
BEVEL GEAR
1080
SPEED CHANGE HUB
1081
LEVER HUB
1082
SPACER
1083
SHAFT SLEEVE
1084
O-RING 16 X 2.4MM
1085
SHIFT FORK
1086
DIAL HUB
1087
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
1088
ARM
1089
CAP SCREW M8-1.25 X 8
Price
N/A
1090
HAND KNOB
1091
CAP SCREW M8-1.25 X 35
Price
N/A
1092
CAP SCREW M10-1.5 X 60
Price
N/A
1093
CAP SCREW M6-1 X 16
Price
N/A
1094
KEY 5 X 5 X 28
Price
N/A
1095
CAP SCREW M10-1.5 X 30
Price
N/A
1096
TAPER PIN 10 X 45MM
1097
HANDLE HUB DOME SCREW
1098
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
1099
DETENT PLATE
1100
ARM
1101

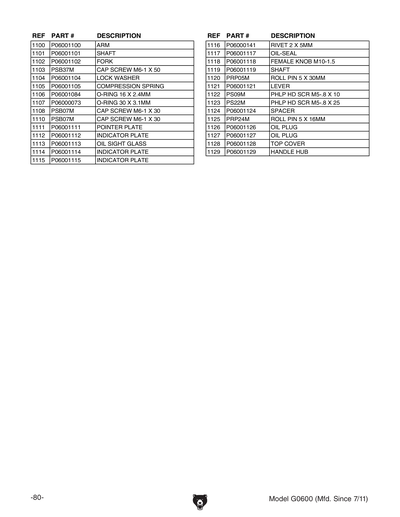

SHAFT
1102
FORK
1103
CAP SCREW M6-1 X 50
Price
N/A
1104
LOCK WASHER 6MM
Price
N/A
1105
COMPRESSION SPRING
1106
O-RING 16 X 2.4MM
Price
N/A
1107
O-RING 30 X 2.4MM
Price
N/A
1108
CAP SCREW M6-1 X 30
Price
N/A
1110
CAP SCREW M6-1 X 30
Price
N/A
1111
POINTER PLATE
1112
INDICATOR PLATE
1112V2
INDICATOR PLATE V2.08.17
1113
OIL SIGHT GLASS PLASTIC PUSH-IN
1114
INDICATOR PLATE
1115
INDICATOR PLATE
1116
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
1117
OIL SEAL
1118
FEMALE KNOB M10-1.5
1119
SHAFT
1120
ROLL PIN 5 X 30
Price
N/A
1121
LEVER
1122
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
1123
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
1124
SPACER
1125
ROLL PIN 5 X 16
Price
N/A
1126
OIL PLUG
1127
OIL PLUG
1128
COVER TOP
1129
HANDLE HUB

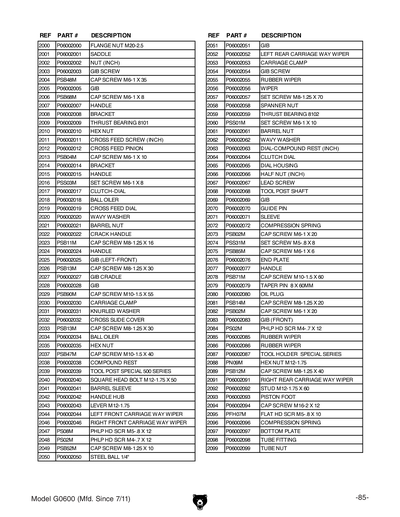

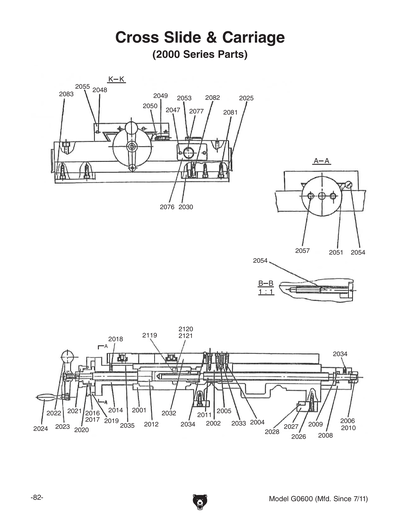

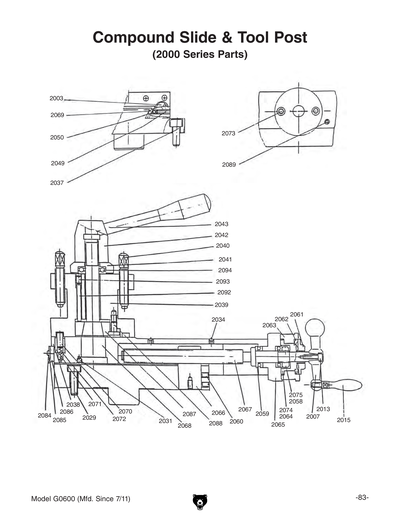

2000
*DISCD*FLANGE NUT M20-2.5
Item is no longer available
Price
N/A

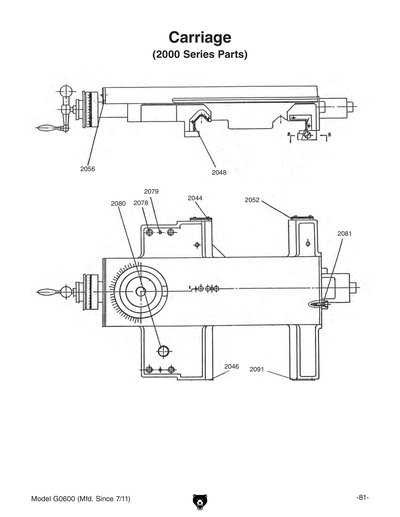

2001
SADDLE
2002
NUT INCH
2003
GIB SCREW
2004
CAP SCREW M6-1 X 35
Price
N/A
2005
GIB
2006
CAP SCREW M6-1 X 8
Price
N/A
2007
HANDLE
2008
BRACKET
2009
Now: P8101
THRUST BEARING 8101
Price
N/A
2010
HEX NUT
2011
CROSS FEED SCREW INCH
2012
CROSS FEED PINION
2013
CAP SCREW M6-1 X 10
Price
N/A
2014
CROSS FEED DIAL BRACKET
2015
HANDLE
2016
SET SCREW M6-1 X 8
Price
N/A
2017
CLUTCH DIAL
2018
BALL OILER 8MM PRESS-IN
Price
N/A
2019
CROSS FEED DIAL
2020
WAVY WASHER
2021
BARREL NUT
2022
CRANK HANDLE
2023
CAP SCREW M8-1.25 X 16
Price
N/A
2024
HANDLE
2025
GIB LEFT FRONT
2026
CAP SCREW M8-1.25 X 30
Price
N/A
2027
GIB CRADLE
2028
GIB
2029
CAP SCREW M10-1.5 X 55
Price
N/A
2030
CARRIAGE CLAMP
2031
KNURLED WASHER
2032
CROSS SLIDE COVER
2033
CAP SCREW M8-1.25 X 30
Price
N/A
2034
BALL OILER 6MM PRESS-IN
Price
N/A
2035
HEX NUT
2037
CAP SCREW M10-1.5 X 40
Price
N/A
2038
COMPOUND REST
2039
QUICK CHANGE TOOL POST & HANDLE
2040
CARRIAGE BOLT M12-1.75 X 50
2041
QUICK CHANGE TOOL POST & HANDLE
Price
N/A
2042
QUICK CHANGE TOOL POST & HANDLE
Price
N/A
2043
QUICK CHANGE TOOL POST & HANDLE
Price
N/A
2044
LEFT FRONT CARRIAGE WAY WIPER
2045
RIGHT FRONT CARRIAGE WAY WIPER
Price
N/A
2046
RIGHT FRONT CARRIAGE WAY WIPER
2047
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
2048
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
2049
CAP SCREW M8-1.25 X 10
Price
N/A
2050
STEEL BALL 1/4
Price
N/A
2051
GIB
2052
LEFT REAR CARRIAGE WAY WIPER
2053
CARRIAGE CLAMP
2054
GIB SCREW
2055
RUBBER WIPER
2056
WIPER
2057
SET SCREW M8-1.25 X 70
2058
SPANNER NUT
2059
Now: P8102
THRUST BEARING 8102
Price
N/A
2060
SET SCREW M6-1 X 10
Price
N/A
2061
BARREL NUT
2062
WAVY WASHER 36MM
2063
DIAL COMPOUND REST INCH
2064
CLUTCH DIAL
2065
DIAL HOUSING
2066
HALF NUT INCH
2067
LEADSCREW
2068
TOOL POST SHAFT
2069
GIB
2070
GUIDE PIN
2071
SLEEVE
2072
COMPRESSION SPRING
2073
CAP SCREW M6-1 X 20
Price
N/A
2074
SET SCREW M5-.8 X 8
Price
N/A
2075
CAP SCREW M6-1 X 6
Price
N/A
2076
END PLATE
2077
HANDLE
2078
CAP SCREW M10-1.5 X 60
Price
N/A
2079
TAPER PIN 8 X 60
2080
OIL PLUG
2081
CAP SCREW M8-1.25 X 20
Price
N/A
2082
CAP SCREW M6-1 X 20
Price
N/A
2083
GIB FRONT
2084
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
2085
METAL BACKING PLATE
2086
RUBBER WIPER
2087
TOOL HOLDER 500 SERIES
2088
Now: PN09M
HEX NUT M12-1.75
Price
N/A
2089
CAP SCREW M8-1.25 X 40
Price
N/A
2090
RIGHT REAR CARRIAGE WAY WIPER
Price
N/A
2091
RIGHT REAR CARRIAGE WAY WIPER
2092
STUD- SE M16-2 X 76 24

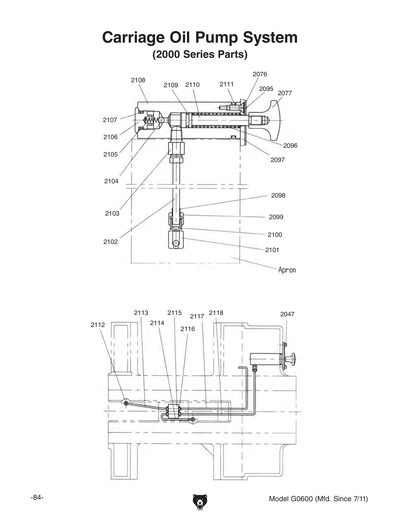

2093
PISTON FOOT
2094
CAP SCREW M16-2 X 12
2095
FLAT HD SCR M5-.8 X 10
Price
N/A
2096
COMPRESSION SPRING
2097
BOTTOM PLATE
2098
TUBE FITTING
2099
TUBE NUT

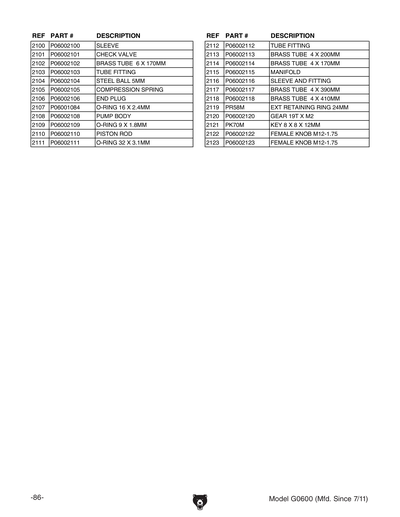

2100
SLEEVE
2101
CHECK VALVE
2102
TUBE BRASS 6 X 170MM
2103
TUBE FITTING
2104
STEEL BALL 5MM
Price
N/A
2105
COMPRESSION SPRING
2106
END PLUG
2107
O-RING 16 X 2.4MM
Price
N/A
2108
PUMP BODY
2109
*DISCD* O-RING 9 X 1.8
Price
N/A
2110
PISTON ROD
2111
O-RING 32 X 3.1MM
2112
TUBE FITTING
2113
TUBE BRASS 4 X 200MM
2114
TUBE BRASS 4 X 170MM
2115
MANIFOLD
2116
SLEEVE & FITTING
2117
TUBE BRASS 4 X 390MM
2118
TUBE BRASS 4 X 410MM
2119
Now: PR58M
EXT RETAINING RING 24MM
Price
N/A
2120
GEAR 19T X M2
2121
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
2122
FEMALE KNOB M12-1.75
2123
WAVY WASHER
2124
COMPOUND ANGLE SCALE

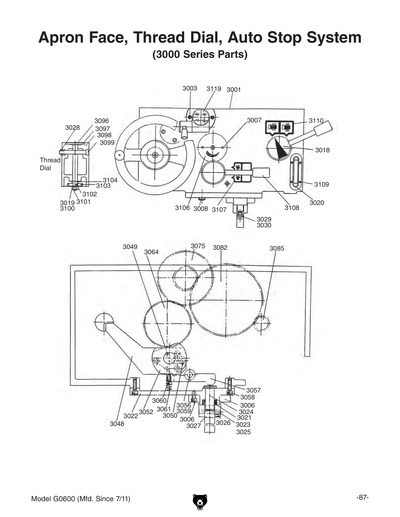

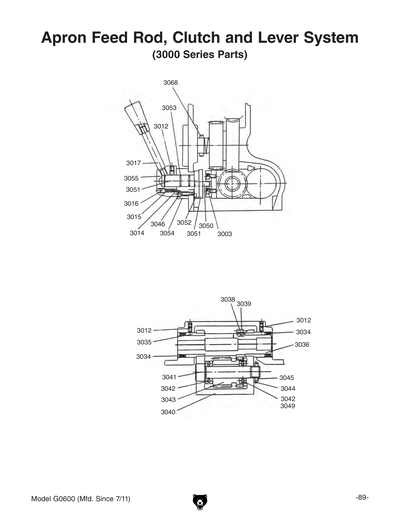

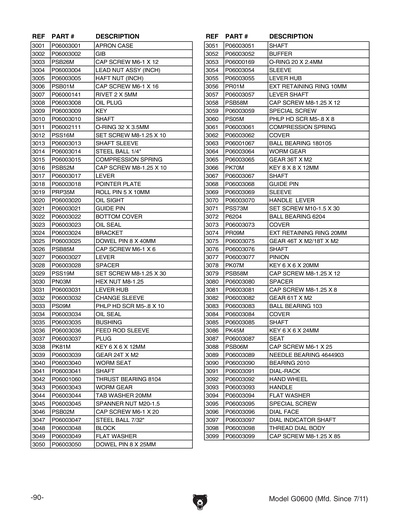

3001
APRON CASE
3002
GIB
3003
CAP SCREW M6-1 X 12
Price
N/A
3004
LEAD NUT ASSY INCH
3005
HALF NUT INCH
3006
CAP SCREW M6-1 X 16
Price
N/A
3007
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
3008
OIL PLUG
3009
KEY
3010
SHAFT
3011
O-RING 32 X 3.1MM
Price
N/A
3012
SET SCREW M8-1.25 X 10
Price
N/A
3013
SHAFT SLEEVE
3014
STEEL BALL 1/4
Price
N/A
3015
COMPRESSION SPRING
3016
CAP SCREW M8-1.25 X 10
Price
N/A
3017
LEVER
3018
POINTER PLATE
3019
ROLL PIN 5 X 10
Price
N/A
3020
OIL SIGHT
3021
GUIDE PIN
3022
BOTTOM COVER
3023
OIL SEAL
3024
BRACKET
3025
DOWEL PIN 8 X 40MM
3026
CAP SCREW M6-1 X 6
Price
N/A
3027
LEVER
3028
SPACER
3029
SET SCREW M8-1.25 X 30
Price
N/A
3030
Now: PN03M
HEX NUT M8-1.25
Price
N/A
3031
LEVER HUB
3032
CHANGE SLEEVE
3033
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
3034
OIL SEAL
3035
BUSHING
3036
FEED ROD SLEEVE
3037
PLUG
3038
Now: PK81M
KEY 6 X 6 X 12
Price
N/A
3039
GEAR 24T X M2
3040
WORM SEAT
3041
SHAFT
3042
Now: P8104
THRUST BEARING 8104
Price
N/A
3043
WORM GEAR
3044
FLAT WASHER 50MM
Price
N/A
3045
SPANNER NUT M20-1.5
3046
CAP SCREW M6-1 X 20
Price
N/A
3047
STEEL BALL 7/32"
3048
BLOCK
3049
FLAT WASHER 20MM
3050
DOWEL PIN 8 X 25MM
3051
SHAFT
3052
BUFFER
3053
O-RING 20 X 2.4MM
Price
N/A
3054
SLEEVE
3055
LEVER HUB
3056
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
3057
LEVER SHAFT
3058
CAP SCREW M8-1.25 X 12
Price
N/A
3059
LEVER SCREW
3060
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
3061
COMPRESSION SPRING
3062
COVER
3063
BALL BEARING 180105
Price
N/A
3064
WORM GEAR
3065
GEAR 36T X M2
3066
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
3067
SHAFT
3068
GUIDE PIN
3069
SLEEVE
3070
HANDLE LEVER
3071
SET SCREW M10-1.5 X 30
Price
N/A
3072
BALL BEARING 6204-OPEN
Price
N/A
3073
COVER
3074
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
3075
GEAR 46T X M2/18T X M2
3076
SHAFT
3077
PINION
3078
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
3079
CAP SCREW M8-1.25 X 12
Price
N/A
3080
SPACER
3081
***USE PCAP199M***
Price
N/A
3082
GEAR 61T X M2
3083
BALL BEARING 103
3084
COVER
3085
SHAFT
3086
Now: PK45M
KEY 6 X 6 X 24
Price
N/A
3087
SEAT
3088
CAP SCREW M6-1 X 25
Price
N/A
3089
NEEDLE BEARING 4644903
3090
BEARING 2010
3091
DIAL RACK
3092
HAND WHEEL
3093
HANDLE
3094
FLAT WASHER
3095
HANDWHEEL SCREW M8-1.25 X 20 STEEL
3096
DIAL FACE
3097
DIAL INDICATOR SHAFT
3098
THREAD DIAL BODY
3099
CAP SCREW M8-1.25 X 85
Price
N/A

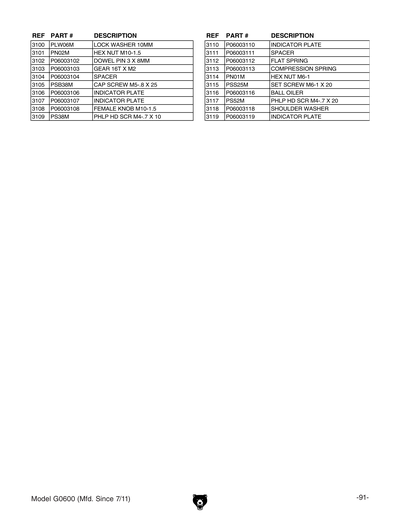

3100
LOCK WASHER 10MM
Price
N/A
3101
Now: PN02M
HEX NUT M10-1.5
Price
N/A
3102
DOWEL PIN 3 X 8MM
3103
GEAR 16T X M2
3104
SPACER
3105
CAP SCREW M5-.8 X 25
Price
N/A
3106
INDICATOR PLATE
3107
INDICATOR PLATE
3108
FEMALE KNOB M10-1.5
3109
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
3110
INDICATOR PLATE
3111
SPACER
3112
FLAT SPRING
3113
COMPRESSION SPRING
3114
Now: PN01M
HEX NUT M6-1
Price
N/A
3115
SET SCREW M6-1 X 20
Price
N/A
3116
BALL OILER 6MM PRESS-IN
Price
N/A
3117
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
3118
Now: PW13M
FLAT WASHER 20MM
Price
N/A
3119
INDICATOR PLATE

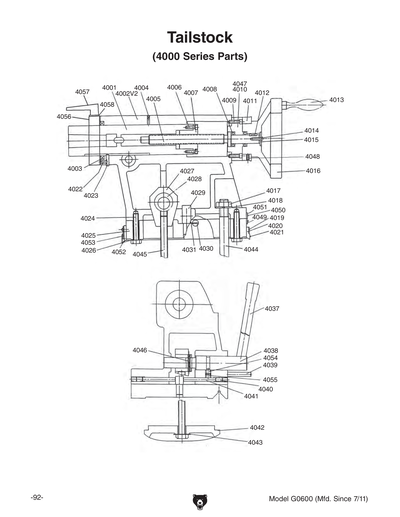

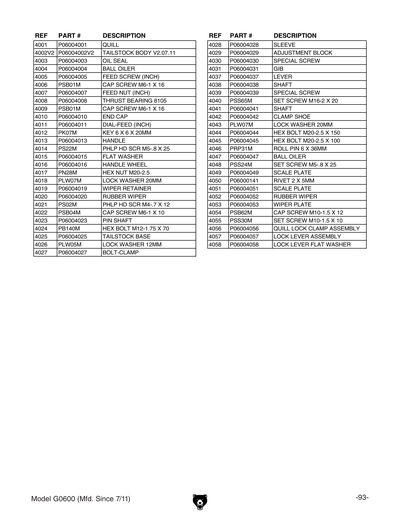

4001
QUILL V1
4001V2
QUILL V2.07.11
4002
TAILSTOCK BODY V1
4002V2
TAILSTOCK BODY V2.07.11
4003
OIL SEAL
4004
BALL OILER 10MM PRESS-IN
Price
N/A
4005
TAILSTOCK LEADSCREW
4006
CAP SCREW M6-1 X 12
Price
N/A
4007
TAILSTOCK LEADSCREW NUT
4008
THRUST BEARING 51104
Price
N/A
4009
CAP SCREW M6-1 X 35
Price
N/A
4010
END CAP
4011
DIAL FEED INCH
4012
KEY 6 X 6 X 16
Price
N/A
4013
HANDLE
4014
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
4015
HANDWHEEL FLAT WASHER
4016
HANDWHEEL
4017
Now: PN28M
HEX NUT M20-2.5
Price
N/A
4018
LOCK WASHER 20MM
Price
N/A
4019
STRAIGHT WIPER PLATE
4020
STRAIGHT WAY WIPER RUBBER
4021
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
4022
SET SCREW M6-1 X 10
Price
N/A
4023
PIN SHAFT
4024
HEX BOLT M12-1.75 X 90
Price
N/A
4025
TAILSTOCK BASE
4026
LOCK WASHER 12MM
Price
N/A
4027
BOLT CLAMP
4028
SLEEVE
4029
ADJUSTMENT BLOCK
4030
GIB SCREW
4031
GIB
4032
CLAMP BLOCK
4033
SHAFT
4035
LEVER
4037
LEVER
4038
SHAFT
4039
RETAINER PIN M16-2 X 20
4040
SET SCREW M5-.8 X 25
Price
N/A
4041
SHAFT
4042
CLAMP SHOE
4043
LOCK WASHER 20MM
Price
N/A
4044
T-BOLT M20-2.5 X 175
4045
HEX BOLT M20-2.5 X 100
Price
N/A
4046
ROLL PIN 6 X 36
Price
N/A
4047
BALL OILER 6MM PRESS-IN
Price
N/A
4048
SET SCREW M5-.8 X 25
Price
N/A
4049
LOWER OFFSET PLATE
4050
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
4051
UPPER OFFSET PLATE
4052
V-WAY WIPER RUBBER
4053
V-WAY WIPER PLATE
4054
CAP SCREW M10-1.5 X 12
Price
N/A
4055
SET SCREW M10-1.5 X 8
Price
N/A
4056
QUILL LOCK CLAMP
4057
LOCK LEVER ASSEMBLY
4058
LOCK LEVER FLAT WASHER 8MM
4059
CAP SCREW M8-1.25 X 30
Price
N/A
4060
STUD-FT M8-1.25 X 100
4061
CAP SCREW M6-1 X 10
Price
N/A
4062
Now: PW03M
FLAT WASHER 6MM
Price
N/A
4063
INDICATOR PLATE

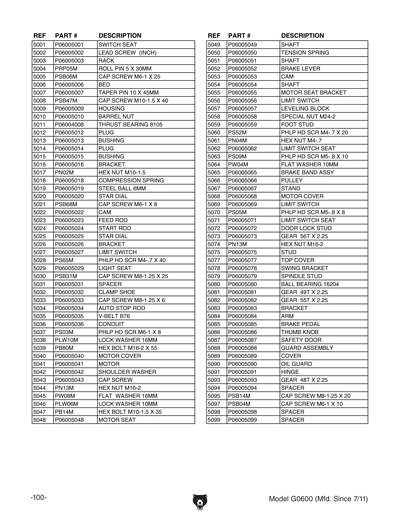

5001
SWITCH SEAT
5002
LEADSCREW INCH
5003
COMPLETE RACK ASSY 3PC
5003-1
RACK SMALL LEFT
5003-2
RACK LONG CENTER
5003-3
RACK LONG RIGHT
5004
ROLL PIN 5 X 30
Price
N/A
5005
CAP SCREW M6-1 X 25
Price
N/A
5006

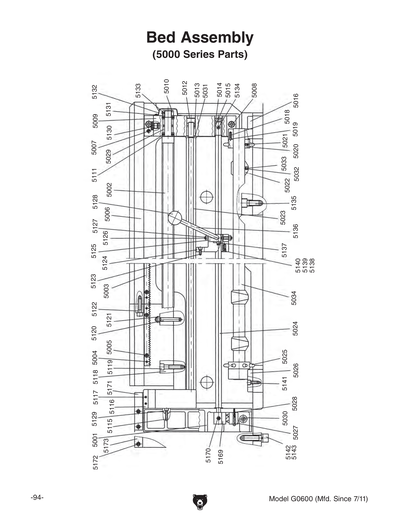

BED
5007
TAPER PIN 10 X 45MM
Price
N/A
5008
CAP SCREW M10-1.5 X 40
Price
N/A
5009
HOUSING
5010
BARREL NUT
5011
Now: P8105
THRUST BEARING 8105
Price
N/A
5012
PLUG
5013
BUSHING
5014
PLUG
5015
BUSHING
5016
BRACKET
5017
Now: PN02M
HEX NUT M10-1.5
Price
N/A
5018
COMPRESSION SPRING
5019
STEEL BALL 6MM
Price
N/A
5020
STAR DIAL
5021
CAP SCREW M6-1 X 8
Price
N/A
5022
CAM
5023
FEED ROD
5024
START ROD
5025
STAR DIAL
5026
BRACKET
5027
LIMIT SWITCH
5028
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
5029
LIGHT SEAT
5030
CAP SCREW M8-1.25 X 25
Price
N/A
5031
SPACER
5032
CLAMP SHOE
5033
CAP SCREW M8-1.25 X 6
Price
N/A
5034
AUTO STOP ROD
5035

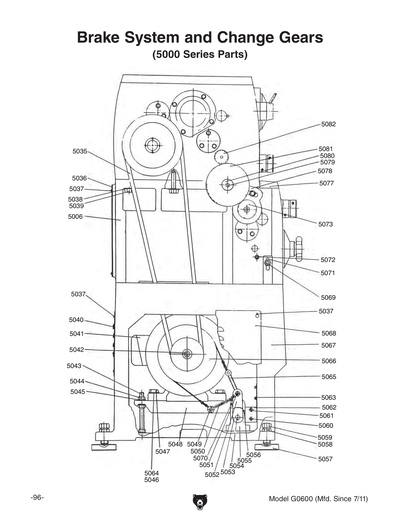

V-BELT B76
5036
CONDUIT
5037
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
5038
LOCK WASHER 16MM
Price
N/A
5039
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
5040

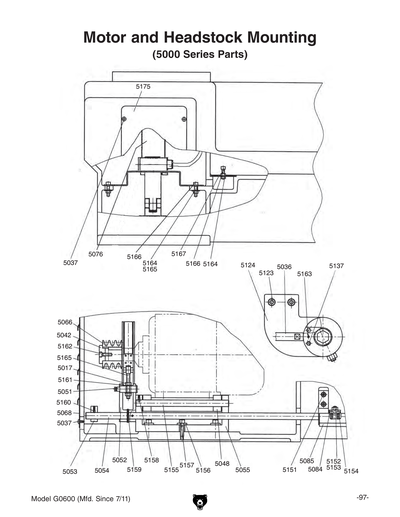

MOTOR COVER
5041
MOTOR 10HP 220V 3-PH
5042
PULLEY WASHER 8MM
5043
CAP SCREW
5044
Now: PN13M
HEX NUT M16-2
Price
N/A
5045
Now: PW08M
FLAT WASHER 16MM
Price
N/A
5046
LOCK WASHER 10MM
Price
N/A
5047
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
5048
MOTOR SEAT
5049
SHAFT
5050
TENSION SPRING
5051
SHAFT
5052
BRAKE LEVER
5053
CAM
5054
SHAFT
5055
MOTOR SEAT BRACKET
5056
LIMIT SWITCH
5057
LEVELING BLOCK
5058
BLOCK LEVELING NUT M24-2
5059
BASE HEAD STUD
5060
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
5061
Now: PN04M
HEX NUT M4-.7
Price
N/A
5062
LIMIT SWITCH SEAT
5063
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
5064
Now: PW04M
FLAT WASHER 10MM
Price
N/A
5065
BRAKE BAND ASSY
5066
PULLEY
5067
STAND V1
5067V2
STAND V2.06.23
5068
MOTOR COVER
5069
LIMIT SWITCH
5070
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
5071
LIMIT SWITCH SEAT
5072
STUD- SE M8-1.5 X 105 24
5073
GEAR 56T X 2.25
5074
Now: PN13M
HEX NUT M16-2
Price
N/A
5075
STUD- UDE M12-1.75 X 80 22 16
5076
PUMP MOTOR
5077
COVER TOP
5078
SWING BRACKET
5079
STUD- SE M20-2.5 X 105 30
5080
BALL BEARING 16204
5081
GEAR 49T X 2.25
5082
GEAR 55T X 2.25
5083
BRACKET
5084
ARM
5085
BRAKE PEDAL
5086
THUMB KNOB
5087
SAFETY DOOR V1
5087V2
SAFETY DOOR V2.06.23
5088

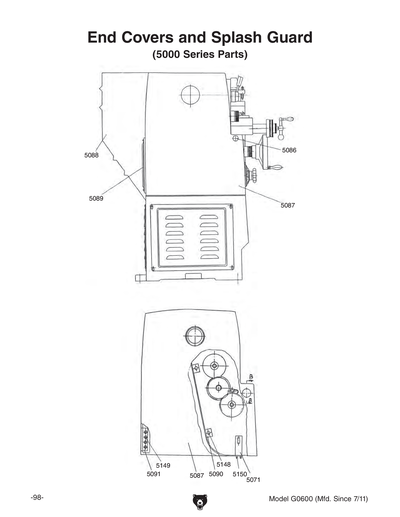

GUARD ASSEMBLY
5089
COVER
5090
OIL GUARD
5091
HINGE
5093

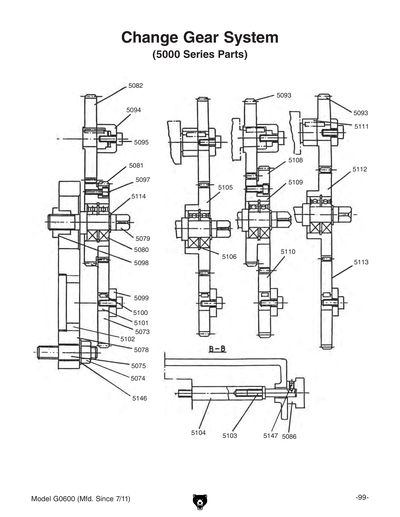

GEAR 48T X 2.25
5094
SPACER
5095
CAP SCREW M8-1.25 X 20
Price
N/A
5097
CAP SCREW M6-1 X 10
Price
N/A
5098
SPACER
5099
SPACER

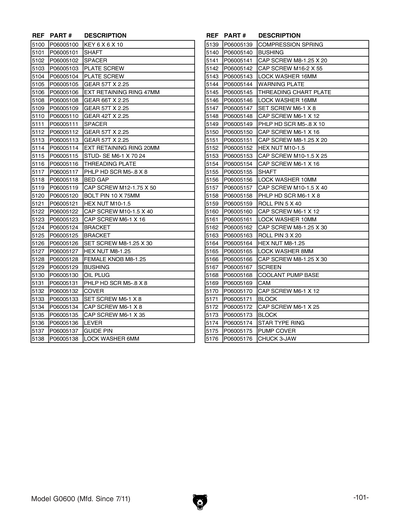

5100
Now: PK95M
KEY 6 X 6 X 10
Price
N/A
5101
SHAFT
5102
SPACER
5103
PLATE SCREW
5104
PLATE SCREW
5105
GEAR 57T X 2.25
5106
*DISCD*EXT RETAINING RING 47MM
Price
N/A
5108
GEAR 66T X 2.25
5109
GEAR 57T X 2.25
5110
GEAR 42T X 2.25
5111
SPACER
5112
GEAR 57T X 2.25
5113
GEAR 57T X 2.25
5114
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
5115
STUD- SE M6-1 X 70 24
5116
THREADING PLATE
5117
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
5118
BED GAP
5119
CAP SCREW M12-1.75 X 50
Price
N/A
5120
BOLT PIN 10 X 75MM
5121
Now: PN02M
HEX NUT M10-1.5
Price
N/A
5122
CAP SCREW M10-1.5 X 40
Price
N/A
5123
CAP SCREW M6-1 X 16
Price
N/A
5124
BRACKET
5125
BRACKET
5126
SET SCREW M8-1.25 X 30
Price
N/A
5127
Now: PN03M
HEX NUT M8-1.25
Price
N/A
5128
FEMALE KNOB M8-1.25
5129
BUSHING
5130
OIL PLUG
5131
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
5132
COVER
5133
SET SCREW M6-1 X 8
Price
N/A
5134
CAP SCREW M6-1 X 8
Price
N/A
5135
CAP SCREW M6-1 X 35
Price
N/A
5136
LEVER
5137
GUIDE PIN
5138
LOCK WASHER 6MM
Price
N/A
5139
COMPRESSION SPRING
5140
BUSHING
5141
CAP SCREW M8-1.25 X 20
Price
N/A
5142
CAP SCREW M16-2 X 55
Price
N/A
5143
LOCK WASHER 16MM
Price
N/A
5144
WARNING PLATE
5145
THREADING CHART PLATE
5146
LOCK WASHER 16MM
Price
N/A
5147
SET SCREW M6-1 X 8
Price
N/A
5148
CAP SCREW M6-1 X 12
Price
N/A
5149
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
5150
CAP SCREW M6-1 X 16
Price
N/A
5151
CAP SCREW M8-1.25 X 20
Price
N/A
5152
Now: PN02M
HEX NUT M10-1.5
Price
N/A
5153
CAP SCREW M10-1.5 X 25
Price
N/A
5154
CAP SCREW M6-1 X 16
Price
N/A
5155
SHAFT
5156
LOCK WASHER 10MM
Price
N/A
5157
CAP SCREW M10-1.5 X 40
Price
N/A
5158
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
5159
ROLL PIN 5 X 40
Price
N/A
5160
CAP SCREW M6-1 X 12
Price
N/A
5161
LOCK WASHER 10MM
Price
N/A
5162
CAP SCREW M8-1.25 X 30
Price
N/A
5163
ROLL PIN 3 X 20
Price
N/A
5164
Now: PN03M
HEX NUT M8-1.25
Price
N/A
5165
LOCK WASHER 8MM
Price
N/A
5166
CAP SCREW M8-1.25 X 30
Price
N/A
5167
SCREEN
5168
COOLANT PUMP BASE
5169
CAM
5170
CAP SCREW M6-1 X 12
Price
N/A
5171
BLOCK
5172
CAP SCREW M6-1 X 25
Price
N/A
5173
BLOCK

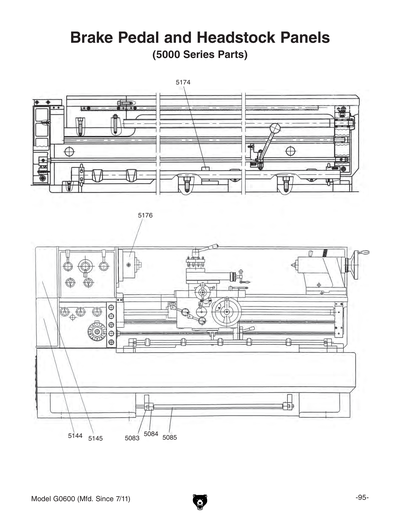

5174
STAR TYPE RING
5175
PUMP COVER
5176
CHUCK 3-JAW
5178
CONTROL PANEL (COVER)
5179
PANEL FRAME (SEAT-PILOT LIGHT)

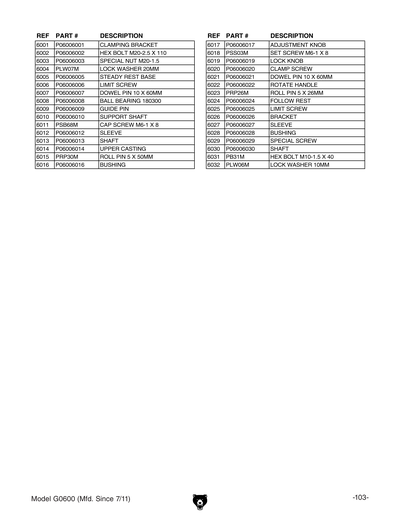

6001
CLAMPING BRACKET
6001A

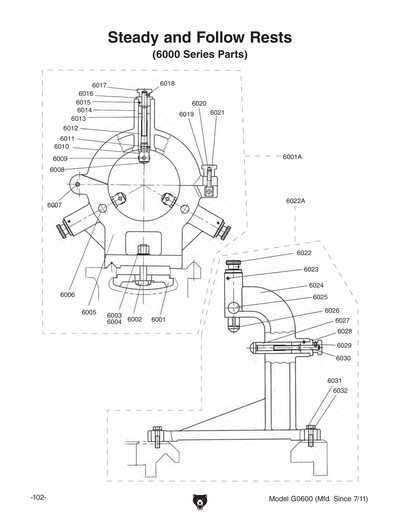

COMPLETE STEADY REST
6002
HEX BOLT M20-2.5 X 110
6003
STEADY REST BASE NUT M20-1.5
6004
LOCK WASHER 20MM
Price
N/A
6005
STEADY REST BASE
6006
LIMIT SCREW
6007
DOWEL PIN 10 X 60MM
6008
BALL BEARING 180300
6009
GUIDE PIN
6010
SUPPORT SHAFT
6011
CAP SCREW M6-1 X 8
Price
N/A
6012
SLEEVE
6013
SHAFT
6014
UPPER CASTING
6015
ROLL PIN 5 X 50
Price
N/A
6016
BUSHING
6017
ADJUSTMENT KNOB
6018
SET SCREW M6-1 X 8
Price
N/A
6019
LOCK KNOB
6020
CLAMP SCREW
6021
DOWEL PIN 10 X 60MM
Price
N/A
6022
ROTATE HANDLE
6022A
COMPLETE FOLLOW REST
6023
ROLL PIN 5 X 26
Price
N/A
6024
FOLLOW REST
6025
LIMIT SCREW
6026
BRACKET
6027
SLEEVE
6028
BUSHING
6029
ROTATE HANDLE SCREW
6030
SHAFT
6031
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
6032
LOCK WASHER 10MM
Price
N/A

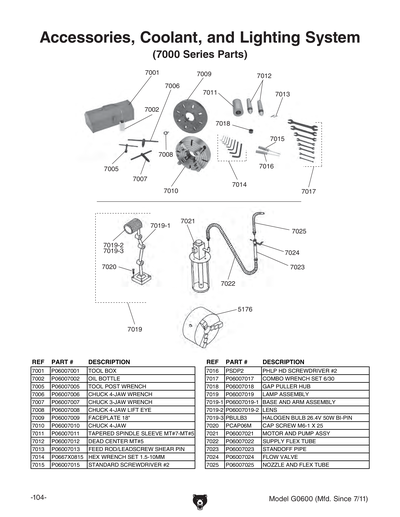

7001
TOOL BOX
7002
OIL BOTTLE
7003
*DISCD*SPOT PAINT GREEN
Item is no longer available
Price
N/A
7004
*DISCD*PUTTY SPOT PAINT
Item is no longer available
Price
N/A
7005
TOOL POST WRENCH
7006
CHUCK 4-JAW WRENCH
7007
CHUCK 3-JAW WRENCH
7008
CHUCK 4-JAW LIFT EYE
7009
FACEPLATE 18"
7010
CHUCK 4-JAW
7011
TAPERED SPINDLE SLEEVE MT#7-MT#5
7012
DEAD CENTER MT#5
7013
FEED ROD/LEADSCREW SHEAR PIN
7014
HEX WRENCH SET 1.5-10MM
Price
N/A
7015
STANDARD SCREWDRIVER #2
7016
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
7017
COMBO WRENCH SET 6/30
7018
GAP PULLER HUB
7019
LAMP ASSEMBLY
7019-1
BASE AND ARM ASSEMBLY
7019-2
LENS
7019-3
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
7019V2
WORKLAMP ASSEMBLY V2.01.15
7020
CAP SCREW M6-1 X 25
Price
N/A
7021
COOLANT PUMP MOTOR 1/8HP 220V 3-PH
7022
SUPPLY FLEX TUBE
7023
STANDOFF PIPE
7024
FLOW VALVE
7025
NOZZLE AND FLEX TUBE
8001
CONTACTOR 3TB44
8002
***USE P06008001***
8003
THERMAL OVERLOAD RELAY 32A
8004
CONTACTOR 40E 3TH80
8005
THERMAL OVERLOAD RELAY 1A
8006
TRANSFORMER JBK5 160VA 220/440V-220V
8007
CONTACTOR 40E 3TH80
Price
N/A
8008
CIRCUIT BREAKER 3A HUIL DZ451-63 C3 1P
Price
N/A
8009
CIRCUIT BREAKER 6A HUIL DZ451-63 C6 1P
8010
MAIN TERMINAL BOARD
8011
MOTOR TERMINAL BOARD
8012
GROUND TERMINAL BOARD
8013
MOUNTING PANEL
8014
CIRCUIT BREAKER 50A HUIL DZ451-63 C50 3P
Price
N/A
8015
PUMP ON/OFF SWITCH
8016
MASTER POWER SWITCH ASSEMBLY
8016-1
MASTER POWER SWITCH
8016-2
MASTER POWER SWITCH BOX
8016-3
MASTER POWER SWITCH COVER
MAN
MANUAL FOR G0600 04/07
P
THRUST BEARING 8102
