Parts for G0601 - 5 HP 3-Phase Cyclone Dust Collector

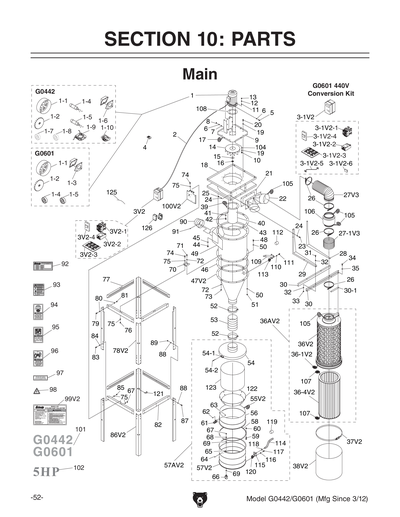

Part Diagram for G0601

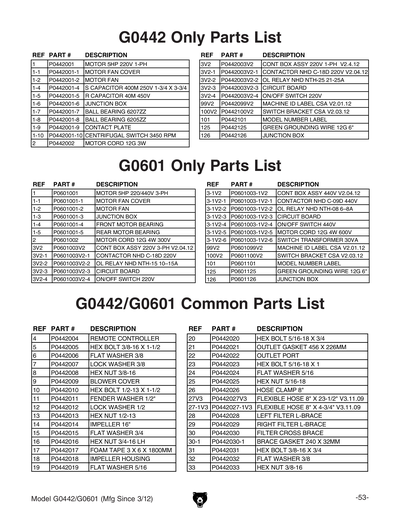

Part Diagram for G0601

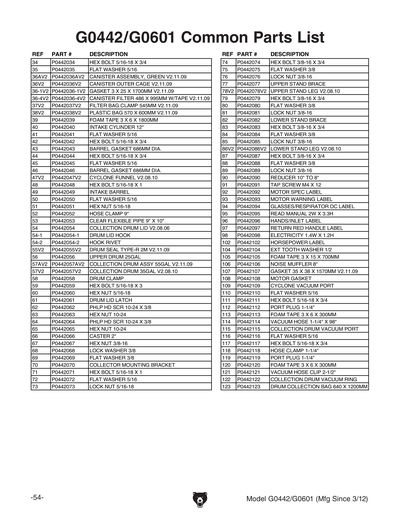

Part Diagram for G0601
Part Diagram for G0601
Part Diagram for G0601
Part Diagram for G0601

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 5HP 220/440V 3-PH
Price
$1,021.95
1-1
MOTOR FAN COVER
Price
$27.20
1-2
MOTOR FAN
Price
$34.45
1-3
JUNCTION BOX
Price
$12.40
1-4
FRONT MOTOR BEARING
Price
$38.10
1-5
REAR MOTOR BEARING
Price
$30.85
2
MOTOR CORD 12G 4W 300V
Price
$33.25
3
CONTROL BOX ASSY 220V 3-PH CSA V2.04.12
Price
N/A
3-1
CONTROL BOX ASSY 440V 3-PH CSA V3.03.18
Price
N/A
3-1V2
CONTROL BOX ASSY 440V 3-PH CSA V3.03.18
Price
N/A
3-1V2-1
CONTACTOR NHD C-09D 220V
Price
$50.75
3-1V2-10
STRAIN RELIEF PG21 (3PC SET)
Price
$19.45
3-1V2-2
OL RELAY NHD NTH-08 6-8A
Price
$39.85
3-1V2-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
N/A
3-1V2-4
ON/OFF SWITCH 440V
Price
$10.90
3-1V2-5
MOTOR CORD 12G 4W 600V
Price
$12.75
3-1V2-6
TRANSFORMER SWITCH 30VA 440/460-220/230V
Price
$68.85
3-1V2-7
SWITCH BRACKET 440V
Price
$29.00
3-1V2-8
SWITCH JUNCTION BOX 440V
Price
$18.15
3-1V2-9
MOTOR JUNCTION BOX 440V
Price
$18.15
3-1V3
CONTROL BOX ASSY 440V 3-PH CSA V3.03.18
Price
$499.55
3V2
CONTROL BOX ASSY 220V 3-PH CSA V2.04.12
Price
$235.50
3V2-1
CONTACTOR NHD C-18D 220V
Price
N/A
3V2-2
OL RELAY NHD NTH-15 10-15A
Price
$61.60
3V2-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
$110.55
3V2-4
ON/OFF SWITCH 220V
Price
$6.70
4
REMOTE CONTROLLER
Price
N/A
5
P0601005
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
6
P0601006
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
LOCK WASHER 3/8
Price
N/A
8
P0601008
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
BLOWER COVER
Price
N/A
10
P0601010
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
11
P0601011
Now: PW01
FLAT WASHER 1/2
Price
N/A
12
LOCK WASHER 1/2
Price
N/A
13
P0601013
Now: PN13
HEX NUT 1/2-13
Price
N/A
14
IMPELLER 16"
Price
N/A
15
P0601015
Now: PW13
FLAT WASHER 3/4
Price
N/A
16
HEX NUT 3/4-16 LH
Price
N/A
17
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
18
IMPELLER HOUSING
Price
N/A
19
P0601019
Now: PW07
FLAT WASHER 5/16
Price
N/A
20
P0601020
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
OUTLET GASKET 456 X 226MM
Price
N/A
22
OUTLET PORT
Price
N/A
23
P0601023
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
24
P0601024
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
P0601025
Now: PN02
HEX NUT 5/16-18
Price
N/A
26
HOSE CLAMP 8"
Price
N/A
27
FLEXIBLE PIPE GRAY 8"X1000MM V1.02.05
Price
N/A
27-1V3
FLEXIBLE HOSE 8" X 4-3/4" V3.11.09
Price
N/A
27A
GREY FLEX PIPE ASSY V2.04.08
Price
N/A
27A-1
GREY FLEX PIPE 8" X 60MM V2.04.08
Price
N/A
27A-2
GREY FLEX PIPE 8" X 120MM V2.04.08
Price
N/A
27V3
FLEXIBLE HOSE 8" X 23-1/2" V3.11.09
Price
N/A
28
LEFT FILTER L-BRACE
Price
N/A
29
RIGHT FILTER L-BRACE
Price
N/A
30
FILTER CROSS BRACE
Price
N/A
30-1
BRACE GASKET 240 X 32MM
Price
N/A
31
P0601031
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
32
P0601032
Now: PW02
FLAT WASHER 3/8
Price
N/A
33
P0601033
Now: PN08
HEX NUT 3/8-16
Price
N/A
34
P0601034
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
35
P0601035
Now: PW07
FLAT WASHER 5/16
Price
N/A
36
Detachable Cartridge Filter for G0442 & G0601
Price
N/A
36-1
FOAM TAPE 3 X 25 X 1600MM V1.02.05
Price
N/A
36-1V2
FOAM TAPE 3 X 25 X 1400MM V2.11.09
Price
N/A
36-4V2
486mm Canister Filter with Foam Tape
Price
N/A
36AV2
Canister Assembly for G0441
Price
N/A
36AV3
CANISTER ASSEMBLY (BEIGE) V3.07.12
Price
N/A
36B
COMPLETE CANISTER ASSY BOX 2/BOX 3
Price
$825.95
36V2
GREEN CANISTER CAGE ASSY V2.11.09
Price
N/A
36V3
CANISTER CAGE ASSY (BEIGE) V3.07.12
Price
N/A
37
BAG CLAMP 510MM V1.06.05
Price
N/A
37V2
BAG CLAMP 545MM V2.11.09
Price
N/A
38
Collection Bag for G0441, 510mm x 600mm
Price
N/A
38V2
Collection Bag for G0441, 510mm x 600mm
Price
N/A
39
FOAM TAPE 3 X 6 X 1600MM
Price
N/A
40
INTAKE CYLINDER 12"
Price
N/A
41
P0601041
Now: PW07
FLAT WASHER 5/16
Price
N/A
42
P0601042
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
43
BARREL GASKET 686MM DIA.
Price
N/A
44
P0601044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
P0601045
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
BARREL GASKET 686MM DIA.
Price
N/A
47
CYCLONE FUNNEL V1.02.05
Price
N/A
47V2
CYCLONE FUNNEL V2.08.10
Price
$791.55
47V3
CYCLONE FUNNEL V3.07.20
Price
N/A
48
P0601048
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
49
INTAKE BARREL V2.07.20
Price
N/A
49V2
INTAKE BARREL V2.07.20
Price
N/A
50
P0601050
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
P0601051
Now: PN02
HEX NUT 5/16-18
Price
N/A
52
HOSE CLAMP 9"
Price
N/A
53
CLEAR FLEX PIPE 9" X 260MM
Price
N/A
54
COLLECTION DRUM LID V2.08.06
Price
N/A
54-1
DRUM LID HOOK
Price
N/A
54-2
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
54V2
COLLECTION DRUM LID V2.07.20
Price
N/A
55
*DISCD*DRUM LID GASKET 5 X 50MM V1.02.05
Price
N/A
55V2
DRUM SEAL TYPE-R 2M V2.11.09
Price
N/A
56
UPPER DRUM 25GAL V1
Price
N/A
56V2
UPPER DRUM 25GAL V2.07.20
Price
N/A
57
COLLECTION DRUM 35GAL V1.02.05
Price
N/A
57AV2
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
N/A
57AV3
COLLECTION DRUM ASSY 55GAL V3.07.20
Price
N/A
57V2
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
57V2A
COLLECTION DRUM ASSY 35GAL V2.08.10
Price
N/A
58
DRUM CLAMP
Price
N/A
59
P0601059
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
60
P0601060
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
DRUM LID LATCH
Price
N/A
62
P0601062
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
63
P0601063
Now: PN07
HEX NUT 10-24
Price
N/A
64
P0601064
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
65
P0601065
Now: PN07
HEX NUT 10-24
Price
N/A
66
CASTER 2"
Price
N/A
67
P0601067
Now: PN08
HEX NUT 3/8-16
Price
N/A
68
LOCK WASHER 3/8
Price
N/A
69
P0601069
Now: PW02
FLAT WASHER 3/8
Price
N/A
70
COLLECTOR MOUNTING BRACKET V1
Price
N/A
70V2
COLLECTOR MOUNTING BRACKET V2.07.20
Price
N/A
71
P0601071
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
72
P0601072
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
LOCK NUT 5/16-18
Price
N/A
74
P0601074
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
75
P0601075
Now: PW02
FLAT WASHER 3/8
Price
N/A
76
P0601076
Now: PN08
HEX NUT 3/8-16
Price
N/A
77
UPPER STAND BRACE
Price
N/A
77A
COMPLETE STAND ASSY BOX 4
Price
$645.75
77V2
UPPER STAND BRACE V2.07.20
Price
N/A
78
UPPER STAND LEG V1.02.05
Price
N/A
78V2
UPPER STAND LEG V2.08.10
Price
N/A
78V3
UPPER STAND LEG V3.07.20
Price
N/A
79
P0601079
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
80
P0601080
Now: PW02
FLAT WASHER 3/8
Price
N/A
81
P0601081
Now: PN08
HEX NUT 3/8-16
Price
N/A
82
*DISCD*STAND BRACE LOWER V1
Price
N/A
82V2
LOWER STAND BRACE V2.07.20
Price
N/A
83
P0601083
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
84
P0601084
Now: PW02
FLAT WASHER 3/8
Price
N/A
85
P0601085
Now: PN08
HEX NUT 3/8-16
Price
N/A
86
LOWER STAND LEG V1.02.05
Price
N/A
86V2
LOWER STAND LEG V2.08.10
Price
N/A
86V3
LOWER STAND LEG V3.07.20
Price
N/A
87
P0601087
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
88
P0601088
Now: PW02
FLAT WASHER 3/8
Price
N/A
89
P0601089
Now: PN08
HEX NUT 3/8-16
Price
N/A
90
REDUCER 10" TO 8"
Price
N/A
91
TAP SCREW M4 X 12
Price
N/A
92
MOTOR SPEC LABEL
Price
$18.15
93
MOTOR WARNING LABEL
Price
N/A
94
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
95
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
96
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
97
RETURN RED HANDLE LABEL
Price
N/A
98
ELECTRICITY 1.4W X 1.2H
Price
N/A
99
MACHINE ID LABEL V1
Price
$16.40
99V2
MACHINE ID LABEL CSA V2.01.12
Price
$16.40
100
*DISCD*STAND SWITCH BRACKET V1
Price
N/A
100V2
***USE P0442100V2***
Price
$28.75
101
MODEL NUMBER LABEL
Price
$18.15
102
HORSEPOWER LABEL
Price
N/A
103
POWER CORD 12G 4W
Price
$35.05
104
EXT TOOTH WASHER 1/2
Price
N/A
105
FOAM TAPE 3 X 15 X 700MM
Price
N/A
106
NOISE MUFFLER 8"
Price
N/A
107
GASKET 35 X 38 X 1570MM V2.11.09
Price
N/A
107V2
GASKET 20 X 35 X 1460MM V2.07.11
Price
N/A
108
***USE P0637006-1***
Price
N/A
109
CYCLONE VACUUM TUBE
Price
N/A
110
P0601110
Now: PW07
FLAT WASHER 5/16
Price
N/A
111
P0601111
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
112
TUBE PLUG 1-1/4"
Price
N/A
113
FOAM TAPE 3 X 6 X 300MM
Price
N/A
114
VACUUM HOSE 1-1/4" X 98"
Price
N/A
115
COLLECTION DRUM VACUUM TUBE
Price
N/A
116
P0601116
Now: PW07
FLAT WASHER 5/16
Price
N/A
117
P0601117
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
118
HOSE CLAMP 1-1/4"
Price
N/A
119
TUBE PLUG 1-1/4"
Price
N/A
120
FOAM TAPE 3 X 6 X 300MM
Price
N/A
121
VACUUM HOSE CLIP 2-1/2"
Price
N/A
122
COLLECTION DRUM VACUUM RING
Price
N/A
123
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
124
GREEN GROUNDING WIRE 12G 6"
Price
N/A
125
***USE P0442125***
Price
$2.30
126
***USE P0442126***
Price
$13.55
127
HEX BOLT 3/8-16 X 11
Price
N/A
128
CYCLONE FUNNEL ADAPTER
Price
N/A
129
P0601129
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
130
DRUM LID CONNECTING PLATE
Price
N/A
131
COLLECTION LID HANDLE
Price
N/A
132
DRUM LID SPRING
Price
N/A
1321V3
CONVERSION KIT 440V 2 RELAY V3.09.08
Price
N/A
133
***USE P0441099***
Price
N/A
134
***USE P0441115***
Price
N/A
135
P0601135
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
136
P0601136
Now: PN40
ACORN NUT 5/16-18
Price
N/A
137
COLLECTION DRUM HANDLE PLASTIC
Price
N/A
138
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
139
HANDLE HOOK
Price
N/A
140
HANDLE HOOK BRACKET
Price
N/A
141
FENDER WASHER 5/16
Price
N/A
142
FLAT WASHER 3/8 THIN
Price
N/A
152
CONTROL BOX CORD 12G 4W 650MM
Price
$32.80
24
P060124
Now: PW07
FLAT WASHER 5/16
Price
N/A
MANUAL
MAN FOR G0442/G0601 MFD-11/09-7/10 V1.
Price
N/A
MANV2
MAN G0442/G0601 MFD-8/10-12/11 V2.08.10
Price
N/A
MANV3
MAN G0442/G0601 MFD 03/12-06/20 V3.10.13
Price
N/A
