Parts for G0602 - 10" x 22" Benchtop Metal Lathe

Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602
Part Diagram for G0602

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

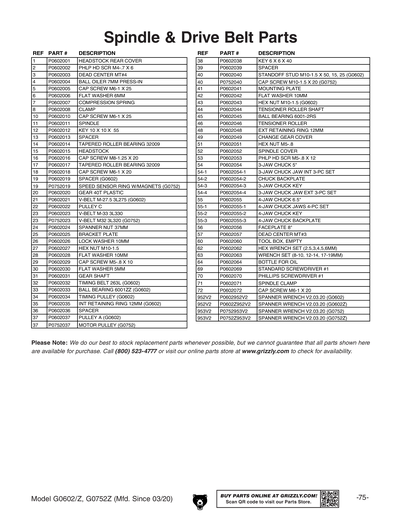

Ref #
Part #
Description

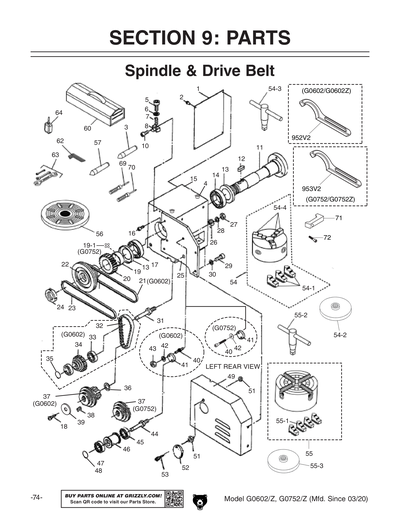

1
HEADSTOCK REAR COVER
Price
$46.40
2
PHLP HD SCR M4-.7 X 6
Price
N/A
3
DEAD CENTER MT#4
Price
$33.45
4
BALL OILER 7MM PRESS-IN
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
FLAT WASHER 6MM
Price
N/A
7
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
8
CLAMP
Price
$9.00
10
CAP SCREW M6-1 X 25
Price
N/A
11
SPINDLE
Price
$213.90
12
KEY 10 X 10 X 55
Price
N/A
13
SPACER
Price
$11.65
14
TAPERED ROLLER BEARING 32009
Price
N/A
15
HEADSTOCK
Price
$440.65
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
TAPERED ROLLER BEARING 32009
Price
N/A
18
CAP SCREW M6-1 X 20
Price
N/A
19
SPACER
Price
$9.00
20
GEAR 40T PLASTIC
Price
$49.25
21
V-BELT M27.5 3L275
Price
N/A
22
PULLEY C
Price
$102.85
23
V-BELT M33 3L330
Price
N/A
24
SPANNER NUT 37MM
Price
$14.75
25
BRACKET PLATE
Price
$144.90
26
LOCK WASHER 10MM
Price
N/A
27
HEX NUT M10-1.5
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
CAP SCREW M5-.8 X 10
Price
N/A
30
FLAT WASHER 5MM
Price
N/A
31
GEAR SHAFT
Price
$13.70
32
TIMING BELT 263L
Price
$31.35
33
BALL BEARING 6001ZZ
Price
N/A
34
TIMING PULLEY
Price
$129.40
35
INT RETAINING RING 12MM
Price
N/A
36
SPACER
Price
$4.70
37
PULLEY A
Price
$80.25
38
KEY 6 X 6 X 40
Price
N/A
39
SPACER
Price
$2.60
40
STANDOFF STUD M10-1.5 X 50, 15, 25
Price
$4.35
41
MOUNTING PLATE
Price
$9.00
42
FLAT WASHER 10MM
Price
N/A
43
HEX NUT M10-1.5
Price
N/A
44
TENSIONER ROLLER SHAFT
Price
$8.35
45
BALL BEARING 6001-2RS
Price
N/A
46
TENSIONER ROLLER
Price
$15.85
47
INT RETAINING RING 28MM
Price
N/A
48
EXT RETAINING RING 12MM
Price
N/A
49
CHANGE GEAR COVER
Price
$164.95
51
HEX NUT M5-.8
Price
N/A
52
SPINDLE COVER
Price
$9.40
53
PHLP HD SCR M5-.8 X 12
Price
N/A
54
3-JAW CHUCK 5"
Price
$401.10
54-1
3-JAW CHUCK JAW INT 3-PC SET
Price
$173.95
54-2
CHUCK BACKPLATE
Price
$73.70
54-3
LATHE CHUCK KEY 9.75MM STD
Price
$20.15
54-4
3-JAW CHUCK JAW EXT 3-PC SET
Price
$156.00
54A
3-JAW CHUCK JAW INT 3-PC SET
Price
N/A
55
4-JAW CHUCK 6.5"
Price
$467.95
55-1
4-JAW CHUCK JAWS 4-PC SET
Price
$156.00
55-2
4-JAW CHUCK KEY
Price
$19.45
55-3
4-JAW CHUCK BACKPLATE
Price
$69.40
56
FACEPLATE 8"
Price
$111.45
57
DEAD CENTER MT#3
Price
$26.75
58
MACHINE ID LABEL
Price
N/A
59
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
60
TOOL BOX, EMPTY
Price
N/A
61
COMPLETE TOOL BOX ASSEMBLY
Price
N/A
62
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
N/A
63
WRENCH SET (8-10, 12-14, 17-19MM)
Price
N/A
64
BOTTLE FOR OIL
Price
N/A
65
READ MANUAL LABEL ALUMINUM
Price
$5.35
66
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
67
SHIFT NOTICE LABEL
Price
N/A
68
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
69
STANDARD SCREWDRIVER #1
Price
$8.95
69A
SCREWDRIVER PHILLIPS #2
Price
N/A
70
PHILLIPS SCREWDRIVER #1
Price
$8.95
71
SPINDLE CLAMP
Price
N/A
72
CAP SCREW M6-1 X 20
Price
N/A
101
ROLL PIN 4 X 14
Price
N/A
102
HALF-NUT 2-PC
Price
$60.40
103
DOWEL PIN 5 X 12
Price
$2.60
104
GEAR SHAFT
Price
$29.00
105
GEAR
Price
$27.00
106
ROLL PIN 4 X 30
Price
N/A
107
APRON CASTING
Price
$156.90
108
CAP SCREW M4-.7 X 12
Price
N/A
109
HALF-NUT GIB
Price
$8.95
110
DOWEL PIN 4 X 16
Price
$1.90
111
SET SCREW M5-.8 X 16
Price
N/A
112
SET SCREW M6-1 X 25
Price
N/A
113
HEX NUT M5-.8
Price
N/A
114
SET SCREW M6-1 X 12
Price
N/A
115
HALF-NUT LEVER HUB
Price
$17.65
116
HALF-NUT LEVER STUD
Price
$6.15
117
HALF-NUT LEVER HANDLE
Price
$15.85
118
STEEL BALL 5MM
Price
N/A
119
CAP SCREW M6-1 X 6
Price
N/A
120
THREAD DIAL
Price
$6.15
121
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
122
POINTER
Price
$2.25
123
SHAFT
Price
$11.90
124
KEY 3 X 3 X 10
Price
N/A
125
CAP SCREW M6-1 X 55
Price
N/A
126
THREAD DIAL BODY
Price
$31.35
126-1
THREAD DIAL ASSY
Price
$89.15
127
SIDE GEAR 48T
Price
$26.75
128
FLAT WASHER 8MM
Price
N/A
129
HEX NUT M8-1.25
Price
N/A
130
SET SCREW M6-1 X 6
Price
N/A
131
COMPRESSION SPRING
Price
$2.25
132
HANDLE W/OUT SHAFT 10, 21 X 75
Price
$13.70
132-1
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
$13.70
133
CARRIAGE HANDWHEEL V1
Price
$40.25
133V2
CARRIAGE HANDWHEEL
Price
N/A
134
ROLL PIN 4 X 24
Price
N/A
134V2
SET SCREW M6-1 X 12
Price
N/A
135
SET SCREW M6-1 X 12 CONE-PT
Price
N/A
136
GEAR SHAFT V1
Price
$19.85
136V2
GEAR SHAFT
Price
N/A
137
FLAT HD SCR M6-1 X 10
Price
N/A
138
FLAT WASHER 6MM
Price
N/A
139
HALF-NUT INDICATOR PLATE
Price
$2.60
140
LOCK CAM SHAFT
Price
$6.15
141
THREADED DIAL PLATE
Price
$7.65
142
HALF-NUT BRACKET
Price
$13.40
143
PLATE SPRING
Price
N/A
144
GRADUATED DIAL
Price
N/A
145
ROLL PIN 5 X 12
Price
N/A
146
KEY 3 X 3 X 12
Price
N/A
201
COMPOUND REST
Price
$80.50
201A
COMPOUND REST ASSEMBLY
Price
$378.85
202
SWIVEL BASE
Price
$84.85
203
COMPOUND REST GIB
Price
$11.20
204
CLAMPING RING
Price
$27.00
205
GRADUATED DIAL
Price
$28.10
206
BARREL NUT
Price
$4.70
207
DOWEL PIN
Price
$4.70
208
TOOL POST BOLT
Price
$11.65
209
FLAT WASHER 8MM
Price
N/A
210
DOWEL PIN
Price
$2.25
211
COMPRESSION SPRING
Price
$2.60
212
BULLNOSE CAP SCR M8-1.25 X 29
Price
$1.90
213
CAP SCREW M6-1 X 25
Price
N/A
214
CAP SCREW M6-1 X 12
Price
N/A
215
SET SCREW M5-.8 X 16
Price
N/A
216
HEX NUT M5-.8
Price
N/A
217
HEX BOLT M8-1.25 X 30
Price
N/A
217A
SET SCREW M8-1.25 X 30
Price
N/A
217A-1
HEX NUT M8-1.25
Price
N/A
218
TOOL POST HANDLE
Price
$7.15
219
TOOL POST HANDLE HUB
Price
$6.15
220
TOOL REST
Price
$71.35
220A
4-WAY TOOL POST ASSEMBLY
Price
$89.15
221
HUB SPACER
Price
$1.90
222
TOOL REST SLIDE PLATE
Price
$9.00
223
COMPOUND REST LEADSCREW
Price
$40.25
224
LEADSCREW MOUNT
Price
$20.15
225
GRADUATED DIAL
Price
$13.70
226
COMPOUND REST HANDWHEEL
Price
$20.15
227
COMPOUND HANDWHEEL HANDLE
Price
$9.00
228
KEY 3 X 3 X 8
Price
N/A
229
POINTER
Price
$2.60
230
THREADED COLLAR
Price
$6.90
231
SET SCREW M8-1.25 X 6
Price
N/A

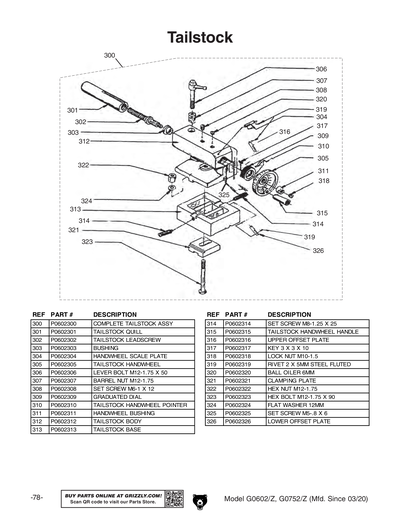

300
COMPLETE TAILSTOCK ASSY
Price
$481.60
301
TAILSTOCK QUILL
Price
$87.00
302
TAILSTOCK LEADSCREW
Price
$44.60
303
BUSHING
Price
$6.15
304
HANDWHEEL SCALE PLATE
Price
$2.60
305
TAILSTOCK HANDWHEEL
Price
$44.60
306
LEVER BOLT M12-1.75 X 50
Price
$8.95
307
FLAT WASHER 12MM
Price
N/A
308
SET SCREW M6-1 X 12
Price
N/A
309
***USE P0602205***
Price
$7.20
310
TAILSTOCK HANDWHEEL POINTER
Price
$2.60
311
HANDWHEEL BUSHING
Price
$2.70
312
TAILSTOCK BODY
Price
$187.20
313
TAILSTOCK BASE
Price
$60.20
314
SET SCREW M8-1.25 X 25
Price
N/A
315
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
316
UPPER OFFSET PLATE
Price
$2.25
317
KEY 3 X 3 X 10
Price
N/A
318
***USE PLN05M***
Price
$1.50
319
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
320
BALL OILER 6MM PRESS-IN
Price
N/A
321
CLAMPING PLATE
Price
$13.70
322
HEX NUT M12-1.75
Price
N/A
323
HEX BOLT M12-1.75 X 90
Price
N/A
324
FLAT WASHER 12MM
Price
N/A
325
SET SCREW M5-.8 X 6
Price
N/A
326
LOWER OFFSET PLATE
Price
$2.25
329
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
330
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
331
ADJUSTABLE HANDLE ASSEMBLY
Price
$16.20
332
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
N/A

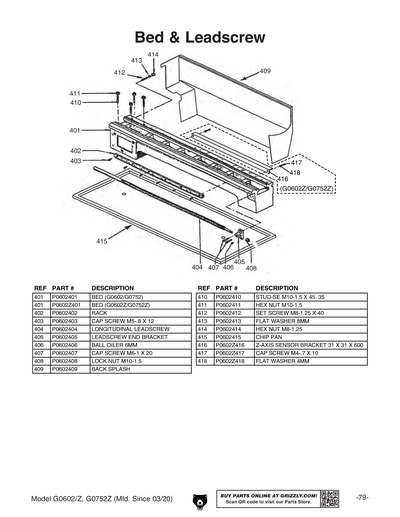

401
BED
Price
$753.25
402
RACK V2
Price
N/A
402V2
RACK V2
Price
$122.60
403
CAP SCREW M5-.8 X 12
Price
N/A
404
LONGITUDINAL LEADSCREW
Price
$138.20
405
LEADSCREW END BRACKET
Price
$29.15
406
BALL OILER 6MM PRESS-IN
Price
N/A
407
CAP SCREW M6-1 X 20
Price
N/A
408
LOCK NUT M10-1.5
Price
N/A
409
BACK SPLASH
Price
$245.15
410
STUD-SE M10-1.5 X 45, 35
Price
$1.90
411
HEX NUT M10-1.5
Price
N/A
412
SET SCREW M8-1.25 X 40
Price
N/A
413
FLAT WASHER 8MM
Price
N/A
414
HEX NUT M8-1.25
Price
N/A
415
CHIP PAN
Price
$178.25

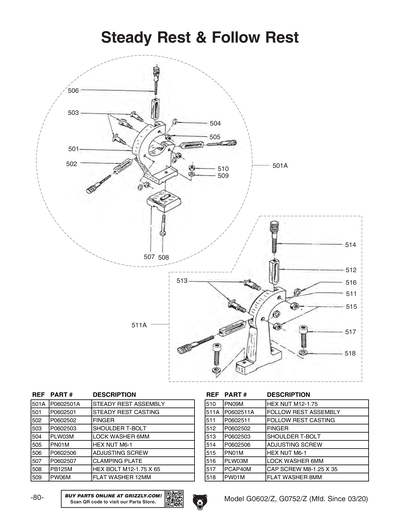

501
STEADY REST CASTING
Price
$96.00
501A
STEADY REST ASSEMBLY
Price
$182.95
502
FINGER
Price
$20.15
503
SHOULDER T-BOLT
Price
$6.10
504
LOCK WASHER 6MM
Price
N/A
505
HEX NUT M6-1
Price
N/A
506
ADJUSTING SCREW
Price
$9.00
507
CLAMPING PLATE
Price
$31.25
508
HEX BOLT M12-1.75 X 65
Price
N/A
509
FLAT WASHER 12MM
Price
N/A
510
HEX NUT M12-1.75
Price
N/A
511
FOLLOW REST CASTING
Price
$164.95
511A
FOLLOW REST ASSEMBLY
Price
$165.00
512
FINGER
Price
N/A
513
SHOULDER T-BOLT
Price
N/A
514
ADJUSTING SCREW
Price
N/A
515
HEX NUT M6-1
Price
N/A
516
LOCK WASHER 6MM
Price
N/A
517
CAP SCREW M8-1.25 X 35
Price
N/A
518
FLAT WASHER 8MM
Price
N/A

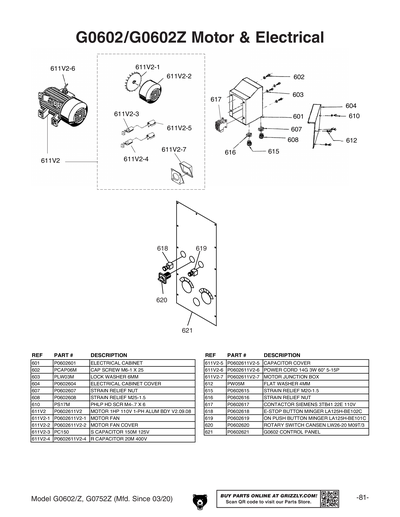

601
ELECTRICAL CABINET
Price
$58.25
602
CAP SCREW M6-1 X 25
Price
N/A
603
LOCK WASHER 6MM
Price
N/A
604
ELECTRICAL CABINET COVER
Price
$23.40
607
STRAIN RELIEF TYPE-3 M18-1.5 ST
Price
$4.30
608
STRAIN RELIEF TYPE-3 M24 - 1.5 ST
Price
$6.10
610
PHLP HD SCR M4-.7 X 6
Price
N/A
611
*DISCD*MOTOR CAST IRON BODY V1.12.06
Item is no longer available
Price
N/A
611-1
*DISCD*FAN V1.12.06
Item is no longer available
Price
N/A
611-2
*DISCD*FAN COVER V1.12.06
Item is no longer available
Price
N/A
611-3
*DISCD*S CAPACITOR 150M 250V V1.12.06
Item is no longer available
Price
N/A
611-4
*DISCD*R CAPACITOR 20M 400V V1.12.06
Item is no longer available
Price
N/A
611-5
*DISCD*CAPACITOR COVER W/CAP V1.12.06
Item is no longer available
Price
N/A
611-6
*DISCD*POWER CORD V1.12.06
Item is no longer available
Price
N/A
611A
MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08
Price
N/A
611V2
MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08
Price
$639.40
611V2-1
MOTOR FAN V2.09.08
Price
$40.25
611V2-2
MOTOR FAN COVER V2.09.08
Price
$29.15
611V2-3
S CAPACITOR 150M 125V 1-5/16 X 2-3/4
Price
N/A
611V2-4
R CAPACITOR 20M 450V V2.09.08
Price
N/A
611V2-5
*DISCD*CAPACITOR COVER V2.09.08
Item is no longer available
Price
N/A
611V2-6
POWER CORD 14G 3W 60" 5-15P
Price
$29.15
611V2-7
MOTOR JUNCTION BOX
Price
$23.40
612
FLAT WASHER 4MM
Price
N/A
615
STRAIN RELIEF M20-1.5
Price
$6.15
616
STRAIN RELIEF NUT
Price
$3.25
617
CONTACTOR SIEMENS 3TB41 22E 110V V1
Price
$98.15
618
E-STOP BUTTON MINGER LA125H-BE102C
Price
$49.25
619
ON PUSH BUTTON MINGER LA125H-BE101C
Price
$42.45
620
ROTARY SWITCH CANSEN LW26-20 M09T/3
Price
$66.90
621
CONTROL PANEL
Price
$51.25

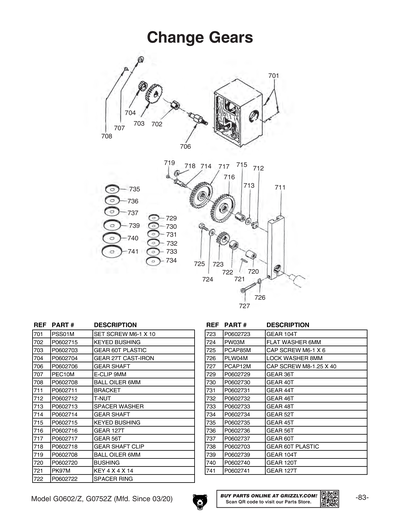

701
SET SCREW M6-1 X 10
Price
N/A
702
BUSHING
Price
N/A
703
GEAR 60T PLASTIC
Price
$20.50
704
GEAR 27T CAST-IRON
Price
$27.00
706
GEAR SHAFT
Price
$7.50
707
E-CLIP 9MM
Price
N/A
708
BALL OILER 6MM PRESS-IN
Price
N/A
711
BRACKET
Price
$53.50
712
T-NUT
Price
$4.50
713
SPACER WASHER
Price
$2.60
714
GEAR SHAFT
Price
$13.70
715
KEYED BUSHING
Price
$5.85
716
GEAR 127T
Price
$57.95
717
GEAR 56T
Price
$40.25
718
GEAR SHAFT CLIP
Price
$2.60
719
BALL OILER 6MM PRESS-IN
Price
N/A
720
BUSHING
Price
$7.65
721
KEY 4 X 4 X 14
Price
N/A
722
SPACER RING
Price
$8.35
723
GEAR 104T
Price
$53.50
724
FLAT WASHER 6MM
Price
N/A
725
CAP SCREW M6-1 X 6
Price
N/A
726
LOCK WASHER 8MM
Price
N/A
727
CAP SCREW M8-1.25 X 40
Price
N/A
728
GEAR 36T
Price
$17.65
729
GEAR 36T
Price
$27.00
730
GEAR 40T
Price
$31.35
731
GEAR 44T
Price
$31.35
732
GEAR 46T
Price
$31.35
733
GEAR 48T
Price
$38.15
734
GEAR 52T
Price
$33.45
735
GEAR 45T
Price
$27.00
736
GEAR 56T
Price
$40.25
737
GEAR 60T
Price
$35.70
738
GEAR 60T PLASTIC
Price
N/A
739
GEAR 104T
Price
$44.60
740
GEAR 120T
Price
$62.60
741
GEAR 127T
Price
N/A
801
PLUG
Price
$3.25
802
O-RING 1.8 X 6.7
Price
N/A
803
BUSHING
Price
$8.35

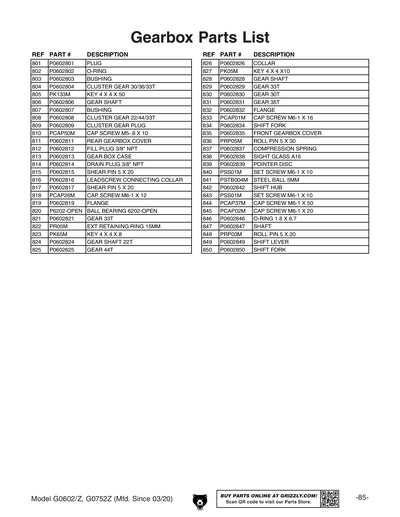

804
CLUSTER GEAR 30/36/33T
Price
$78.00
805
KEY 4 X 4 X 50
Price
N/A
806
GEAR SHAFT
Price
$37.95
807
BUSHING
Price
$8.35
808
CLUSTER GEAR 22/44/33T
Price
$66.90
809
CLUSTER GEAR PLUG
Price
$3.25
810
CAP SCREW M5-.8 X 10
Price
N/A
811
REAR GEARBOX COVER
Price
$40.65
812
FILL PLUG 3/8" NPT
Price
$3.25
813
GEAR BOX CASE
Price
$173.95
813A
COMPLETE GEAR BOX
Price
$779.90
814
DRAIN PLUG 3/8" NPT
Price
$3.25
815
SHEAR PIN 5 X 20
Price
$4.70
816
LEADSCREW CONNECTING COLLAR
Price
$11.65
817
SHEAR PIN 5 X 20
Price
N/A
818
CAP SCREW M6-1 X 12
Price
N/A
819
FLANGE
Price
$11.90
820
BALL BEARING 6202-OPEN
Price
N/A
821
GEAR 33T
Price
$24.60
822
EXT RETAINING RING 15MM
Price
N/A
823
KEY 4 X 4 X 8
Price
N/A
824
GEAR SHAFT 22T
Price
$40.15
825
GEAR 44T
Price
$31.25
826
COLLAR
Price
$8.95
827
KEY 4 X 4 X 10
Price
N/A
828
GEAR SHAFT
Price
$13.40
829
GEAR 33T
Price
$24.60
830
GEAR 30T
Price
$24.60
831
GEAR 35T
Price
$24.60
832
FLANGE
Price
$14.75
833
CAP SCREW M6-1 X 16
Price
N/A
834
SHIFT FORK
Price
$9.40
835
FRONT GEARBOX COVER
Price
$93.85
836
ROLL PIN 5 X 30
Price
N/A
837
COMPRESSION SPRING
Price
$2.60
838
SIGHT GLASS A16
Price
$4.70
839
POINTER DISC
Price
$4.70
840
SET SCREW M6-1 X 10
Price
N/A
841
STEEL BALL 5MM
Price
N/A
842
SHIFT HUB
Price
$18.00
843
SET SCREW M6-1 X 10
Price
N/A
844
CAP SCREW M6-1 X 50
Price
N/A
845
CAP SCREW M6-1 X 20
Price
N/A
846
O-RING 1.8 X 6.7
Price
$2.60
847
SHAFT
Price
$6.15
848
ROLL PIN 5 X 20
Price
N/A
849
SHIFT LEVER
Price
$6.90
850
SHIFT FORK
Price
$9.75
851
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
852
ON PUSH BUTTON MINGER LA125H-BE101C
Price
N/A
853
ROTARY SWITCH CANSEN LW26-20 M09T/3
Price
N/A
854
CONTROL PANEL
Price
N/A
855
READ MANUAL 1.5W X 2.5H
Price
N/A
856
DISCONNECT 110V 1.5W X 2.5H
Price
N/A

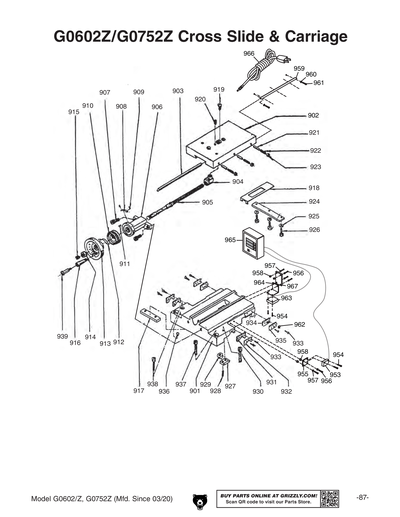

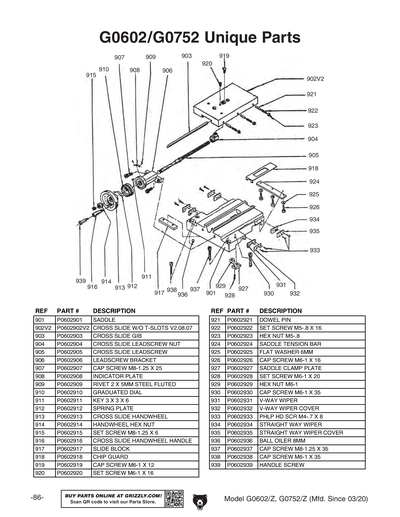

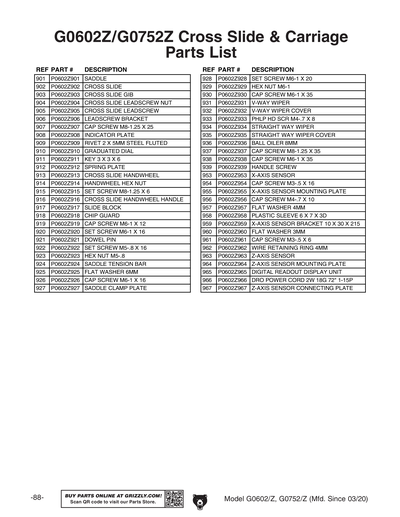

901
SADDLE
Price
$267.40
902
*DISCD*CROSS SLIDE W/T-SLOTS V1.12.06
Item is no longer available
Price
N/A
902A
CROSS SLIDE W/O T-SLOTS V2.08.07
Price
$151.60
902V2
CROSS SLIDE W/O T-SLOTS V2.08.07
Price
N/A
903
CROSS SLIDE GIB
Price
$18.00
904
CROSS SLIDE LEADSCREW NUT
Price
$47.15
905
CROSS SLIDE LEADSCREW
Price
$80.50
906
LEADSCREW BRACKET
Price
$38.15
907
CAP SCREW M8-1.25 X 25
Price
N/A
908
INDICATOR PLATE
Price
$2.60
909
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
910
GRADUATED DIAL
Price
$19.10
911
KEY 3 X 3 X 6
Price
N/A
912
SPRING PLATE
Price
$2.25
913
CROSS SLIDE HANDWHEEL
Price
$35.70
914
HANDWHEEL HEX NUT
Price
$2.25
915
SET SCREW M8-1.25 X 6
Price
N/A
916
CROSS SLIDE HANDWHEEL HANDLE
Price
$13.70
917
SLIDE BLOCK
Price
$13.70
918
CHIP GUARD
Price
$15.65
919
CAP SCREW M6-1 X 12
Price
N/A
920
SET SCREW M6-1 X 16
Price
N/A
921
DOWEL PIN
Price
$2.90
922
SET SCREW M5-.8 X 16
Price
N/A
923
HEX NUT M5-.8
Price
N/A
924
SADDLE TENSION BAR
Price
$13.70
925
FLAT WASHER 6MM
Price
N/A
926
CAP SCREW M6-1 X 16
Price
N/A
927
SADDLE CLAMP PLATE
Price
$4.10
928
SET SCREW M6-1 X 20
Price
N/A
929
HEX NUT M6-1
Price
N/A
930
CAP SCREW M6-1 X 35
Price
N/A
931
V-WAY WIPER
Price
$4.50
932
V-WAY WIPER COVER
Price
$4.70
933
PHLP HD SCR M4-.7 X 8
Price
N/A
934
STRAIGHT WAY WIPER
Price
$4.50
935
STRAIGHT WAY WIPER COVER
Price
$4.10
936
BALL OILER 8MM
Price
$2.25
937
CAP SCREW M8-1.25 X 35
Price
N/A
938
CAP SCREW M6-1 X 35
Price
N/A
939
HANDLE SCREW
Price
$9.00
940

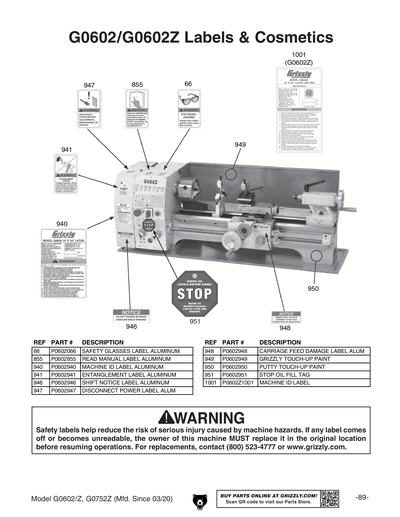

MACHINE ID LABEL
Price
$16.40
941
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
942
TOOL BOX, EMPTY
Price
$51.45
942A
COMPLETE TOOL BOX ASSEMBLY
Price
$347.90
943
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
$37.95
944
WRENCH SET (8-10, 12-14, 17-19MM)
Price
$44.60
945
BOTTLE FOR OIL
Price
$4.90
946
SHIFT NOTICE LABEL
Price
$2.20
947
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
948
CARRIAGE FEED DAMAGE LABEL
Price
$6.70
949
N/S GRIZZLY GREEN G1023S
Price
N/A
950
GREY PUTTY REF G0504
Price
N/A
951
STOP OIL FILL TAG
Price
$9.00
952
*DISCD*SPANNER WRENCH STRAIGTH
Item is no longer available
Price
N/A
952V2
SPANNER WRENCH V2.03.20 (G0602)
Price
$19.20
954
FLAT WASHER 8MM
Price
N/A
955
THRUST BEARING 51100
Price
N/A
MANUAL
MANUAL FOR G0602 MFG 10.06 V1.11.06
Price
N/A
MANV1
MANUAL FOR G0602 MFG 10.06 V1.11.06
Price
$16.00
MANV10
MANUAL G0602/Z/G0752/Z 05.24+ V10.05.24
Price
$15.20
MANV2
MANUAL FOR G0602 MFG 10.06 V2.04.07
Price
$12.50
MANV3
MANUAL FOR G0602 MFG 10.06 V3.03.09
Price
$12.50
MANV4
MANUAL FOR G0602 MFG 10.06 V4.08.10
Price
$13.00
MANV5
MANUAL FOR G0602 MFG 09.08 V5.04.11
Price
$13.00
MANV6
MANUAL FOR G0602 MFG 09.08 V6.05.11
Price
$13.00
MANV7
MANUAL FOR G0602 MFG 09.08 V7.07.11
Price
$13.00
MANV8
MANUAL G0602/G0752 MFG 11.12 V8.03.13
Price
$14.65
MANV9
MANUAL G0602/Z/G0752/Z 03.20-04.24 V9.04
Price
$23.00
Z617V2
CONTACTOR SIEMEN 3TH82 62E 110V V2.01.21
Price
N/A
ZMANV10
MANUAL G0602/Z/G0752/Z 05.24+ V10.05.24
Price
N/A
