Parts for G0603X 25" 15 HP 3-Phase Extreme-Series Planer w/ Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

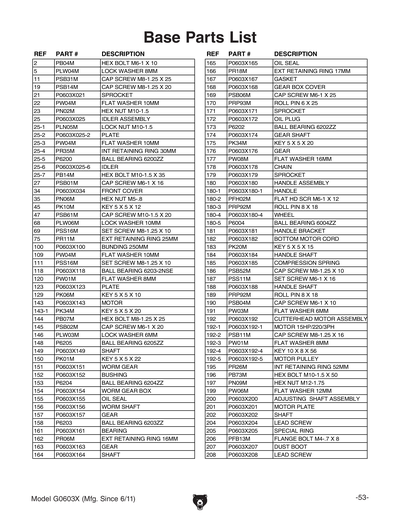

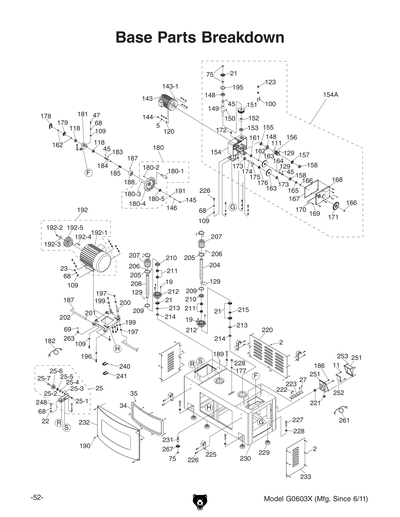

1
DUST COVER
2
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
3
DEFLECTION PLATE
4
CAP SCREW M8-1.25 X 30
Price
N/A
5
LOCK WASHER 8MM
Price
N/A
6
HINGE
7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
8
COVER TOP
9
PAD
10
HANDLE
11
CAP SCREW M8-1.25 X 25
Price
N/A
12
Now: PW03M
FLAT WASHER 6MM
Price
N/A
13
CAP SCREW M5-.8 X 12
Price
N/A
14
LOCK WASHER 5MM
Price
N/A
15
GAS SPRING MOUNT
16
SPROCKET MOUNT
17
CAP SCREW M10-1.5 X 35
Price
N/A
18
Now: PN06M
HEX NUT M5-.8
Price
N/A
19
CAP SCREW M8-1.25 X 20
Price
N/A
20
SPROCKET BOLT
21
SPROCKET 13T
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
Now: PN02M
HEX NUT M10-1.5
Price
N/A

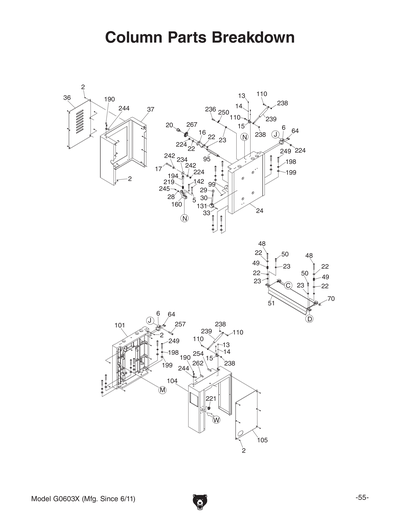

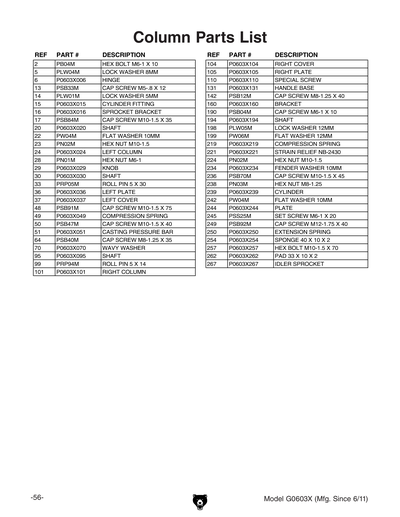

24
COLUMN LEFT
25
IDLER ASSEMBLY
25-1
LOCK NUT M10-1.5
Price
N/A
25-2
PLATE
25-3
Now: PW04M
FLAT WASHER 10MM
Price
N/A
25-4
Now: PR35M
INT RETAINING RING 30MM
Price
N/A
25-5
BALL BEARING 6200ZZ
Price
N/A
25-6
IDLER
25-7
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
26
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
27
CAP SCREW M6-1 X 16
Price
N/A
28
Now: PN01M
HEX NUT M6-1
Price
N/A
29
KNOB 3/8-16, D1-1/4, TAPERED
30
SHAFT 3/8-16, 5-7/8L
31
EXTENSION WING
32
ROLL PIN 5 X 20
Price
N/A
33
ROLL PIN 5 X 30
Price
N/A
34
COVER FRONT
Price
N/A
35
Now: PN06M
HEX NUT M5-.8
Price
N/A
36
PLATE LEFT
37
COVER LEFT
38
SET SCREW M10-1.5 X 20
Price
N/A
39
SET SCREW M6-1 X 30
Price
N/A
40
DUST PORT
41
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
42
PLATE
43
BEARING BLOCK
44
REAR ROLLER
45
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
CAP SCREW M10-1.5 X 20
Price
N/A
48
CAP SCREW M10-1.5 X 75
Price
N/A
49
COMPRESSION SPRING 3 X 20 X 35.5
50
CAP SCREW M10-1.5 X 40
Price
N/A
51
CASTING PRESSURE BAR
52
SPROCKET 22T
53
Now: PR43M
EXT RETAINING RING 50MM
Price
N/A
54
LONG REAR ROLLER
55
BALL BEARING 6007-2NSE
Price
N/A
56
BALL BEARING 6210-2NSE
57
KEY 8 X 7 X 35
Price
N/A
58
SPIRAL CUTTER ASSEMBLY
58-1
SPIRAL CUTTERHEAD
58-2
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
58-3
Now: PFH40
FLAT HD TORX SCR T-25 #10-32 X 1/2
Price
N/A
59
WAVY WASHER 6MM
Price
N/A
60
CAP SCREW M5-.8 X 10
Price
N/A
61
RUBBER PIN
62
BRACKET HEX BOLT
63
BALL BEARING 6206-2NSE
Price
N/A
64
CAP SCREW M8-1.25 X 35
Price
N/A
65
FENDER WASHER 10MM
Price
N/A
66
CUTTERHEAD PULLEY
67
BUSHING
68
LOCK WASHER 10MM
Price
N/A
69
SET SCREW M8-1.25 X 10
Price
N/A
70
WAVY WASHER
71
Now: PW01M
FLAT WASHER 8MM
Price
N/A
72
MOUNTING BRACKET, LEFT
73
SHAFT
74
SHAFT
75
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
76
COLLAR
77
KEY 8 X 7 X 16 RE
78
SHAFT
79
BUSHING
80
INFEED ROLLER
81
MOUNTING BRACKET, RIGHT
82
PLATE
83
SHAFT
84
COMPRESSION SPRING 5 X 29 X 90
85
BRACKET LEFT
86
ROLL PIN 8 X 30
Price
N/A
87
PRESSURE ARM
88
TORSION SPRING
89
BRACKET RIGHT
90
SHAFT
91
SHAFT
92
SPACER
Price
N/A
93
ANTI-KICKBACK PAWL V2.03.23
Price
N/A
93V2
ANTI-KICKBACK PAWL V2.03.23
Price
N/A
94
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
95
STANDOFF-HEX MM M10-1.5 X 20, 175
96
CAP SCREW M5-.8 X 10
Price
N/A
97
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
98
BUTTON HD CAP SCR M3-.5 X 15
99
ROLL PIN 5 X 14
Price
N/A
100
CABLE TIE 250MM
101
COLUMN RIGHT
101V2
COLUMN, RIGHT V2.11.24
102
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
103
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
104
COVER RIGHT V1
104V2
COVER RIGHT V2.07.21
105
PLATE RIGHT
106
CHAIN #40 X 24P
108

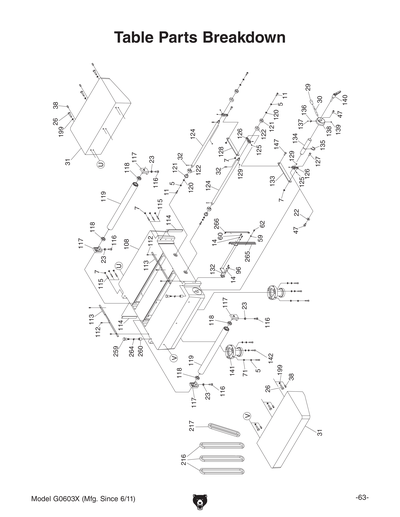

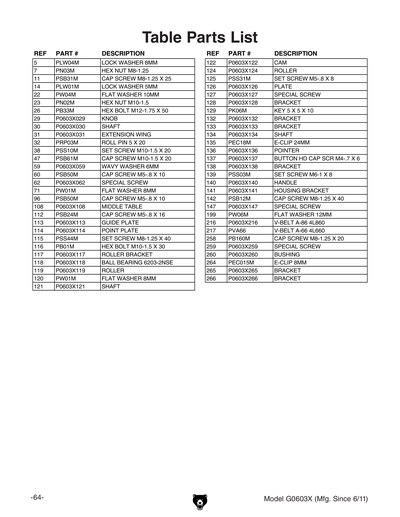

TABLE MIDDLE
109
Now: PW04M
FLAT WASHER 10MM
Price
N/A
110
CYLINDER HEX BOLT
111
SET SCREW M8-1.25 X 10
Price
N/A
112
CAP SCREW M5-.8 X 16
Price
N/A
113
GUIDE PLATE
114
GIB
115
SET SCREW M8-1.25 X 40
Price
N/A
116
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
117
ROLLER BRACKET
118
BALL BEARING 6203-2NSE
119
ROLLER
120
Now: PW01M
FLAT WASHER 8MM
Price
N/A
121
SHAFT
122
CAM
123
PLATE
124
ROLLER
125
SET SCREW M5-.8 X 8
Price
N/A
126
PLATE
127
PLATE STEP BOLT
128
BRACKET
129
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
130
RING
131
HANDLE BASE
132
SCALE BRACKET
133
BRACKET
134
HUB SHAFT
135
E-CLIP 24MM
Price
N/A
136
POINTER
137
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
138
HUB
139
SET SCREW M6-1 X 8
Price
N/A
140
HANDLE
141
HOUSING BRACKET
142
CAP SCREW M8-1.25 X 40
Price
N/A
143
MOTOR 1/2HP 220V/440V 3-PH
143-1
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
144
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
145
CAP SCREW M6-1 X 20
Price
N/A
146
LOCK WASHER 6MM
Price
N/A
147
BRACKET STEP BOLT
148
BALL BEARING 6205ZZ
Price
N/A
149
GEAR SHAFT
150
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
151
WORM GEAR
152
BUSHING
153
BALL BEARING 6204ZZ
Price
N/A
154
WORM GEARBOX
154A
WORM GEARBOX ASSEMBLY
155
OIL SEAL
156
WORM SHAFT
157
GEAR 24T
158
BALL BEARING 6203ZZ
Price
N/A
159
KNOB ASSEMBLY
159-1
BEZEL
159-2
DIAL
159-3
BRACKET
159-4
BEZEL NUT
159-5
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
159-6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
160
STEP BRACKET
161
BALL BEARING 6201ZZ
Price
N/A
162
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
163
GEAR 60T
164
GEAR SHAFT
165
OIL SEAL SC 17 X 30 X 8
166
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
167
GASKET
168
GEARBOX COVER
169
CAP SCREW M6-1 X 25
Price
N/A
170
ROLL PIN 6 X 25
Price
N/A
171
SPROCKET 26T
172
OIL PLUG V1
Price
N/A
173
BALL BEARING 6202ZZ
Price
N/A
174
GEAR SHAFT
175
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
176
GEAR 20T
177
Now: PW08M
FLAT WASHER 16MM
Price
N/A
178
CHAIN #40 X 58P
179
SPROCKET
Price
N/A
180
HANDWHEEL ASSEMBLY
180-1
FOLDING HANDLE 28 X 90, M6-1
180-2
FLAT HD SCR M6-1 X 12
Price
N/A
180-3
ROLL PIN 8 X 18
Price
N/A
180-4
HANDWHEEL TYPE-13 200D X 20B X M6-1
180-5
BALL BEARING 6004ZZ
Price
N/A
181
HANDWHEEL BRACKET
182
BOTTOM MOTOR CORD
183
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
184
HANDWHEEL SHAFT
185
COMPRESSION SPRING 1.2 X 23.4 X 40
186
CAP SCREW M8-1.25 X 10
Price
N/A
187
SET SCREW M6-1 X 16
Price
N/A
188
HANDWHEEL CONNECTOR
189
ROLL PIN 8 X 18
Price
N/A
190
CAP SCREW M6-1 X 10
Price
N/A
191
Now: PW03M
FLAT WASHER 6MM
Price
N/A
192
CUTTERHEAD MOTOR ASSEMBLY
192-1
MOTOR 15HP 220V/440V 3-PH
192-2
CAP SCREW M8-1.25 X 16
Price
N/A
192-3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
192-4
KEY 10 X 8 X 56
192-5
MOTOR PULLEY
192-6
MOTOR FAN
192-7
MOTOR FAN COVER
192-8
END HOUSING
192-9
JUNCTION BOX (FRONT & REAR)
193
SLEEVE BEARING NA96062RS
194
SHAFT
195
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
196
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
197
Now: PN09M
HEX NUT M12-1.75
Price
N/A
198
LOCK WASHER 12MM
Price
N/A
199
Now: PW06M
FLAT WASHER 12MM
Price
N/A
200
ROD END BOLT M12-1.75 X 120, 25.4
Price
N/A
201
MOTOR MOUNTING PLATE
202
SHAFT
204
LEADSCREW (RIGHT)
205
MOUNTING RING
206
FLANGE BOLT M4-.7 X 8
Price
N/A
207
DUST BOOT
208
LEADSCREW

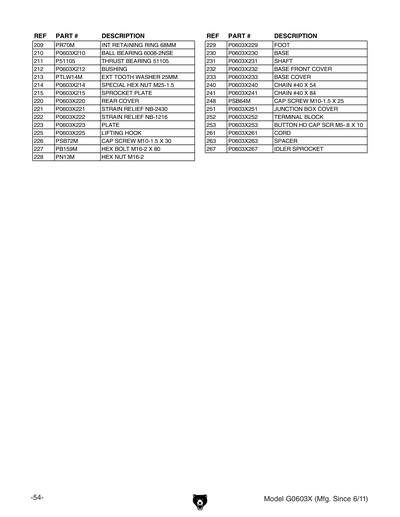

209
Now: PR70M
INT RETAINING RING 68MM
Price
N/A
210
BALL BEARING 6008-2NSE
211
THRUST BEARING 51105
Price
N/A
212
BUSHING
213
EXT TOOTH WASHER 25MM BLACK
Price
N/A
214
LEADSCREW NUT M25-1.5
215
SPROCKET PLATE
216
Now: PVA86
V-BELT A86
Price
N/A
216V2
Now: PVA81
V-BELT A81
Price
N/A
217
Now: PVA66
V-BELT A66
Price
N/A
217V2
Now: PVA52
V-BELT A52
Price
N/A
218
SPROCKET 26T
219
COMPRESSION SPRING 2 X 17.6 X 44
220
COVER REAR
221
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
222
GROMMET M10 TYPE-2 SNAP-IN
223
PLATE
224
Now: PN02M
HEX NUT M10-1.5
Price
N/A
225
LIFTING HOOK
226
CAP SCREW M10-1.5 X 30
Price
N/A
227
HEX BOLT M16-2 X 80
Price
N/A
228
Now: PN13M
HEX NUT M16-2
Price
N/A
229
FOOT
230
BASE
231
SPROCKET SHAFT
232
BASE FRONT COVER
233
BASE COVER
234
FENDER WASHER 10MM
Price
N/A
235
CAP SCREW M10-1.5 X 20
Price
N/A
236
CAP SCREW M10-1.5 X 45
Price
N/A
237
CHAIN #40 X 72
238
Now: PN03M
HEX NUT M8-1.25
Price
N/A
239
GAS SPRING 20KG 292L
240
CHAIN #40 X 54P
241
CHAIN #40 X 84P
242
Now: PW04M
FLAT WASHER 10MM
Price
N/A
243
Now: PW05M
FLAT WASHER 4MM
Price
N/A
244
PLATE
245
SET SCREW M6-1 X 20
Price
N/A
247
CAP SCREW M6-1 X 12
Price
N/A
248
CAP SCREW M10-1.5 X 25
Price
N/A
249
CAP SCREW M12-1.75 X 40
Price
N/A
250
EXTENSION SPRING 1.2 X 11.5 X 34.2
251
POWER SUPPLY JUNCTION BOX
252
TERMINAL BLOCK
253
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
254
PAD 40 X 10 X 2
255
SET SCREW M4-.7 X 6
Price
N/A
256
Now: PW03M
FLAT WASHER 6MM
Price
N/A
257
HEX BOLT M10-1.5 X 70
Price
N/A
258
CAP SCREW M8-1.25 X 20
Price
N/A
259
MIDDLE TABLE STEP BOLT
260
BUSHING
261
CORD
262
PAD 33 X 10 X 2
263
COLLAR
Price
N/A
264
E-CLIP 8MM
Price
N/A
265
BRACKET
266
MAGNETIC STRIP
267
IDLER SPROCKET 13T
268
CAP SCREW M10-1.5 X 50
Price
N/A
275
HEX WRENCH 5MM
Price
N/A
276
HEX WRENCH 8MM
Price
N/A
277
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
278
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
279
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
280
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
285
HEX WRENCH 3MM
Price
N/A
286
HEX WRENCH 4MM
Price
N/A
288
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
288V2
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
289
CHEATER BAR FOR 1/4" BIT
293

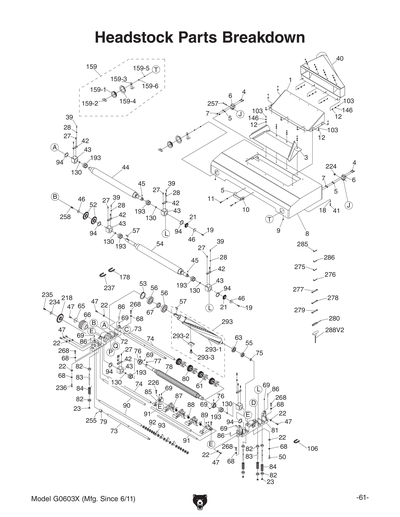

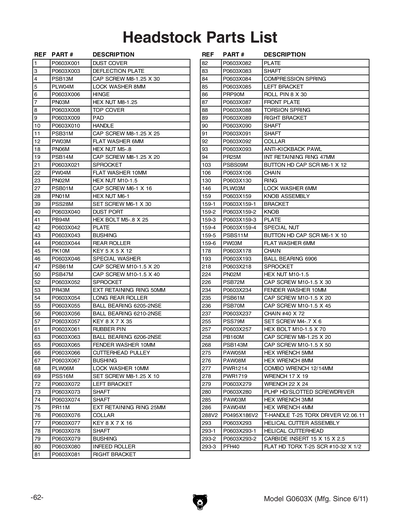

HELICAL CUTTER ASSEMBLY
293-1
HELICAL CUTTERHEAD
293-2
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
293-3
Now: PFH40
FLAT HD TORX SCR T-25 #10-32 X 1/2
Price
N/A
301

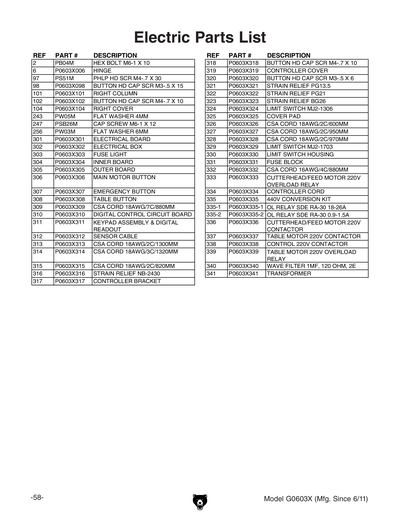

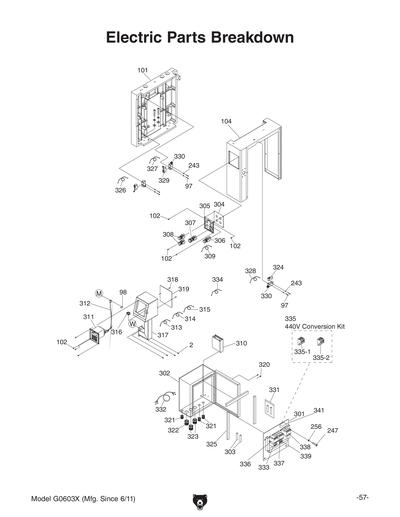

ELECTRICAL BOARD
302
ELECTRICAL BOX
303
FUSE LIGHT 2A
303-1
FUSE
Price
N/A
304
INNER BOARD
305
OUTER BOARD
306
MAIN MOTOR BUTTON
307
STOP SWITCH
Price
N/A
308
TABLE BUTTON
309
CSA CORD 18AWG 7C880MM
310
DIGITAL CONTROL CIRCUIT BOARD
311
KEYPAD ASSY & DIGITAL READOUT
312
SENSOR CABLE
313
CSA CORD 18AWG 2C1300MM
314
CSA CORD 18AWG 3C 1320MM
315
CSA CORD 18AWG 2C820MM
316
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
317
CONTROLLER BRACKET
318
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
319
CONTROLLER COVER
320
BUTTON HD CAP SCR M3-.5 X 6
321
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
322
STRAIN RELIEF PG21
323
STRAIN RELIEF M25 TYPE-6 ST
324
LIMIT SWITCH MJ2-1306 V1
324V2
LIMIT SWITCH MJ2-1307 V2.07.21
325
COVER PAD
326
CSA CORD 18AWG 2C 600MM
327
CSA CORD 18AWG 2C 950MM
328
CSA CORD 18AWG 2C 970MM
329
LIMIT SWITCH MJ2-1703
330
LIMIT SWITCH HOUSING
331
FUSE BASE
332
CSA CORD 16AWG 4C 880MM
333
OL RELAY SDE RA-30 30-50A
334
CONTROLLER CORD
335
CONVERSION KIT 440V SHERN DIAN
335-1
OL RELAY SDE RA-30 18-26A
335-2
OL RELAY SDE RA-20 0.9-1.5A
336
CUTTERHEAD/FEED MOTOR 220V CONTACTOR
337
TABLE MOTOR 220V CONTACTOR SHERN DIAN
338
CONTROL CONTACTOR SHERN DIAN 220V
339
TABLE MOTOR 220V OVERLOAD RELAY
340
WAVE FILTER 1MF 120OHM 2E
341
TRANSFORMER 40VA 230V/460V-24V/220V
342
ADJUSTMENT PLATE
400

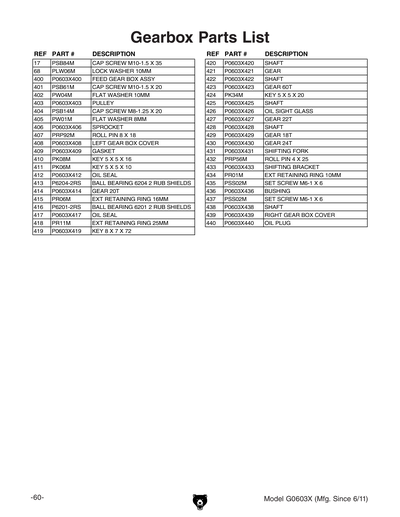

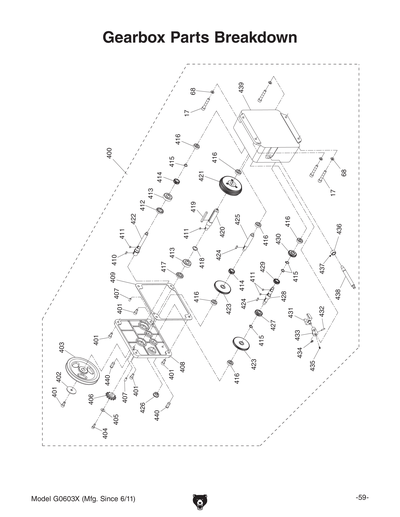

FEED GEAR BOX ASSY
401
CAP SCREW M10-1.5 X 20
Price
N/A
402
Now: PW04M
FLAT WASHER 10MM
Price
N/A
403
PULLEY
404
CAP SCREW M8-1.25 X 20
Price
N/A
405
Now: PW01M
FLAT WASHER 8MM
Price
N/A
406
SPROCKET
407
ROLL PIN 8 X 18
Price
N/A
408
GEARBOX COVER LEFT
409
GASKET
410
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
411
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
412
OIL SEAL
413
BALL BEARING 6204-2RS
Price
N/A
414
GEAR 20T
Price
N/A
415
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
416
BALL BEARING 6201-2RS
Price
N/A
417
OIL SEAL
418
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
419
KEY 8 X 7 X 72
420
SHAFT
421
COMBO GEAR
422
SHAFT
423
GEAR 60T
Price
N/A
424
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
425
SHAFT
426
OIL SIGHT GLASS
427
GEAR 22T
427A
GASKET
428
SHAFT
429
GEAR 18T
430
GEAR 24T
430A
OIL PLUG
431
SHIFTING FORK
432
ROLL PIN 4 X 25
Price
N/A
433
SHIFTING BRACKET
434
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
435
SET SCREW M6-1 X 6
Price
N/A
436
BUSHING
437
SET SCREW M6-1 X 6
Price
N/A
438
SHAFT
439
GEAR BOX COVER RIGHT
440
OIL PLUG
441
FENDER WASHER 10MM
Price
N/A
442
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
443
*DISCD*SHAFT
Item is no longer available
Price
N/A
444
*DISCD*SHIFT FORK
Item is no longer available
Price
N/A
445
CAP SCREW M6-1 X 25
Price
N/A
446
*DISCD*CHAIN
Item is no longer available
Price
N/A
447
*DISCD*BELT 560VA
Item is no longer available
Price
N/A
448
*DISCD*PLATE
Item is no longer available
Price
N/A
449
*DISCD*OIL SIGHT GLASS
Item is no longer available
Price
N/A
450
*DISCD*COMPLETE GEAR BOX ASSY
Item is no longer available
Price
N/A
450A
*DISCD*GEAR BOX COVER RIGHT
Item is no longer available
Price
N/A
451
*DISCD*GEAR BOX COVER LEFT
Item is no longer available
Price
N/A
452
*DISCD*GEAR BOX COVER LEFT
Item is no longer available
Price
N/A
453
LOCK WASHER 6MM
Price
N/A
454
*DISCD*BALL BEARING 6002-2NSE
Item is no longer available
Price
N/A
461
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
463
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
464
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
471
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
500

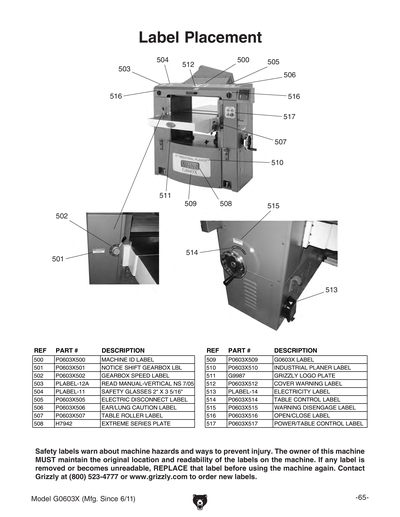

MACHINE ID LABEL
501
NOTICE SHIFT GEARBOX LABEL
502
GEARBOX SPEED LABEL
503
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
504
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
505
ELECTRIC DISCONNECT LABEL
506
EAR/LUNG CAUTION LABEL
507
TABLE ROLLER LABEL
508
Now: H7942
Extreme Series Nameplate
Price
N/A
509
LABEL G0603X
510
INDUSTRIAL PLANER LABEL
511
Now: G9987
Nameplate - Mini
Price
N/A
512
COVER WARNING LABEL
513
ELECTRICITY 1.4W X 1.2H
Price
N/A
514
TABLE CONTROL LABEL
515
WARNING DISENGAGE LABEL
516
OPEN/CLOSE LABEL
517
POWER/TABLE CONTROL LABEL
MAN
MANUAL FOR G0603X 08/07
