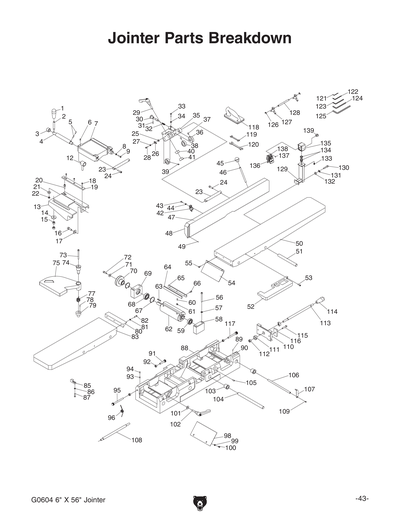

Parts for G0604 6" x 56" Parallelogram Bed Jointer w/ 4 Knife Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

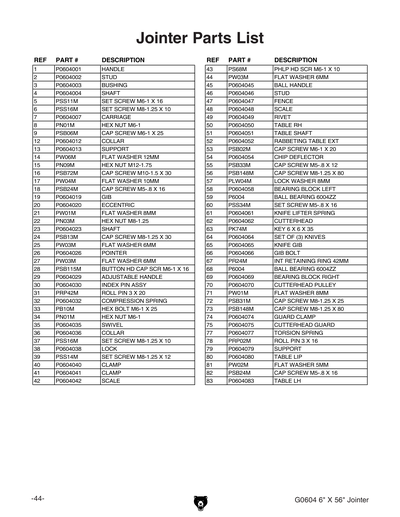

1
HANDLE 3/8"-16
2
SHOULDER STUD
3
BUSHING
4
SHAFT
5
SET SCREW M6-1 X 16
Price
N/A
6
SET SCREW M8-1.25 X 10
Price
N/A
7
FENCE CARRIAGE
8
Now: PN01M
HEX NUT M6-1
Price
N/A
9
CAP SCREW M6-1 X 25
Price
N/A
12
COLLAR
13
FENCE SUPPORT
14
Now: PW06M
FLAT WASHER 12MM
Price
N/A
15
Now: PN09M
HEX NUT M12-1.75
Price
N/A
16
CAP SCREW M10-1.5 X 30
Price
N/A
17
Now: PW04M
FLAT WASHER 10MM
Price
N/A
18
CAP SCREW M5-.8 X 16
Price
N/A
19
GIB
20
ECCENTRIC
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
Now: PN03M
HEX NUT M8-1.25
Price
N/A
23
SHAFT
24
CAP SCREW M8-1.25 X 30
Price
N/A
25
Now: PW03M
FLAT WASHER 6MM
Price
N/A
26
POINTER
Item is no longer available
Price
N/A
27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
28
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
29
ADJUSTABLE HANDLE
30
INDEX PIN ASSY
31
ROLL PIN 3 X 20
Price
N/A
32
COMPRESSION SPRING
33
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
34
Now: PN01M
HEX NUT M6-1
Price
N/A
35
SWIVEL
36
COLLAR
Item is no longer available
Price
N/A
37
SET SCREW M8-1.25 X 10
Price
N/A
38
LOCK
Item is no longer available
Price
N/A
39
SET SCREW M8-1.25 X 12
Price
N/A
40
UPPER CLAMP
41
LOWER CLAMP
42
SCALE
43
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
44
Now: PW03M
FLAT WASHER 6MM
Price
N/A
45
BALL KNOB 5/16"-18
46
STUD-DE 5/16-18 X 5-1/8 7/16
47
FENCE
48
SCALE
49
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
50
INFEED TABLE
51
TABLE SHAFT
Item is no longer available
Price
N/A
52
RABBETING TABLE EXT
53
CAP SCREW M6-1 X 20
Price
N/A
54
CHIP DEFLECTOR
55
CAP SCREW M5-.8 X 12
Price
N/A
56
CAP SCREW M8-1.25 X 80
Price
N/A
57
LOCK WASHER 8MM
Price
N/A
58
BEARING BLOCK LEFT
59
BALL BEARING 6004ZZ
Price
N/A
60
SET SCREW M5-.8 X 16
Price
N/A
61
KNIFE LIFTER SPRING
62
CUTTERHEAD
63
Now: PK74M
KEY 6 X 6 X 35
Price
N/A
64
Now: H9221
6" x 5/8" x 1/8" HSS Jointer Knives for G0604, Set of 4
Price
N/A
65
KNIFE GIB
66
GIB BOLT
67
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
68
BALL BEARING 6004ZZ
Price
N/A
69
BEARING BLOCK RIGHT
70
CUTTERHEAD PULLEY
71
Now: PW01M
FLAT WASHER 8MM
Price
N/A
72
CAP SCREW M8-1.25 X 25
Price
N/A
73
CAP SCREW M8-1.25 X 80
Price
N/A
74
GUARD CLAMP
Price
N/A
75
CUTTERHEAD GUARD
77
TORSION SPRING
78
ROLL PIN 3 X 16
Price
N/A
79
SUPPORT
80
TABLE LIP
81
Now: PW02M
FLAT WASHER 5MM
Price
N/A
82
CAP SCREW M5-.8 X 16
Price
N/A
83
TABLE LH
Item is no longer available
Price
N/A

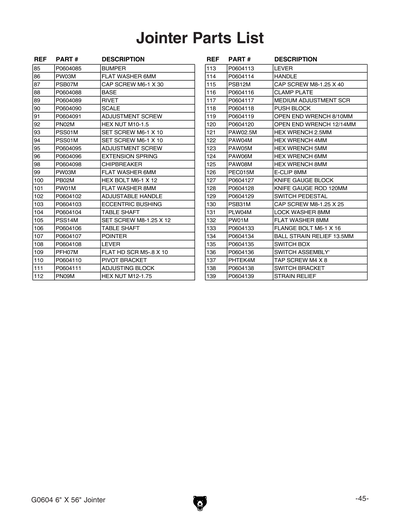

85
BUMPER
86
Now: PW03M
FLAT WASHER 6MM
Price
N/A
87
CAP SCREW M6-1 X 30
Price
N/A
88
BASE
Item is no longer available
Price
N/A
89
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
90
SCALE
91
SHORT ADJUSTING SCREW
92
Now: PN02M
HEX NUT M10-1.5
Price
N/A
93
SET SCREW M6-1 X 10
Price
N/A
94
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
95
LONG ADJUSTING SCREW
96
EXTENSION SPRING
Item is no longer available
Price
N/A
98
CHIPBREAKER
Item is no longer available
Price
N/A
99
Now: PW03M
FLAT WASHER 6MM
Price
N/A
100
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
101
Now: PW01M
FLAT WASHER 8MM
Price
N/A
102
ADJUSTABLE HANDLE
103
ECCENTRIC BUSHING
104
TABLE SHAFT
Item is no longer available
Price
N/A
105
SET SCREW M8-1.25 X 12
Price
N/A
106
TABLE SHAFT
Item is no longer available
Price
N/A
107
POINTER
108
LEVER
Item is no longer available
Price
N/A
109
FLAT HD SCR M5-.8 X 10
Price
N/A
110
PIVOT BRACKET
111
ADJUSTING BLOCK
112
Now: PN09M
HEX NUT M12-1.75
Price
N/A
113
LEVER
114
HANDLE KNOB 3/8"-16
115
CAP SCREW M8-1.25 X 40
Price
N/A
116
CLAMP PLATE
117
MEDIUM ADJUSTING SCR
118
Now: W1400
Safety Push Block - Small
Price
N/A
119
*DISCD*WRENCH 8/10MM OPEN END
Item is no longer available
Price
N/A
120
WRENCH 12/14MM OPEN END
121
HEX WRENCH 2.5MM
Price
N/A
122
HEX WRENCH 4MM
Price
N/A
123
HEX WRENCH 5MM
Price
N/A
124
HEX WRENCH 6MM
Price
N/A
125
HEX WRENCH 8MM
Price
N/A
126
E-CLIP 8MM
Price
N/A
127
KNIFE GAUGE BLOCK
128
KNIFE GAUGE ROD 120MM
129
SWITCH PEDESTAL
130
CAP SCREW M8-1.25 X 25
Price
N/A
131
LOCK WASHER 8MM
Price
N/A
132
Now: PW01M
FLAT WASHER 8MM
Price
N/A
133
FLANGE BOLT M6-1 X 16
Price
N/A
134
BALL STRAIN RELIEF 13.5MM
135
SWITCH BOX
136
SWITCH ASSEMBLY NHD 120V/35A 240/20A
136-1
SWITCH
137
TAP SCREW M4 X 8
Price
N/A
138
SWITCH BRACKET
139
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A

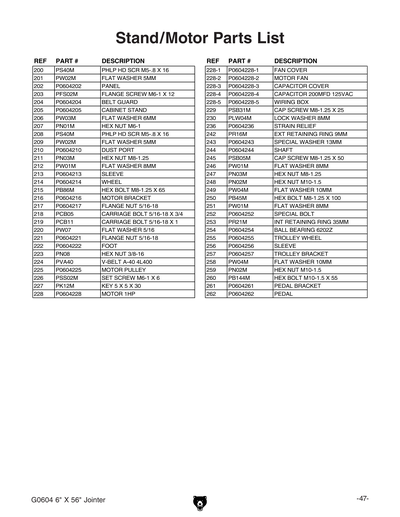

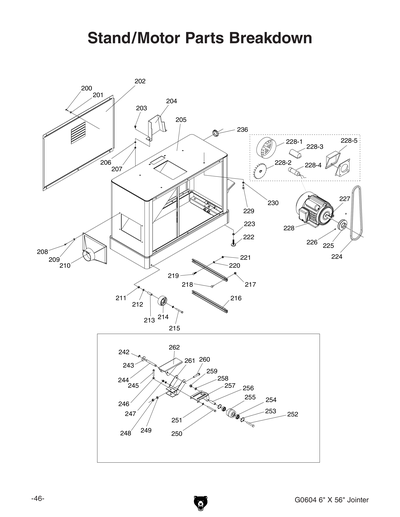

200
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
201
Now: PW02M
FLAT WASHER 5MM
Price
N/A
202
PANEL
203
FLANGE SCREW M6-1 X 12
Price
N/A
204
BELT GUARD
205
CABINET STAND
205-1
STAND LEVELER
Item is no longer available
Price
N/A
206
Now: PW03M
FLAT WASHER 6MM
Price
N/A
207
Now: PN01M
HEX NUT M6-1
Price
N/A
208
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
209
Now: PW02M
FLAT WASHER 5MM
Price
N/A
210
DUST PORT
211
Now: PN03M
HEX NUT M8-1.25
Price
N/A
212
Now: PW01M
FLAT WASHER 8MM
Price
N/A
213
SLEEVE
Price
N/A
214
UNIVERSAL WHEEL 78MM DIA
Price
N/A
215
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
216
MOTOR BRACKET
217
FLANGE NUT 5/16-18
218
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
219
Now: PCB11
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
220
Now: PW07
FLAT WASHER 5/16
Price
N/A
221
FLANGE NUT 5/16-18
Item is no longer available
Price
N/A
222
RUBBER FOOT
Price
N/A
223
Now: PN08
HEX NUT 3/8-16
Price
N/A
224
Now: PVA40
V-BELT A40
Price
N/A
225
MOTOR PULLEY
226
SET SCREW M6-1 X 6
Price
N/A
227
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
228
MOTOR 1HP 110V 1-PH
228-1
FAN COVER
Item is no longer available
Price
N/A
228-2
MOTOR FAN
Item is no longer available
Price
N/A
228-3
CAPACITOR COVER
Item is no longer available
Price
N/A
228-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
228-5
WIRING BOX
Item is no longer available
Price
N/A
229
CAP SCREW M8-1.25 X 25
Price
N/A
230
LOCK WASHER 8MM
Price
N/A
236
GROMMET 50 X 41MM
Price
N/A
242
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
243
PEDAL WASHER 13 X 30 X 3MM
244
SHAFT 12MM
Price
N/A
245
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
246
Now: PW01M
FLAT WASHER 8MM
Price
N/A
247
Now: PN03M
HEX NUT M8-1.25
Price
N/A
248
Now: PN02M
HEX NUT M10-1.5
Price
N/A
249
Now: PW04M
FLAT WASHER 10MM
Price
N/A
250
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
251
Now: PW01M
FLAT WASHER 8MM
Price
N/A
252
TROLLEY WHEEL BOLT
Price
N/A
253
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
254
BALL BEARING 6202-2RS
Price
N/A
255
TROLLEY WHEEL
Price
N/A
256
TROLLEY WHEEL SLEEVE
Price
N/A
257
TROLLEY UNIVERSAL KIT
Price
N/A
258
Now: PW04M
FLAT WASHER 10MM
Price
N/A
259
LOCK NUT M12-1.75
Price
N/A
260
HEX BOLT M10-1.5 X 55
Price
N/A
261
BRACKET
Price
N/A
262
PEDAL
Price
N/A
262A
PEDAL ASSEMBLY
Price
N/A

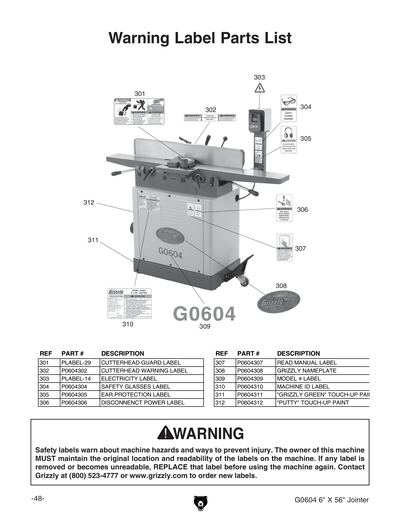

301
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
302
CUTTERHEAD WARNING LABEL
303
ELECTRICITY 1.4W X 1.2H
Price
N/A
304
SAFETY GLASSES LABEL
305
EAR PROTECTION LABEL
Item is no longer available
Price
N/A
306
DISCONNENCT POWER LABEL
307
READ MANUAL LABEL
308
GRIZZLY NAMEPLATE
Item is no longer available
Price
N/A
309
MODEL NUMBER LABEL
310
MACHINE ID LABEL
Item is no longer available
Price
N/A
311
N/S GRIZZLY GREEN G1023S
Price
N/A
312
GREY PUTTY REF G0504
Price
N/A
BOX1
JOINTER BOX PARTS
Item is no longer available
Price
N/A
BOX2
STAND ASSY W/MOTOR 1HP 110V 1-PH BOX 2
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0604 06/06
