Parts for G0604X - 6" Parallelogram Jointer

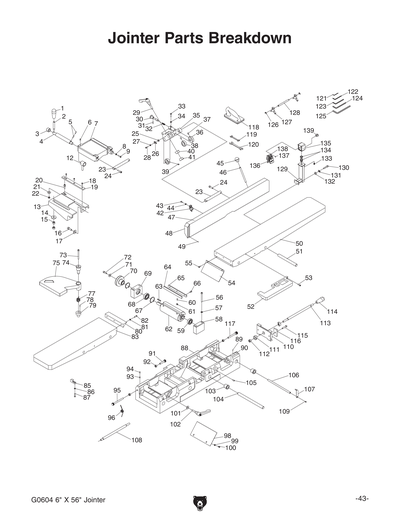

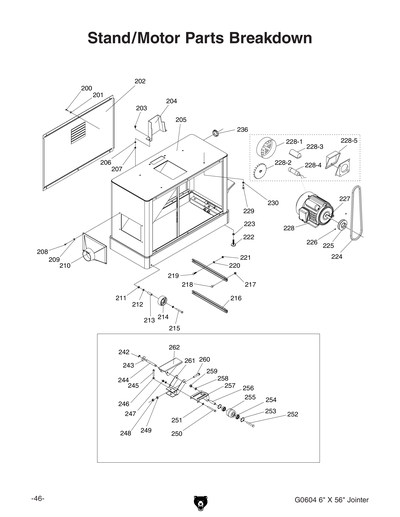

Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X
Part Diagram for G0604X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HANDLE 3/8"-16
Price
N/A
2
SHOULDER STUD
Price
N/A
3
BUSHING
Price
N/A
4
SHAFT
Price
N/A
5
SET SCREW M6-1 X 16
Price
N/A
6
SET SCREW M8-1.25 X 10
Price
N/A
7
FENCE CARRIAGE
Price
N/A
8
HEX NUT M6-1
Price
N/A
9
CAP SCREW M6-1 X 25
Price
N/A
12
COLLAR
Price
N/A
13
FENCE SUPPORT
Price
N/A
14
FLAT WASHER 12MM
Price
N/A
15
HEX NUT M12-1.75
Price
N/A
16
CAP SCREW M10-1.5 X 30
Price
N/A
17
FLAT WASHER 10MM
Price
N/A
18
CAP SCREW M5-.8 X 16
Price
N/A
19
GIB
Price
N/A
20
ECCENTRIC
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
22
HEX NUT M8-1.25
Price
N/A
23
SHAFT
Price
N/A
24
CAP SCREW M8-1.25 X 30
Price
N/A
25
FLAT WASHER 6MM
Price
N/A
26
POINTER
Price
N/A
27
LOCK WASHER 6MM
Price
N/A
28
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
29
ADJUSTABLE HANDLE
Price
N/A
30
INDEX PIN ASSY
Price
N/A
31
ROLL PIN 3 X 20
Price
N/A
32
COMPRESSION SPRING
Price
N/A
33
HEX BOLT M6-1 X 25
Price
N/A
34
HEX NUT M6-1
Price
N/A
35
SWIVEL
Price
N/A
36
COLLAR
Price
N/A
37
SET SCREW M8-1.25 X 10
Price
N/A
38
LOCK
Price
N/A
39
SET SCREW M8-1.25 X 12
Price
N/A
40
UPPER CLAMP
Price
N/A
41
LOWER CLAMP
Price
N/A
42
SCALE
Price
N/A
43
PHLP HD SCR M6-1 X 10
Price
N/A
44
FLAT WASHER 6MM
Price
N/A
45
BALL KNOB 5/16"-18
Price
N/A
46
STUD-DE 5/16-18 X 5-1/8 7/16
Price
N/A
47
FENCE
Price
N/A
48
SCALE
Price
N/A
49
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
50
INFEED TABLE
Price
N/A
51
TABLE SHAFT
Price
N/A
52
RABBETING TABLE EXT
Price
N/A
53
CAP SCREW M6-1 X 20
Price
N/A
54
CHIP DEFLECTOR
Price
N/A
55
CAP SCREW M5-.8 X 12
Price
N/A
56
CAP SCREW M8-1.25 X 80
Price
N/A
57
LOCK WASHER 8MM
Price
N/A
58
BEARING BLOCK LEFT
Price
N/A
59
BALL BEARING 6004ZZ
Price
N/A
60
SET SCREW M5-.8 X 16
Price
N/A
61
KNIFE LIFTER SPRING
Price
N/A
62
CUTTERHEAD
Price
N/A
63
KEY 6 X 6 X 35
Price
N/A
64
6" x 5/8" x 1/8" HSS Jointer Knives for G0604, Set of 4
Price
N/A
65
KNIFE GIB
Price
N/A
66
GIB BOLT
Price
N/A
67
INT RETAINING RING 42MM
Price
N/A
68
BALL BEARING 6004ZZ
Price
N/A
69
BEARING BLOCK RIGHT
Price
N/A
70
CUTTERHEAD PULLEY
Price
N/A
71
FLAT WASHER 8MM
Price
N/A
72
CAP SCREW M8-1.25 X 25
Price
N/A
73
CAP SCREW M8-1.25 X 80
Price
N/A
74
GUARD CLAMP
Price
N/A
75
CUTTERHEAD GUARD
Price
N/A
77
TORSION SPRING
Price
N/A
78
ROLL PIN 3 X 16
Price
N/A
79
SUPPORT
Price
N/A
80
TABLE LIP
Price
N/A
81
FLAT WASHER 5MM
Price
N/A
82
CAP SCREW M5-.8 X 16
Price
N/A
83
TABLE LH
Price
N/A
85
BUMPER
Price
N/A
86
FLAT WASHER 6MM
Price
N/A
87
CAP SCREW M6-1 X 30
Price
N/A
88
BASE
Price
N/A
89
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
90
SCALE
Price
N/A
91
SHORT ADJUSTING SCREW
Price
N/A
92
HEX NUT M10-1.5
Price
N/A
93
SET SCREW M6-1 X 10
Price
N/A
94
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
95
LONG ADJUSTING SCREW
Price
N/A
96
EXTENSION SPRING
Price
N/A
98
CHIPBREAKER
Price
N/A
99
FLAT WASHER 6MM
Price
N/A
100
HEX BOLT M6-1 X 12
Price
N/A
101
FLAT WASHER 8MM
Price
N/A
102
ADJUSTABLE HANDLE
Price
N/A
103
ECCENTRIC BUSHING
Price
N/A
104
TABLE SHAFT
Price
N/A
105
SET SCREW M8-1.25 X 12
Price
N/A
106
TABLE SHAFT
Price
N/A
107
POINTER
Price
N/A
108
LEVER
Price
N/A
109
FLAT HD SCR M5-.8 X 10
Price
N/A
110
PIVOT BRACKET
Price
N/A
111
ADJUSTING BLOCK
Price
N/A
112
HEX NUT M12-1.75
Price
N/A
113
LEVER
Price
N/A
114
HANDLE KNOB 3/8"-16
Price
N/A
115
CAP SCREW M8-1.25 X 40
Price
N/A
116
CLAMP PLATE
Price
N/A
117
MEDIUM ADJUSTING SCR
Price
N/A
118
Safety Push Block - Small
Price
N/A
119
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
120
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
121
HEX WRENCH 2.5MM
Price
N/A
122
HEX WRENCH 4MM
Price
N/A
123
HEX WRENCH 5MM
Price
N/A
124
HEX WRENCH 6MM
Price
N/A
125
HEX WRENCH 8MM
Price
N/A
126
E-CLIP 8MM
Price
N/A
127
KNIFE GAUGE BLOCK
Price
N/A
128
KNIFE GAUGE ROD 120MM
Price
N/A
129
SWITCH PEDESTAL
Price
N/A
130
CAP SCREW M8-1.25 X 25
Price
N/A
131
LOCK WASHER 8MM
Price
N/A
132
FLAT WASHER 8MM
Price
N/A
133
FLANGE BOLT M6-1 X 16
Price
N/A
134
BALL STRAIN RELIEF 13.5MM
Price
N/A
135
SWITCH BOX
Price
N/A
136
SWITCH ASSEMBLY NHD 120V/35A 240/20A
Price
N/A
137
TAP SCREW M4 X 8
Price
N/A
138
SWITCH BRACKET
Price
N/A
139
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
140V2
POWER CORD 14G 3W 72" 5-15P
Price
N/A
141
SWITCH CORD
Price
N/A
142
MOTOR CORD
Price
N/A
200
PHLP HD SCR M5-.8 X 16
Price
N/A
201
FLAT WASHER 5MM
Price
N/A
202
PANEL
Price
N/A
203
FLANGE SCREW M6-1 X 12
Price
N/A
204
BELT GUARD
Price
N/A
205
CABINET STAND
Price
N/A
206
FLAT WASHER 6MM
Price
N/A
207
HEX NUT M6-1
Price
N/A
208
PHLP HD SCR M5-.8 X 16
Price
N/A
209
FLAT WASHER 5MM
Price
N/A
210
DUST PORT
Price
N/A
211
HEX NUT M8-1.25
Price
N/A
212
FLAT WASHER 8MM
Price
N/A
213
SLEEVE
Price
N/A
214
UNIVERSAL WHEEL 78MM DIA
Price
N/A
215
HEX BOLT M8-1.25 X 65
Price
N/A
216
MOTOR BRACKET
Price
N/A
217
FLANGE NUT 5/16-18
Price
N/A
218
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
219
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
220
FLAT WASHER 5/16
Price
N/A
221
FLANGE NUT 5/16-18
Price
N/A
222
RUBBER FOOT
Price
N/A
223
HEX NUT 3/8-16
Price
N/A
224
V-BELT A40
Price
N/A
225
MOTOR PULLEY
Price
N/A
226
SET SCREW M6-1 X 6
Price
N/A
227
KEY 5 X 5 X 30
Price
N/A

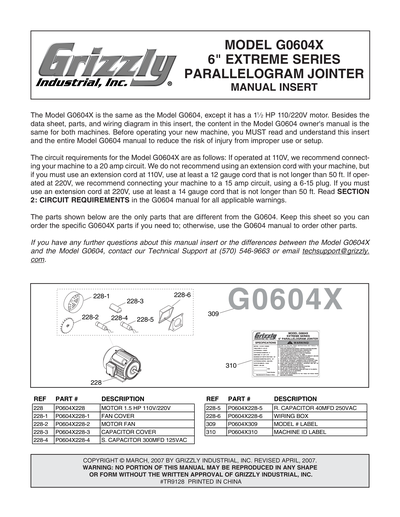

228
MOTOR 1.5HP 120V/240V 1-PH
Price
$214.60
228-1
FAN COVER
Item is no longer available
Price
N/A
228-10
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
228-2
MOTOR FAN
Price
$4.25
228-3
CAPACITOR COVER
Item is no longer available
Price
N/A
228-4
S CAPACITOR 300M 125V 1-9/16 X 3-9/16
Price
$15.85
228-5
R CAPACITOR 40M 250V 1-9/16 X 2-3/4
Item is no longer available
Price
N/A
228-6
JUNCTION BOX
Price
N/A
228-7
BALL BEARING 6203ZZ
Price
N/A
228-8
BALL BEARING 6202ZZ
Price
N/A
228-9
CENT SWITCH 5/8-3450
Price
N/A
229
CAP SCREW M8-1.25 X 25
Price
N/A
230
LOCK WASHER 8MM
Price
N/A
236
GROMMET 50 X 41MM
Price
N/A
242
EXT RETAINING RING 9MM
Price
N/A
243
FLAT WASHER 12MM
Price
N/A
244
SHAFT 12MM
Price
N/A
245
CAP SCREW M8-1.25 X 50
Price
N/A
246
FLAT WASHER 8MM
Price
N/A
247
HEX NUT M8-1.25
Price
N/A
248
HEX NUT M10-1.5
Price
N/A
249
FLAT WASHER 10MM
Price
N/A
250
HEX BOLT M8-1.25 X 100
Price
N/A
251
FLAT WASHER 8MM
Price
N/A
252
TROLLEY WHEEL BOLT
Price
N/A
253
INT RETAINING RING 35MM
Price
N/A
254
BALL BEARING 6202-2RS
Price
N/A
255
TROLLEY WHEEL
Price
N/A
256
TROLLEY WHEEL SLEEVE
Price
N/A
257
TROLLEY UNIVERSAL KIT
Price
N/A
258
FLAT WASHER 10MM
Price
N/A
259
LOCK NUT M12-1.75
Price
N/A
260
HEX BOLT M10-1.5 X 55
Price
N/A
261
BRACKET
Price
N/A
262
PEDAL
Price
N/A
262A
PEDAL ASSEMBLY
Price
N/A
263
POWER CORD 14G 3W 72" 5-15P
Price
N/A

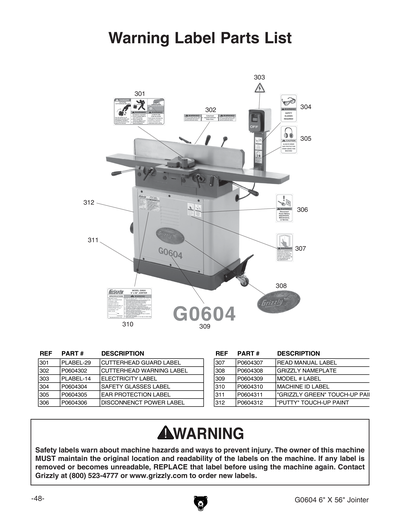

301
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
302
CUTTERHEAD WARNING LABEL
Price
N/A
303
ELECTRICITY 1.4W X 1.2H
Price
N/A
304
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
305
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
306
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
307
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
308
Nameplate - Small
Price
N/A
309
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
310
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
310-V2
MACHINE ID LABEL CSA V2.08.12
Price
N/A
310V2
MACHINE ID LABEL CSA V2.08.12
Item is no longer available
Price
N/A
311
N/S GRIZZLY GREEN G1023S
Price
N/A
312
GREY PUTTY REF G0504
Price
N/A
BBOX2
COMPLETE STAND ASSY BOX 2
Item is no longer available
Price
N/A
BOX2
COMPLETE STAND ASSY BOX 2
Price
$767.65
MAN
MANUAL FOR G0604X 04/07
Item is no longer available
Price
N/A
MANV2
MANUAL G0604X/-ZX V2.07.12
Price
$13.25
