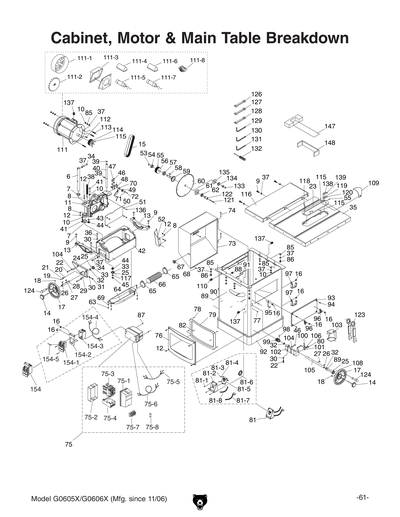

Parts for G0605X 12" Extreme Series Table Saw - Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

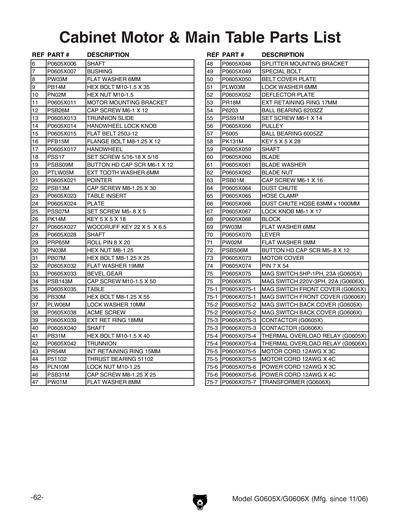

6
SHAFT
Item is no longer available
Price
N/A
7
BUSHING
Item is no longer available
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
10
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11
*DISCD*MOTOR MOUNTING BRACKET
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 12
Price
N/A
13
TRUNNION SLIDE
Item is no longer available
Price
N/A
14
HANDWHEEL LOCK KNOB
Price
N/A
15
FLAT BELT 250J-12
16
FLANGE BOLT M8-1.25 X 12
Price
N/A
17
HANDWHEEL
Item is no longer available
Price
N/A
18
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
19
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
20
EXT TOOTH WASHER 6MM
Price
N/A
21
TILT ARROW POINTER
22
CAP SCREW M8-1.25 X 30
Price
N/A
23
TABLE INSERT
23A
Now: H9911
Zero Clearance Table Saw Insert for G0605X & G0606X
Price
N/A
24
PLATE
25
SET SCREW M5-.8 X 5
Price
N/A
26
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
27
WOODRUFF KEY 22 X 5
Price
N/A
28
SHAFT
29
ROLL PIN 8 X 20
Price
N/A
30
Now: PN03M
HEX NUT M8-1.25
Price
N/A
31
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
32
PLASTIC BUSHING 19MM ID
Price
N/A
33
*DISCD*BEVEL GEAR V1
Item is no longer available
Price
N/A
33V2-1
LEFT BEVEL GEAR
Price
N/A
33V2-2
RIGHT BEVEL GEAR
Price
N/A
34
CAP SCREW M10-1.5 X 50
Price
N/A
35
TABLE
Price
N/A
36
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
ACME SCREW
39
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
40
SHAFT
Item is no longer available
Price
N/A
41
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
42
TRUNNION
Item is no longer available
Price
N/A
43
Now: PR54M
INT RETAINING RING 15MM
Price
N/A
44
THRUST BEARING 51102
Price
N/A
45
LOCK NUT M10-1.25
Price
N/A
46
CAP SCREW M8-1.25 X 25
Price
N/A
47
Now: PW01M
FLAT WASHER 8MM
Price
N/A
48
*DISCD*SPLITTER MOUNTING BRACKET V1
Item is no longer available
Price
N/A
48V2-1
MOUNTING BRACKET BASE V2.01.10
Price
N/A
48V2-10
SET SCREW M3-.5 X 10
Price
N/A
48V2-2
CAP SCREW M8-1.25 X 20
Price
N/A
48V2-3
COMPRESSION SPRING V2.01.10
Price
N/A
48V2-4
LOCKING BOLT V2.01.10
Price
N/A
48V2-5
MOUNTING BRACKET PLATE V2.01.10
Price
N/A
48V2-6
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
48V2-7
LOCK WASHER 5MM
Price
N/A
48V2-8
HANDLE V2.01.10
Price
N/A
48V2-9
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
49
FLANGE BOLT M10-1.5 X 7.5
50
BELT COVER PLATE
Item is no longer available
Price
N/A
51
LOCK WASHER 6MM
Price
N/A
52
DEFLECTOR PLATE
53
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
54
BALL BEARING 6203ZZ
Price
N/A
55
SET SCREW M6-1 X 14
Price
N/A
56
*DISCD*PULLEY
Item is no longer available
Price
N/A
57
BALL BEARING 6005ZZ
Price
N/A
58
KEY 5 X 5 X 28
Price
N/A
59
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
59V2
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Item is no longer available
Price
N/A
60
BLADE
61
BLADE WASHER
62
BLADE NUT
63
CAP SCREW M6-1 X 16
Price
N/A
64
DUST CHUTE
65
HOSE CLAMP
66
DUST CHUTE HOSE 63 X 1000MM
Price
N/A
67
LOCK KNOB M6-1 X 17
68
BLOCK
Item is no longer available
Price
N/A
69
Now: PW03M
FLAT WASHER 6MM
Price
N/A
71
Now: PW02M
FLAT WASHER 5MM
Price
N/A
72
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
73
MOTOR COVER
Price
N/A
74
PIN 7 X 54
75
MAG SWITCH SDE MP-30 5HP 1PH 23A
Price
N/A
75-1
MAG SWITCH FRONT/BACK COVER
Price
N/A
75-2
MAG SWITCH FRONT/BACK COVER
Price
N/A
75-3
CONTACTOR SDE MA-30 220V
Price
N/A
75-4
*DISCD*OL RELAY SDE RA-30 22~34 V1
Price
N/A
75-5
MOTOR CORD 12AWG X 3C
75-6
POWER CORD 12AWG X 3C
76
FRONT COVER
77
TAP SCREW M4 X 12
Price
N/A
78
Now: PN06M
HEX NUT M5-.8
Price
N/A
79
PLATE
Price
N/A
80
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
81
*DISCD*DIGITAL READOUT ASSEMBLY
Item is no longer available
Price
N/A
81-1
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
81-2
DIGITAL READOUT COVER
Item is no longer available
Price
N/A
81-3
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
81-4
Now: PW07M
FLAT WASHER 3MM
Price
N/A
81-5
CIRCUIT BOARD
81-6
SENSOR PLATE
Item is no longer available
Price
N/A
81-7
DATA CORD SENSOR TO D READOUT
81-8
DIGITAL READOUT CORD 18AWG X 2C
Item is no longer available
Price
N/A
82
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
85
Now: PW04M
FLAT WASHER 10MM
Price
N/A
86
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
87
NYLON SCREW 3/16-24 X 1/2
88
STRAIN RELIEF
Item is no longer available
Price
N/A
89
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
90
Now: PW05M
FLAT WASHER 4MM
Price
N/A
91
CHAIN
Item is no longer available
Price
N/A
92
BODY
Item is no longer available
Price
N/A
93
ACCESS PANEL RIGHT
Item is no longer available
Price
N/A
94
FLAT HD SCR M6-1 X 20
Price
N/A
95
WRENCH MOUNTING BRACKET
96
MITER GAUGE MOUNTING BRACKET
Item is no longer available
Price
N/A
97
FENCE RESTING BRACKET
98
ROLL PIN 5 X 28
Price
N/A
99
SHAFT
100
TAP SCREW M3 X 6
Price
N/A
1005
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
1006
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-1
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-3
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-5
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-5V2
R CAPACITOR 35M 450V 2 X 3-1/2
Price
N/A
1006-6
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-7
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-8
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
1006V2
MOTOR 5HP 220V 1-PH V2.11.19
1006V2-1
MOTOR FAN COVER
1006V2-2
MOTOR FAN
1006V2-3
JUNCTION BOX
1006V2-4
R CAPACITOR COVER
1006V2-5
R CAPACITOR 35M 450V 2 X 3-1/2
1006V2-6
S CAPACITOR COVER
1006V2-7
S CAPACITOR 400M 250V 1-3/4 X 3-13/16
1006V2-8
CENTRIFUGAL SWITCH W/ CONTACT POINTS
Price
N/A
1007
Now: PN02M
HEX NUT M10-1.5
Price
N/A
1008
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1009
LOCK WASHER 10MM
Price
N/A
101
L-PLATE
Item is no longer available
Price
N/A
1011
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
1012
SET SCREW M6-1 X 8
Price
N/A
1017-1
MOUNTING BRACKET SPACER 1MM
Item is no longer available
Price
N/A
1017-2
MOUNTING BRACKET SPACER 0.5MM
Item is no longer available
Price
N/A
1018
CAP SCREW M8-1.25 X 20
Price
N/A
102
BLADE TILT SHAFT BRACKET
Item is no longer available
Price
N/A
1020
STRUT
1021
BUSHING
1022
BRACKET
1023
STRUT SCREW
1024
WAVY WASHER 10MM
Price
N/A
1025
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1026
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
1027
LOCK WASHER 8MM
Price
N/A
1028
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1029
BRUSH
103
COVER
Item is no longer available
Price
N/A
1030
LEADSCREW
1031
BUSHING
1032
GASKET
Price
N/A
1033
LEADSCREW BRACKET
Price
N/A
1034
SET SCREW M5-.8 X 5
Price
N/A
1036
LOCK NUT M10-1.25
Price
N/A
1037
THRUST BEARING 51102
Price
N/A
1038
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
1039
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
1041
PLATE
1042
CAP SCREW M8-1.25 X 25
Price
N/A
1044
EXT TOOTH WASHER 6MM
Price
N/A
1045
TILT ARROW POINTER
Price
N/A
1046
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
1047
HANDWHEEL
1049
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
105
HANDWHEEL SHAFT
1055
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1057
CAP SCREW M6-1 X 25
Price
N/A
1058
LOCK WASHER 6MM
Price
N/A
1059
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
106
Now: PW02M
FLAT WASHER 5MM
Price
N/A
1060
BLADE COVER
1061
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
1061-1
Now: PW02M
FLAT WASHER 5MM
Price
N/A
1062
DUST CHUTE
1063
TRUNNION
1064
FRONT COLUMN
1065
CAP SCREW M8-1.25 X 40
Price
N/A
1066
REAR COLUMN
1067
ARBOR SHAFT 1" V2.01.10
Price
N/A
1067V2
ARBOR SHAFT 1" V2.01.10
1068
BLADE
107
PLATE
Item is no longer available
Price
N/A
1070
ARBOR NUT 1"-10
1071
ARBOR SHAFT 1" V2.01.10
Price
N/A
1072
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
1074
MOTOR COVER
1079
RIGHT COVER
108
LOCK COLLAR
Price
N/A
1080
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
1081
MAG SWITCH SDE MP-30 5HP 1PH 23A
1081-1
MAG SWITCH FRONT/BACK COVER
1081-2
MAG SWITCH FRONT/BACK COVER
Price
N/A
1081-3
CONTACTOR SDE MA-30 220V
1081-4
*DISCD*OL RELAY SDE RA-30 22~34 V1
Item is no longer available
Price
N/A
1081-4V2
OL RELAY SDE RA-30 18-26A V2.08.11
1081-5
STRAIN RELIEF M20 TYPE-6 ST
1081-8
STRAIN RELIEF M20 TYPE-6 ST
1081-9
STRAIN RELIEF M20 TYPE-6 ST
1082
CAP SCREW M6-1 X 12
Price
N/A
1083
COVER
Item is no longer available
Price
N/A
1084
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
1088
DIGITAL SENSOR ASSY
Price
N/A
1088-1
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
1088-10
DIGITAL SENSOR COVER
1088-2
DIGITAL READOUT COVER
Price
N/A
1088-3
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
1088-4
Now: PW07M
FLAT WASHER 3MM
Price
N/A
1088-5
CIRCUIT BOARD V1
Price
N/A
1088-6
SENSOR PLATE
Price
N/A
1088-7
DATA CORD 24 AWG X 450
Price
N/A
1088-8
DIGITAL READOUT CORD 18 AWG X 2C
Price
N/A
1089
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
109
RIVING KNIFE V1
1090
Now: PN06M
HEX NUT M5-.8
Price
N/A
1092
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
1093
Now: PW05M
FLAT WASHER 4MM
Price
N/A
1094
SET SCREW M8-1.25 X 50
Price
N/A
1095
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
1096
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
1097
FENCE MOUNTING BRACKET
Price
N/A
1098
STRAIN RELIEF
Price
N/A
1099
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
109V2
RIVING KNIFE V2.01.10
Price
N/A
110
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
1100
CHAIN
1102
FLAT HD SCR M5-.8 X 20
Price
N/A
1103V2-5
LEFT PLATE W/ TAPE V2.01.10
Price
N/A
1103V2-6
RIGHT PLATE W/ TAPE 35MM V2.01.10
Price
N/A
1104
SET SCREW M6-1 X 12
Price
N/A
1105
*DISCD*PLATE L V1.02.09
Item is no longer available
Price
N/A
1106
*DISCD*PLATE R V1.02.09
Item is no longer available
Price
N/A
1107
*DISCD*TAPE L V1.02.09
Item is no longer available
Price
N/A
1108
*DISCD*TAPE R V1.02.09
Item is no longer available
Price
N/A
1109
*DISCD*RIVING KNIFE V1.02.09
111
*DISCD*MOTOR 5HP 1PH 220V
Item is no longer available
Price
N/A
111-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
111-2
MOTOR FAN
111-3
JUNCTION BOX
Item is no longer available
Price
N/A
111-4
R CAPACITOR COVER
111-5
R CAPACITOR 80M 250V 1-3/4 X 3-3/8
111-6
*DISCD*START CAPACITOR COVER
Item is no longer available
Price
N/A
111-7
***USE P0605X1006V2-7***
Price
N/A
111-8
CENTRIFUGAL SWITCH W/ CONTACT POINTS
1110
TABLE
1111
TAP SCREW M4 X 12
Price
N/A
1112
CABINET
Item is no longer available
Price
N/A
1113
WORM GEAR
1114
BLADE TILT SHAFT BRACKET
1116
SENSOR PLATE
Price
N/A
1117
SET SCREW M8-1.25 X 10
Price
N/A
1119
L-PLATE
Price
N/A
112
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
1120
Now: PW02M
FLAT WASHER 5MM
Price
N/A
1121
TAP SCREW M3 X 6
Price
N/A
1122
ROLL PIN 5 X 28
Price
N/A
1123
MITER GAUGE MOUNTING BRACKET
Price
N/A
1126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
1127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
1128
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
1129
HEX WRENCH 4MM
Price
N/A
113
MOTOR BOLT
Price
N/A
1130
HEX WRENCH 5MM
Price
N/A
1131
HEX WRENCH 6MM
Price
N/A
1132
SCREWDRIVER PHILLIPS/STANDARD
Item is no longer available
Price
N/A
1133
ARBOR SHAFT 1" V2.01.10
Price
N/A
1136
WRENCH MOUNTING BRACKET
Price
N/A
1137
COVER
Price
N/A
1138
ARBOR WRENCH
Price
N/A
1139
FLAT HD SCR M6-1 X 20
Price
N/A
114
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
115
SET SCREW M6-1 X 10
Price
N/A
1154
ON/OFF SWITCH ASSY 5HP-1HP
1154-2
ON/OFF SWITCH BRACKET
1154-3
ON/OFF SWITCH BOX
1157
JUNCTION BOX BASE
1158
HEX WRENCH 3MM
Price
N/A
1159
MOTOR CORD 12G 3C
116
EXTENSION WING
Price
N/A
1161
GROUND WIRE 12G 1C 150MM
1162
JUNCTION BOX COVER
117
Now: PW04M
FLAT WASHER 10MM
Price
N/A
118
FLAT HD SCR M5-.8 X 20
Price
N/A
119
PLATE (L) W/ TAPE
Price
N/A
120
PLATE (R) W/ TAPE
Price
N/A

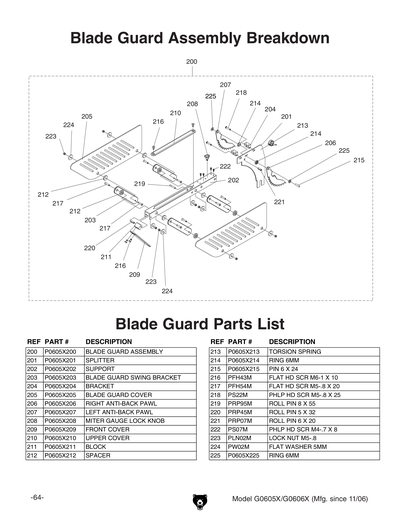

1200
*DISCD*BLADE GUARD ASSEMBLY V1
1201
*DISCD*SPLITTER
Item is no longer available
Price
N/A
1202
*DISCD*SUPPORT
Item is no longer available
Price
N/A
1203
*DISCD*BLADE GUARD BRACKET
Item is no longer available
Price
N/A
1204
*DISCD*BRACKET
Item is no longer available
Price
N/A
1205
*DISCD*BLADE GUARD COVER
Item is no longer available
Price
N/A
1206
*DISCD*ANTI BACK PAWL RIGHT
Item is no longer available
Price
N/A
1207
*DISCD*ANTI BACK PAWL LEFT
Item is no longer available
Price
N/A
1208
*DISCD*MITER GAUGE LOCK KNOB
Item is no longer available
Price
N/A
1209
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
121
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
1210
*DISCD*COVER UPPER
Item is no longer available
Price
N/A
1211
*DISCD*BLOCK
Item is no longer available
Price
N/A
1212
*DISCD*SPACER
Item is no longer available
Price
N/A
1213
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
1214
*DISCD*RING 6MM
Item is no longer available
Price
N/A
1215
*DISCD*PIN 6 X 24
Item is no longer available
Price
N/A
1216
FLAT HD SCR M6-1 X 10
Price
N/A
1217
FLAT HD SCR M5-.8 X 20
Price
N/A
1218
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
1219
ROLL PIN 8 X 55
Price
N/A
122
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
1220
ROLL PIN 5 X 32
Price
N/A
1221
ROLL PIN 6 X 20
Price
N/A
1222
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
1223
LOCK NUT M5-.8
Price
N/A
1224
Now: PW02M
FLAT WASHER 5MM
Price
N/A
1225
*DISCD*RING 6MM
Item is no longer available
Price
N/A
123
ARBOR WRENCH
124
HANDWHEEL HANDLE
126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
128
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1280
GUARD CONVERSION KIT
Item is no longer available
Price
N/A
129
HEX WRENCH 4MM
Price
N/A
130
HEX WRENCH 5MM
Price
N/A

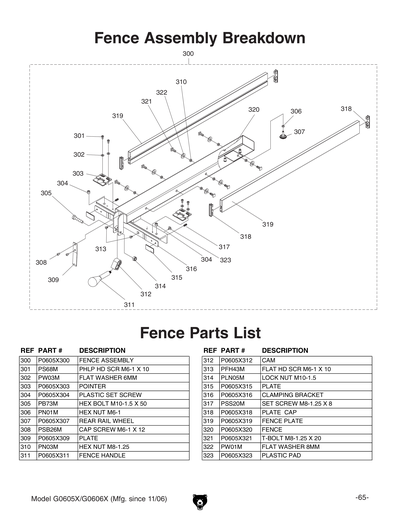

1300
FENCE ASSY
Price
N/A
1301
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
1302
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1305
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
1306
Now: PN01M
HEX NUT M6-1
Price
N/A
1309
BRACKET
131
HEX WRENCH 6MM
Price
N/A
1310
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1312
CAM
Price
N/A
1313
FLAT HD SCR M6-1 X 8
Price
N/A
1314
LOCK NUT M10-1.5
Price
N/A
1317
SET SCREW M8-1.25 X 8
Price
N/A
132
PHLP HD SCREWDRIVER #1
Item is no longer available
Price
N/A
1321
T-BOLT M8-1.25 X 20
Price
N/A
1322
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1324
Now: PB71M
HEX BOLT M6-1 X 45
Price
N/A
1325
LOCK NUT M6-1
Price
N/A
133
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
134
ARBOR NUT 5/8"-12
Price
N/A
135
ARBOR FLANGE 5/8"
Price
N/A
136
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
137
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
138
PLATE (L) W/ TAPE
139
PLATE (R) W/ TAPE

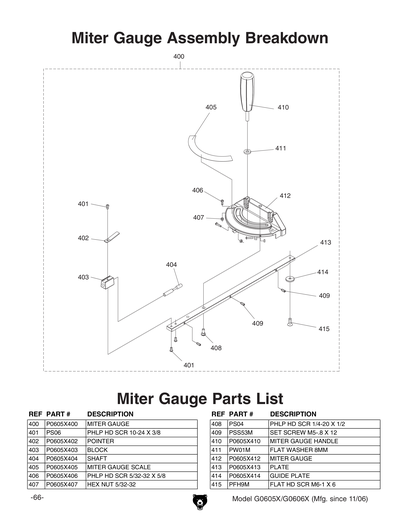

1400
MITER GAUGE ASSEMBLY
1401
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
1403
BLOCK
Item is no longer available
Price
N/A
1405
MITER GAUGE LABEL
Item is no longer available
Price
N/A
1406
Now: PS25
PHLP HD SCR 8-32 X 5/8
Price
N/A
1407
Now: PN14
HEX NUT 8-32
Price
N/A
1409
SET SCREW M5-.8 X 12
Price
N/A
1411
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1412
MITER GAUGE BODY
Item is no longer available
Price
N/A
1413
PLATE
Item is no longer available
Price
N/A
1414
GUIDE PLATE
1415
Now: PFH9M
FLAT HD SCR M6-1 X 6
Price
N/A
1416
O-RING 4.8 X 1.9 P5
Price
N/A
147
RAIL T PLATE
Item is no longer available
Price
N/A
148
RAIL U PLATE
Item is no longer available
Price
N/A

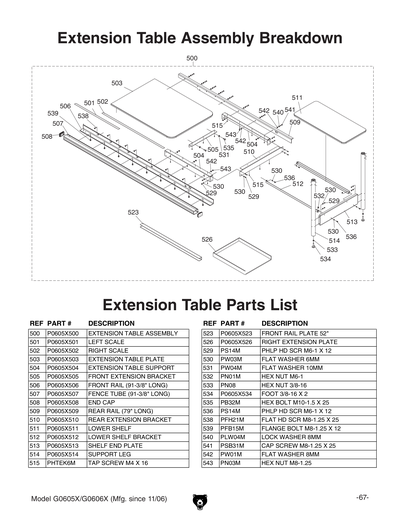

1500
EXTENSION TABLE ASSEMBLY
1503
EXTENSION TABLE PLATE
1505
FRONT EXTENSION BRACKET
1506
FRONT RAIL 91-3/8" LONG
1507
FENCE TUBE 91-3/8" LONG
1509
REAR RAIL 79" LONG
1510
REAR EXTENSION BRACKET
1513
SHELF END PLATE
1515
TAP SCREW M4 X 16
Price
N/A
1529
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
1530
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1531
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1532
Now: PN01M
HEX NUT M6-1
Price
N/A
1533
Now: PN08
HEX NUT 3/8-16
Price
N/A
1535
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
1536
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
1538
FLAT HD SCR M8-1.25 X 25
Price
N/A
1539
FLANGE BOLT M8-1.25 X 12
Price
N/A
154
ON/OFF SWITCH ASSY 5HP-1HP
Price
N/A
154-1
ON/OFF PUSH BUTTON SWITCH
Price
N/A
154-2
ON/OFF SWITCH BRACKET
Price
N/A
154-3
ON/OFF SWITCH BOX
Price
N/A
154-5
SAFETY PIN
Price
N/A
1540
LOCK WASHER 8MM
Price
N/A
1541
CAP SCREW M8-1.25 X 25
Price
N/A
1542
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1543
Now: PN03M
HEX NUT M8-1.25
Price
N/A

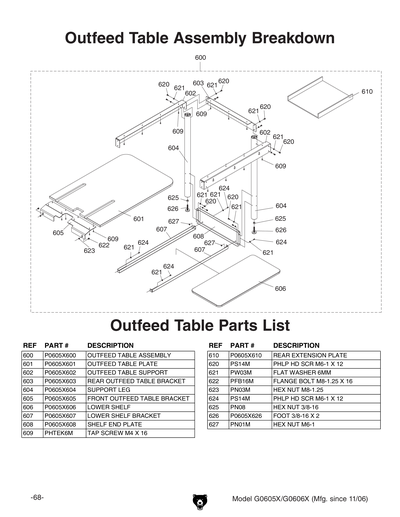

1600
OUTFEED TABLE ASSEMBLY
1607
LOWER OUTFEED TABLE SHELF BRACKET
Item is no longer available
Price
N/A
1609
TAP SCREW M4 X 16
Price
N/A
1620
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
1621
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1622
FLANGE BOLT M8-1.25 X 16
Price
N/A
1623
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1624
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
1625
Now: PN08
HEX NUT 3/8-16
Price
N/A
1627
Now: PN01M
HEX NUT M6-1
Price
N/A

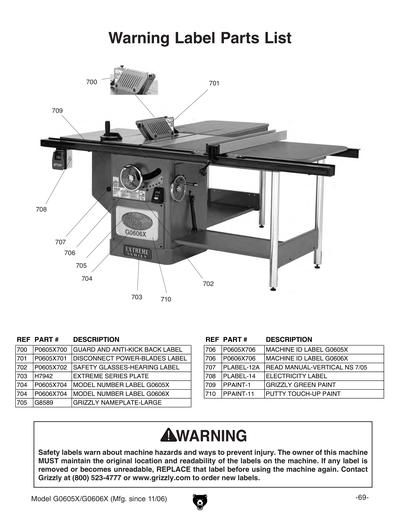

1700
GUARD AND ANTI-KICKBACK LABEL
1701
DISCONNECT POWER-BLADE CHANGE LABEL
Item is no longer available
Price
N/A
1702
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
1703
Now: H7942
Extreme Series Nameplate
Price
N/A
1704
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
1705
Now: G8589
Nameplate - Large
Price
N/A
1706
MACHINE ID LABEL
1707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1708
ELECTRICITY 1.4W X 1.2H
Price
N/A
1709
N/S GRIZZLY GREEN G1023S
Price
N/A
1710
GREY PUTTY REF G0504
Price
N/A
1MAN
MANUAL G0605X1-97X MFD-2/9-8/11 V1.02.09
200
BLADE GUARD ASSEMBLY V1
200V2
BLADE GUARD ASSY V2.01.10
Price
N/A
201
BLADE GUARD ASSY V2.01.10
Price
N/A
202
BLADE GUARD ASSY V2.01.10
Price
N/A
203
BLADE GUARD ASSY V2.01.10
Price
N/A
204
BLADE GUARD ASSY V2.01.10
Price
N/A
205
BLADE GUARD ASSY V2.01.10
Price
N/A
206
BLADE GUARD ASSY V2.01.10
Price
N/A
207
BLADE GUARD ASSY V2.01.10
Price
N/A
208
BLADE GUARD ASSY V2.01.10
Price
N/A
209
BLADE GUARD ASSY V2.01.10
Price
N/A
210
BLADE GUARD ASSY V2.01.10
Price
N/A
211
BLADE GUARD ASSY V2.01.10
Price
N/A
212
BLADE GUARD ASSY V2.01.10
Price
N/A
213
BLADE GUARD ASSY V2.01.10
Price
N/A
214
BLADE GUARD ASSY V2.01.10
Price
N/A
215
BLADE GUARD ASSY V2.01.10
Price
N/A
216
FLAT HD SCR M6-1 X 10
Price
N/A
217
FLAT HD SCR M5-.8 X 20
Price
N/A
218
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
219
ROLL PIN 8 X 55
Price
N/A
220
ROLL PIN 5 X 32
Price
N/A
221
ROLL PIN 6 X 20
Price
N/A
222
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
223
LOCK NUT M5-.8
Price
N/A
224
Now: PW02M
FLAT WASHER 5MM
Price
N/A
225
BLADE GUARD ASSY V2.01.10
Price
N/A
251
LEFT PLATE V2.01.10
Price
N/A
252
LOCK NUT M5-.8
Price
N/A
253
FLAT HD SCR M5-.8 X 15
Price
N/A
254
LEFT COVER V2.01.10
Price
N/A
255
ROD CENTER PIN V2.01.10
Price
N/A
256
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
257
KNOB BOLT V2.01.10
Price
N/A
258
ROD V2.01.10
Price
N/A
259
LEFT BRACKET V2.01.10
Price
N/A
260
RIGHT BRACKET V2.01.10
Price
N/A
261
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
262
MOUNTING PIN V2.01.10
Price
N/A
263
RIGHT COVER V2.01.10
Price
N/A
264
RIGHT PLATE V2.01.10
Price
N/A
265
PUSH NUT 4MM V2.01.10
Price
N/A
266
LEFT PAWL V2.01.10
Price
N/A
267
RIGHT TORSN SPRING V2.01.10
Price
N/A
268
PAWL MOUNTING BRKT V2.01.10
Price
N/A
269
MOUNTING BRKT PIN V2.01.10
Price
N/A
270
***USE P0869318***
Price
N/A
271
SHAFT SPRING V2.01.10
Price
N/A
272
E-CLIP 7MM
Price
N/A
273
LEFT TORSION SPRING V2.01.10
Price
N/A
274
RIGHT PAWL V2.01.10
Price
N/A
275
RIGHT PAWL SHAFT V2.01.10
Price
N/A
276
SPREADER V2.01.10
Price
N/A
277
O-RING 2.8 X 1.9 P3
Price
N/A
278
AMPUTATION HAZ LABEL V2.01.10
Price
N/A
280
GUARD CONVERSION KIT G0605X/G0606X
300
FENCE ASSY
300A
COMPLETE FENCE ASSY BOX 2
301
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
302
Now: PW03M
FLAT WASHER 6MM
Price
N/A
303
POINTER
Price
N/A
304
PLASTIC SET SCREW
Price
N/A
305
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
306
Now: PN01M
HEX NUT M6-1
Price
N/A
307
REAR RAIL WHEEL
Price
N/A
308
CAP SCREW M6-1 X 12
Price
N/A
309
PLATE
310
Now: PN03M
HEX NUT M8-1.25
Price
N/A
311
FENCE HANDLE
312
CAM
Price
N/A
313
FLAT HD SCR M6-1 X 10
Price
N/A
314
LOCK NUT M10-1.5
Price
N/A
315
PLATE
Price
N/A
316
RAIL CLAMPING BRACKET
Price
N/A
317
SET SCREW M8-1.25 X 8
Price
N/A
318
PLATE CAP
Price
N/A
319
FENCE PLATE
Price
N/A
320
FENCE
Price
N/A
321
T-BOLT M8-1.25 X 20
Price
N/A
322
Now: PW01M
FLAT WASHER 8MM
Price
N/A
323
PLASTIC PAD
Item is no longer available
Price
N/A
400
MITER GAUGE
401
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
402
POINTER
Item is no longer available
Price
N/A
403
BLOCK
Price
N/A
404
SHAFT
Item is no longer available
Price
N/A
405
MITER GAUGE LABEL
Price
N/A
406
PHLP HD SCR 5/32-32 X 5/8
Item is no longer available
Price
N/A
407
HEX NUT 5/32-32
Item is no longer available
Price
N/A
408
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
409
SET SCREW M5-.8 X 12
Price
N/A
410
MITER GAUGE HANDLE
Item is no longer available
Price
N/A
411
Now: PW01M
FLAT WASHER 8MM
Price
N/A
412
MITER GAUGE BODY
Price
N/A
413
PLATE
Price
N/A
414
GUIDE PLATE
Price
N/A
415
Now: PFH9M
FLAT HD SCR M6-1 X 6
Price
N/A
500
EXTENSION TABLE ASSEMBLY
Item is no longer available
Price
N/A
501
SCALE LEFT
502
SCALE RIGHT
503
EXTENSION TABLE PLATE
Price
N/A
503A
COMPLETE EXT TABLE ASSY BOX 4
504
EXTENSION TABLE SUPPORT
Price
N/A
505
FRONT EXTENSION BRACKET
Price
N/A
506
FRONT RAIL 91-3/8" LONG
Price
N/A
506A
COMPLETE RAIL ASSY BOX 2
Item is no longer available
Price
N/A
507
FENCE TUBE 91-3/8" LONG
Price
N/A
508
END CAP
Price
N/A
509
REAR RAIL 79" LONG
Price
N/A
510
REAR EXTENSION BRACKET
Price
N/A
511
LOWER EXTENSION TABLE SHELF
Price
N/A
512
LOWER EXTENSION TABLE SHELF BRACKET
Price
N/A
513
SHELF END PLATE
Price
N/A
514
SUPPORT LEG
Price
N/A
515
TAP SCREW M4 X 16
Price
N/A
523
FRONT RAIL PLATE 52"
Item is no longer available
Price
N/A
526
EXTENSION PLATE RIGHT
Item is no longer available
Price
N/A
529
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
530
Now: PW03M
FLAT WASHER 6MM
Price
N/A
531
Now: PW04M
FLAT WASHER 10MM
Price
N/A
532
Now: PN01M
HEX NUT M6-1
Price
N/A
533
Now: PN08
HEX NUT 3/8-16
Price
N/A
534
FOOT 3/8-16 X 2
Price
N/A
535
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
536
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
538
FLAT HD SCR M8-1.25 X 25
Price
N/A
539
FLANGE BOLT M8-1.25 X 12
Price
N/A
540
LOCK WASHER 8MM
Price
N/A
541
CAP SCREW M8-1.25 X 25
Price
N/A
542
Now: PW01M
FLAT WASHER 8MM
Price
N/A
543
Now: PN03M
HEX NUT M8-1.25
Price
N/A
600
OUTFEED TABLE ASSEMBLY
Price
N/A
601
OUTFEED TABLE PLATE
Price
N/A
602
OUTFEED TABLE SUPPORT
Price
N/A
603
REAR OUTFEED TABLE BRACKET
Price
N/A
604
SUPPORT LEG
Price
N/A
605
FRONT OUTFEED TABLE BRACKET
Price
N/A
606
SHELF LOWER
Price
N/A
607
LOWER OUTFEED TABLE SHELF BRACKET
Price
N/A
608
SHELF END PLATE
Price
N/A
609
TAP SCREW M4 X 16
Price
N/A
610
REAR EXTENSION PLATE
Item is no longer available
Price
N/A
620
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
621
Now: PW03M
FLAT WASHER 6MM
Price
N/A
622
BOLT WITH WASHER
623
Now: PN03M
HEX NUT M8-1.25
Price
N/A
624
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
625
Now: PN08
HEX NUT 3/8-16
Price
N/A
626
FOOT 3/8-16 X 2
Price
N/A
627
Now: PN01M
HEX NUT M6-1
Price
N/A
700
GUARD AND ANTI-KICKBACK LABEL
Price
N/A
701
DISCONNECT POWER-BLADE CHANGE LABEL
Price
N/A
702
SAFETY GLASSES/HEARING LABEL
Item is no longer available
Price
N/A
703
Now: H7942
Extreme Series Nameplate
Price
N/A
704
MODEL NUMBER LABEL
705
Now: G8589
Nameplate - Large
Price
N/A
706
MACHINE ID LABEL
Item is no longer available
Price
N/A
707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
708
ELECTRICITY 1.4W X 1.2H
Price
N/A
709
N/S GRIZZLY GREEN G1023S
Price
N/A
710
GREY PUTTY REF G0504
Price
N/A
711
DEGREE SCALE
BAG1
HAND TOOL HARDWARE BAG
BOX2
COMPLETE RAIL ASSY BOX 2
Price
N/A
BOX3
COMPLETE FENCE ASSY BOX 2
Price
N/A
BOX4
COMPLETE EXT TABLE ASSY BOX 4
Price
N/A
MAN
MANUAL FOR G0605X 10/07
Item is no longer available
Price
N/A
