Parts for G0605X - 12" Extreme Series Table Saw - Single-Phase

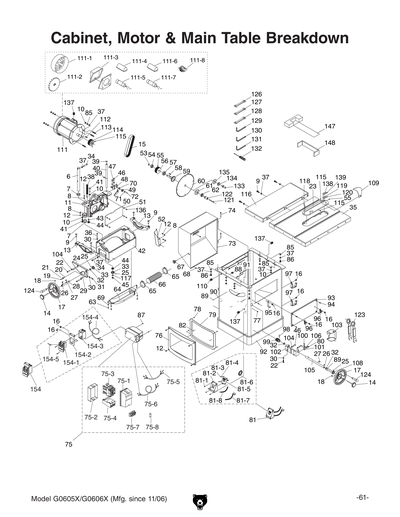

Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X
Part Diagram for G0605X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

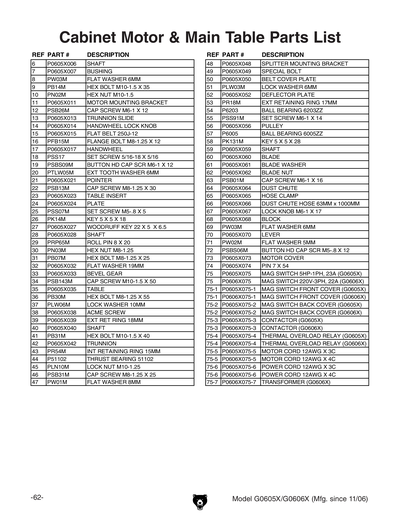

Ref #
Part #
Description
6
SHAFT
Item is no longer available
Price
N/A
7
BUSHING
Item is no longer available
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
HEX BOLT M10-1.5 X 35
Price
N/A
10
HEX NUT M10-1.5
Price
N/A
11
*DISCD*MOTOR MOUNTING BRACKET
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 12
Price
N/A
13
TRUNNION SLIDE
Item is no longer available
Price
N/A
14
HANDWHEEL LOCK KNOB
Price
N/A
15
FLAT BELT 250J-12
Price
$54.65
16
FLANGE BOLT M8-1.25 X 12
Price
N/A
17
HANDWHEEL
Item is no longer available
Price
N/A
18
SET SCREW 5/16-18 X 5/16
Price
N/A
19
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
20
EXT TOOTH WASHER 6MM
Price
N/A
21
TILT ARROW POINTER
Price
$3.95
22
CAP SCREW M8-1.25 X 30
Price
N/A
23
TABLE INSERT
Price
$69.75
23A
Zero Clearance Table Saw Insert for G0605X & G0606X
Price
N/A
24
PLATE
Price
$142.35
25
SET SCREW M5-.8 X 5
Price
N/A
26
KEY 5 X 5 X 18
Price
N/A
27
WOODRUFF KEY 22 X 5
Price
N/A
28
SHAFT
Price
$15.85
29
ROLL PIN 8 X 20
Price
N/A
30
HEX NUT M8-1.25
Price
N/A
31
HEX BOLT M8-1.25 X 25
Price
N/A
32
PLASTIC BUSHING 19MM ID
Price
N/A
33
*DISCD*BEVEL GEAR V1
Item is no longer available
Price
N/A
33V2-1
LEFT BEVEL GEAR
Price
N/A
33V2-2
RIGHT BEVEL GEAR
Price
N/A
34
CAP SCREW M10-1.5 X 50
Price
N/A
35
TABLE
Price
N/A
36
HEX BOLT M8-1.25 X 55
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
ACME SCREW
Price
$7.85
39
EXT RETAINING RING 18MM
Price
N/A
40
SHAFT
Item is no longer available
Price
N/A
41
HEX BOLT M10-1.5 X 40
Price
N/A
42
TRUNNION
Item is no longer available
Price
N/A
43
INT RETAINING RING 15MM
Price
N/A
44
THRUST BEARING 51102
Price
N/A
45
LOCK NUT M10-1.25
Price
N/A
46
CAP SCREW M8-1.25 X 25
Price
N/A
47
FLAT WASHER 8MM
Price
N/A
48
*DISCD*SPLITTER MOUNTING BRACKET V1
Item is no longer available
Price
N/A
48V2-1
MOUNTING BRACKET BASE V2.01.10
Price
N/A
48V2-10
SET SCREW M3-.5 X 10
Price
N/A
48V2-2
CAP SCREW M8-1.25 X 20
Price
N/A
48V2-3
COMPRESSION SPRING V2.01.10
Price
N/A
48V2-4
LOCKING BOLT V2.01.10
Price
N/A
48V2-5
MOUNTING BRACKET PLATE V2.01.10
Price
N/A
48V2-6
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
48V2-7
LOCK WASHER 5MM
Price
N/A
48V2-8
HANDLE V2.01.10
Price
N/A
48V2-9
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
49
FLANGE BOLT M10-1.5 X 7.5
Price
$10.45
50
BELT COVER PLATE
Item is no longer available
Price
N/A
51
LOCK WASHER 6MM
Price
N/A
52
DEFLECTOR PLATE
Price
$7.20
53
EXT RETAINING RING 17MM
Price
N/A
54
BALL BEARING 6203ZZ
Price
N/A
55
SET SCREW M6-1 X 14
Price
N/A
56
*DISCD*PULLEY
Item is no longer available
Price
N/A
57
BALL BEARING 6005ZZ
Price
N/A
58
KEY 5 X 5 X 28
Price
N/A
59
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
59V2
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Item is no longer available
Price
N/A
60
BLADE
Price
$157.10
61
BLADE WASHER
Price
$4.90
62
BLADE NUT
Price
$6.90
63
CAP SCREW M6-1 X 16
Price
N/A
64
DUST CHUTE
Price
$16.60
65
HOSE CLAMP
Price
$2.60
66
DUST CHUTE HOSE 63 X 1000MM
Price
N/A
67
LOCK KNOB M6-1 X 17
Price
$3.20
68
BLOCK
Item is no longer available
Price
N/A
69
FLAT WASHER 6MM
Price
N/A
71
FLAT WASHER 5MM
Price
N/A
72
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
73
MOTOR COVER
Price
N/A
74
PIN 7 X 54
Price
$2.60
75
MAG SWITCH SDE MP-30 5HP 1PH 23A
Price
N/A
75-1
MAG SWITCH FRONT/BACK COVER
Price
N/A
75-2
MAG SWITCH FRONT/BACK COVER
Price
N/A
75-3
CONTACTOR SDE MA-30 220V
Price
N/A
75-4
*DISCD*OL RELAY SDE RA-30 22~34 V1
Price
N/A
75-5
MOTOR CORD 12AWG X 3C
Price
$17.85
75-6
POWER CORD 12AWG X 3C
Price
$70.85
76
FRONT COVER
Price
$61.25
77
TAP SCREW M4 X 12
Price
N/A
78
HEX NUT M5-.8
Price
N/A
79
PLATE
Price
N/A
80
PHLP HD SCR M5-.8 X 8
Price
N/A
81
*DISCD*DIGITAL READOUT ASSEMBLY
Item is no longer available
Price
N/A
81-1
PHLP HD SCR M5-.8 X 8
Price
N/A
81-2
DIGITAL READOUT COVER
Item is no longer available
Price
N/A
81-3
PHLP HD SCR M3-.5 X 8
Price
N/A
81-4
FLAT WASHER 3MM
Price
N/A
81-5
CIRCUIT BOARD
Price
$41.40
81-6
SENSOR PLATE
Item is no longer available
Price
N/A
81-7
DATA CORD SENSOR TO D READOUT
Price
$19.45
81-8
DIGITAL READOUT CORD 18AWG X 2C
Item is no longer available
Price
N/A
82
PHLP HD SCR M3-.5 X 8
Price
N/A
85
FLAT WASHER 10MM
Price
N/A
86
HEX BOLT M10-1.5 X 20
Price
N/A
87
NYLON SCREW 3/16-24 X 1/2
Price
$1.75
88
STRAIN RELIEF
Item is no longer available
Price
N/A
89
PHLP HD SCR M4-.7 X 6
Price
N/A
90
FLAT WASHER 4MM
Price
N/A
91
CHAIN
Item is no longer available
Price
N/A
92
BODY
Item is no longer available
Price
N/A
93
ACCESS PANEL RIGHT
Item is no longer available
Price
N/A
94
FLAT HD SCR M6-1 X 20
Price
N/A
95
WRENCH MOUNTING BRACKET
Price
$3.20
96
MITER GAUGE MOUNTING BRACKET
Item is no longer available
Price
N/A
97
FENCE RESTING BRACKET
Price
$8.35
98
ROLL PIN 5 X 28
Price
N/A
99
SHAFT
Price
$16.10
100
TAP SCREW M3 X 6
Price
N/A
1005
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
1006
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-1
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-3
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-5
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-5V2
R CAPACITOR 35M 450V 2 X 3-1/2
Price
N/A
1006-6
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-7
MOTOR 5HP 220V 1-PH V2.11.19
Price
N/A
1006-8
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
1006V2
MOTOR 5HP 220V 1-PH V2.11.19
Price
$597.45
1006V2-1
MOTOR FAN COVER
Price
$10.10
1006V2-2
MOTOR FAN
Price
$7.20
1006V2-3
JUNCTION BOX
Price
$8.95
1006V2-4
R CAPACITOR COVER
Price
$7.20
1006V2-5
R CAPACITOR 35M 450V 2 X 3-1/2
Price
$25.70
1006V2-6
S CAPACITOR COVER
Price
$7.20
1006V2-7
S CAPACITOR 400M 250V 1-3/4 X 3-13/16
Price
$42.60
1006V2-8
CENTRIFUGAL SWITCH W/ CONTACT POINTS
Price
N/A
1007
HEX NUT M10-1.5
Price
N/A
1008
FLAT WASHER 10MM
Price
N/A
1009
LOCK WASHER 10MM
Price
N/A
101
L-PLATE
Item is no longer available
Price
N/A
1011
KEY 5 X 5 X 40
Price
N/A
1012
SET SCREW M6-1 X 8
Price
N/A
1017-1
MOUNTING BRACKET SPACER 1MM
Item is no longer available
Price
N/A
1017-2
MOUNTING BRACKET SPACER 0.5MM
Item is no longer available
Price
N/A
1018
CAP SCREW M8-1.25 X 20
Price
N/A
102
BLADE TILT SHAFT BRACKET
Item is no longer available
Price
N/A
1020
STRUT
Price
$37.20
1021
BUSHING
Price
$1.75
1022
BRACKET
Price
$138.30
1023
STRUT SCREW
Price
$2.20
1024
WAVY WASHER 10MM
Price
N/A
1025
FLAT WASHER 10MM
Price
N/A
1026
HEX BOLT M8-1.25 X 20
Price
N/A
1027
LOCK WASHER 8MM
Price
N/A
1028
FLAT WASHER 8MM
Price
N/A
1029
BRUSH
Price
$32.95
103
COVER
Item is no longer available
Price
N/A
1030
LEADSCREW
Price
$19.35
1031
BUSHING
Price
$1.85
1032
GASKET
Price
N/A
1033
LEADSCREW BRACKET
Price
N/A
1034
SET SCREW M5-.8 X 5
Price
N/A
1036
LOCK NUT M10-1.25
Price
N/A
1037
THRUST BEARING 51102
Price
N/A
1038
KEY 5 X 5 X 18
Price
N/A
1039
HEX BOLT M10-1.5 X 35
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
1041
PLATE
Price
$96.05
1042
CAP SCREW M8-1.25 X 25
Price
N/A
1044
EXT TOOTH WASHER 6MM
Price
N/A
1045
TILT ARROW POINTER
Price
N/A
1046
PHLP HD SCR M6-1 X 12
Price
N/A
1047
HANDWHEEL
Price
$53.45
1049
SET SCREW 5/16-18 X 5/16
Price
N/A
105
HANDWHEEL SHAFT
Price
$15.55
1055
HEX NUT M8-1.25
Price
N/A
1057
CAP SCREW M6-1 X 25
Price
N/A
1058
LOCK WASHER 6MM
Price
N/A
1059
PHLP HD SCR M5-.8 X 20
Price
N/A
106
FLAT WASHER 5MM
Price
N/A
1060
BLADE COVER
Price
$11.85
1061
PHLP HD SCR M5-.8 X 10
Price
N/A
1061-1
FLAT WASHER 5MM
Price
N/A
1062
DUST CHUTE
Price
$4.90
1063
TRUNNION
Price
$155.80
1064
FRONT COLUMN
Price
$26.35
1065
CAP SCREW M8-1.25 X 40
Price
N/A
1066
REAR COLUMN
Price
$34.45
1067
ARBOR SHAFT 1" V2.01.10
Price
N/A
1067V2
ARBOR SHAFT 1" V2.01.10
Price
$55.85
1068
BLADE
Price
$131.95
107
PLATE
Item is no longer available
Price
N/A
1070
ARBOR NUT 1"-10
Price
$8.80
1071
ARBOR SHAFT 1" V2.01.10
Price
N/A
1072
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
1074
MOTOR COVER
Price
$123.80
1079
RIGHT COVER
Price
$25.40
108
LOCK COLLAR
Price
N/A
1080
PHLP HD SCR 10-24 X 1/2
Price
N/A
1081
MAG SWITCH SDE MP-30 5HP 1PH 23A
Price
$240.05
1081-1
MAG SWITCH FRONT/BACK COVER
Price
$47.45
1081-2
MAG SWITCH FRONT/BACK COVER
Price
N/A
1081-3
CONTACTOR SDE MA-30 220V
Price
$125.75
1081-4
*DISCD*OL RELAY SDE RA-30 22~34 V1
Item is no longer available
Price
N/A
1081-4V2
OL RELAY SDE RA-30 18-26A V2.08.11
Price
$42.00
1081-5
STRAIN RELIEF M20 TYPE-6 ST
Price
$5.50
1081-8
STRAIN RELIEF M20 TYPE-6 ST
Price
$5.50
1081-9
STRAIN RELIEF M20 TYPE-6 ST
Price
$5.50
1082
CAP SCREW M6-1 X 12
Price
N/A
1083
COVER
Item is no longer available
Price
N/A
1084
PHLP HD SCR M5-.8 X 8
Price
N/A
1088
DIGITAL SENSOR ASSY
Price
N/A
1088-1
PHLP HD SCR M5-.8 X 8
Price
N/A
1088-10
DIGITAL SENSOR COVER
Price
$2.60
1088-2
DIGITAL READOUT COVER
Price
N/A
1088-3
PHLP HD SCR M3-.5 X 8
Price
N/A
1088-4
FLAT WASHER 3MM
Price
N/A
1088-5
CIRCUIT BOARD V1
Price
N/A
1088-6
SENSOR PLATE
Price
N/A
1088-7
DATA CORD 24 AWG X 450
Price
N/A
1088-8
DIGITAL READOUT CORD 18 AWG X 2C
Price
N/A
1089
PHLP HD SCR M3-.5 X 8
Price
N/A
109
RIVING KNIFE V1
Price
$26.25
1090
HEX NUT M5-.8
Price
N/A
1092
PHLP HD SCR M4-.7 X 6
Price
N/A
1093
FLAT WASHER 4MM
Price
N/A
1094
SET SCREW M8-1.25 X 50
Price
N/A
1095
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
1096
HEX BOLT M10-1.5 X 25
Price
N/A
1097
FENCE MOUNTING BRACKET
Price
N/A
1098
STRAIN RELIEF
Price
N/A
1099
HEX BOLT M8-1.25 X 35
Price
N/A
109V2
RIVING KNIFE V2.01.10
Price
N/A
110
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
1100
CHAIN
Price
$1.75
1102
FLAT HD SCR M5-.8 X 20
Price
N/A
1103V2-5
LEFT PLATE W/ TAPE V2.01.10
Price
N/A
1103V2-6
RIGHT PLATE W/ TAPE 35MM V2.01.10
Price
N/A
1104
SET SCREW M6-1 X 12
Price
N/A
1105
*DISCD*PLATE L V1.02.09
Item is no longer available
Price
N/A
1106
*DISCD*PLATE R V1.02.09
Item is no longer available
Price
N/A
1107
*DISCD*TAPE L V1.02.09
Item is no longer available
Price
N/A
1108
*DISCD*TAPE R V1.02.09
Item is no longer available
Price
N/A
1109
*DISCD*RIVING KNIFE V1.02.09
Price
$15.85
111
*DISCD*MOTOR 5HP 1PH 220V
Item is no longer available
Price
N/A
111-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
111-2
MOTOR FAN
Price
$11.80
111-3
JUNCTION BOX
Item is no longer available
Price
N/A
111-4
R CAPACITOR COVER
Price
$12.40
111-5
R CAPACITOR 80M 250V 1-3/4 X 3-3/8
Price
$26.60
111-6
*DISCD*START CAPACITOR COVER
Item is no longer available
Price
N/A
111-7
***USE P0605X1006V2-7***
Price
N/A
111-8
CENTRIFUGAL SWITCH W/ CONTACT POINTS
Price
$20.15
1110
TABLE
Price
$371.65
1111
TAP SCREW M4 X 12
Price
N/A
1112
CABINET
Item is no longer available
Price
N/A
1113
WORM GEAR
Price
$16.95
1114
BLADE TILT SHAFT BRACKET
Price
$39.30
1116
SENSOR PLATE
Price
N/A
1117
SET SCREW M8-1.25 X 10
Price
N/A
1119
L-PLATE
Price
N/A
112
KEY 5 X 5 X 40
Price
N/A
1120
FLAT WASHER 5MM
Price
N/A
1121
TAP SCREW M3 X 6
Price
N/A
1122
ROLL PIN 5 X 28
Price
N/A
1123
MITER GAUGE MOUNTING BRACKET
Price
N/A
1126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
1127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
1128
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
1129
HEX WRENCH 4MM
Price
N/A
113
MOTOR BOLT
Price
N/A
1130
HEX WRENCH 5MM
Price
N/A
1131
HEX WRENCH 6MM
Price
N/A
1132
SCREWDRIVER PHILLIPS/STANDARD
Item is no longer available
Price
N/A
1133
ARBOR SHAFT 1" V2.01.10
Price
N/A
1136
WRENCH MOUNTING BRACKET
Price
N/A
1137
COVER
Price
N/A
1138
ARBOR WRENCH
Price
N/A
1139
FLAT HD SCR M6-1 X 20
Price
N/A
114
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
115
SET SCREW M6-1 X 10
Price
N/A
1154
ON/OFF SWITCH ASSY 5HP-1HP
Price
$44.45
1154-2
ON/OFF SWITCH BRACKET
Price
$5.80
1154-3
ON/OFF SWITCH BOX
Price
$10.90
1157
JUNCTION BOX BASE
Price
$10.00
1158
HEX WRENCH 3MM
Price
N/A
1159
MOTOR CORD 12G 3C
Price
$32.95
116
EXTENSION WING
Price
N/A
1161
GROUND WIRE 12G 1C 150MM
Price
$1.85
1162
JUNCTION BOX COVER
Price
$7.60
117
FLAT WASHER 10MM
Price
N/A
118
FLAT HD SCR M5-.8 X 20
Price
N/A
119
PLATE (L) W/ TAPE
Price
N/A
120
PLATE (R) W/ TAPE
Price
N/A
1200
*DISCD*BLADE GUARD ASSEMBLY V1
Price
$238.05
1201
*DISCD*SPLITTER
Item is no longer available
Price
N/A
1202
*DISCD*SUPPORT
Item is no longer available
Price
N/A
1203
*DISCD*BLADE GUARD BRACKET
Item is no longer available
Price
N/A
1204
*DISCD*BRACKET
Item is no longer available
Price
N/A
1205
*DISCD*BLADE GUARD COVER
Item is no longer available
Price
N/A
1206
*DISCD*ANTI BACK PAWL RIGHT
Item is no longer available
Price
N/A
1207
*DISCD*ANTI BACK PAWL LEFT
Item is no longer available
Price
N/A
1208
*DISCD*MITER GAUGE LOCK KNOB
Item is no longer available
Price
N/A
1209
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
121
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
1210
*DISCD*COVER UPPER
Item is no longer available
Price
N/A
1211
*DISCD*BLOCK
Item is no longer available
Price
N/A
1212
*DISCD*SPACER
Item is no longer available
Price
N/A
1213
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
1214
*DISCD*RING 6MM
Item is no longer available
Price
N/A
1215
*DISCD*PIN 6 X 24
Item is no longer available
Price
N/A
1216
FLAT HD SCR M6-1 X 10
Price
N/A
1217
FLAT HD SCR M5-.8 X 20
Price
N/A
1218
PHLP HD SCR M5-.8 X 25
Price
N/A
1219
ROLL PIN 8 X 55
Price
N/A
122
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
1220
ROLL PIN 5 X 32
Price
N/A
1221
ROLL PIN 6 X 20
Price
N/A
1222
PHLP HD SCR M4-.7 X 8
Price
N/A
1223
LOCK NUT M5-.8
Price
N/A
1224
FLAT WASHER 5MM
Price
N/A
1225
*DISCD*RING 6MM
Item is no longer available
Price
N/A
123
ARBOR WRENCH
Price
$30.20
124
HANDWHEEL HANDLE
Price
$18.70
126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
128
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1280
GUARD CONVERSION KIT
Item is no longer available
Price
N/A
129
HEX WRENCH 4MM
Price
N/A
130
HEX WRENCH 5MM
Price
N/A

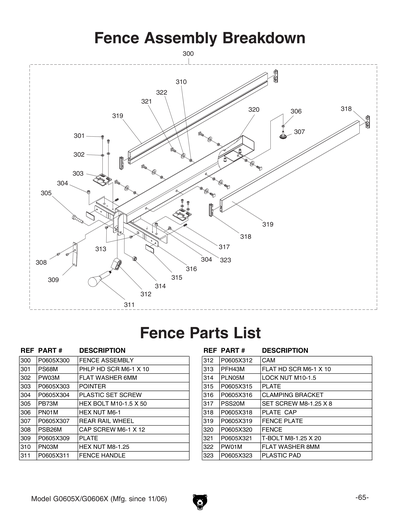

1300
FENCE ASSY
Price
N/A
1301
PHLP HD SCR M6-1 X 12
Price
N/A
1302
FLAT WASHER 6MM
Price
N/A
1305
HEX BOLT M10-1.5 X 50
Price
N/A
1306
HEX NUT M6-1
Price
N/A
1309
BRACKET
Price
$2.05
131
HEX WRENCH 6MM
Price
N/A
1310
HEX NUT M8-1.25
Price
N/A
1312
CAM
Price
N/A
1313
FLAT HD SCR M6-1 X 8
Price
N/A
1314
LOCK NUT M10-1.5
Price
N/A
1317
SET SCREW M8-1.25 X 8
Price
N/A
132
PHLP HD SCREWDRIVER #1
Item is no longer available
Price
N/A
1321
T-BOLT M8-1.25 X 20
Price
N/A
1322
FLAT WASHER 8MM
Price
N/A
1324
HEX BOLT M6-1 X 45
Price
N/A
1325
LOCK NUT M6-1
Price
N/A
133
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
134
ARBOR NUT 5/8"-12
Price
N/A
135
ARBOR FLANGE 5/8"
Price
N/A
136
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
137
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
138
PLATE (L) W/ TAPE
Price
$2.20
139
PLATE (R) W/ TAPE
Price
$5.60

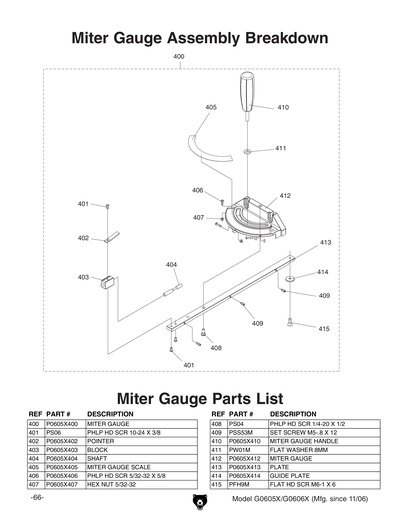

1400
MITER GAUGE ASSEMBLY
Price
$72.20
1401
PHLP HD SCR 10-24 X 3/8
Price
N/A
1403
BLOCK
Item is no longer available
Price
N/A
1405
MITER GAUGE LABEL
Item is no longer available
Price
N/A
1406
PHLP HD SCR 8-32 X 5/8
Price
N/A
1407
HEX NUT 8-32
Price
N/A
1409
SET SCREW M5-.8 X 12
Price
N/A
1411
FLAT WASHER 8MM
Price
N/A
1412
MITER GAUGE BODY
Item is no longer available
Price
N/A
1413
PLATE
Item is no longer available
Price
N/A
1414
GUIDE PLATE
Price
$1.49
1415
FLAT HD SCR M6-1 X 6
Price
N/A
1416
O-RING 4.8 X 1.9 P5
Price
N/A
147
RAIL T PLATE
Item is no longer available
Price
N/A
148
RAIL U PLATE
Item is no longer available
Price
N/A

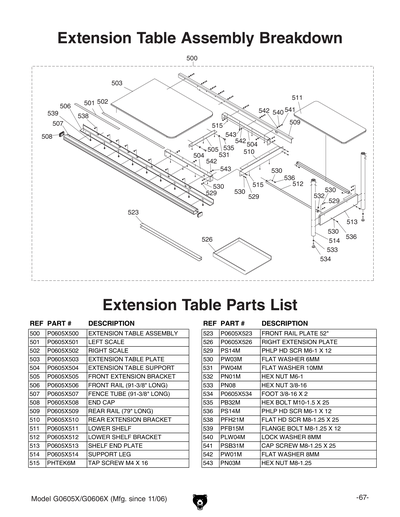

1500
EXTENSION TABLE ASSEMBLY
Price
$1,006.50
1503
EXTENSION TABLE PLATE
Price
$76.10
1505
FRONT EXTENSION BRACKET
Price
$16.75
1506
FRONT RAIL 91-3/8" LONG
Price
$144.65
1507
FENCE TUBE 91-3/8" LONG
Price
$214.05
1509
REAR RAIL 79" LONG
Price
$74.90
1510
REAR EXTENSION BRACKET
Price
$22.70
1513
SHELF END PLATE
Price
$24.80
1515
TAP SCREW M4 X 16
Price
N/A
1529
PHLP HD SCR M6-1 X 12
Price
N/A
1530
FLAT WASHER 6MM
Price
N/A
1531
FLAT WASHER 10MM
Price
N/A
1532
HEX NUT M6-1
Price
N/A
1533
HEX NUT 3/8-16
Price
N/A
1535
HEX BOLT M10-1.5 X 25
Price
N/A
1536
PHLP HD SCR M6-1 X 12
Price
N/A
1538
FLAT HD SCR M8-1.25 X 25
Price
N/A
1539
FLANGE BOLT M8-1.25 X 12
Price
N/A
154
ON/OFF SWITCH ASSY 5HP-1HP
Price
N/A
154-1
ON/OFF PUSH BUTTON SWITCH
Price
N/A
154-2
ON/OFF SWITCH BRACKET
Price
N/A
154-3
ON/OFF SWITCH BOX
Price
N/A
154-5
SAFETY PIN
Price
N/A
1540
LOCK WASHER 8MM
Price
N/A
1541
CAP SCREW M8-1.25 X 25
Price
N/A
1542
FLAT WASHER 8MM
Price
N/A
1543
HEX NUT M8-1.25
Price
N/A

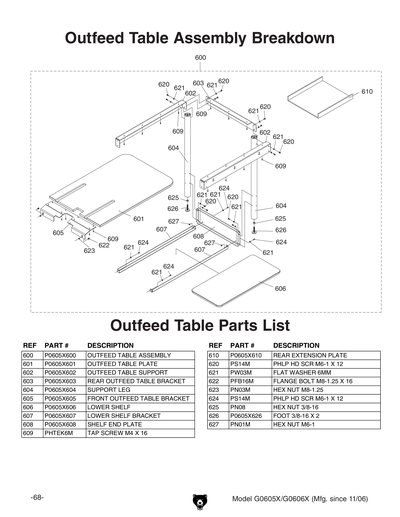

1600
OUTFEED TABLE ASSEMBLY
Price
$453.15
1607
LOWER OUTFEED TABLE SHELF BRACKET
Price
$16.10
1609
TAP SCREW M4 X 16
Price
N/A
1620
PHLP HD SCR M6-1 X 12
Price
N/A
1621
FLAT WASHER 6MM
Price
N/A
1622
FLANGE BOLT M8-1.25 X 16
Price
N/A
1623
HEX NUT M8-1.25
Price
N/A
1624
HEX BOLT M6-1 X 12
Price
N/A
1625
HEX NUT 3/8-16
Price
N/A
1627
HEX NUT M6-1
Price
N/A
1700
GUARD AND ANTI-KICKBACK LABEL
Price
$4.25
1701
DISCONNECT POWER-BLADE CHANGE LABEL
Item is no longer available
Price
N/A
1702
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
1703
Extreme Series Nameplate
Price
N/A
1704
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
1705
Nameplate - Large
Price
N/A
1706
MACHINE ID LABEL
Price
$16.40
1707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1708
ELECTRICITY 1.4W X 1.2H
Price
N/A
1709
N/S GRIZZLY GREEN G1023S
Price
N/A
1710
GREY PUTTY REF G0504
Price
N/A
1MAN
MANUAL G0605X1-97X MFD-2/9-8/11 V1.02.09
Price
$14.50
200
BLADE GUARD ASSEMBLY V1
Price
$342.50
200V2
BLADE GUARD ASSY V2.01.10
Price
N/A
201
BLADE GUARD ASSY V2.01.10
Price
N/A
202
BLADE GUARD ASSY V2.01.10
Price
N/A
203
BLADE GUARD ASSY V2.01.10
Price
N/A
204
BLADE GUARD ASSY V2.01.10
Price
N/A
205
BLADE GUARD ASSY V2.01.10
Price
N/A
206
BLADE GUARD ASSY V2.01.10
Price
N/A
207
BLADE GUARD ASSY V2.01.10
Price
N/A
208
BLADE GUARD ASSY V2.01.10
Price
N/A
209
BLADE GUARD ASSY V2.01.10
Price
N/A
210
BLADE GUARD ASSY V2.01.10
Price
N/A
211
BLADE GUARD ASSY V2.01.10
Price
N/A
212
BLADE GUARD ASSY V2.01.10
Price
N/A
213
BLADE GUARD ASSY V2.01.10
Price
N/A
214
BLADE GUARD ASSY V2.01.10
Price
N/A
215
BLADE GUARD ASSY V2.01.10
Price
N/A
216
FLAT HD SCR M6-1 X 10
Price
N/A
217
FLAT HD SCR M5-.8 X 20
Price
N/A
218
PHLP HD SCR M5-.8 X 25
Price
N/A
219
ROLL PIN 8 X 55
Price
N/A
220
ROLL PIN 5 X 32
Price
N/A
221
ROLL PIN 6 X 20
Price
N/A
222
PHLP HD SCR M4-.7 X 8
Price
N/A
223
LOCK NUT M5-.8
Price
N/A
224
FLAT WASHER 5MM
Price
N/A
225
BLADE GUARD ASSY V2.01.10
Price
N/A
251
LEFT PLATE V2.01.10
Price
N/A
252
LOCK NUT M5-.8
Price
N/A
253
FLAT HD SCR M5-.8 X 15
Price
N/A
254
LEFT COVER V2.01.10
Price
N/A
255
ROD CENTER PIN V2.01.10
Price
N/A
256
PHLP HD SCR M5-.8 X 6
Price
N/A
257
KNOB BOLT V2.01.10
Price
N/A
258
ROD V2.01.10
Price
N/A
259
LEFT BRACKET V2.01.10
Price
N/A
260
RIGHT BRACKET V2.01.10
Price
N/A
261
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
262
MOUNTING PIN V2.01.10
Price
N/A
263
RIGHT COVER V2.01.10
Price
N/A
264
RIGHT PLATE V2.01.10
Price
N/A
265
PUSH NUT 4MM V2.01.10
Price
N/A
266
LEFT PAWL V2.01.10
Price
N/A
267
RIGHT TORSN SPRING V2.01.10
Price
N/A
268
PAWL MOUNTING BRKT V2.01.10
Price
N/A
269
MOUNTING BRKT PIN V2.01.10
Price
N/A
270
***USE P0869318***
Price
N/A
271
SHAFT SPRING V2.01.10
Price
N/A
272
E-CLIP 7MM
Price
N/A
273
LEFT TORSION SPRING V2.01.10
Price
N/A
274
RIGHT PAWL V2.01.10
Price
N/A
275
RIGHT PAWL SHAFT V2.01.10
Price
N/A
276
SPREADER V2.01.10
Price
N/A
277
O-RING 2.8 X 1.9 P3
Price
N/A
278
AMPUTATION HAZ LABEL V2.01.10
Price
N/A
280
GUARD CONVERSION KIT G0605X/G0606X
Price
$198.10
300
FENCE ASSY
Price
$514.75
300A
COMPLETE FENCE ASSY BOX 2
Price
$362.55
301
PHLP HD SCR M6-1 X 10
Price
N/A
302
FLAT WASHER 6MM
Price
N/A
303
POINTER
Price
N/A
304
PLASTIC SET SCREW
Price
N/A
305
HEX BOLT M10-1.5 X 50
Price
N/A
306
HEX NUT M6-1
Price
N/A
307
REAR RAIL WHEEL
Price
N/A
308
CAP SCREW M6-1 X 12
Price
N/A
309
PLATE
Price
$4.00
310
HEX NUT M8-1.25
Price
N/A
311
FENCE HANDLE
Price
$33.85
312
CAM
Price
N/A
313
FLAT HD SCR M6-1 X 10
Price
N/A
314
LOCK NUT M10-1.5
Price
N/A
315
PLATE
Price
N/A
316
RAIL CLAMPING BRACKET
Price
N/A
317
SET SCREW M8-1.25 X 8
Price
N/A
318
PLATE CAP
Price
N/A
319
FENCE PLATE
Price
N/A
320
FENCE
Price
N/A
321
T-BOLT M8-1.25 X 20
Price
N/A
322
FLAT WASHER 8MM
Price
N/A
323
PLASTIC PAD
Item is no longer available
Price
N/A
400
MITER GAUGE
Price
$85.85
401
PHLP HD SCR 10-24 X 3/8
Price
N/A
402
POINTER
Item is no longer available
Price
N/A
403
BLOCK
Price
N/A
404
SHAFT
Item is no longer available
Price
N/A
405
MITER GAUGE LABEL
Price
N/A
406
PHLP HD SCR 5/32-32 X 5/8
Item is no longer available
Price
N/A
407
HEX NUT 5/32-32
Item is no longer available
Price
N/A
408
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
409
SET SCREW M5-.8 X 12
Price
N/A
410
MITER GAUGE HANDLE
Item is no longer available
Price
N/A
411
FLAT WASHER 8MM
Price
N/A
412
MITER GAUGE BODY
Price
N/A
413
PLATE
Price
N/A
414
GUIDE PLATE
Price
N/A
415
FLAT HD SCR M6-1 X 6
Price
N/A
500
EXTENSION TABLE ASSEMBLY
Item is no longer available
Price
N/A
501
SCALE LEFT
Price
$23.75
502
SCALE RIGHT
Price
$28.25
503
EXTENSION TABLE PLATE
Price
N/A
503A
COMPLETE EXT TABLE ASSY BOX 4
Price
$1,064.90
504
EXTENSION TABLE SUPPORT
Price
N/A
505
FRONT EXTENSION BRACKET
Price
N/A
506
FRONT RAIL 91-3/8" LONG
Price
N/A
506A
COMPLETE RAIL ASSY BOX 2
Item is no longer available
Price
N/A
507
FENCE TUBE 91-3/8" LONG
Price
N/A
508
END CAP
Price
N/A
509
REAR RAIL 79" LONG
Price
N/A
510
REAR EXTENSION BRACKET
Price
N/A
511
LOWER EXTENSION TABLE SHELF
Price
N/A
512
LOWER EXTENSION TABLE SHELF BRACKET
Price
N/A
513
SHELF END PLATE
Price
N/A
514
SUPPORT LEG
Price
N/A
515
TAP SCREW M4 X 16
Price
N/A
523
FRONT RAIL PLATE 52"
Item is no longer available
Price
N/A
526
EXTENSION PLATE RIGHT
Item is no longer available
Price
N/A
529
PHLP HD SCR M6-1 X 12
Price
N/A
530
FLAT WASHER 6MM
Price
N/A
531
FLAT WASHER 10MM
Price
N/A
532
HEX NUT M6-1
Price
N/A
533
HEX NUT 3/8-16
Price
N/A
534
FOOT 3/8-16 X 2
Price
N/A
535
HEX BOLT M10-1.5 X 25
Price
N/A
536
PHLP HD SCR M6-1 X 12
Price
N/A
538
FLAT HD SCR M8-1.25 X 25
Price
N/A
539
FLANGE BOLT M8-1.25 X 12
Price
N/A
540
LOCK WASHER 8MM
Price
N/A
541
CAP SCREW M8-1.25 X 25
Price
N/A
542
FLAT WASHER 8MM
Price
N/A
543
HEX NUT M8-1.25
Price
N/A
600
OUTFEED TABLE ASSEMBLY
Price
N/A
601
OUTFEED TABLE PLATE
Price
N/A
602
OUTFEED TABLE SUPPORT
Price
N/A
603
REAR OUTFEED TABLE BRACKET
Price
N/A
604
SUPPORT LEG
Price
N/A
605
FRONT OUTFEED TABLE BRACKET
Price
N/A
606
SHELF LOWER
Price
N/A
607
LOWER OUTFEED TABLE SHELF BRACKET
Price
N/A
608
SHELF END PLATE
Price
N/A
609
TAP SCREW M4 X 16
Price
N/A
610
REAR EXTENSION PLATE
Item is no longer available
Price
N/A
620
PHLP HD SCR M6-1 X 12
Price
N/A
621
FLAT WASHER 6MM
Price
N/A
622
BOLT WITH WASHER
Price
$1.49
623
HEX NUT M8-1.25
Price
N/A
624
PHLP HD SCR M6-1 X 12
Price
N/A
625
HEX NUT 3/8-16
Price
N/A
626
FOOT 3/8-16 X 2
Price
N/A
627
HEX NUT M6-1
Price
N/A

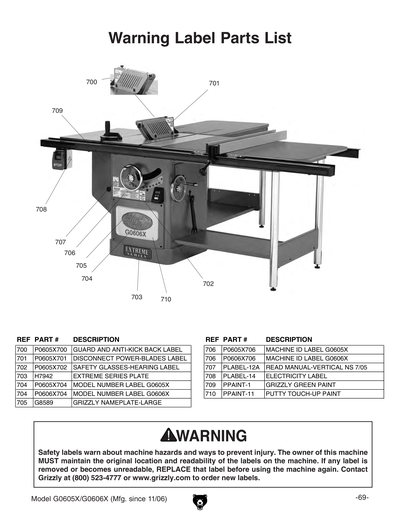

700
GUARD AND ANTI-KICKBACK LABEL
Price
N/A
701
DISCONNECT POWER-BLADE CHANGE LABEL
Price
N/A
702
SAFETY GLASSES/HEARING LABEL
Item is no longer available
Price
N/A
703
Extreme Series Nameplate
Price
N/A
704
MODEL NUMBER LABEL
Price
$6.90
705
Nameplate - Large
Price
N/A
706
MACHINE ID LABEL
Item is no longer available
Price
N/A
707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
708
ELECTRICITY 1.4W X 1.2H
Price
N/A
709
N/S GRIZZLY GREEN G1023S
Price
N/A
710
GREY PUTTY REF G0504
Price
N/A
711
DEGREE SCALE
Price
$13.80
BAG1
HAND TOOL HARDWARE BAG
Price
$87.40
BOX2
COMPLETE RAIL ASSY BOX 2
Price
N/A
BOX3
COMPLETE FENCE ASSY BOX 2
Price
N/A
BOX4
COMPLETE EXT TABLE ASSY BOX 4
Price
N/A
MAN
MANUAL FOR G0605X 10/07
Item is no longer available
Price
N/A
