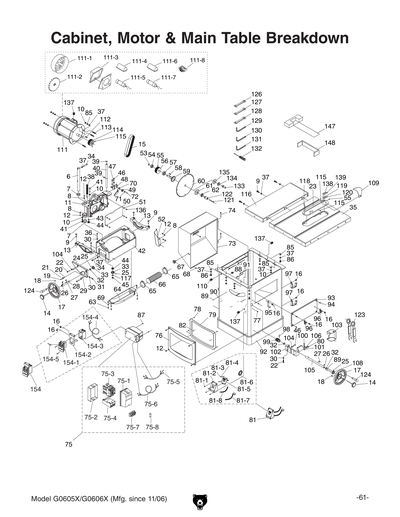

Parts for G0606X 12" Extreme Series Table Saw - 3-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

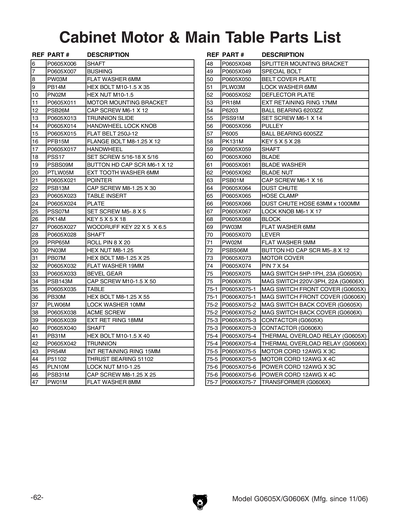

6
SHAFT
Price
N/A
7
BUSHING
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
10
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11
*DISCD*MOTOR MOUNTING BRACKET
Price
N/A
12
CAP SCREW M6-1 X 12
Price
N/A
13
TRUNNION SLIDE
Price
N/A
14
HANDWHEEL LOCK KNOB
Price
N/A
15
FLAT BELT 250J-12
Price
N/A
16
FLANGE BOLT M8-1.25 X 12
Price
N/A
17
HANDWHEEL
Price
N/A
18
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
19
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
20
EXT TOOTH WASHER 6MM
Price
N/A
21
TILT ARROW POINTER
Price
N/A
22
CAP SCREW M8-1.25 X 30
Price
N/A
23
TABLE INSERT
Price
N/A
24
PLATE
Price
N/A
25
SET SCREW M5-.8 X 5
Price
N/A
26
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
27
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
28
SHAFT
Price
N/A
29
ROLL PIN 5 X 30
Price
N/A
30
Now: PN03M
HEX NUT M8-1.25
Price
N/A
31
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
32
PLASTIC BUSHING 19MM ID
Price
N/A
33
LEFT BEVEL GEAR
Price
N/A
34
CAP SCREW M10-1.5 X 50
Price
N/A
35
TABLE
Price
N/A
36
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
ACME SCREW
Price
N/A
39
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
40
SHAFT
Price
N/A
41
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
42
TRUNNION
Price
N/A
43
Now: PR54M
INT RETAINING RING 15MM
Price
N/A
44
THRUST BEARING 51102
Price
N/A
45
LOCK NUT M10-1.25
Price
N/A
46
CAP SCREW M8-1.25 X 25
Price
N/A
47
Now: PW01M
FLAT WASHER 8MM
Price
N/A
48
*DISCD*SPLITTER MOUNTING BRACKET V1
Price
N/A
48V2
MOUNTING BRACKET V2.01.10
Price
N/A
48V2-1
MOUNTING BRACKET BASE V2.01.10
Price
N/A
48V2-10
SET SCREW M3-.5 X 10
Price
N/A
48V2-3
COMPRESSION SPRING V2.01.10
Price
N/A
48V2-4
LOCKING BOLT V2.01.10
Price
N/A
48V2-5
MOUNTING BRACKET PLATE V2.01.10
Price
N/A
48V2-6
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
48V2-7
LOCK WASHER 5MM
Price
N/A
48V2-8
HANDLE V2.01.10
Price
N/A
48V2-9
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
49
FLANGE BOLT M10-1.5 X 7.5
Price
N/A
50
BELT COVER PLATE
Price
N/A
51
LOCK WASHER 6MM
Price
N/A
52
DEFLECTOR PLATE
Price
N/A
53
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
54
BALL BEARING 6203ZZ
Price
N/A
55
SET SCREW M6-1 X 14
Price
N/A
56
*DISCD*PULLEY
Price
N/A
57
BALL BEARING 6005ZZ
Price
N/A
58
KEY 5 X 5 X 28
Price
N/A
59
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
59V2
ARBOR SHAFT 1" V2.01.10
Price
N/A
60
BLADE
Price
N/A
61
BLADE WASHER
Price
N/A
62
BLADE NUT
Price
N/A
63
CAP SCREW M6-1 X 16
Price
N/A
64
DUST CHUTE
Price
N/A
65
HOSE CLAMP
Price
N/A
66
DUST CHUTE HOSE 63 X 1000MM
Price
N/A
67
LOCK KNOB M6-1 X 17
Price
N/A
68
BLOCK
Price
N/A
69
Now: PW03M
FLAT WASHER 6MM
Price
N/A
71
Now: PW02M
FLAT WASHER 5MM
Price
N/A
72
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
73
MOTOR COVER
Price
N/A
74
PIN 7 X 54
Price
N/A
75
MAG SWITCH 220V 3PH 19A
75-1
MAG SWITCH FRONT COVER
Item is no longer available
Price
N/A
75-2
MAG SWITCH BACK COVER
75-3
CONTACTOR SDE MA-18 220V
75-4
OL RELAY RA-30 11-18A
75-5
MOTOR CORD 12AWG X 4C
75-6
POWER CORD 12AWG X 4C
Item is no longer available
Price
N/A
75-7
TRANSFORMER
Price
N/A
75-8
FUSE
75-9
*DISCD*CONTACTOR SDE MA-18 440V
Item is no longer available
Price
N/A
76
FRONT COVER
Price
N/A
77
TAP SCREW M5 X 12
Price
N/A
78
Now: PN06M
HEX NUT M5-.8
Price
N/A
79
PLATE
Price
N/A
80
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
81
*DISCD*DIGITAL READOUT ASSEMBLY
Price
N/A
81-1
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
81-2
DIGITAL READOUT COVER
Price
N/A
81-3
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
81-4
Now: PW07M
FLAT WASHER 3MM
Price
N/A
81-5
CIRCUIT BOARD
Price
N/A
81-6
SENSOR PLATE
Price
N/A
81-7
DATA CORD SENSOR TO D READOUT
Price
N/A
81-8
DIGITAL READOUT CORD 18AWG X 2C
Price
N/A
82
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
85
Now: PW04M
FLAT WASHER 10MM
Price
N/A
86
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
87
NYLON SCREW 3/16-24 X 1/2
Price
N/A
88
STRAIN RELIEF
Price
N/A
89
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
90
Now: PW05M
FLAT WASHER 4MM
Price
N/A
91
CHAIN
Price
N/A
92
BODY
Price
N/A
93
ACCESS PANEL RIGHT
Price
N/A
94
FLAT HD SCR M6-1 X 20
Price
N/A
95
WRENCH MOUNTING BRACKET
Price
N/A
96
MITER GAUGE MOUNTING BRACKET
Price
N/A
97
FENCE RESTING BRACKET
Price
N/A
98
ROLL PIN 5 X 28
Price
N/A
99
SHAFT
Price
N/A
100
TAP SCREW M3 X 6
Price
N/A
101
L-PLATE
Price
N/A
102
BLADE TILT SHAFT BRACKET
Price
N/A
103
COVER
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
105
HANDWHEEL SHAFT
Price
N/A
106
Now: PW02M
FLAT WASHER 5MM
Price
N/A
107
PLATE
Price
N/A
108
LOCK COLLAR
Price
N/A
109
RIVING KNIFE V1
Price
N/A
109V2
RIVING KNIFE V2.01.10
Price
N/A
110
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
111
*DISCD*MOTOR 7.5HP 220V/440V 3-PH
Item is no longer available
Price
N/A
111-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
111-2
MOTOR FAN
Item is no longer available
Price
N/A
111-3
JUNCTION BOX
Item is no longer available
Price
N/A
1112
CABINET
Price
N/A
112
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
113
MOTOR BOLT
Price
N/A
114
*DISCD*MOTOR PULLEY
Price
N/A
115
SET SCREW M6-1 X 10
Price
N/A
116
EXTENSION WING
Price
N/A
117
Now: PW04M
FLAT WASHER 10MM
Price
N/A
118
FLAT HD SCR M5-.8 X 20
Price
N/A
119
PLATE (L) W/ TAPE
Price
N/A
120
PLATE (R) W/ TAPE
Price
N/A
121
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
122
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
123
ARBOR WRENCH
Price
N/A
124
HANDWHEEL HANDLE
Price
N/A
126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
128
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
129
HEX WRENCH 4MM
Price
N/A
130
HEX WRENCH 5MM
Price
N/A
131
HEX WRENCH 6MM
Price
N/A
132
PHLP HD SCREWDRIVER #1
Price
N/A
133
*DISCD*SOLID ARBOR SHAFT 1" V2.05.10
Price
N/A
134
ARBOR NUT 5/8"-12
Price
N/A
135
ARBOR FLANGE 5/8"
Price
N/A
136
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
137
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
138
PLATE (L) W/ TAPE
Price
N/A
139
PLATE (R) W/ TAPE
Price
N/A
147
RAIL T PLATE
Price
N/A
148
RAIL U PLATE
Price
N/A
154
ON/OFF SWITCH ASSY 5HP-1HP
Price
N/A
154-1
ON/OFF PUSH BUTTON SWITCH
Price
N/A
154-2
ON/OFF SWITCH BRACKET
Price
N/A
154-3
ON/OFF SWITCH BOX
Price
N/A
154-4
SWITCH CORD ON/OFF 14AWG X 3C
Price
N/A
154-5
SAFETY PIN
Price
N/A
1543
Now: PN03M
HEX NUT M8-1.25
Price
N/A
200

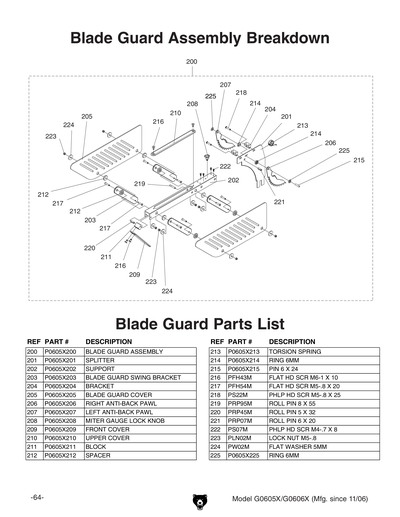

BLADE GUARD ASSEMBLY V1
Price
N/A
200V2
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
201
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
202
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
203
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
204
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
205
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
206
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
207
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
208
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
209
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
210
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
211
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
212
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
213
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
214
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
215
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
216
FLAT HD SCR M6-1 X 10
Price
N/A
217
FLAT HD SCR M5-.8 X 20
Price
N/A
218
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
219
ROLL PIN 8 X 55
Price
N/A
220
ROLL PIN 5 X 32
Price
N/A
221
ROLL PIN 6 X 20
Price
N/A
222
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
223
LOCK NUT M5-.8
Price
N/A
224
Now: PW02M
FLAT WASHER 5MM
Price
N/A
225
*DISCD*BLADE GUARD ASSY V2.01.10
Price
N/A
251
LEFT PLATE V2.01.10
Price
N/A
252
LOCK NUT M5-.8
Price
N/A
253
FLAT HD SCR M5-.8 X 15
Price
N/A
254
LEFT COVER V2.01.10
Price
N/A
255
ROD CENTER PIN V2.01.10
Price
N/A
256
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
257
KNOB BOLT V2.01.10
Price
N/A
258
ROD V2.01.10
Price
N/A
259
LEFT BRACKET V2.01.10
Price
N/A
260
RIGHT BRACKET V2.01.10
Price
N/A
261
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
262
MOUNTING PIN V2.01.10
Price
N/A
263
RIGHT COVER V2.01.10
Price
N/A
264
RIGHT PLATE V2.01.10
Price
N/A
265
PUSH NUT 4MM V2.01.10
Price
N/A
266
LEFT PAWL V2.01.10
Price
N/A
267
RIGHT TORSN SPRING V2.01.10
Price
N/A
268
PAWL MOUNTING BRKT V2.01.10
Price
N/A
269
MOUNTING BRKT PIN V2.01.10
Price
N/A
270
***USE P0869318***
Price
N/A
271
SHAFT SPRING V2.01.10
Price
N/A
272
E-CLIP 7MM
Price
N/A
273
LEFT TORSION SPRING V2.01.10
Price
N/A
274
RIGHT PAWL V2.01.10
Price
N/A
275
RIGHT PAWL SHAFT V2.01.10
Price
N/A
276
SPREADER V2.01.10
Price
N/A
277
O-RING 2.8 X 1.9 P3
Price
N/A
278
AMPUTATION HAZ LABEL V2.01.10
Price
N/A
280
GUARD CONVERSION KIT G0605X/G0606X
Price
N/A

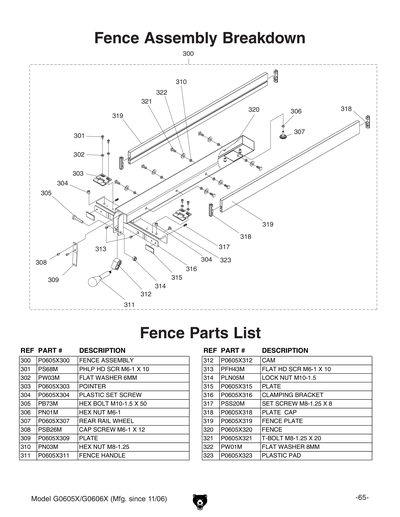

300
FENCE ASSY
Price
N/A
300A
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
301
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
302
Now: PW03M
FLAT WASHER 6MM
Price
N/A
303
POINTER
Price
N/A
304
PLASTIC SET SCREW
Price
N/A
305
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
306
Now: PN01M
HEX NUT M6-1
Price
N/A
307
REAR RAIL WHEEL
Price
N/A
308
CAP SCREW M6-1 X 12
Price
N/A
309
PLATE
Price
N/A
310
Now: PN03M
HEX NUT M8-1.25
Price
N/A
311
FENCE HANDLE
Price
N/A
312
CAM
Price
N/A
313
FLAT HD SCR M6-1 X 10
Price
N/A
314
LOCK NUT M10-1.5
Price
N/A
315
PLATE
Price
N/A
316
RAIL CLAMPING BRACKET
Price
N/A
317
SET SCREW M8-1.25 X 8
Price
N/A
318
PLATE CAP
Price
N/A
319
FENCE PLATE
Price
N/A
320
FENCE
Price
N/A
321
T-BOLT M8-1.25 X 20
Price
N/A
322
Now: PW01M
FLAT WASHER 8MM
Price
N/A

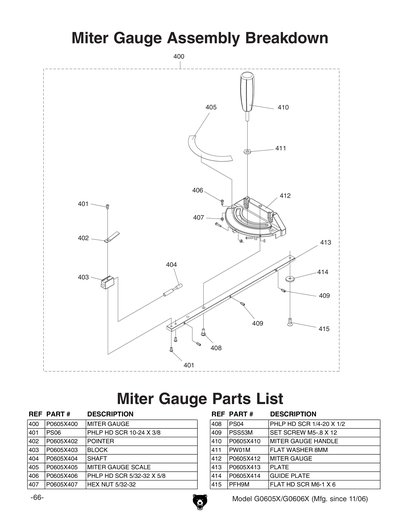

400
MITER GAUGE
Price
N/A
401
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
402
POINTER
Price
N/A
403
BLOCK
Price
N/A
404
SHAFT
Price
N/A
405
MITER GAUGE LABEL
Price
N/A
406
PHLP HD SCR 5/32-32 X 5/8
Price
N/A
407
HEX NUT 5/32-32
Price
N/A
408
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
409
SET SCREW M5-.8 X 12
Price
N/A
410
MITER GAUGE HANDLE
Price
N/A
411
Now: PW01M
FLAT WASHER 8MM
Price
N/A
412
MITER GAUGE BODY
Price
N/A
413
PLATE
Price
N/A
414
GUIDE PLATE
Price
N/A
415
Now: PFH9M
FLAT HD SCR M6-1 X 6
Price
N/A

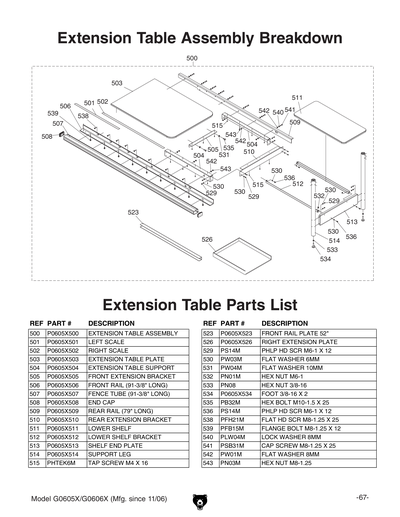

500
EXTENSION TABLE ASSEMBLY
Price
N/A
501
SCALE LEFT
Price
N/A
502
SCALE RIGHT
Price
N/A
503
EXTENSION TABLE PLATE
Price
N/A
503A
COMPLETE EXT TABLE ASSY BOX 4
Item is no longer available
Price
N/A
504
EXTENSION TABLE SUPPORT
Price
N/A
505
FRONT EXTENSION BRACKET
Price
N/A
506
FRONT RAIL 91-3/8" LONG
Price
N/A
506A
COMPLETE RAIL ASSY BOX 3
Item is no longer available
Price
N/A
507
FENCE TUBE 91-3/8" LONG
Price
N/A
508
END CAP
Price
N/A
509
REAR RAIL 79" LONG
Price
N/A
510
REAR EXTENSION BRACKET
Price
N/A
511
LOWER EXTENSION TABLE SHELF
Price
N/A
512
LOWER EXTENSION TABLE SHELF BRACKET
Price
N/A
513
SHELF END PLATE
Price
N/A
514
SUPPORT LEG
Price
N/A
515
TAP SCREW M4 X 16
Price
N/A
523
FRONT RAIL PLATE 52"
Price
N/A
526
EXTENSION PLATE RIGHT
Price
N/A
529
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
530
Now: PW03M
FLAT WASHER 6MM
Price
N/A
531
Now: PW04M
FLAT WASHER 10MM
Price
N/A
532
Now: PN01M
HEX NUT M6-1
Price
N/A
533
Now: PN08
HEX NUT 3/8-16
Price
N/A
534
FOOT 3/8-16 X 2
Price
N/A
535
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
536
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
538
FLAT HD SCR M8-1.25 X 25
Price
N/A
539
FLANGE BOLT M8-1.25 X 12
Price
N/A
540
LOCK WASHER 8MM
Price
N/A
541
CAP SCREW M8-1.25 X 25
Price
N/A
542
Now: PW01M
FLAT WASHER 8MM
Price
N/A
543
Now: PN03M
HEX NUT M8-1.25
Price
N/A

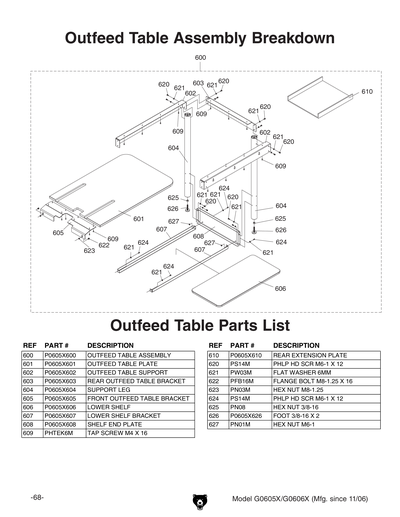

600
OUTFEED TABLE ASSEMBLY
Price
N/A
601
OUTFEED TABLE PLATE
Price
N/A
602
OUTFEED TABLE SUPPORT
Price
N/A
603
REAR OUTFEED TABLE BRACKET
Price
N/A
604
SUPPORT LEG
Price
N/A
605
FRONT OUTFEED TABLE BRACKET
Price
N/A
606
SHELF LOWER
Price
N/A
607
LOWER OUTFEED TABLE SHELF BRACKET
Price
N/A
608
SHELF END PLATE
Price
N/A
609
TAP SCREW M4 X 16
Price
N/A
610
REAR EXTENSION PLATE
Price
N/A
620
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
621
Now: PW03M
FLAT WASHER 6MM
Price
N/A
622
FLANGE BOLT M8-1.25 X 16
Price
N/A
623
Now: PN03M
HEX NUT M8-1.25
Price
N/A
624
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
625
Now: PN08
HEX NUT 3/8-16
Price
N/A
626
FOOT 3/8-16 X 2
Price
N/A
627
Now: PN01M
HEX NUT M6-1
Price
N/A

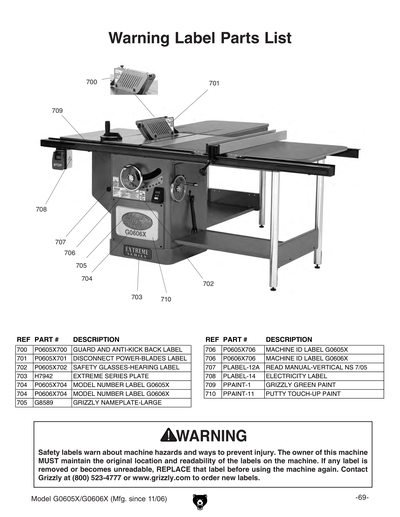

700
GUARD AND ANTI-KICKBACK LABEL
Price
N/A
701
DISCONNECT POWER-BLADE CHANGE LABEL
Price
N/A
702
SAFETY GLASSES/HEARING LABEL
Price
N/A
703
Now: H7942
Extreme Series Nameplate
Price
N/A
704
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
705
Now: G8589
Nameplate - Large
Price
N/A
706
MACHINE ID LABEL
Item is no longer available
Price
N/A
707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
708
ELECTRICITY 1.4W X 1.2H
Price
N/A
709
N/S GRIZZLY GREEN G1023S
Price
N/A
710
GREY PUTTY REF G0504
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Price
N/A
BOX3
COMPLETE RAIL ASSY BOX 3
Price
N/A
BOX4
COMPLETE EXT TABLE ASSY BOX 4
Price
N/A
MAN
MANUAL FOR G0606X 10/07
Item is no longer available
Price
N/A
