Parts for G0611X - 16-1/2" Extreme Series Dovetail Machine

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

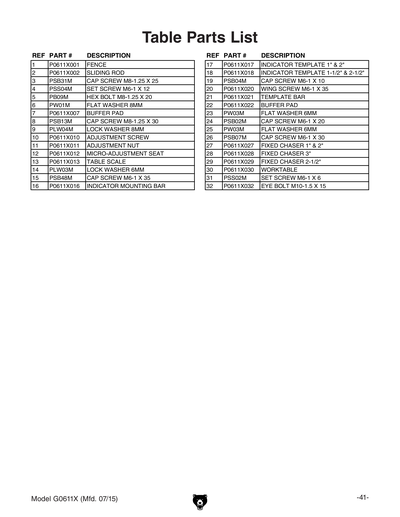

Ref # Part # Description Price Qty

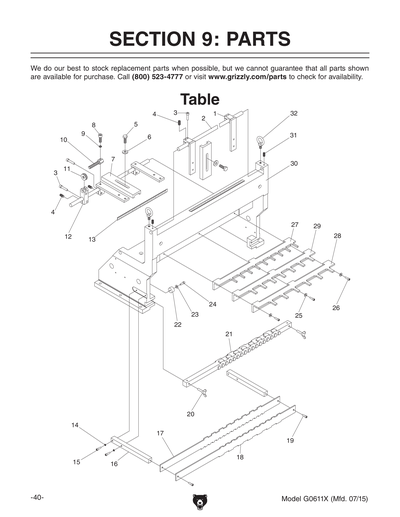

1 P0611X001 FENCE $52.25
2 P0611X002
SLIDING ROD
N/A
3 P0611X003
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
4 P0611X004
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
5 P0611X005
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
6 P0611X006
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
7 P0611X007 BUFFER PAD $29.00
8 P0611X008
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
9 P0611X009
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
10 P0611X010
Replaced By P0610013
ADJUSTMENT SCREW
N/A View Replacement
11 P0611X011
Replaced By P0610014
ADJUSTMENT NUT
N/A View Replacement
12 P0611X012
Replaced By P0610017
MIRCO-ADJUSTMENT SEAT
N/A View Replacement
13 P0611X013
TABLE SCALE
N/A
14 P0611X014
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
15 P0611X015
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
16 P0611X016
INDICATOR MOUNTING BAR
N/A
17 P0611X017 INDICATOR TEMPLATE 1 & 2" $27.75
18 P0611X018 INDICATOR TEMPLATE 1-1/2 & 2-1/2" $24.75
19 P0611X019
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
20 P0611X020
Replaced By P0610038
WING SCREW M6-1 X 35
N/A View Replacement
21 P0611X021 TEMPLATE BAR $403.00
22 P0611X022
Replaced By P0610010
BUFFER PAD
N/A View Replacement
23 P0611X023
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
24 P0611X024
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
25 P0611X025
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
26 P0611X026
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
27 P0611X027 FIXED CHASER 1" & 2" $126.25
28 P0611X028 FIXED CHASER 3" $121.00
29 P0611X029 FIXED CHASER 2-1/2" $126.50
30 P0611X030
WORKTABLE
N/A
31 P0611X031
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
32 P0611X032
EYE BOLT M10-1.5 X 15
N/A

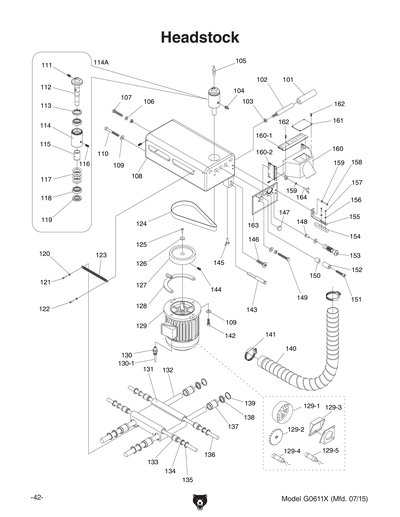

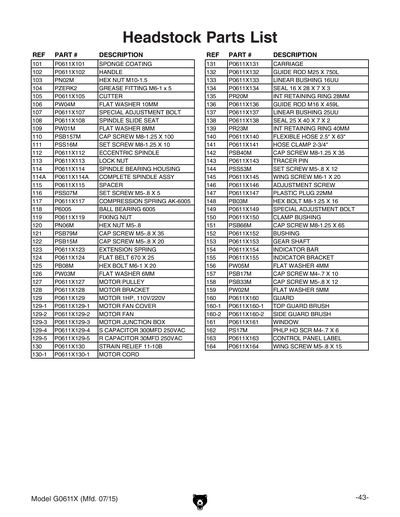

101 P0611X101 SPONGE COATING $1.00
102 P0611X102
Replaced By P0610153
HANDLE
N/A View Replacement
103 P0611X103
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
104 P0611X104
Replaced By PZERK002
GREASE FITTING M6-1 X 5
N/A View Replacement
105 P0611X105
Replaced By H9388
Dovetail Bit for G0610 & G0611X
N/A View Replacement
106 P0611X106
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
107 P0611X107
Replaced By PB13M
HEX BOLT M10-1.5 X 80
N/A View Replacement
108 P0611X108 SPINDLE SLIDE SEAT $634.50
109 P0611X109
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
110 P0611X110
Replaced By PCAP157M
CAP SCREW M8-1.25 X 100
N/A View Replacement
111 P0611X111
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
112 P0611X112
Replaced By P0610124
ECCENTRIC SPINDLE
N/A View Replacement
113 P0611X113
Replaced By P0610123
LOCK RING
N/A View Replacement
114 P0611X114
Replaced By P0610122
SPINDLE BEARING HOUSING
N/A View Replacement
114A P0611X114A COMPLETE SPINDLE ASSY $900.75
115 P0611X115
Replaced By P0610120
SPACER
N/A View Replacement
116 P0611X116
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement
117 P0611X117
Replaced By P0610119
COMPRESSION SPRING AK-6005
N/A View Replacement
118 P0611X118 BALL BEARING 6005TB.P63 $131.50
119 P0611X119
FIXING NUT
N/A
120 P0611X120
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
121 P0611X121
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
122 P0611X122
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
123 P0611X123
Replaced By P0610110
EXTENSION SPRING
N/A View Replacement
124 P0611X124
Replaced By P0610114
FLAT BELT 670 X 25
N/A View Replacement
125 P0611X125
Replaced By PB08M
HEX BOLT M6-1 X 20
N/A View Replacement
126 P0611X126
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
127 P0611X127
Replaced By P0610112
MOTOR PULLEY
N/A View Replacement
128 P0611X128
Replaced By P0610111
MOTOR BRACKET
N/A View Replacement
129 P0611X129
MOTOR 1HP 110V/220V 1-PH
N/A
129-1 P0611X129-1
MOTOR FAN COVER
N/A
129-2 P0611X129-2
MOTOR FAN
N/A
129-3 P0611X129-3
MOTOR JUNCTION BOX
N/A
129-4 P0611X129-4 S CAPACITOR 300M 250V 1-9/16 X 2-3/8 $17.00
129-5 P0611X129-5
Replaced By PC030C
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
N/A View Replacement
130 P0611X130
Replaced By P0642033
STRAIN RELIEF PG11 TYPE-6 ST
N/A View Replacement
130-1 P0611X130-1
MOTOR CORD
N/A
131 P0611X131
Replaced By P0610137
CARRIAGE
N/A View Replacement
132 P0611X132
GUIDE ROD M25 X 750L
N/A
133 P0611X133
Replaced By P0610126
LINEAR BUSHING 16UU
N/A View Replacement
134 P0611X134
Replaced By P0610127
SEAL 16 X 28 X 7 X 3
N/A View Replacement
135 P0611X135
Replaced By PR20M
INT RETAINING RING 28MM
N/A View Replacement
136 P0611X136
GUIDE ROD M16 X 459L
N/A
137 P0611X137
Replaced By P0610130
LINEAR BUSHING 25UU
N/A View Replacement
138 P0611X138
Replaced By P0610131
SEAL 25 X 40 X 7 X 2
N/A View Replacement
139 P0611X139
Replaced By PR23M
INT RETAINING RING 40MM
N/A View Replacement
140 P0611X140 FLEXIBLE HOSE 2.5 X 63" $9.00
141 P0611X141
Replaced By P0610136
HOSE CLAMP 2-3/4"
N/A View Replacement
142 P0611X142
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
143 P0611X143
Replaced By P0610155
TRACER PIN
N/A View Replacement
144 P0611X144
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
145 P0611X145
Replaced By P0610156
WING SCREW M6-1 X 20
N/A View Replacement
146 P0611X146
Replaced By P0610154
ADJUSTMENT SCREW
N/A View Replacement
147 P0611X147
Replaced By P0610144
PLASTIC PLUG 22MM
N/A View Replacement
148 P0611X148
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
149 P0611X149 CAP SCREW M10-1.5 X 150 $5.75
150 P0611X150
Replaced By P0610149
CUTTER LOCK CLAMP SLEEVE
N/A View Replacement
151 P0611X151
Replaced By PCAP66M
CAP SCREW M8-1.25 X 65
N/A View Replacement
152 P0611X152
BUSHING
N/A
153 P0611X153
Replaced By P0610150
GEAR SHAFT
N/A View Replacement
154 P0611X154 INDICATOR BAR $5.25
155 P0611X155 INDICATOR BRACKET $13.50
156 P0611X156
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
157 P0611X157
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
158 P0611X158
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
159 P0611X159
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
160 P0611X160 GUARD W/BRUSH $161.25
160-1 P0611X160-1 TOP GUARD BRUSH $13.75
160-2 P0611X160-2
SIDE GUARD BRUSH
N/A
161 P0611X161
Replaced By P0610145
WINDOW
N/A View Replacement
162 P0611X162
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement

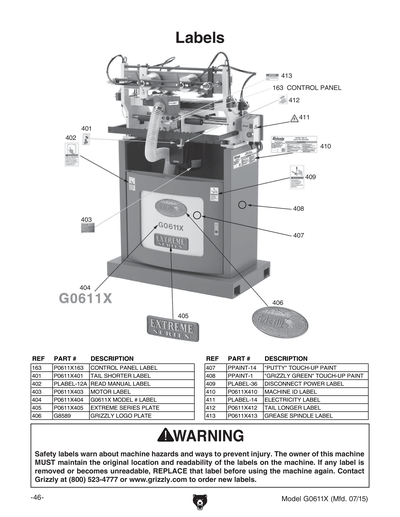

163 P0611X163 CONTROL PANEL LABEL $3.00
164 P0611X164
Replaced By P0610160
WING SCREW M5-.8 X 15
N/A View Replacement

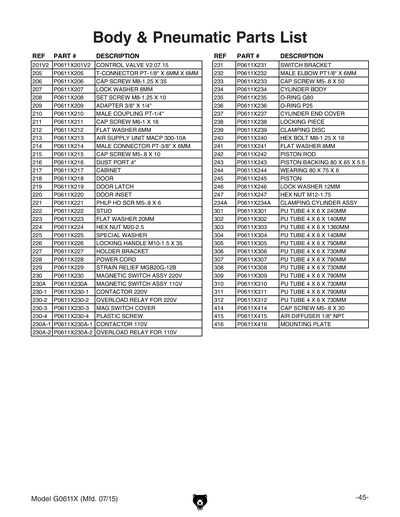

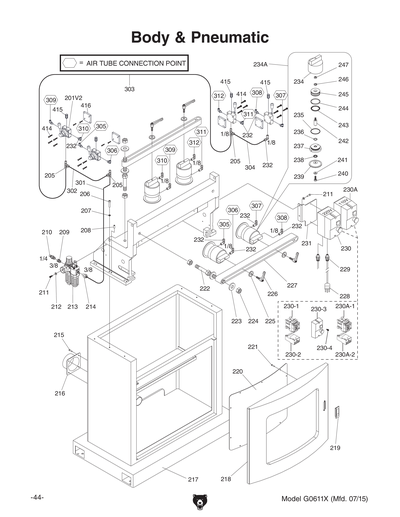

201 P0611X201
*DISCD*CONTROL VALVE V1
Item is no longer available
N/A
202 P0611X202 MALE CONNECTOR PT-1/8" X 6MM $2.75
203 P0611X203 HANDLE $13.75
204 P0611X204
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement
205 P0611X205 T-CONNECTOR PT-1/8" X 6MM X 6MM $4.50
206 P0611X206
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
207 P0611X207
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
208 P0611X208
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
209 P0611X209
ADAPTER 3/8 X 1/4"
N/A
210 P0611X210
MALE COUPLING PT-1/4"
N/A
211 P0611X211
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
212 P0611X212
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
213 P0611X213 AIR SUPPLY UNIT MACP 300-10A $121.25
214 P0611X214 MALE CONNECTOR PT-3/8" X 6MM $3.75
215 P0611X215
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
216 P0611X216
Replaced By P0610212
DUST PORT 4"
N/A View Replacement
217 P0611X217
CABINET
N/A
218 P0611X218
DOOR
N/A
219 P0611X219
Replaced By P0610216
DOOR LATCH
N/A View Replacement
220 P0611X220
DOOR INSET
N/A
221 P0611X221
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
222 P0611X222 STUD-UDE M20-2.5 X 230 30RH / 150RH $6.75
223 P0611X223
Replaced By PW13M
FLAT WASHER 20MM
N/A View Replacement
224 P0611X224
Replaced By PN28M
HEX NUT M20-2.5
N/A View Replacement
225 P0611X225 LOCKING HANDLE WASHER $1.75
226 P0611X226 LOCK HANDLE M10-1.5 X 35 $8.50
227 P0611X227 HOLDER BRACKET $57.50
228 P0611X228
POWER CORD
N/A
229 P0611X229
STRAIN RELIEF M20 TYPE-6 ST
N/A
230 P0611X230 MAG SWITCH ASSY 220V $87.75
230-1 P0611X230-1
CONTACTOR 220V SHERN DIAN
N/A
230-2 P0611X230-2
OL RELAY FOR 220V SHERN DIAN
N/A
230-3 P0611X230-3 MAG SWITCH COVER $35.75
230-4 P0611X230-4 SCREW PLASTIC $1.00
230A P0611X230A MAGNETIC SWITCH ASSY 110V $50.50
230A-1 P0611X230A-1
CONTACTOR 110V SHERN DIAN
N/A
230A-2 P0611X230A-2
OL RELAY FOR 110V SHERN DIAN
N/A
231 P0611X231
SWITCH BRACKET
N/A
232 P0611X232 MALE ELBOW PT1/8" X 6MM $3.00
233 P0611X233
Replaced By PCAP109M
CAP SCREW M5-.8 X 50
N/A View Replacement
234 P0611X234 CYLINDER BODY $80.00
234A P0611X234A COMPLETE CLAMPING CYLINDER ASSY $235.50
235 P0611X235 O-RING G80 $1.25
236 P0611X236 O-RING P25 $1.00
237 P0611X237 CYLINDER END COVER $84.50
238 P0611X238 LOCKING PIECE $2.25
239 P0611X239 CLAMPING DISC $14.75
240 P0611X240
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
241 P0611X241
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
242 P0611X242 PISTON ROD $14.00
243 P0611X243 PISTON BACKING 80 X 65 X 5.5 $7.50
244 P0611X244 WEARING 80 X 75 X 6 $7.50
245 P0611X245 PISTON $27.50
246 P0611X246
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
247 P0611X247
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
301 P0611X301 PU TUBE 4 X 6 X 240MM $1.00
302 P0611X302 PU TUBE 4 X 6 X 140MM $1.00
303 P0611X303 PU TUBE 4 X 6 X 1360MM $1.00
304 P0611X304
Replaced By P0611X302
PU TUBE 4 X 6 X 140MM
N/A View Replacement
305 P0611X305 PU TUBE 4 X 6 X 790MM $1.00
306 P0611X306 PU TUBE 4 X 6 X 730MM $1.00
307 P0611X307
Replaced By P0611X305
PU TUBE 4 X 6 X 790MM
N/A View Replacement
308 P0611X308
Replaced By P0611X306
PU TUBE 4 X 6 X 730MM
N/A View Replacement
309 P0611X309
Replaced By P0611X305
PU TUBE 4 X 6 X 790MM
N/A View Replacement
310 P0611X310
Replaced By P0611X306
PU TUBE 4 X 6 X 730MM
N/A View Replacement
311 P0611X311
Replaced By P0611X305
PU TUBE 4 X 6 X 790MM
N/A View Replacement
312 P0611X312
Replaced By P0611X306
PU TUBE 4 X 6 X 730MM
N/A View Replacement
401 P0611X401
TAIL SHORTER LABEL
N/A
402 P0611X402
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
403 P0611X403
MOTOR LABEL
N/A
404 P0611X404
MODEL NUMBER LABEL
N/A
405 P0611X405
Replaced By H7942
Extreme Series Nameplate
N/A View Replacement
406 P0611X406
Replaced By G8589
Name Plates - Large
N/A View Replacement
407 P0611X407
Replaced By PPAINT-14
BEIGE REF G0555
N/A View Replacement
408 P0611X408
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
409 P0611X409
Replaced By PLABEL-36
DISCONNECT POWER-DOOR 2W X 3.3H
N/A View Replacement
410 P0611X410 MACHINE ID LABEL $9.50
411 P0611X411
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
412 P0611X412 TAIL LONGER LABEL $1.00
413 P0611X413 GREASE SPINDLE LABEL $1.25
414 P0611X414
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
415 P0611X415 AIR DIFFUSER 1/8" NPT $1.25
416 P0611X416 MOUNTING PLATE $20.25
MAN P0611XMAN MANUAL FOR G0611X 03/07 $12.00
