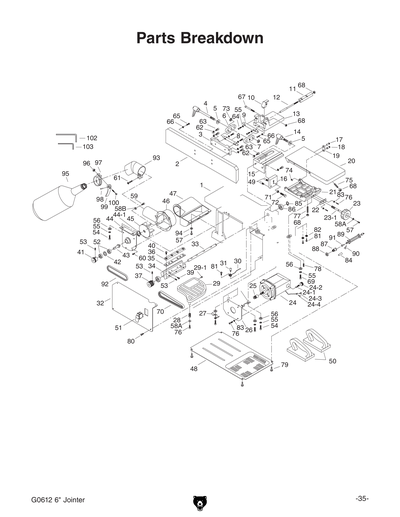

Parts for G0612 - 6" x 24" Bench Top Jointer

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

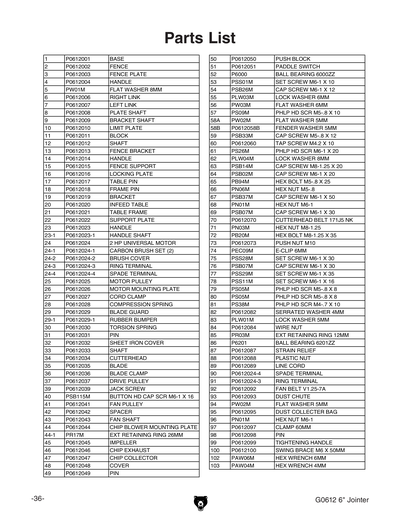

Ref # Part # Description Price Qty
1 P0612001 BASE $152.25
2 P0612002 FENCE $44.25
3 P0612003 FENCE PLATE $7.00
4 P0612004 HANDLE $6.25
5 P0612005
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
6 P0612006 LINK RIGHT $1.50
7 P0612007 LINK LEFT $1.50
8 P0612008 PLATE SHAFT $2.50
9 P0612009 BRACKET SHAFT $2.25
10 P0612010 LIMIT PLATE $1.00
11 P0612011 BLOCK $2.50
12 P0612012 SHAFT $1.00
13 P0612013 FENCE BRACKET $23.75
14 P0612014 HANDLE $5.25
15 P0612015 FENCE SUPPORT $23.25
16 P0612016 LOCK PLATE $4.00
17 P0612017 TABLE PIN $1.00
18 P0612018 FRAME PIN $1.00
19 P0612019 BRACKET $1.00
20 P0612020 INFEED TABLE $43.50
21 P0612021 TABLE FRAME $8.25
22 P0612022 SUPPORT PLATE $1.00
23 P0612023 HANDLE $1.00
23-1 P0612023-1
*DISCD*HANDLE SHAFT
Item is no longer available
N/A
24 P0612024 MOTOR 2HP 110V 1-PH $90.50
24-1 P0612024-1 CARBON BRUSH (SET OF 2) $4.75
24-2 P0612024-2 BRUSH COVER $1.00
24-3 P0612024-3 RING TERMINAL $1.00
24-4 P0612024-4 SPADE TERMINAL $1.00
25 P0612025 MOTOR PULLEY $1.25
26 P0612026 MOTOR MOUNTING PLATE $6.50
27 P0612027 CORD CLAMP $1.00
28 P0612028 COMPRESSION SPRING $1.00
29 P0612029 BLADE GUARD $7.75
29-1 P0612029-1 RUBBER BUMPER $1.00
30 P0612030 TORSION SPRING $1.00
31 P0612031 PIN $1.00
32 P0612032 SHEET IRON COVER $6.50
33 P0612033 SHAFT $2.50
34 P0612034 CUTTERHEAD $19.50
35 P0612035 BLADE $6.75
36 P0612036 BLADE CLAMP $2.75
37 P0612037 DRIVE PULLEY $2.50
39 P0612039 JACK SCREW $1.00
40 P0612040
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
40-1 P0612040-1
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
41 P0612041 FAN PULLEY $2.00
42 P0612042 SPACER $1.00
43 P0612043 FAN SHAFT $1.75
44 P0612044 CHIP BLOWER MOUNTING PLATE $5.50
44-1 P0612044-1
Replaced By PR17M
EXT RETAINING RING 26MM
N/A View Replacement
45 P0612045 IMPELLER $1.50
46 P0612046 CHIP EXHAUST $2.75
47 P0612047 CHIP COLLECTOR $4.50
48 P0612048 COVER $10.50
49 P0612049 PIN $1.00
50 P0612050
Replaced By W1400
Safety Push Block - Small
N/A View Replacement
51 P0612051
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
52 P0612052
Replaced By P6000ZZ
BALL BEARING 6000ZZ
N/A View Replacement
53 P0612053
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
54 P0612054
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
55 P0612055
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
56 P0612056
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
57 P0612057
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
58A P0612058A
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
58B P0612058B
Replaced By PWF05M
FENDER WASHER 5MM
N/A View Replacement
59 P0612059
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
60 P0612060 TAP SCREW M4.2 X 10 $1.00
61 P0612061
Replaced By PS26M
PHLP HD SCR M6-1 X 20
N/A View Replacement
62 P0612062
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
63 P0612063
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
64 P0612064
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
65 P0612065
Replaced By PB94M
HEX BOLT M5-.8 X 25
N/A View Replacement
66 P0612066
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
67 P0612067
Replaced By PCAP37M
CAP SCREW M6-1 X 50
N/A View Replacement
68 P0612068
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
69 P0612069
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
70 P0612070 CUTTERHEAD BELT 171J5 NK $8.25
71 P0612071
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
72 P0612072
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
73 P0612073 PUSH NUT M10 $1.00
74 P0612074
Replaced By PEC09M
E-CLIP 6MM
N/A View Replacement
75 P0612075
Replaced By PSS28M
SET SCREW M6-1 X 30
N/A View Replacement
76 P0612076
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
77 P0612077
Replaced By PSS29M
SET SCREW M6-1 X 35
N/A View Replacement
78 P0612078
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
79 P0612079
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
80 P0612080
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
81 P0612081
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
82 P0612082
Replaced By PTLW01M
EXT TOOTH WASHER 4MM
N/A View Replacement
83 P0612083
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
84 P0612084 WIRE NUT $1.00
85 P0612085
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
86 P0612086
Replaced By P6201ZZ
BALL BEARING 6201ZZ
N/A View Replacement
87 P0612087 STRAIN RELIEF M15 TYPE-6 ST $1.00
88 P0612088 NUT PLASTIC $1.00
89 P0612089 LINE CORD $14.50
90 P0612090
Replaced By P0612024-4
SPADE TERMINAL
N/A View Replacement
91 P0612091
Replaced By P0612024-3
RING TERMINAL
N/A View Replacement
92 P0612092 FAN BELT 25-7A V1.19.07 $2.25
93 P0612093 DUST CHUTE $1.75
94 P0612094
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
95 P0612095 DUST COLLECTOR BAG $17.00
96 P0612096
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
97 P0612097 CLAMP 60MM $1.00
98 P0612098 PIN $1.00
99 P0612099 TIGHTENING HANDLE $1.00
100 P0612100 SWING BRACE M6 X 50MM $1.00
102 P0612102
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
103 P0612103
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
104 P0612104
Replaced By PLABEL-12B
READ MANUAL 3.7W X 2H V2.07.05
N/A View Replacement

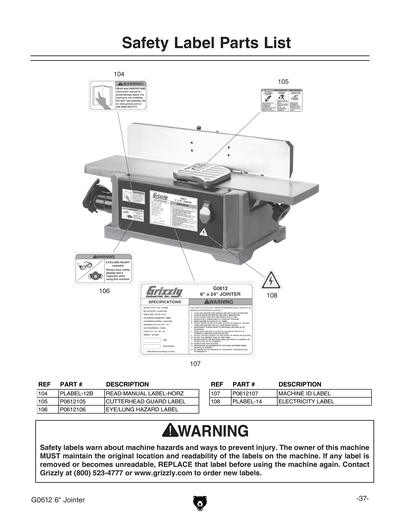

105 P0612105 CUTTERHEAD GUARD LABEL $1.00
106 P0612106 EYE/LUNG HAZARD LABEL $1.00
107 P0612107 MACHINE ID LABEL $9.50
108 P0612108
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
MAN P0612MAN MANUAL FOR G0612 01/07 $11.75
