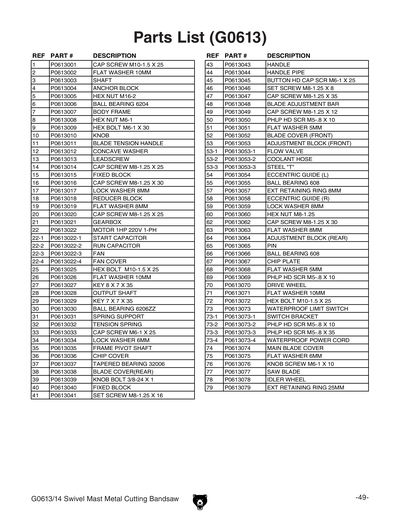

Parts for G0613 7" x 8-1/4" 1 HP Swivel Metal-Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M10-1.5 X 25
Price
N/A
2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
3
SHAFT
4
ANCHOR BLOCK V1
4V2
ANCHOR BLOCK V2.02.24
5
Now: PN13M
HEX NUT M16-2
Price
N/A
6
BALL BEARING 6204ZZ
Price
N/A
7
BODY FRAME
8
Now: PN01M
HEX NUT M6-1
Price
N/A
9
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
10
KNOB
11
BLADE TENSION HANDLE
12
BELLVILLE WASHER 10MM
13
LEADSCREW
14
CAP SCREW M8-1.25 X 25
Price
N/A
15
FIXED BLOCK V1
15V2
FIXED BLOCK V2.02.24
16
CAP SCREW M8-1.25 X 30
Price
N/A
17
LOCK WASHER 8MM
Price
N/A
18
REDUCER BLOCK
19
Now: PW01M
FLAT WASHER 8MM
Price
N/A
20
CAP SCREW M8-1.25 X 25
Price
N/A
21
GEARBOX
21-1
GEARBOX SEAL PLATE
22
MOTOR 1PH 220V
22-1
S CAPACITOR 300M 250V 1-1/2 X 2-3/4
Price
N/A
22-2
R CAPACITOR 30M 250V 1-1/2 X 2-1/2
22-3
FAN
Price
N/A
22-4
FAN COVER
25
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
26
Now: PW04M
FLAT WASHER 10MM
Price
N/A
27
KEY 8 X 7 X 35
Price
N/A
28
OUTPUT SHAFT
29
KEY 7 X 7 X 35
Price
N/A
30
BALL BEARING 6206ZZ
Price
N/A
31
SPRING SUPPORT
32
TENSION SPRING
33
CAP SCREW M6-1 X 25
Price
N/A
34
LOCK WASHER 6MM
Price
N/A
35
FRAME PIVOT SHAFT
36
CHIP COVER
37
TAPERED ROLLER BEARING 30206
Price
N/A
38
BLADE COVER REAR
39
*DISCD*KNOB BOLT 3/8-24 X 1 V1
Item is no longer available
Price
N/A
39V2
LOCK KNOB BOLT M10-1.5 X 15 V2.06.08
40
*DISCD*FIXED BLOCK V1
Item is no longer available
Price
N/A
40V2
BLADE GUIDE LOCK PLATE V2.06.08
41
SET SCREW M8-1.25 X 16
Price
N/A
43
HANDLE
Price
N/A
44
HANDLE PIPE
Price
N/A
45
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
46
SET SCREW M8-1.25 X 8
Price
N/A
47
CAP SCREW M8-1.25 X 35
Price
N/A
48
BLADE ADJUSTMENT BAR
49
CAP SCREW M8-1.25 X 12
Price
N/A
50
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
51
Now: PW02M
FLAT WASHER 5MM
Price
N/A
52
BLADE COVER FRONT
53
ADJUSTMENT BLOCK FRONT
53-1
FLOW VALVE 8MM V1
53-1V2
FLOW VALVE 6MM V2.05.11
53-2
*DISCD*COOLANT HOSE V1
Item is no longer available
Price
N/A
53-2V2
COOLANT HOSE 6MM ID V2.05.11
53-3
STEEL T-CONNECTOR 8MM V1
53-3V2
STEEL T-CONNECTOR 6MM V2.05.11
54
ECCENTRIC GUIDE L
55
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
57
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
58
ECCENTRIC GUIDE R
59
LOCK WASHER 8MM
Price
N/A
60
Now: PN03M
HEX NUT M8-1.25
Price
N/A
62
CAP SCREW M8-1.25 X 30
Price
N/A
63
Now: PW01M
FLAT WASHER 8MM
Price
N/A
64
ADJUSTMENT BLOCK REAR
65
PIN
Price
N/A
66
Now: P608Z
BALL BEARING 608Z
Price
N/A
67
CHIP PLATE
68
Now: PW02M
FLAT WASHER 5MM
Price
N/A
69
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
70
DRIVE WHEEL
71
Now: PW04M
FLAT WASHER 10MM
Price
N/A
72
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
73
WATERPROOF LIMIT SWITCH
73-1
SWITCH BRACKET
73-2
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
73-3
Now: PS75M
PHLP HD SCR M5-.8 X 35
Price
N/A
73-4
WATERPROOF POWER CORD
74
MAIN BLADE COVER
75
Now: PW03M
FLAT WASHER 6MM
Price
N/A
76
KNOB SCREW M6-1 X 10
77
SAW BLADE
78
IDLER WHEEL
79
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A

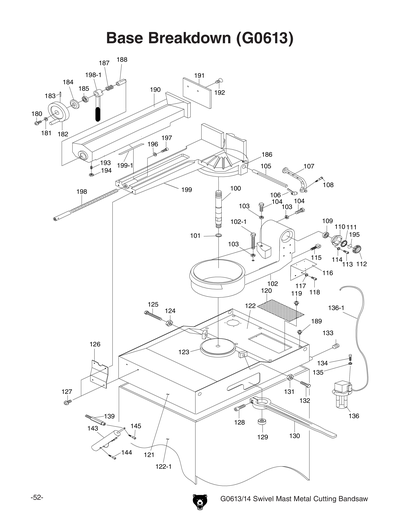

100
VISE JAW ADJUSTABLE ROD
101
RETAINER
102
SWIVEL ARM
102-1
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
102-2
SWIVEL ARM SCALE
102-3
RIVET
103
Now: PN02M
HEX NUT M10-1.5
Price
N/A
104
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
105
DISTANCE SET ROD
106
KNOB NUT M6-1
107
BRACKET
108
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
109
BALL BEARING 32006
Price
N/A
110
BUSHING
111
BEARING COVER
112
SPANNER NUT M30 X 1.5 W/O-RING
113
CAP SCREW M6-1 X 16
Price
N/A
114
LOCK WASHER 6MM
Price
N/A
115
*DISCD*SPRING ANCHOR
116
*DISCD*L-BRACKET
Item is no longer available
Price
N/A
117
LOCK WASHER 8MM
Price
N/A
118
CAP SCREW M8-1.25 X 25
Price
N/A
119
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
120
SCREEN
121
BASE
121-1
BASE CABINET
122
COVER
123
SWIVEL PLATE
124
Now: PN02M
HEX NUT M10-1.5
Price
N/A
125
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
126
FIXED PLATE
127
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
128
CAP SCREW M10-1.5 X 35
Price
N/A
129
NUT
130
ADJUSTABLE HANDLE
Price
N/A
131
Now: PN02M
HEX NUT M10-1.5
Price
N/A
132
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
133
HEX PLUG 3/8PT
134
CAP SCREW M6-1 X 16
Price
N/A
135
LOCK WASHER 6MM
Price
N/A
136
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
136-1
COOLANT HOSE V1
136-1V2
COOLANT HOSE 8MM ID V2.05.11
136-2
FLOW VALVE V1
136-2V2
FLOW VALVE V2.07.07
Item is no longer available
Price
N/A
136-3V2
PUMP JUNCTION BOX V2.07.07
136V2
PUMP 110V 1PH V2.07.07
136V2-1
PIPE ELBOW MALE 3/8" X 8MM
136V2-4
R CAPACITOR FJ SHGSR-V 3MFD 400V
136V3
PUMP 110V 1PH V3.02.24
136V3-3
PUMP JUNCTION BOX
136V3-4
R CAPACITOR 1M 350V
136V3X
PUMP 220V 1PH V3.02.24
139
CYLINDER BRACKET
143
CYLINDER
Price
N/A
144
CAP SCREW M12-1.75 X 80
Price
N/A
145
CAP SCREW M10-1.5 X 55
Price
N/A
150
BLADE TENSION GAUGE
180
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
181
Now: PW01M
FLAT WASHER 8MM
Price
N/A
182
HANDWHEEL
182-1
Now: H3207
Plastic Handle - 4" x 3/8"-16
Price
N/A
183
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
184
BEARING COVER
185
THRUST BEARING 51106
Price
N/A
186
VISE BED
186-1
SCALE POINTER
187
TENSION SPRING
188
BUSHING
189
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
190
VISE JAW BRACKET FRONT
191
VISE PLATE
192
FLAT HD SCR M8-1.25 X 16
Price
N/A
193
SET SCREW M8-1.25 X 20
Price
N/A
194
Now: PN03M
HEX NUT M8-1.25
Price
N/A
195
SPANNER NUT M30 X 1.5 W/O-RING
Price
N/A
196
Now: PW01M
FLAT WASHER 8MM
Price
N/A
197
CAP SCREW M8-1.25 X 20
Price
N/A
198
LEADSCREW A
198-1
LEADSCREW LOCK LEVER
199
VISE JAW BRACKET REAR
199-1
GIB

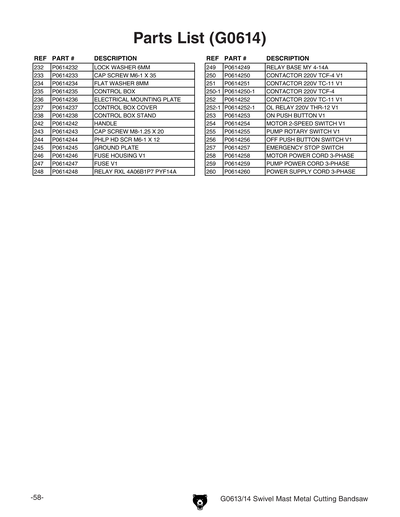

232
LOCK WASHER 6MM
Price
N/A
233
CAP SCREW M6-1 X 35
Price
N/A
234
Now: PW01M
FLAT WASHER 8MM
Price
N/A
235

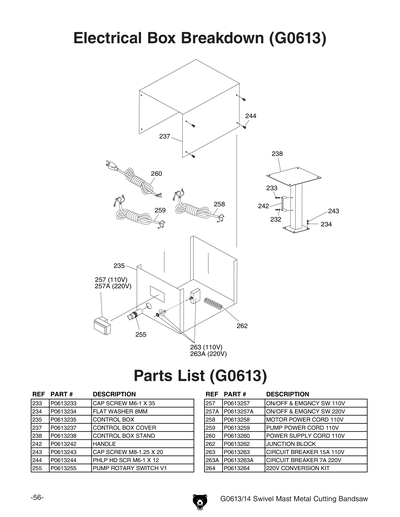

CONTROL BOX
235A
CONTROL BOX ASSY
235AV2
CONTROL BOX ASSY V2.06.08
237
CONTROL BOX COVER
238
*DISCD**CONTROL BOX STAND V1
Item is no longer available
Price
N/A
238V2
CONTROL BOX STAND V2.06.08
242
HANDLE
243
CAP SCREW M8-1.25 X 25
Price
N/A
244
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
255
PUMP ROTARY SWITCH
257
E-STOP BUTTON W/ON-OFF KEDU KJD12/120V
257A
ON/OFF EMERGENCY SWITCH 220V
258
MOTOR POWER CORD 110V
259
PUMP POWER CORD 110V
260
POWER SUPPLY CORD 110V
262
JUNCTION BLOCK
263
CIRCUIT BREAKER 15A 110V
263A
CIRCUIT BREAKER 7A 220V 1P
264
220V CONVERSION KIT V1
264V2
220V CONVERSION KIT V2.02.24

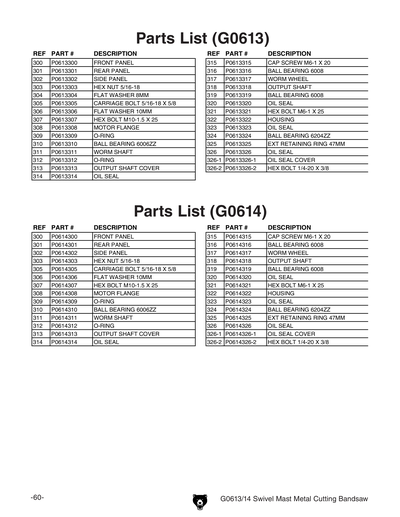

300
PANEL FRONT
301
PANEL REAR
302
SIDE PANEL
303
Now: PN02
HEX NUT 5/16-18
Price
N/A
304
Now: PW01M
FLAT WASHER 8MM
Price
N/A
305
Now: PCB01
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
306
Now: PW04M
FLAT WASHER 10MM
Price
N/A
307
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
308
MOTOR FLANGE
309
O-RING
310
BALL BEARING 6006ZZ
Price
N/A
311
WORM SHAFT
312
O-RING
313
*DISCD*OUTPUT SHAFT COVER
Item is no longer available
Price
N/A
314
OIL SEAL
315
CAP SCREW M6-1 X 20
Price
N/A
316
BALL BEARING 6008ZZ
Price
N/A
317
WORM GEAR 30T
318
OUTPUT SHAFT
319
BALL BEARING 6008ZZ
Price
N/A
320
OIL SEAL
321
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
322
HOUSING
322A
COMPLETE GEAR BOX ASSY
323
OIL SEAL
324
BALL BEARING 6204ZZ
Price
N/A
325
Now: PR79M
INT RETAINING RING 19MM
Price
N/A
326
OIL SEAL
326-1
OIL SEAL COVER
326-2
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
330
GEARBOX
Price
N/A

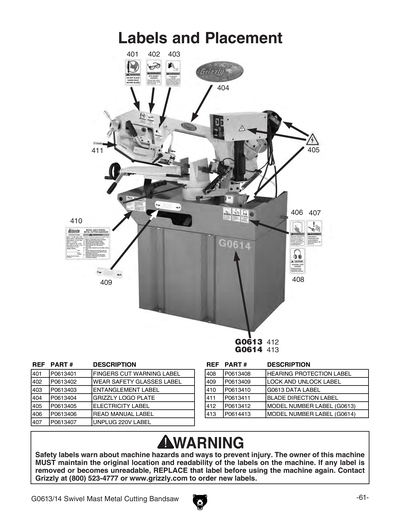

401
FINGERS CUT WARNING LABEL
402
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
403
ENTANGLEMENT LABEL
404
GRIZZLY LOGO PLATE
405
ELECTRICITY 1.4W X 1.2H
Price
N/A
406
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
407
DISCONNECT POWER-DOOR 2W X 3.3H
Price
N/A
408
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
409
LOCK & UNLOCK LABEL
410
DATA LABEL
411
BLADE DIRECTION LABEL
412
MODEL NUMBER LABEL
BOX2
COMPLETE BOX 2 OF 2 FOR G0613
MAN
MANUAL FOR G0613 11/06
