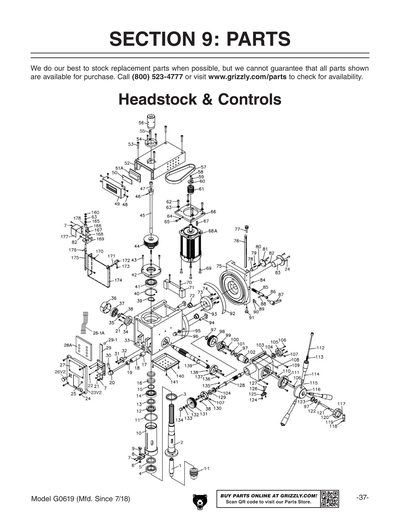

Parts for G0619 6" x 21" 1 HP Mill / Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

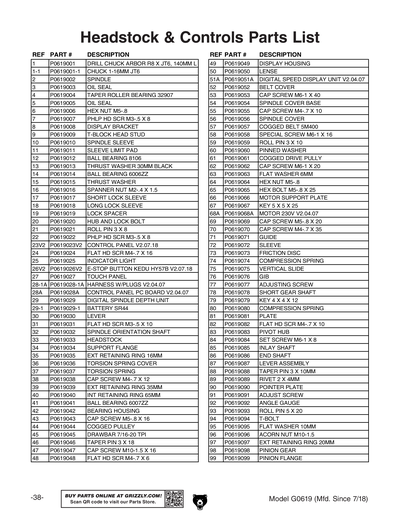

1
DRILL CHUCK ARBOR R8 X JT6, 140MM L
1-1
CHUCK 1-16MM JT6
2
SPINDLE
2-1
SPINDLE SET SCREW DRIVE PIN
3
OIL SEAL
4
TAPERED ROLLER BEARING 32907
5
OIL SEAL
6
Now: PN06M
HEX NUT M5-.8
Price
N/A
7
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
8
DISPLAY BRACKET
9
T-BLOCK HEAD STUD
10
SPINDLE SLEEVE
11
SLEEVE LIMIT PAD
12
Now: P8106
THRUST BEARING 8106
Price
N/A
13
THRUST WASHER 30MM BLACK
14
BALL BEARING 6006ZZ
Price
N/A
15
THRUST WASHER
16
SPANNER NUT M2-.4 X 1.5
17
SHORT LOCK SLEEVE
Item is no longer available
Price
N/A
18
LOCK SLEEVE LONG
Item is no longer available
Price
N/A
19
LOCK SPACER
Item is no longer available
Price
N/A
20
HUB & LOCK BOLT
Item is no longer available
Price
N/A
21
ROLL PIN 3 X 8
Price
N/A
22
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
23
CONTROL PANEL V1
23V2
CONTROL PANEL V2.07.18
Item is no longer available
Price
N/A
24
FLAT HD SCR M4-.7 X 16
Price
N/A
25
POWER INDICATOR LIGHT ZD-10 GRN
Price
N/A
26
E-STOP BUTTON ONPOW LAS1-A
Price
N/A
26V2
E-STOP BUTTON KEDU HY57B V2.07.18
27
CONTROL PANEL LABEL
28
*DISCD*CONTROL PANEL PC BOARD V1.01.07
Item is no longer available
Price
N/A
28-1A
HARNESS W/PLUGS V2.04.07
28A
CONTROL PANEL PC BOARD V2.04.07
29
DIGITAL SPINDLE DEPTH UNIT
30
LEVER
31
FLAT HD SCR M6-1 X 50
Price
N/A
32
SPINDLE ORIENTATION SHAFT
Item is no longer available
Price
N/A
33
HEADSTOCK
Item is no longer available
Price
N/A
33A
COMPLETE HEADSTOCK ASSY. W/ MOTOR
34
SUPPORT FLANGE
Item is no longer available
Price
N/A
35
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
36
TORSION SPRING COVER
37
TORSION SPRING
38
CAP SCREW M4-.7 X 12
Price
N/A
39
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
40
Now: PR63M
INT RETAINING RING 65MM
Price
N/A
41
BALL BEARING 6007ZZ
Price
N/A
42
BEARING HOUSING
43
CAP SCREW M5-.8 X 16
Price
N/A
44
COGGED PULLEY
45
DRAWBAR 7/16-20 TPI
45-1
DRAWBAR HEX WRENCH
Price
N/A
46
TAPER PIN 3 X 18
47
CAP SCREW M10-1.5 X 16
Price
N/A
48
FLAT HD SCR M4-.7 X 6
Price
N/A
49
DISPLAY HOUSING
50
LENSE
51A
DIGITAL SPEED DISPLAY UNIT V2.04.07
52
BELT COVER
53
CAP SCREW M6-1 X 40
Price
N/A
54
SPINDLE COVER BASE
Item is no longer available
Price
N/A
55
CAP SCREW M4-.7 X 10
Price
N/A
56
SPINDLE COVER
57
COGGED BELT 5M400
58
PULLEY SCREW M6-1 X 16
59
ROLL PIN 3 X 10
Price
N/A
60
PINNED WASHER
61
COGGED DRIVE PULLY
62
CAP SCREW M6-1 X 20
Price
N/A
63
Now: PW03M
FLAT WASHER 6MM
Price
N/A
64
Now: PN06M
HEX NUT M5-.8
Price
N/A
65
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
66
MOTOR SUPPORT PLATE
Item is no longer available
Price
N/A
67
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
68A
MOTOR 230V V2.04.07
69
CAP SCREW M5-.8 X 20
Price
N/A
70
CAP SCREW M4-.7 X 35
Price
N/A
71
GUIDE
72
SLEEVE
Item is no longer available
Price
N/A
73
FRICTION DISC
Item is no longer available
Price
N/A
74
COMPRESSION SPRING
Item is no longer available
Price
N/A
75
VERTICAL SLIDE
76
GIB
77
ADJUSTING SCREW
78
SHORT GEAR SHAFT
79
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
80
COMPRESSION SPRING
Item is no longer available
Price
N/A
81
PLATE
Item is no longer available
Price
N/A
82
FLAT HD SCR M4-.7 X 10
Price
N/A
83
PIVIOT HUB
Item is no longer available
Price
N/A
84
SET SCREW M6-1 X 8
Price
N/A
85
INLAY SHAFT
86
END SHAFT
87
LEVER ASSY
88
TAPER PIN 3 X 10
89
RIVET 2 X 4MM
90
POINTER PLATE
91
ADJUST SCREW
92
ANGLE GAUGE
93
ROLL PIN 5 X 20
Price
N/A
94
T-BOLT
95
Now: PW04M
FLAT WASHER 10MM
Price
N/A
96
Now: PN41M
HEX NUT M25-2 LH
Price
N/A
97
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
98
PINION GEAR
99
PINION FLANGE
100
CAP SCREW M4-.7 X 16
Price
N/A
101
THRUST WASHER 20MM BLACK
102
SLIP RING ASSY

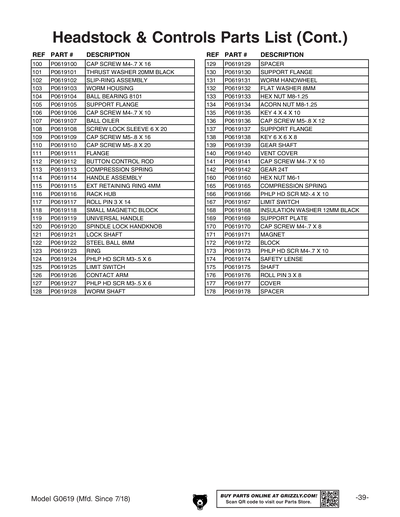

103
WORM HOUSING
Item is no longer available
Price
N/A
104
Now: P8101
THRUST BEARING 8101
Price
N/A
105
SUPPORT FLANGE
Item is no longer available
Price
N/A
106
CAP SCREW M4-.7 X 10
Price
N/A
107
BALL OILER
Price
N/A
108
SCREW LOCK SLEEVE 6 X 20
Item is no longer available
Price
N/A
109
CAP SCREW M5-.8 X 16
Price
N/A
110
CAP SCREW M5-.8 X 20
Price
N/A
111
FLANGE
Item is no longer available
Price
N/A
112
BUTTON CONTROL ROD
113
COMPRESSION SPRING
114
HANDLE ASSY
115
EXT RETAINING RING 4MM
116
RACK HUB
Item is no longer available
Price
N/A
117
ROLL PIN 3 X 14
Price
N/A
118
MAGNETIC BLOCK SMALL
Item is no longer available
Price
N/A
119
UNIVERSAL HANDLE
Item is no longer available
Price
N/A
120
SPINDLE LOCK HANDKNOB
121
LOCK SHAFT
122
STEEL BALL 8MM
Price
N/A
123
RING
124
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
125
LIMIT SWITCH
Item is no longer available
Price
N/A
126
CONTACT ARM
127
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
128
WORM SHAFT
Item is no longer available
Price
N/A
129
SPACER
Item is no longer available
Price
N/A
130
SUPPORT FLANGE
Item is no longer available
Price
N/A
131
WORM HANDWHEEL
Item is no longer available
Price
N/A
132
Now: PW01M
FLAT WASHER 8MM
Price
N/A
133
Now: PN03M
HEX NUT M8-1.25
Price
N/A
134
Now: PN18M
ACORN NUT M8-1.25
Price
N/A
135
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
136
CAP SCREW M5-.8 X 12
Price
N/A
137
SUPPORT FLANGE
Item is no longer available
Price
N/A
138
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
139
GEAR SHAFT
140
VENT COVER
Item is no longer available
Price
N/A
141
CAP SCREW M4-.7 X 10
Price
N/A
142
GEAR 24T
160
Now: PN01M
HEX NUT M6-1
Price
N/A
165
COMPRESSION SPRING
166
***USE PFH56M***
Item is no longer available
Price
N/A
167
LIMIT SWITCH
168
INSULATION WASHER 12MM BLACK
169
SUPPORT PLATE
170
CAP SCREW M4-.7 X 8
Price
N/A
171
MAGNET
172
BLOCK
173
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
174
SAFETY LENSE
175
SHAFT
176
ROLL PIN 3 X 8
Price
N/A
177
COVER
178
SPACER

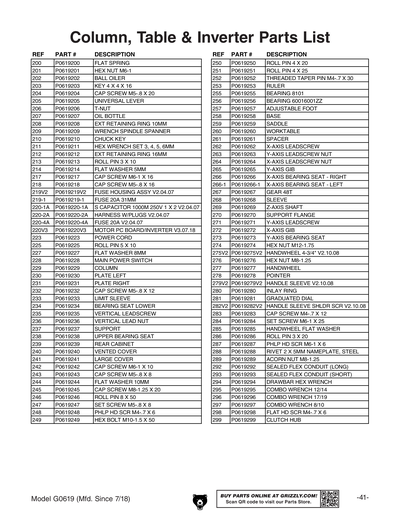

200
FLAT SPRING
201
Now: PN01M
HEX NUT M6-1
Price
N/A
202
BALL OILER
203
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
204
CAP SCREW M5-.8 X 20
Price
N/A
205
LEVER ASSY
Price
N/A
206
T-NUT
207
OIL BOTTLE
208
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
209
WRENCH SPINDLE SPANNER
210
DRL CHK KEY 7.92MM TH 11T SD-16.2MM
Price
N/A
211
WRENCH HEX SET 3, 4, 5, 6MM
212
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
213
ROLL PIN 3 X 10
Price
N/A
214
Now: PW02M
FLAT WASHER 5MM
Price
N/A
217
CAP SCREW M6-1 X 16
Price
N/A
218
CAP SCREW M5-.8 X 16
Price
N/A
219
FUSE HOUSING ASSY V1.01.09
Item is no longer available
Price
N/A
219-1
FUSE 20A 31MM
219V2
FUSE HOUSING ASSY V2.04.07
Item is no longer available
Price
N/A
220-1A
S CAPACITOR 1000M 250V 1 X 2
220-2A
HARNESS W/PLUGS V2.04.07
220-4A
FUSE 20A V2.04.07
220A
MOTOR PC BOARD/INVERTER V2.04.07
220V3
MOTOR PC BOARD/INVERTER V3.07.18
223
POWER CORD
225
ROLL PIN 5 X 10
Price
N/A
227
Now: PW01M
FLAT WASHER 8MM
Price
N/A
228
MAIN POWER SWITCH
229

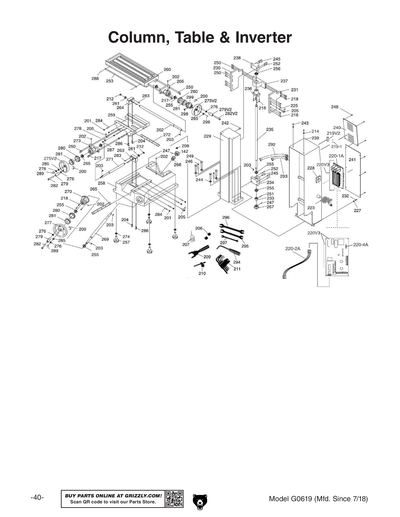

COLUMN
Item is no longer available
Price
N/A
230
PLATE LEFT
Item is no longer available
Price
N/A
231
PLATE RIGHT
Item is no longer available
Price
N/A
232
CAP SCREW M5-.8 X 12
Price
N/A
233
LIMIT SLEEVE
234
BEARING SEAT LOWER
Item is no longer available
Price
N/A
235
VERTICAL LEADSCREW
236
VERTICAL LEAD NUT
237
SUPPORT
Item is no longer available
Price
N/A
238
UPPER BEARING SEAT
239
CABINET REAR
240
VENTED COVER
241
COVER LARGE
Item is no longer available
Price
N/A
242
CAP SCREW M6-1 X 10
Price
N/A
243
CAP SCREW M5-.8 X 8
Price
N/A
244
Now: PW04M
FLAT WASHER 10MM
Price
N/A
245
CAP SCREW M8-1.25 X 20
Price
N/A
246
ROLL PIN 8 X 50
Price
N/A
247
SET SCREW M5-.8 X 8
Price
N/A
248
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
249
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
250
ROLL PIN 4 X 20
Price
N/A
251
KEY 5 X 25
Price
N/A
252
THREADED TAPER PIN M4-.7 X 30
253
RULER
255
Now: P8101
THRUST BEARING 8101
Price
N/A
256
BALL BEARING 6001ZZ
Price
N/A
257
ADJUSTABLE FOOT
258
BASE
Item is no longer available
Price
N/A
259
SADDLE
260
WORKTABLE
261
SPACER
262
X-AXIS LEADSCREW
263
Y-AXIS LEADSCREW NUT
264
X-AXIS LEADSCREW NUT
265
Y-AXIS GIB
266
X-AXIS BEARING SEAT - RIGHT
266-1
X-AXIS BEARING SEAT - LEFT
267
GEAR 48T
268
SLEEVE
269
Z-AXIS SHAFT
270
SUPPORT FLANGE
Item is no longer available
Price
N/A
271
Y-AXIS FEED SCREW
272
X-AXIS GIB
273
Y-AXIS BEARING SEAT
274
Now: PN09M
HEX NUT M12-1.75
Price
N/A
275
HANDWHEEL 3-7/8" V1.01.07
275V2
HANDWHEEL 4-3/4" V2.10.08
276
Now: PN03M
HEX NUT M8-1.25
Price
N/A
277
HANDWHEEL
278
POINTER
279
HANDLE SLEEVE V1.01.07
279V2
HANDLE SLEEVE V2.10.08
280
INLAY RING
281
GRADUATED DIAL
282
SHOULDER SCREW M8-1.25 X 55 V1.01.07
282V2
HANDLE SLEEVE SHOULDER SCREW V2.10.08
283
CAP SCREW M4-.7 X 12
Price
N/A
284
SET SCREW M6-1 X 25
Price
N/A
285
HANDWHEEL FLAT WASHER
286
ROLL PIN 3 X 20
Price
N/A
287
Now: PS37M
PHLP HD SCR M6-1 X 6
Price
N/A
288
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
289
Now: PN18M
ACORN NUT M8-1.25
Price
N/A
292
SEALED FLEX CONDUIT LONG
293
SEALED FLEX CONDUIT SHORT
Item is no longer available
Price
N/A
294
DRAWBAR HEX WRENCH
295
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
296
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
297
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
298
FLAT HD SCR M4-.7 X 6
Price
N/A
299
CLUTCH HUB
300
TABLE END PLATE (LEFT) ASSEMBLY
301

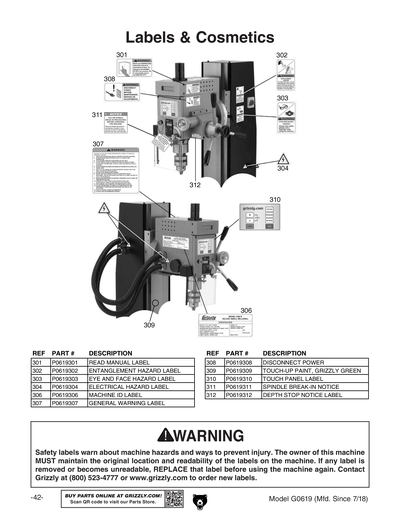

READ MANUAL 2.8W X 1.5H
Price
N/A
302
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
303
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
304
ELECTRICITY 1.4W X 1.2H
Price
N/A
305
EMERGENCY STOP LABEL
306
MACHINE ID LABEL
307
GENERAL WARNING LABEL
Item is no longer available
Price
N/A
308
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
309
N/S GRIZZLY GREEN G1023S
Price
N/A
310
TOUCH PANEL LABEL
311
SPINDLE BREAK-IN NOTICE
Item is no longer available
Price
N/A
312
DEPTH STOP NOTICE LABEL
Item is no longer available
Price
N/A
KIT1
ELECTRICAL UPGRADE KIT V2.04.07
MAN
MANUAL G0619 MFD-05.07-06.18 V1.05.07
MANV2
MANUAL G0619 MFD-07.18+ V2.10.18
Item is no longer available
Price
N/A
