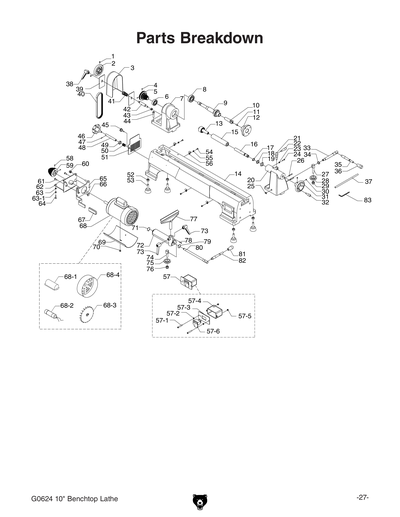

Parts for G0624 10" Cast-Iron Bench Top Wood Lathe

IMPORTANT

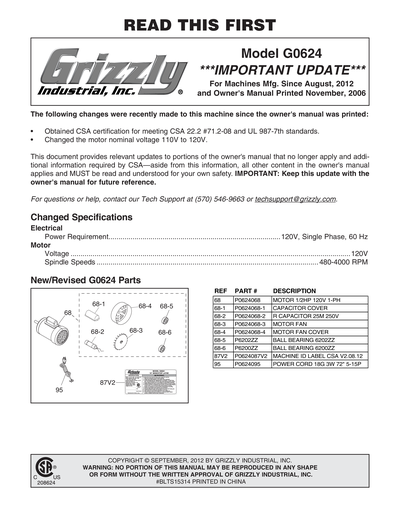

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

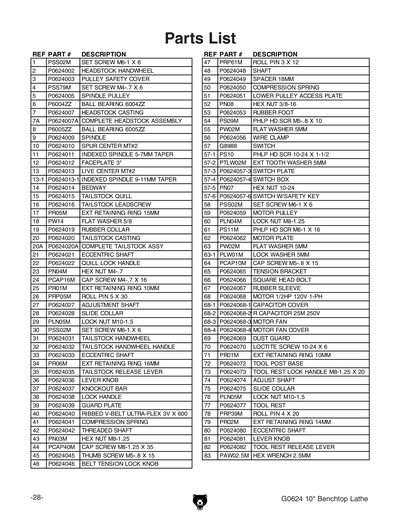

1
SET SCREW M6-1 X 6
Price
N/A
2
HEADSTOCK HANDWHEEL 83D X 8B-S
3
PULLEY SAFETY COVER
4
SET SCREW M4-.7 X 6
Price
N/A
5
SPINDLE PULLEY
6
BALL BEARING 6004ZZ
Price
N/A
7
HEADSTOCK CASTING
7A
*DISCD*COMPLETE HEADSTOCK ASSY
Item is no longer available
Price
N/A
8
BALL BEARING 6005ZZ
Price
N/A
9
SPINDLE
10
SPUR CENTER MT#2
11
INDEXED SPINDLE 5-7MM TAPER
12
FACEPLATE 3"
13
LIVE CENTER MT#2
13-1
INDEXED SPINDLE 9-11MM TAPER
14
BEDWAY
Item is no longer available
Price
N/A
15
TAILSTOCK QUILL
16
TAILSTOCK LEADSCREW
17
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
18
Now: PW14
FLAT WASHER 5/8
Price
N/A
19
WAVY WASHER
20
TAILSTOCK CASTING
20A
*DISCD*COMPLETE TAILSTOCK ASSY
Item is no longer available
Price
N/A
21
ECCENTRIC SHAFT
22
QUILL LOCK HANDLE M6-1 X 13 X 43
23
Now: PN04M
HEX NUT M4-.7
Price
N/A
24
CAP SCREW M4-.7 X 16
Price
N/A
25
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
26
ROLL PIN 5 X 30
Price
N/A
27
TAILSTOCK CLAMP BOLT M10-1.5 X 65
28
TAILSTOCK LOCK PLATE
29
LOCK NUT M10-1.5
Price
N/A
30
SET SCREW M6-1 X 6
Price
N/A
31
*DISCD*HANDWHEL 80D X 16B-S X M6-1
Item is no longer available
Price
N/A
32
*DISCD*HANDLE M6-1 X 60
Item is no longer available
Price
N/A
33
TAILSTOCK ECCENTRIC SHAFT
34
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
35
TAILSTOCK RELEASE LEVER 110 X 13
36
LEVER KNOB 3/8-16 X 13/16 X 1-5/8
37
KNOCKOUT BAR
38
LOCK HANDLE M8-1.25 X 10 X 58
39
GUARD PLATE
40
V-BELT 3V X 600L RIBBED
41
COMPRESSION SPRING 0.8 X 36 X 24
42
THREADED SHAFT M8-1.25 X 16 X 87
43
Now: PN03M
HEX NUT M8-1.25
Price
N/A
44
CAP SCREW M8-1.25 X 35
Price
N/A
45
THUMB SCREW M5-.8 X 15
46
BELT TENSION LOCK KNOB
47
ROLL PIN 3 X 12
Price
N/A
48
BELT TENSION LOCK SHAFT 12 X 93
49
SPACER 18MM
50
COMPRESSION SPRING 1.5 X 15 X 16
51
MOTOR PULLEY ACCESS PLATE
52
Now: PN08
HEX NUT 3/8-16
Price
N/A
53
RUBBER FOOT 3/8-16 X 1-1/2
54
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
55
Now: PW02M
FLAT WASHER 5MM
Price
N/A
56
WIRE CLAMP
57
Now: G8988
Safety Paddle Switch
Price
N/A
57-1
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
57-2
EXT TOOTH WASHER 5MM
Price
N/A
57-3
SWITCH PLATE
57-4
SWITCH BOX
Item is no longer available
Price
N/A
57-5
Now: PN07
HEX NUT 10-24
Price
N/A
57-6
Now: G8988
Safety Paddle Switch
Price
N/A
58
SET SCREW M6-1 X 6
Price
N/A
59
MOTOR PULLEY
60
LOCK NUT M8-1.25
Price
N/A
61
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
62
MOTOR PLATE
Item is no longer available
Price
N/A
63
Now: PW02M
FLAT WASHER 5MM
Price
N/A
63-1
LOCK WASHER 5MM
Price
N/A
64
CAP SCREW M5-.8 X 15
Price
N/A
65
BELT TENSION BRACKET
66
SQUARE HEAD BOLT
67
RUBBER SLEEVE
68
*DISCD*MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
68-1
CAPACITOR COVER
Item is no longer available
Price
N/A
68-2
R CAPACITOR 25M 250V 1-1/2 X 2-3/4
68-3
MOTOR FAN
Item is no longer available
Price
N/A
68-4
MOTOR FAN COVER
Item is no longer available
Price
N/A
68-5
BALL BEARING 6202ZZ
Price
N/A
68-6
BALL BEARING 6200ZZ
Price
N/A
69
DUST GUARD
Item is no longer available
Price
N/A
70
LOCK SCREW 10-24 X 6
Item is no longer available
Price
N/A
71
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
72
TOOL POST BASE
73
TOOL REST LOCK HANDLE M8-1.25 X 20 X 62
74
TOOL REST CLAMP BOLT M10-1.5 X 51
75
TOOL REST LOCK PLATE
76
LOCK NUT M10-1.5
Price
N/A
77
TOOL REST
78
ROLL PIN 4 X 20
Price
N/A
79
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
80
TOOL POST ECCENTRIC SHAFT
81
LEVER KNOB
82
TOOL REST RELEASE LEVER
83
HEX WRENCH 2.5MM
Price
N/A
87

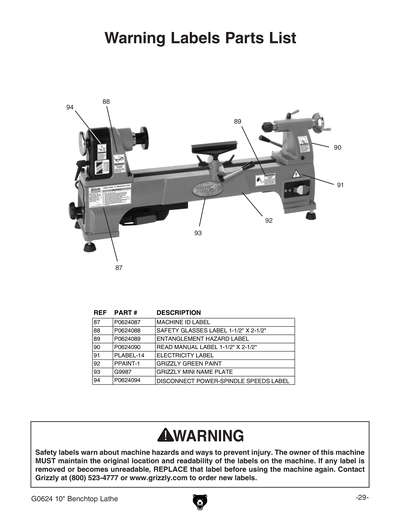

MACHINE ID LABEL NO-CSA V1
87V2
MACHINE ID LABEL CSA V2.08.12
Item is no longer available
Price
N/A
88
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
89
ENTANGLEMENT HAZARD LABEL
Item is no longer available
Price
N/A
90
READ MANUAL 1.5W X 2.5H
Price
N/A
91
ELECTRICITY 1.4W X 1.2H
Price
N/A
92
N/S GRIZZLY GREEN G1023S
Price
N/A
93
Now: G9987
Nameplate - Mini
Price
N/A
94
COMBO DISCONNECT W/SPEED CHART LABEL
95
POWER CORD 18G 3W 72" 5-15
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0624 11/06
Item is no longer available
Price
N/A
