Parts for G0624 - 10" Cast-Iron Bench Top Wood Lathe

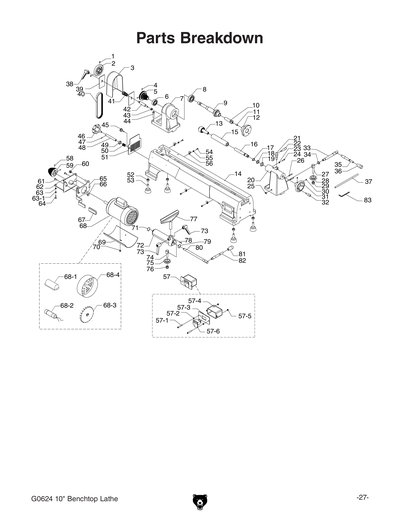

Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624
Part Diagram for G0624

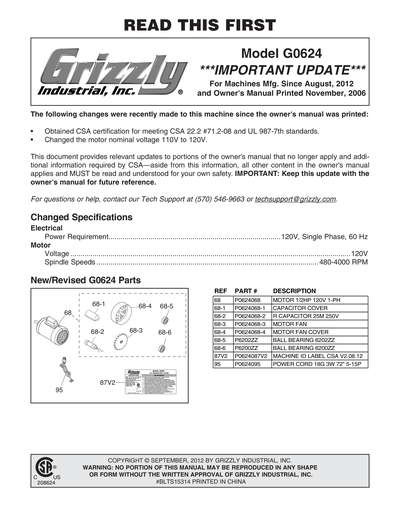

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

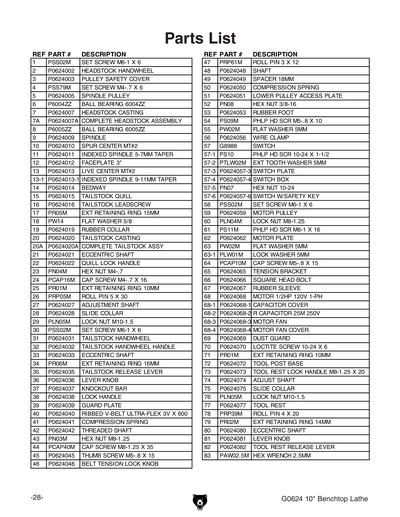

Ref #
Part #
Description
1
SET SCREW M6-1 X 6
Price
N/A
2
HEADSTOCK HANDWHEEL 83D X 8B-S
Price
$11.85
3
PULLEY SAFETY COVER
Price
$6.90
4
SET SCREW M4-.7 X 6
Price
N/A
5
SPINDLE PULLEY
Price
$23.40
6
BALL BEARING 6004ZZ
Price
N/A
7
HEADSTOCK CASTING
Price
$35.65
7A
*DISCD*COMPLETE HEADSTOCK ASSY
Item is no longer available
Price
N/A
8
BALL BEARING 6005ZZ
Price
N/A
9
SPINDLE
Price
$37.40
10
SPUR CENTER MT#2
Price
$7.20
11
INDEXED SPINDLE 5-7MM TAPER
Price
$1.90
12
FACEPLATE 3"
Price
$11.50
13
LIVE CENTER MT#2
Price
$24.85
13-1
INDEXED SPINDLE 9-11MM TAPER
Price
$4.00
14
BEDWAY
Item is no longer available
Price
N/A
15
TAILSTOCK QUILL
Price
$21.25
16
TAILSTOCK LEADSCREW
Price
$5.75
17
EXT RETAINING RING 15MM
Price
N/A
18
P0624018
Now: PW14
FLAT WASHER 5/8
Price
N/A
19
WAVY WASHER
Price
$1.90
20
TAILSTOCK CASTING
Price
$26.65
20A
*DISCD*COMPLETE TAILSTOCK ASSY
Item is no longer available
Price
N/A
21
ECCENTRIC SHAFT
Price
$2.90
22
QUILL LOCK HANDLE M6-1 X 13 X 43
Price
$2.20
23
HEX NUT M4-.7
Price
N/A
24
CAP SCREW M4-.7 X 16
Price
N/A
25
EXT RETAINING RING 10MM
Price
N/A
26
ROLL PIN 5 X 30
Price
N/A
27
TAILSTOCK CLAMP BOLT M10-1.5 X 65
Price
$3.25
28
TAILSTOCK LOCK PLATE
Price
$4.35
29
LOCK NUT M10-1.5
Price
N/A
30
SET SCREW M6-1 X 6
Price
N/A
31
*DISCD*HANDWHEL 80D X 16B-S X M6-1
Item is no longer available
Price
N/A
32
*DISCD*HANDLE M6-1 X 60
Item is no longer available
Price
N/A
33
TAILSTOCK ECCENTRIC SHAFT
Price
$6.90
34
EXT RETAINING RING 16MM
Price
N/A
35
TAILSTOCK RELEASE LEVER 110 X 13
Price
$3.25
36
LEVER KNOB 3/8-16 X 13/16 X 1-5/8
Price
$1.90
37
KNOCKOUT BAR
Price
$1.90
38
LOCK HANDLE M8-1.25 X 10 X 58
Price
$2.90
39
GUARD PLATE
Price
$1.90
40
V-BELT 3V X 600L RIBBED
Price
$5.10
41
COMPRESSION SPRING 0.8 X 36 X 24
Price
$1.90
42
THREADED SHAFT M8-1.25 X 16 X 87
Price
$2.60
43
HEX NUT M8-1.25
Price
N/A
44
CAP SCREW M8-1.25 X 35
Price
N/A
45
THUMB SCREW M5-.8 X 15
Price
$1.90
46
BELT TENSION LOCK KNOB
Price
$3.25
47
ROLL PIN 3 X 12
Price
N/A
48
BELT TENSION LOCK SHAFT 12 X 93
Price
$3.25
49
SPACER 18MM
Price
$1.90
50
COMPRESSION SPRING 1.5 X 15 X 16
Price
$1.90
51
MOTOR PULLEY ACCESS PLATE
Price
$2.60
52
P0624052
Now: PN08
HEX NUT 3/8-16
Price
N/A
53
RUBBER FOOT 3/8-16 X 1-1/2
Price
$2.20
54
PHLP HD SCR M5-.8 X 10
Price
N/A
55
FLAT WASHER 5MM
Price
N/A
56
WIRE CLAMP
Price
$1.49
57
Safety Paddle Switch
Price
N/A
57-1
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
57-2
EXT TOOTH WASHER 5MM
Price
N/A
57-3
SWITCH PLATE
Price
$1.90
57-4
SWITCH BOX
Item is no longer available
Price
N/A
57-5
HEX NUT 10-24
Price
N/A
57-6
Safety Paddle Switch
Price
N/A
58
SET SCREW M6-1 X 6
Price
N/A
59
MOTOR PULLEY
Price
$23.75
60
LOCK NUT M8-1.25
Price
N/A
61
PHLP HD SCR M6-1 X 16
Price
N/A
62
MOTOR PLATE
Item is no longer available
Price
N/A
63
FLAT WASHER 5MM
Price
N/A
63-1
LOCK WASHER 5MM
Price
N/A
64
CAP SCREW M5-.8 X 15
Price
N/A
65
BELT TENSION BRACKET
Price
$11.50
66
SQUARE HEAD BOLT
Price
$1.90
67
RUBBER SLEEVE
Price
$1.90
68
*DISCD*MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
68-1
CAPACITOR COVER
Item is no longer available
Price
N/A
68-2
R CAPACITOR 25M 250V 1-1/2 X 2-3/4
Price
$6.90
68-3
MOTOR FAN
Item is no longer available
Price
N/A
68-4
MOTOR FAN COVER
Item is no longer available
Price
N/A
68-5
BALL BEARING 6202ZZ
Price
N/A
68-6
BALL BEARING 6200ZZ
Price
N/A
69
DUST GUARD
Item is no longer available
Price
N/A
70
LOCK SCREW 10-24 X 6
Item is no longer available
Price
N/A
71
EXT RETAINING RING 10MM
Price
N/A
72
TOOL POST BASE
Price
$12.65
73
TOOL REST LOCK HANDLE M8-1.25 X 20 X 62
Price
$4.35
74
TOOL REST CLAMP BOLT M10-1.5 X 51
Price
$3.25
75
TOOL REST LOCK PLATE
Price
$4.35
76
LOCK NUT M10-1.5
Price
N/A
77
TOOL REST
Price
$8.65
78
ROLL PIN 4 X 20
Price
N/A
79
EXT RETAINING RING 14MM
Price
N/A
80
TOOL POST ECCENTRIC SHAFT
Price
$5.10
81
LEVER KNOB
Price
$1.90
82
TOOL REST RELEASE LEVER
Price
$3.25
83
HEX WRENCH 2.5MM
Price
N/A
87

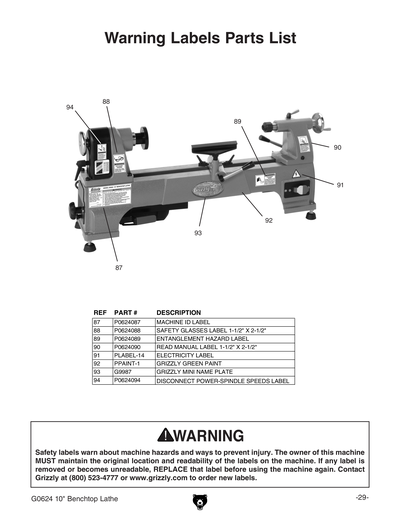

MACHINE ID LABEL NO-CSA V1
Price
$16.40
87V2
MACHINE ID LABEL CSA V2.08.12
Item is no longer available
Price
N/A
88
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
89
ENTANGLEMENT HAZARD LABEL
Item is no longer available
Price
N/A
90
READ MANUAL 1.5W X 2.5H
Price
N/A
91
ELECTRICITY 1.4W X 1.2H
Price
N/A
92
N/S GRIZZLY GREEN G1023S
Price
N/A
93
Nameplate - Mini
Price
N/A
94
COMBO DISCONNECT W/SPEED CHART LABEL
Price
$1.25
95
POWER CORD 18G 3W 72" 5-15
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0624 11/06
Item is no longer available
Price
N/A
