Parts for G0627 - 40" x 20" Downdraft Table w/ Stand

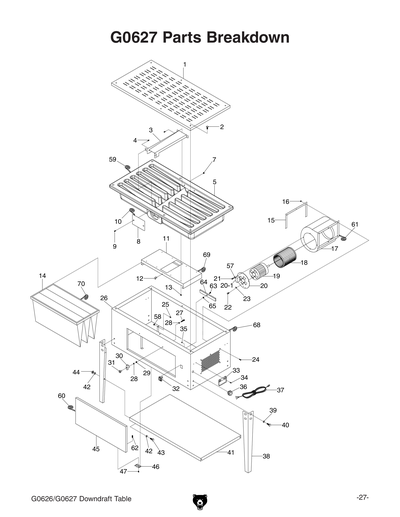

Part Diagram for G0627
Part Diagram for G0627
Part Diagram for G0627
Part Diagram for G0627
Part Diagram for G0627
Part Diagram for G0627

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

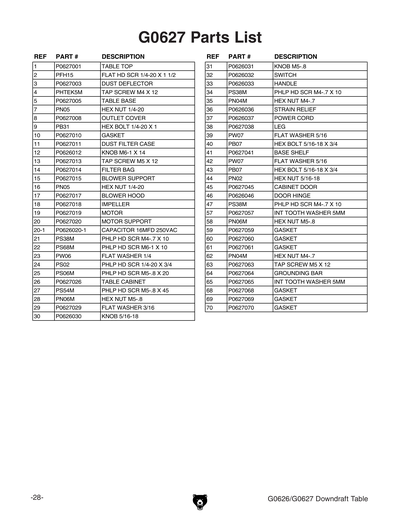

Ref #
Part #
Description
1
Price
$113.30
2
FLAT HD SCR 1/4-20 X 1-1/2
Price
N/A
3
Price
$18.15
4
TAP SCREW #8 X 1/2
Price
N/A
5
TABLE BASE
Item is no longer available
Price
N/A
7
P0627007
Now: PN05
HEX NUT 1/4-20
Price
N/A
8
OUTLET COVER
Item is no longer available
Price
N/A
9
P0627009
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
10
GASKET
Item is no longer available
Price
N/A
11
DUST FILTER CASE
Item is no longer available
Price
N/A
12
KNOB M6-1 X 14
Price
N/A
13
TAP SCREW M5 X 12
Price
N/A
14
Price
$76.10
15
BLOWER SUPPORT
Item is no longer available
Price
N/A
16
P0627016
Now: PN05
HEX NUT 1/4-20
Price
N/A
17
Price
$16.10
18
Price
$39.00
19
*DISCD*MOTOR 1/8HP 110V 1-PH
Item is no longer available
Price
N/A
20
Price
$15.25
20-1
R CAPACITOR 16M 250V 2 X 1-1/4
Price
N/A
21
R CAPACITOR 16M 250V 2 X 1-1/4
Price
N/A
22
PHLP HD SCR M6-1 X 10
Price
N/A
23
P0627023
Now: PW06
FLAT WASHER 1/4
Price
N/A
24
P0627024
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
25
P0627025
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
26
TABLE CABINET
Item is no longer available
Price
N/A
27
P0627027
Now: PS31
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
28
P0627028
Now: PW03
FLAT WASHER #10
Price
N/A
29
FENDER WASHER 8MM
Price
N/A
30
KNOB 5/16-18
Price
N/A
31
***USE P0630058***
Price
N/A
32
SWITCH
Price
N/A
33
HANDLE
Price
N/A
34
PHLP HD SCR M4-.7 X 10
Price
N/A
35
HEX NUT M3-.5
Price
N/A
36
STRAIN RELIEF TYPE-6 ST
Price
N/A
37
POWER CORD
Price
N/A
38
LEG
Item is no longer available
Price
N/A
39
P0627039
Now: PW07
FLAT WASHER 5/16
Price
N/A
40
P0627040
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
41
BASE SHELF
Item is no longer available
Price
N/A
42
P0627042
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
P0627043
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
44
P0627044
Now: PN02
HEX NUT 5/16-18
Price
N/A
45
Price
$50.90
46
DOOR HINGE
Price
N/A
47
TAP SCREW #8 X 1/2
Price
N/A
48
MACHINE ID LABEL
Item is no longer available
Price
N/A
49
Nameplate - Small
Price
N/A
50

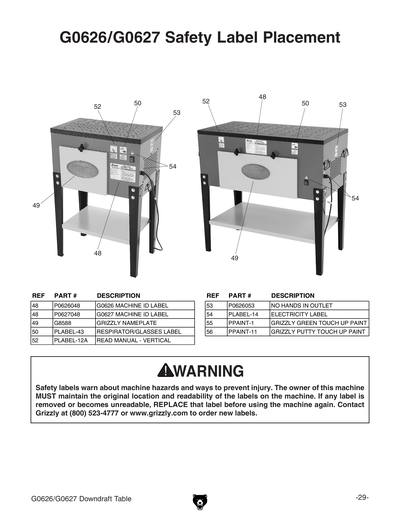

SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
51
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
52
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
53
NO HANDS IN OUTLET
Price
N/A
54
ELECTRICITY 1.4W X 1.2H
Price
N/A
55
N/S GRIZZLY GREEN G1023S
Price
N/A
56
GREY PUTTY REF G0504
Price
N/A
57
INT TOOTH WASHER 5MM
Price
N/A
58
HEX NUT M5-.8
Price
N/A
59
GASKET
Item is no longer available
Price
N/A
60
GASKET
Item is no longer available
Price
N/A
61
Price
$2.60
62
HEX NUT M4-.7
Price
N/A
63
TAP SCREW M5 X 12
Price
N/A
64
GROUNDING BAR
Item is no longer available
Price
N/A
65
INT TOOTH WASHER 5MM
Price
N/A
68
GASKET
Item is no longer available
Price
N/A
69
GASKET
Item is no longer available
Price
N/A
70
Price
$2.60
MAN
MANUAL FOR G0627 07/07
Item is no longer available
Price
N/A
