Parts for G0629 - 52" 3-in-1 Sheet Metal Machine

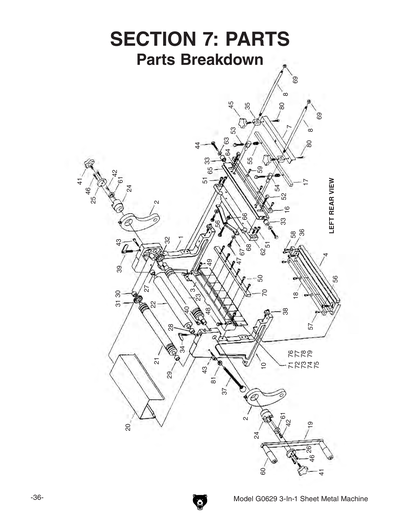

Part Diagram for G0629
Part Diagram for G0629
Part Diagram for G0629
Part Diagram for G0629
Part Diagram for G0629
Part Diagram for G0629

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

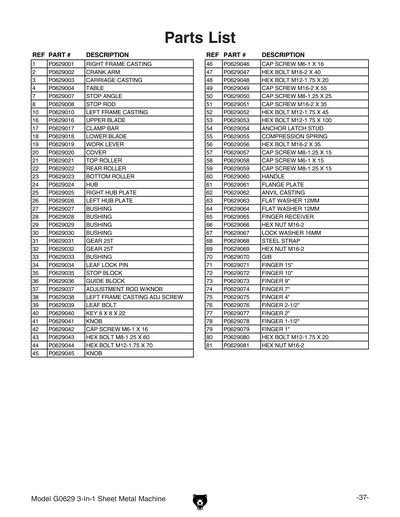

Ref #
Part #
Description
1
*DISCD*RIGHT FRAME CASTING
Item is no longer available
Price
N/A
2
*DISCD*CRANK ARM
Item is no longer available
Price
N/A
3
*DISCD*CARRIAGE CASTING
Item is no longer available
Price
N/A
4
Price
$264.80
5
*DISCD*WALL RIGHT
Item is no longer available
Price
N/A
7
Price
$33.35
8
*DISCD*STOP ROD
Item is no longer available
Price
N/A
10
*DISCD*LEFT FRAME CASTING
Item is no longer available
Price
N/A
16
*DISCD*UPPER BLADE
Item is no longer available
Price
N/A
17
*DISCD*CLAMP BAR
Item is no longer available
Price
N/A
18
*DISCD*LOWER BLADE
Item is no longer available
Price
N/A
19
*DISCD*WORK LEVER
Item is no longer available
Price
N/A
20
*DISCD*COVER
Item is no longer available
Price
N/A
21
Price
$99.20
22
*DISCD*REAR ROLLER
Item is no longer available
Price
N/A
23
*DISCD*BOTTOM ROLLER
Item is no longer available
Price
N/A
24
*DISCD*HUB
Item is no longer available
Price
N/A
25
*DISCD*RIGHT HUB PLATE
Item is no longer available
Price
N/A
26
*DISCD*LEFT HUB PLATE
Item is no longer available
Price
N/A
27
*DISCD*BUSHING
Item is no longer available
Price
N/A
28
*DISCD*BUSHING
Item is no longer available
Price
N/A
29
*DISCD*BUSHING
Item is no longer available
Price
N/A
30
*DISCD*BUSHING
Item is no longer available
Price
N/A
31
*DISCD*GEAR 25T
Item is no longer available
Price
N/A
32
*DISCD*GEAR 25T
Item is no longer available
Price
N/A
33
Price
$5.75
34
*DISCD*LEAF LOCK PIN
Item is no longer available
Price
N/A
35
*DISCD*STOP BLOCK
Item is no longer available
Price
N/A
36
*DISCD*GUIDE BLOCK
Item is no longer available
Price
N/A
37
*DISCD*ADJUSTMENT ROD W/KNOB
Price
$8.65
38
*DISCD*LEFT FRAME CASTING ADJUSTMENT SCR
Price
$5.75
39
*DISCD*LEAF BOLT
Item is no longer available
Price
N/A
40
KEY 8 X 8 X 22
Price
N/A
41
*DISCD*KNOB
Item is no longer available
Price
N/A
42
CAP SCREW M6-1 X 16
Price
N/A
43
HEX BOLT M8-1.25 X 60
Price
N/A
44
HEX BOLT M12-1.75 X 70
Price
N/A
45
*DISCD*KNOB
Item is no longer available
Price
N/A
46
CAP SCREW M6-1 X 16
Price
N/A
47
HEX BOLT M16-2 X 40
Price
N/A
48
HEX BOLT M12-1.75 X 20
Price
N/A
49
CAP SCREW M16-2 X 55
Price
N/A
50
CAP SCREW M8-1.25 X 25
Price
N/A
51
*DISCD*CAP SCREW M16-2 X 35
Price
N/A
52
HEX BOLT M12-1.75 X 45
Price
N/A
53
HEX BOLT M12-1.75 X 100
Price
N/A
54
*DISCD*ANCHOR LATCH STUD
Item is no longer available
Price
N/A
55
*DISCD*COMPRESSION SPRING
Price
$5.75
56
*DISCD*HEX BOLT M16-2 X 35 C8.8
Price
N/A
57
CAP SCREW M8-1.25 X 15
Price
N/A
58
CAP SCREW M6-1 X 15
Price
N/A
59
CAP SCREW M8-1.25 X 15
Price
N/A
60
*DISCD*HANDLE
Item is no longer available
Price
N/A
61
*DISCD*FLANGE PLATE
Item is no longer available
Price
N/A
62
*DISCD*ANVIL CASTING
Item is no longer available
Price
N/A
63
FLAT WASHER 12MM
Price
N/A
64
FLAT WASHER 12MM
Price
N/A
65
Price
$165.70
66
HEX NUT M16-2
Price
N/A
67
LOCK WASHER 16MM
Price
N/A
68
*DISCD*STEEL STRAP
Item is no longer available
Price
N/A
69
HEX NUT M16-2
Price
N/A
70
*DISCD*GIB
Item is no longer available
Price
N/A
71
*DISCD*FINGER 15"
Item is no longer available
Price
N/A
72
Price
$19.85
73
*DISCD*FINGER 9"
Item is no longer available
Price
N/A
74
*DISCD*FINGER 7"
Item is no longer available
Price
N/A
75
*DISCD*FINGER 4"
Item is no longer available
Price
N/A
76
*DISCD*FINGER 2-1/2"
Item is no longer available
Price
N/A
77
*DISCD*FINGER 2"
Item is no longer available
Price
N/A
78
Price
$6.90
79
*DISCD*FINGER 1"
Item is no longer available
Price
N/A
80
HEX BOLT M12-1.75 X 20
Price
N/A
81
HEX NUT M16-2
Price
N/A
85
ROLL PIN 5 X 26
Price
N/A

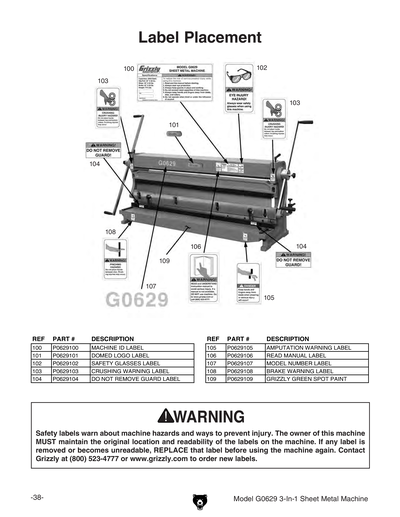

100
MACHINE ID LABEL
Item is no longer available
Price
N/A
101
*DISCD*DOMED LOGO LABEL
Item is no longer available
Price
N/A
102
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
103
SLIP ROLL WARNING 2W X 3.3H
Price
N/A
104
DO NOT REMOVE GUARD 2.1W X 1H
Price
N/A
105
SHEAR AMPUTATION 2W X 3.3H
Price
N/A
106
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
107
*DISCD*MODEL NUMBER LABEL
Price
$1.00
108
*DISCD*BRAKE WARNING LABEL
Item is no longer available
Price
N/A
109
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
Price
$11.50
