Parts for G0634XP 12" 5 HP Planer/Jointer with Helical Cutterhead-Polar Bear Series

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

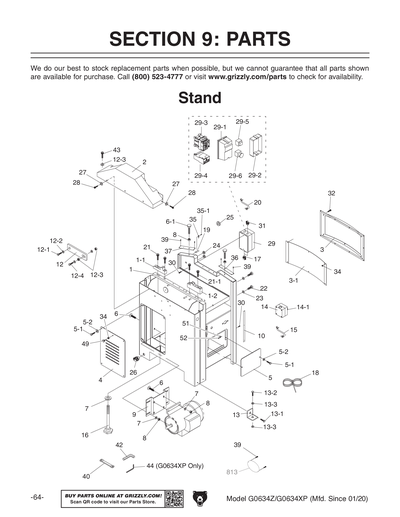

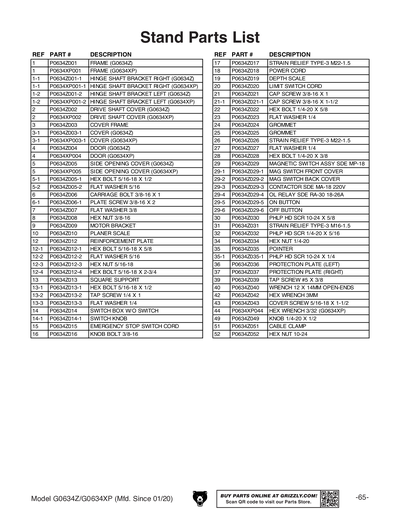

1
FRAME
1-1
HINGE SHAFT BRACKET RIGHT
1-2
HINGE SHAFT BRACKET LEFT
2
DRIVE SHAFT COVER
3
COVER FRAME
Price
N/A
3-1
COVER
4
DOOR
5
SIDE OPENING COVER
5-1
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
6
Now: PCB22
CARRIAGE BOLT 3/8-16 X 1
Price
N/A
6-1
PLATE SCREW 3/8-16 X 2
Price
N/A
8
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
MOTOR BRACKET
Price
N/A
10
PLANER SCALE
Price
N/A
11
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
12
REINFORCEMENT PLATE
Price
N/A
12-1
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
12-3
Now: PN02
HEX NUT 5/16-18
Price
N/A
12-4
Now: PB17
HEX BOLT 5/16-18 X 2-3/4
Price
N/A
13
SQUARE SUPPORT
Price
N/A
13-1
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
13-2
TAP SCREW 1/4 X 1
Price
N/A
14
SWITCH BOX W/O SWITCH
Price
N/A
14-1
SWITCH KNOB
Price
N/A
15
EMERGENCY STOP SWITCH CORD
Price
N/A
16
KNOB BOLT 3/8-16
Price
N/A
17
STRAIN RELIEF 3/4"
Price
N/A
18
POWER CORD
Price
N/A
19
DEPTH SCALE
Price
N/A
20
LIMIT SWITCH CORD
Price
N/A
21
CAP SCREW 3/8-16 X 1
Price
N/A
21-1
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
22
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
24
GROMMET
Price
N/A
25
GROMMET
Price
N/A
26
STRAIN RELIEF 3/4"
Price
N/A
28
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
29
MAGNETIC SWITCH ASSY SDE MP-18
Price
N/A
29-1
MAG SWITCH FRONT COVER
Price
N/A
29-2
MAG SWITCH BACK COVER
Price
N/A
29-3
CONTACTOR
Price
N/A
29-4
OL RELAY SDE RA-30 18-26A
Price
N/A
29-5
ON BUTTON
Price
N/A
29-6
OFF BUTTON
Price
N/A
30
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
31
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
32
Now: PS103
PHLP HD SCR 1/4-20 X 5/16
Price
N/A
34
Now: PN05
HEX NUT 1/4-20
Price
N/A
35
POINTER
Price
N/A
35-1
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
36
PROTECTION PLATE LEFT
Price
N/A
37
PROTECTION PLATE RIGHT
Price
N/A
38
Now: G8588
Nameplate - Small
Price
N/A
39
TAP SCREW #5 X 3/8
Price
N/A
42
HEX WRENCH 3MM
Price
N/A
43
COVER SCREW 5/16-18 X 1-1/2
Price
N/A
44
HEX WRENCH 3/32
49
*DISCD*KNOB 1/4-20 X 1/2
Price
N/A
51
CABLE CLAMP
Price
N/A

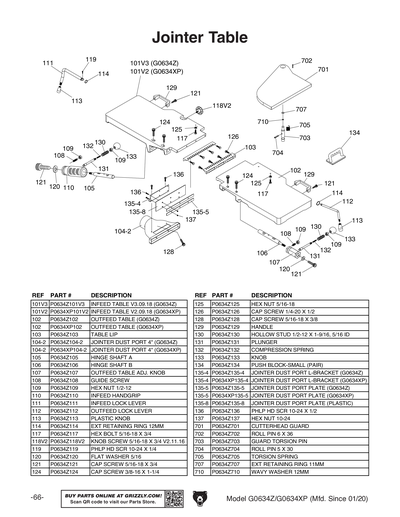

101
INFEED TABLE
102
OUTFEED TABLE
103
TABLE LIP
Price
N/A
104-2
JOINTER DUST PORT 4"
105
HINGE SHAFT A
Price
N/A
106
HINGE SHAFT B
Price
N/A
107
OUTFEED TABLE ADJ KNOB
Price
N/A
108
GUIDE SCREW
Price
N/A
109
Now: PN06
HEX NUT 1/2-12
Price
N/A
110
INFEED HANDGRIP
Price
N/A
111
INFEED LOCK LEVER
Price
N/A
112
OUTFEED LOCK LEVER
Price
N/A
113
PLASTIC KNOB
Price
N/A
114
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
115
CUTTERHEAD GUARD BRACKET V2.04.16
Price
N/A
115V2
CUTTERHEAD GUARD BRACKET V2.04.16
Price
N/A
117
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
118
KNOB SCREW 1/4-20 X 1/2
Price
N/A
119
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
121
CAP SCREW 5/16-18 X 3/4
Price
N/A
122
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
124
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
125
Now: PN02
HEX NUT 5/16-18
Price
N/A
126
CAP SCREW 1/4-20 X 1/2
Price
N/A
128
CAP SCREW 5/16-18 X 3/8
Price
N/A
129
HANDLE
Price
N/A
130
PLUNGER SCREW 1/2
Price
N/A
131
PLUNGER
Price
N/A
132
COMPRESSION SPRING
Price
N/A
133
KNOB
Price
N/A
134
Now: W1400
Safety Push Block - Small
Price
N/A
135-4
L BRACKET
135-5
PLATE
135-8
JDP PLASTIC PLATE
Price
N/A
143
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
144
Now: PN07
HEX NUT 10-24
Price
N/A

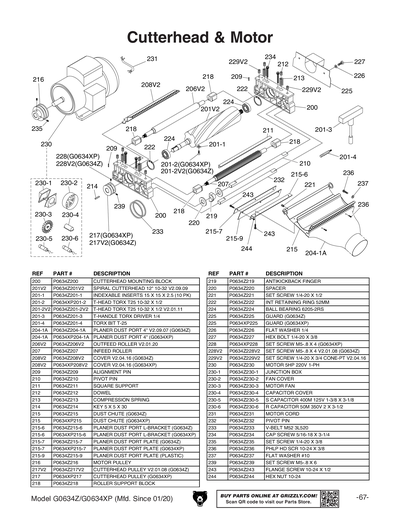

200
CUTTERHEAD BLOCK
Price
N/A
201
SPIRAL CUTTERHEAD 12" 10-32 V1
Price
N/A
201-1
15 x 15 x 2.5mm Replacement Carbide Inserts
Price
N/A
201-2
*DISCD*T-HEAD TORX T25 10-32 X 1/2 V2.01.11
Price
N/A
201-3
WRENCH T-HANDLE TORX 1/4
Price
N/A
201-4
Now: PBT02
TORX BIT T-25
Price
N/A
204-1A
PLANER DUST PORT
206
OUTFEED ROLLER V2.01.20
Price
N/A
206V2
OUTFEED ROLLER V2.01.20
Price
N/A
207
INFEED ROLLER
Price
N/A
208
COVER V2.04.16
Price
N/A
208V2
COVER V2.04.16
Price
N/A
209
ALIGNMENT PIN
Price
N/A
210
PIVOT PIN
Price
N/A
211
SQUARE SUPPORT
Price
N/A
212
DOWEL
Price
N/A
213
COMPRESSION SPRING
Price
N/A
214
KEY 5 X 5 X 30
Price
N/A
215
DUST CHUTE
215-6
BRACKET
215-7
PLATE
215-9
PDF PLASTIC PLATE
Price
N/A
216
MOTOR PULLEY
Price
N/A
217
PULLEY METRIC V2.01.08
Price
N/A
218
SUPPORT
Price
N/A
219
ANTI KICKBACK FINGER
Price
N/A
220
SPACER
Price
N/A
221
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
222
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
224
BALL BEARING 6205-2RS
Price
N/A
225
GUARD
227
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
228
SET SCREW M5-.8 X 4 V2.01.08
Price
N/A
229
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
229V2
SET SCREW 1/4-20 X 3/4 CONE-PT
Price
N/A
230
MOTOR 5HP 220V 1-PH
Price
N/A
230-1
JUNCTION BOX
Price
N/A
230-2
FAN COVER
Price
N/A
230-3
MOTOR FAN
Price
N/A
230-4
CAPACITOR COVER
Price
N/A
230-5
S CAPACITOR 400M 125V 1-3/8 X 3-1/8
Price
N/A
230-6
R CAPACITOR 50M 350V 2 X 3-1/2
Price
N/A
230-7
CENTRIFUGAL SWITCH 3450
Price
N/A
230-8
CONTACT PLATE
Price
N/A
230-9
MOTOR BEARING
Price
N/A
231
MOTOR CORD
Price
N/A
232
PIVOT PIN
Price
N/A
234
CAP SCREW 5/16-18 X 3-1/4
Price
N/A
235
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
236
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
241
CUTTERHEAD ROTATION LABEL
Price
N/A
243
Now: PFS17
FLANGE SCREW 10-24 X 1/2
Price
N/A
244
Now: PN07
HEX NUT 10-24
Price
N/A
252
Now: PN07
HEX NUT 10-24
Price
N/A

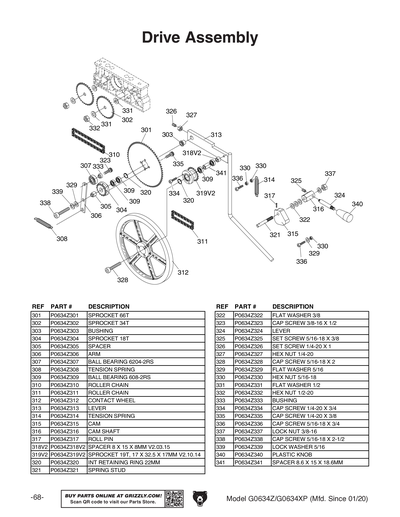

301
SPROCKET 66T
Price
N/A
302
SPROCKET 34T
Price
N/A
303
BUSHING
Price
N/A
304
SPROCKET 18T
Price
N/A
305
SPACER
Price
N/A
306
ARM
Price
N/A
307
BALL BEARING 6204-2RS
Price
N/A
308
TENSION SPRING
Price
N/A
309
BALL BEARING 608-2RS
Price
N/A
310
ROLLER CHAIN
Price
N/A
311
ROLLER CHAIN
Price
N/A
312
CONTACT WHEEL
Price
N/A
313
LEVER
Price
N/A
314
TENSION SPRING
Price
N/A
315
CAM
Price
N/A
316
CAM SHAFT
Price
N/A
317
ROLL PIN
Price
N/A
318
*DISCD*SPACER
Price
N/A
319
SPROCKET 19T
Price
N/A
320
Now: PR57M
INT RETAINING RING 22MM
Price
N/A
321
SPRING STUD
Price
N/A
323
CAP SCREW 3/8-16 X 1/2
Price
N/A
324
LEVER
Price
N/A
325
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
326
Now: PSS12
SET SCREW 1/4-20 X 1
Price
N/A
327
Now: PN05
HEX NUT 1/4-20
Price
N/A
328
CAP SCREW 5/16-18 X 2
Price
N/A
330
Now: PN02
HEX NUT 5/16-18
Price
N/A
332
Now: PN01
HEX NUT 1/2-20
Price
N/A
333
BUSHING
Price
N/A
334
CAP SCREW 1/4-20 X 3/4
Price
N/A
335
CAP SCREW 1/4-20 X 3/8
Price
N/A
336
CAP SCREW 5/16-18 X 3/4
Price
N/A
337
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
338
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
339
Now: PLW01
LOCK WASHER 5/16
Price
N/A
340
PLASTIC KNOB
Price
N/A

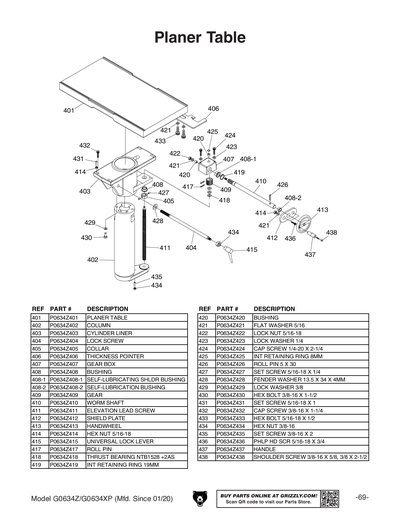

401
PLANER TABLE
402
COLUMN
403
CYLINDER LINER
404
LOCK SCREW
Price
N/A
405
COLLAR
Price
N/A
406
THICKNESS POINTER
Price
N/A
407
GEAR BOX
Price
N/A
408
BUSHING
Price
N/A
408-1
SELF LUBRICATING SHLDR BUSHING
Price
N/A
408-2
SELF LUBRICATION BUSHING
Price
N/A
409
GEAR
Price
N/A
410
WORM SHAFT
Price
N/A
411
ELEVATION LEAD SCREW
Price
N/A
412
SHIELD PLATE
413
HANDWHEEL
Price
N/A
414
Now: PN02
HEX NUT 5/16-18
Price
N/A
415
UNIVERSAL LOCK LEVER
Price
N/A
417
ROLL PIN
Price
N/A
418
THRUST BEARING NTB1528 +2AS
Price
N/A
419
Now: PR79M
INT RETAINING RING 19MM
Price
N/A
420
BUSHING
Price
N/A
422
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
423
Now: PLW02
LOCK WASHER 1/4
Price
N/A
424
CAP SCREW 1/4-20 X 2-1/4
Price
N/A
425
Now: PR88M
INT RETAINING RING 8MM
Price
N/A
426
ROLL PIN 5 X 30
Price
N/A
427
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
428
FLAT WASHER
Price
N/A
429
Now: PLW04
LOCK WASHER 3/8
Price
N/A
430
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
431
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
432
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
433
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
434
Now: PN08
HEX NUT 3/8-16
Price
N/A
436
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
437
HANDLE
Price
N/A
438
HANDLE SCREW 3/8-16 X 3-3/8
Price
N/A

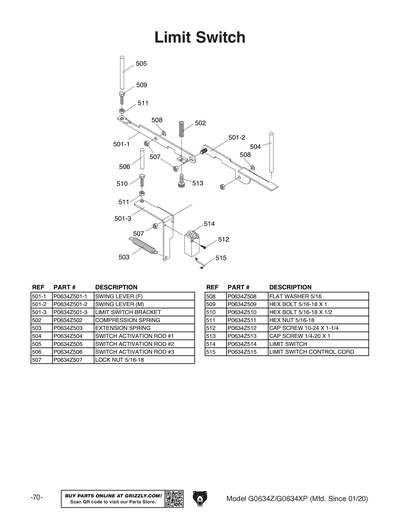

501-1
SWING LEVER F
Price
N/A
501-2
SWING LEVER M
Price
N/A
501-3
LIMIT SWITCH BRACKET
Price
N/A
502
COMPRESSION SPRING
Price
N/A
503
TENSION SPRING
Price
N/A
504
SWITCH ACTIVATION ROD #1
Price
N/A
505
SWITCH ACTIVATION ROD #2
Price
N/A
506
SWITCH ACTIVATION ROD #3
Price
N/A
507
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
509
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
510
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
511
Now: PN02
HEX NUT 5/16-18
Price
N/A
512
CAP SCREW 10-24 X 1-1/4
Price
N/A
513
CAP SCREW 1/4-20 X 1
Price
N/A
514
*DISCD*LIMIT SWITCH
Price
N/A
515
LIMIT SWITCH CONTROL CORD
Price
N/A

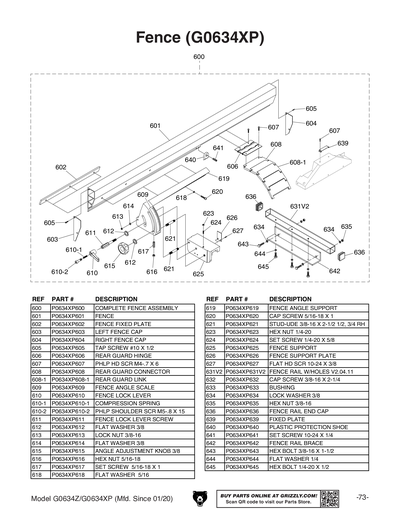

600
COMPLETE FENCE ASSEMBLY
601
FENCE
602
FENCE FIXED PLATE
603
LEFT FENCE CAP
604
RIGHT FENCE CAP
605
TAP SCREW #10 X 1/2
Price
N/A
606
REAR GUARD HINGE
607
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
608
REAR GUARD CONNECTOR
608-1
REAR GUARD LINK
608A
REAR GUARD ASSEMBLY 9PC
609
FENCE ANGLE SCALE
610
FENCE LOCK LEVER
610-1
COMPRESSION SPRING
610-2
PHLP SHOULDER SCR M5-.8 X 15
611
FENCE LOCK LEVER SCREW
613
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
615
ANGLE ADJUSTMENT KNOB 3/8
616
Now: PN02
HEX NUT 5/16-18
Price
N/A
617
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
619
FENCE ANGLE SUPPORT
620
CAP SCREW 5/16-18 X 1
Price
N/A
621
STUD-UDE 3/8-16 X 2-1/2 1/2 / 3/4RH
623
Now: PN05
HEX NUT 1/4-20
Price
N/A
624
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
625
FENCE SUPPORT
626
FENCE SUPPORT PLATE
627
Now: PFH01
FLAT HD SCR 10-24 X 3/8
Price
N/A
631
*DISCD*FENCE RAIL V1
Item is no longer available
Price
N/A
631V2
FENCE RAIL W/ HOLES V2.04.11
632
CAP SCREW 3/8-16 X 2-1/4
Price
N/A
633
BUSHING
634
Now: PLW04
LOCK WASHER 3/8
Price
N/A
635
Now: PN08
HEX NUT 3/8-16
Price
N/A
636
FENCE RAIL END CAP
639
FIXED PLATE
640
PLASTIC PROTECTION SHOE
642
FENCE RAIL BRACE
643
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
644
Now: PW06
FLAT WASHER 1/4
Price
N/A
645
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
701
CUTTERHEAD GUARD
Price
N/A
702
ROLL PIN 6 X 36
Price
N/A
703
GUARD TORSION PIN
Price
N/A
704
ROLL PIN 5 X 30
Price
N/A
705
TORSION SPRING
Price
N/A
707
Now: PR48M
EXT RETAINING RING 11MM
Price
N/A
710
WAVY WASHER 12MM
Price
N/A
800

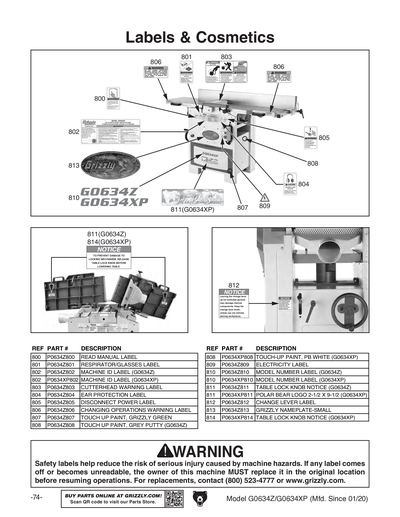

READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
801
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
802
MACHINE ID LABEL
803
CUTTERHEAD GUARD WARNING LABEL
Price
N/A
804
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
805
DISCONNECT POWER LABEL
Price
N/A
806
CHANGING OPERATIONS WARNING LABEL
Price
N/A
807
N/S GRIZZLY GREEN G1023S
Price
N/A
808
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
809
ELECTRICITY 1.4W X 1.2H
Price
N/A
810
MODEL NUMBER LABEL
811
POLAR BEAR LOGO-LARGE 9.5W X 2.5H
Price
N/A
812
CHANGE LEVER NOTICE
Price
N/A
813
Now: G8588
Nameplate - Small
Price
N/A
MAN
MANUAL FOR G0634XP 03/11
