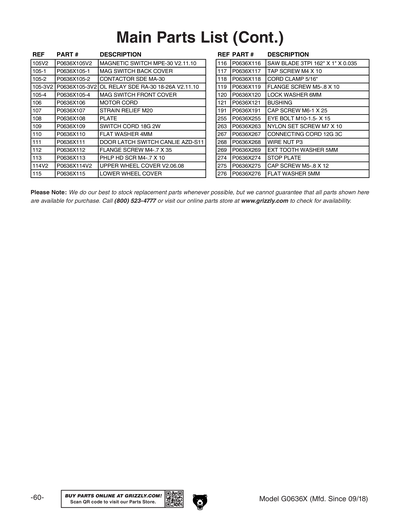

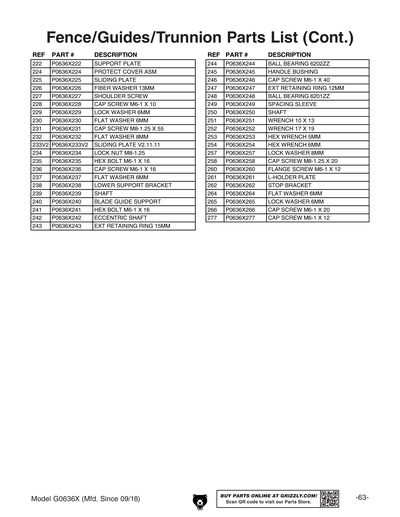

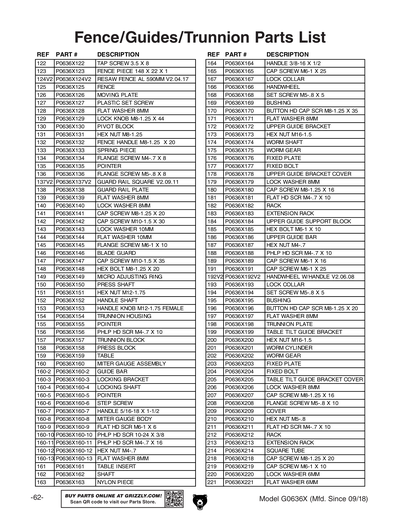

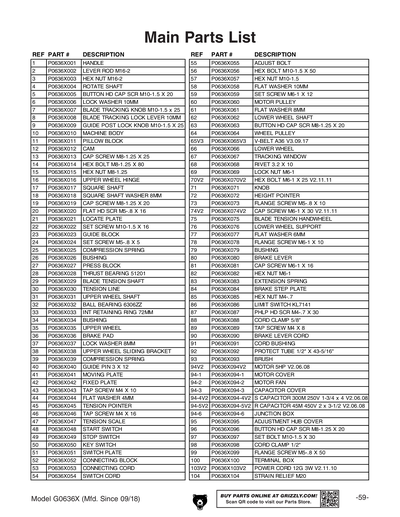

Parts for G0636X - Ultimate 17" 5 HP Extreme Series Bandsaw

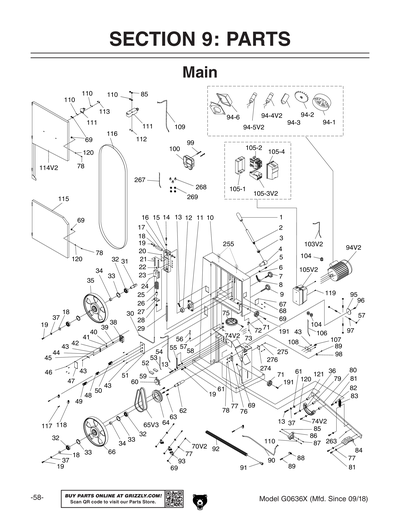

Part Diagram for G0636X

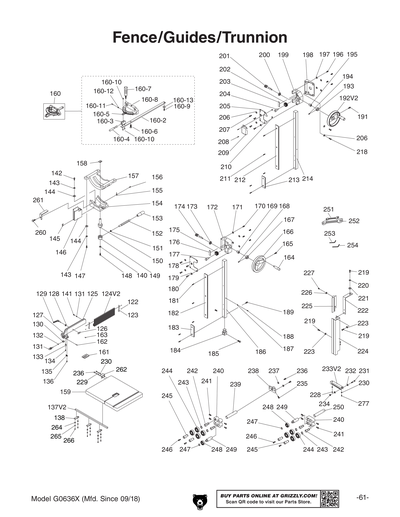

Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X
Part Diagram for G0636X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HANDLE
Price
$2.30
2
LEVER ROD M16-2
Price
$28.75
3
HEX NUT M16-2
Price
N/A
4
ROTATE SHAFT
Price
$38.65
5
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
6
LOCK WASHER 10MM
Price
N/A
7
BLADE TRACKING KNOB M10-1.5 X 25
Price
$4.05
8
LOCK LEVER M10-1.5
Price
N/A
9
GUIDE POST LOCK KNOB M10-1.5 X 25
Price
$3.95
10
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
11
PILLOW BLOCK
Price
$39.85
12
CAM
Price
$13.60
13
CAP SCREW M8-1.25 X 25
Price
N/A
14
HEX BOLT M8-1.25 X 80
Price
N/A
15
HEX NUT M8-1.25
Price
N/A
16
UPPER WHEEL HINGE
Price
$126.25
17
SQUARE SHAFT
Price
$23.30
18
SQUARE SHAFT WASHER 8MM
Price
$6.40
19
CAP SCREW M8-1.25 X 20
Price
N/A
20
FLAT HD SCR M5-.8 X 16
Price
N/A
21
LOCATE PLATE
Price
N/A
22
SET SCREW M10-1.5 X 16
Price
N/A
23
GUIDE BLOCK
Price
$98.80
24
SET SCREW M5-.8 X 5
Price
N/A
25
COMPRESSION SPRING
Price
$47.75
26
BUSHING
Price
$10.65
27
PRESS BLOCK
Price
$16.10
28
THRUST BEARING 51201
Price
N/A
29
SHAFT
Price
N/A
30
TENSION LINE
Price
$5.50
31
UPPER WHEEL SHAFT
Price
N/A
32
BALL BEARING 6306ZZ
Price
N/A
33
INT RETAINING RING 72MM
Price
N/A
34
BUSHING
Price
$6.05
35
UPPER WHEEL
Price
$395.80
35-1
UPPER WHEEL
Price
N/A
36
BRAKE SHOE
Price
$63.80
37
LOCK WASHER 8MM
Price
N/A
38
UPPER WHEEL SLIDING BRACKET
Price
N/A
39
COMPRESSION SPRING
Price
$1.60
40
GUIDE PIN 3 X 12
Price
$1.60
41
MOVING PLATE
Price
$2.30
42
FIXED PLATE
Price
$1.60
43
TAP SCREW M4 X 10
Price
N/A
44
FLAT WASHER 4MM
Price
N/A
45
TENSION POINTER
Price
N/A
46
TAP SCREW M4 X 16
Price
N/A
47
TENSION SCALE
Price
$21.20
48
START SWITCH
Item is no longer available
Price
N/A
49
E-STOP BUTTON 250V 10A
Price
$31.30
50
***USE P0514X041***
Price
$35.85
51
SWITCH PLATE
Price
$10.95
52
CORD CONNECTOR 224-201
Price
N/A
53
CONNECTING CORD
Price
$3.95
54
SWITCH CORD
Price
$22.05
55
ADJUST BOLT
Price
$28.45
56
HEX BOLT M10-1.5 X 50
Price
N/A
57
HEX NUT M10-1.5
Price
N/A
58
FLAT WASHER 10MM
Price
N/A
59
SET SCREW M6-1 X 12
Price
N/A
60
MOTOR PULLEY
Price
$106.30
61
FLAT WASHER 8MM
Price
N/A
62
LOWER WHEEL SHAFT
Price
$49.55
63
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
64
WHEEL PULLEY
Price
N/A
65
V-BELT A33
Price
N/A
65V2
V-BELT A38
Price
N/A
65V3
V-BELT A36
Price
N/A
66
LOWER WHEEL
Price
$468.70
66-1
LOWER WHEEL
Price
N/A
67
CLEAR WINDOW
Price
N/A
68
RIVET 3.2 X 10
Price
$1.60
69
LOCK NUT M6-1
Price
N/A
70
PHLP HD SCR M6-1 X 20
Price
N/A
70V2
HEX BOLT M6-1 X 25
Price
N/A
71
KNOB
Price
$2.30
72
HEIGHT POINTER
Price
$3.40
73
FLANGE SCREW M5-.8 X 10
Price
N/A
74
CAP SCREW M6-1 X 20
Price
N/A
74V2
CAP SCREW M6-1 X 30
Price
N/A
75
BLADE TENSION HANDWHEEL
Price
$81.55
76
LOWER WHEEL SUPPORT
Price
$3.95
77
FLAT WASHER 6MM
Price
N/A
78
FLANGE SCREW M6-1 X 10
Price
N/A
79
BUSHING
Price
N/A
80
BRAKE LEVER
Price
$97.25
81
CAP SCREW M6-1 X 16
Price
N/A
82
HEX NUT M6-1
Price
N/A
83
EXTENSION SPRING
Price
$3.40
84
BRAKE STEP PLATE
Price
$26.90
85
HEX NUT M4-.7
Price
N/A
86
LIMIT SWITCH CANLIE KL7141
Price
N/A
87
PHLP HD SCR M4-.7 X 30
Price
N/A
88
CORD CLAMP 5/8"
Price
$1.60
89
TAP SCREW M4 X 8
Price
N/A
90
BRAKE LEVER CORD
Price
$24.50
91
CORD BUSHING
Price
$1.60
92
PROTECT TUBE 1/2" X 43-5/16"
Price
$12.40
93
BRUSH
Price
$5.20
94
MOTOR 5HP V1
Price
$1,426.00
94-1
MOTOR COVER
Price
$38.65
94-2
MOTOR FAN
Price
$25.10
94-3
CAPACITOR COVER
Price
$13.60
94-4
S CAP 300M 250V 1-3/4 X 4 V2.06.08
Price
N/A
94-4V2
S CAP 300M 250V 1-3/4 X 4 V2.06.08
Price
$96.00
94-5
R CAP 45M 450V 2 X 3-1/2 V2.06.08
Price
N/A
94-5V2
R CAP 45M 450V 2 X 3-1/2 V2.06.08
Price
$100.60
94-6
JUNCTION BOX
Price
$20.30
94V2
MOTOR 5HP 220V 1-PH V2.06.08
Price
$1,195.05
95
ADJUSTMENT HUB COVER
Price
$10.30
96
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
97
SET BOLT M10-1.5 X 30
Price
$2.75
98
CORD CLAMP 1/2"
Price
$1.60
99
FLANGE SCREW M5-.8 X 50
Price
N/A
100
TERMINAL BOX
Price
$13.30
101
PHLP HD SCR M4-.7 X 20
Price
N/A
102
TERMINAL BLOCK
Price
$10.95
103
POWER CORD V1
Price
$35.35
103V2
POWER CORD 12G 3W 14" V2.11.10
Price
$35.35
104
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
105
MAGNETIC SWITCH MPE-20 V1
Price
$205.30
105-1
MAGNETIC SWITCH MP-30E V2.11.10
Price
N/A
105-2
MAGNETIC SWITCH MP-30E V2.11.10
Price
N/A
105-3
MAGNETIC SWITCH MP-30E V2.11.10
Price
N/A
105-3V2
OL RELAY SDE RA-30 18-26A V2.11.10
Price
$54.35
105-4
MAGNETIC SWITCH MP-30E V2.11.10
Price
N/A
105V2
MAGNETIC SWITCH MP-30E V2.11.10
Price
$262.00
106
MOTOR CORD
Price
$45.00
107
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
108
PLATE
Price
$14.50
109
SWITCH CORD 18G 2W
Price
$14.85
110
FLAT WASHER 4MM
Price
N/A
111
DOOR LATCH SWITCH ADZ-S11
Price
$26.75
111-1
DOOR LATCH SWITCH ADZ-S11
Price
N/A
112
FLANGE SCREW M4-.7 X 35
Price
N/A
113
PHLP HD SCR M4-.7 X 10
Price
N/A
114
UPPER WHEEL COVER V1.05.07
Price
$180.55
114V2
UPPER WHEEL COVER V2.06.08
Price
$159.15
114V2A
UPPER WHEEL COVER V2.06.08 W/LABELS
Price
$138.60
115
LOWER WHEEL COVER
Price
$154.00
115A
LOWER WHEEL COVER W/LABELS
Price
$116.55
116
SAW BLADE 3TPI 162" X 1" X 0.035
Price
$135.05
117
TAP SCREW M4 X 10
Price
N/A
118
CORD CLAMP 5/16"
Price
$1.60
119
FLANGE SCREW M5-.8 X 10
Price
N/A
120
LOCK WASHER 6MM
Price
N/A
121
BUSHING
Price
$3.40
122
TAP SCREW 3.5 X 8
Price
$1.49
123
FENCE END PLATE 148 X 22 X 1
Price
N/A
124
RESAW FENCE AL 505MM
Price
$73.10
124V2
RESAW FENCE 590MM
Price
N/A
125
FENCE
Price
$182.25
126
MOVING PLATE
Price
$3.20
127
PLASTIC SET SCREW
Price
$1.60
128
FLAT WASHER 8MM
Price
N/A
129
LOCK KNOB M8-1.25 X 44
Price
$10.90
130
PIVOT BLOCK
Price
$7.95
131
HEX NUT M8-1.25
Price
N/A
132
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
133
SPRING PIECE
Price
$1.49
134
FLANGE SCREW M4-.7 X 8
Price
N/A
135
POINTER
Price
$9.75
136
FLANGE SCREW M5-.8 X 8
Price
N/A
137
GUARD RAIL ROUND V1
Price
$151.30
137V2
GUARD RAIL SQUARE V2.09.11
Price
$150.95
138
FENCE RAIL MOUNTING PLATE
Price
N/A
139
FLAT WASHER 8MM
Price
N/A
140
LOCK WASHER 8MM
Price
N/A
141
CAP SCREW M8-1.25 X 20
Price
N/A
142
CAP SCREW M10-1.5 X 30
Price
N/A
143
LOCK WASHER 10MM
Price
N/A
144
FLAT WASHER 10MM
Price
N/A
145
FLANGE SCREW M6-1 X 10
Price
N/A
146
BLADE GUARD
Price
$33.85
147
CAP SCREW M10-1.5 X 35
Price
N/A
148
HEX BOLT M8-1.25 X 20
Price
N/A
149
MICRO ADJUSTING RING
Price
$19.30
150
PRESS SHAFT
Price
$30.80
151
HEX NUT M12-1.75
Price
N/A
152
HANDLE SHAFT
Price
$6.40
153
HANDLE KNOB M12-1.75 FEMALE
Price
$3.45
154
TRUNNION HOUSING
Price
$108.60
155
POINTER
Price
N/A
156
PHLP HD SCR M4-.7 X 10
Price
N/A
157
TRUNNION BLOCK
Price
$143.70
158
PRESS BLOCK
Price
$27.05
159
TABLE
Price
$876.65
159-1
FENCE SCALE
Price
$3.40
160
MITER GAUGE ASSY
Price
$65.05
160-10
PHLP HD SCR 10-24 X 3/8
Price
N/A
160-11
PHLP HD SCR M4-.7 X 16
Price
N/A
160-12
HEX NUT M4-.7
Price
N/A
160-13
FLAT WASHER 8MM
Price
N/A
160-2
MITER GAUGE ASSY
Price
N/A
160-3
MITER GAUGE ASSY
Price
N/A
160-4
MITER GAUGE ASSY
Price
N/A
160-5
MITER GAUGE ASSY
Price
N/A
160-6
MITER GAUGE ASSY
Price
N/A
160-7
MITER GAUGE ASSY
Price
N/A
160-8
MITER GAUGE ASSY
Price
N/A
160-9
FLAT HD SCR M6-1 X 6
Price
N/A
161
Bandsaw Table Insert
Price
N/A
162
SHAFT
Price
$3.55
163
NYLON PIECE
Price
$1.60
164
HANDLE 3/8-16 X 1/2
Price
$20.85
165
CAP SCREW M6-1 X 25
Price
N/A
166
HANDWHEEL
Price
$47.75
167
LOCK COLLAR
Price
$4.05
168
SET SCREW M5-.8 X 5
Price
N/A
169
BUSHING
Price
$12.75
170
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
171
FLAT WASHER 8MM
Price
N/A
172
UPPER GUIDE BRACKET
Price
$114.75
173
HEX NUT M16-1.5
Price
N/A
174
WORM SHAFT
Price
$24.15
175
WORM GEAR
Price
$24.45
176
FIXED PLATE
Price
N/A
177
FIXED BOLT
Price
$6.65
178
UPPER GUIDE BRACKET COVER
Price
$17.55
179
LOCK WASHER 8MM
Price
N/A
180
CAP SCREW M8-1.25 X 16
Price
N/A
181
FLAT HD SCR M4-.7 X 10
Price
N/A
182
RACK
Price
$14.95
183
EXTENSION RACK
Price
$7.25
184
UPPER GUIDE SUPPORT BLOCK
Price
$25.15
185
HEX BOLT M6-1 X 10
Price
N/A
186
UPPER GUIDE BAR
Price
$138.60
187
HEX NUT M4-.7
Price
N/A
188
PHLP HD SCR M4-.7 X 10
Price
N/A
189
CAP SCREW M6-1 X 16
Price
N/A
190
HANDLE 3/8-16 X 1/2
Price
$19.30
191
CAP SCREW M6-1 X 25
Price
N/A
192
HANDWHEEL TYPE-35 178D X 14B-S X M10-1.5
Price
N/A
192V2
HANDLEWHEEL W/HANDLE V2.06.08
Price
$26.00
193
LOCK COLLAR
Price
$4.35
194
SET SCREW M5-.8 X 5
Price
N/A
195
BUSHING
Price
$16.40
196
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
197
FLAT WASHER 8MM
Price
N/A
198
TRUNNION PLATE
Price
N/A
199
TABLE TILT BRACKET
Price
$37.40
200
HEX NUT M16-1.5
Price
N/A
201
WORM CYLINDER
Price
$24.15
202
WORM GEAR
Price
$22.45
203
FIXED PLATE
Price
$1.49
204
PINION GEAR BOLT
Price
N/A
205
TABLE TILT GUIDE BRACKET COVER
Price
$4.30
206
LOCK WASHER 8MM
Price
N/A
207
CAP SCREW M8-1.25 X 16
Price
N/A
208
FLANGE SCREW M5-.8 X 10
Price
N/A
209
COVER
Price
$8.35
210
HEX NUT M5-.8
Price
N/A
211
FLAT HD SCR M4-.7 X 10
Price
N/A
212
RACK
Price
$13.40
213
EXTENSION RACK
Price
$6.50
214
SQUARE TUBE
Price
$66.75
218
CAP SCREW M8-1.25 X 20
Price
N/A
219
CAP SCREW M6-1 X 10
Price
N/A
220
LOCK WASHER 6MM
Price
N/A
221
FLAT WASHER 6MM
Price
N/A
222
SUPPORT PLATE
Price
$17.85
223
FLAT WASHER 6MM
Price
N/A
224
PROTECT COVER ASM
Price
$110.20
225
SLIDING PLATE
Price
$34.80
226
FIBER WASHER 13MM
Price
$1.60
227
SHOULDER SCREW
Price
$1.60
228
CAP SCREW M6-1 X 10
Price
N/A
229
LOCK WASHER 6MM
Price
N/A
230
FLAT WASHER 6MM
Price
N/A
231
CAP SCREW M8-1.25 X 55
Price
N/A
232
FLAT WASHER 8MM
Price
N/A
233
SLIDING PLATE 220MM 3 HOLE V1
Price
$27.20
233V2
SLIDING PLATE 300MM 2 HOLE V2.06.08
Price
$42.25
234
LOCK NUT M8-1.25
Price
N/A
235
HEX BOLT M6-1 X 16
Price
N/A
236
CAP SCREW M6-1 X 16
Price
N/A
237
FLAT WASHER 6MM
Price
N/A
238
LOWER SUPPORT BRACKET
Price
$10.10
239
ADJUSTING SHAFT V2.10.04
Price
N/A
240
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
241
HEX BOLT M6-1 X 16
Price
N/A
242
ECCENTRIC SHAFT
Price
$6.10
243
EXT RETAINING RING 15MM
Price
N/A
244
BALL BEARING 6202ZZ
Price
N/A
245
BEARING BUSHING
Price
N/A
246
CAP SCREW M6-1 X 40
Price
N/A
247
EXT RETAINING RING 12MM
Price
N/A
248
BALL BEARING 6201ZZ
Price
N/A
249
SPACING SLEEVE
Price
$4.90
250
ADJUST BAR (ROUND) V2.10.05
Price
N/A
251
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
252
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
253
HEX WRENCH 5MM
Price
N/A
254
HEX WRENCH 6MM
Price
N/A
255
LIFTING EYE BOLT M12-1.75 X 22
Price
N/A
256
FENDER WASHER 8MM
Price
N/A
257
LOCK WASHER 8MM
Price
N/A
258
CAP SCREW M8-1.25 X 20
Price
N/A
259
OUTER RAIL PLATE
Price
N/A
260
FLANGE SCREW M6-1 X 12
Price
N/A
261
L HOLDER PLATE
Price
$15.15
262
STOP BRACKET
Price
$12.40
263
NYLON SET SCREW M7 X 10
Price
$1.60
264
FLAT WASHER 6MM
Price
N/A
265
LOCK WASHER 6MM
Price
N/A
266
CAP SCREW M6-1 X 20
Price
N/A
267
CONNECTING CORD 12G 3W
Price
$3.95
269
EXT TOOTH WASHER 5MM
Price
N/A
274
STOP PLATE
Price
$9.40
275
CAP SCREW M5-.8 X 12
Price
N/A
276
FLAT WASHER 5MM
Price
N/A
278
KNOB BOLT M8-1.25 X 20
Price
N/A

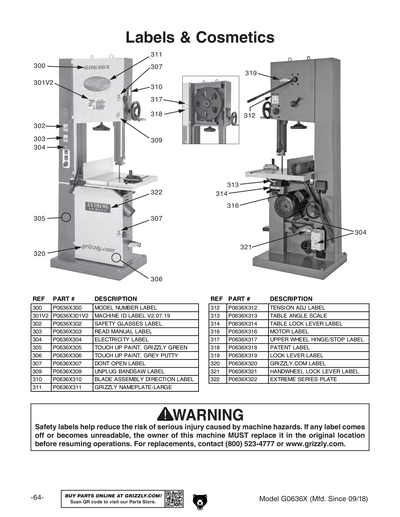

300
MODEL NUMBER LABEL
Price
$9.45
301
MACHINE ID LABEL V1
Price
$16.40
301V2
MACHINE ID LABEL V2.07.19
Price
$16.40
302
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
303
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
304
ELECTRICITY 1.4W X 1.2H
Price
N/A
305
N/S GRIZZLY GREEN G1023S
Price
N/A
306
GREY PUTTY REF G0504
Price
N/A
307
DONT OPEN 2W X 3.3H
Price
N/A
308
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
309
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
310
BLADE ASSEMBLY DIRECTION LABEL
Price
$1.35
311
Nameplate - Large
Price
N/A
312
TENSION ADJ LABEL
Price
$1.35
313
TABLE ANGLE SCALE
Price
$2.20
314
TABLE LOCK LEVER LABEL
Price
$1.85
315
TABLE TILT HANDWHEEL WARNING LABEL
Price
$1.85
316
MOTOR LABEL
Price
$2.40
317
WHEEL HINGE UPPER W/STOP BOLT LABEL
Price
$1.35
318
PATENT LABEL
Price
$1.35
319
LOCK LEVER LABEL
Price
$4.25
320
GRIZZLY.COM LABEL 10",GREEN
Price
N/A
321
HANDWHEEL LOCK LEVER LABEL
Price
$4.25
322
Extreme Series Nameplate
Price
N/A
MAN
MANUAL FOR G0636X MFG 04.07 V2.06.08
Price
N/A
MANV1
MANUAL FOR G0636X MFG 04.07 V2.06.08
Price
N/A
MANV2
MANUAL FOR G0636X MFG 04.07 V2.06.08
Price
$15.75
MANV3
MANUAL FOR G0636X MFG 11.11 V3.11.11
Price
$15.75
