Parts for G0644 - 15" 3 HP Open End Wide-Belt Sander

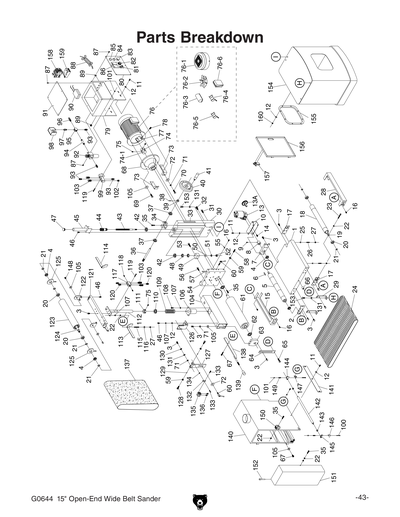

Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644
Part Diagram for G0644

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

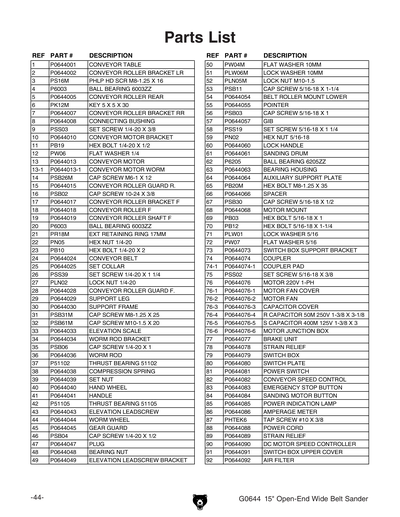

Ref #
Part #
Description
1
*DISCD*CONVEYOR TABLE
Item is no longer available
Price
N/A
2
*DISCD*CONVEYOR ROLLER BRACKET LR
Price
$22.15
3
PHLP HD SCR M8-1.25 X 16
Price
N/A
4
Bearing - 35mm x 17mm
Price
N/A
5
*DISCD*CONVEYOR ROLLER REAR
Item is no longer available
Price
N/A
6
KEY 5 X 5 X 30
Price
N/A
7
*DISCD*CONVEYOR ROLLER BRACKET RR
Price
$33.35
8
*DISCD*CONNECTING BUSHING
Price
$15.55
9
SET SCREW 1/4-20 X 3/8
Price
N/A
10
*DISCD*CONVEYOR MOTOR BRACKET
Item is no longer available
Price
N/A
11
P0644011
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
12
P0644012
Now: PW06
FLAT WASHER 1/4
Price
N/A
13
*DISCD*CONVEYOR MOTOR 1/10HP 220V 1-PH
Item is no longer available
Price
N/A
13-1
*DISCD*CONVEYOR MOTOR NYLON GEAR
Item is no longer available
Price
N/A
14
CAP SCREW M6-1 X 12
Price
N/A
15
*DISCD*CONVEYOR ROLLER GUARD R
Item is no longer available
Price
N/A
16
CAP SCREW 10-24 X 3/8
Price
N/A
17
*DISCD*CONVEYOR ROLLER BRACKET F
Price
$30.50
18
*DISCD*CONVEYOR ROLLER F
Price
$79.35
19
*DISCD*CONVEYOR ROLLER SHAFT F
Item is no longer available
Price
N/A
20
Bearing - 35mm x 17mm
Price
N/A
21
EXT RETAINING RING 17MM
Price
N/A
22
P0644022
Now: PN05
HEX NUT 1/4-20
Price
N/A
23
P0644023
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
24
*DISCD*CONVEYOR BELT
Price
$206.45
25
*DISCD*SET COLLAR
Item is no longer available
Price
N/A
26
SET SCREW 1/4-20 X 1-1/4
Price
N/A
27
LOCK NUT 1/4-20
Price
N/A
28
*DISCD*CONVEYOR ROLLER GUARD F
Price
$68.15
29
*DISCD*SUPPORT LEG
Item is no longer available
Price
N/A
30
*DISCD*SUPPORT FRAME
Item is no longer available
Price
N/A
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
CAP SCREW M10-1.5 X 20
Price
N/A
33
*DISCD*ELEVATION SCALE
Item is no longer available
Price
N/A
34
*DISCD*WORM ROD BRACKET
Item is no longer available
Price
N/A
35
CAP SCREW 1/4-20 X 1
Price
N/A
36
*DISCD*WORM ROD
Item is no longer available
Price
N/A
37
THRUST BEARING 51102
Price
N/A
38
*DISCD*COMPRESSION SPRING 4 X 22
Item is no longer available
Price
N/A
39
*DISCD*SET NUT 5/8
Item is no longer available
Price
N/A
40
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
41
*DISCD*HANDLE
Item is no longer available
Price
N/A
42
THRUST BEARING 51105
Price
N/A
43
*DISCD*ELEVATION LEADSCREW
Item is no longer available
Price
N/A
44
*DISCD*WORM WHEEL
Price
$62.40
45
*DISCD*GEAR GUARD
Item is no longer available
Price
N/A
46
CAP SCREW 1/4-20 X 1/2
Price
N/A
47
*DISCD*PLUG
Item is no longer available
Price
N/A
48
*DISCD*BEARING NUT M25 X 1.5
Item is no longer available
Price
N/A
49
*discd*elevation Leadscrew Bracket
Item is no longer available
Price
N/A
50
FLAT WASHER 10MM
Price
N/A
51
LOCK WASHER 10MM
Price
N/A
52
LOCK NUT M10-1.5
Price
N/A
53
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
54
*DISCD*BELT ROLLER MOUNT LOWER
Item is no longer available
Price
N/A
55
*DISCD*POINTER
Item is no longer available
Price
N/A
56
CAP SCREW 5/16-18 X 1
Price
N/A
57
*DISCD*GIB
Item is no longer available
Price
N/A
58
SET SCREW 5/16-18 X 1-1/4
Price
N/A
59
P0644059
Now: PN02
HEX NUT 5/16-18
Price
N/A
60
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
61
*DISCD*SANDING DRUM
Item is no longer available
Price
N/A
62
BALL BEARING 6205ZZ
Price
N/A
63
*DISCD*BEARING HOUSING
Item is no longer available
Price
N/A
64
*DISCD*AUXILIARY SUPPORT PLATE
Item is no longer available
Price
N/A
65
HEX BOLT M8-1.25 X 35
Price
N/A
66
*DISCD*SPACER
Item is no longer available
Price
N/A
67
CAP SCREW 5/16-18 X 1/2
Price
N/A
68
*DISCD*MOTOR MOUNT
Price
$98.65
69
P0644069
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
70
P0644070
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
71
LOCK WASHER 5/16
Price
N/A
72
P0644072
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
*DISCD*SWITCH BOX SUPPORT BRACKET
Price
$11.80
74
*DISCD*COUPLER
Item is no longer available
Price
N/A
74-1
*DISCD*COUPLER PAD
Item is no longer available
Price
N/A
75
SET SCREW 5/16-18 X 3/8
Price
N/A
76
MOTOR 3HP 220V 1-PH
Price
$726.05
76-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
76-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
76-3
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
76-4
*DISCD*R CAPACITOR 50M 250V 1-3/8 X 3-1/
Price
$37.40
76-5
*DISCD*S CAPACITOR 400M 125V 1-3/8 X 3 L
Price
$21.60
76-6
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
77
*DISCD*BRAKE UNIT
Item is no longer available
Price
N/A
78
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
79
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
80
*discd*switch Plate
Item is no longer available
Price
N/A
81
*DISCD*POWER SWITCH 12A 250V AC JS6002 S
Item is no longer available
Price
N/A
82
*DISCD*CONVEYOR SPEED CONTROL
Price
$29.35
83
*DISCD*E-STOP BUTTON NHD NPB-R
Item is no longer available
Price
N/A
84
*DISCD*SANDING MOTOR BUTTON
Price
$26.20
85
*DISCD*POWER INDICATOR LIGHT NHD NLD22
Price
$26.20
86
*DISCD*AMPERAGE METER 30A TA HSING
Price
$41.40
87
TAP SCREW #10 X 3/8
Price
N/A
88
*discd*power Cord
Item is no longer available
Price
N/A
89
*discd*strain Relief
Item is no longer available
Price
N/A
90
*DISCD*DC MOTOR SPEED CONTROL V1.11.07
Item is no longer available
Price
N/A
90V2
*DISCD*DC MOTOR SPEED CONTROLLER V2.09.0
Price
$123.65
91
*DISCD*SWITCH BOX UPPER COVER
Item is no longer available
Price
N/A
92
*DISCD*AIR FILTER
Price
$106.95

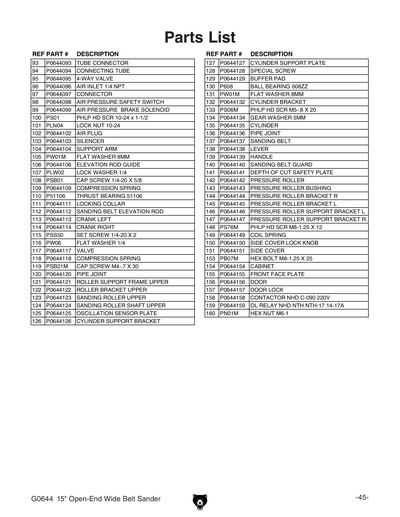

93
*DISCD*TUBE CONNECTOR
Item is no longer available
Price
N/A
94
*DISCD*CONNECTING TUBE
Item is no longer available
Price
N/A
95
*DISCD*VALVE 4-WAY
Price
$14.95
96
*DISCD*AIR INLET 1/4 NPT
Item is no longer available
Price
N/A
97
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
98
*DISCD*AIR PRESSURE SAFETY SWITCH HS-210
Price
$152.95
99
*DISCD*AIR PRESSURE BRAKE SOLENOID VS-52
Price
$153.85
100
P0644100
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
101
LOCK NUT 10-24
Price
N/A
102
*DISCD*AIR PLUG
Item is no longer available
Price
N/A
103
*discd*silencer
Item is no longer available
Price
N/A
104
*DISCD*SUPPORT ARM
Item is no longer available
Price
N/A
105
FLAT WASHER 8MM
Price
N/A
106
*DISCD*ELEVATION ROD GUIDE
Item is no longer available
Price
N/A
107
LOCK WASHER 1/4
Price
N/A
108
CAP SCREW 1/4-20 X 5/8
Price
N/A
109
*DISCD*COMPRESSION SPRING 6 X 32 X 100
Item is no longer available
Price
N/A
110
THRUST BEARING 51106
Price
N/A
111
*DISCD*LOCK COLLAR
Item is no longer available
Price
N/A
112
*DISCD*SANDING BELT ELEVATION ROD
Item is no longer available
Price
N/A
113
*DISCD*CRANK LEFT
Price
$30.50
114
*DISCD*CRANK RIGHT
Item is no longer available
Price
N/A
115
SET SCREW 1/4-20 X 2
Price
N/A
116
P0644116
Now: PW06
FLAT WASHER 1/4
Price
N/A
117
*DISCD*VALVE
Price
$161.00
118
*DISCD*COMPRESSION SPRING .5 X 7 X 10L
Item is no longer available
Price
N/A
119
CAP SCREW M4-.7 X 30
Price
N/A
120
*discd*pipe Joint
Item is no longer available
Price
N/A
121
*discd*roller Support Frame Upper
Item is no longer available
Price
N/A
122
*discd*roller Bracket Upper
Item is no longer available
Price
N/A
123
*discd*sanding Roller Upper
Item is no longer available
Price
N/A
124
*DISCD*SANDING ROLLER SHAFT UPPER
Item is no longer available
Price
N/A
125
*DISCD*OSCILLATION SENSOR PLATE
Item is no longer available
Price
N/A
126
*DISCD*CYLINDER SUPPORT BRACKET
Item is no longer available
Price
N/A
127
*DISCD*CYLINDER SUPPORT PLATE
Item is no longer available
Price
N/A
128
*DISCD*SUPPORT PLATE SCREW 5/16 X 14
Price
$2.90
129
*DISCD*BUFFER PAD
Price
$1.49
130
Bearing - 22mm x 8mm
Price
N/A
131
FLAT WASHER 8MM
Price
N/A
132
*DISCD*CYLINDER BRACKET
Price
$11.25
133
PHLP HD SCR M5-.8 X 20
Price
N/A
134
*DISCD*GEAR WASHER 5MM
Price
$1.49
135
*DISCD*CYLINDER
Price
$190.05
136
*DISCD*PIPE JOINT
Item is no longer available
Price
N/A
137
*DISCD*SANDING BELT #180 16 X 48"
Item is no longer available
Price
N/A
138
*DISCD*LEVER
Item is no longer available
Price
N/A
139
*discd*handle
Item is no longer available
Price
N/A
140
*DISCD*SANDING BELT GUARD
Item is no longer available
Price
N/A
141
*DISCD*DEPTH OF CUT SAFETY PLATE
Item is no longer available
Price
N/A
142
*DISCD*PRESSURE ROLLER
Item is no longer available
Price
N/A
143
*DISCD*PRESSURE ROLLER BUSHING
Item is no longer available
Price
N/A
144
*DISCD*PRESSURE ROLLER BRACKET R
Item is no longer available
Price
N/A
145
*DISCD*PRESSURE ROLLER BRACKET L
Item is no longer available
Price
N/A
146
*DISCD*PRESSURE ROLLER SUPPORT BRACKET L
Item is no longer available
Price
N/A
147
*DISCD*PRESSURE ROLLER SUPPORT BRACKET R
Item is no longer available
Price
N/A
148
PHLP HD SCR M8-1.25 X 12
Price
N/A
149
*DISCD*COIL SPRING 1.2ID 5.5 X 25L
Item is no longer available
Price
N/A
150
*DISCD*SIDE COVER LOCK KNOB
Price
$7.50
151
*DISCD*SIDE COVER
Item is no longer available
Price
N/A
152
*DISCD*HINGE PIN
Item is no longer available
Price
N/A
153
HEX BOLT M8-1.25 X 25
Price
N/A
154
*discd*cabinet
Item is no longer available
Price
N/A
154A
*DISCD*COMPLETE STAND ASSY BOX 2
Item is no longer available
Price
N/A
155
*DISCD*FACE PLATE FRONT
Item is no longer available
Price
N/A
156
*DISCD*DOOR
Item is no longer available
Price
N/A
157
*DISCD*DOOR LOCK
Item is no longer available
Price
N/A
158
*DISCD*CONTACTOR NHD C-090 220V
Item is no longer available
Price
N/A
159
*DISCD*OL RELAY NHD NTH-17 14-17A
Item is no longer available
Price
N/A
160
HEX NUT M6-1
Price
N/A
161
*DISCD*MOUNTING FOOT 3/8-16 X 2
Item is no longer available
Price
N/A
162
P0644162
Now: PN08
HEX NUT 3/8-16
Price
N/A
163
P0644163
Now: PW02
FLAT WASHER 3/8
Price
N/A

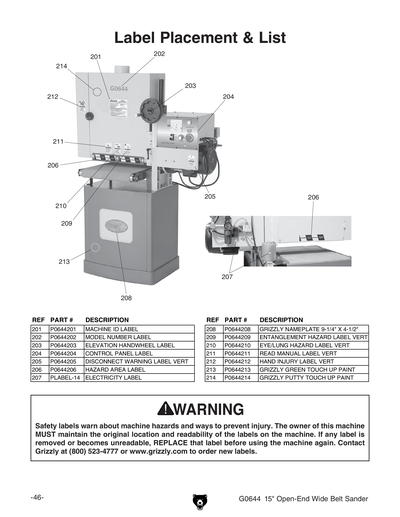

201
MACHINE ID LABEL
Item is no longer available
Price
N/A
202
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
203
ELEVATION HANDWHEEL LABEL
Item is no longer available
Price
N/A
204
CONTROL PANEL LABEL
Price
$16.40
205
DISCONNECT WARNING LABEL VERT
Item is no longer available
Price
N/A
206
HAZARD AREA LABEL
Price
$4.25
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
209
ENTANGLEMENT HAZARD LABEL VERT
Item is no longer available
Price
N/A
210
EYE/LUNG HAZARD LABEL VERT
Item is no longer available
Price
N/A
211
READ MANUAL LABEL VERT
Item is no longer available
Price
N/A
212
HAND INJURY LABEL VERT
Item is no longer available
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
214
BEIGE REF G0555
Price
N/A
MAN
MANUAL FOR G0644 11/07
Item is no longer available
Price
N/A
