Parts for G0648 - Welding Fume Extractor

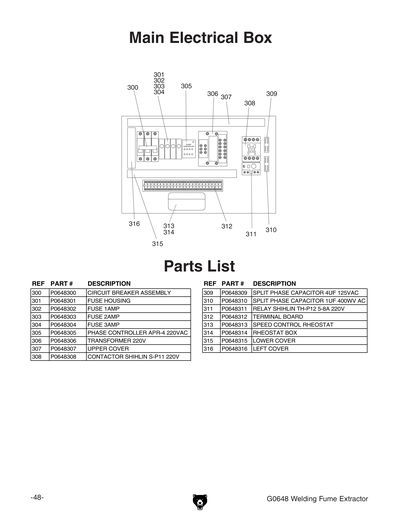

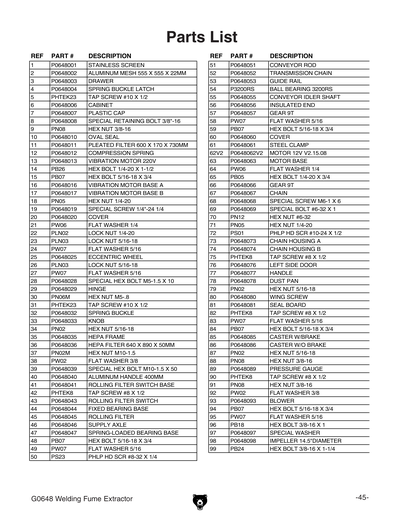

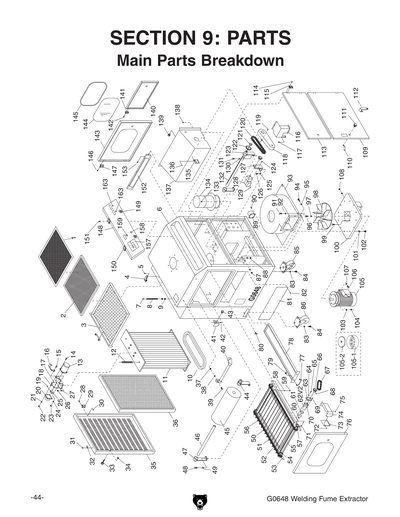

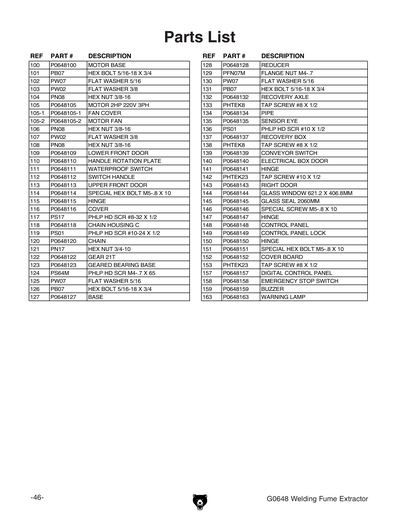

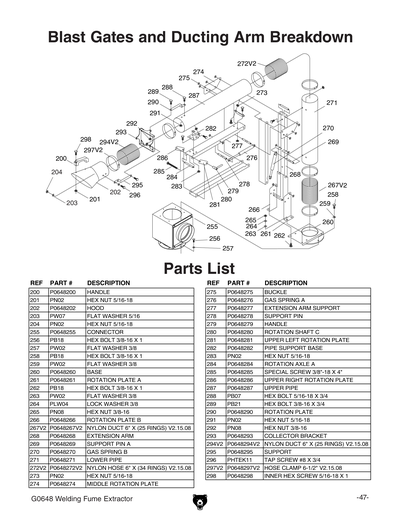

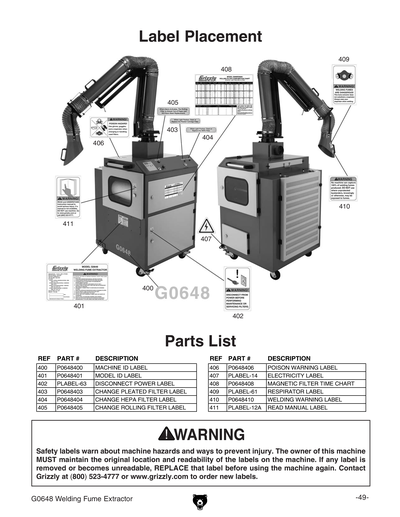

Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648
Part Diagram for G0648

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
STAINLESS SCREEN
Item is no longer available
Price
N/A
2
ALUMINUM MESH 555 X 555 X 22MM
Item is no longer available
Price
N/A
3
DRAWER
Item is no longer available
Price
N/A
4
SPRING BUCKLE LATCH
Item is no longer available
Price
N/A
5
TAP SCREW #10 X 1/2
Price
N/A
6
CABINET
Item is no longer available
Price
N/A
7
CAP PLASTIC
Item is no longer available
Price
N/A
8
CABINET RETAINING BOLT 3/8"-16
Item is no longer available
Price
N/A
9
P0648009
Now: PN08
HEX NUT 3/8-16
Price
N/A
10
OVAL SEAL
Item is no longer available
Price
N/A
11
PLEATED FILTER 600 X 170 X 730MM
Item is no longer available
Price
N/A
12
COMPRESSION SPRING
Item is no longer available
Price
N/A
13
VIBRATION MOTOR 2HP 220V 3-PH
Item is no longer available
Price
N/A
14
P0648014
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
15
P0648015
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
16
VIBRATION MOTOR BASE A
Item is no longer available
Price
N/A
17
VIBRATION MOTOR BASE B
Item is no longer available
Price
N/A
18
P0648018
Now: PN05
HEX NUT 1/4-20
Price
N/A
19
VIBRATION MOTOR SCREW 1/4-24 1/4
Item is no longer available
Price
N/A
20
COVER
Item is no longer available
Price
N/A
21
P0648021
Now: PW06
FLAT WASHER 1/4
Price
N/A
22
LOCK NUT 1/4-20
Price
N/A
23
LOCK NUT 5/16-18
Price
N/A
24
P0648024
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
ECCENTRIC WHEEL
Item is no longer available
Price
N/A
26
LOCK NUT 5/16-18
Price
N/A
27
P0648027
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
FILTER HINGE HEX BOLT M5-1.5 X 10
Item is no longer available
Price
N/A
29
HINGE
Item is no longer available
Price
N/A
30
HEX NUT M5-.8
Price
N/A
31
TAP SCREW #10 X 1/2
Price
N/A
32
SPRING BUCKLE
Item is no longer available
Price
N/A
33
KNOB
Item is no longer available
Price
N/A
34
P0648034
Now: PN02
HEX NUT 5/16-18
Price
N/A
35
HEPA FRAME
Item is no longer available
Price
N/A
36
HEPA FILTER 640 X 890 X 50MM
Item is no longer available
Price
N/A
37
HEX NUT M10-1.5
Price
N/A
38
P0648038
Now: PW02
FLAT WASHER 3/8
Price
N/A
39
HANDLE HEX SOCKET HD SCREW M10-1.5X45
Price
$1.60
40
ALUMINUM HANDLE 400MM
Item is no longer available
Price
N/A
41
ROLLING FILTER SWITCH BASE
Item is no longer available
Price
N/A
42
TAP SCREW #8 X 1/2
Price
N/A
43
ROLLING FILTER SWITCH
Item is no longer available
Price
N/A
44
FIXED BEARING BASE
Item is no longer available
Price
N/A
45
ROLLING FILTER
Price
$102.40
46
SUPPLY AXLE
Item is no longer available
Price
N/A
47
SPRING LOADED BEARING BASE
Item is no longer available
Price
N/A
48
P0648048
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
49
P0648049
Now: PW07
FLAT WASHER 5/16
Price
N/A
50
P0648050
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
51
CONVEYOR ROD
Item is no longer available
Price
N/A
52
TRANSMISSION CHAIN
Item is no longer available
Price
N/A
53
GUIDE RAIL
Item is no longer available
Price
N/A
54
BALL BEARING 3200RS
Price
N/A
55
CONVEYOR IDLER SHAFT
Item is no longer available
Price
N/A
56
INSULATED END
Item is no longer available
Price
N/A
57
GEAR 9T
Item is no longer available
Price
N/A
58
P0648058
Now: PW07
FLAT WASHER 5/16
Price
N/A
59
P0648059
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
60
COVER
Item is no longer available
Price
N/A
61
STEEL CLAMP
Item is no longer available
Price
N/A
62
*DISCD*MOTOR 24V V1.09.08
Item is no longer available
Price
N/A
62V2
MOTOR 2HP 220V 3-PH V2.10.08
Item is no longer available
Price
N/A
63
MOTOR BASE
Item is no longer available
Price
N/A
64
P0648064
Now: PW06
FLAT WASHER 1/4
Price
N/A
65
P0648065
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
66
GEAR 9T
Item is no longer available
Price
N/A
67
CHAIN
Item is no longer available
Price
N/A
68
9T GEAR SCREW M6-1 X 6
Item is no longer available
Price
N/A
69
MOTOR BASE BOLT #6-32 X 1
Item is no longer available
Price
N/A
70
P0648070
Now: PN12
HEX NUT 6-32
Price
N/A
71
P0648071
Now: PN05
HEX NUT 1/4-20
Price
N/A
72
P0648072
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
73
CHAIN HOUSING A
Item is no longer available
Price
N/A
74
CHAIN HOUSING B
Item is no longer available
Price
N/A
75
TAP SCREW #8 X 1/2
Price
N/A
76
DOOR SIDE LEFT
Item is no longer available
Price
N/A
77
HANDLE
Item is no longer available
Price
N/A
78
DUST PAN
Item is no longer available
Price
N/A
79
P0648079
Now: PN02
HEX NUT 5/16-18
Price
N/A
80
WING SCREW
Item is no longer available
Price
N/A
81
SEAL BOARD
Item is no longer available
Price
N/A
82
TAP SCREW #8 X 1/2
Price
N/A
83
P0648083
Now: PW07
FLAT WASHER 5/16
Price
N/A
84
P0648084
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
85
CASTER W/BRAKE
Item is no longer available
Price
N/A
86
CASTER W/O BRAKE
Item is no longer available
Price
N/A
87
P0648087
Now: PN02
HEX NUT 5/16-18
Price
N/A
88
P0648088
Now: PN08
HEX NUT 3/8-16
Price
N/A
89
PRESSURE GAUGE
Item is no longer available
Price
N/A
90
TAP SCREW #8 X 1/2
Price
N/A
91
P0648091
Now: PN08
HEX NUT 3/8-16
Price
N/A
92
P0648092
Now: PW02
FLAT WASHER 3/8
Price
N/A
93
BLOWER
Item is no longer available
Price
N/A
94
P0648094
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
95
P0648095
Now: PW07
FLAT WASHER 5/16
Price
N/A
96
P0648096
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
97
IMPELLER WASHER
Item is no longer available
Price
N/A
98
IMPELLER 14-1/2"
Item is no longer available
Price
N/A
99
P0648099
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
100
MOTOR BASE
Item is no longer available
Price
N/A
101
P0648101
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
102
P0648102
Now: PW07
FLAT WASHER 5/16
Price
N/A
103
P0648103
Now: PW02
FLAT WASHER 3/8
Price
N/A
104
P0648104
Now: PN08
HEX NUT 3/8-16
Price
N/A
105
MOTOR 2HP 220V 3-PH
Item is no longer available
Price
N/A
105-1
FAN COVER
Item is no longer available
Price
N/A
105-2
MOTOR FAN
Item is no longer available
Price
N/A
106
P0648106
Now: PN08
HEX NUT 3/8-16
Price
N/A
107
P0648107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
P0648108
Now: PN08
HEX NUT 3/8-16
Price
N/A
109
DOOR LOWER FRONT
Item is no longer available
Price
N/A
110
HANDLE ROTATION PLATE
Item is no longer available
Price
N/A
111
WATERPROOF SWITCH
Item is no longer available
Price
N/A
112
SWITCH HANDLE
Item is no longer available
Price
N/A
113
DOOR FRONT UPPER
Item is no longer available
Price
N/A
114
UPPER DOOR HEX BOLT M5-.8 X 10
Item is no longer available
Price
N/A
115
HINGE
Item is no longer available
Price
N/A
116
COVER
Item is no longer available
Price
N/A
117
P0648117
Now: PS17
PHLP HD SCR 8-32 X 1/2
Price
N/A
118
CHAIN HOUSING C
Item is no longer available
Price
N/A
119
P0648119
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
120
CHAIN
Item is no longer available
Price
N/A
121
P0648121
Now: PN17
HEX NUT 3/4-10
Price
N/A
122
GEAR 21T
Item is no longer available
Price
N/A
123
GEARED BEARING BASE
Item is no longer available
Price
N/A
124
PHLP HD SCR M4-.7 X 65
Price
N/A
125
P0648125
Now: PW07
FLAT WASHER 5/16
Price
N/A
126
P0648126
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
127
BASE
Item is no longer available
Price
N/A
128
REDUCER
Item is no longer available
Price
N/A
129
FLANGE NUT M4-.7
Price
N/A
130
P0648130
Now: PW07
FLAT WASHER 5/16
Price
N/A
131
P0648131
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
132
RECOVERY AXLE
Item is no longer available
Price
N/A
133
TAP SCREW #8 X 1/2
Price
N/A
134
PIPE
Item is no longer available
Price
N/A
135
SENSOR EYE
Price
$228.85
136
P0648136
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
137
RECOVERY BOX
Item is no longer available
Price
N/A
138
TAP SCREW #8 X 1/2
Price
N/A
139
CONVEYOR SWITCH
Item is no longer available
Price
N/A
140
ELECTRICAL BOX DOOR
Item is no longer available
Price
N/A
141
HINGE
Item is no longer available
Price
N/A
142
TAP SCREW #10 X 1/2
Price
N/A
143
DOOR W/WINDOW & SEAL RIGHT
Item is no longer available
Price
N/A
144
DOOR W/WINDOW & SEAL RIGHT
Price
N/A
145
DOOR W/WINDOW & SEAL RIGHT
Price
N/A
146
RIGHT DOOR SCREW M5-.8 X 10
Item is no longer available
Price
N/A
147
HINGE
Item is no longer available
Price
N/A
148
CONTROL PANEL
Item is no longer available
Price
N/A
149
CONTROL PANEL LOCK
Item is no longer available
Price
N/A
150
HINGE
Item is no longer available
Price
N/A
151
CONTROL PANEL HEX BOLT M5-.8 X 10
Item is no longer available
Price
N/A
152
COVER BOARD
Item is no longer available
Price
N/A
153
TAP SCREW #10 X 1/2
Price
N/A
157
DIGITAL CONTROL PANEL
Price
$214.70
158
EMERGENCY STOP SWITCH
Item is no longer available
Price
N/A
159
BUZZER
Item is no longer available
Price
N/A
163
WARNING LAMP
Item is no longer available
Price
N/A
200
HANDLE
Item is no longer available
Price
N/A
201
P0648201
Now: PN02
HEX NUT 5/16-18
Price
N/A
202
HOOD
Item is no longer available
Price
N/A
203
P0648203
Now: PW07
FLAT WASHER 5/16
Price
N/A
204
P0648204
Now: PN02
HEX NUT 5/16-18
Price
N/A
255
CONNECTOR
Item is no longer available
Price
N/A
256
P0648256
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
257
P0648257
Now: PW02
FLAT WASHER 3/8
Price
N/A
258
P0648258
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
259
P0648259
Now: PW02
FLAT WASHER 3/8
Price
N/A
260
BASE
Item is no longer available
Price
N/A
261
ROTATION PLATE A
Item is no longer available
Price
N/A
262
P0648262
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
263
P0648263
Now: PW02
FLAT WASHER 3/8
Price
N/A
264
LOCK WASHER 3/8
Price
N/A
265
P0648265
Now: PN08
HEX NUT 3/8-16
Price
N/A
266
ROTATION PLATE B
Item is no longer available
Price
N/A
267V2
NYLON DUCT 6" 25 RINGS V2.15.08
Item is no longer available
Price
N/A
268
EXTENSION ARM
Item is no longer available
Price
N/A
269
SUPPORT PIN A
Item is no longer available
Price
N/A
270
GAS SPRING B
Item is no longer available
Price
N/A
271
PIPE LOWER
Item is no longer available
Price
N/A
272
NYLON HOSE 6" X 700MM V1.09.08
Item is no longer available
Price
N/A
272V2
NYLON HOSE 6" 34 RINGS V2.15.08
Item is no longer available
Price
N/A
273
P0648273
Now: PN02
HEX NUT 5/16-18
Price
N/A
274
ROTATION PLATE MIDDLE
Item is no longer available
Price
N/A
275
BUCKLE
Item is no longer available
Price
N/A
276
GAS SPRING A
Item is no longer available
Price
N/A
277
EXTENSION ARM SUPPORT
Item is no longer available
Price
N/A
278
SUPPORT PIN
Item is no longer available
Price
N/A
279
HANDLE
Item is no longer available
Price
N/A
280
ROTATION SHAFT C
Item is no longer available
Price
N/A
281
ROTATION PLATE UPPER LEFT
Item is no longer available
Price
N/A
282
PIPE SUPPORT BASE
Item is no longer available
Price
N/A
283
P0648283
Now: PN02
HEX NUT 5/16-18
Price
N/A
284
ROTATION AXLE A
Item is no longer available
Price
N/A
285
ARM SUPPORT SCREW 3/8-18 X 4"
Item is no longer available
Price
N/A
286
ROTATION PLATE UPPER RIGHT
Item is no longer available
Price
N/A
287
PIPE UPPER
Item is no longer available
Price
N/A
288
P0648288
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
289
P0648289
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
290
ROTATION PLATE
Item is no longer available
Price
N/A
291
P0648291
Now: PN02
HEX NUT 5/16-18
Price
N/A
292
P0648292
Now: PN08
HEX NUT 3/8-16
Price
N/A
293
COLLECTOR BRACKET
Item is no longer available
Price
N/A
294V2
NYLON HOSE 6" 25 RINGS V2.15.08
Item is no longer available
Price
N/A
295
SUPPORT
Item is no longer available
Price
N/A
296
TAP SCREW #8 X 3/4
Price
N/A
297V2
HOSE CLAMP 6-1/2" V2.15.08
Item is no longer available
Price
N/A
298
INNER HEX SCR 5/16-18 X 1
Item is no longer available
Price
N/A
300
CIRCUIT BREAKER 20A MERLIN M9 C60A 3P
Item is no longer available
Price
N/A
301
FUSE HOUSING
Item is no longer available
Price
N/A
302
FUSE 1A
Price
$12.40
303
FUSE 2A
Price
$12.40
304
FUSE 3A
Price
$12.40
305
PHASE CONTROLLER APR-4 220VAC
Item is no longer available
Price
N/A
306
TRANSFORMER 81VA 220/440V-12V/27V
Item is no longer available
Price
N/A
307
UPPER COVER
Item is no longer available
Price
N/A
308
CONTACTOR SHIHLIN S-P11 220V
Item is no longer available
Price
N/A
309
SPLIT PHASE CAPACITOR 4UF 125VAC
Item is no longer available
Price
N/A
310
SPLIT PHASE CAPACITOR 1UF 400WV AC
Item is no longer available
Price
N/A
311
RELAY SHUHLIN TH-P12 220V 5-8A
Item is no longer available
Price
N/A
312
TERMINAL BOARD
Item is no longer available
Price
N/A
313
SPEED CONTROL RHEOSTAT
Item is no longer available
Price
N/A
314
RHEOSTAT BOX
Item is no longer available
Price
N/A
315
COVER LOWER
Item is no longer available
Price
N/A
316
COVER LEFT
Item is no longer available
Price
N/A
400
MACHINE ID LABEL
Item is no longer available
Price
N/A
401
MACHINE ID LABEL
Item is no longer available
Price
N/A
402
DISCONNECT 220V 2W X 3.3H
Price
N/A
403
CHANGE PLEATED FILTER LABEL
Item is no longer available
Price
N/A
404
CHANGE HEPA FILTER LABEL
Item is no longer available
Price
N/A
405
CHANGE ROLLING FILTER LABEL
Item is no longer available
Price
N/A
406
POISON WARNING LABEL
Item is no longer available
Price
N/A
407
ELECTRICITY 1.4W X 1.2H
Price
N/A
408
MAGNETIC FILTER TIME CHART
Item is no longer available
Price
N/A
409
RESPIRATOR 2W X 3.3H
Price
N/A
410
WELDING WARNING LABEL
Item is no longer available
Price
N/A
411
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
