Parts for G0656 - 8" x 72" Jointer with Mobile Base

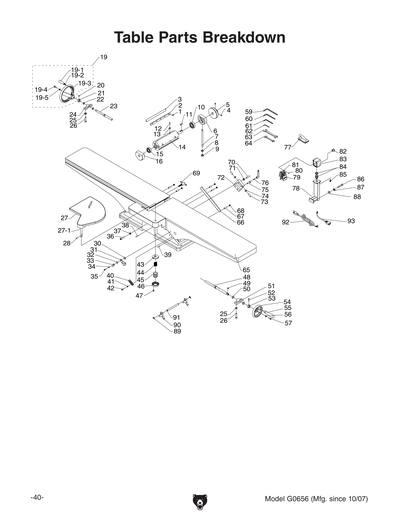

Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656
Part Diagram for G0656

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

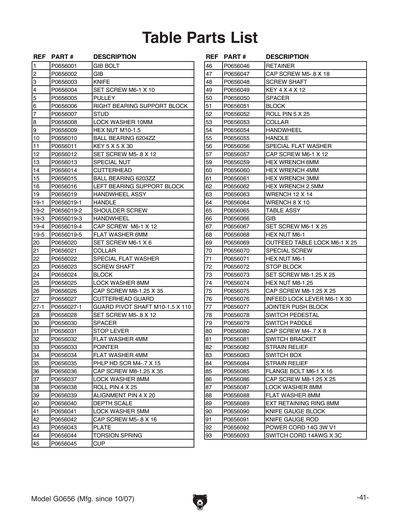

Ref #
Part #
Description
1
GIB BOLT 1/4-28 X 7
Price
$1.90
2
GIB
Price
$5.10
3
KNIFE
Price
$17.25
4
SET SCREW M6-1 X 10
Price
N/A
5
PULLEY
Price
$19.10
6
BEARING SUPPORT BLOCK RIGHT
Price
$5.45
7
STUD-DE M10-1.5 X 150 15RH
Price
$1.90
8
LOCK WASHER 10MM
Price
N/A
9
HEX NUT M10-1.5
Price
N/A
10
BALL BEARING 6204ZZ
Price
N/A
11
KEY 5 X 5 X 30
Price
N/A
12
SET SCREW M5-.8 X 12
Price
N/A
13
CUTTERHEAD NUT M5-0.80
Price
$2.90
14
CUTTERHEAD
Price
$90.95
15
BALL BEARING 6203ZZ
Price
N/A
16
BEARING SUPPORT BLOCK LEFT
Price
$4.70
19
HANDWHEEL ASSY
Price
$22.35
19-1
HANDLE
Price
$2.60
19-2
SHOULDER SCREW
Price
$6.15
19-3
HANDWHEEL
Price
$13.35
19-4
CAP SCREW M6-1 X 12
Price
N/A
19-5
FLAT WASHER 6MM
Price
N/A
20
SET SCREW M6-1 X 6
Price
N/A
21
COLLAR 11 X 22 X 12
Price
$1.90
22
HANDWHEEL FLAT WASHER 11.2 X 16 X 0.5
Price
$1.90
23
SCREW SHAFT
Price
$10.10
24
BLOCK
Price
$3.65
25
LOCK WASHER 8MM
Price
N/A
26
CAP SCREW M8-1.25 X 35
Price
N/A
27
CUTTERHEAD GUARD
Price
$25.60
27-1
GUARD PIVOT SHAFT M10-1.5 X 110
Price
$25.60
28
SET SCREW M5-.8 X 12
Price
N/A
30
SPACER 4 X 14 X 4.5
Price
$1.90
31
STOP LEVER
Price
$1.90
32
FLAT WASHER 4MM
Price
N/A
33
POINTER
Price
$1.90
34
FLAT WASHER 4MM
Price
N/A
35
PHLP HD SCR M4-.7 X 15
Price
N/A
36
CAP SCREW M8-1.25 X 35
Price
N/A
37
LOCK WASHER 8MM
Price
N/A
38
ROLL PIN 4 X 25
Price
N/A
39
ALIGNMENT PIN 4 X 20
Price
$1.90
40
DEPTH SCALE
Price
$1.90
41
LOCK WASHER 5MM
Price
N/A
42
CAP SCREW M5-.8 X 16
Price
N/A
43
PLATE
Price
$1.90
44
TORSION SPRING 22.2 X 24.4 X 1.6
Price
$1.90
45
SPRING HOUSING
Price
N/A
46
RETAINER
Price
$2.90
47
CAP SCREW M5-.8 X 18
Price
N/A
48
SCREW SHAFT
Price
$9.95
49
KEY 4 X 4 X 12
Price
N/A
50
SPACER 15.2 X 20 X 0.5
Price
$1.90
51
BLOCK
Price
$3.25
52
ROLL PIN 5 X 25
Price
N/A
53
COLLAR 15 X 26 X 12
Price
$1.90
54
HANDWHEEL
Price
$13.70
55
HANDLE
Price
$11.90
56
HANDWHEEL FLAT WASHER 6.5 X 16 X 3
Price
$1.90
57
CAP SCREW M6-1 X 12
Price
N/A
59
HEX WRENCH 6MM
Price
N/A
60
HEX WRENCH 4MM
Price
N/A
61
HEX WRENCH 3MM
Price
N/A
62
HEX WRENCH 2.5MM
Price
N/A
63
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
64
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
65
TABLE ASSY
Item is no longer available
Price
N/A
65-1
RABBETING TABLE
Item is no longer available
Price
N/A
66
GIB
Price
$4.00
67
SET SCREW M6-1 X 25
Price
N/A
68
HEX NUT M6-1
Price
N/A
69
OUTFEED TABLE LOCK M6-1 X 25
Price
$1.90
70
STOP BLOCK SCREW M6-1 X 24
Price
$2.60
71
HEX NUT M6-1
Price
N/A
72
STOP BLOCK
Price
$4.00
73
SET SCREW M8-1.25 X 25
Price
N/A
74
HEX NUT M8-1.25
Price
N/A
75
CAP SCREW M8-1.25 X 25
Price
N/A
76
INFEED LOCK LEVER M6-1 X 30
Price
$3.25
77
Safety Push Block - Small
Price
N/A
78
SWITCH PEDESTAL
Price
$18.70
79
SWITCH PADDLE
Price
$32.40
80
CAP SCREW M4-.7 X 8
Price
N/A
81
SWITCH BRACKET
Price
$1.90
82
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
$1.90
83
SWITCH BOX
Price
$16.95
84
STRAIN RELIEF
Price
$1.90
85
FLANGE BOLT M6-1 X 16
Price
N/A
86
CAP SCREW M8-1.25 X 25
Price
N/A
87
LOCK WASHER 8MM
Price
N/A
88
FLAT WASHER 8MM
Price
N/A
89
EXT RETAINING RING 8MM
Price
N/A
90
KNIFE GAUGE BLOCK
Price
$2.20
91
KNIFE GAUGE ROD
Price
$4.45
92
POWER CORD 14G 3W V1
Price
$13.35
92V2
POWER CORD 12G 3W 72" 6-20P V2.04.14
Price
$43.90
93
SWITCH CORD 14AWG X 3C
Price
$19.45
100
COMPLETE FASTENER HARDWARE BAG
Price
$7.20

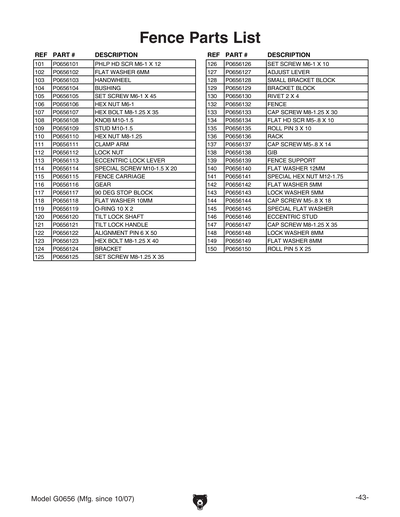

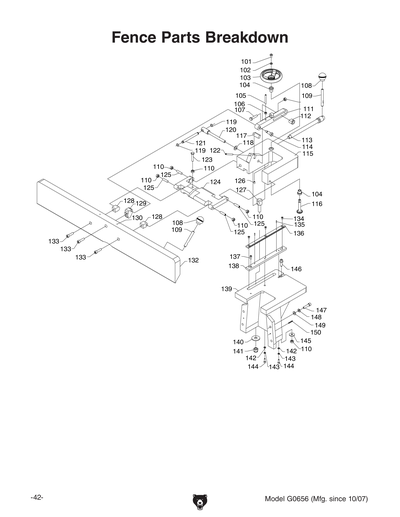

101
PHLP HD SCR M6-1 X 12
Price
N/A
102
FLAT WASHER 6MM
Price
N/A
103
HANDWHEEL
Price
$7.95
104
BUSHING
Price
$1.90
105
SET SCREW M6-1 X 45
Price
N/A
106
HEX NUT M6-1
Price
N/A
107
HEX BOLT M8-1.25 X 35
Price
N/A
108
KNOB M10-1.5
Price
$1.90
109
KNOB POST M10-1.5
Price
$3.25
110
HEX NUT M8-1.25
Price
N/A
111
CLAMP ARM
Price
$4.70
112
LOCK NUT
Price
$1.49
113
ECCENTRIC LOCK LEVER
Price
$7.60
114
CLAMP ARM SCREW M10-1.5 X 20
Price
$4.70
115
FENCE CARRIAGE
Price
$60.40
116
GEAR
Price
$10.85
117
STOP BLOCK 90 DEG
Price
$1.49
118
FLAT WASHER 10MM
Price
N/A
119
O-RING 6 X 1.8
Price
N/A
120
TILT LOCK SHAFT
Price
$5.10
121
TILT LOCK HANDLE
Price
$1.90
122
ALIGNMENT PIN 6 X 50
Price
$1.49
123
HEX BOLT M8-1.25 X 40
Price
N/A
124
BRACKET
Price
$19.10
125
SET SCREW M8-1.25 X 35
Price
N/A
126
SET SCREW M6-1 X 10
Price
N/A
127
ADJUST LEVER
Price
$2.60
128
BRACKET BLOCK M8-1.25 SMALL
Price
$2.60
129
BRACKET BLOCK
Price
$5.45
130
RIVET 2 X 4
Item is no longer available
Price
N/A
132
FENCE
Price
$131.95
133
CAP SCREW M8-1.25 X 30
Price
N/A
134
FLAT HD SCR M5-.8 X 10
Price
N/A
135
ROLL PIN 3 X 10
Price
N/A
136
RACK
Price
$10.10
137
CAP SCREW M5-.8 X 14
Price
N/A
138
GIB
Price
$9.40
139
FENCE SUPPORT
Price
$83.10
140
FLAT WASHER 12MM
Price
N/A
141
FENCE SUPPORT HEX NUT M12-1.75
Price
$1.90
142
FLAT WASHER 5MM
Price
N/A
143
LOCK WASHER 5MM
Price
N/A
144
CAP SCREW M5-.8 X 18
Price
N/A
145
FENCE SUPPORT FLAT WASHER 12 X 37 X 3
Price
$1.49
146
ECCENTRIC SHOULDER STUD
Item is no longer available
Price
N/A
147
CAP SCREW M8-1.25 X 35
Price
N/A
148
LOCK WASHER 8MM
Price
N/A
149
FLAT WASHER 8MM
Price
N/A
150
ROLL PIN 5 X 25
Price
N/A

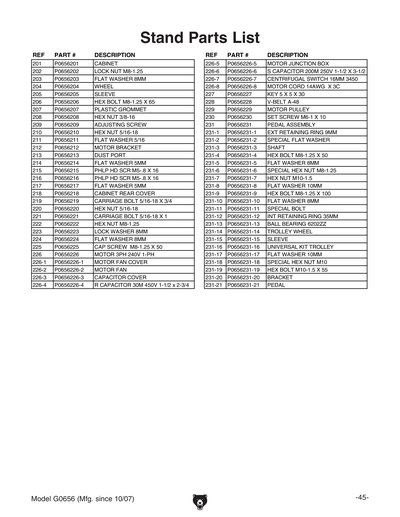

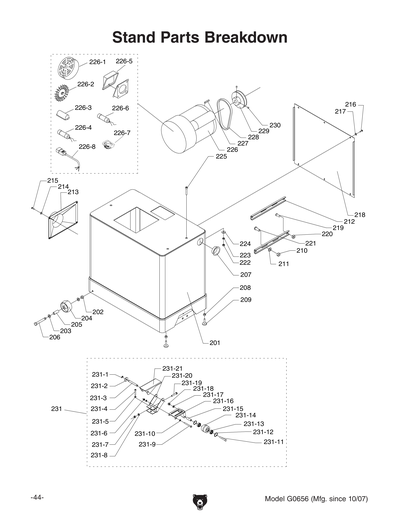

201
CABINET
Price
$411.90
201A
COMPLETE STAND ASSY BOX 2
Price
$924.35
202
HEX NUT M8-1.25
Price
N/A
203
FLAT WASHER 8MM
Price
N/A
204
UNIVERSAL WHEEL 78MM DIA
Price
N/A
205
SLEEVE
Price
N/A
206
HEX BOLT M8-1.25 X 65
Price
N/A
207
GROMMET PLASTIC
Item is no longer available
Price
N/A
208
P0656208
Now: PN08
HEX NUT 3/8-16
Price
N/A
209
ADJUSTING SCREW 3/8-16 X 1-3/4"
Price
$2.60
210
P0656210
Now: PN02
HEX NUT 5/16-18
Price
N/A
211
P0656211
Now: PW07
FLAT WASHER 5/16
Price
N/A
212
MOTOR BRACKET
Price
$9.00
213
DUST PORT
Price
N/A
214
FLAT WASHER 5MM
Price
N/A
215
PHLP HD SCR M5-.8 X 16
Price
N/A
216
PHLP HD SCR M5-.8 X 16
Price
N/A
217
FLAT WASHER 5MM
Price
N/A
218
CABINET REAR COVER
Price
$38.85
219
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
220
P0656220
Now: PN02
HEX NUT 5/16-18
Price
N/A
221
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
222
HEX NUT M8-1.25
Price
N/A
223
LOCK WASHER 8MM
Price
N/A
224
FLAT WASHER 8MM
Price
N/A
225
CAP SCREW M8-1.25 X 50
Price
N/A
226
MOTOR 3HP 240V 1-PH
Price
$330.35
226-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
226-10
BALL BEARING 6204ZZ
Price
N/A
226-11
BALL BEARING 6203ZZ
Price
N/A
226-2
MOTOR FAN
Price
$2.90
226-3
CAPACITOR COVER
Price
$4.70
226-4
R CAPACITOR 30M 450V 2-3/4 X 1-1/2
Price
$10.85
226-5
MOTOR JUNCTION BOX
Price
$1.90
226-6
S CAPACITOR 200M 250V 1-1/2 X 3-1/2
Price
$15.15
226-7
CENT SWITCH 5/8-3450
Price
N/A
226-8
MOTOR CORD 14AWG X 3C
Price
$6.15
226-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
227
KEY 5 X 5 X 30
Price
N/A
228
V-BELT A48
Price
N/A
229
MOTOR PULLEY
Price
$21.25
230
SET SCREW M6-1 X 10
Price
N/A
231
PEDAL ASSEMBLY
Price
$73.00
231-1
EXT RETAINING RING 9MM
Price
N/A
231-10
FLAT WASHER 8MM
Price
N/A
231-11
TROLLEY WHEEL BOLT
Price
N/A
231-12
INT RETAINING RING 35MM
Price
N/A
231-13
BALL BEARING 6202-2RS
Price
N/A
231-14
TROLLEY WHEEL
Price
N/A
231-15
TROLLEY WHEEL SLEEVE
Price
N/A
231-16
TROLLEY UNIVERSAL KIT
Price
N/A
231-17
FLAT WASHER 10MM
Price
N/A
231-18
LOCK NUT M12-1.75
Price
N/A
231-19
HEX BOLT M10-1.5 X 55
Price
N/A
231-2
FLAT WASHER 12MM
Price
N/A
231-20
BRACKET
Price
N/A
231-21
PEDAL
Price
N/A
231-3
SHAFT 12MM
Price
N/A
231-4
HEX BOLT M8-1.25 X 50
Price
N/A
231-5
FLAT WASHER 8MM
Price
N/A
231-6
HEX NUT M8-1.25
Price
N/A
231-7
HEX NUT M10-1.5
Price
N/A
231-8
FLAT WASHER 10MM
Price
N/A
231-9
HEX BOLT M8-1.25 X 100
Price
N/A

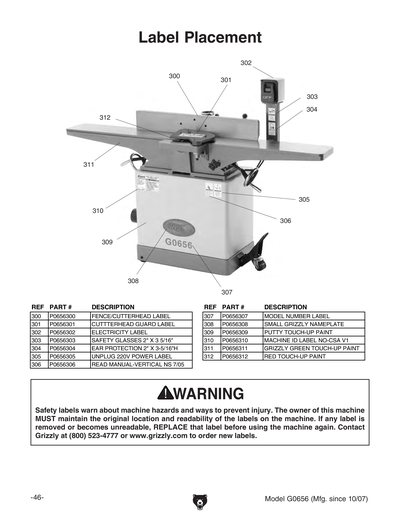

300
FENCE/CUTTERHEAD LABEL
Price
$1.25
301
CUTTERHEAD GUARD LABEL
Price
$1.25
302
ELECTRICITY 1.4W X 1.2H
Price
N/A
303
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
304
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
305
UNPLUG 220V POWER LABEL
Price
$1.25
306
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
307
MODEL NUMBER LABEL
Price
$2.85
308
Nameplate - Small
Price
N/A
309
GREY PUTTY REF G0504
Price
N/A
310
MACHINE ID LABEL NO CSA V1
Price
$16.40
310V2
MACHINE ID LABEL CSA V2.07.12
Price
$16.40
311
N/S GRIZZLY GREEN G1023S
Price
N/A
312
RED REF TOOL BOXES
Price
N/A
MAN
MANUAL FOR G0656 11/07
Price
$14.65
