Parts for G0656W - 8" x 72" Jointer with Mobile Base

Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W
Part Diagram for G0656W

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

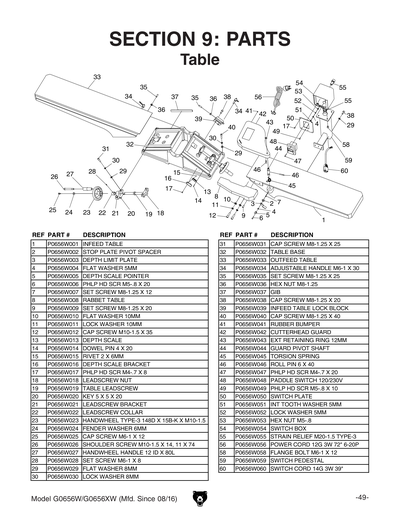

Ref #
Part #
Description
1
*DISCD*INFEED TABLE
Item is no longer available
Price
N/A
2
*DISCD*STOP PLATE PIVOT SPACER
Item is no longer available
Price
N/A
3
*DISCD*DEPTH LIMIT PLATE
Item is no longer available
Price
N/A
4
FLAT WASHER 5MM
Price
N/A
5
*DISCD*DEPTH SCALE POINTER
Price
$1.49
6
PHLP HD SCR M5-.8 X 20
Price
N/A
7
SET SCREW M8-1.25 X 12
Price
N/A
8
*DISCD*RABBET TABLE
Item is no longer available
Price
N/A
9
SET SCREW M8-1.25 X 20
Price
N/A
10
FLAT WASHER 10MM
Price
N/A
11
LOCK WASHER 10MM
Price
N/A
12
CAP SCREW M10-1.5 X 35
Price
N/A
13
*DISCD*DEPTH SCALE
Item is no longer available
Price
N/A
14
*DISCD*DOWEL PIN 4 X 20
Item is no longer available
Price
N/A
15
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
16
*DISCD*DEPTH SCALE BRACKET
Item is no longer available
Price
N/A
17
PHLP HD SCR M4-.7 X 8
Price
N/A
18
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
19
*DISCD*TABLE LEADSCREW
Item is no longer available
Price
N/A
20
KEY 5 X 5 X 20
Price
N/A
21
*DISCD*LEADSCREW BRACKET
Price
$1.49
22
*DISCD*LEADSCREW COLLAR
Item is no longer available
Price
N/A
23
*DISCD*HDWHEL TYPE-3 148DX15B-KXM10-1.5
Price
$24.15
24
FENDER WASHER 6MM
Price
N/A
25
CAP SCREW M6-1 X 12
Price
N/A
26
*DISCD*SHOULDER SCREW M10-1.5 X 14, 11 X
Item is no longer available
Price
N/A
27
*DISCD*HANDWHEEL HANDLE 12 ID X 80L
Price
$4.05
28
SET SCREW M6-1 X 8
Price
N/A
29
FLAT WASHER 8MM
Price
N/A
30
LOCK WASHER 8MM
Price
N/A
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
*DISCD*TABLE BASE
Item is no longer available
Price
N/A
33
*DISCD*OUTFEED TABLE
Item is no longer available
Price
N/A
34
*DISCD*ADJUSTABLE HANDLE M6-1 X 30
Price
$4.05
35
SET SCREW M8-1.25 X 25
Price
N/A
36
HEX NUT M8-1.25
Price
N/A
37
*DISCD*GIB
Item is no longer available
Price
N/A
38
CAP SCREW M8-1.25 X 20
Price
N/A
39
*DISCD*INFEED TABLE LOCK BLOCK
Item is no longer available
Price
N/A
40
CAP SCREW M8-1.25 X 40
Price
N/A
41
*DISCD*RUBBER BUMPER
Price
$1.49
42
*DISCD*CUTTERHEAD GUARD
Price
$13.80
43
EXT RETAINING RING 12MM
Price
N/A
44
*DISCD*GUARD PIVOT SHAFT
Price
$3.45
45
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
46
ROLL PIN 6 X 40
Price
N/A
47
PHLP HD SCR M4-.7 X 20
Price
N/A
48
Paddle Switch 120/230V
Price
N/A
49
PHLP HD SCR M5-.8 X 10
Price
N/A
50
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
51
INT TOOTH WASHER 5MM
Price
N/A
52
LOCK WASHER 5MM
Price
N/A
53
HEX NUT M5-.8
Price
N/A
54
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
55
*DISCD*STRAIN RELIEF M20-1.5 TYPE-3
Item is no longer available
Price
N/A
56
*DISCD*POWER CORD 12G 3W 72" 6-20P
Price
$19.30
58
FLANGE BOLT M6-1 X 12
Price
N/A
59
*DISCD*SWITCH PEDESTAL
Item is no longer available
Price
N/A
60
*DISCD*SWITCH CORD 14G 3W 39"
Price
$15.25

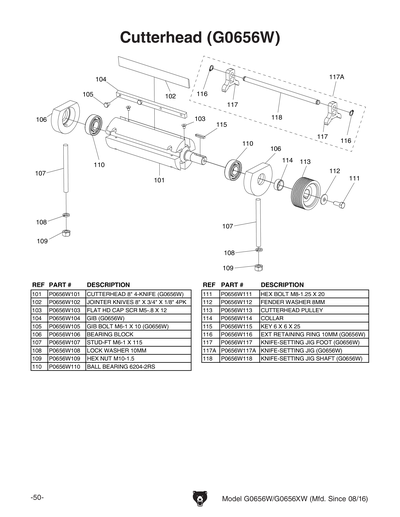

101
*DISCD*CUTTERHEAD 8" 4-KNIFE
Item is no longer available
Price
N/A
102
8-1/16" x 3/4" x 1/8" HSS Jointer Knives, Set of 4
Price
N/A
103
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
104
*DISCD*GIB
Item is no longer available
Price
N/A
105
*DISCD*GIB BOLT M6-1 X 10
Item is no longer available
Price
N/A
106
*DISCD*BEARING BLOCK
Price
$18.15
107
*DISCD*STUD-FT M6-1 X 115
Item is no longer available
Price
N/A
108
LOCK WASHER 10MM
Price
N/A
109
HEX NUT M10-1.5
Price
N/A
110
BALL BEARING 6204-2RS
Price
N/A
111
HEX BOLT M8-1.25 X 20
Price
N/A
112
FENDER WASHER 8MM
Price
N/A
113
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
114
*DISCD*COLLAR
Item is no longer available
Price
N/A
115
KEY 6 X 6 X 25
Price
N/A
116
EXT RETAINING RING 10MM
Price
N/A
117
*DISCD*KNIFE-SETTING JIG FOOT
Item is no longer available
Price
N/A
117A
*DISCD*KNIFE-SETTING JIG
Item is no longer available
Price
N/A
118
*DISCD*KNIFE-SETTING JIG SHAFT
Item is no longer available
Price
N/A

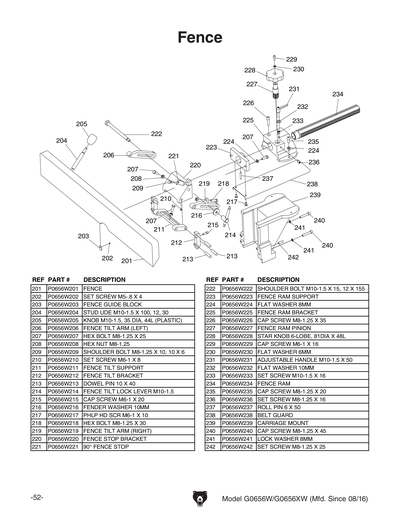

201
*DISCD*FENCE
Price
$107.25
202
*DISCD*SET SCREW M5-.8 X 4
Item is no longer available
Price
N/A
203
*DISCD*FENCE GUIDE BLOCK
Price
$1.49
204
*DISCD*STUD UDE M10-1.5 X 100, 12, 30
Price
$3.45
205
*DISCD*KNOB M10-1.5, 35 DIA, 44L PLASTIC
Price
$2.60
206
*DISCD*FENCE TILT ARM (LEFT)
Item is no longer available
Price
N/A
207
HEX BOLT M8-1.25 X 25
Price
N/A
208
HEX NUT M8-1.25
Price
N/A
209
*DISCD*SHOULDER BOLT M8-1.25 X 10, 10 X
Item is no longer available
Price
N/A
210
SET SCREW M6-1 X 8
Price
N/A
211
*DISCD*FENCE TILT SUPPORT
Item is no longer available
Price
N/A
212
*DISCD*FENCE TILT BRACKET
Price
$3.45
213
*DISCD*DOWEL PIN 10 X 40
Item is no longer available
Price
N/A
214
*DISCD*FENCE TILT LOCK LEVER M10-1.5
Item is no longer available
Price
N/A
215
CAP SCREW M6-1 X 20
Price
N/A
216
FENDER WASHER 10MM
Price
N/A
217
PHLP HD SCR M6-1 X 10
Price
N/A
218
HEX BOLT M8-1.25 X 30
Price
N/A
219
*DISCD*FENCE TILT ARM (RIGHT)
Item is no longer available
Price
N/A
220
*DISCD*FENCE STOP BRACKET
Price
$9.80
221
*DISCD*90° FENCE STOP
Item is no longer available
Price
N/A
222
*DISCD*SHOULDER BOLT M10-1.5 X 15, 12 X
Item is no longer available
Price
N/A
223
*DISCD*FENCE RAM SUPPORT
Price
$16.10
224
FLAT WASHER 8MM
Price
N/A
225
*DISCD*FENCE RAM BRACKET
Item is no longer available
Price
N/A
226
CAP SCREW M8-1.25 X 35
Price
N/A
227
*DISCD*FENCE RAM PINION
Item is no longer available
Price
N/A
228
*DISCD*STAR KNOB 6-LOBE, 81DIA X 48L
Price
$1.75
229
CAP SCREW M6-1 X 16
Price
N/A
230
FLAT WASHER 6MM
Price
N/A
231
*DISCD*ADJUSTABLE HANDLE M10-1.5 X 50
Item is no longer available
Price
N/A
232
FLAT WASHER 10MM
Price
N/A
233
SET SCREW M10-1.5 X 16
Price
N/A
234
*DISCD*FENCE RAM
Item is no longer available
Price
N/A
235
CAP SCREW M8-1.25 X 20
Price
N/A
236
SET SCREW M8-1.25 X 16
Price
N/A
237
ROLL PIN 6 X 50
Price
N/A
238
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
239
*DISCD*CARRIAGE MOUNT
Price
$54.35
240
CAP SCREW M8-1.25 X 45
Price
N/A
241
LOCK WASHER 8MM
Price
N/A
242
SET SCREW M8-1.25 X 25
Price
N/A

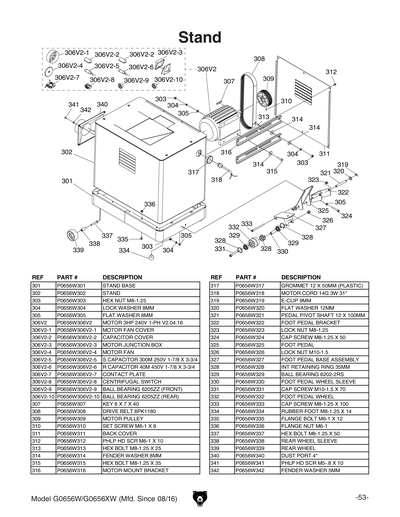

301
*DISCD*STAND BASE
Item is no longer available
Price
N/A
302
*DISCD*STAND
Item is no longer available
Price
N/A
303
HEX NUT M8-1.25
Price
N/A
304
LOCK WASHER 8MM
Price
N/A
305
FLAT WASHER 8MM
Price
N/A
306
*DISCD*MOTOR 3HP 240V 1-PH V1
Price
N/A
306-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
306-2
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
306-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
306-4
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
306-5
*DISCD*S CAPACITOR 300M 250V 1-7/8 X 3-3
Price
N/A
306-6
*DISCD*R CAP 40M 450V 1-7/8 X 3-3/4
Price
N/A
306-7
*DISCD*CONTACTOR
Item is no longer available
Price
N/A
306-8
*DISCD*CENTRIFUGAL SWITCH
Price
$4.90
306-9
BALL BEARING 6205ZZ
Price
N/A
306V2
*DISCD*MOTOR 3HP 240V 1-PH V2.04.16
Price
N/A
306V2-1
*DISCD*MOTOR FAN COVER
Price
N/A
306V2-10
BALL BEARING 6205ZZ
Price
N/A
306V2-11
*DISCD*MOTOR DUST COVER - CONE
Item is no longer available
Price
N/A
306V2-2
*DISCD*CAPACITOR COVER
Price
N/A
306V2-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
306V2-4
*DISCD*MOTOR FAN
Price
N/A
306V2-5
*DISCD*S CAPACITOR 300M 250V 1-7/8 X 3-3
Price
N/A
306V2-6
*DISCD*R CAPACITOR 40M 450V 1-7/8 X 3-3/4
Price
N/A
306V2-7
*DISCD*CONTACT PLATE
Price
N/A
306V2-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
306V2-9
BALL BEARING 6205ZZ
Price
N/A
307
KEY 8 X 7 X 40
Price
N/A
308
*DISCD*DRIVE BELT 8PK1180
Item is no longer available
Price
N/A
308A
*DISCD*DRIVE BELT 8PK1200
Price
$10.35
309
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
310
SET SCREW M6-1 X 8
Price
N/A
311
*DISCD*BACK COVER
Price
$7.50
312
PHLP HD SCR M6-1 X 10
Price
N/A
313
HEX BOLT M8-1.25 X 25
Price
N/A
314
FENDER WASHER 8MM
Price
N/A
315
HEX BOLT M8-1.25 X 35
Price
N/A
316
*DISCD*MOTOR MOUNT BRACKET
Item is no longer available
Price
N/A
317
*DISCD*GROMMET 12 X 50MM (PLASTIC)
Item is no longer available
Price
N/A
318
*DISCD*MOTOR CORD 14G 3W 31"
Item is no longer available
Price
N/A
319
E-CLIP 9MM
Price
N/A
320
FLAT WASHER 12MM
Price
N/A
321
*DISCD*PEDAL PIVOT SHAFT 12 X 100MM
Price
$1.75
322
*DISCD*FOOT PEDAL BRACKET
Price
$6.65
323
LOCK NUT M8-1.25
Price
N/A
324
CAP SCREW M8-1.25 X 50
Price
N/A
325
*DISCD*FOOT PEDAL
Price
$6.65
325A
*DISCD*FOOT PEDAL ASSEMBLY W/O WHEEL
Price
$24.75
326
LOCK NUT M10-1.5
Price
N/A
327
*DISCD*FOOT PEDAL BASE ASSEMBLY
Price
$8.95
328
INT RETAINING RING 35MM
Price
N/A
329
BALL BEARING 6202-2RS
Price
N/A
330
*DISCD*FOOT PEDAL WHEEL SLEEVE
Price
$2.60
331
CAP SCREW M10-1.5 X 70
Price
N/A
332
*DISCD*FOOT PEDAL WHEEL
Price
$9.80
333
CAP SCREW M8-1.25 X 100
Price
N/A
334
*DISCD*RUBBER FOOT M8-1.25 X 14
Item is no longer available
Price
N/A
335
FLANGE BOLT M6-1 X 12
Price
N/A
336
FLANGE NUT M6-1
Price
N/A
337
HEX BOLT M8-1.25 X 50
Price
N/A
338
*DISCD*REAR WHEEL SLEEVE
Item is no longer available
Price
N/A
339
*DISCD*REAR WHEEL
Item is no longer available
Price
N/A
340
*DISCD*DUST PORT 4"
Price
$4.05
341
PHLP HD SCR M5-.8 X 10
Price
N/A
342
FENDER WASHER 5MM
Price
N/A

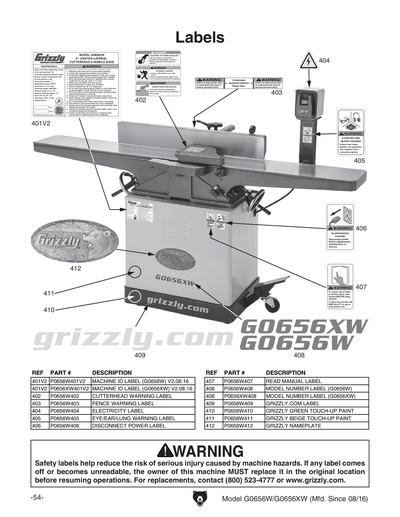

401
*DISCD*MACHINE ID LABEL V1
Item is no longer available
Price
N/A
402
*DISCD*CUTTERHEAD WARNING LABEL
Price
$1.25
403
*DISCD*FENCE WARNING LABEL
Item is no longer available
Price
N/A
404
ELECTRICITY 1.4W X 1.2H
Price
N/A
405
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
406
DISCONNECT 110V 2W X 3.3H
Price
N/A
407
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
408
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
409
*DISCD*GRIZZLY.COM LABEL
Price
$2.25
410
N/S GRIZZLY GREEN G1023S
Price
N/A
411
BEIGE REF G0555
Price
N/A
412
Nameplate - Small
Price
N/A
MAN
MANUAL G0656W G0656XW MFD-09.15-07.16
Price
$14.65
MANV2
MANUAL G0656W G0656XW MFD-05.16 V2.08.16
Item is no longer available
Price
N/A
