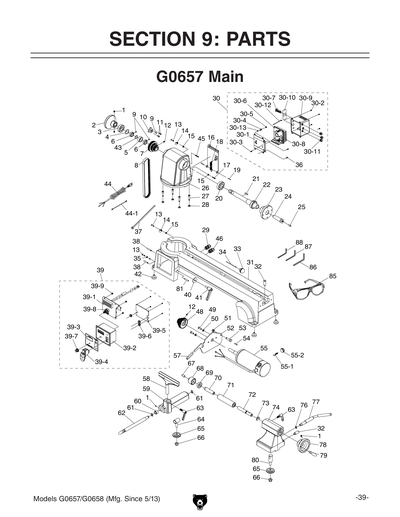

Parts for G0657 10 x 16 Heavy-Duty Bench-Top Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

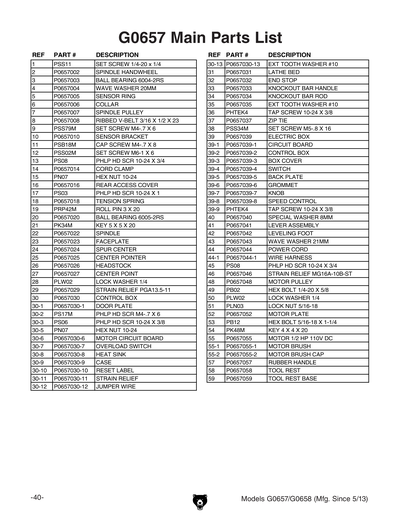

1
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
2
SPINDLE HANDWHEEL
3
BALL BEARING 6004-2RS
Price
N/A
4
WAVY WASHER 30MM
Price
N/A
5
SENSOR RING
Price
N/A
6
COLLAR
7
SPINDLE PULLEY
8
RIBBED V-BELT 3/16 X 1/2 X 23
9
SET SCREW M4-.7 X 6
Price
N/A
10
SENSOR BRACKET
Item is no longer available
Price
N/A
11
CAP SCREW M4-.7 X 8
Price
N/A
12
SET SCREW M6-1 X 6
Price
N/A
13
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
14
CORD CLAMP
Item is no longer available
Price
N/A
15
Now: PN07
HEX NUT 10-24
Price
N/A
16
REAR ACCESS COVER
Item is no longer available
Price
N/A
17
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
18
TENSION SPRING
Item is no longer available
Price
N/A
19
ROLL PIN 3 X 20
Price
N/A
20
BALL BEARING 6005-2RS
Price
N/A
21
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
22
SPINDLE
23
FACEPLATE
24
SPUR CENTER
25
*DISCD*CENTER POINTER
Item is no longer available
Price
N/A
26
HEADSTOCK
Item is no longer available
Price
N/A
26A
COMPLETE HEADSTOCK ASSY
27
CAP SCREW 1/4-20 X 1
Price
N/A
28
Now: PLW02
LOCK WASHER 1/4
Price
N/A
29
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
30
CONTROL BOX
Item is no longer available
Price
N/A
30-1
DOOR PLATE
30-10
RESET LABEL
Item is no longer available
Price
N/A
30-11
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
30-12
JUMPER WIRE
30-13
EXT TOOTH WASHER #10
Price
N/A
30-2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
30-3
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
30-5
Now: PN07
HEX NUT 10-24
Price
N/A
30-6
MOTOR CIRCUIT BOARD
30-7
OL SWITCH
30-8
HEAT SINK
30-9
CASE
31
LATHE BED
Item is no longer available
Price
N/A
32
END STOP
Item is no longer available
Price
N/A
33
KNOCKOUT BAR HANDLE
34
KNOCKOUT BAR ROD
35
EXT TOOTH WASHER #10
Price
N/A
36
TAP SCREW 10-24 X 3/8
Price
N/A
37
ZIP TIE
Item is no longer available
Price
N/A
38
SET SCREW M5-.8 X 16
Price
N/A
39
ELECTRIC BOX
Item is no longer available
Price
N/A
39-1
*DISCD*CIRCUIT BOARD
Item is no longer available
Price
N/A
39-2
CONTROL BOX
39-3
BOX COVER
39-4
Now: G8988
Safety Paddle Switch
Price
N/A
39-5
BACK PLATE
Item is no longer available
Price
N/A
39-6
GROMMET M3.5
39-7
KNOB
39-8
*DISCD*SPEED CONTROL
Item is no longer available
Price
N/A
39-9
TAP SCREW 10-24 X 3/8
Price
N/A
40
FENDER WASHER 8MM GALVANIZED
Item is no longer available
Price
N/A
41
LEVER ASSY
Item is no longer available
Price
N/A
42
LEVELING FOOT
43
WAVE WASHER 21MM
44
POWER CORD
Item is no longer available
Price
N/A
44-1
WIRE HARNESS
45
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
46
STRAIN RELIEF M16 TYPE-6 ST
Item is no longer available
Price
N/A
48
MOTOR PULLEY
49
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
50
Now: PLW02
LOCK WASHER 1/4
Price
N/A
51
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
52
MOTOR PLATE
Item is no longer available
Price
N/A
53
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
54
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
55
MOTOR 1/2HP 110V 1-PH
55-1
MOTOR BRUSH
55-2
MOTOR BRUSH CAP
57
RUBBER HANDLE
Item is no longer available
Price
N/A
58
TOOL REST
59
TOOL REST BASE 7-7/8" LONG

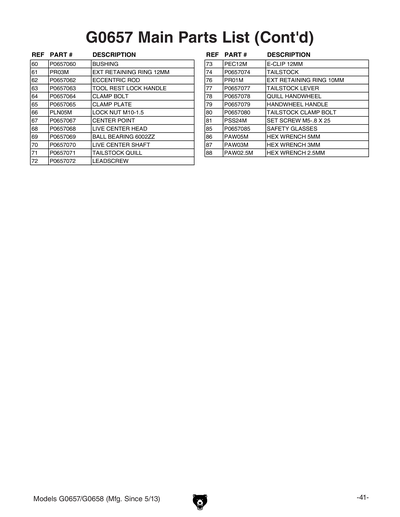

60
BUSHING
61
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
62
ECCENTRIC ROD
63
TOOL REST LOCK HANDLE
64
CLAMP BOLT
65
CLAMP PLATE
66
LOCK NUT M10-1.5
Price
N/A
67
CENTER POINT
68
LIVE CENTER HEAD
Item is no longer available
Price
N/A
69
BALL BEARING 6002ZZ
Price
N/A
70
LIVE CENTER SHAFT
Item is no longer available
Price
N/A
71
TAILSTOCK QUILL
72
LEADSCREW
73
E-CLIP 12MM
Price
N/A
74
TAILSTOCK
74A
COMPLETE TAILSTOCK ASSY
76
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
77
TAILSTOCK LEVER
78
QUILL HANDWHEEL
79
HANDWHEEL HANDLE
80
TAILSTOCK CLAMP BOLT
81
SET SCREW M5-.8 X 25
Price
N/A
85
SAFETY GLASSES
Item is no longer available
Price
N/A
86
HEX WRENCH 6MM
Price
N/A
87
HEX WRENCH 5MM
Price
N/A
88
HEX WRENCH 3MM
Price
N/A
91
MANUAL FOR G0657 02/08
Price
N/A
101

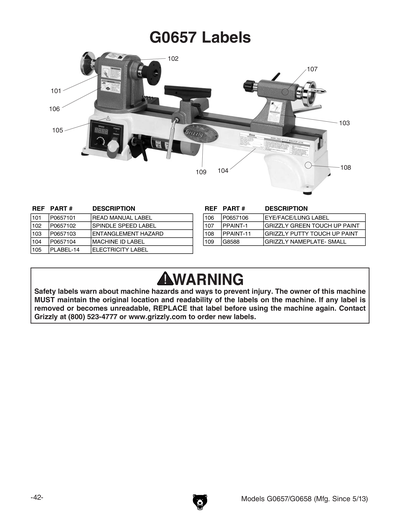

READ MANUAL LABEL
Item is no longer available
Price
N/A
102
SPINDLE SPEED LABEL
103
ENTANGLEMENT HAZARD
Item is no longer available
Price
N/A
104
MACHINE ID LABEL
Item is no longer available
Price
N/A
105
ELECTRICITY 1.4W X 1.2H
Price
N/A
106
EYE/FACE/LUNG LABEL
Item is no longer available
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
GREY PUTTY REF G0504
Price
N/A
109
Now: G8588
Nameplate - Small
Price
N/A
MAN
MANUAL FOR G0657 02/08
